Cell cycle-dependent and -independent telomere shortening accompanies murine brain aging

Relative telomere length of cortical neural cells in G₀/G₁ phase is reduced in the aged brain

RTL of cortical neural cells residing in G₀/G₁ phase of the cell cycle was significantly reduced in mice aged up to 25-27 months (n = 8) compared with young gender-matched counterparts at an age of 3 months (n = 4). Accordingly, the absolute PNA-FITC-specific mean fluorescence intensity (MFI) corrected against background signal (specific MFI) for aged and young neural cells accounted for 41.81 a.u. and 50.76 a.u., respectively (Figure 1A, dotted bars). This corresponded to a decline in specific MFI by 17.64% (P = 0.026). Such a reduction in specific MFI reflects a significant age-dependent loss in mean telomere repeat length.

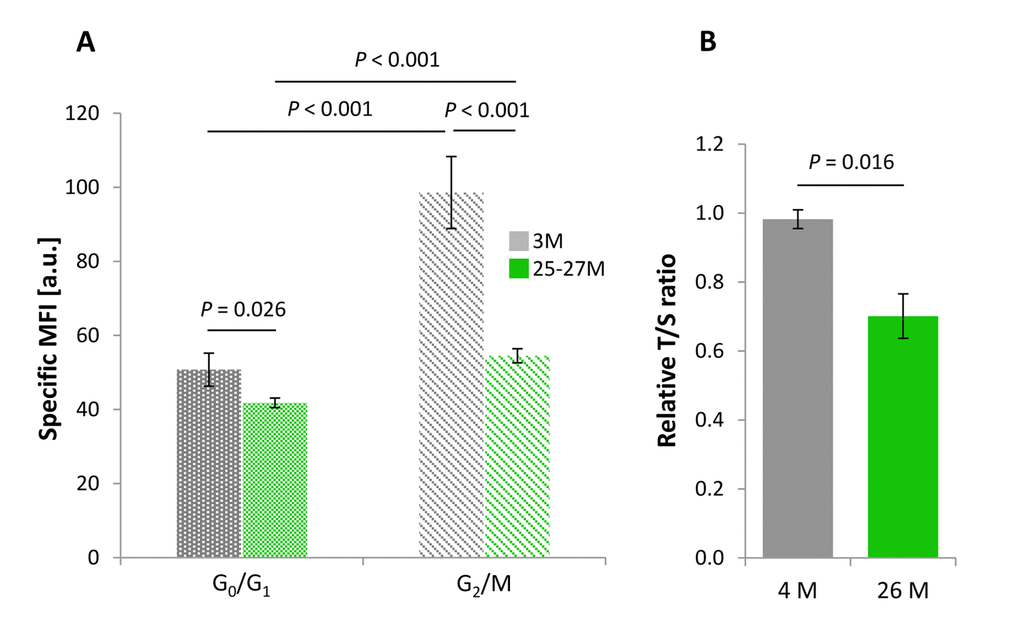

Figure 1. Age-dependent changes in the RTL of cortical neural cell isolates. (A) RTL assessed by Flow-FISH as a function of cell cycle activity. PNA-FITC-related mean fluorescence intensity corrected against background signal (specific MFI) was taken as an indirect parameter for RTL in cells at G₀/G₁ and G₂/M phases of the cell cycle. For both cell populations, a significant age-related reduction in RTL was observed. Bars represent means ± SEM (n = 4 - 8). P-values were assessed with Two-way ANOVA. (B) Cell cycle-independent measurement of RTL assessed by qPCR and determined in terms of a relative T/S-ratio that was referenced against a 4-month-old control group. RTL declined significantly in cortical neural cells of aged as compared to young samples, thus confirming the results obtained in (A). Bars represent means ± SEM (n = 3 - 4). P-values were calculated using the Student’s t-test.

Autofluorescence increased in aged relative to young samples both with respect to the PI- and the FITC-detecting signals. However, when exemplified for 4.5 months versus 22 months old animals a change from 0.457 ± 0.067% overlap with the specific channel in the young specimens to 1.382 ± 0.423% overlap in the samples from old isolates for the telomere-related PNA-FITC signal reflects that sensitivity was preserved for >98% of the cells.

Relative telomere length of cortical neural cells in G₂/M phase is strongly reduced by aging

RTL was further examined in neural cortical cells that exited G₀/G₁ phase of the cell cycle and adopted features of G₂/M phase, as identified by FACS gating strategies on the basis of their increased DNA content. RTL of G₂/M phase cells isolated from 25-27 months aged rodents was drastically reduced by 44.72% (n = 8) compared with neural populations derived from young animals (n = 4), as reflected by an absolute decline in specific MFI from 98.58 a.u. to 54.49 a.u. with age (P < 0.001; Figure 1A, striped bars).

RTL measures by qPCR correspond to Flow-FISH-based RTL results

Since Flow-FISH-based protocols for telomere length evaluations are primarily established for blood cells, we previously assessed nuclear localization of PNA-FITC-specific fluorescence also in nuclei of murine cortical neurons and the lymphoma cell line L5178-R. As shown in Figure S1, after hybridization the PNA-FITC-specific signal was co-localized with neuronal and nuclear markers in cortical neurons (Figure S1A), displaying a signal pattern similar to that in nuclei derived from the lymphoma cell line, both in interphase and metaphase (Figure S1B and C). For validation of absolute telomere length attained by our protocol, the human tetraploid T-cell leukemia 1301 cell line with extremely long telomeres was employed as an internal reference. Underlying a telomere length of ~ 90 kbp for this cell line [15], the results obtained for our murine neural isolates indicate an appropriate telomere repeat content of ~ 84 kbp and ~ 98 kbp in G₀/G₁ and G₂/M phases, respectively (Figure S2), which is in the range reported for Mus musculus [6,7].

In order to further validate our protocol and results on cortical neural RTL achieved by Flow-FISH, we applied a standard quantitative real time PCR approach, according to a protocol by O’Callaghan and Fenech [16]. Telomere repeat copies amplified from each sample were referenced against a single copy gene amplification product and expressed as T/S-ratio. One limitation of the qPCR approach is that it does not support a cell cycle phase-specific RTL assessment. As illustrated in Figure 1B, analysis of cortical cell isolates including all active cell cycle phases showed a significant age-dependent decline in the RTL by 28.61% when assessed as T/S-ratio (P = 0.016; Figure 1B) and thus confirmed the Flow-FISH-based results.

Age-related telomere shortening of cortical neural cells is not caused by changes in cell composition

To confirm that the observed age-associated changes in RTL of cortical neural cells are not influenced by variations in the composition of neural cell types with either moderate or absent cell cycle activity, the proportions of different neural identities were assessed in cortical cell isolates at different ages. Neurons accounted for 47.93 ± 1.59% and 48.78 ± 1.25% in lysates from young mature and aged animals, respectively (P = 0.676; Figure 2B) indicating that their relative abundance was not influenced by aging. The vast majority of the vital cells, of which approximately every second exhibited a neuronal identity (Figure 2A and B), were found in G₀/G₁ phase at either age category (Figure 2E). Moreover, together with the neuronal moiety, non-neuronal glia populations comprising astrocytes, oligodendrocytes and microglia, amounted up to 93.31 ± 0.54% (3 months) and 94.19% ± 0.46% (27 months) of the total cortical cell isolate, and thus did also not shift with age (Figure 2A and B). The remaining 5-7% of uncharacterized cells is most likely of endothelial origin. In summary, age-related differences in RTL were not affected by cell composition.

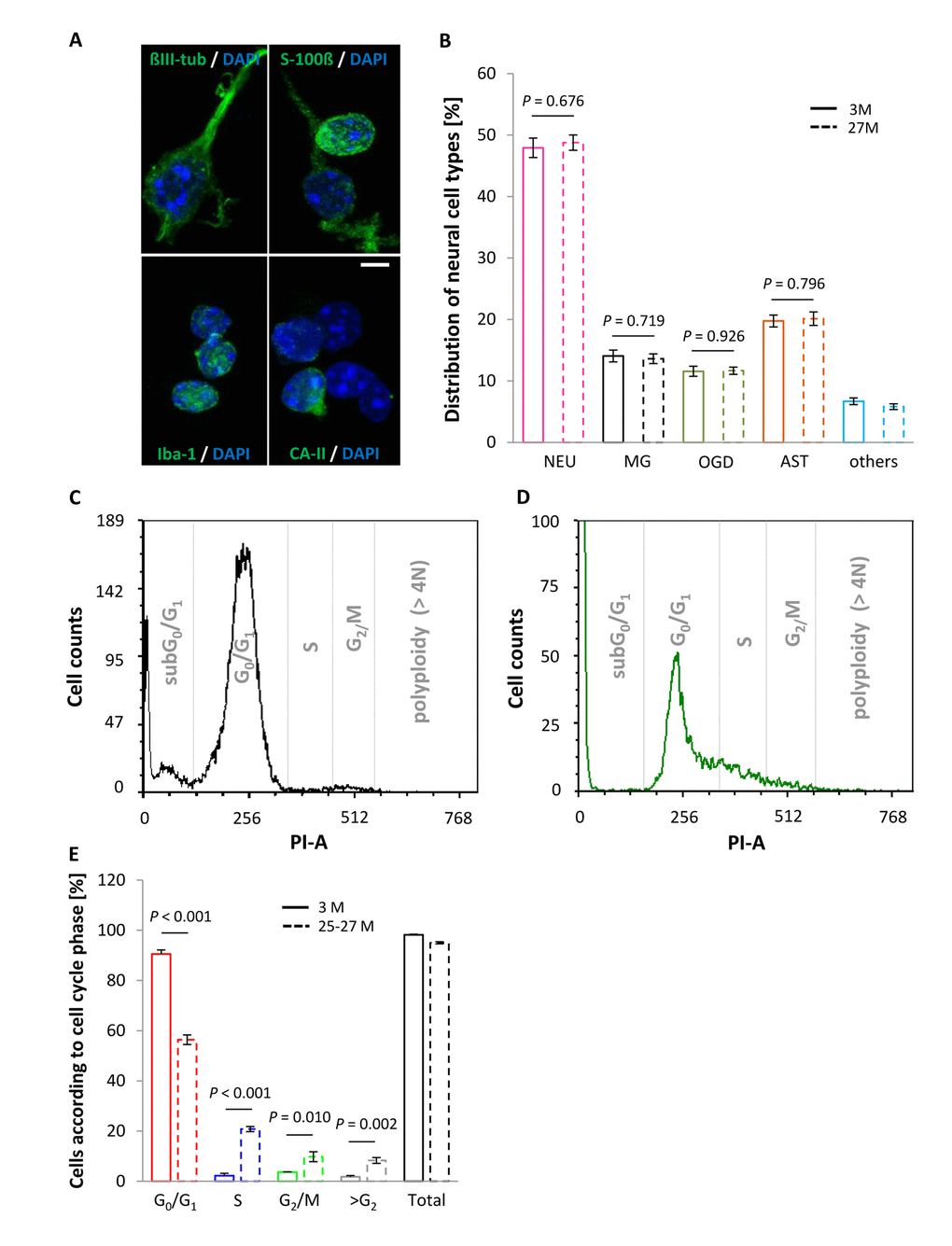

Figure 2. Neural cell type proportions and DNA content in the vital fraction of cortical cell isolates as a function of age. (A) Cellular entities were identified by applying cell type-specific markers, using ßIII-tubulin, S100-ß, Iba-1 and CA-II for neurons, astrocytes, microglia and oligodendrocytes, respectively, with cell nuclei being discriminated by DAPI. Scale bar, 5 µm. (B) Cell type-specific proportions did not vary between young and aged mice. NEU, neurons; MG, microglia; OGD, oligodendrocytes; AST, astrocytes. Bars represent means ± SEM (n = 500 cells out of 3 animals per condition). (C and D) Representative DNA histograms illustrating an age-associated shift in cell cycle activity, as assessed by PI staining of DNA from murine cortical neural cell isolates at an age of 3 months (C) and 25-27 months (D). (E) Neocortical cell constituents derived from aged animals showed a shift towards replicative cell cycle phases, marked by a significant increase in the proportion of cells in S, G₂/M and >G₂ phase, whereas the percentage of cells in G₀/G₁ phase declined significantly at higher age. Bars represent means ± SEM (n = 4 - 8). For (B and E) P-values were calculated using the Student’s t-test.

Notably, an age-associated increase in the number of neural cells entering the cell cycle and displaying a DNA content characteristic of an S phase state or G₂/M phase was detected, as delineated in the DNA histograms given in Figure 2C and D and quantified in Figure 2E. Moreover, although the proportion of aneuploid cells, discerned by a DNA content of more than 4N, was negligible in young animals (1.76 ± 0.48%, n = 4) it significantly augmented in aged animals up to 8.28 ± 1.15% (n = 8), as indicated by the >G₂/M bar in Figure 2E (P = 0.002). This suggests that polyploidy/aneuploidy is a rare event in the young and healthy brain but may increase in the aged CNS.

Higher mean fluorescence intensity in G₂/M phase cell populations is proportionate to the increased telomeric DNA content

Cell fractions attributable to G₂/M phase of the cell cycle from both young and aged animals displayed an overall higher specific MFI level than cell populations in G₀/G₁ phase (P < 0.001 for both comparisons; Figure 1A), probably due to the increased DNA content intrinsic to nuclei beyond S phase and hence an augmented telomere-specific DNA content per cell. As delineated in Figure 1A, the corrected telomere-related MFI values of G₂/M phase populations were highest in young animals, as indicated by a 94.2% increase relative to G₀/G₁ populations (P < 0.001). Aging attenuated this increase relative to G₀/G₁ phase levels to 30.34% (P < 0.001, Figure 1A). To ascertain that this increase in specific MFI of G₂/M cells is due to doubled DNA content rather than to intrinsically longer telomere tracts, absolute values for PNA-FITC-related MFI were normalized against the sample-specific total DNA content (Propidium iodide area, [PI-A]) for both the G₀/G₁ and G₂/M phase cell fractions, and compared between young and advanced ages. The ratios obtained ranged between 0.306 ± 0.011 and 0.295 ± 0.009 in the young group (P = 0.614) and 0.270 ± 0.014 and 0.261 ± 0.009 in the aged group (P = 0.547) for G₀/G₁ and G₂/M, respectively (Figure 3). The stable ratios for G₀/G₁ and G₂/M cells, irrespective of age, exclude that the elevation in the PNA-FITC-related MFI of G₂/M phase samples is due to an increase in telomere length, but argues for an origin from amplified telomere tract numbers subsequent to the S phase transition. It also supports that the age-associated decline in specific MFI of both cellular populations residing either in G₀/G₁ or G₂/M phase is a consequence of actual telomere shortening rather than any artifact arising from a decreased DNA content. Accordingly, when the DNA content of cortical neural cells was referenced against the nuclear DNA amount of trout erythrocytes as a positive control, the ratios of 1.089 ± 0.0022 (n = 4) and 1.087 ± 0.0004 (n = 4) obtained for young and aged cell isolates, respectively (P = 0.352), as illustrated in Figure S3, were both in accordance with the ratio of 1.086 predicted from the animal genome sizes (http://www.genomesize.com). These measures thus prove that the MFI calculations are based on a standard diploid genome of murine origin.

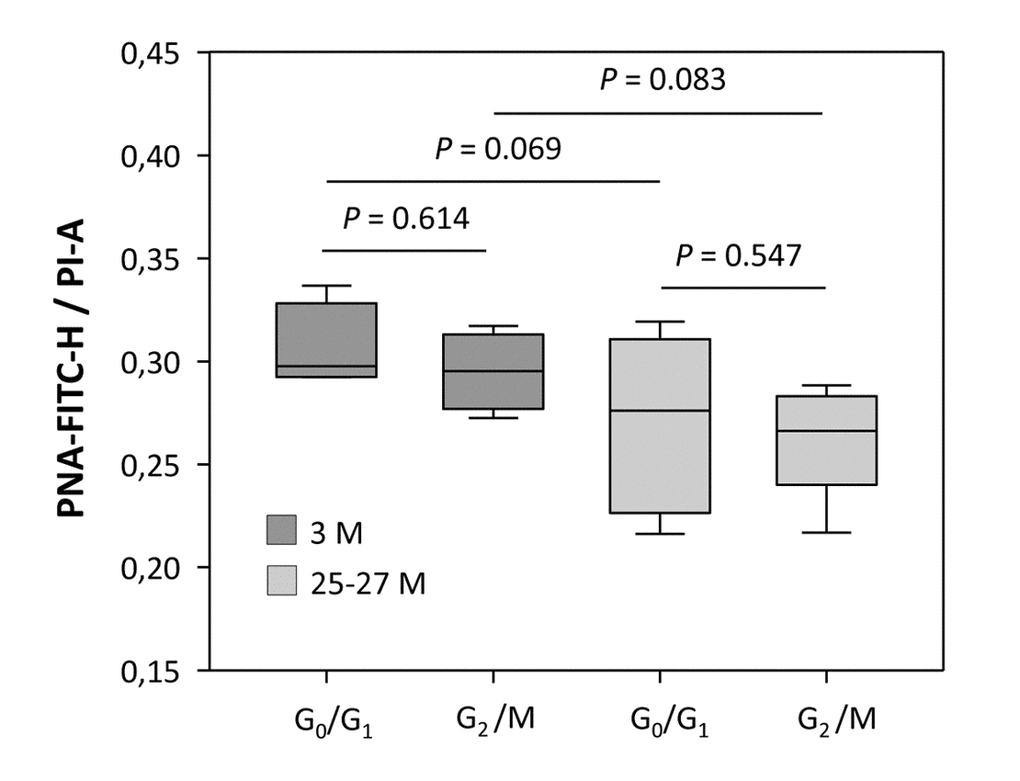

Figure 3. Relationship between telomere-related DNA and the total DNA content at different cell cycle phases, assessed for young and aged cortical neural cell isolates. Telomere-related DNA (PNA-Fluorescein Isothiocyanate height [PNA-FITC-H]-specific MFI) was normalized against the total DNA content (propidium iodide area [PI-A]-specific MFI). The ratio of PNA-FITC-related MFI corrected against the DNA content of G₀/G₁ and G₂/M phase displayed stable values for both young and aged groups. Bars represent means ± SEM (n = 4 - 8). P-values were calculated using the Student’s t-test.

Cell cycle activity represented by G₂/M phase cortical neural cells is a putative driving force for age-dependent telomere shortening

The age-dependent decline in RTL of G₀/G₁ phase populations was moderate as reflected by an aged:young RTL ratio close to 1.0, i.e. of 0.88 ± 0.05, whereas the age-related decrease in RTL was drastic for actively cycling G₂/M phase cell populations, displaying a diminished ratio of 0.58 ± 0.03 (P = 0.003, Figure 4). Thus, though not exclusive for cells with replicative features, cell cycle activity represented by cell cycle phases beyond G₀/G₁ might constitute a driving force for age-dependent telomere shortening also in the CNS.

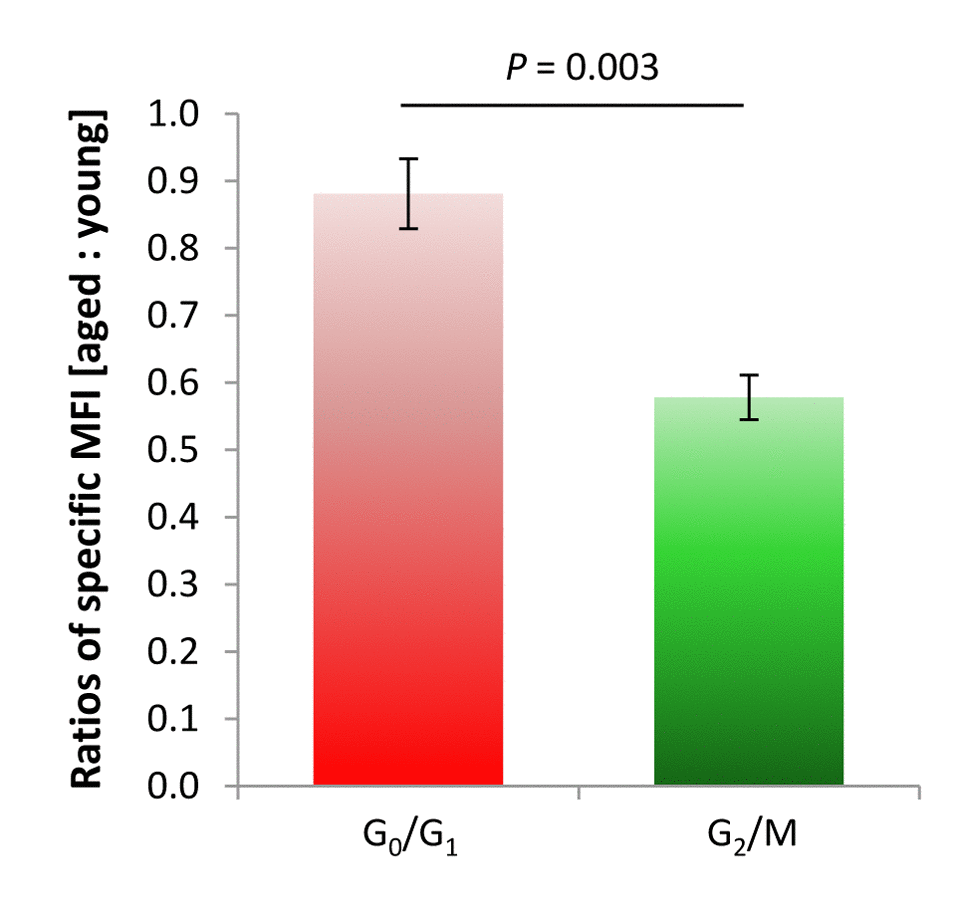

Figure 4. Rate of age-dependent changes in RTL of cortical neural isolates from murine neocortex, for G₀/G₁ and G₂/M phases of the cell cycle. A lower specific MFI ratio between aged and young specimens for G₂/M-phase cells as compared to a more stable specific MFI ratio for moieties arrested at G₀/G₁ phase reflected a substantial age-related decline in RTL in replicative cell entities in the murine cortex over lifetime. Bars represent means ± SEM (n = 4 - 8). P-values were calculated using Student’s t-test.

Cortical neurons undergo telomere shortening with aging

As delineated in Figure 2B, approximately 50% of the cells in the cortical neural cell isolates possess neuronal identity. This raised the question whether neurons, despite being primarily postmitotic, are also involved in the age-associated decline in RTL defined for the aged cerebral cortex. In order to determine the contribution of neurons to this telomere erosion process, neuronal RTL was assessed using a qPCR-based strategy subsequent to FACS of cells positive for the neuron-specific NeuroFluor™ NeuO marker, as the NeuO approach was incompatible with the Flow-FISH technique used previously for RTL assessment. The T/S-ratio of cortical neurons, which relates the telomere repeat amplicons to the 36B4 single copy gene amplification product, declined with aging by 38.8% (P = 0.043, Figure 5) indicating that post-mitotic neurons in the aging murine cortex are subjected to substantial telomere shortening.

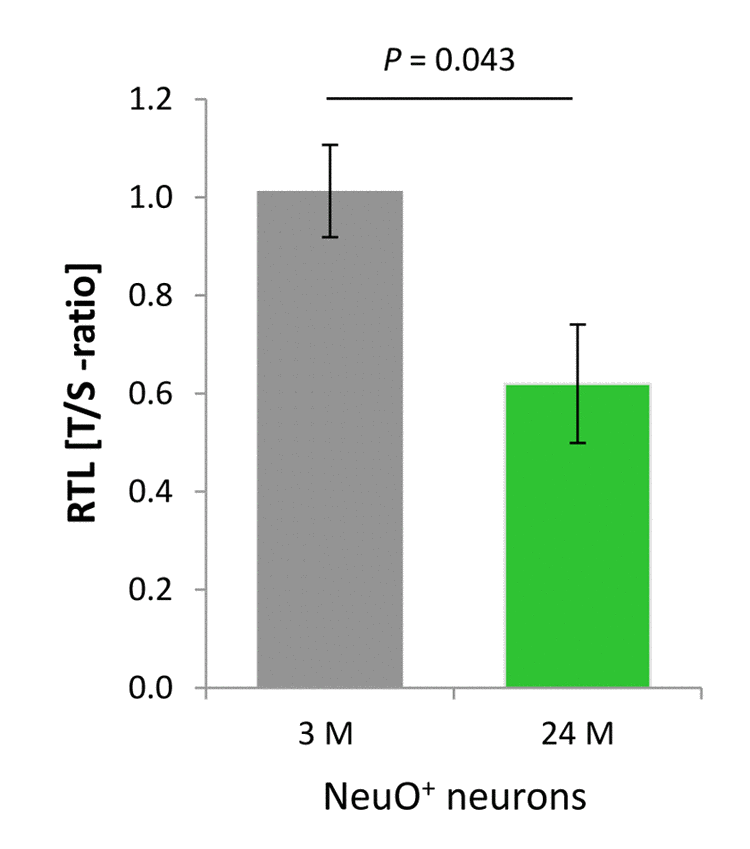

Figure 5. Age-dependent telomere length dynamics in the neuronal fraction sorted from murine cortical isolates. NeuO⁺ neurons showed a significant age-related decline in RTL as determined by qPCR in terms of telomere repeat (T) to single copy gene (S) ratio. Bars represent means ± SEM (n = 4). P-values were calculated using Student’s t-test.

Activity of telomerase enzyme is unchanged in the aging cortex

The catalytically active TERT and telomerase RNA component are the most important units of the telomerase holoenzyme. Telomerase activity was measured using a standard qPCR-based TRAP assay and referenced against the intrinsic activity of a HeLa cell-derived positive cell extract according to Klapper and colleagues [11], or expressed in absolute values. These were found to be low in mature cortex as compared to E13 brain (Figure 6A) and remained unchanged with chronological aging, as demonstrated by the comparably weak activity levels in 3 months young and 24-27 months aged murine neocortices (P = 0.617; Figure 6A). The observed reduction in RTL with aging might therefore be a result of the intrinsic inability of the murine brain to induce telomerase activity, which otherwise could compensate for telomere erosion.

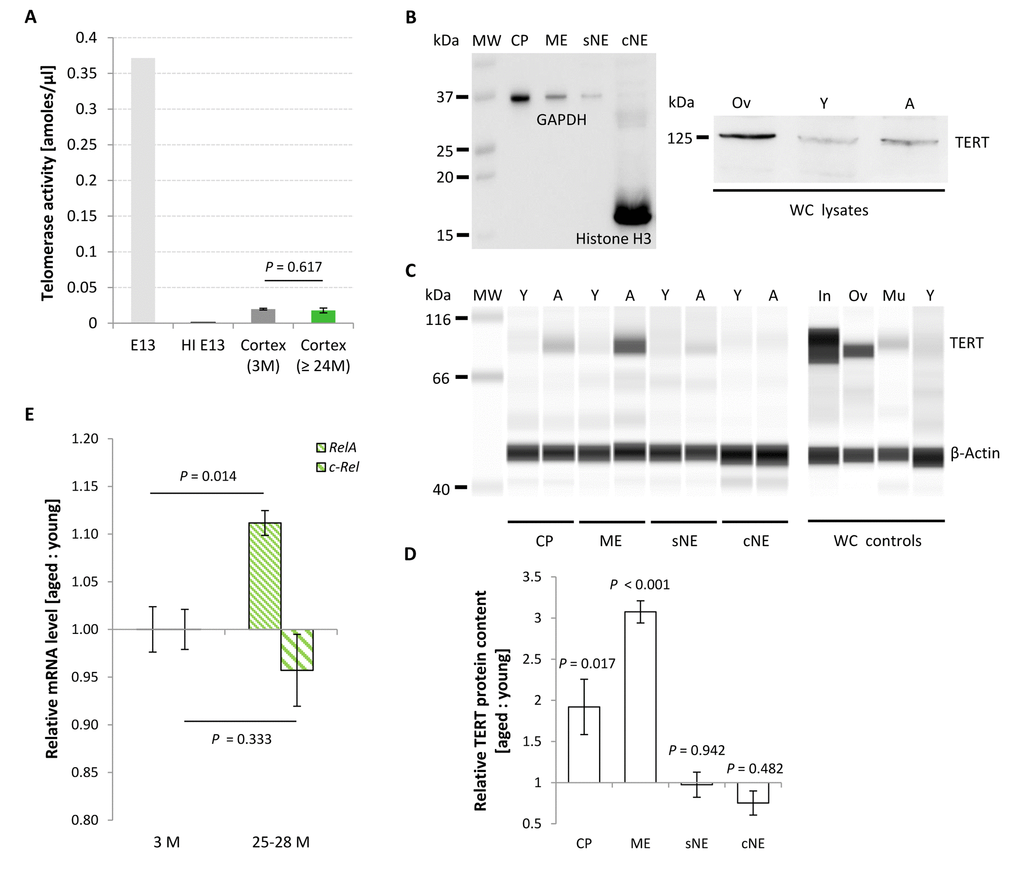

Figure 6. Age-associated changes in TERT protein content, telomerase activity and relative Rela and c-Rel expression levels in the murine cortex. (A) Telomerase activity assessed from cortical isolates as a function of age. Telomerase activity in the mature neocortex remained unchanged with aging, displaying activity levels approximately 20 times lower than in E13 brain. Bars of probe samples represent means ± SEM (n = 5). HI E13, heat inactivated E13 protein extract. (B-D) Relative TERT protein levels in different subcellular compartments of murine cortical tissue at young (Y) and aged (A) states. (B) Left blot: Conventional Western blot. Purity of the cellular subfractions is illustrated by the enriched levels of the nuclear and cytoplasmic marker proteins Histone H3 and GAPDH in the chromatin-bound nuclear (cNE) and cytoplasmic (CP) fractions, respectively. Right blot: TERT product at the appropriate molecular weight of ~ 125 kDa in whole cell (WC) lysates from ovary (Ov) and cortex of young (Y) and aged (A) mice. (C) Simple Western™ technique. Little or no TERT protein was expressed in the soluble nuclear (sNE) and chromatin-bound nuclear (cNE) fraction, respectively, at both age categories, whereas TERT protein was found at significantly higher levels in the cytoplasmic (CP) and membrane (ME) fractions at 27 months of age. Specificity of the TERT antibody was proven by the detection of different TERT protein levels in whole cell (WC) lysates prepared from small intestine (In), ovary (Ov), muscle (Mu) and cortex of young mice (Y). All cortical samples were assayed in the same run, as were all the control samples. (D) Quantification of the compartment-specific TERT protein levels for young and old cortices as illustrated in (C). Bars represent means ± SEM (n = 3), and were reproduced in two independent runs. (E) Age-associated changes in relative mRNA levels of the subunits Rela and c-Rel of canonical NF-κB. Rela transcription levels increased significantly at advanced ages, whereas levels of c-Rel remained unaltered. Ratios represent geometric means of n = 5 animals ± SEM. P-values were calculated using Student’s t-test (A) and Two-way ANOVA (D and E).

Subcellular content of TERT protein changes with aging

In the murine brain, telomerase enzyme activity shows only inconsistent correlation with TERT mRNA and protein levels [11,12], thus suggesting the involvement of TERT protein in non-canonical functions unrelated to telomere replenishment [14]. Moreover, TERT protein persists in adult neurons but not astrocytes [17], and its allocation to subcellular compartments varies with cellular conditions [13,14]. In order to reveal putative age-associated changes in TERT protein functions, we further assessed its content in different subcellular fractions isolated from murine neocortex, including neurons. Purity grade of the subcellular fractions was assessed by western blot, illustrating Histone H3 presence selectively in the chromatin-bound nuclear fraction (cNE) and a strong enrichment of the marker protein GAPDH in the cytoplasmic fraction (CP) (Figure 6B, left side). As a multifunctional protein, GAPDH is well established to exist not only in the cytoplasm but in diverse subcellular locations including membrane, cytoskeletal and nuclear compartments [18]. The soluble (sNE) and chromatin-bound (cNE) nuclear fractions were chosen to assess canonical chromatin-associated TERT functions, whereas cytoplasmic (CP) TERT would possibly reflect alternative cellular assignments and functions within organelles such as mitochondria [14]. A membrane fraction (ME) was included to assess TERT protein levels in the cellular membranes, comprising organelle-derived ones. TERT protein both in the sNE and cNE fractions was low to absent, and did not change between young and aged cellular states (0.97 ± 0.15-fold for sNE; P = 0.942; 0.75 ± 0.15-fold for cNE; P = 0.482; Figure 6C and D). In contrast, TERT protein levels in CP and ME sub-fractions significantly increased with aging, thereby reaching fold changes of 1.92 ± 0.34 (P = 0.017) and 3.08 ± 0.13 (P < 0.001) above expression levels in young controls, respectively (Figure 6C and D). Levels of the reference protein ß-Actin were not altered with aging. Specificity of the polyclonal anti-TERT antibody used in this study was verified by probing TERT control tissue lysates in parallel with the sub-fractionated cortical samples, demonstrating a strong TERT product in whole cell (WC) lysates of replication-competent small intestine and ovaries, whereas only a weak product was obtained from post-replicative skeletal muscle, and a very faint signal was detected from young cortical whole cell lysates (Figure 6C). The discrepancy between the predicted size of 123 kDa for murine TERT and the displayed molecular weight of approximately 93 kDa is most likely due to the intrinsic technical properties of the electrophoresis-based Simple Western™ system, which is based on a non-polyacrylamide matrix known to have protein motility properties and protein-matrix interaction features different from a standard polyacrylamide separation matrix. In order to prove this notion, we probed the samples with the same antibody in a conventional western blot. This approach resulted in a specific product of ~ 125 kDa size (Figure 6B, right side). Thus, the antibody used proved specificity and was appropriate to assess varying levels of TERT protein content in different murine tissues.

Levels of the Nuclear Factor kappa B subunit Rela increase in the aged neocortex

NF-κB is a master regulator of age-related genetic reprogramming [19], and its up-regulation is a genetic signature of aging-associated inflammation, including neuro-inflammation [20]. Moreover, NF-κB RelA activity was shown to be linked to telomerase via a feed-forward loop, in which RelA and either telomerase holoenzyme or TERT protein can reciprocally activate each other [21,22].

To test a possible link between telomerase activity and NF-κB RelA in the CNS in vivo, in a first step we determined NF-κB Rela gene expression in the neocortex of young and aged mice. As expected, levels of Rela mRNA were significantly up-regulated in animals with advanced ages (n = 5) compared with young counterparts (Figure 6E; P = 0.014; n = 5). In contrast, levels of c-Rel, a heterodimer partner of RelA also involved in classical NF-κB cascade activation, though without hitherto evidence for a direct interaction with TERT were not substantially changed (P = 0.333). To further explore a putative mechanistic interaction between TERT and NF-κB RelA, telomerase activity was measured in the cortex of aged Rela^CNS-KO animals, which lack expression of the Rela gene in neuro-ectodermal cell populations including neurons and macroglial cells but not in microglia, and normalized against the intrinsic telomerase activity of 1,000 HeLa cells. In contrast to the hypothesis of a reciprocal TERT:RelA induction, telomerase activity in these aged Rela^CNS-KO mice was not altered relative to age-matched controls (Figure 7A; P = 0.326; n = 4 - 6). In accordance, no difference was observed between the RTL of cortical neural cells isolated from 19-20 months old Rela^CNS-KO and age-matched control mice (P = 0.991, Figure 7B) when assessed by means of qPCR. Both data suggest that, in contrast to the discovery in tumor cell entities and blood cells [21,22], TERT:RelA might not establish a reciprocal interplay in the aging CNS.

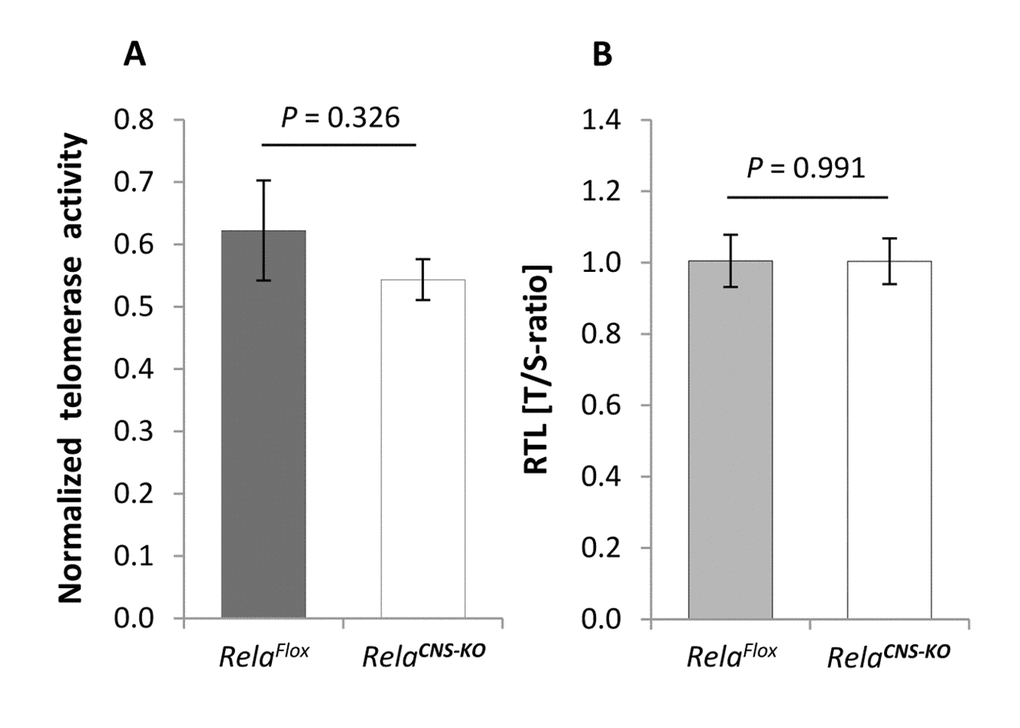

Figure 7. Telomerase activity and telomere length in the brain of aged Rela^CNS-KO mice. (A) Telomerase activity, normalized against a positive HeLA cell extract, in the cortex of 18-23 months old Rela^CNS-KO mice compared to age-matched Rela^Flox control mice (n = 4 - 6). (B) RTL in cortical neural cells isolated from 19-20 months old Rela^CNS-KO as assessed by qPCR in terms of T/S-ratios and normalized against aged-matched Rela^Flox control animals (n = 3 - 4). Bars represent means ± S.E.M. P values were calculated by Student’s t-test.

Ethics statement

Investigations were conducted in compliance with the ‘Animal Research: Reporting of In Vivo Experiments (ARRIVE)’ guidelines, executed in accordance with current European Union regulations and the Protection of Animals Act, and approved by the regional animal welfare authorities of Thuringia (accreditation number: 02-046/14).

Animals

Male wild type mice of a C57BL/6 subcolony featuring hermetic inbreeding conditions were included at 3-4 and 25-27 months of age for RTL measurements, and up to 28 months for TRAP assay execution. In addition, 18-23 months old transgenic animals displaying a conditional, Cre-loxP-based nestin promoter-driven deletion of NF-κB Rela in neuro-ectodermal CNS populations, i.e. neurons, oligodendrocytes and astrocytes, but not microglia were used (further denoted as Rela^CNS-KO). Prove of Rela knockdown in these constructs has been carried out recently [58,59]. Age-matched littermates, in which exons of the Rela gene were flanked by loxP sequences but did not express Cre-recombinase served as controls (Rela^Flox). C57BL/6 animals were housed in the humidity-, temperature-, and light/dark cycle-controlled animal facility of Jena University Hospital (Jena, Thuringia, Germany), with food and water available ad libitum. The Rela^CNS-KO and Rela^Flox strains were bred and accommodated accordingly at the Fritz-Lipmann Institute Jena.

Animals were deeply anesthetized with volatile isoflurane to achieve state of surgical tolerance, or killed by CO₂ inhalation and it was the case for Rela^CNS-KO and Rela^Flox animals, prior to transcardial perfusion. Perfusion was performed with ice-cold PBS/Tris-buffered saline (TBS) (5 ml/min) in order to eliminate cerebral blood residues and avoid artifacts by contamination with nucleated blood cells. Brains were immediately extracted from euthanized animals, and weight-adjusted tissue sample volumes were taken for further experiments.

Isolation of cerebral cortical cells

Calcium-free Hibernate® A medium (BrainBits, LLC, Springfield, IL, USA) was supplemented with 0.5 mM GlutaMAX™ (Invitrogen, Darmstadt, Germany), 132 mM d-trehalose (Sigma-Aldrich Chemie GmbH, Taufkirchen, Germany), and 310 IU/ml DNase I (Sigma-Aldrich Chemie GmbH). Collagenase IA (Sigma-Aldrich Chemie GmbH), papain (Cell Systems Biotechnologie Vertrieb GmbH, Troisdorf, Germany), and ovomucoid (Sigma-Aldrich Chemie GmbH) were diluted in Hibernate® A working solution to the concentrations specified below. Cerebral cortex, freshly isolated from young and aged mice, was transferred to 3 ml of collagenase IA (1 mg/ml) and incubated for 30 min at 37°C under gentle agitation. Meanwhile, papain was diluted and activated at 37°C for 30 min. Cortices were successively treated with 3 ml of activated papain at 2 mg/ml and 1 mg/ml under slow agitation for 15 min at 37°C. Tissue dissociation was mechanically reinforced by trituration using a fire-polished and smoothened Pasteur pipette with a tip size of 0.7-0.8 mm. Remaining tissue pieces were allowed to settle, and the supernatant was removed, transferred on ice, and blocked with 0.1% ovomucoid. Tissue pieces were stirred and triturated in the pre-used papain solution (2 mg/ml) for 5-10 min until tissue dissociation was complete. Tissue lysis was blocked with an equal volume of 0.1% ovomucoid, and the lysate was successively passed through 100 µm and 40 µm cell strainers and centrifuged at 500 × g for 5 min. The supernatant was removed and the pellet was resuspended in 1 ml of PBS containing 132 mM d-trehalose. The final neural cell suspension was incubated on ice for 15 min. After cell number assessment using a Neubauer counting chamber, cells were utilized for Flow-fluorescence in-situ hybridization (FISH), immunofluorescence for neural cell-type identification, or processed for neuron-specific cell sorting.

Identification of neural cell types by immunofluorescence

Isolated cortical neural cells derived from 3 and 27-month-old mice were fixed with 2% paraformaldehyde for 20 min at room temperature (RT), washed twice in PBS and incubated with 10% normal donkey serum for 3 h at RT to block non-specific binding sites. Neural cell suspensions, including a physiological profile of CNS inherent cell entities, were processed with rabbit anti-ßIII-tubulin (1:250; RRID:AB_262133; Sigma-Aldrich Chemie GmbH) to select neurons, rabbit anti-CA-II (1:100; RRID:AB_2065996; Santa Cruz Biotechnology, Heidelberg, Germany) to identify oligodendrocytes, rabbit anti-Iba-1 (1:250; RRID:AB_839504; Wako Chemicals GmbH, Neuss, Germany) to discriminate microglia, and rabbit anti-S100ß (1:1,000; RRID:AB_2620024; Synaptic Systems GmbH, Göttingen, Germany) to label astrocytes. Primary antisera were prepared in 10% normal donkey serum containing 0.3% permeabilizing Triton X-100 and incubated overnight at 4°C under slow rotation. Cell isolates were then washed twice with PBS and incubated with Alexa Fluor® 488-conjugated donkey anti-rabbit Immunoglobulin G (H+L) secondary antibody, diluted to 1:250 (Invitrogen) in 10% normal donkey serum containing 0.3% Triton X-100, for 30 min at RT. After a further washing step, cells were incubated with 4',6-diamidino-2-phenylindole (DAPI) for 5 min at RT to stain nuclear DNA. Cells were rinsed twice with PBS, mounted on glass slides and evaluated by confocal laser scanning microscopy (LSM 710; Carl Zeiss AG, Jena, Germany). Photomicrographs were taken with a 63x oil-immersion objective using appropriate lasers (488 nm laser for Alexa Fluor® 488; 405 nm laser for DAPI).

Cell type-specific proportions were calculated from digital photomicrographs of freshly stained cell preparations taken with an AxioPlan 2 fluorescent microscope equipped with an AxioCam HRC camera and connected to AxioVision Rel. 4.8 software (Carl Zeiss AG). For each cellular marker, 20 images from each of three preparations were taken with a 40 x objective and assessed for both total DAPI-positive cell density and marker-specific cell moieties in a 360 x 275 µm display window. On average, an overall of 500 cells were analyzed to determine age-dependent neural proportions.

Flow-Fluorescence In-Situ Hybridization-based telomere length determination

Cortical neural cells representing a physiological profile of resident populations were freshly isolated from mice aged 3 and 25-27 months. For RTL measurement by Flow-FISH, a telomere peptide nucleic acid (PNA)/fluorescein isothiocyanate (FITC)-based kit for flow cytometry (Dako Deutschland GmbH, Hamburg, Germany) was used according to the manufacturer’s instructions, with minor additions. The tetraploid human Leukemia 1301 cell line (Sigma-Aldrich Chemie GmbH) with a predicted telomeric repeat length of ~ 90 kbp served as an internal reference. The cell line was cultured and expanded according to the manufacturer’s instructions. For DNA denaturation, isolated primary cells and Leukemia 1301 cells were heated for 10 min at 82°C in hybridization solution, containing 70% formamide with or without the telomere PNA-FITC probe supplemented with 30 µl of DNase I (310 IU/ml). The samples were then incubated at RT in the dark overnight. The next day, reference and sample cells were washed twice and incubated in PBS or a kit-based propidium iodide (PI) solution for at least 3 h at RT, in order to assess background and sample-specific fluorescence intensity, respectively. Cells were filtered through a 30 µm cell strainer into fluorescence-activated cell sorting tubes, and run on a FACSCalibur™ flow cytometer (BD GmbH, Heidelberg, Germany), using the FL1 channel to detect PNA-FITC and the FL3 channel to detect PI. Settings were optimized for detector, amplifier and threshold values and re-used for all other experiments. Calibration and blank beads were run as internal references for the mean fluorescence intensity (MFI). Samples were analyzed in technical duplicates from 4-8 biological replicates per group.

To assess the relationship between MFI and the cell cycle phase-specific DNA content of each sample, PNA-FITC-H(FL1-Height)-related MFI values were normalized against sample-specific DNA content (PI-A; FL3-Area) in a cell cycle-dependent manner, and compared between young and aged groups according to the following formulas:

MFI (PNA-FITC-H),G₀/G₁/MFI (PI-A),G₀/G₁ and MFI (PNA-FITC-H),G₂/M /MFI (PI-A),G₂/M

In order to separately validate the hybridization of PNA-FITC probes with target sequences in interphase chromatin of murine cortical neurons, the murine lymphoma cell line L5178-R (ATCC, CRL-1722; LGC Standards GmbH, Wesel, Germany) was used as a positive control to demonstrate telomere-PNA-FITC-related FISH signals under both, inter- and metaphase conditions, using DAPI as DNA marker (Figure S1).

Neural and cell cycle-dependent cell-sorting strategies

Cell-sorting analyses were performed using the Flow and image Cytometry data analysis Software FCS Express 5 Plus (De Novo Software, Glendale, CA, USA) equipped with the Multi-Cycle add-on software tool. First, neural cell populations were separated according to cell size and granularity/complexity via the forward light scatter (FSC) and side light scatter (SSC), respectively (Figure S4A). Doublets were excluded by gating dot plots of PI-A (FL3-Area) versus PI-H (FL3-Height) according to the algorithm described by Wersto et al. (2001) [60] (Figure S4B). For PI-based cell attribution to different cell cycle phases, a histogram was plotted after combining an inclusion gate for cells and an exclusion gate for doublets (Figure S4C). For cells gated into either the G₀/G₁ or G₂/M phases, MFI was calculated for PNA probe/FITC-stained and unstained samples, respectively (Figure S4D). RTL was calculated by subtracting the MFI of PNA probe/FITC-unstained samples from the MFI of PNA probe/FITC-stained samples (denoted as specific MFI).

Sorting of neurons

In order to determine neuron-specific telomere length dynamics in cortical isolates, neurons were sorted on the basis of the NeuroFluor™ NeuO marker for living neurons (StemCell Technologies, Köln, Germany), followed by FACS separation. To ensure efficient sorting, cell isolates were subjected to a debris removal step (Miltenyi Biotec GmbH, Bergisch Gladbach, Germany). Briefly, neural cell isolates were centrifuged at 300 × g for 10 min, the pellet was resuspended in 3 ml of D-PBS supplemented with 2 ml of debris removal solution and overlaid with 4 ml of D-PBS. The gradient was centrifuged at 3,000 × g for 10 min, which resulted in different phases and a small pellet. The upper transparent phase and ring structure containing most of the debris were discarded. The pellet was resuspended in the lower transparent phase and the volume was filled up to 15 ml with D-PBS. Cells were again centrifuged at 1,000 × g for 10 min, recollected and incubated with NeuO dye in BrainPhys™ Neuronal Medium (StemCell Technologies, Köln, Germany) containing 132 mM d-trehalose and 310 IU/ml DNase at a concentration of 1 µM per 200,000 cells for 90 min at 37°C. As a negative control, cells were incubated with staining media omitting the NeuO dye. Cells were again centrifuged, and the pellet was resuspended in 500 µl of D-PBS. To remove cell clumps, the suspension was filtered through a 30 µM cell strainer directly into FACS tubes.

Cell suspensions were then run on a BD FACSAria Fusion flow cytometer (BD GmbH, Heidelberg, Germany). For sorting of the NeuO⁺ cell fraction, a yellow-green laser (561 nm) with a filter at 610 nm was applied. Neural cells were first selected on the basis of size (FSC) and granularity (SSC) and specified as neurons based on their NeuO staining properties (Figure S5). Doublets were excluded and only singlets were considered by plotting FSC-H versus FSC-A (Figure S5A). The NeuO^- population was determined via the negative control sample (Figure SF5B). The NeuO⁺ gated neurons (Figure S5C) were then sorted and collected in 5 ml polystyrene tubes (ThermoFisher Scientific, Darmstadt, Germany) containing 2 ml of Hibernate A-Ca medium. Tubes were further filled with medium up to a total volume of 5 ml and centrifuged. The cell fraction was resuspended in 0.5 ml PBS, transferred to 1.5 ml Eppendorf tubes and centrifuged. The supernatant was aspirated, and the final suspension was snap frozen in liquid nitrogen and stored at -80°C. DNA was extracted as described in Supplementary Data and further processed for RTL determination by qPCR.

qPCR based telomere length determination

In order to further evaluate changes in RTL of cortical neural cells and verify results obtained by Flow-FISH, a qPCR-based method was added as described by O’Callaghan and Fenech (2011) [16], with some modifications. Briefly, telomeric genomic DNA was amplified using oligonucleotide primers against the telomere repeat sequence and normalized against the single copy gene 36B4. For each experimental group, genomic DNA samples from 4-6 biological replicates were run as technical duplicates for both, telomere repeats and the 36B4 gene utilizing a Rotor-Gene Q thermal cycler (QIAGEN, Hilden, Germany). The primer pairs selected were identical to those described by O’Callaghan and Fenech (2011) [16]. The cycling profiles and the primer sequences are shown in Supplementary Tables S1 and S2, respectively.

RTL was quantified in terms of the ratio of telomere repeat copy number “T” to single copy gene copy number “S” (T/S-ratio). The relative T/S-ratio was determined by the 2-∆∆Ct formula as described by Cawthon [61], which determines how each DNA sample varies in its T/S-ratio relative to the T/S-ratio of a reference sample.

Determination of telomerase activity via a telomeric repeat amplification protocol assay

Telomerase activity was measured in brain cortices of young and aged C57BL/6 mice, and in Rela^CNS-KO and Rela^Flox mice using a telomeric repeat amplification protocol (TRAP)-based kit (TRAPeze®, S7710; Merck KGaA, Darmstadt, Germany) according to the manufacturer’s instructions. Brief description is given in the Supplementary Data. Data were assessed in technical duplicates from 5 animals per group and represented as absolute values in terms of amoles/µl, or referenced against the telomerase activity of 1,000 HeLa cells diluted from a positive control stock of 10,000 HeLa cells, which was provided with the kit. When assessed in the linear detection range of the kit, Ct values of the probe samples (30-31 cycles) corresponded to the Ct values obtained with an amount of 1,000 HeLa cells (30 cycles), thereby reaching the lower detection limit of the kit for both sample types. In terms of telomerase activity, cortical probe samples of young and aged animals equalized to approximately 68% and 62% of the low enzyme activity intrinsic to 1,000 HeLa cells, respectively (data not shown).

DNA content analysis

Freshly isolated cortical neural cells, individually harvested from different young and aged animals, were fixed by the drop-wise addition of 1 ml of 70% cold ethanol under stirring in order to avoid precipitate formation, and incubated overnight at -20 °C. The subsequent day, cells were divided 1:1, with each portion being supplemented with 1 ml of PBS and centrifuged at 1500 × g for 5 min. The supernatant was discarded, and washing steps were repeated. Per sample, 500 µl of trout erythrocyte nuclei (TEN) (Biosure®, Grass valley CA, USA) suspended 1:4 in PBS were added and centrifuged at 1500 × g for 5 min. The supernatant was discarded, and the corresponding cell moieties were resuspended either in 250 µl of PBS or an equivalent volume of PI solution (Abcam, Cambridge, UK) and incubated at 37°C in a heating block for 30 min. Cells were finally filtered into FACS tubes and run on a FACSAria Fusion device.

Western Blot analysis of subcellular protein fractions

Subcellular fractions from cortices of 3 months old mice were generated by using the Subcellular Protein Fractionation Kit for Tissues (Thermo Fisher Scientific) according to the manufacturer’s recommendations. Protein concentrations were determined via Bradford Assay using the QuickStart™ Bradford Dye Reagent (Bio-Rad, Hercules, CA, USA). To validate purity, 10 μg of each subcellular fraction were processed by a standard SDS-PAGE-based western blot protocol. After blocking of non-specific epitopes, the membrane was incubated with primary antibodies against GAPDH (1:8,000; RRID:AB_561053; Cell Signaling Technology, Danvers, MA, USA) and Histone H3 (1:10,000; RRID:AB_302613; Abcam, Cambridge, ENG, UK) overnight at 4°C. Afterwards, the membrane was washed in TBS supplemented with 0.1% Tween®20 prior to incubation with the appropriate HRP-conjugated secondary antibody (1:5,000; RRID:AB_631746; Santa Cruz Biotechnology, Dallas, TX, USA). Following washing, the bands were detected by chemiluminescence using Immobilon Western HRP Substrate solutions (Merck) and documented by the LAS3000 (Fujifilm, Düsseldorf, Germany) and the corresponding software.

Assessment of compartment-specific TERT protein levels

For compartment-specific analysis of TERT protein, subcellular fractions from cortices of 3 and 27 months old mice were obtained as described above. Control samples were generated from whole cell lysates of 3 and 29 months old murine cortices as well as from small intestine, ovary and skeletal muscle of 3 months old mice. Briefly, the tissue was homogenized in lysis buffer (0.32 M sucrose, 4 mM Tris-HCl at pH 7.4, 1 mM EDTA, 0.25 mM Dithiothreitol; pH 7.2; 1:5 w/v) supplemented with cOmplete™ Mini Protease Inhibitor Cocktail (Sigma-Aldrich Chemie GmbH) as recommended by the manufacturer. Tissue homogenates were sonicated, incubated on ice for 10 min and centrifuged at 10,000 × g for 10 min at 4°C. The supernatant was taken as whole cell lysate. Protein concentrations were determined as mentioned above. To validate the specificity of the TERT antibody (RRID:AB_1218137; Novus Biologicals, Littleton, CO, USA) a conventional western blot approach was performed prior to the protein level assessment by the Simple Western™ method. For this approach, 25 µg of protein were loaded applying the TERT antibody (RRID:AB_1218137) in a dilution of 1:250. As a second step, protein levels were assessed by the automated Simple Western™ technique (Wes™; ProteinSimple, San Jose, CA, USA) according to the company’s standard protocol, using a 12-230 kDa Wes Separation Module joint to an anti-rabbit Detection Module for Wes™ (ProteinSimple). Briefly, subcellular protein fractions or whole cell lysates were diluted with Fluorescent 5x Master Mix provided in the kit and denatured immediately before application to the system at a final concentration of 0.4 µg/µl. The automated immunoassay, which is based on an advanced capillary electrophoresis and matrix-dependent protein separation, included incubation with primary antibody against TERT (1:25; RRID:AB_1218137) and β-Actin (1:150; RRID:AB_10002039; Novus Biologicals). For optimal primary antibody titration, a saturation curve for each of the antibodies was generated. HRP-conjugated secondary antibody and the enzyme’s substrate for the chemiluminescent detection were provided within the kit. The resulting electropherogram was adjusted for peak identity and analyzed using the Compass for Simple Western™ software (ProteinSimple).

Analysis of NF-κB Rela expression by quantitative real-time qPCR

Brain cortices (65-105 mg per hemisphere) were micro-dissected from animals aged 3 and 25-28 months, and RNA was extracted using QIAzol® lysis reagent (Qiagen, Hilden, Germany) according to standard protocols. Profiling of the total yield of 28S:18S rRNA by capillary electrophoresis confirmed integrity of sample-specific mRNA. The RNA content ranged from 2,400-4,500 ng/µl, as assessed by spectrophotometry (NanoDrop 2000c; Peqlab Biotechnologie GmbH, Erlangen, Germany). Mean ratios of 2.02 ± 0.004 and 2.17 ± 0.015 for absorbance at 260 nm/280 nm and 260 nm/230 nm, respectively, reflected purity of the RNA and excluded contaminations with protein or phenol. The RNA was diluted to 100 ng/µl and reverse transcribed to cDNA using the RevertAid First Strand cDNA Synthesis Kit (Life Technologies, Darmstadt, Germany).

Quantitative real-time PCR (qPCR) was performed using a Brilliant II SYBR® Green QPCR Kit (Agilent Technologies Deutschland GmbH, Frankfurt, Germany). A total of 25 ng of cDNA per sample were used in a final reaction volume of 20 µl according to standard protocols. The product was amplified using the cycling profile and primers as mentioned in Supplementary Tables S3 and S4, respectively.

Relative changes in steady state transcript levels were assessed using ΔΔC_t values. Data were referenced against Gapdh as a stably expressed housekeeping gene, which was co-amplified, and presented as fold changes relative to young animals. Data analyses were performed using Rotor-Gene Q Series Software 2.3.1 (Qiagen) on 5 age-matched biological replicates assayed as technical duplicates.

Statistics

Data subsets are presented as the mean ± standard error of the mean (SEM), except for those on relative transcript levels of NF-κB subunits, which are given as the geometric mean ± SEM. Pairwise inter-group comparisons were statistically evaluated using the two-tailed Student’s t-test or One- or Two-way analysis of variance (ANOVA), according to the parameters addressed. For pairwise multiple comparisons the Holm-Šídák and Tukey procedures were applied as post-hoc tests. For multiple, two-sided comparison of MFI values between different age- and cell cycle-categories, a log 10 transformation preceded Two-Way ANOVA. For DNA content-related MFI assessments, a twofold standard deviation (SD) was calculated. P < 0.05 was considered statistically significant.
