miR-548d-3p inhibits osteosarcoma by downregulating KRAS

The expression of miR-548d-3p and KRAS in osteosarcoma

By performing a microarray analysis, we identified seven miRNAs that were abnormally expressed in 3 osteosarcoma samples compared with adjacent tissues. Among these, the difference in miR-548d-3p expression was the most significant (Table 1).

The expression of miR-548d-3p in osteosarcoma tissues was found to correlate with the tumor grading (Table 2). The expression of miR-548d-3p was detected by real-time PCR in osteosarcoma tissues and human cell lines (hFOB 1.19, MG63 and U2-OS cells). As expected, miR-548d-3p expression was significantly lower in osteosarcoma tissues and cells (MG63 and U2-OS cells) than in adjacent tissues or hFOB 1.19 cells (Figure 1A and 1B). Patients with lower miR-548d expression in their tumors than in mean of the normal. Patients with lower miR-548d-3p expression in their tumors were named as the low expression group. The patients were followed up for 60 months, and survival was found to be worse in those with lower miR-548d-3p expression (Figure 1C). The median survival time was 30 months in the low miR-548d-3p expression group and 50 months in the high expression group.

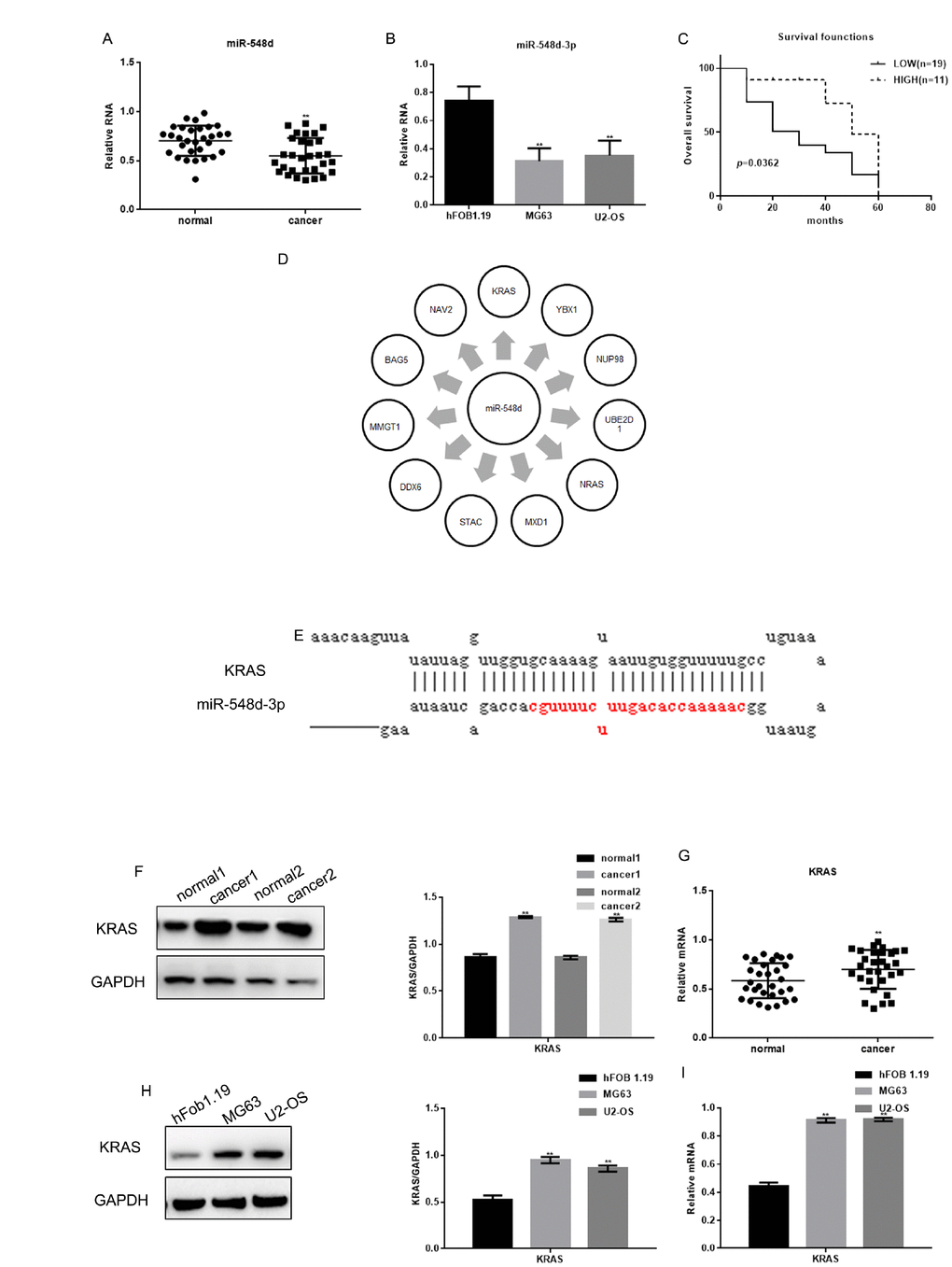

Figure 1. The expression of miR-548d-3p and KRAS in osteosarcoma. (A) The relative miR-548d-3p levels in 30 pairs of osteosarcoma tissues and adjacent normal tissues were detected by real-time PCR. Patients with lower miR-548d expression in their tumors than in mean of the normal. The results represent the mean±SD. **P < 0.05 vs. adjacent normal tissues. (B) Relative miR-548d-3p expression in cell lines (hFOB 1.19, MG63 and U2-OS). MG63 and U2-OS cells with lower miR-548d expression than hFOB 1.19 cells. The results represent the mean±SD of three independent experiments. **P < 0.05 vs. hFOB 1.19 cells. (C) The correlation between miR-548d-3p expression and patient survival. (D) Software analysis with miRDB revealed miR-548d-3p binding sites in a variety of genes. (E) The miRDB tool predicted that miR-548d-3p may bind to KRAS. (F) The relative KRAS levels in two pairs of osteosarcoma tissues and adjacent normal tissues were detected by Western blotting. The results represent the mean±SD. **P < 0.05 vs. adjacent normal tissues. (G) The relative KRAS levels in 30 pairs of osteosarcoma tissues and adjacent normal tissues were detected by Western blotting and real-time PCR. The results represent the mean±SD. **P < 0.05 vs. adjacent normal tissues. (H, I) The relative KRAS levels in cell lines (hFOB 1.19, MG63 and U2-OS) were detected by Western blotting and real-time PCR. The results represent the mean±SD of three independent experiments. **P < 0.05 vs. hFOB 1.19 cells.

We then performed an analysis on the miRDB website (http://www.mirdb.org/), and identified miR-548d-3p binding sites in a variety of genes (Figure 1D). The miRDB tool indicated that miR-548d-3p could bind to the 3' UTR of KRAS (Figure 1E). We therefore assessed KRAS expression in osteosarcoma tissues and cells. Both the protein and mRNA levels of KRAS were significantly higher in osteosarcoma tissues and osteosarcoma cells than in adjacent tissues and hFOB 1.19 cells (Figure 1F–1I).

MiR-548d-3p inhibits KRAS in osteosarcoma cells

A Pearson correlation analysis demonstrated that miR-548d-3p expression correlated negatively with KRAS expression in osteosarcoma tissues (Figure 2A). A luciferase reporter assay was used to determine whether KRAS was a potential target gene of miR-548d-3p (Figure 2B). When hFOB 1.19 cells were co-transfected with KRAS-WT vectors and miR-548d-3p mimics, luciferase activity was reduced compared with cells co-transfected with KRAS-WT vectors and control. On the other hand, the luciferase activity was unchanged when co-expression studies were performed with KRAS-MUT vectors or miR-548d-3p inhibitors.

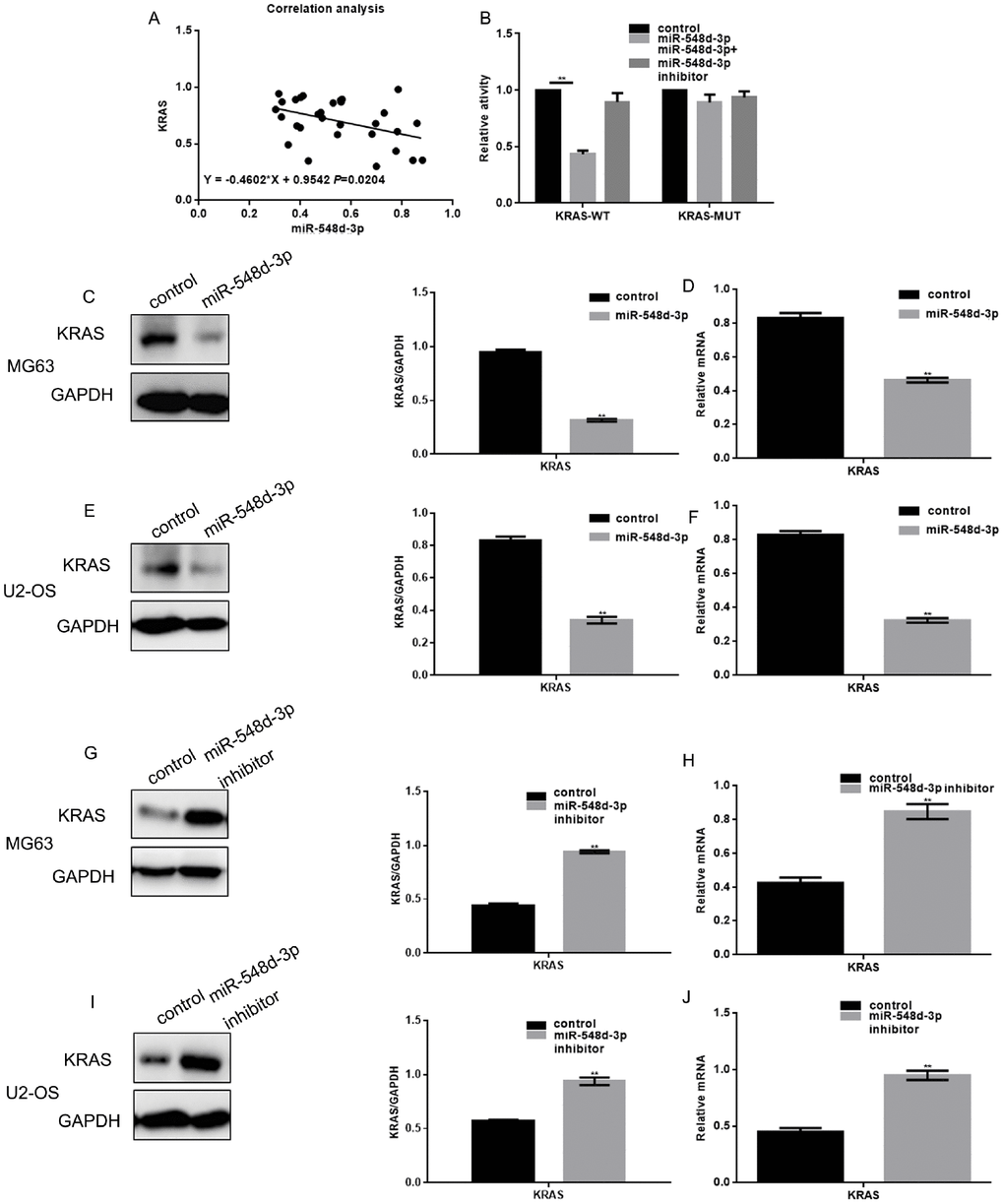

Figure 2. MiR-548d-3p inhibits KRAS in osteosarcoma cells. (A) Correlation analysis between miR-548d-3p and KRAS expression. The correlation formula was y=-0.4602x+0.9542. (B) A luciferase reporter gene assay confirmed that miR-548d-3p could bind to KRAS. The results represent the mean±SD of three independent experiments. **P < 0.05 vs. control. (C–J) The protein and mRNA levels of KRAS were measured in MG63 and U2-OS cells by Western blotting and real-time PCR, respectively. The results represent the mean±SD of three independent experiments. **P < 0.05 vs. control.

Further, when cells were transfected with miR-548d-3p mimics, KRAS expression was downregulated at both the mRNA and protein levels. Conversely, when cells were transfected with a miR-548d-3p inhibitor, KRAS was upregulated (Figure 2C–2J).

MiR-548d-3p inhibits the growth and migration of osteosarcoma cells

An MTT assay was used to examine the effects of miR-548d-3p on cell growth. Overexpression of miR-548d-3p significantly inhibited the growth of both MG63 and U2-OS cells (Figure 3A). In contrast, inhibition of miR-548d-3p promoted cell growth (Figure 3B). Transwell assays revealed that miR-548d-3p significantly suppressed the migration and invasion potential of osteosarcoma cells (Figure 3C–3F).

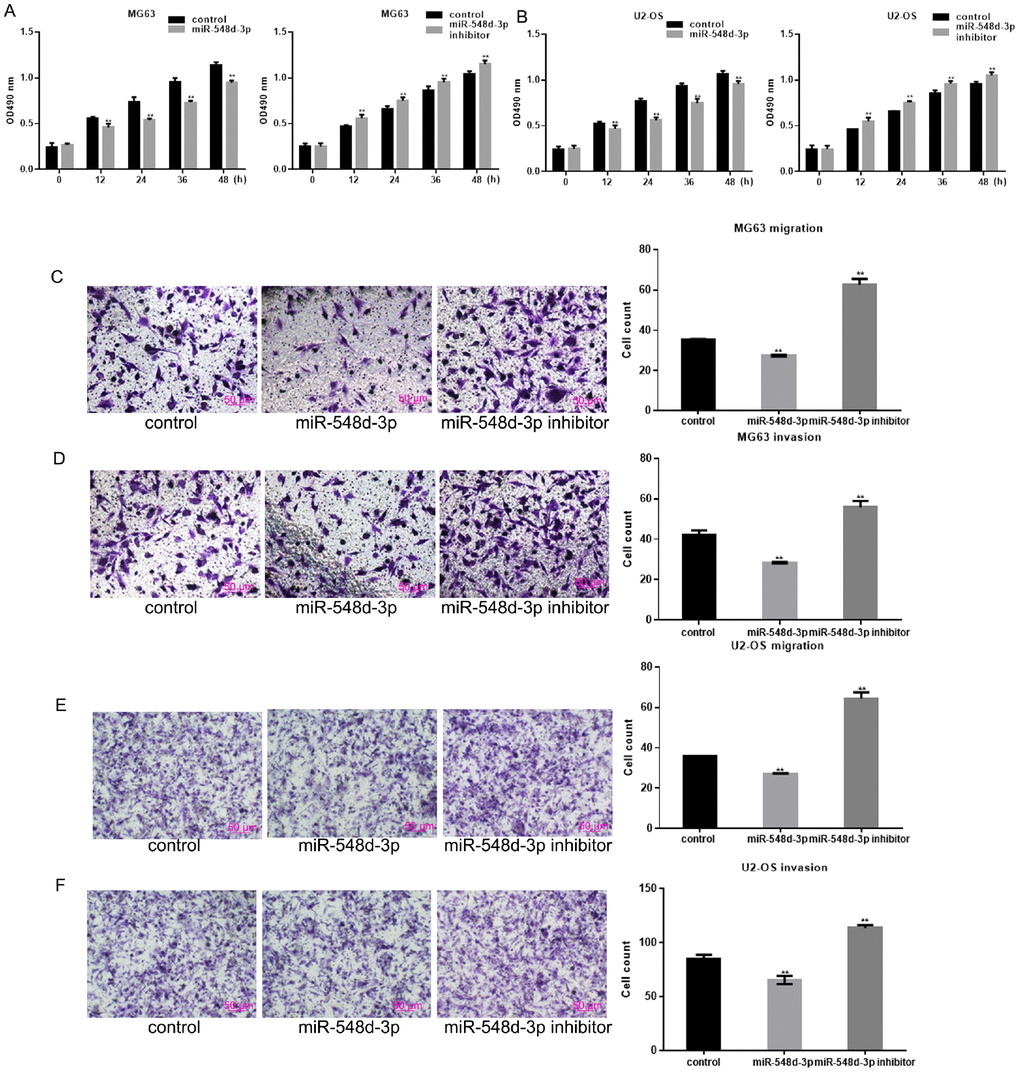

Figure 3. MiR-548d-3p inhibits the growth and migration of osteosarcoma cells. (A, B) MG63 and U2-OS cell growth was measured by an MTT assay after 24 h of transfection. The results represent the mean±SD of three independent experiments. **P < 0.05 vs. control. (C–F) The migration and invasion capacities of MG63 and U2-OS cells were measured by a Transwell assay after the cells were transfected with miR-548d-3p mimics, inhibitors or control miRNA for 24 h. The results represent the mean±SD of three independent experiments. **P < 0.05 vs. control.

MiR-548d-3p inhibits the growth and migration of osteosarcoma cells by downregulating KRAS

KRAS-overexpressing or si-KRAS-expressing cells were generated, and the cells were transfected with miR-548d-3p mimics, miR-548d-3p inhibitors or control miRNA. The effects of miR-548d-3p on cell growth and migration were then detected by MTT and Transwell assays. KRAS overexpression induced cell growth and migration, but the overexpression of miR-548d-3p weakened these effects (Figure 4A, 4C, 4E). On the other hand, transfection with si-KRAS inhibited cell growth and migration, whereas co-transfection with miR-548d-3p inhibitors restored these functions (Figure 4B, 4D, 4F). Western blotting and real-time PCR analysis demonstrated that the overexpression of miR-548d-3p suppressed the overexpression of KRAS, while the inhibition of miR-548d-3p re-induced the expression of silenced KRAS (Figure 4G–4N).

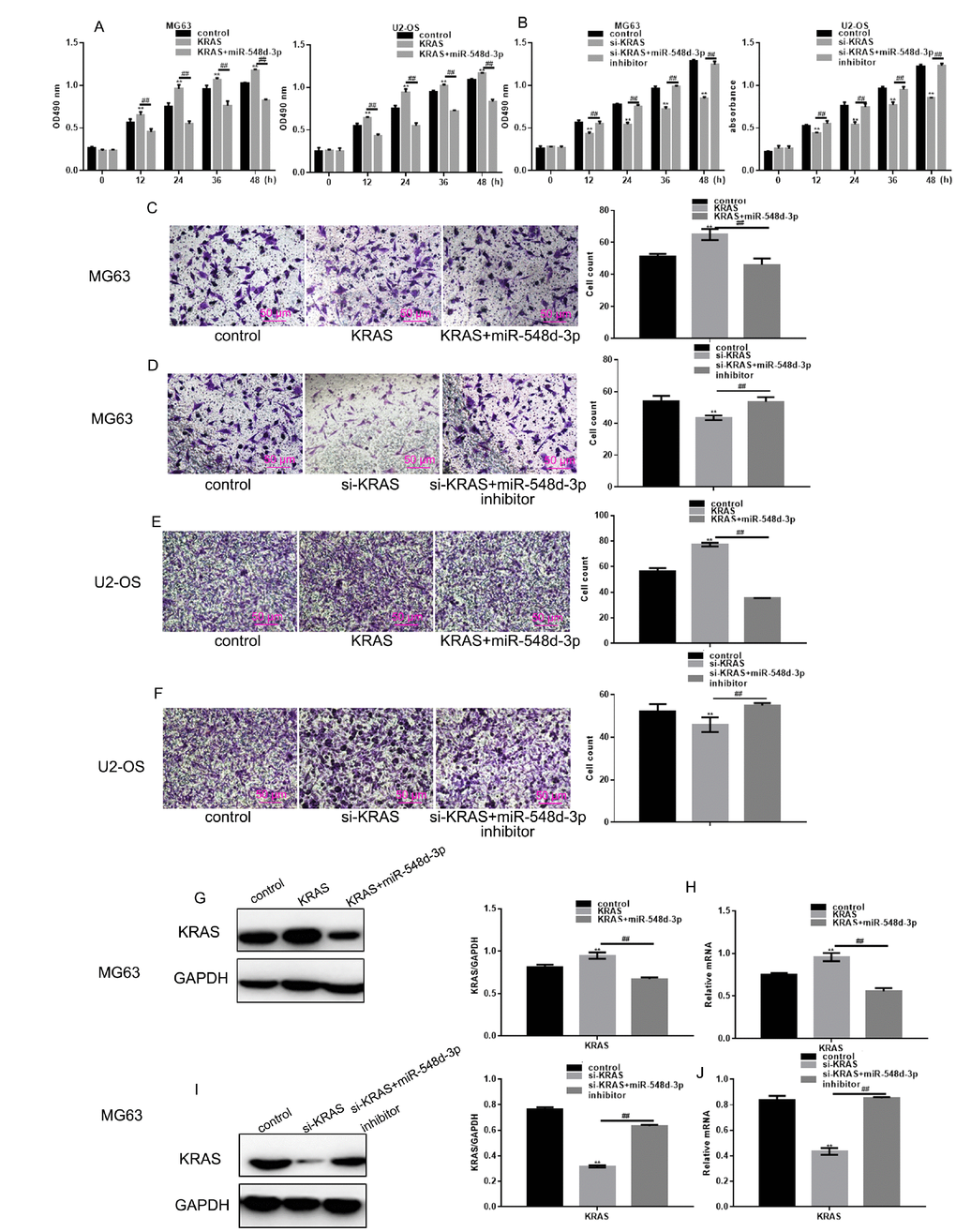

Figure 4. MiR-548d-3p inhibits the growth and migration of osteosarcoma cells by downregulating KRAS. (A) After transfection with KRAS overexpression vectors, cells were transfected with miR-548d-3p mimics or control miRNA. Cell growth was measured with an MTT assay after 24 h of transfection. The results represent the mean±SD of three independent experiments. **P < 0.05 vs. control, ##P < 0.05 vs. KRAS overexpression group. (B) After transfection with si-KRAS, cells were transfected with miR-548d-3p inhibitors or control miRNA. Cell growth was measured by an MTT assay after 24 h of transfection. The results represent the mean±SD of three independent experiments. **P < 0.05 vs. control, ##P < 0.05 vs. KRAS group or si-KRAS group. (C–F) Cell migration was measured with a Transwell assay after 24 h of transfection. The results represent the mean±SD of three independent experiments. **P < 0.05 vs. control, ##P < 0.05 vs. KRAS group or si-KRAS group. (G–N) The protein and mRNA levels of KRAS were measured in cells by Western blotting and real-time PCR, respectively. The results represent the mean±SD of three independent experiments. **P < 0.05 vs. control, ##P < 0.05 vs. KRAS group or si-KRAS group.

MiR-548d-3p inhibits osteosarcoma

The effects of miR-548d-3p were then examined in cells treated with etoposide, a known anti-cancer drug. Etoposide treatment significantly downregulated the growth of MG63 cells, and mimics of miR-548d-3p further inhibited the growth of these cells (Figure 5A). Additionally, miR-548d-3p enhanced the etoposide-induced downregulation of KRAS (Figure 5B and 5C).

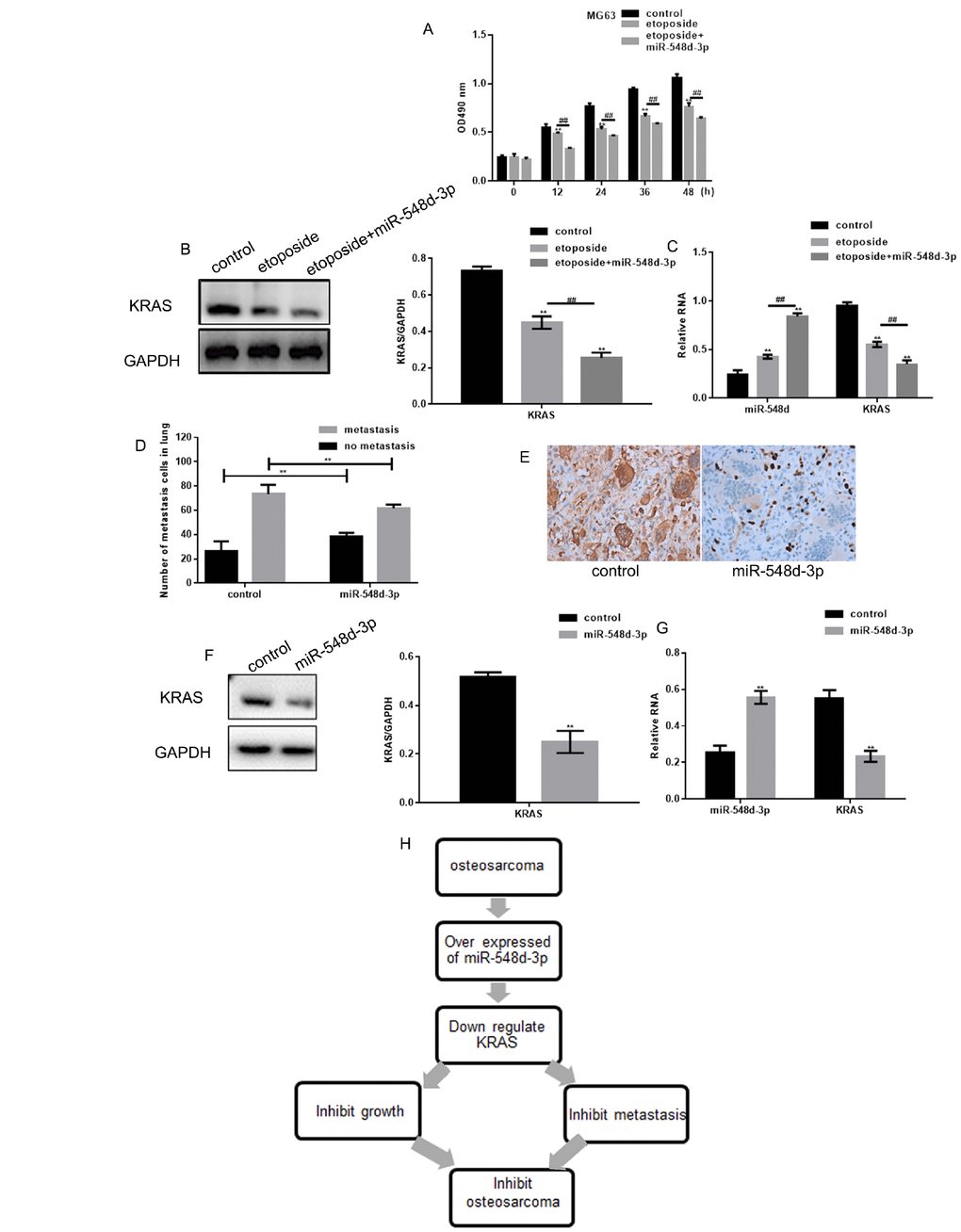

Figure 5. MiR-548d-3p inhibits osteosarcoma. (A) MG63 cell growth was measured with an MTT assay after treatment with control miRNA, 10 μM etoposide combined with control miRNA, or 10 μM etoposide combined with miR-548d-3p mimics. The results represent the mean±SD of three independent experiments. **P < 0.05 vs. control, ##P < 0.05 vs. etoposide. (B, C) MG63 cells were treated with control miRNA, 10 μM etoposide combined with control miRNA, or 10 μM etoposide combined with miR-548d-3p mimics. The protein and mRNA levels of KRAS were then measured by Western blotting and real-time PCR, respectively. **P < 0.05 vs. control, ##P < 0.05 vs. etoposide. The results represent the mean±SD of three independent experiments. (D) The migration of osteosarcoma cells to the lungs in mice treated with miR-548d-3p agomirs or control miRNA. The results represent the mean±SD. **P < 0.05 vs. control. (E) Immunohistochemical staining revealed the expression of KRAS in osteosarcoma in the control group and the miR-548d-3p overexpression group. (F, G) The protein and mRNA levels of KRAS were measured in MG63 cells by Western blotting and real-time PCR, respectively. The results represent the mean±SD of three independent experiments. **P < 0.05 vs. control. (H) The mechanism proposed in this article.

Osteosarcoma tumor growth was then induced in mice by the injection of MG63 cells. Treatment with miR-548d-3p agomirs inhibited the lung migration of osteosarcoma cells in these mice (Figure 5D). Moreover, miR-548d-3p treatment downregulated KRAS expression in vivo osteosarcoma tissues (Figure 5E–5G). Thus, we speculate that miR-548d-3p may inhibit osteosarcoma by downregulating KRAS (Figure 5H).

Samples

Tissues were obtained from 30 patients undergoing surgery at Shengjing Hospital. The average age of the patients was 20.37 years (ranging from 11 to 39 years). The original histopathologic report was obtained for each patient, and the diagnosis of osteosarcoma was confirmed. All clinical samples were collected with written informed consent from the patients, and the study was approved by the Ethics Committee at the Academic Medical Center of China Medical University.

MiRNA microarray analysis

In total, three paired tumor and adjacent normal tissue specimens were randomly selected. Total RNA was isolated with TRIzol reagent (Invitrogen, Carlsbad, CA, USA) and an miRNeasy Mini kit (Qiagen, Valencia, CA, USA) according to the manufacturers’ instructions. Samples with an RNA integrity number >8 were processed for hybridization. Total RNA was labeled with a miRCURY™ Array Power labeling kit (Exiqon, Copenhagen, Denmark) and hybridized to the miRNA microarray with a miRCURY LNA™ microRNA Array kit (Exiqon). Images were then obtained with a GenePix 4000B microarray scanner and imported with the associated software (Axon Instruments, Sunnyvale, CA, USA). SpotData Pro software was used for data analysis. Hierarchical clustering was performed with Data Matching Software.

Cell culture

MG63, hFOB 1.19 and U2-OS cells were purchased from the China Center for Type Culture Collection (CCTCC). Cells were cultivated in Dulbecco’s modified Eagle’s medium (Invitrogen) supplemented with 10% fetal bovine serum (FBS, Invitrogen) and incubated with 5% CO₂ at 37°C.

Transfection

MiR-548d-3p mimics (CAAAAACCACAGTTTCTTTTGC), miR-548d-3p inhibitors (GCAAAAGAAACTGTGGTTTTTG) and control miRNA (TTCTCCGAACGTGTCACGT), as well as KRAS siRNA (‘si-KRAS’, CGAGTGGTTGTACGATGCATTGGTT) and control siRNA (CGTACGCGGAATACTTCGA), were provided by RiboBio (Guangzhou, China), and were used for transfection at a final concentration of 50 nmol/L. KRAS overexpression (pcDNA-KRAS) and empty (pcDNA-3.1) vectors were purchased from GeneChem, and 3.2 μg of the vectors were used for transfection in six-well plates. Lipofectamine 2000 (Invitrogen) was used for cell transfection in accordance with the manufacturer’s protocols. The miRNAs or expression vectors were mixed with the medium and Lipofectamine 2000 for 5 min and then added to the cells. Protein and total RNA were extracted 24 h after transfection.

MTT assays

Cell growth was estimated by the MTT assay. Cells were seeded into 96-well plates at a density of 1,000 cells per well and incubated at 37°C. After 24 h, the cells were transfected or treated as indicated. At the end of the incubation, 10 μL of MTT solution (5 mg/mL) was added to each well, and the media were replaced with 200 μL dimethyl sulfoxide after incubation for 4 h. The optical density at 490 nm was measured on a microplate reader (Bio-Rad, Shanghai, China). The experiments were repeated independently three times.

Migration assay

For the migration and invasion assays, 1×10⁵ cells were seeded onto the upper part of a Transwell chamber (Corning-Costar, USA) with or without a gelatin-coated polycarbonate membrane filter (pore size: 8 μm). Cells resuspended in FBS-free medium were added to the upper well, and the lower well was filled with 10% FBS. The cells were cultivated at 37°C for 24 h. Invasive cells on the bottom of the membrane were fixed and stained. An inverted microscope was used to view the cells, and five random fields per chamber were counted. The experiments were repeated independently three times.

Luciferase assay

The entire 3′-UTR of human KRAS was amplified via PCR with human genomic DNA as a template. Then, the PCR products were inserted into the pMIR-REPORT plasmid (Ambion, USA), and successful insertion was confirmed by DNA sequencing. For the assessment of binding specificity, the KRAS sequence known to bind to the seed region of miR-548d-3p was mutated (from GCAAAAGTA to CGTTTTCAT), and the mutant KRAS 3′-UTR was inserted into an equivalent luciferase reporter.

For the luciferase reporter assays, hFOB 1.19 cells were seeded into 24-well plates. The cells were co-transfected with 1 μg of the firefly luciferase reporter plasmid, 1 μg of the β-galactosidase expression plasmid (Ambion) and equal amounts (100 pmol) of miR-548d-3p mimics, inhibitors or control miRNA by means of Lipofectamine 2000 (Invitrogen). The β-galactosidase plasmid was used as a transfection efficiency control. After the cells were incubated for 24 h, luciferase activity was measured with a Dual-Luciferase Reporter Assay System (Promega, Beijing, China). The experiments were repeated independently three times.

Real-time PCR

Total RNA was extracted from cell lines with TRIzol (Invitrogen) according to the manufacturer’s protocol. Then, 2 μg of total RNA was reverse transcribed into first-strand cDNA with a reverse transcription reagent kit (TaKaRa, Japan) according to the manufacturer’s protocol. Quantitative PCR was performed with a SYBR Green real-time PCR kit (TaKaRa, Japan). The primers listed in Table 3 were synthesized by Shenggong (Shanghai, China). Relative miRNA and mRNA levels were determined by the 2^−ΔΔCt method, and were normalized to U6 or GAPDH levels. The experiments were repeated independently three times.

Western blot analysis

Total protein was extracted from cells with a lysis buffer (Beyotime, China) containing proteinase inhibitors. Equal amounts of protein (30 μg) were boiled at 100°C for 5 min, separated on 10% polyacrylamide gels and transferred to polyvinylidene difluoride membranes (Millipore, Bedford, MA, USA). The membranes were probed with a specific antibody against KRAS (sc-30, 1:1000; Santa Cruz, USA), and were stripped and re-probed with an antibody against GAPDH (SC-32233, 1:1000; Santa Cruz, USA) to verify equal loading. Protein levels were quantified with Image J software (National Institutes of Health). The experiments were repeated independently three times.

Nude mouse experiment

Twelve five- to six-week-old female nude BALB/c mice (Vital River Laboratory Animal Technology Co. Ltd., China) were each injected with 2×10⁶ MG63 cells in a 200-μL cell suspension, and the metastatic ability of the cells was investigated. The mice were divided into two groups (n=6/group): the miR-548d-3p agomir group (CGTTTTCTTTGACACCAAAAAC) and the negative control group (TTCTCCGAACGTGTCACGT). On day 21 following the injection, osteosarcoma tumor samples were collected for immunohistochemistry, and the lungs were removed and evaluated for visible tumor nodules.

All experimental procedures involving animals were conducted in accordance with the Guide for the Care and Use of Laboratory Animals (NIH publication no. 80-23, revised 1996) and the institutional ethical guidelines for animal experiments.

Immunohistochemistry

Immunohistochemistry was performed as described previously [20]. The immunohistochemical results were judged by the histological score (HSCORE) [21].

Statistical analysis

All experiments were repeated independently three times, and the results are shown as the mean and standard deviation (SD). Kaplan-Meier survival analysis with a log-rank test was used to analyze the overall survival of osteosarcoma patients. Pearson correlation analysis was used to evaluate the correlation between KRAS and miR-548d-3p expression. Student's t test (two-tailed) was used to evaluate the statistical significance of differences between two groups. Statistical analyses were performed with GraphPad Prism software (GraphPad, Inc.). Statistical significance was defined as P < 0.05.

Compliance with ethical standards

Patients provided written consent and approval for the use of clinical materials for research purposes at Shengjing Hospital, in accordance with institutional regulations.
