circ5912 suppresses cancer progression via inducing MET in bladder cancer

circ5912 is expressed at lower levels in bladder cancer and correlates with better patient outcomes

According to our previously analyzed RNA-seq data from 2 bladder cancer tissues, circ5912 ranks in the top 5 among all reduced circular RNAs in bladder cancer compared with normal control tissue. To further explore the value of circ5912, identification and characterization of circ5912 to prove that it is a circular RNA involved in cancer is of vital importance. Agarose gel electrophoresis (Figure 1A) and RNAse R treatment (Figure 1B) showed that only the genomic DNA (gDNA) of circ5912 was lost, while the cDNA of circ5912, cDNA and gDNA of FIP1L1, the linear form of circ5912, remained stable. In addition, sanger sequencing indicated that the sequence of circ5912 is the same as the hsa_circ_0005912 sequence found in http://circbase.org/. These results suggest that circ5912 is a circular RNA (Figure 1C). Next, we examined the clinical value of circ5912 in human bladder cancer in a cohort of 58 patients. It was observed that circ5912 expression was significantly lower in 45 paired bladder cancer tissues (Figure 1D); in 58 bladder cancer tissues, higher circ5912 levels associates with better clinical pathological conditions, including stage (Figure 1E), tumor grade (Figure 1F) and metastasis (Figure 1G); additionally, a longer overall survival time was observed among 43 patients for whom circ5912 was regarded as high (Figure 1H). Taken together, these results suggest that circ5912 is expressed at lower levels in bladder cancer and that a higher level of circ5912 correlates with better patient outcomes. The general patient information is listed in Table 1.

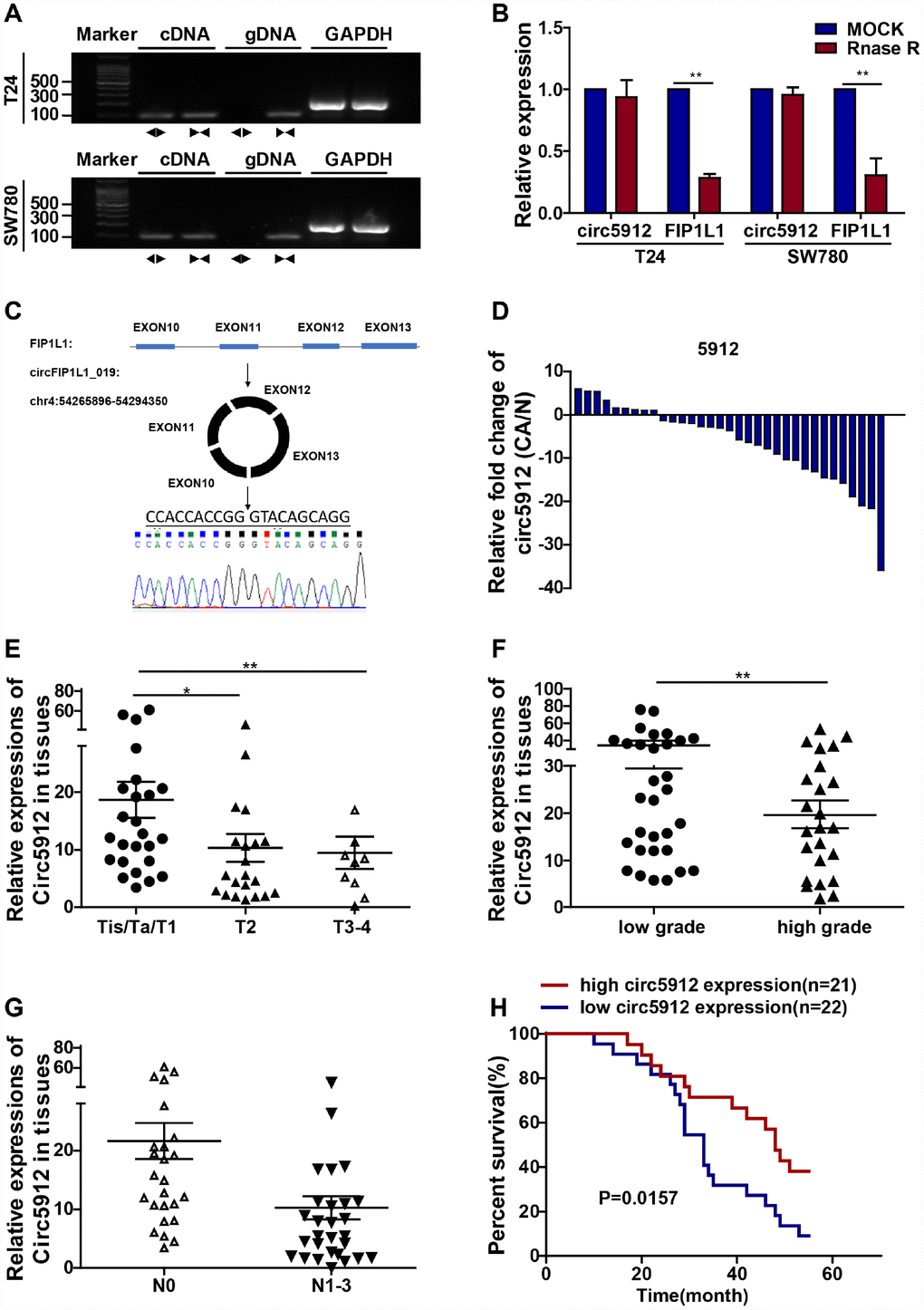

Figure 1. Lower circ5912 levels are associated with advanced bladder cancer. Divergent (circ5912, ◄►) and convergent (FIP1L1, ►◄) primers were designed; to prove circ5912 is circular RNA, (A) agarose gel electrophoresis and (B) RNAse treatment assays were performed; (C) illustration of the circulation of circ5912; (D) expression of circ5912 in 45 paired bladder cancer tissues; 58 bladder cancer tissues were evaluated and analyzed by: (E) stages, (F) tumor grade and (G) metastasis; (H) overall survival of 43 bladder cancer patients in following was analyzed based on the level of circ5912.

Silencing circ5912 in bladder cancer cells promotes cell growth and metastasis in vitro

As we mentioned before, circ5912 suggests a tumor suppressive role in bladder cancer with regard to clinical parameters. To subsequently prove a tumor suppressive role of circ5912 in bladder cancer, we first designed 2 siRNAs to silence circ5912 in 2 bladder cancer cell lines, T24 and SW780. After treatment of bladder cancer cells with the siRNAs, the expression of circ5912 decreased 4.3-fold in T24 cells and 3.6-fold in SW780 cells, while the level of FIP1L1 remained unchanged (Figure 2A). Next, a CCK8 assay was performed to evaluate the cell viability of bladder cancer cells after treatment with siRNAs. It was found that silencing circ5912 apparently promoted viability of bladder cancer cells (Figure 2B, 2C), and an improved clone-forming ability was observed (Figure 2D, 2E). These results suggest that silencing circ5912 promotes bladder cancer growth. In addition, to detect the effect of circ5912 on the migratory capacity of bladder cancer cells, wound healing and trans-well assays were performed. It was found that silencing circ5912 encouraged the wound healing capability of bladder cancer (Figure 2F–2H), as well as the migration and invasion potential (Figure 2I–2L). Taken together, the above results suggest that silencing circ5912 promotes bladder cancer cell growth and migratory capacity in vitro.

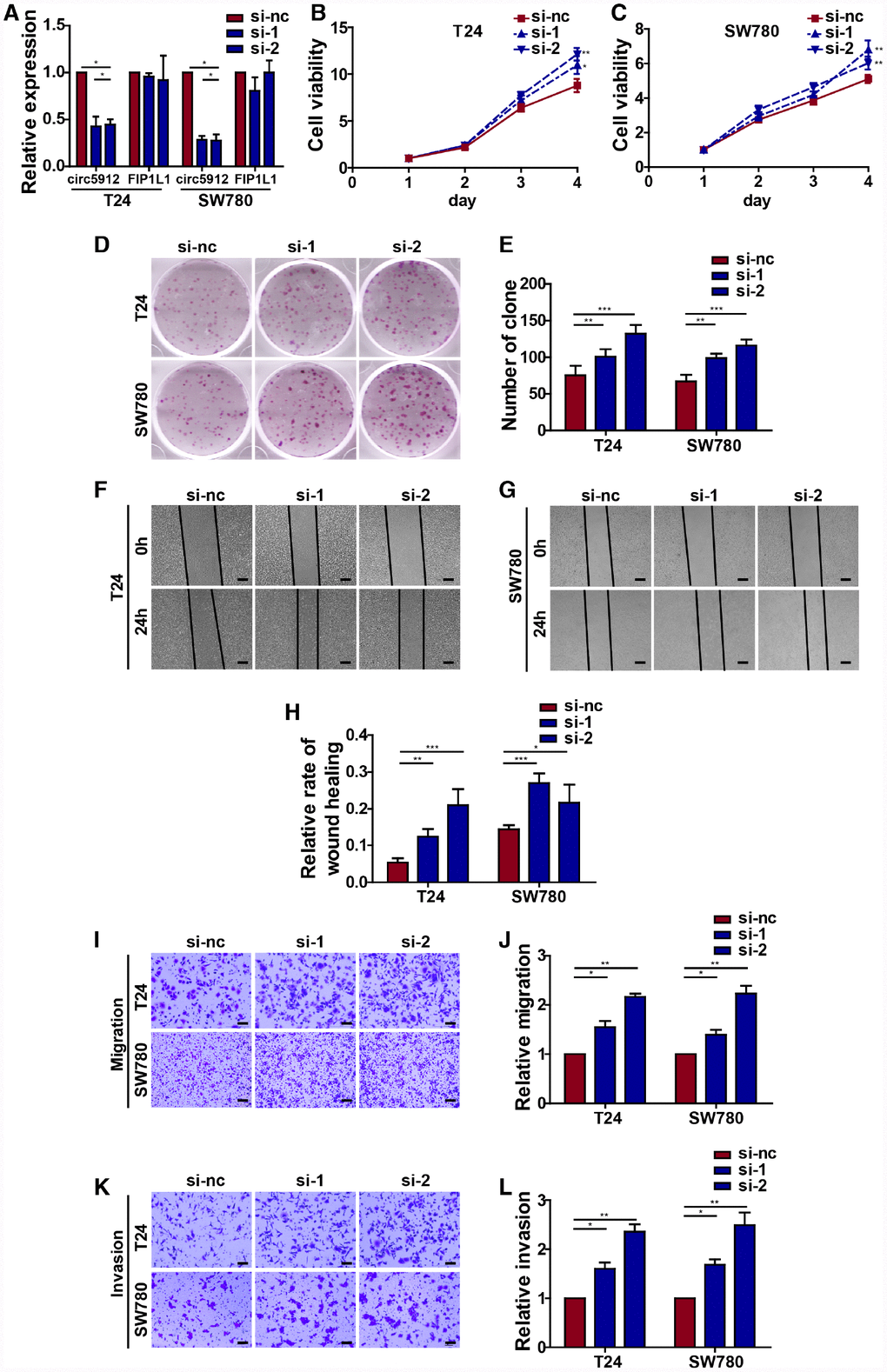

Figure 2. Silencing circ5912 promotes bladder cancer cell growth and metastasis in vitro. Two siRNAs that targeted circ5912 were designed and synthesized. (A) qPCR detected levels of circ5912 and FIP1L1 after treatment with the siRNAs; (B, C) a CCK8 assay was performed to evaluate cell viability; (D, E) a clone forming assay was performed to detect the ability of self-renewal; (F–H) wound healing ability was measured by the distance between the two sides of induced injury after 24 hours, scale bar: 100μm; (I–L) migration and invasion were assessed by counting cells that were able to penetrate the trans-well membrane, scale bar: 25μm.

Overexpression of circ5912 suppresses bladder cancer growth and metastasis

We then constructed the circ5912-overexpressing bladder cancer cell lines in T24 and SW780 cells. The overexpression of circ5912 had less effect on FIP1L1 expression (Figure 3A). In contrast to silencing, overexpression significantly weakened bladder cancer cell viability (Figure 3B, 3C) as well as clone formation (Figure 3D, 3E). Cell growth strongly relies on the balance between proliferation and apoptosis. We next performed an Annexin V/Pi apoptotic assay to prove that the above reduction in cell viability did not correlate with apoptosis (Supplementary Figure 1A, 1B). As we thought, there were no significant differences in the apoptotic phenotype after circ5912 overexpression. These results suggest that overexpression of circ5912 suppresses bladder cancer growth. Next, wound healing and trans-well assays were applied to evaluate the effect of circ5912 overexpression on the migratory capacity of bladder cancer cells. It was found that overexpressed circ5912 decreased the wound healing capability of bladder cancer (Figure 3F, 3G), as well as the migration (Figure 3H, 3J) and invasion (Figure 3I, 3K) potential. The above results suggest that overexpression of circ5912 in bladder cancer cells suppresses cell growth, migration and invasion in vitro. To explore the in vivo effect of circ5912, a mouse subcutaneous tumor model was used. Injection of circ5912-overexpressing cells into nude mice formed tumors with slower growth and lighter weight than tumors formed by normal cell injection (Figure 3L, 3M, 3N). Taken together, the above results suggest that overexpression of circ5912 suppresses bladder cancer growth and metastasis.

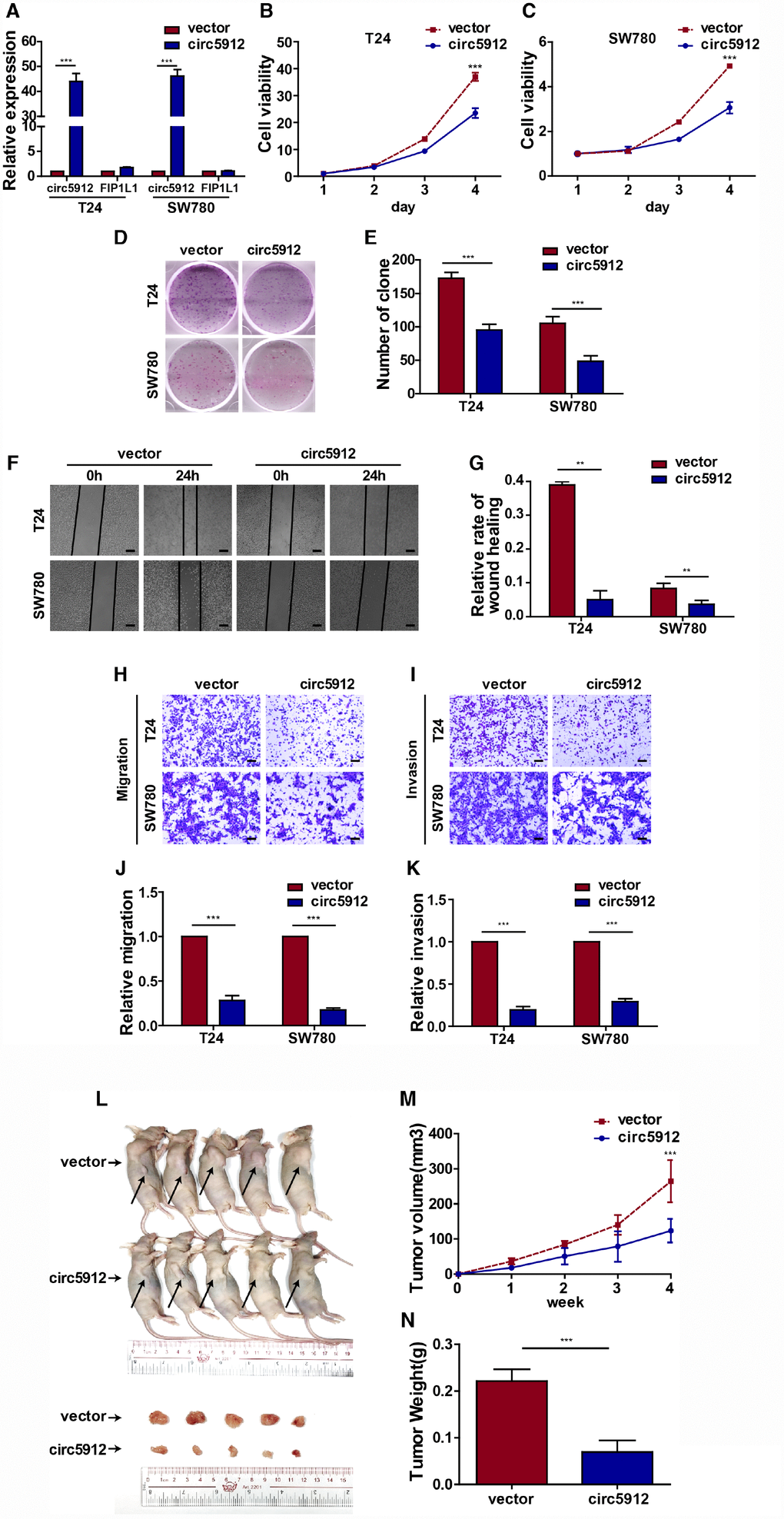

Figure 3. Overexpression of circ5912 suppresses bladder cancer growth and metastasis. Bladder cancer cell lines with overexpressed circ5912 were designed and produced. (A) qPCR detected levels of circ5912 and FIP1L1 after circ5912 overexpression; (B, C) a CCK8 assay was performed to evaluate cell viability; (D, E) clone-forming ability was detected; (F, G) wound healing ability was measured by the distance between the two sides of induced injury after 24 hours, scale bar: 100μm; (H–K) migration and invasion were assessed by counting cells that penetrated the trans-well membrane, scale bar: 25μm; (L–N) the in vivo effect of circ5912 was evaluated by subcutaneously injecting circ5912 overexpressing cells into nude mice. Mice were killed 4 weeks after injection, and tumor weight and volume were measured.

circ5912 reverses TGF-β2-induced EMT in bladder cancer

We have proven that circ5912 suppresses bladder cancer growth and metastasis, but the underlying mechanisms remain less well understood. Therefore, we performed mRNA sequence analysis after circ5912 was overexpressed. Among 348 altered genes, Vimentin and Tgf-β2 were significantly reduced (Figure 4A), as well as genes involved in TGF-β signaling pathways which are the main mediators of cancer EMT (Figure 4B). Besides, expression of snail, slug, twist, zeb2 were coordinately repressed (Figure 4A); activation of these transcriptional factors was characterized as EMT processing. Hence, the results suggest that circ5912 may participate in MET process to suppress bladder cancer progression. To prove our hypothesis, recombinant TGF-β2 treatment was used to induce EMT in bladder cancer cells. Cells displayed spindle-like structures after treatment with TGF-β2 compared with sharp edges exhibited by control cells (Figure 4C); at the same time, the expression of E-cadherin, an epithelial marker, was downregulated, whereas the expression of N-cadherin, Vimentin and snail, which are mesenchymal markers [11, 12], was increased (Figure 4D). These results suggest that TGF-β2 successfully induced EMT in bladder cancer cells. Next, to prove the role of circ5912 in regulating MET, we compared the cell morphology and EMT marker expression among circ5912-overexpressing cells and normal control cells after treatment with TGF-β2. It was found that circ5912 obviously inhibited EMT induction of TGF-β2, as demonstrated by a slight spindle-like structure (Figure 4C), higher E-cadherin, and lower N-cadherin, Vimentin and snail expression (Figure 4D), compared with the normal control. Besides, the expression of E-cadherin, N-cadherin and Vimentin were also determined by immune-histochemistry in tissues from our xenograft models. As expected, expression of E-cadherin increased definitely, while level of N-cadherin and Vimentin decreased when circ5912 was over-expressed. The results have been provided in (Supplementary Figure 2). Taken together, these results suggest that circ5912 participates in the MET process in bladder cancer cells. The molecular role strongly relies on the cellular location. Cytoplasmic circular RNA may likely play a posttranscriptional role, such as sponging of miRNA. To further explore the mechanisms of circ5912 in bladder cancer, florescent in situ hybridization (Figure 4E) and nuclear-cytoplasm extraction assays (Figure 4F) were performed, and circ5912 was predominantly observed in the cytoplasm of bladder cancer cells. Subsequently, 12 miRNAs that were predicted by Targetscan and miRanda to bind circ5912 were analyzed. An RNA pulldown assay was performed, and there were no significant results for circ5912 binding in either of the bladder cancer cell types (Figure 4G, 4H). These results suggest that circ5912 may exert its role through another posttranscriptional mechanism, not merely miRNA sponging.

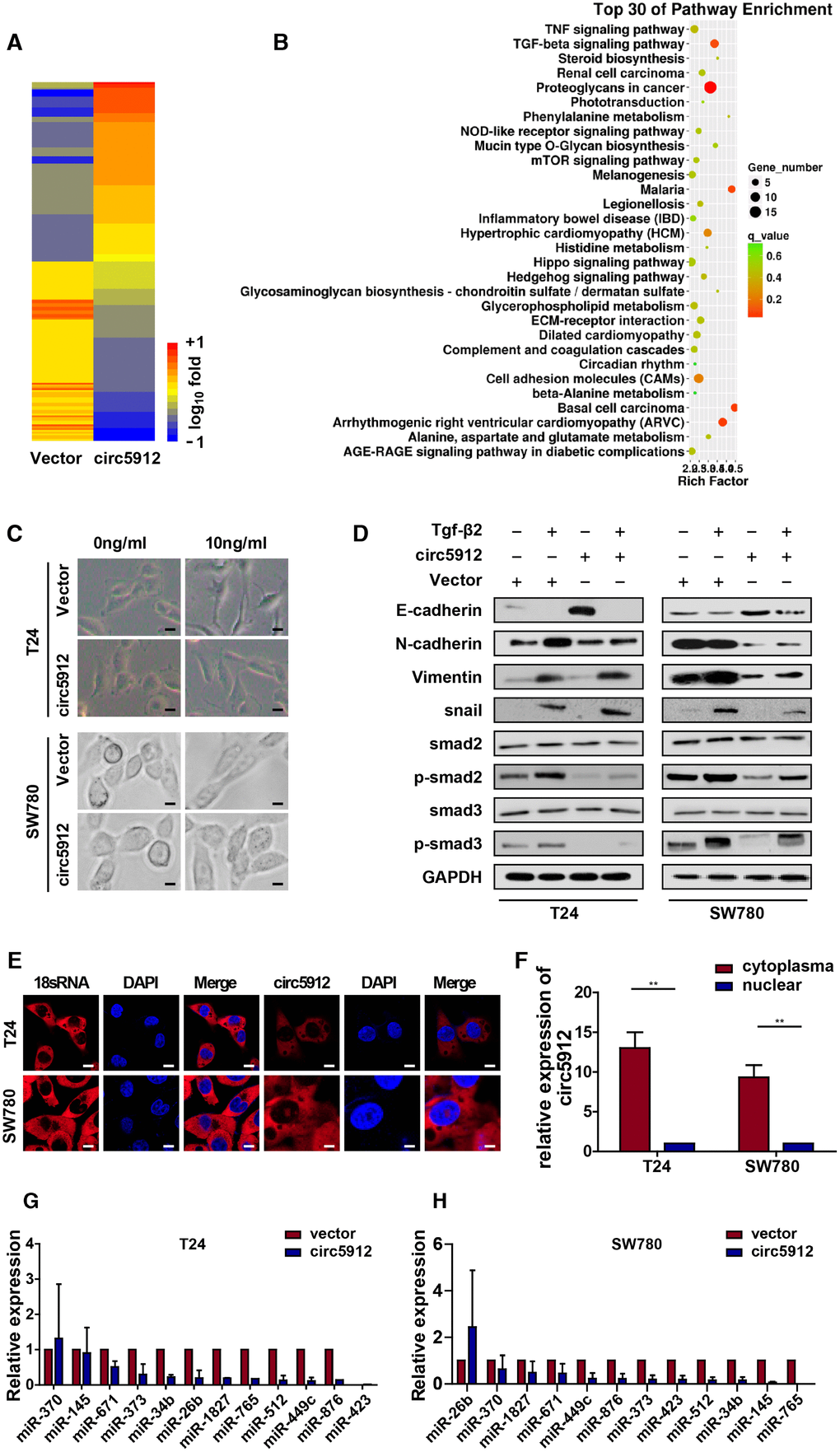

Figure 4. circ5912 reverses Tgf-β2-induced EMT in bladder cancer. To identify the underlying mechanism of circ5912, (A, B) The mRNA sequence was analyzed for the downstream alteration after circ5912 overexpression; cells were treated with TGF-β2 in 10ng/ml for 24 hours to induce EMT. (C) the bladder cancer phenotype was observed under light microscope, scale bar: 2.5μm; (D) western blot analysis was performed to determine the levels of different endothelial and mesenchymal markers; (E) FISH and (F) nuclear-plasma extraction assays were performed to detect the location of circ5912, scale bar: 2.5μm. Cytoplasmic 18s RNA was used as a positive control; (G, H) RNA pulldown assay showed the binding properties of multiple miRNAs and circ5912.

Human tissue management

58 bladder cancer tissues, 45 paired bladder cancer tissues and adjacent normal controls were collected from 1^st June 2014 to 1^st March 2019 at Sun Yat-Sen Memorial Hospital: Only 43 patients were followed finally. All studies involved in tissue detection were permitted by the Ethics Committee of Sun Yat-Sen University. Permission to use tissues experimentally was granted by all patients involved. All pathologic and histological diagnosis were confirmed by 3 pathologists.

Cell culture

Bladder cancer cell lines T24 and SW780 were purchased from ATCC and cultured in RPM-1640 medium that contained 100 U/ml penicillin and streptomycin (Gibco, USA) and 10% FBS (Gibco, USA). Cells were cultured under humidified, constant 37°C and 5% CO2 atmosphere. The T24 cell line was tested by the short tandem repeat method on 20^th Nov. 2018, while SW780 was tested on 18^th July 2018.

RNA preparation and quantitative real-time PCR

RNA was extracted by a rapid RNA extraction kit (ES Science, China) and reverse transcribed by the PrimerScriptTM RT Master Mix Kit (TakaRa, Japan). Quantitative real-time PCR (qPCR) was performed to detect RNA levels with a TB Green Premix Ex Taq II Kit (TakaRa, Japan) with a QuantStudioTM DX Real-Time PCR instrument (Applied Biosystems, Thermo, USA). The primers used in this study are listed below: circ5912-F: AGCAAACCACCTCCGTTTTTC; R: TGGAAGGGCAGTTTCTTTCTC; FIP1L1-F: AATGC CAGTGCTAATCCTCCA; R: TCATCTTCGGTCTCA GTCACTT; GAPDH-F: TACTAGCGGTTTTACG GGCG; R: TCGAACAGGAGGAGCAGAGAGCGA.

Agarose gel electrophoresis and RNAse R treatment

Detailed procedures are explained in our previous research [14].

Fluorescent in situ hybridization (FISH)

The FISH probe for circ5912 was synthesized by Genepharm (Suzhou, China). The FISH assay was performed according to procedures recommended by RiboBio (Guangzhou, China). 18S RNA was used as a positive control. (sequence of circ5912 FISH probe was: cy3-CTGCCTCCAGAAAAGCCAATTCAAGCGTTGGGAAGTGGCAGGATCGATAT-cy3) Cells were observed under a laser scanning confocal microscope (LSM 800 with Airyscan, ZEISS, German).

Nuclear and cytoplasmic extraction assay

A Thermo Fisher Kit (78833, German) was used to extract nuclear and cytoplasmic RNA.

Cell transfection

siRNAs targeting circRIP2 were purchased from Genepharm (Suzhou, China). Lipofectamine iMAX (Gibco, USA) was used for transfection. Sequence of siRNAs for circ5912 are listed below (5′ -3′): circ5912 si-1 sense: GAUUCCACCACCGGGUACATT; antisense: UGUACCCGGUGGUGGAAUCTT; circ5912 si-2 sense: CCACCGGGUACAGCAGGG ATT; antisense: UCCCUGCUGUACCCGGUGGTT.

To construct stable circ5912-overexpressing bladder cancer cells, lenti-virus containing a plenty-ciR-GFP-T2A-puro vector was synthesized by Genechem (Shanghai, China), and cells were infected experimentally.

CCK8 viability assay

A total of 1000 cells/well were plated in a 96-well plate 24 hours before counting. One hundred microliters of media that contained 10% CCK8 (Biyuntian, China) was added to each well and incubated for 2 hours, and then a microplate reader (TECAN Spark 10M, Switzerland) measured the OD values under 452 nm.

Clone formation assay

A total of 1000 cells/well were seeded in 6-well plates. Cell clones were harvested when more than 50 cells/clone were counted. Crystal violet (1%) was used to stain the clones.

Transwell migration and Matrigel invasion assay

A single cell suspension with 80,000 cells was inoculated into the upper chamber and mixed with 200 μl of serum-free medium for migration and 200 μl of matrigel for invasion. A total of 600 μl of medium containing 10% FBS was added into the lower chamber. After 8 hours for T24 cells and 48 hours for SW780 cells, the upper chamber was harvested and fixed with 4% paraformaldehyde for 15 minutes. Subsequently, the upper chamber was stained with 0.1% crystal violet, and cells that penetrated were counted. The images were taken under a microscope.

Wound healing assay

Cells were seeded at 100% density in 6-well plates and scraped with a 200 μl pipette tip. Scratched lines were taken at 0 hour and 24 hours. Wound healing ability was measured by counting the distance between the two sides of the scratch. The distance at 0 hour was normalized as a control. Cells were observed under a light microscope.

Tumor subcutaneous mouse model

All animal studies were permitted by The Animal Management Committee of Sun Yat-Sen University. A total of 10⁷ circ5912 overexpressed bladder cancer cells were subcutaneously injected into nude mice (all mice were male, 3-4 weeks old). Mice were sacrificed when tumor volume (V) reached over 200 mm³, V=(L×W×W)/2, weight (W) and length (L).

Western blot analysis

E-cadherin, N-cadherin, Vimentin, snail, and GAPDH antibodies were purchased from Santa Cruz (USA). The protein bands were visualized by ECL assay and exposed in a dark room.

RNA pulldown

We have described the detailed procedures for RNA pulldown in our previous research. The specific biotin-labeled probe for circ5912 was designed and synthesized by Genepharm (Suzhou, China). The sequence of the circ5912 probe was as follows: 5′-CCAGUUCUUCCC UGCUGUACCCGGUGGUGGAAUCAGAGGU-3′.

Statistical analysis

Statistical analysis in this article was performed by GraphPad 5.0. A t test was performed between 2 independent groups, one-way ANOVA test was applied between each group, and Kaplan-Meier curves and log rank tests were used to analyze patient survival. P < 0.05 was considered to be statistically significant.

Ethics approval

Use of human tissues was approved by the ethics committee of Sun Yat-Sen University. All animal studies were permitted by The Animal Management Committee of Sun Yat-Sen University. All patients involved signed the contract for using their tissues experimentally.
