GPX1, a biomarker for the diagnosis and prognosis of kidney cancer, promotes the progression of kidney cancer

GPX1 is significantly high expression and correlated with a range of clinical pathological parameters in ccRCC tissues

As mentioned above, the GPXs family has 8 members. We used the TCGA database to mine the expression levels of 8 members in ccRCC and found that GPX1 was significantly up-regulated in ccRCC (n=533) compared with adjacent normal renal tissues (n=72) (Figure 1), so we chose GPX1 as the research target. To quantify the expression levels of GPX1, the TCGA and ONCOMINE databases were used to mine the sequencing data of GPX1 in ccRCC. As shown in Figure 2A, the expression levels of GPX1 were significantly higher in ccRCC tissues than that in adjacent tissues. Similarly, kidney cancer studies from Gumz [15] and Yusenko [16] confirmed that GPX1 was expressed higher in ccRCC tissues than that in adjacent normal tissues (Figure 2B–2C). Next, we evaluated the expression levels of GPX1 and its association with clinicopathological parameters in ccRCC patients based on age, gender, T stage, N stage, M stage, Grade classification, histopathological stage (Figure 2D–2I, Table 1). The evaluation found that the high expression of GPX1 was positively correlated with the ccRCC stage. These results indicate that GPX1 is overexpressed in ccRCC and positively correlated with higher tumor stage.

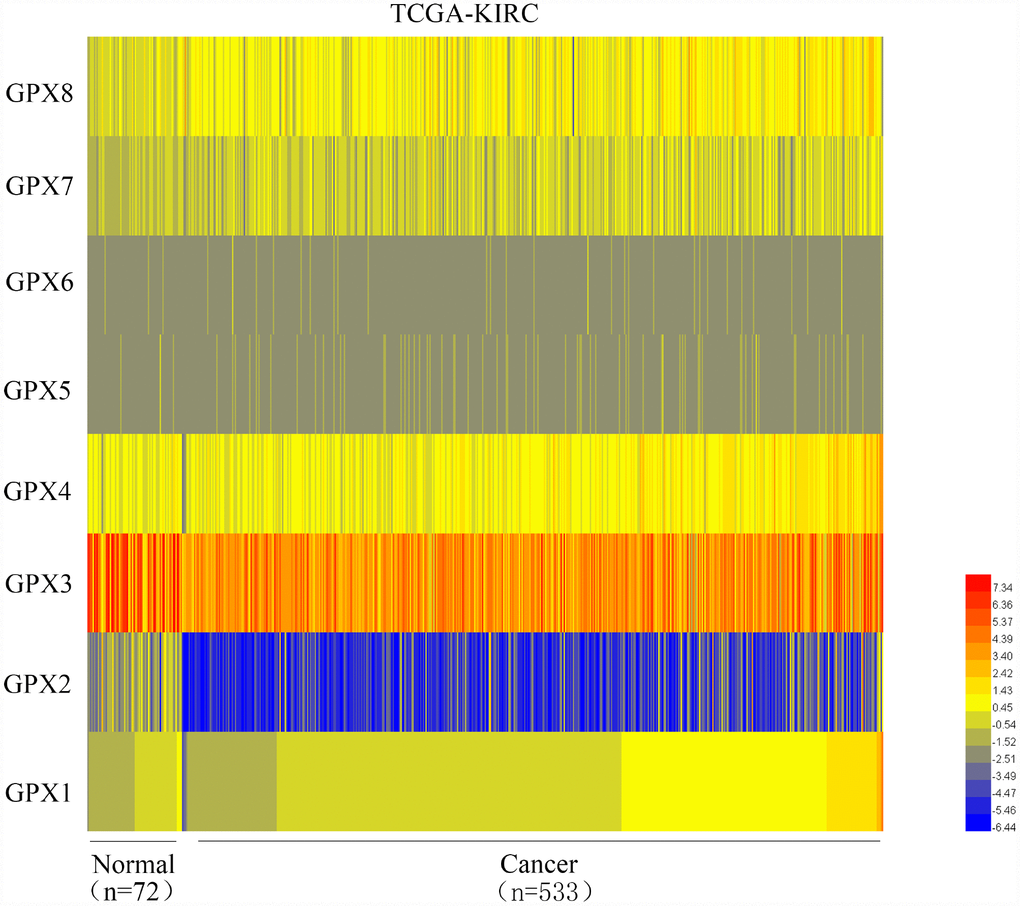

Figure 1. Heat map depicts the expression of GPXs family members in ccRCC samples from the TCGA-KIRC database (n=605). Red signifies high expression levels, blue signifies low expression levels, and yellow signifies medium expression levels. TCGA: The Cancer Genome Atlas; KIRC: kidney renal clear cell carcinoma.

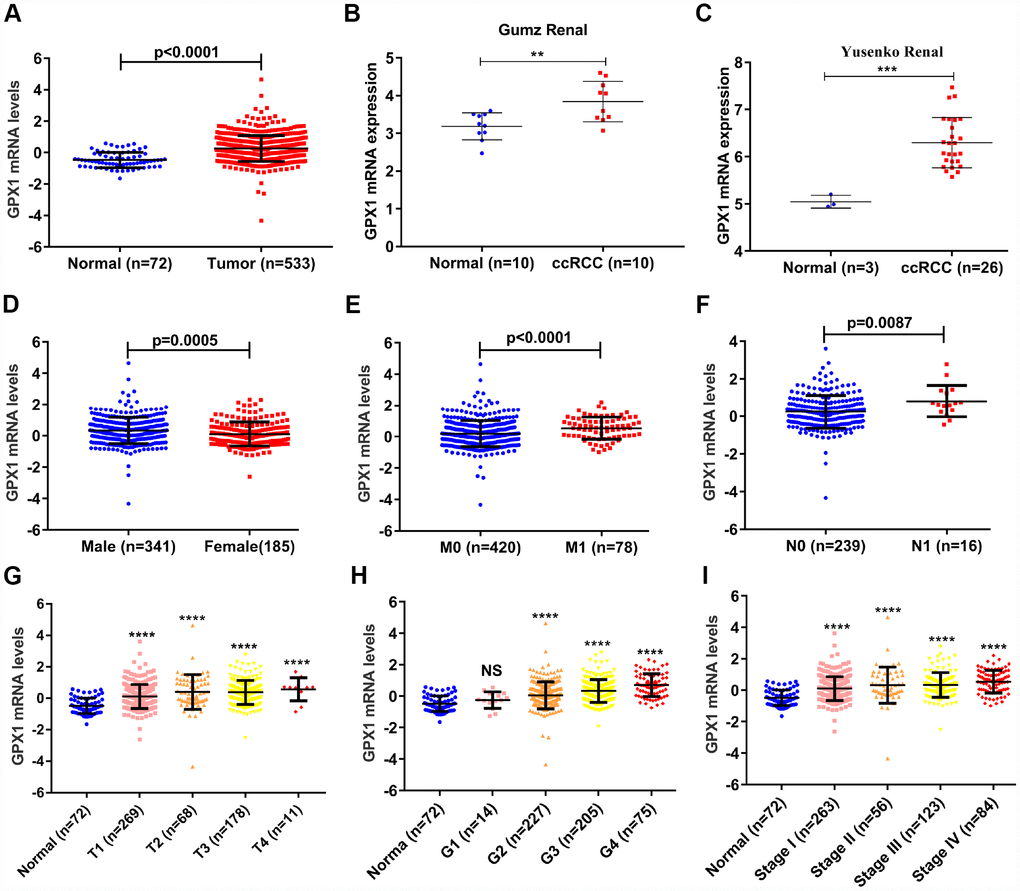

Figure 2. GPX1 is overexpressed and positively associated with higher tumor stage in ccRCC samples. (A) The mRNA expression levels of GPX1 were up-regulated in ccRCC samples, which were downloaded from TCGA-KIRC database containing 72 normal samples and 533 ccRCC samples. (B–C) The mRNA expression levels of GPX1 were up-regulated in ccRCC in statistics by Gumz et al. and Yusenko et al, which were downloaded from ONCOMINE database. The expression levels of GPX1 mRNA were compared in various clinical pathological parameters: (D) Gender, (E) M stage, (F) N stage, (G) T stage, (H) G stage, (I) TNM stage. (T means Territory; M means distant metastasis; N means Lymph node metastasis. ****, P < 0.0001, ***, P < 0.001, **, P < 0.01, NS means no significance, compared with the respective control).

The diagnostic value of high GPX1 expression in ccRCC patients

To probe whether the high expression of GPX1 possesses diagnostic significance in ccRCC patients, the ROC curves were used to analyze the diagnostic value of high GPX1 expression in various clinicopathological parameters from TCGA-KIRC datasets. ROC curve analysis showed that GPX1 could statistically distinguish ccRCC from normal tissue producing an area under the curve (AUC) of 0.7908 (95% CI: 0.7409-0.8407; p < 0.0001). Moreover, we performed a ROC curve analysis in the subgroup of ccRCC patients against pathological stage, T stage, N stage, M stage and G stage. Subgroup ROC curve analysis implied that the high expression of GPX1 might have diagnostic value for ccRCC patients with pathological stage (I + II) / (III + IV) (Figure 3B, AUC = 0.6122, p < 0.0001), (G1 + G2) / (G3 + G4) stage (Figure 3C, AUC = 0.6511, p < 0.0001), (T1 + T2) / (T3 + T4) (Figure 3D, AUC = 0.5897, p = 0.0006), N0 / N1 stage (Figure 3E, AUC = 0.6935, p = 0.0096), M0 / M1 stage (Figure 3F, AUC = 0.6445, p < 0.0001). These results implicitly suggested that GPX1 might have diagnostic value for patients with ccRCC.

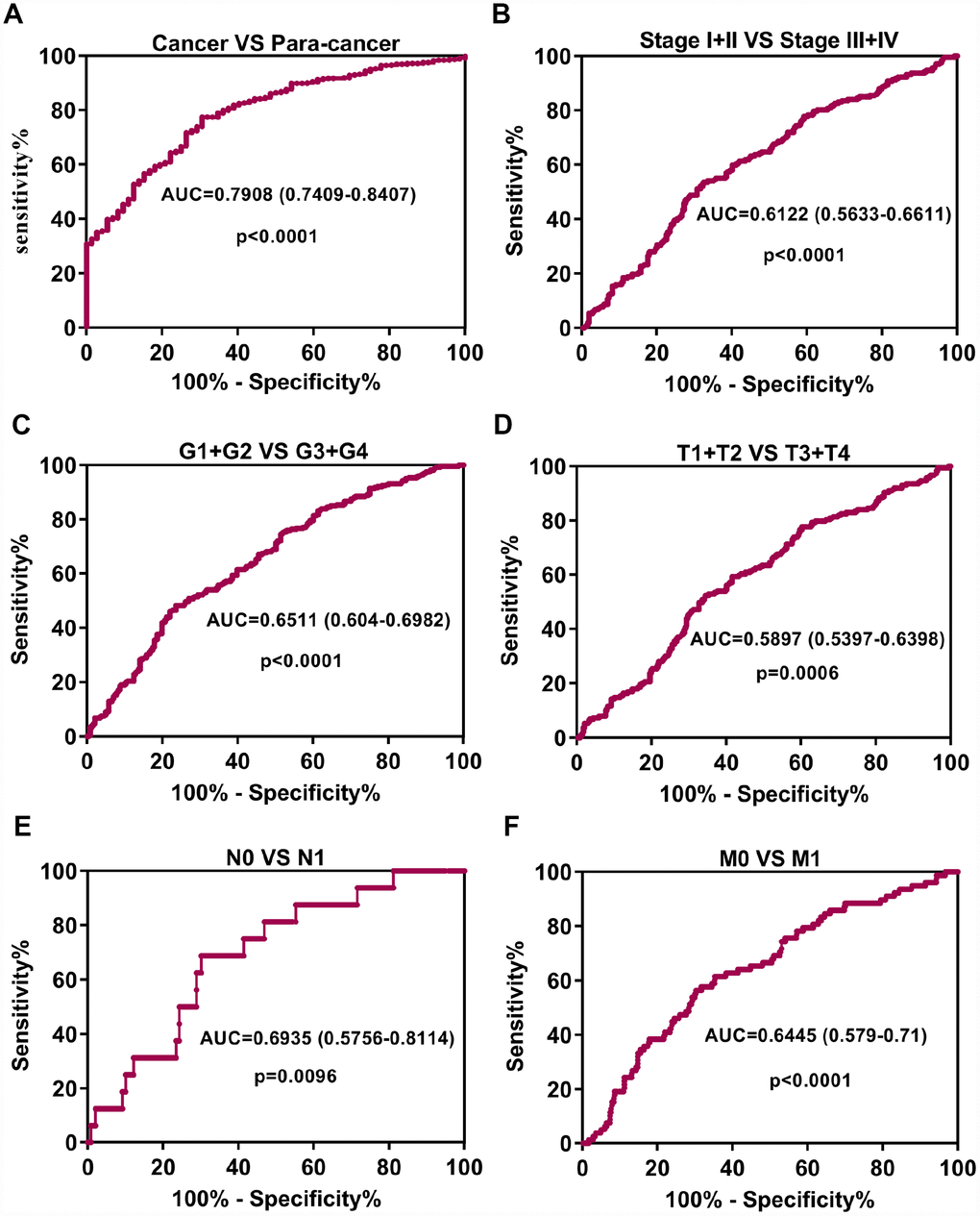

Figure 3. Up-regulation of GPX1 may serve as a potential diagnostic biomarker in ccRCC. (A) ROC curve analysis indicated that GPX1 could efficiently distinguish ccRCC from normal individual. The area under curve (AUC) was 0.7908 (p<0.0001). ROC curve analysis towards the expression levels of GPX1 mRNA in ccRCC subgroups against pathological stage (B), G stage (C), T stage (D), N stage (E) and M stage (F).

The prognostic value of high GPX1 expression in ccRCC patients

To investigate whether high expression of GPX1 is associated with prognosis in patients with ccRCC, we performed Kaplan-Meier analysis using data from the TCGA-KIRC database. The analysis found that high GPX1 expression predicted a worse overall survival (OS) in ccRCC patients (Figure 4A), however, GPX1 expression does not affect disease-free survival (DFS) (Figure 4B).

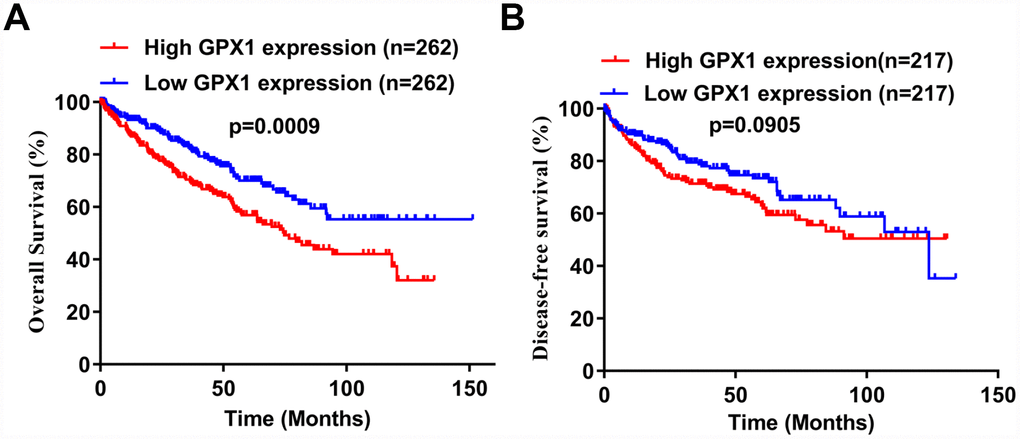

Figure 4. Potential prognostic value of high GPX1 expression in ccRCC patients. (A–B) Based on the median value of GPX1 expression, ccRCC samples from the TCGA database were divided into high GPX1 expression group and low GPX1 expression group. Kaplan-Meier curves were used to analyze the correlation between GPX1 levels and overall survival time (OS) and disease-free survival time (DFS) in ccRCC samples.

The expression levels of GPX1 were confirmed in RCC cell lines and tissues

To further verify the results of the ONCOMINE and TCGA databases, GPX1 was subjected to immunoblotting in RCC cell lines and tissues. As shown in Figure 5A, 5B, the expression levels of GPX1 in RCC cell lines were significantly higher than that of normal renal epithelial cell HK-2, and the expression of GPX1 in RCC tissues was also obviously higher than that in adjacent normal tissues. The expression levels of GPX1 were also detected by immunohistochemistry (IHC) in paired RCC tissues, and the IHC results were consistent with the results of immunoblotting (Figure 5C). The above results indicate that GPX1 is up-regulated in RCC cell lines and tissues, consistent with TCGA and ONCOMINE database results.

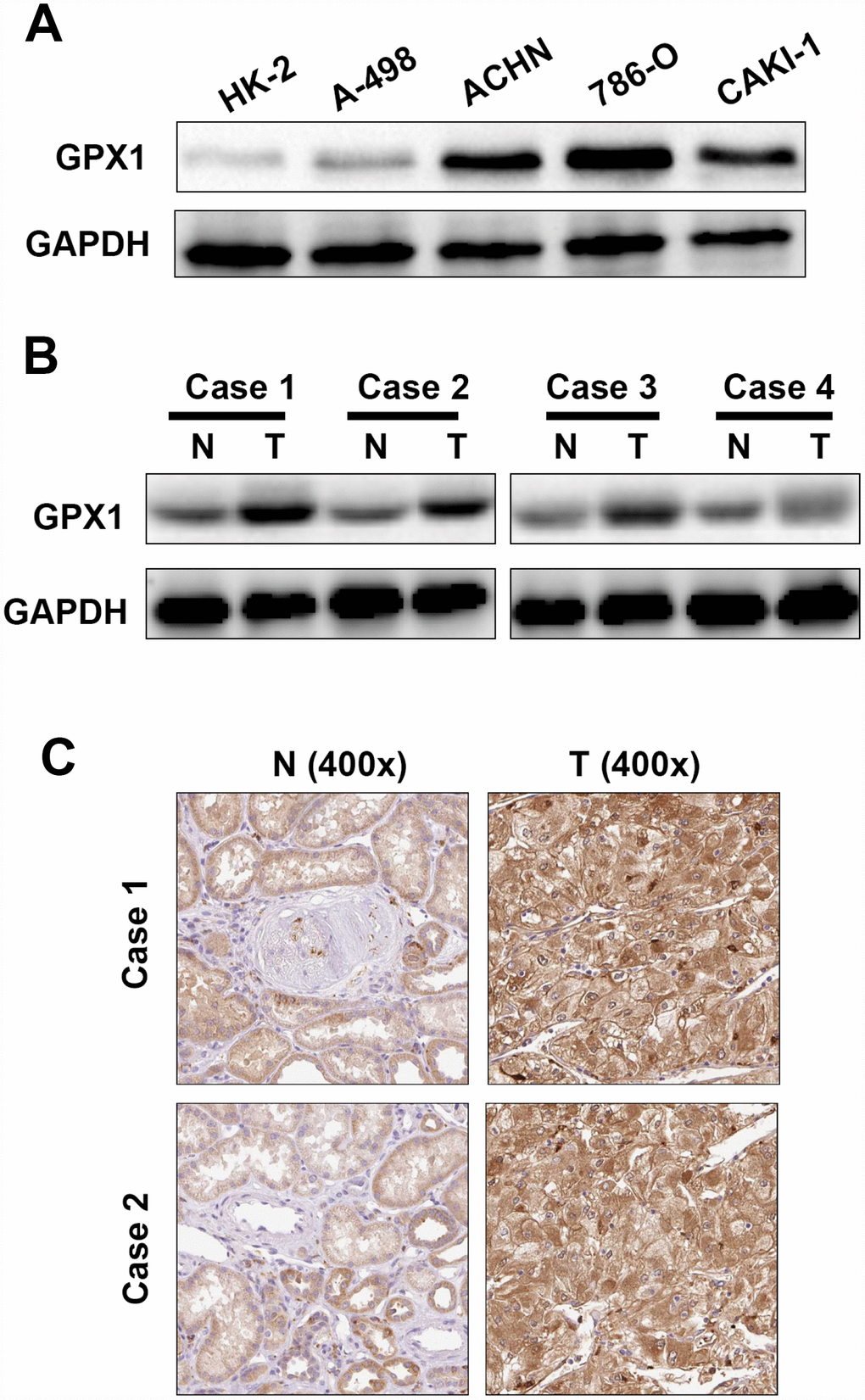

Figure 5. The expression levels of GPX1 in renal cancer cells and tissues. (A) Western blotting analysis of GPX1 expression levels in renal cancer cell lines (786-O, ACHN, A-498, Caki-1) and renal normal epithelial cells (HK-2). (B) Western blotting analysis of GPX1 expression levels in 4 pairs of ccRCC tissues (T = tumor tissue, N = normal tissue). (C) Immunohistochemical analysis of GPX1 expression levels in normal renal tissues and ccRCC tissues (T = tumor tissue, N = normal tissue).

Knockdown of GPX1 expression level inhibits proliferation of renal cancer cells in vitro

To explore the function of GPX1 in renal cancer, we first examined the effect of GPX1 on the growth of renal cancer cells in vitro, a key factor in tumor volume enlargement. Considering the high expression level of GPX1 in detecting renal cancer cell lines, we used the sh-RNA knockdown method. Two sh-GPX1 knockdown plasmids and corresponding sh-NC plasmids were transfected into 786-O and ACHN cells, resulting in consistent GPX1 knockdown (Figure 6A). CCK8 assays show that knockdown of GPX1 can inhibit the proliferation of renal cancer cells (Figure 6B). Colony formation assays reveal that knockdown of GPX1 can reduce clonogenic capacity of renal cancer cells (Figure 6C). These results reversely confirm that GPX1 can promote the growth of renal cancer cells.

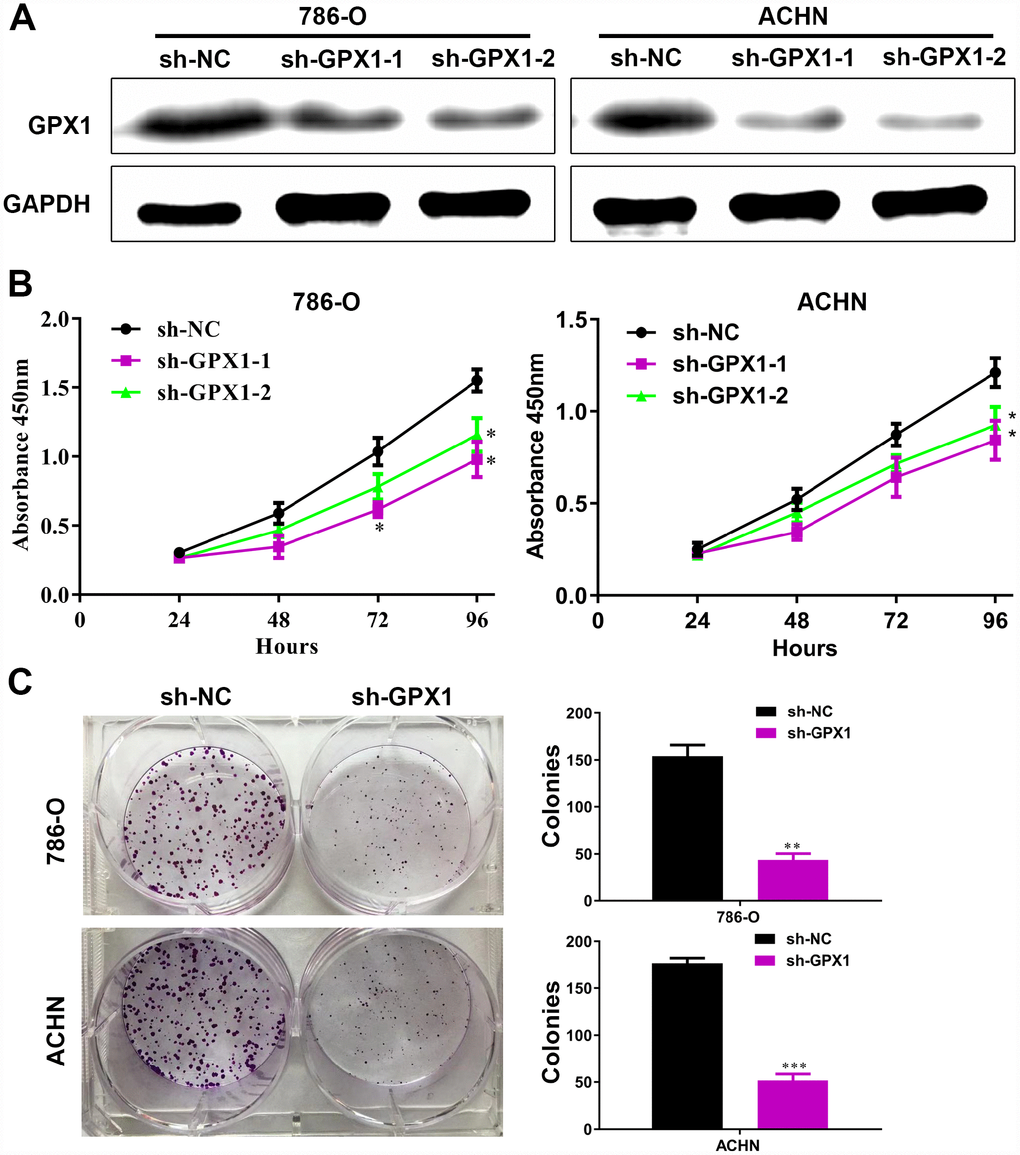

Figure 6. The knockdown of GPX1 levels inhibits the proliferation capability of renal cancer cells in vitro. (A) As shown by immunoblotting results, the expression levels of GPX1 were knocked down by transfecting sh-GPX1 plasmids. (B) CCK8 results showed that GPX1 knockdown significantly inhibited the proliferation of renal cancer cells. (C) GPX1 knockdown obviously reduced the colony formation ability of renal cancer cells. (***, P < 0.001, **, P < 0.01, *, P < 0.05, compared with the respective control).

Knockdown of GPX1 expression level inhibits migration and invasion of renal cancer cells in vitro

To investigate whether GPX1 affects the migration and invasion of renal cancer cells, we performed the transwell assays. As shown in Figure 7A-B, knockdown of GPX1 significantly reduced the migration and invasion capability of 786-O and ACHN cells. These results reversely suggest that GPX1 promotes migration and invasion of renal cancer cells.

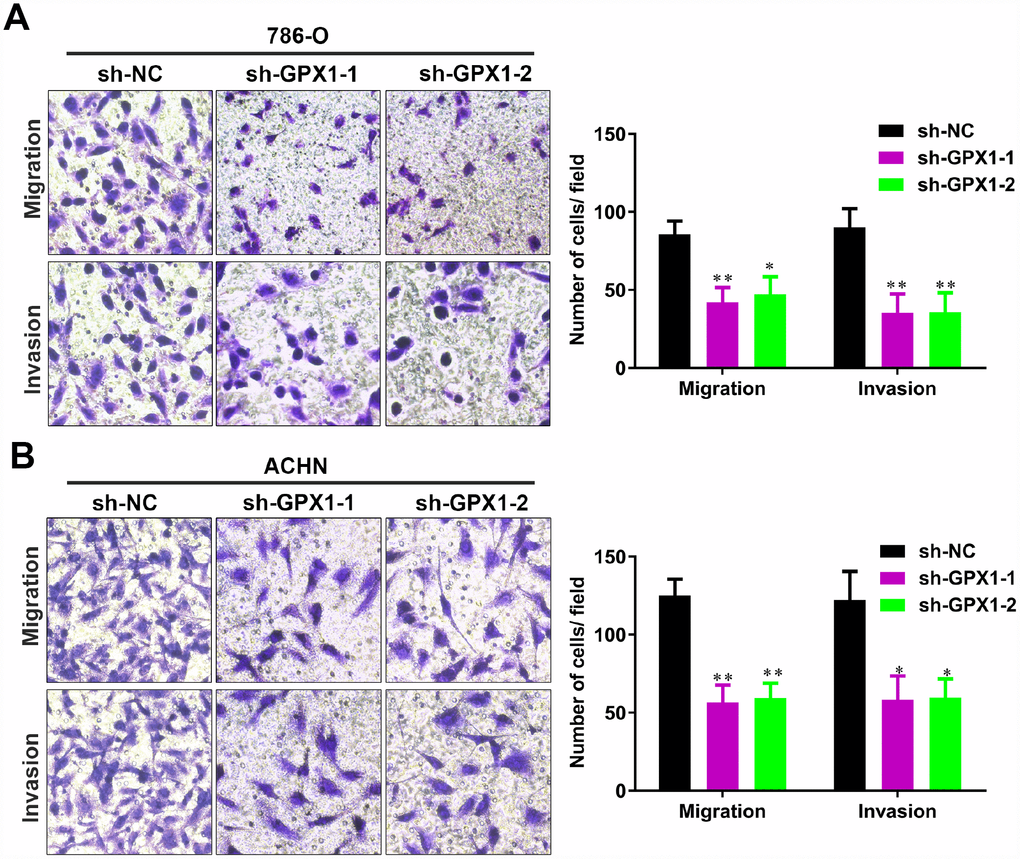

Figure 7. The knockdown of GPX1 levels significantly inhibits migration and invasion of renal cancer cells in vitro. (A, B) Transwell assays analysis of the impact of GPX1 levels knockdown on cell migration and invasion of 786-O and ACHN. (**, P < 0.01, *, P < 0.05, compared with the respective control).

Cell culture

The human RCC cell lines 786-O, A498, ACHN, Caki-1 and normal renal tubular epithelial cells HK-2 were purchased from ATCC. OS-RC-2 cell line was a gift from the Department of Urology of Wuhan Tongji Hospital. All cells were cultured in DMEM medium containing 10% FBS and 1% penicillin-streptomycin.

Cell transfection

Short hairpin RNA (sh-RNA) against GPX1 and corresponding negative control (sh-NC) were constructed by Vigene Biosciences (Shan Dong, China). The sh-RNA sequences are subjected to BLAST to avoid off-target effects. Constructed sh-RNA sequences and sh-NC sequences were transferred into cells using Lipofectamine 2000 reagent. The sh-RNA sequences were listed as following: sh-GPX1-1: 5′-GCTTCCAGACCATTGACA TCG-3′, sh-GPX1-2: 5′-ACCATTGACATCGAGCCTG AC-3′, sh-NC: 5′-UUCUCCGAACGUGUCACGUTT-3′,

CCK8 proliferation assays and colony formation assays

CCK8 (Beyotime Institute of Biotechnology) assay was used to test the proliferative capacity of tumor cells. 786-O (sh-GPX1 and sh-NC) and ACHN (sh-GPX1 and sh-NC) were seeded into 96-well plates with 1000 cells per well. The absorbance of each well was detected by a microplate reader at a wavelength of 450 nm.

As for the colony formation assays, 786-O (sh-GPX1 and sh-NC) and ACHN (sh-GPX1 and sh-NC) were seeded into 6-well plates with 1000 cells per well. After 2 weeks of growth, these cell colonies were fixed by methanol and then stained with crystal violet.

Immunohistochemistry assay

Briefly, RCC tissues and adjacent normal tissues were fixed by using 10% formalin. Then, those tissues were dehydrated, and embedded in paraffin. Those tissue sections were incubated with GPX1 rabbit polyclonal antibody (1:100, ABclonal, Wuhan, China) overnight. After washing with PBS thrice, those sections were incubated with secondary antibodies conjugated to horseradish peroxidase labeled polymers. Finally, those sections were counterstained with hematoxylin.

Transwell migration and invasion experiments

These experiments were done as previously described [30].

Western blotting experiments

RCC Tissues or cells were lysed in RIPA lysis buffer containing a protease inhibitor cocktail tablet (Roche) and 1 mM Phenylmethylsulfonyl fluoride (PMSF). The western blotting experiments were done as previously described [31].

Patient kidney cancer tissue samples

We collected RCC tissues and adjacent normal tissues in 50 case patients who were subjected to nephrectomies or partial nephrectomies operated at Wuhan Union Hospital between 2016 and 2018. The characteristics of 50 patients with ccRCC are summarized in Table 2. The collected ccRCC tissues were divided into two parts: 20 pairs were promptly frozen in liquid nitrogen for western blot assays; the other 30 pairs were fixed with formalin and paraffin-embedded for matched immunohistochemistry analysis. Before surgery, these patients did not receive any anti-tumor therapy, including chemotherapy, radiotherapy or targeted therapy. We have signed informed consent form with all patients. This study was approved by the Ethics Committee of Huazhong University of Science and Technology.

Cancer database bioinformatic analysis

The mRNA expression level data of GPX1 in ccRCC tissues and corresponding normal tissue and clinicopathological parameters data including patient gender, age, T stage, M stage, N stage, Grade stage, histopathological stage, overall survival (OS), disease-free survival (DFS) were downloaded from the TCGA-KIRC dataset. The mRNA expression level data of GPX1 were also downloaded from the ONCOMINE database. Kaplan-Meier curves and ROC curves were analyzed using mRNA levels from TCGA-KIRC dataset.

Statistical analysis

SPSS statistical software and Graphpad Prism 7.0 were used for statistical analysis. The GPX1 mRNA levels were analyzed in different clinicopathological parameters of ccRCC using the Mann-Whitney test. Pearson's chi-square test was used to analyze the correlation between GPX1 expression levels and clinicopathological parameters of ccRCC. The receiver operating characteristic (ROC) curve was used to analyze the expression level of GPX1 to distinguish ccRCC patients and obtain the area under the curve. The Kaplan-Meier curve was used to analyze the relationship between the expression level of GPX1 and the overall survival and progression-free survival of ccRCC patients. Each group of data is presented as mean ± SD. The p value < 0.05 of statistical analysis was considered to have significant differences.
