Macrophage migration inhibitory factor rejuvenates aged human mesenchymal stem cells and improves myocardial repair

Characterization of young and aged MSCs

We isolated MSCs from the bone marrow of young and aged donors. Then, we used flow cytometry to examine the cell surface marker expression of the young and aged MSCs. Young and aged MSCs expressed surface markers in similar patterns, as they were CD73 (+), CD90 (+), CD105 (+), CD45 (-) and CD34 (-) (Supplementary Figure 1A). We also examined the adipogenic and osteogenic differentiation capacities of the young and aged MSCs. Both types of MSCs could differentiate into adipocytes, as evidenced by Oil Red O staining (Supplementary Figure 1B). Notably, aged MSCs exhibited a higher adipogenic differentiation capacity than young MSCs (Supplementary Figure 1B). Furthermore, aged MSCs had a significantly lower osteogenic differentiation capacity than young MSCs, as evidenced by Alizarin Red staining (Supplementary Figure 1C). Thus, consistent with a previous study [22], aged MSCs exhibited a greater adipogenic differentiation potential and a lower osteogenic differentiation potential than young MSCs.

Aged MSCs display increased cellular senescence and reduced function

Given that an altered differentiation potential is a sign of MSC aging, we examined the cellular senescence of young and aged MSCs. We first examined the morphology of the cells, and found that young MSCs were spindle-shaped and fibroblast-like, whereas aged MSCs appeared flattened and were significantly larger than young MSCs (Figure 1A). Next, we performed senescence-associated-β-galactosidase (SA-β-gal) staining to assess cellular senescence. We detected a higher number of SA-β-gal-positive cells among aged MSCs than among young MSCs (Figure 1B). Western blotting also revealed that the senescence-associated markers p21 and p53 were expressed at significantly higher levels in aged MSCs than in young MSCs (Figure 1C).

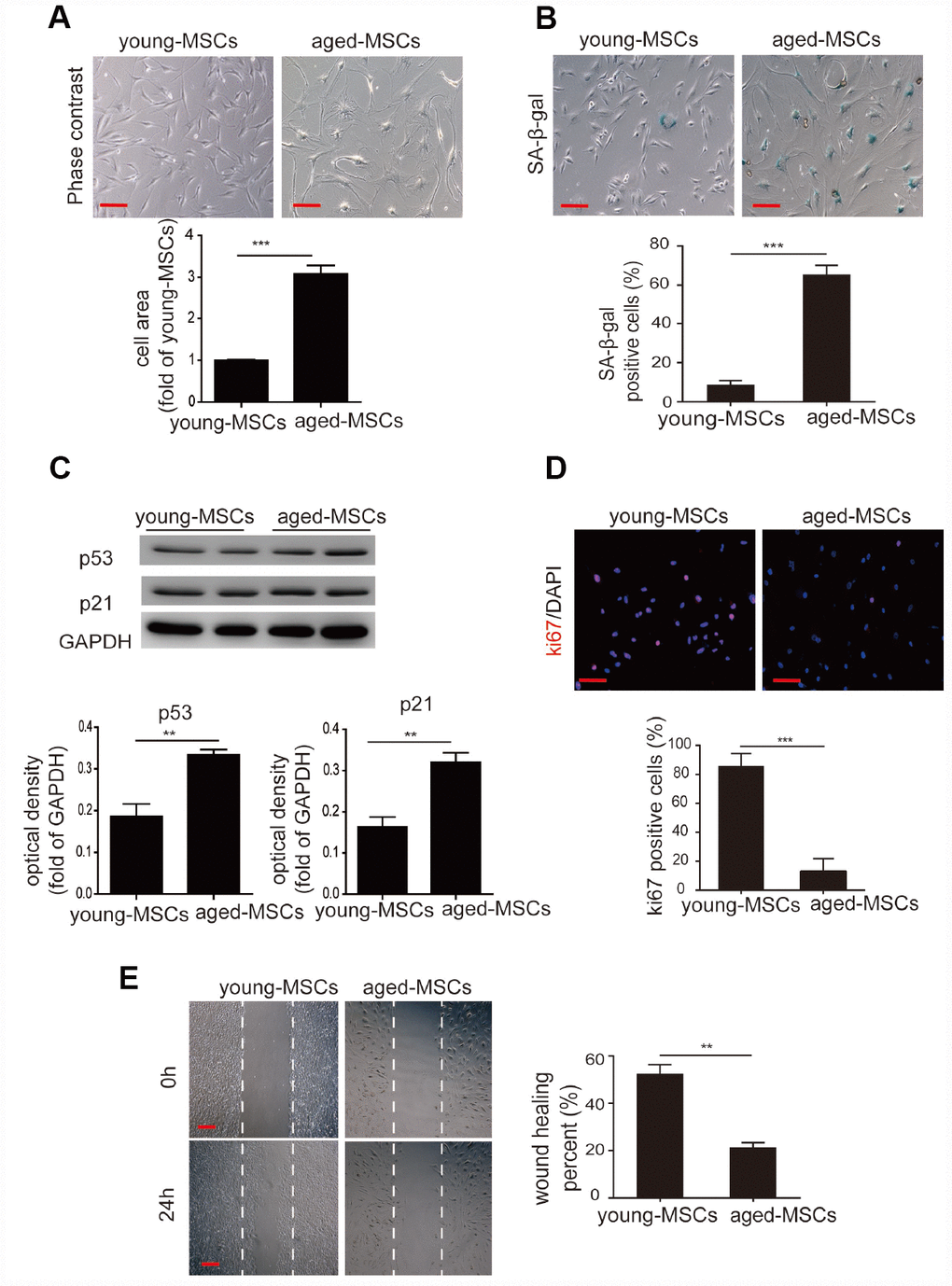

Figure 1. Aged MSCs display increased cellular senescence. (A) Representative images of young and aged MSCs under light microscopy, and quantitative analysis of the cell size of young and aged MSCs. (B) Representative images of SA-β-gal staining, and quantitative analysis of SA-β-gal-positive cells among young and aged MSCs. (C) Western blotting and quantitative analysis of p53 and p21 protein expression in young and aged MSCs. (D) Representative images of Ki-67 staining and quantitative analysis of Ki-67-positive cells among young and aged MSCs. (E) Representative images of the wound healing assay and quantitative analysis of the wound recovery rate in young and aged MSCs. Scale bar=100 μm. Data are expressed as the mean±SEM. n=3. **p<0.01; ***p<0.001.

We then assessed cellular proliferation with Ki-67 staining, and found that the percentage of Ki-67-positive cells was much lower among aged MSCs than among young MSCs (Figure 1D). Using a wound healing assay, we also evaluated the migration abilities of aged and young MSCs. After the cells had been stimulated for 24 hours with 1% serum, the extent of wound closure was markedly lower for aged MSCs than for young MSCs (Figure 1E).

To further evaluate the function of aged and young MSCs, we isolated conditioned medium (CdM) from aged and young MSCs, and co-cultured the CdM with neonatal rat cardiomyocytes under a serum deprivation/hypoxia (SD/H) challenge for 48 hours. MSC-CdM treatment robustly inhibited the SD/H-induced apoptosis of neonatal rat cardiomyocytes, as evidenced by terminal deoxynucleotidyl transferase dUTP nick end labeling (TUNEL) staining (Supplementary Figure 2A). However, the apoptosis of neonatal rat cardiomyocytes was reduced much further by young MSC-CdM than by aged MSC-CdM (Supplementary Figure 2A). MSC-CdM also induced the tube formation of human umbilical vein endothelial cells, but young MSC-CdM stimulated tube formation to a greater extent than aged MSC-CdM (Supplementary Figure 2B). Thus, MSCs isolated from aged individuals exhibited cellular senescence.

MIF inhibits the cellular senescence of MSCs

To determine whether MIF regulates the senescence of MSCs, we examined the expression of MIF in young and aged MSCs. MIF protein levels were significantly lower in aged MSCs than in young MSCs (Figure 2A), indicating that MIF expression was inversely associated with cellular senescence. We then used small interfering RNA (siRNA) to knock down MIF in young MSCs. MIF-siRNA treatment of young MSCs significantly downregulated MIF expression (Supplementary Figure 3), while it significantly elevated p53 and p21 expression (Figure 2B). Furthermore, MIF-siRNA treatment remarkably increased the number of SA-β-gal-positive cells among young MSCs (Figure 2C).

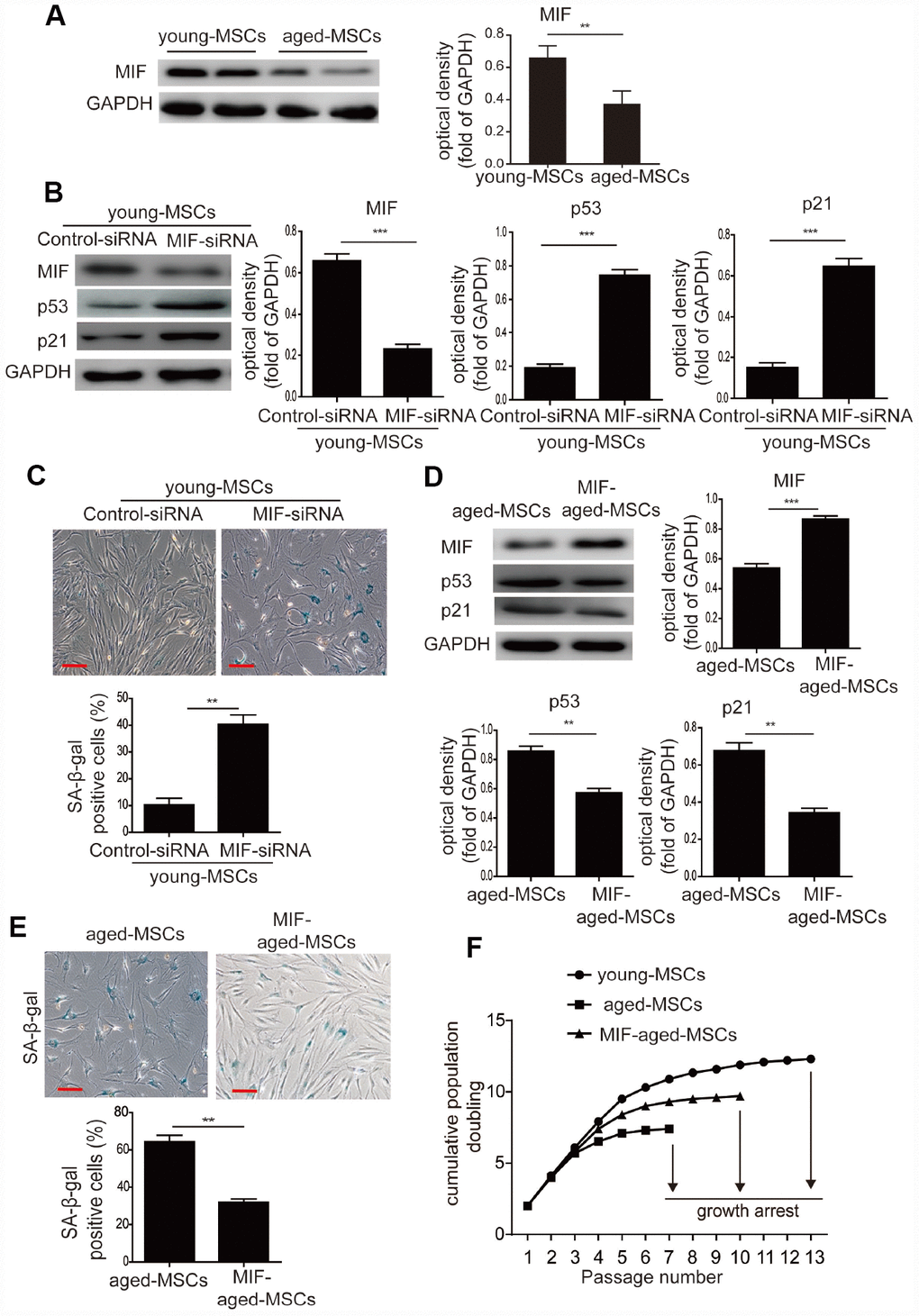

Figure 2. MIF inhibited the cellular senescence of MSCs. (A) Western blotting and quantitative analysis of MIF protein expression in young and aged MSCs. (B) Western blotting and quantitative analysis of MIF, p53 and p21 protein expression in young MSCs treated with control siRNA or MIF-siRNA. (C) Representative images of SA-β-gal staining and quantitative analysis of SA-β-gal-positive cells in young MSCs treated with control siRNA or MIF-siRNA. (D) Western blotting and quantitative analysis of MIF, p53 and p21 protein expression in aged and MIF-aged MSCs. (E) Representative images of SA-β-gal staining and quantitative analysis of SA-β-gal-positive cells in aged and MIF-aged MSCs. (F) Cell growth curves showed that overexpression of MIF in aged MSCs increased their growth rate. Scale bar=100 μm. Data are expressed as the mean±SEM. n=3. **p<0.01; ***p<0.001.

Next, aged MSCs were transduced with a lentiviral vector containing MIF cDNA and green fluorescent protein (GFP) (‘MIF-aged MSCs’) or a vector containing GFP alone (‘aged MSCs’). GFP fluorescence was observed in both aged and MIF-aged MSCs under a microscope (Supplementary Figure 4A). Most MIF-aged MSCs (>90%) expressed GFP, indicating that MIF was successfully transduced (Supplementary Figure 4B). Furthermore, MIF-aged MSCs expressed CD73, CD90 and CD105, but not CD45 or CD34 (data not shown). While the overexpression of MIF in aged MSCs enhanced MIF expression, it reduced p53 and p21 expression (Figure 2D). Moreover, the percentage of SA-β-gal-positive cells was greatly reduced in MIF-aged MSCs compared with aged MSCs (Figure 2E). We also used serial passaging to examine the growth of young, aged and MIF-aged MSCs. Aged MSCs grew at a lower rate than young MSCs and became arrested at passage 7, whereas young MSCs continued growing until passage 13 (Figure 2F). Overexpression of MIF in aged MSCs increased their growth rate and delayed the arrest of their growth until passage 10 (Figure 2F). These findings suggest that MIF inhibits the cellular senescence of MSCs, and that overexpression of MIF can attenuate the senescence of aged MSCs.

MIF rejuvenates aged MSCs by promoting autophagy

Autophagy has recently been found to inhibit cellular senescence [23, 24]. Thus, we examined the expression of key autophagy-associated proteins (LC3I/II, Beclin1 and p62) in young and aged MSCs. Beclin1 and LC3I/II levels were much lower and p62 expression was significantly higher in aged MSCs than in young MSCs, suggesting that autophagy was suppressed in aged MSCs (Supplementary Figure 5A).

Next, we investigated whether MIF inhibits MSC senescence by activating autophagy. Knockdown of MIF in young MSCs significantly downregulated Beclin1 and LC3I/II and upregulated p62, suggesting that MIF promotes autophagy in MSCs (Supplementary Figure 5B). Overexpression of MIF in aged MSCs significantly induced autophagy, as manifested by the elevated expression of Beclin1 and LC3I/II and the reduced expression of p62 (Figure 3A). Considering these results together with the suppression of p53 and p21 expression in MIF-aged MSCs compared with aged MSCs, we concluded that MIF rejuvenated aged MSCs by activating autophagy. To verify this conclusion, we treated MIF-aged MSCs with the autophagy inhibitor 3-methyladenine (3-MA). Treatment with 3-MA reduced the autophagy and increased the p53 and p21 levels of MIF-aged MSCs (Figure 3A).

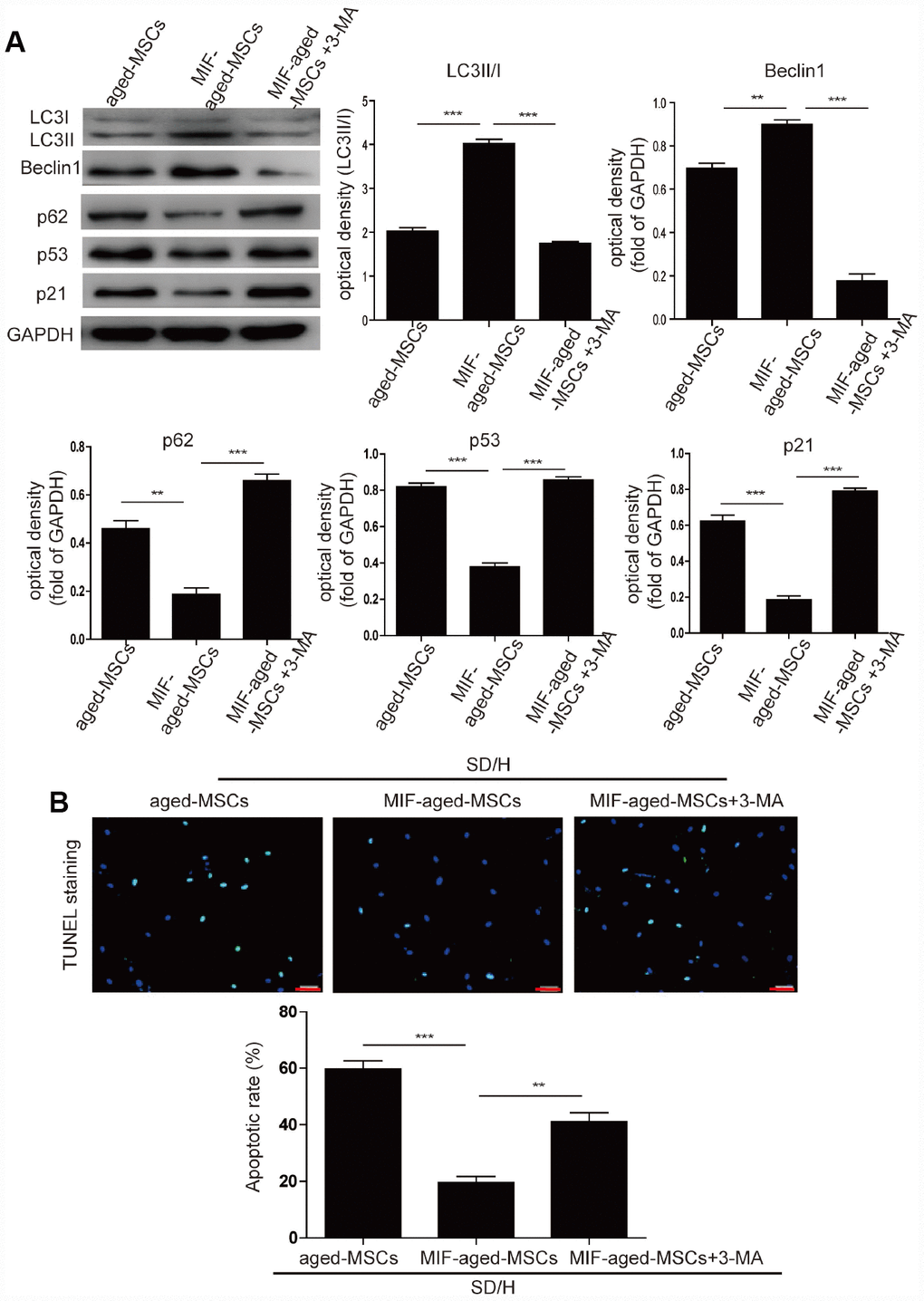

Figure 3. MIF rejuvenated aged MSCs by promoting autophagy. (A) Western blotting and quantitative analysis of LC3I/II, Beclin1, p62, p53 and p21 protein expression in aged MSCs and MIF-aged MSCs with or without 3-MA treatment. (B) Representative images of TUNEL staining and quantitative analysis of the apoptosis of aged MSCs and MIF-aged MSCs with or without 3-MA treatment under an SD/H challenge. Scale bar=100 μm. Data are expressed as the mean±SEM. n=3. **p<0.01; ***p<0.001.

We then examined the survival of aged and MIF-aged MSCs under an SD/H challenge. After a 48-hour SD/H challenge, MIF-aged MSCs underwent apoptosis to a remarkably lower extent than aged MSCs (Figure 3B). This protective effect of MIF on aged MSCs was largely reversed by 3-MA treatment (Figure 3B). Furthermore, the tube formation capacity (i.e., tube length) of human umbilical vein endothelial cells was significantly greater in MIF-aged MSC-CdM than in aged MSC-CdM (Supplementary Figure 5C). Treatment with 3-MA partially reversed the enhanced angiogenic potential of MIF-aged MSCs (Supplementary Figure 5C).

To further explore the angiogenic potential of young MSC-CdM, aged MSC-CdM, MIF-aged MSC-CdM and MIF-aged MSC+3-MA-CdM, we used an antibody array to measure the secretion of angiogenic factors from the CdM. The levels of the proangiogenic proteins angiogenin, angiopoietin-2 (ANG-2), epidermal growth factor (EGF) and vascular endothelial growth factor (VEGF) were significantly lower in aged MSC-CdM than in young MSC-CdM (Supplementary Figure 6). Overexpression of MIF in aged MSCs elevated the levels of angiogenin, ANG-2, EGF and VEGF in the CdM, while 3-MA treatment downregulated these factors in MIF-aged MSC-CdM (Supplementary Figure 6). These data suggest that MIF rejuvenated aged MSCs and enhanced their angiogenic potential by activating autophagy.

Transplantation of MIF-aged MSCs improves cardiac function in a rat model of MI

Next, we generated a rat model of MI, and examined the effects of MSC injection on cardiac function by performing echocardiography. Representative images of M-mode echocardiography were captured 28 days after MI (Figure 4A). The left ventricular (LV) ejection fraction (LVEF) and fraction shortening (LVFS) were similar among the different groups on day 0, but were much lower in the MI group than in the control group on days 7 and 28 (Figure 4B). In the MSC-treated groups, the LVEF and LVFS gradually increased from days 7 to 28 after MI surgery, while this did not occur in the MI group (Figure 4B). The LVEF and LVFS were lower in the aged MSC group than in the young MSC group, but were much higher in the MIF-aged MSC group than in the aged MSC group 28 days after MI (Figure 4B).

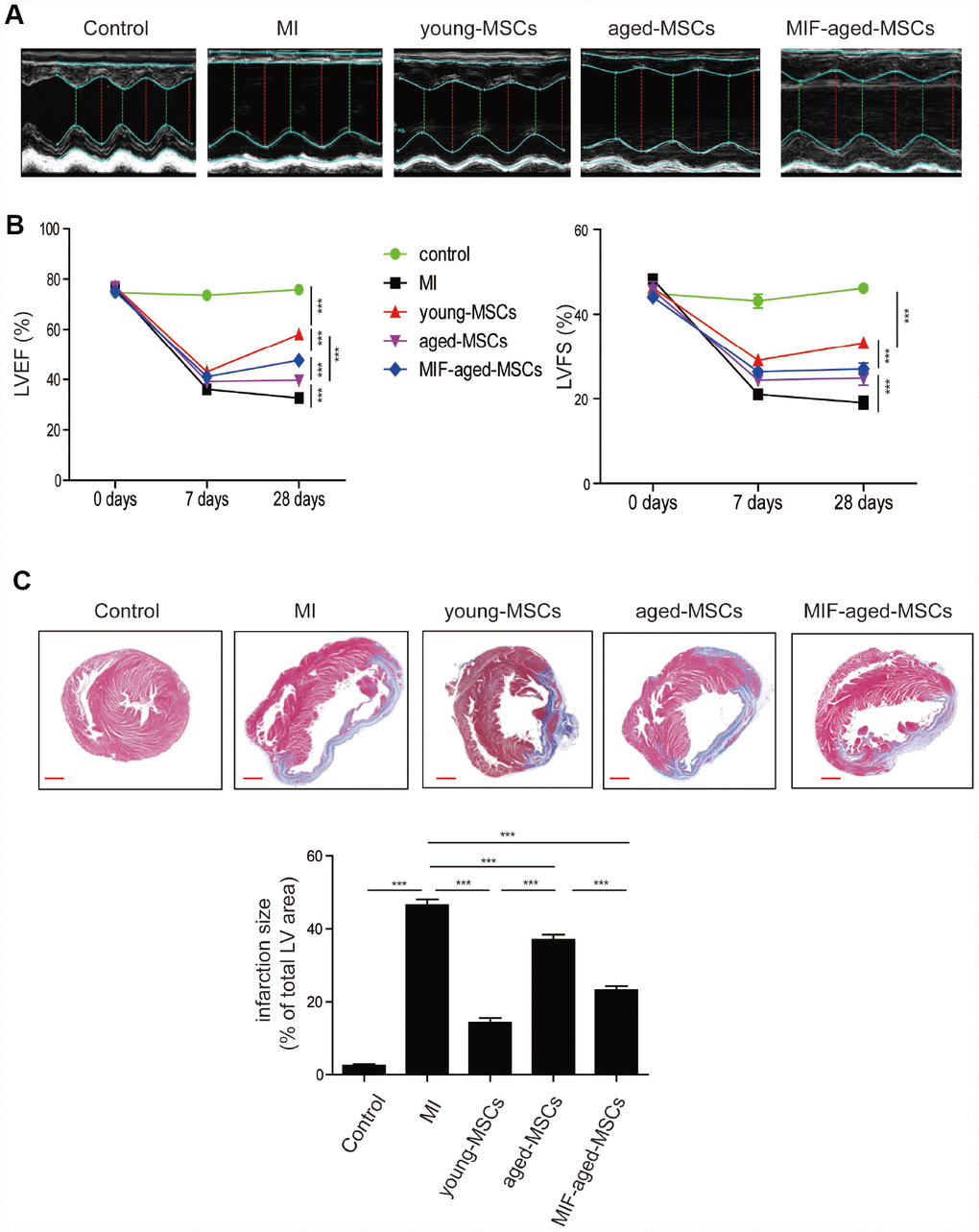

Figure 4. Transplantation of MIF-aged MSCs improved cardiac function in a rat model of MI. (A) Representative images of M-mode echocardiography captured 28 days after MI in rats from the different groups. (B) Heart function, including the LVEF and LVFS, was evaluated at 0, 7 and 28 days in control mice and MI mice with or without MSC transplantation. (C) Representative images of Masson's Trichrome staining and quantitative analysis of heart fibrosis in the different experimental groups. Scale bar=2 mm. Data are expressed as the mean±SEM. n=6-7. **p<0.01; ***p<0.001.

We then performed Masson's Trichrome staining to test for fibrosis in the different groups. Four weeks following MI, the infarct size was significantly lower in the MSC-treated groups than in the MI group (Figure 4C). Notably, the infarct size was much greater in the aged MSC group than in the young MSC group, but was much lower in the MIF-aged MSC group than in the aged MSC group (Figure 4C). Thus, MIF-aged MSCs ameliorated MI-induced cardiac fibrosis more effectively than aged MSCs.

MIF overexpression enhances cell survival and angiogenesis in the rat heart after MI

Subsequently, we assessed the survival of MSCs 28 days post-transplantation by performing human nuclear antigen (HNA) staining. As shown in Figure 5A, HNA-positive cells were detected in the hearts of the MSC-treated rats following MI. Although the number of surviving MSCs in the heart was the highest in the young MSC group, it was significantly greater in the MIF-aged MSC group than in the aged MSC group (Figure 5A), suggesting that MIF overexpression improved aged MSC survival following MI.

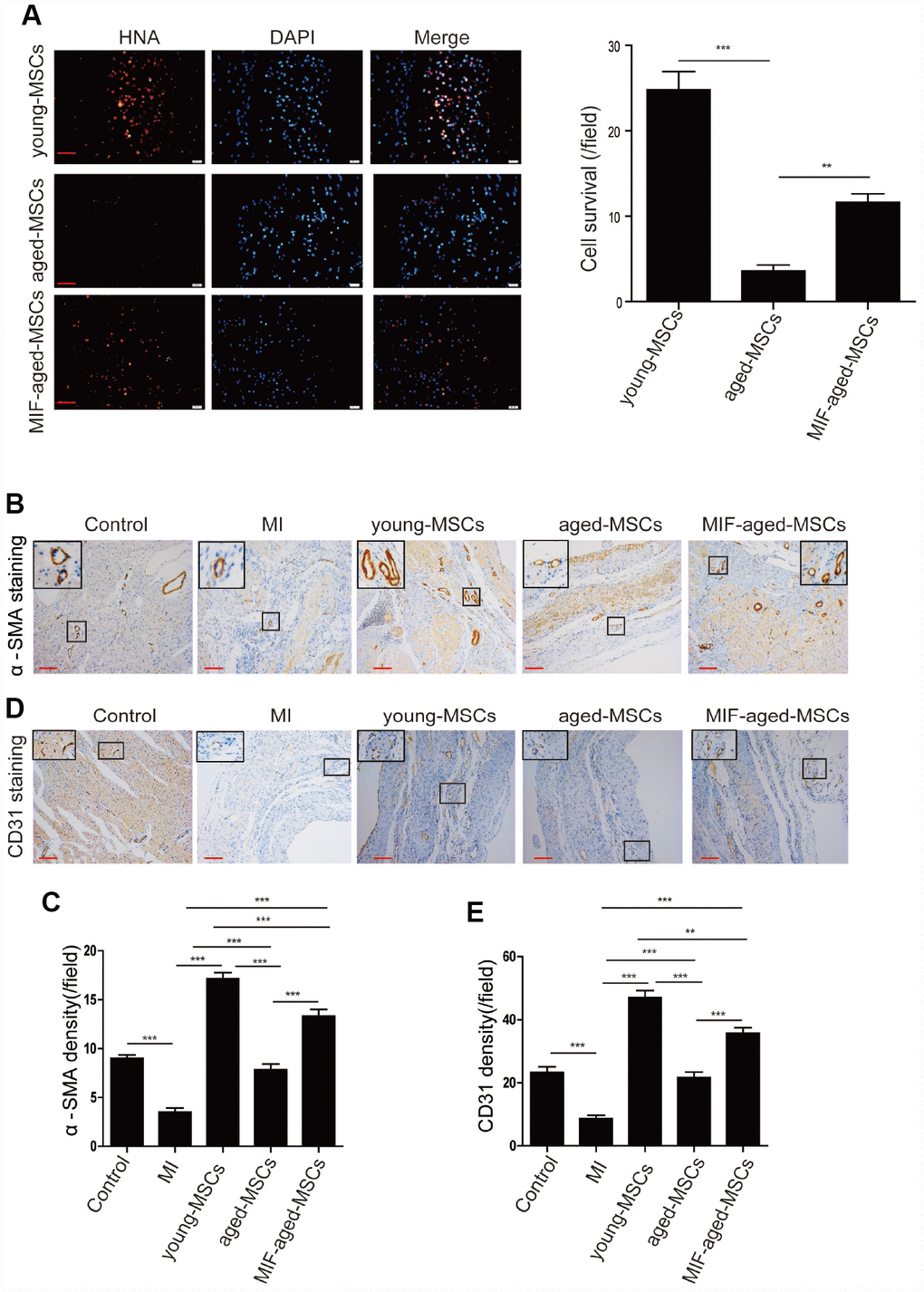

Figure 5. MIF overexpression enhanced cell survival and angiogenesis in the rat heart after MI. (A) Representative images of HNA staining and quantitative analysis of MSC survival in the heart tissue of rats in the different groups at 28 days. Scale bar=50 μm. (B) Representative images of α-SMA staining in the heart tissue of rats from the different groups at 28 days. Scale bar=100 μm. (C) Quantitative analysis of the α-SMA density in the heart tissue of rats from the different groups at 28 days. (D) Representative images of CD31 staining in the heart tissue of rats from the different groups at 28 days. Scale bar=100 μm. (E) Quantitative analysis of the CD31 density in the heart tissue of rats from the different groups at 28 days. Data are expressed as the mean±SEM. n=6-7. **p<0.01; ***p<0.001.

We then performed alpha smooth muscle actin (α-SMA) staining to detect the blood vessels of the ischemic areas in the different groups by (Figure 5B). The α-SMA density was markedly lower in the MI group than in the control group, but was much greater in the MSC-treated groups than in the MI group (Figure 5C). The α-SMA density was notably higher in the MIF-aged MSC group than in the aged MSC group (Figure 5C).

Lastly, we performed CD31 staining to assess the capillary density of the ischemic areas in the different groups (Figure 5D). The CD31 density was much greater in the MSC-treated groups than in the MI group (Figure 5E). Although the CD31 density was highest in hearts from the young MSC group, it was significantly greater in the MIF-aged MSC group than in the aged MSC group (Figure 5E). These results indicate that MIF overexpression enhanced aged MSC survival and angiogenesis in the rat heart after MI.

Cell culture

Young and aged human bone marrow MSCs were isolated from young (n=3, 18-25 years old) and aged donors (n=3, 72-80 years old), respectively, as previously reported [1]. The procedure was approved by the research ethics board of Shanghai East Hospital, and written informed consent was obtained from all donors. MSCs were cultured as described previously [1]. MSCs were used in the current study at passage 3-4. Neonatal rat cardiomyocytes were isolated and cultured as described previously [47].

Characterization of MSCs and lentiviral transduction

The surface antigen expression of MSCs was determined by flow cytometry. The following antibodies were used: anti-CD29 (Biolegend, 303003), anti-CD45 (Biolegend, 304011), anti-CD73 (Biolegend, 344003), anti-CD90 (Biolegend, 328107) and anti-CD105 (Biolegend, 323205). Aged MSCs were transfected with either a lentivirus containing MIF (MIF-aged MSCs) or a control vector (aged MSCs), as previously described [48]. The transfection efficiency was examined by fluorescence microscopy and Western blotting. The capacity of MSCs to differentiate into osteocytes and adipocytes was examined as previously reported [48].

SA-β-gal staining

The senescence of MSCs from the different groups was determined with an SA-β-gal staining kit (C0602, Beyotime). Briefly, MSCs were plated on a 24-well plate with cover slides. After different treatments, the MSCs were washed with phosphate-buffered saline (PBS) and fixed for 30 minutes. Subsequently, the MSCs were incubated with an SA-β-gal staining solution overnight at 37°C. Finally, the samples were washed and photographed. The percentage of senescent MSCs was calculated as the ratio of blue (positive) MSCs to all MSCs.

SiRNA transfection

MSCs were transfected with MIF-siRNA (sc-37137, Santa Cruz) or control siRNA (sc-37007, Santa Cruz) by means of a Lipofectamine RNAiMAX Reagent Kit (Invitrogen, 13778030) according to the manufacturer’s protocol. The transfection efficiency was determined by Western blotting 72 hours after transfection.

Scratch-wound assay

Young and aged MSCs were seeded into a six-well plate and cultured. Scratches of the same width were made on the bottom of each well with a 1-mL pipette tip. The wells were washed with PBS to remove cell debris, and the MSCs were then cultured in serum-free medium. After 24 hours of culture, the migration of MSCs into the “wounded” area was photographed and evaluated.

TUNEL assay

The apoptosis of MSCs under an SD/H challenge was evaluated by TUNEL staining (11767291910, Roche). Briefly, MSCs from the different groups were seeded into a 24-well plate with cover slides, and were exposed to SD/H (1% O₂, 5% CO₂ and 94% N₂) for 48 hours. TUNEL staining was performed according to the manufacturer’s protocol. Finally, the samples were mounted with 4’,6-diamidino-2-phenylindole (DAPI) and photographed. The apoptotic rate of MSCs was determined from six different view fields for each sample in three independent experiments.

Western blotting

Proteins were extracted from MSCs, and the protein concentration was measured with a bicinchoninic acid assay kit (Thermo, 231227). After separation by sodium dodecyl sulfate polyacrylamide gel electrophoresis, the proteins were transferred onto polyvinylidene difluoride membranes. The membranes were blocked with 5% skim milk in Tris-buffered saline-Tween, and then were incubated overnight at 4°C with the following antibodies: anti-p21 (ab109199, Abcam), anti-p53 (ab26, Abcam), anti-LC3I/II (#12741, CST), anti-Beclin1 (#3738, CST), anti-p62 (#5114, CST) and anti-GAPDH (#2118, CST). After being washed with Tris-buffered saline-Tween three times, the membranes were incubated with secondary antibodies (1:5000, CST) at 37°C for one hour and then exposed to radiography film in a dark room.

CdM collection and angiogenic cytokine analysis

CdM was prepared from young, aged and MIF-aged MSCs as previously reported [47]. Briefly, 5×10⁶ young, aged and MIF-aged MSCs were plated on 15-cm culture dishes and cultured until they reached 70-80% confluence. The cells were washed three times with PBS, and then 15 mL of serum- and antibiotic-free Dulbecco’s modified Eagle’s medium was added. Twenty-four hours later, the supernatants of the young, aged and MIF-aged MSCs were collected and centrifuged (4,000 x g for 30 minutes at 4°C) in ultrafiltration conical tubes (Amicon Ultra-15 with membranes selective for 3 kDa) to concentrate the CdM. Finally, the concentration of the CdM was measured. The angiogenic cytokines in the MSC-CdM were assessed with a RayBio® Cytokine Antibody Array (QAH-ANG-1) as previously described [49]. The cytokines were quantified with a Quantibody Q-Analyzer.

Neonatal rat cardiomyocyte and MSC-CdM culture

To examine the protective effects of MSC-CdM, we co-cultured neonatal rat cardiomyocytes with MSC-CdM and then challenged the cells with SD/H. Forty-eight hours later, the apoptosis of the neonatal rat cardiomyocytes was examined by TUNEL staining.

Tube formation assay with MSC-CdM

The angiogenetic capacity of CdM from MSCs was evaluated with an In Vitro Angiogenesis Assay Kit (Chemicon, Temecula, CA, USA) according to the manufacturer’s protocol. Briefly, 10,000 human umbilical vein endothelial cells were cultured on a Matrigel-coated 96-well plate. The cells were treated with CdM from MSCs for six hours at 37°C. Finally, tube formation was randomly photographed, and the lengths of the tubes were analyzed.

MI model and echocardiography

All the animal studies were approved by the Committee on the Use of Live Animals in Teaching and Research at Nanjing Medical University. An acute MI model involving ligation of the left anterior descending coronary artery was established in rats. Briefly, adult Sprague-Dawley rats weighing 220-250 g were anesthetized with intraperitoneal ketamine (100 mg/kg) and xylazine (10 mg/kg) and connected to a ventilator with an orotracheal tube. After fixation, a left thoracotomy was performed between the third and fourth intercostal spaces under sterile conditions. The heart was exposed and the left anterior descending coronary artery was quickly ligated with a 6-0 silk suture. After ligation, the rats were randomly allocated to receive one of the following treatments via intramuscular injections at four sites around the border zone of the infarcted heart: 1) PBS (MI group, n=10); 2) 1×10⁶ young MSCs (young MSC group, n=10); 3) 1×10⁶ aged MSCs (aged MSC group, n=10) or 1×10⁶ MIF-aged MSCs (MIF-aged MSC group, n=10). All MSCs were suspended in 100 μL of PBS. Another group of rats (n=8) underwent thoracotomy without left anterior descending coronary artery ligation, and served as the control group. Cardiac function was examined by echocardiography (Ultramark 9; Soma Technology, Bloomfield, CT, USA) four weeks after the MSC injection. The LVEF and LVFS were calculated.

Masson's Trichrome staining

The hearts of the rats were harvested, fixed, embedded in paraffin and cut into 5-μm sections. The fibrosis of the hearts from each experimental group was determined with a Masson’s Trichrome staining kit according to the manufacturer’s protocol (HT15, Sigma, St. Louis, MO, USA). The percent infarct size was calculated as (fibrosis area/total LV area)×100%.

Immunofluorescent staining

Immunofluorescent staining was performed as in our previous study [50]. Heart sections were rehydrated and treated with 3% H₂O₂ for 30 minutes. After being washed with PBS three times, the sections were blocked with 5% bovine serum albumin for 30 minutes and then incubated with the following primary antibodies at 4°C overnight: anti-HNA (ab191181, Abcam), anti-α-SMA (SC-53142, Santa Cruz) and anti-CD31 (SC-31054, Santa Cruz). For the negative control, samples were incubated with PBS instead of the primary antibody. Subsequently, the sections were incubated with the appropriate secondary antibodies at room temperature for one hour. Finally, the sections were mounted with DAPI.

Statistical analysis

Data are expressed as the mean ± standard error of the mean (SEM). Statistical analyses were performed with Prism 5.04 Software (GraphPad Software for Windows, San Diego, CA, USA). An unpaired Student’s t-test was used to compare two groups, while one-way analysis of variance followed by the Bonferroni test was used to compare more than two groups. A value of p<0.05 was considered statistically significant.
