Rotating magnetic field ameliorates experimental autoimmune encephalomyelitis by promoting T cell peripheral accumulation and regulating the balance of Treg and Th1/Th17

RMF exposure averts the advancement of EAE in mice

Active EAE was stimulated in mice as mentioned in the method section. EAE mice and C57BL/6 mice were treated daily with RMF or non-RMF starting from day 0 after immunization. We found that no significant differences in the results of C57BL/6 mice exposed to RMF compared to normal C57BL/6 mice. The results of daily body weight measurements showed that RMF treatment could alleviate the weight loss of EAE mice (Figure 1A). The clinical score for EAE mice were assessed daily, and we observed that RMF treatment could delay the onset and reduce the severity of the disease (Figure 1B). The resulting incidence shows that RMF treatment reduces the incidence of immunized mice by about 40% (Figure 1C). Spinal cords were acquired from EAE mice on day 20 after MOG immunization, which is the time point at which the peak of clinical symptoms of the EAE group [20]. Consistent with the reduction in clinical symptoms of the disease, RMF-treated mice showed markedly diminished inflammation and demyelination in the affected spinal cord, compared with EAE mice (Figure 1D, 1E, P <0.001). Meanwhile, when measuring the behavioral trajectory, we found that the moving distance and velocity of EAE mice after RMF treatment increased, and there was a statistical difference for EAE mice. (Figure 1F).

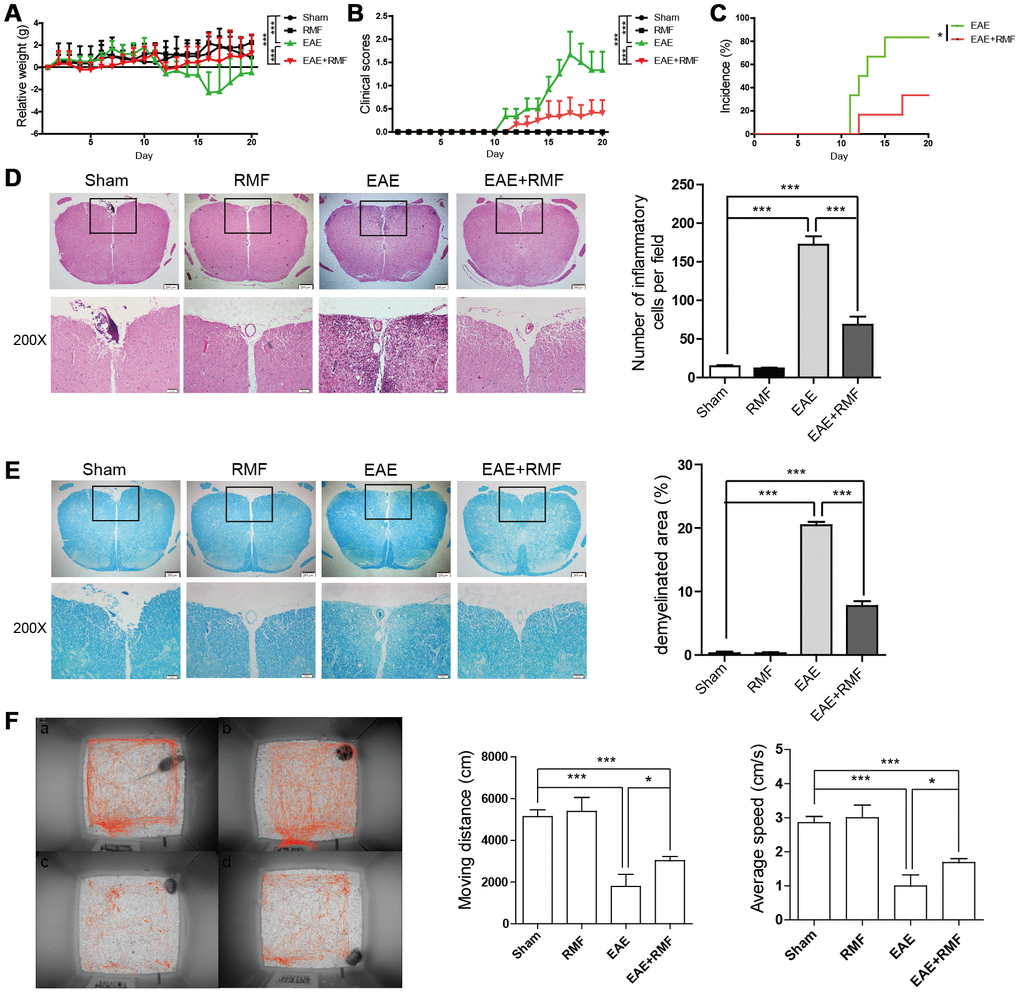

Figure 1. Protective impact of RMF-exposure on the advancement of EAE in mice. EAE mice and C57BL/6 mice were treated daily with RMF or non-RMF starting from day 0 following vaccination. Animals were observed for the clinical indications as well as disease advancement of EAE, comprising (A) body relative weight, (B) clinical scores and (C) the percentage of EAE incidence. (D) Spinal cord sections of the treated mice on day 20 following vaccination by H&E, Scale bar, 200 μm and 50 μm. The graph shows the number of inflammatory cells in per low magnification field (calculated with animal number: control, n = 3; RMF, n = 3; EAE, n = 6; EAE+RMF, n = 6). (E) LFB of Spinal cord sections in both groups on day 20. Scale bar, 200 μm and 50 μm. The graph shows the percentages of demyelinated area in sections (control, n = 3; RMF, n = 3; EAE, n = 6; EAE+RMF, n = 6). On day 20, (F) the behavioral trajectory of mice analyzed by rhythm cage: (A) Control, (B) RMF, (C) EAE, (D) EAE+RMF. Subsequently, we measured moving distance and average speed of mice within 30 min. Data are shown as the mean ± SEM of three independent experiments. *P <0.05, ***P <0.001.

RMF mainly affects the immune system of EAE mice

In order to investigate the mechanism by which RMF averts the advancement of EAE in mice, we performed whole-transcriptomics sequencing of the spinal cord. By classifying the differential gene KEGG pathway, we found that the altered genes were mainly concentrated in the immune system (Figure 2A). Then, through the KEGG pathway enrichment analysis, the results showed that the differentially expressed genes were mainly found in following pathways: cytokine-cytokine receptor interaction, Th17 cell differentiation, Antigen processing and presentation, and Th1 and Th2 cell differentiation (Figure 2B). We focused our attention on the immune system for the subsequent analyses that follow.

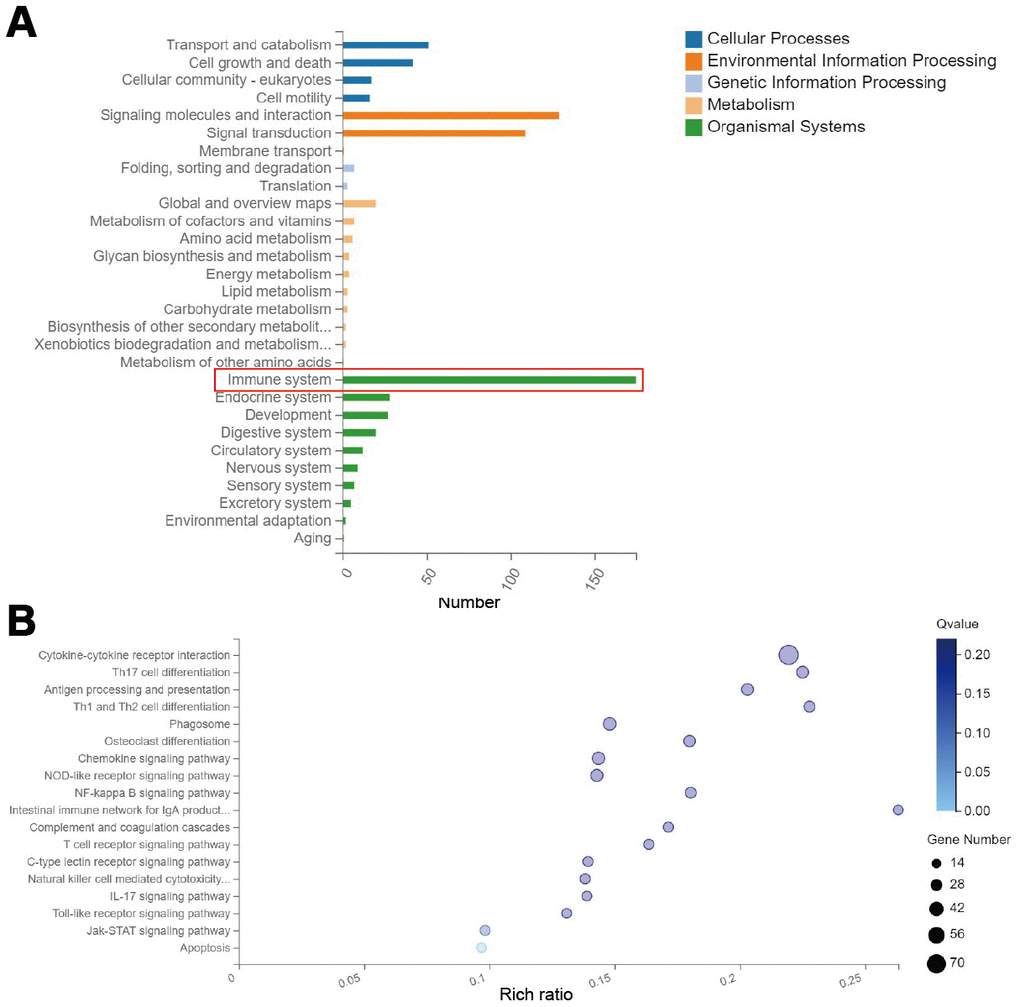

Figure 2. RMF exposure primarily affects genetic changes in the immune system. Spinal cord was isolated from mice for whole transcriptome sequencing analysis at day 20 after immunization. (A) Classification map of differential gene KEGG pathway. (B) Differential gene KEGG pathway enrichment map.

RMF has little impact on T cell response

In order to further validate the results of transcriptome sequencing, we first examined the effect of RMF on the generation of cytokines and T cell propagation. Firstly, the effects of RMF on T-mediated inflammatory response in vivo were analyzed. On day 10 post immunization, RMF treatment did not have a large effect on serum levels of cytokines (Figure 3A). On day 20 following vaccination, RMF treatment caused a decrease in cytokine serological levels; IL-17A as well as IFN-γ were most pronounced, and were statistically different compared to the EAE group (Figure 3B). Further, spleen cells and lymph node cells acquired from the EAE mice at day 10 were re-activated with 10 μg/mL of MOG_35–55 peptide. The two groups showed the same proliferative activity in the stimulation of MOG_35–55 peptide (Figure 3C, 3D). Subsequently, we examined the cytokines of the spleen cell supernatant and found that the magnetic field treatment reduced the IL-2 level in the co-culture of MOG_35–55 peptide (Figure 3E). But the other three cytokines did not show statistical differences (Figure 3E).

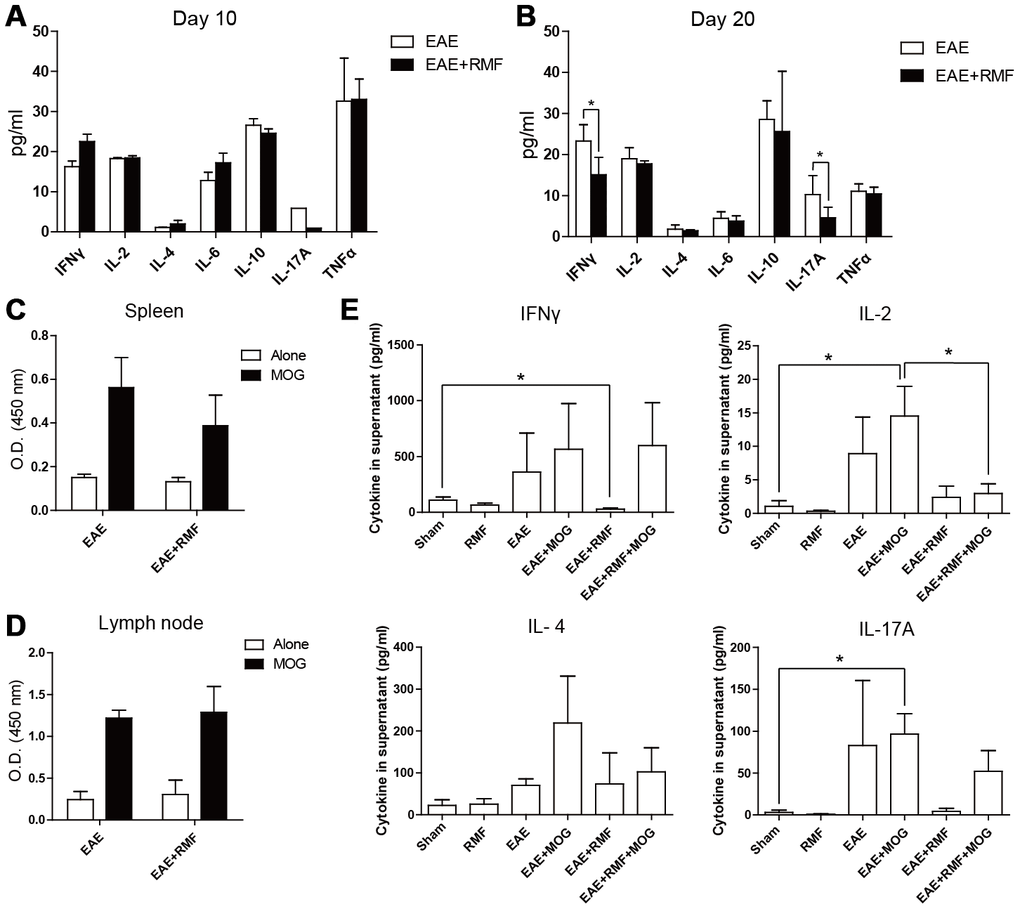

Figure 3. Minor impacts of RMF on generation of Th1/Th2/Th17 cytokines as well as T cell propagation. Cytokines in serum from the treated EAE mice were detected at (A) day 10 and (B) day 20 after immunization. (C) Spleen cells and (D) lymph node cells derived from the treated EAE mice at day 10 following vaccination were re-activated with 10 μg/mL of MOG35–55 peptide. (C, D) Propagation was detected after 72 h of incubation. (E) IFN-γ, IL-2, IL-4 as well as IL-17A were detected following 48 h of incubation. Data are shown as the mean ± SEM of three independent experiments. *P <0.05.

RMF treatment stimulates the accumulation of lymphocytes within spleen as well as lymph nodes

RMF-treated EAE mice were observed having inflamed peripheral lymphoid tissues, for example spleen (Figure 4A). And the spleen mass of body weight (BW) indicated that the spleen of the EAE mice treated with RMF increased significantly (Figure 4A). Therefore, we speculated that RMF could inhibit the transportation of T cells. The proportion of CD4 ⁺ and CD8 ⁺ T lymphocytes in the spleen as well as lymph nodes from RMF treated EAE mice was lower, compared with EAE mice (Figure 4B). The absolute cell numbers increased after RMF treatment, comprising the number of entire spleen as well as draining lymph node cells and their CD4⁺ and CD8⁺ T cell subsets (Figure 4C, 4D). At the same time, the number of CD4⁺ T cells significantly reduced in the RMF-treated EAE group, compared with the EAE group, as a results of specific antibody CD4 localization to the spinal cord (Figure 4E).

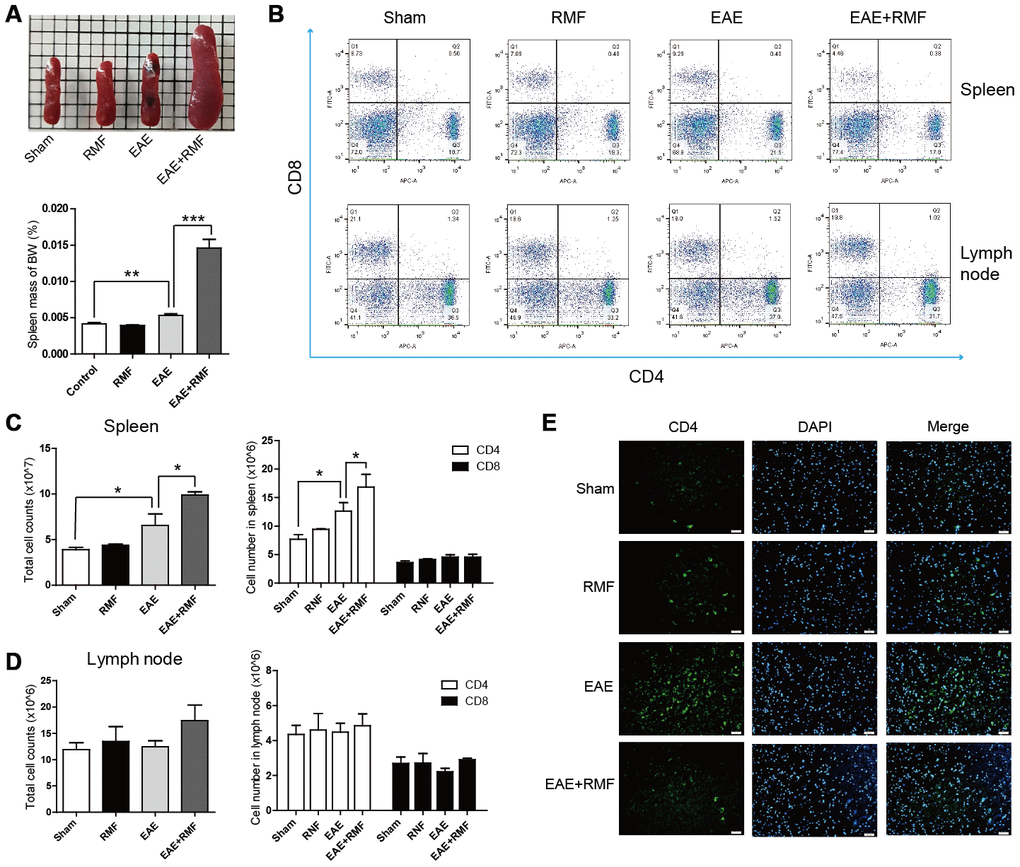

Figure 4. Impact of RMF on lymphocyte homing to peripheral lymphoid tissues. (A) Demonstrative pictures of the spleen and the mass of the spleen was weighed and the mass of body weight (BW) was calculated. (B) Proportions of CD4⁺ as well as CD8⁺ T lymphocytes in the spleen and lymph nodes were determined by flow cytometry. The overall cell numbers as well as CD4⁺ and CD8⁺ cell numbers in the (C) spleens and (D) lymph nodes. (E) Spinal cords from the treated mice at day 20 following vaccination were stained with an antibody specific for CD4. Scale bar, 50 μm. Data are shown as the mean ± SEM of three independent experiments. *P <0.05, **P <0.01, ***P <0.001.

Furthermore, we investigated the reason why lymphocytes did not migrate into the spinal cord of magnetically treated EAE mice. Chemokines, such as C-C motif chemokine 2 (CCL-2), C-C motif chemokine 3 (CCL-3) and C-C motif chemokine 5 (CCL-5), have been known to play important roles in peripheral immune adhesion, chemotaxis and migration. We studied the expression of these factors to explain the effect of RMF on peripheral lymphocyte migration. The expression of mRNA in CCL-2, CCL-3 and CCL-5 of EAE mice in spinal cord showed a downward trend after RMF exposure, and the results were statistically significant (Figure 5B). The results were consistent with the sequencing results (Figure 5A). Additionally, both RNA-sequencing and quantitative real-time PCR results showed that the expression levels of IL-17 targeting chemokines, including CXC motif chemokine ligand 1 (CXCL-1) and CXC motif chemokine ligand 2 (CXCL-2) [20], were significantly reduced in RMF treated spinal cord (Figure 5C, 5D). Similar downregulation was also observed for IFN-γ targeting chemokines, such as CXC motif chemokine ligand 9 (CXCL-9) and CXC motif chemokine ligand 10 (CXCL-10) [20] in the RMF treated spinal cord (Figure 5C, 5D). These results indicate that RMF promoted peripheral accumulation in the spleen and lymph node, while the expression of related chemokines in the spinal cord also decreased.

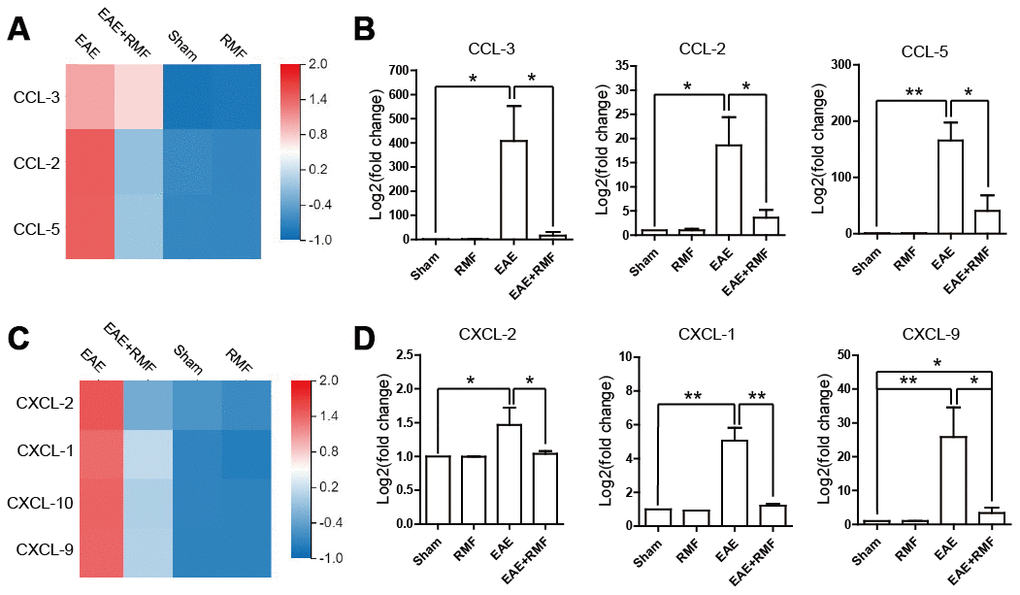

Figure 5. Effect of RMF on chemokines. (A) Heatmap of CCL-2, CCL-3 and CCL-5 expression difference in the spinal cord. (B) The manifestation of CCL-2, CCL-3 and CCL-5 mRNA in spinal cord was measured by qPCR. (C) Heatmap of CCL-2, CCL-3 and CCL-5 expression difference in the spinal cord. (D) The manifestation of CXCL-1, CXCL-2, CXCL-9 and CXCL-10 mRNA in spinal cord was measured by qPCR. Data are shown as the mean ± SEM. of three independent experiments. *P <0.05, **P <0.01.

RMF-treatment changed peripheral CD4⁺ T cell subsets

The outcomes observed in the spinal cord indicated that there were virtually no CD4⁺ T cells in the spinal cord of EAE mice treated with RMF-treatment. This result suggests that RMF involvement may prevent the development of the spinal cord inflammation microenvironment through direct peripheral immune regulation. Tregs perform a crucial function in preserving peripheral immune tolerance, and Tregs act by inhibiting the effector CD4 + T cell subsets that activate autoimmune responses [21]. At day 20, the spleen and lymph node cells were acquired from mice for FC. The quantity of Treg cells in the spleen and lymph node cells of EAE mice were found to have decreased, after RMF treatment (Figure 6A). Forkhead box P3 (Foxp3) is an indicator for Tregs [22]. Treg cells inhibit Th cells by producing IL-10 and TGF-β [21]. Quantitative real-time PCR and sequencing results showed that RMF treatment up-regulated the level of IL-10, TGF-β and Foxp3 mRNA (Figure 6B, 6C). Then, the distribution of CD4⁺ cell subsets of lymph node cells was examined by flow cytometry (FC), and the outcomes showed that the proportion of CD4⁺IFN-γ⁺, CD4⁺IL-2⁺ and CD4⁺IL-17⁺ cells in EAE mice decreased after RMF treatment (Figure 7A). Tbx21 (T-bet) is a major controller of Th1 cell demarcation [23]. The retinoid-related orphan receptor r-c (RORC) is a major transcription factor has been shown to regulate the differentiation of (Th17) cells and form a synergy with other transcription factors to stimulate IL-17 manifestation [24]. As expected, RMF treatment downregulated the levels of Rorc and T-bet mRNA in EAE mice (Figure 7B, 7C).

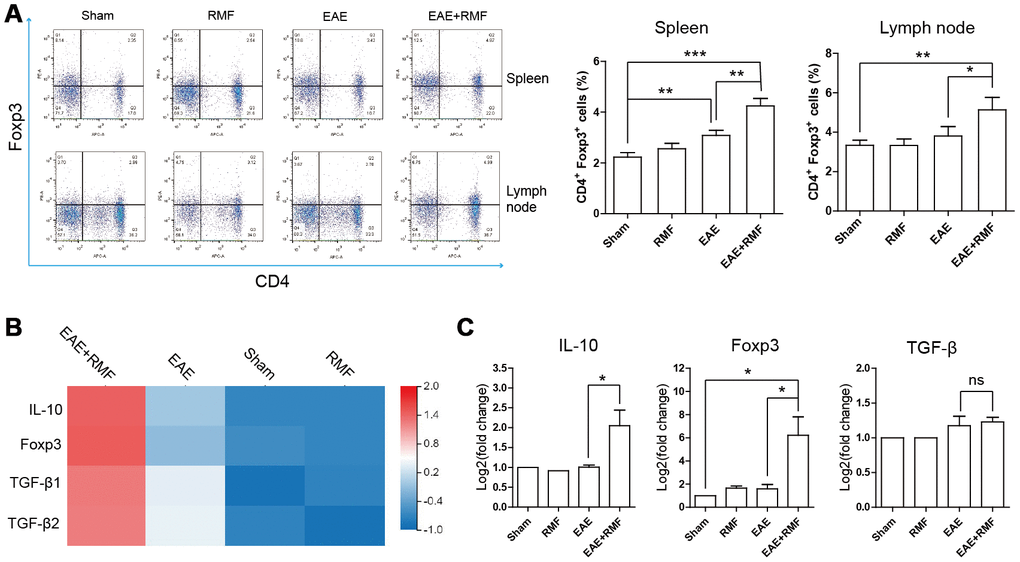

Figure 6. Impact of RMF on Treg cells. (A) Proportions of Treg cells in the spleen as well as lymph nodes were determined. (B) Heat map of TGF-β, Foxp3 and IL-10 expression difference in the spinal cord. (C) The manifestation of TGF-β, Foxp3 and IL-10 mRNA in spinal cord was measured by qPCR. Data are shown as the mean ± SEM of three independent experiments. *P <0.05, **P <0.01.

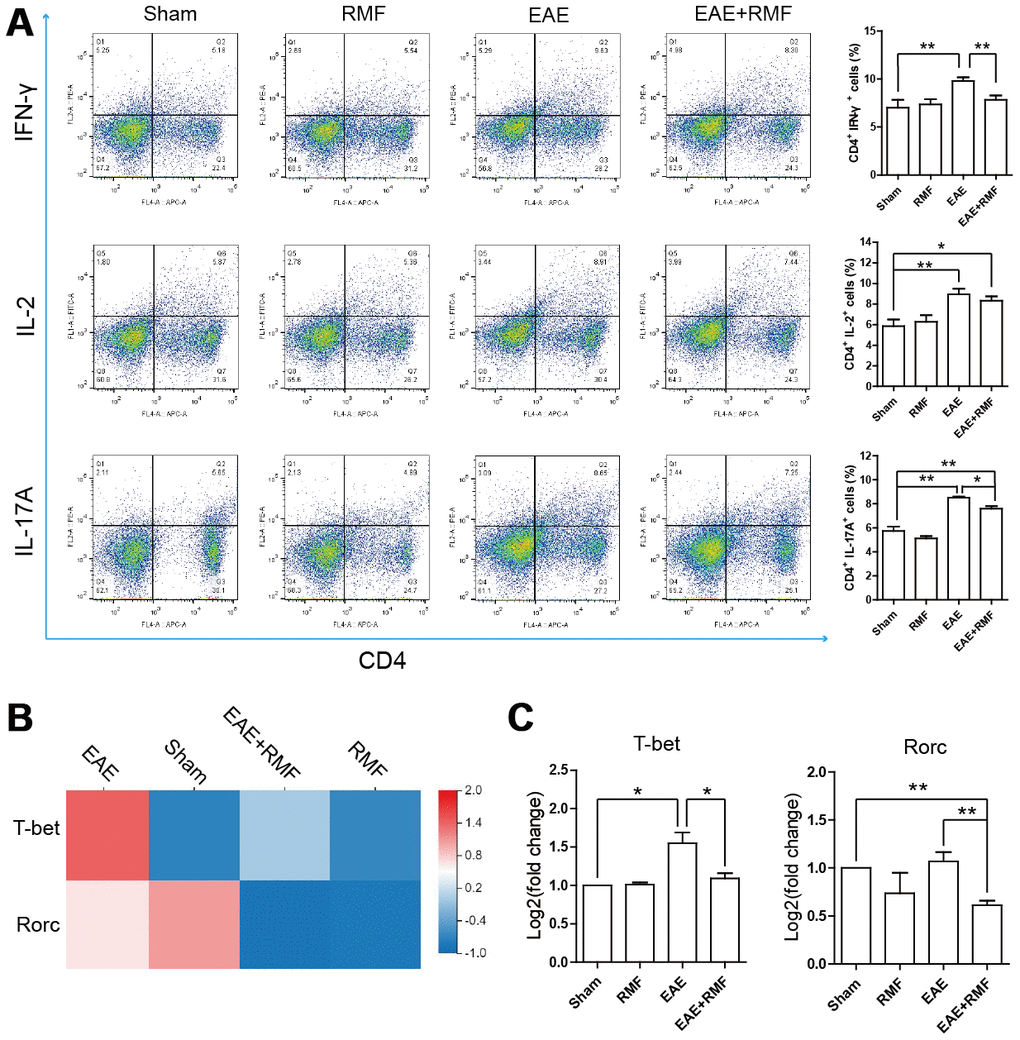

Figure 7. Impact of RMF on peripheral CD4⁺ T cell subsets. (A) The percentages of CD4⁺IFN-γ⁺, CD4⁺IL-2⁺ and CD4⁺IL-17⁺ cells in the lymph node were detected. (B) Heatmap of T-bet and Rorc expression difference in the spinal cord. (C) The manifestation of T-bet and Rorc mRNA in spinal cord was measured by qPCR. Data are shown as the mean ± SEM of three independent experiments. *P <0.05, **P <0.01.

Furthermore, in order to determine whether changes in the subpopulation of infiltrated CD4⁺ T cells in CNS were consistent with the results of peripheral lymphoid tissues, we analyzed spinal cord with IFN-γ, IL-2 and IL-17 specific antibodies. It was found that the expressions of IFN-γ, IL-2 and IL-17 in the EAE spinal cord decreased significantly after RMF exposure (Figure 8A–8C). The similar results can be obtained by calculating the percentage of positive cells in each field of view (Figure 8D). Quantitative real-time PCR and sequencing results showed that RMF treatment down-regulated the expression levels of IFN-γ and IL-17 in the spinal cord of EAE mice (Figure 8E, 8F). These results were found to be consistent with the results of peripheral lymphoid tissue.

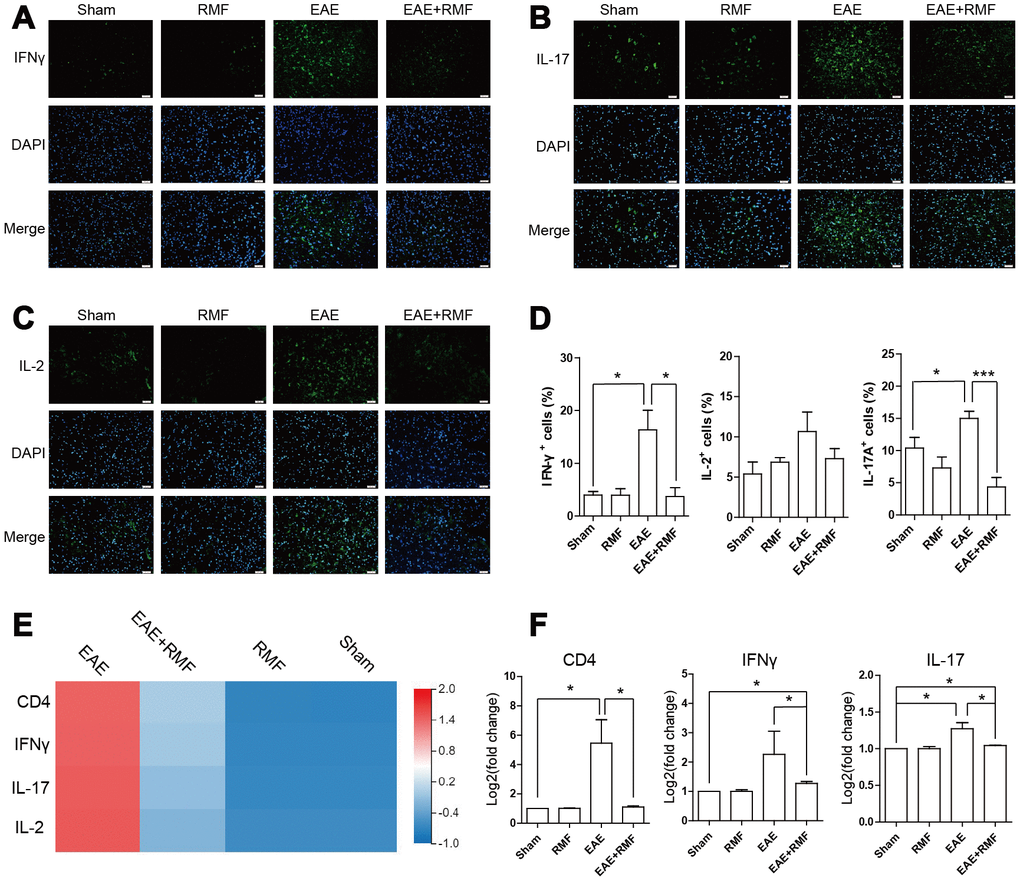

Figure 8. Effect of RMF on spinal cord. Spinal cords from the treated mice at day 20 after immunization were stained with an antibody specific for (A) IFN-γ, (B) IL-2, and (C) IL-17. Scale bar, 50 μm. (D) The diagram presents the proportion of positive cells in EAE lesions or corresponding areas (control, n = 3; RMF, n = 3; EAE, n = 6; EAE+RMF, n = 6). (E) Heatmap of IFN-γ and IL-17 expression difference in the spinal cord. (F) The expression level of CD4, IFN-γ and IL-17 mRNA in spinal cord was measured by qPCR. Data are shown as the mean ± SEM of three independent experiments. *P <0.05, **P <0.01, ***P <0.001.

Mice

Female C57BL/6 mice (6-8-week-old) were bought from the Medical Experimental Animal Center of Guangdong (Guangdong, China) [SPF, SCXK(G)2018-0002]. The recommendations of the Ministry of Science and Technology of China plus the associated ethical policies of Shenzhen University were followed for experimentations.

EAE induction and treatment

The mice were subcutaneously injected with 200 μg MOG_35–55 mixed in complete Freund's adjuvant comprising 4 mg/mL Mycobaterium tuberculosis. Pertussis toxin (500 ng /animal) was given intraperitoneally on the day of vaccination (day 0) and 48 h later. The mice were inspected everyday and graded for disease severity as mentioned below: 0 = no symptom; 1 = tail weakness; 2 = paraparesis (incomplete paralysis of one or two hind limbs); 3 = paraplegia (complete paralysis of one or two hind limbs); 4 = paraplegia with forelimb weakness or paralysis; and 5 = moribund or dead.

RMF exposure

The detailed structure of the RMF exposure device used in the experiments has been described previously [17, 19]. As shown in Figure 9A, the RMF was derived from two anti-parallel stacks neodymium-iron-boron permanent magnets. The mice were positioned on the treatment table for magnetic field processing [19, 21]. The intensity of RMF (Figure 9B) was acquired by means of a Hall Magnetometer (ETM-13-Achsen, Switzerland) plus a three-axis fluxgate magnetometer (GMW Associates, USA). The RMF of different amplitude consisting of two overlapping components was formed above the device: translational (with fluctuating inversion time) (Figure 9C) and rotational (with fluctuating rotational frequencies) (Figure 9D).

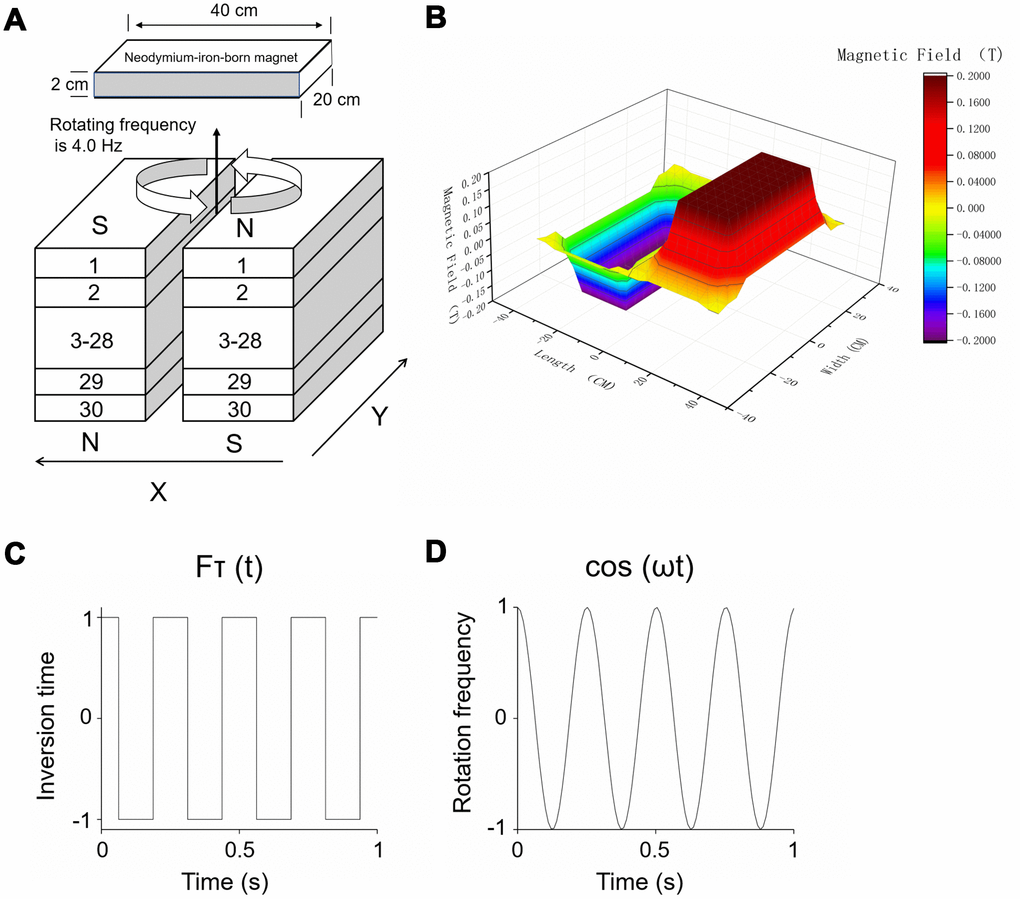

Figure 9. RMF exposure device. (A) Treatment tables were positioned at the central top of the device. Rotating frequency was 4.0 Hz and intensity was 0.2 T. (B) The magnetic field of different amplitude consisting of two overlapping components was formed above the device: (C) translational (with fluctuating inversion time) and (D) rotational (with fluctuating rotational frequencies).

Study design

The mice were randomly divided into the sham, RMF exposure, EAE and EAE+RMF exposure groups (n = 6 each), and placed in separate exposure cages. As outlined in Figure 1, the RMF and EAE and EAE+RMF group were exposed to RMF (4 Hz, 0.2 T) for 2 h daily after immunization. The sham and EAE group mice were placed in a geomagnetic field for the same schedule. Until the peak of the disease, the mice were sacrificed and related tests were performed.

Locomoter behavioral test

On the 20^th day after immunization, mice were placed in Pheno Typer 3000 cages (Noduls, Netherlands) individually. After the mice had got acclimatized environment, the movement of the mice in the cage was recorder. Then, using the Ethovision XT V14 processing system (Noduls, Netherlands), a mouse behavior trajectory map was drawn, and the total distance of movement and the average of moving speed are calculated.

Histopathology and Immunofluorescence

Cervical dislocation was performed to sacrifice the animals. The lumbar enlargement of the spinal cords were isolated from animals and instantly fixed in 4% paraformaldehyde for a minimum of 48 h. The spinal cords were frozen and cut into 6 μm sheets, stained with hematoxylin and eosin (H&E) as well as luxol fast blue (LFB). The sections were blocked using 5% goat serum for 30 min. Next, overnight incubations at 4 °C were done with anti-CD4 (CST, USA), anti-IFN-γ (Abcam, UK), anti-IL-2 (Abcam, UK), anti-IL-4 (Abcam, UK) and anti-IL-17A (Abcam, UK). Next, they were incubated with Alexa Fluor 488 secondary antibody (Abcam, UK). A fluorescence light microscope (Zeiss, Germany) was used for examination.

T-cell proliferation

T cell propagation was detected with BrdU cell proliferation ELISA kit (colorimetric) (Abcam, UK). Lymph node-derived T cells acquired from EAE mice were re-activated with MOG35–55. After 48 h, BrdU reagent was mixed, and the cells were cultured for another 24 h. BrdU integration was measured as per supplier’s instructions.

Cytokine examination by CBA as well as ELISA assay

Serum levels of IL-2, IL-4, IL-6, IFN-γ, TNFα, IL-17A as well as IL-10 were acquired by means of Cytometric Bead Array (CBA) mouse Th1/Th2/Th17 cytokine kit (BD, USA). IFN-γ, IL-2, IL-4 as well as IL-17A were determined by a precise ELISA kit (Invitrogen, USA) as per supplier’s instructions.

Flow cytometry (FC)

For surface-marker staining, incubations were done with fluorochrome-conjugated antibody (BD Biosciences, USA) to APC anti-CD4, FITC anti-CD8 for 30 min on ice. For intracellular staining after fixed rupture, cells were incubated with fluorochrome-conjugated antibody (BD Biosciences, USA) to PE anti-Foxp3, PE anti- IFN-γ, PE anti-IL 2, PE anti-IL 17A for 40 min on ice. Data were obtained on a FACSAria flow cytometer (BD, USA).

Quantitative real-time PCR

Total RNA was extricated from the spleen cells and spinal cord with TRIZOL (Sigma-Aldrich, USA), and reverse transcribed to cDNA. Quantitative PCR was accomplished utilizing Sybr Green qPCR Master Mix (DBI, Ludwigshafen, Germany). The conditions for amplification were 95°C for 3 min, 40 cycles at 95°C for 5 s, 60°C for 30 s. β-actin served as a control. All primers were manufactured by BGI (Wuhan, China) and the sequences are shown below:

RNA-seq

Total RNA was extricated from the spinal cord with TRIZOL (Sigma-Aldrich, USA). Subsequently, RNAseq was completed by BGI (Wuhan, China).

Statistical analysis

Statistical significance between groups were measured using two-tailed Mann-Whitney's t-test for clinical score assessment. In other experiments, One-way ANOVA followed by Dunnett’s t-test was implemented. Data is documented as the percentage or mean ± SEM. Statistical significance was considered with following values: *P < 0.05, **P < 0.01, ***P <0.001.
