The positive feedback between ACSL4 expression and O-GlcNAcylation contributes to the growth and survival of hepatocellular carcinoma

ACSL4 is highly expressed in HCC tissue samples and cells

To explore the effects and reveal the underlying mechanism of ACSL4 in the progression of HCC, we first determined ACSL4 expression pattern in liver cancer tissues and cells. The Oncomine database showed that the expression of ACSL4 was significantly elevated in HCC samples (n=22) compared to normal liver samples (n=21) (Figure 1A). Consistently, compared with the human normal liver cell line QSG-7701, ACSL4 expression was significantly increased in HCC cell lines such as Huh-7, HLE, SK-HEP-1, BEL-7402 and HCCLM3 at both mRNA and protein levels (Figure 1B, 1C). Similarly, the increased expression of ACSL4 was also observed in HCC tissues compared with the adjacent normal liver tissues, which was determined by RT-PCR (Figure 1D), western blotting (Figure 1E) and immunohistochemistry (Figure 1F). These findings reveal that ACSL4 is overexpressed in HCC tissues and cell lines.

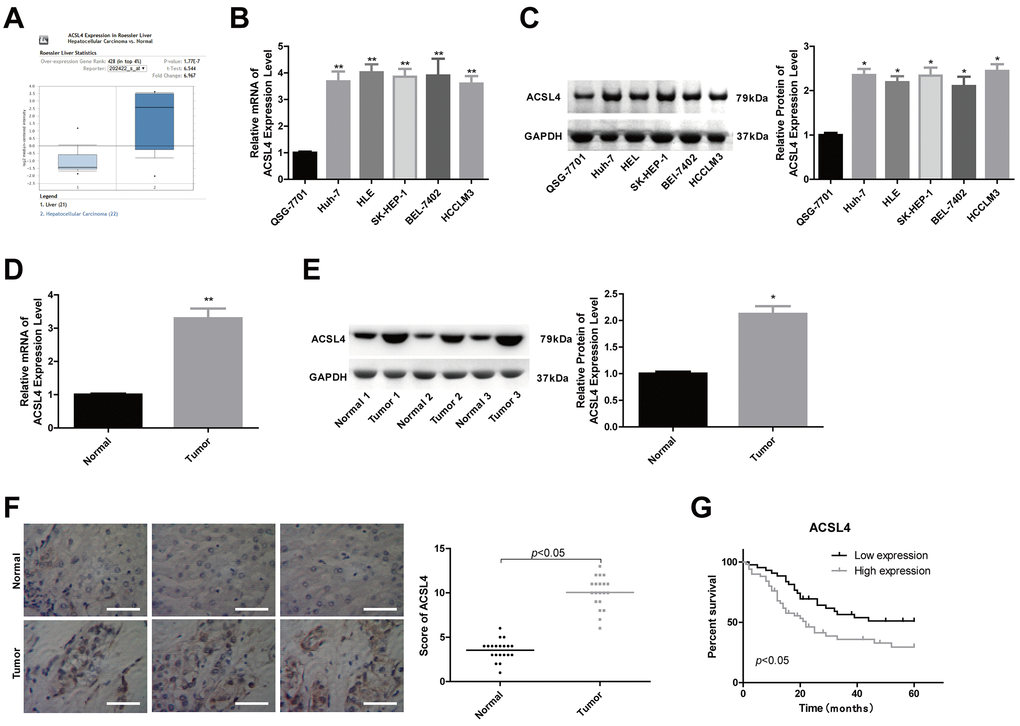

Figure 1. ACSL4 was overexpressed in HCC tissue samples and cells. (A) The Oncomine database was used to retrieve the different expression patterns of ACSL4 in HCC or normal liver. (B, C) The mRNA and protein content of ACSL4 in the human normal liver cell line QSG-7701 and the HCC cell lines Huh-7, HLE, SK-HEP-1, BEL-7402 and HCCLM3 were determined by RT-PCR and western blotting, respectively. (D, E) The mRNA and protein content of ACSL4 in HCC tissues and normal tissues were detected by RT-PCR and western blotting assays. (F) Immunohistochemistry was used to detect ACSL4 protein expression in HCC tissues and normal tissues (Scale bar = 100 μm). (G) Kaplan-Meier analysis of the relationship between ACSL4 expression and the overall survival of patients with HCC. (^*P<0.05, ^**P<0.01).

High expression of ACSL4 predicts advanced clinical processes and poor outcomes in patients with HCC

Next, we explored the association between ACSL4 expression profiles and patient clinical features and prognosis after surgery in HCC patients. A total of 77 patients were included, among which 41 patients had high ACSL4 expression and 36 had low ACSL4 expression by immunohistochemistry staining. The results showed that patients with high ACSL4 expression were inclined to have shorter overall survival than those with low ACSL4 expression (Figure 1G). Moreover, the expression level of ACSL4 showed a positive correlation with tumour size (P=0.014), tumour amount, which refers to the number of metastatic tumours in locations such as the lung, pleura and brain (P=0.017), TNM stage (P=0.032), and the incidence of lymphonodus (P=0.042), embolus (P=0.022) and cirrhosis (P=0.02) (Table 1). These results suggest that the high expression level of ACSL4 is closely associated with advanced clinical processes and poor outcomes in HCC.

ACSL4 promotes proliferation and inhibits apoptosis in HCC cells via activating mTOR signalling

Then, we carried out a gain/loss-of-function assay to assess the role of ACSL4 in HCC progression. Compared with the control group, the expression of ACSL4 was obviously decreased in the si-1 (siRNA-ACSL4-1) group, while it was significantly increased in the OE-ACSL4 (ACSL4 overexpression) group at the mRNA (Figure 2A) and protein levels (Figure 2B); hence, si-1 was chosen for further study. Then, we explored the effect of ACSL4 on the activation of mTOR signalling in HCC cells. The level of mTOR phosphorylation was obviously increased when ACSL4 was overexpressed, and it was reduced when ACSL4 was downregulated in both Huh-7 and SK-HEP-1 cell lines (Figure 2C, 2D). ACSL4 downregulation and rapamycin treatment significantly inhibited cell growth and induced cell apoptosis, while ectopic expression of ACSL4 caused the opposite results in both Huh-7 and SK-HEP-1 cells (Figure 2E–2G). Moreover, rapamycin treatment rescued the effects of ACSL4 overexpression in promoting cell growth and repressing cell apoptosis (Figure 2E–2G). These results illustrate that ACSL4 promotes HCC cell proliferation and represses cell apoptosis via activating mTOR signalling.

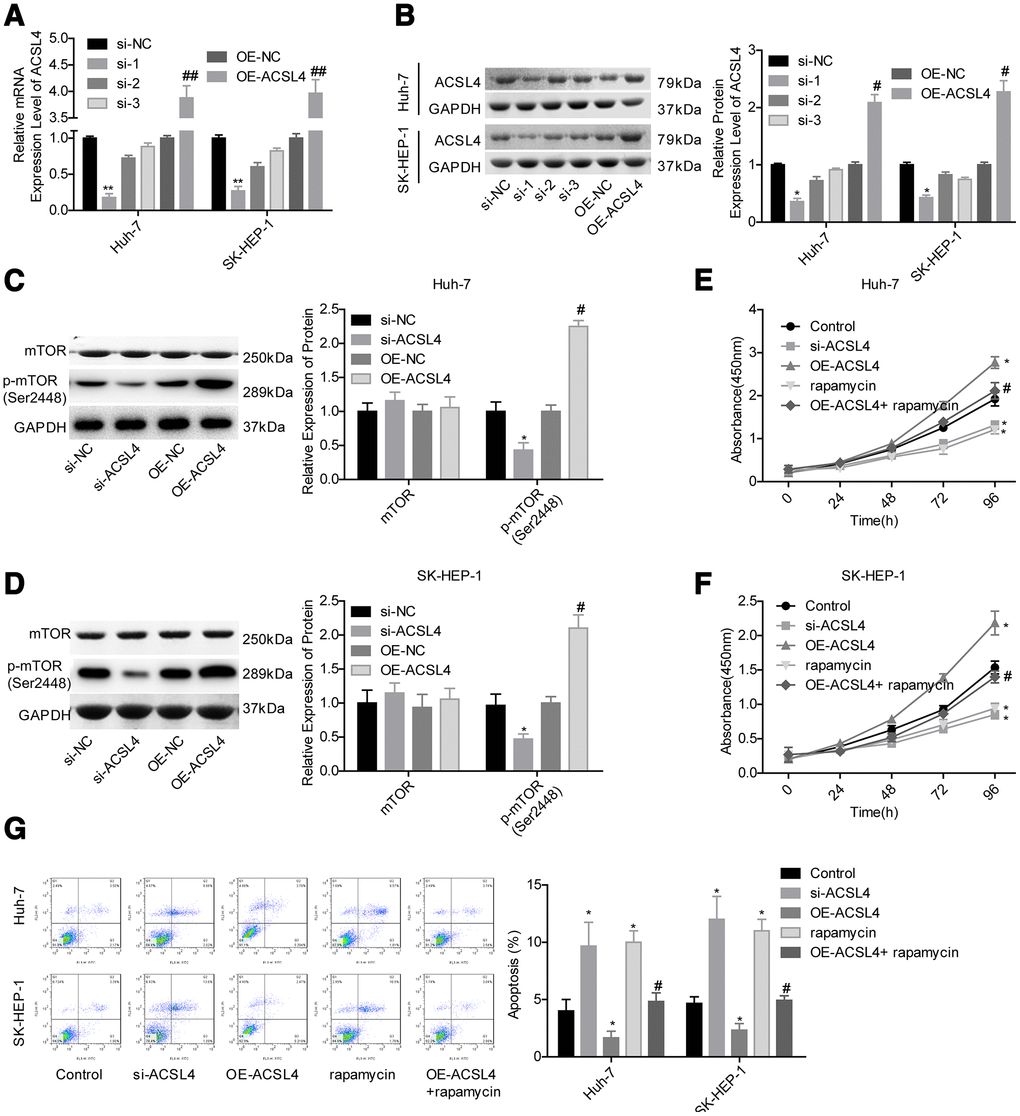

Figure 2. ACSL4 promoted HCC cell proliferation and repressed cell apoptosis via activating mTOR signalling. Huh-7 and SK-HEP-1 cells were transfected with si-NC, si-ACSL4, OE-NC or OE-ACSL4, with or without rapamycin treatment, and then the following assays were carried out. (A, B) RT-PCR and western blotting assays were carried out to assess the expression levels of ACSL4 at the mRNA and protein levels, respectively (^*P<0.05, ^**P<0.01, si-ACSL4 group compared with si-NC group; ^#P<0.05, ^##P<0.01, OE-ACSL4 group compared with OE-NC group). (C, D) The expression levels of mTOR and p-mTOR were detected by using a western blotting assay. (E, F) CCK-8 assay was used to detect cell proliferation (^*P<0.05, compared with the control group; ^#P<0.05, compared with the OE-ACSL4 group). (G) Flow cytometry assay was used to test cell apoptosis (^*P<0.05, compared with the control group; ^#P<0.05, compared with the OE-ACSL4 group).

ACSL4 plays a crucial role in O-GlcNAcylation-mediated HCC growth

Next, we explored the effect of ACSL4 on the O-GlcNAcylation level in HCC cells. Compared with the control group, the OE-ACSL4 group showed higher levels of OGT and O-GlcNAc, while the si-ACSL4 group showed decreased levels of OGT and O-GlcNAc in both Huh-7 (Figure 3A) and SK-HEP-1 cell lines (Figure 3C). In addition, we explored the effects of ACSL4 on the expression of main proteins in glycosylated signalling, including UAP1, GUCY1A3, GLUT1, GLUT2, CANT1 and SGLT1 [23]. The results showed that only the expression of GLUT1 was significantly increased after ACSL4 was overexpressed in Huh-7 and SK-HEP-1 cells, with no obvious change in the expression levels of UAP1, GUCY1A3, GLUT2, CANT1 and SGLT1 (Figure 3B, 3D). Subsequently, we explored the relationship between ACSL4 expression and O-GlcNAc and their roles in HCC progression. The immunoprecipitation (IP) assay with either anti-ACSL4 or anti-O-GlcNAc antibody demonstrated that ACSL4 protein could be O-GlcNAcylated (Figure 3E). In addition, the enhanced O-GlcNAcylation level induced by GlcNAc and PUGNAc treatment significantly increased the expression of ACSL4 and p-mTOR (Figure 3F, 3G) and increased the protein stability of ACSL4 (Figure 3H, 3I). Furthermore, cell proliferation was significantly enhanced and cell apoptosis was reduced when the cells were treated with either GlcNAc or PUGNAc (Figure 3J–3L). However, these effects were all significantly weakened when ACSL4 was downregulated in both Huh-7 and SK-HEP-1 cell lines (Figure 3J–3L). These results suggest that O-GlcNAcylation promotes HCC cell growth partially via increasing ACSL4 expression.

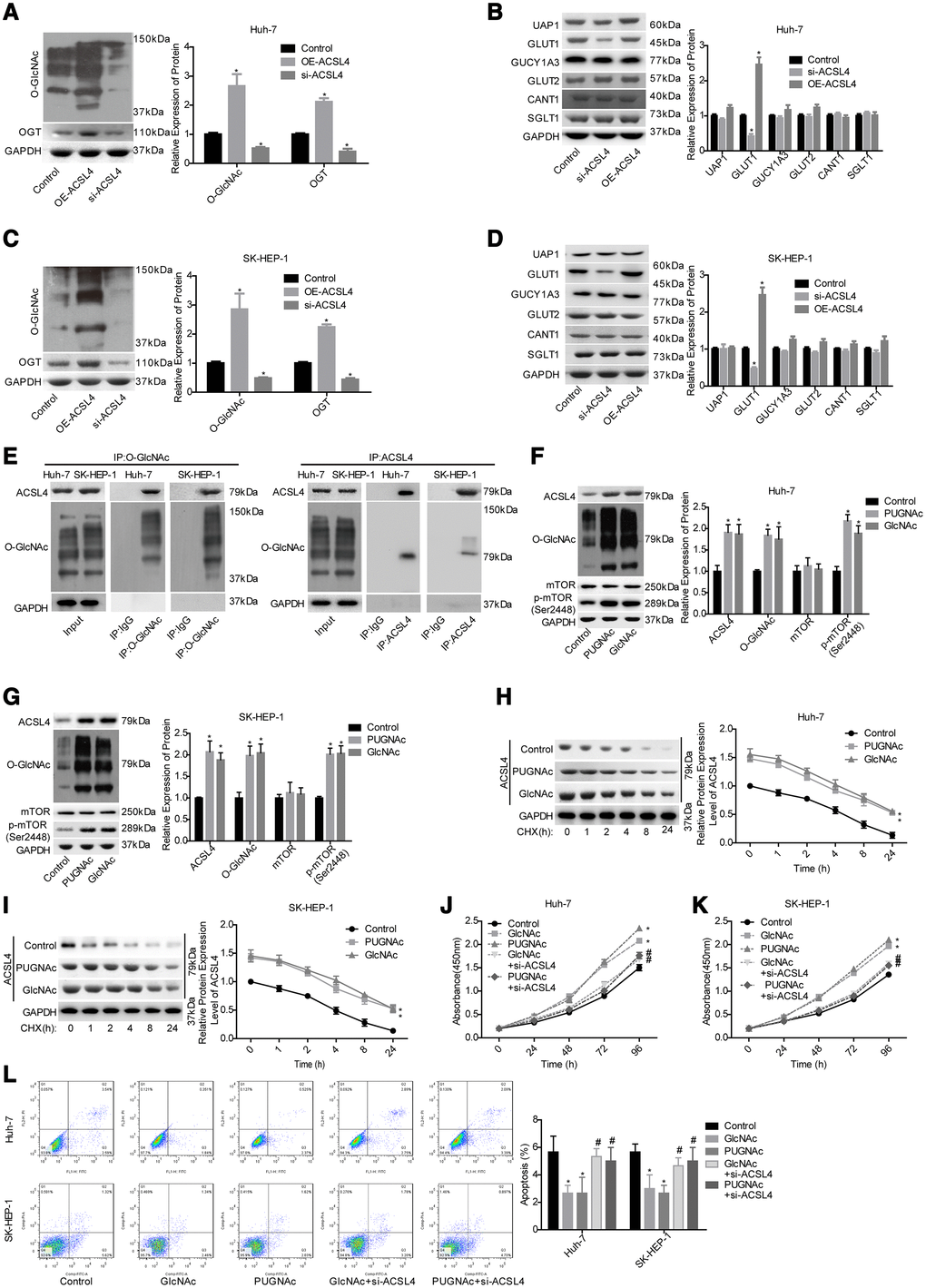

Figure 3. Evaluation of the effects of ACSL4 on O-GlcNAc-mediated HCC growth. Huh-7 and SK-HEP-1 cells were transfected with OE-ACSL4 or si-ACSL4, and then the cells were harvested for the western blotting assay to detect the expression of the following proteins. (A) OGT and O-GlcNAc in Huh-7 cells. (B) UAP1, GLUT1, GLUT2, GUCY1A3, CANT1 and SGLT1 in Huh-7 cells. (C, D) OGT, O-GlcNAc, UAP1, GLUT1, GLUT2, GUCY1A3, CANT1 and SGLT1 in SK-HEP-1 cells. (E) IP assay used to detect the interaction between O-GlcNAc and ACSL4 with an antibody against O-GlcNAc or ACSL4. IgG served as a negative control. Then, the si-ACSL4-transfected or untransfected Huh-7 and SK-HEP-1 cells were treated with PUGNAc, GlcNAc or nothing, and the following assays were carried out. (F, G) The levels of ACSL4, O-GlcNAc, mTOR and p-mTOR were determined by using a western blotting assay. (H, I) The protein stability was determined by western blotting after incubation with CHX (100 μg/ml) for 0, 1, 2, 4, 8 or 24 hours. (J, K) Cell proliferation was detected by CCK-8 assay. (L) Cell apoptosis was assessed by flow cytometry assay. (A–D) ^*P<0.05, si-ACSL4/OE-ACSL4 group compared with control group; (E–L)^*P<0.05, PUGNAc/GlcNAc group compared with control group; ^#P<0.05, PUGNAc + si-ACSL4/GlcNAc + si-ACSL4 group compared with PUGNAc/GlcNAc group).

ACSL4 promotes HCC growth in a GLUT1-dependent way

Next, we explored whether GLUT1 was involved in ACSL4-mediated promotion of HCC cell growth. ACSL4 upregulation significantly slowed the protein degradation of GLUT1 (Figure 4A, 4C) and reduced GLUT1 ubiquitination (Figure 4B, 4D). Transfection of si-1 (siRNA-1) targeting the human GLUT1 gene significantly reduced GLUT1 expression at both the mRNA and protein levels (Figure 5A, 5B). In addition, the results of the western blotting assay showed that ACSL4 upregulation apparently increased the expression of O-GlcNAc and GLUT1, but this effect was abolished when GLUT1 was silenced in Huh-7 and SK-HEP-1 cells (Figure 5C–5E). The CCK-8 and flow cytometry results showed that cell growth promotion and apoptosis repression induced by ACSL4 were neutralized by GLUT1 downregulation (Figure 5F–5H); the tumorigenesis induced by ACSL4 overexpression was also attenuated, as detected by the in vivo animal assay (Figure 5I). These results demonstrate that GLUT1 is strongly implicated in ACSL4-mediated HCC growth.

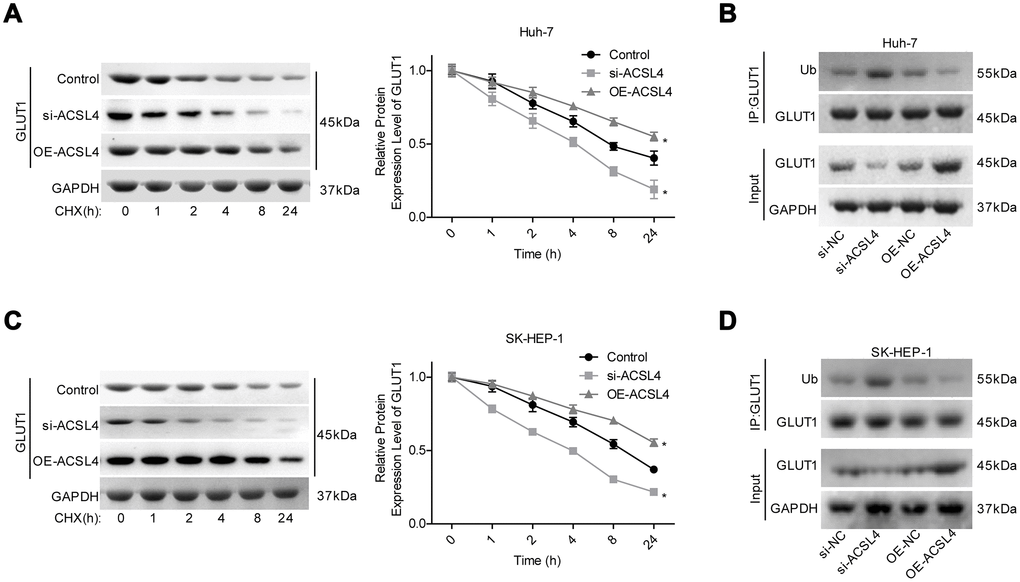

Figure 4. ACSL4 upregulation enhanced the stability of GLUT1 protein and reduced its ubiquitination. (A) After 12 hours of cell transfection with si-ACSL4 or OE-ACSL4, Huh-7 cells were treated with CHX (100 μg/ml) for 0, 1, 2, 4, 8 or 24 hours, and the western blotting assay was performed to detect GLUT1 expression. (B) An IP assay was used to detect the interaction between Ub and GLUT1 proteins after Huh-7 cells were transfected with si-ACSL4 or OE-ACSL4. (C) After 12 hours of cell transfection with si-ACSL4 or OE-ACSL4, SK-HEP-1 cells were treated with CHX (100 μg/ml) for 0, 1, 2, 4, 8 or 24 hours, and the western blotting assay was performed to detect GLUT1 expression. (D) IP assay was used to detect the interaction between Ub and GLUT1 protein in SK-HEP-1 cells. (^*P<0.05, si-ACSL4/OE-ACSL4 group compared with control group).

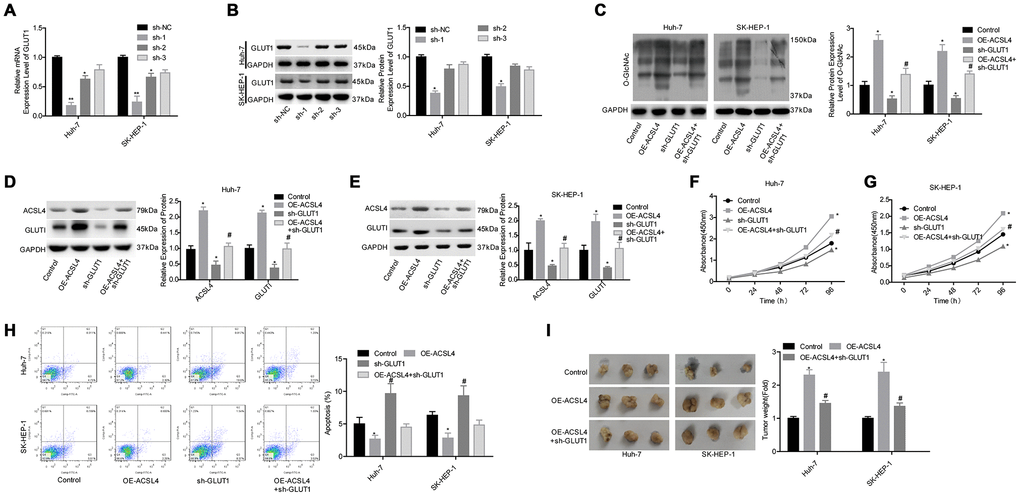

Figure 5. Evaluation of the effects of the ACSL4/GLUT1 axis on cell proliferation, apoptosis and tumorigenesis in Huh-7 and SK-HEP-1 cells. (A, B) The mRNA and protein expression levels of GLUT1 were determined by RT-PCR and western blotting assays after cells were transfected with sh-GLUT1 or sh-NC, respectively (^*P<0.05, ^**P<0.01, compared with the sh-NC group). Next, Huh-7 and SK-HEP-1 cells were transfected with OE-ACSL4 and/or sh-GLUT1 and subjected to the following assays. (C–E) Western blotting assays were used to assess the levels of O-GlcNAc, ACSL4 and GLUT1. (F, G) CCK-8 assay was carried out to test cell proliferation. (H) Flow cytometry assay was used to determine cell apoptosis. (I) An in vivo xenotransplantation assay was used to assess the effects of the ACSL4/GLUT1 axis on the tumour formation ability of Huh-7 and SK-HEP-1 cells. (C–I: ^*P<0.05, compared with control group; ^#P<0.05, compared with OE-ACSL4 group).

Evaluation of the clinical significance of GLUT1 and O-GlcNAc in HCC

Finally, we assessed the association between the expression patterns of O-GlcNAc, ACSL4 and GLUT1 in HCC. As shown in Figure 6A, the protein levels of O-GlcNAc, ACSL4 and GLUT1 were all elevated in tumour tissues compared with adjacent normal tissues. The expression levels O-GlcNAc, ACSL4 and GLUT1 were all positivity correlated with one another (Figure 6B–6D). Moreover, similar to the significance of ACSL4 level in predicting patient overall survival, patients with high expression of GLUT1 (Figure 6E) or O-GlcNAc (Figure 6F) always had shorter overall survival than those with low expression levels of GLUT1 or O-GlcNAc. These results illustrate that the high expression of GLUT1 and O-GlcNAc predicted a poor prognosis in patients with HCC.

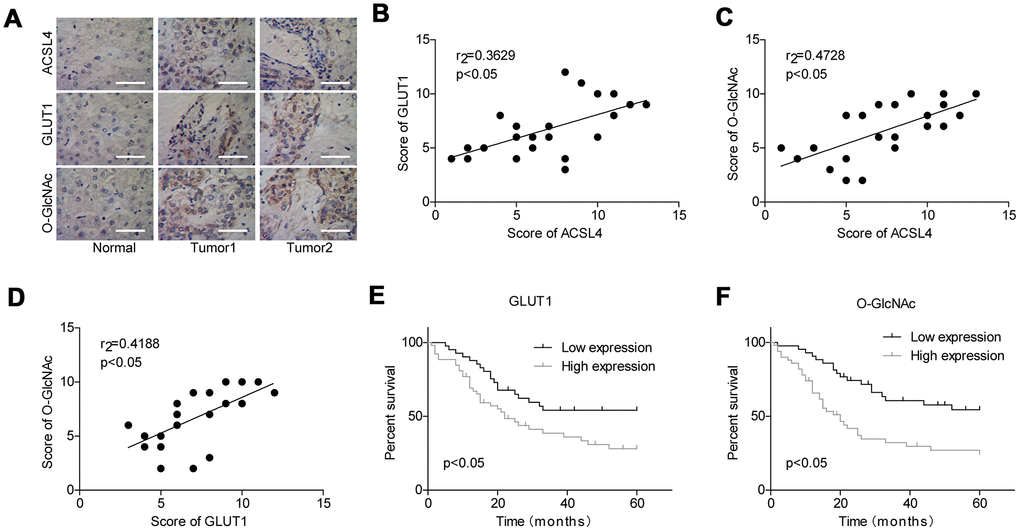

Figure 6. Evaluation of the levels of GLUT1 and O-GlcNAc in HCC and their clinical significance. (A) Immunohistochemistry technology was used to assess the protein levels of ACSL4, O-GlcNAc and GLUT1 in HCC tissues and adjacent normal tissues (Scale bar = 100 μm). (B–D) Pearson correlation analysis of the correlations between the levels of ACSL4, O-GlcNAc and GLUT1 in HCC tissues. (E, F) Kaplan-Meier analysis of the relationship between GLUT1/O-GlcNAc levels and the overall survival of patients with HCC.

Bioinformatics analysis

The Oncomine database (https://www.oncomine.org/resource/login.html) was used to find the different expression patterns of ACSL4 in HCC tissues and normal liver tissues.

Liver tissue samples

A total of 77 paired HCC tissues and their matched normal liver tissues were obtained from patients with HCC who underwent hepatectomy prior to radiotherapy or chemotherapy. All patients provided informed consent form. The protocols involving human samples were performed in accordance with the Helsinki Declaration and were approved by the ethical committee of the First Affiliated Hospital of Zhengzhou University. The tumour amount refers to the number of metastatic tumours, such as lung, pleura and brain, which was measured by X-ray or CT (computerized tomography).

Immunohistochemistry

Immunohistochemistry assays were carried out to detect ACSL4 expression patterns in HCC tissues and paired normal tissues according to the manufacture protocol. Briefly, after dewaxing, antigen repair, and serum sealing with 5% goat serum (Solarbio, Beijing, China), the 4-μm sections were incubated with anti-ACSL4 antibody (1: 100 dilution, no. ab110007, Abcam, MA, USA), anti-O-GlcNAc antibody (1:200 dilution; no. MA1-072, Thermo Fisher Scientific, MA, USA) or anti-GLUT1 (GLUT) antibody (1:200 dilution; no. PA5-16793, Thermo Fisher Technology) at 4 °C overnight. The next day, the sections were incubated with the corresponding second antibody (Zhongshanjinqiao, Beijing, China) at room temperature for 1 hour. The staining results were evaluated by using a microscope, and the immunohistochemical scores were calculated by two researchers who were blinded to the grouping information. For staining extent, positive cells <5% were scored as 0, positive cells 5%-25% were scored as score 1, positive cells 25%-50% were scored as score 2, and positive cells >75% were scored as score 3. For staining intensity, 0, 1, 2 and 3 represent no, weak, intermediate and strong staining, respectively. The staining extent score and intensity score were multiplied to obtain the final score.

Cell lines and culture

The human normal liver cell line QSG-7701 and the HCC cell lines Huh-7, HLE, SK-HEP-1, BEL-7402 and HCCLM3 were purchased from the American Type Culture Collection (ATCC, Manassas, VA, USA). QSG-7701, HLE and BEI-7402 cells were maintained in RPMI-1640 medium, Huh-7 and HCCLM3 cells in Dulbecco’s modified Eagle’s medium with high glucose (DMEM-H), and SK-HEP-1 cells in modified Eagle’s medium (MEM), all supplemented with 1% foetal bovine serum (FBS) and 1% penicillin/streptomycin (v/v). All regents used in cell culture were obtained from Thermo Fisher Scientific (MA, USA).

Cell treatments

To enhance O-GlcNAcylation, Huh-7 cells were treated with 75 μM O-(2-acetamido-2-deoxy-D-glucopyranosylidene) amino-N-phenylcarbamate (PUGNAc), an inhibitor of OGA or 5 mM glucosamine (GlcNAc) for 24 hours at 37 °C. Cycloheximide (CHX) was used to stop protein synthesis at a final concentration of 100 μg/ml for 1, 2, 4, 8 or 24 hours. To repress the activation of mTOR signalling, the cells were treated with 10 nM rapamycin (MedChemExpress, USA) for 24 hours.

Alteration of gene expression in HCC cells

Small interfering RNAs (siRNAs) targeting the human ACSL4 gene (si-ACSL4) were purchased from Origene (Beijing, China; no. SR301523) and were transfected into HCC cells to downregulate ACSL4 expression. The overexpressing (OE) lentivirus vector of ACSL4 (OE-ACSL4) and its negative control (OE-NC) were purchased from Origene (no. RC221413L4) and were used to upregulate ACSL4 expression. The short hairpin RNAs (shRNAs) of GLUT1 (sh-GLUT1) used to downregulate GLUT1 was synthesized by GenePharma (Shanghai, China).

Real-time PCR (RT-PCR)

Total RNA was extracted from tissues and cells using the RNAsimple total RNA extract kit (no. DP419, TIANGEN, Beijing, China). Then, a total of 1 μg RNA was reverse transcribed to cDNA by using a First Strand cDNA Synthesis Kit (CWBIO, Jiangsu, China), followed by RT-PCR performance on an ABI PRISM 7700 Sequence Detection System (Applied Biosystems, Foster City, CA, USA) with SYBR Green (CWBIO) in a 20-μl reaction system. GAPDH was used as an internal reference to normalize mRNA expression. Primer sequences are listed as follows:

ACSL4: sense, 5’-CGGTTCCTTTTTGCGAGCTT-3’,

ACSL4: antisense, 5’-AAAGTACGCAAATGTCCTCTTTT-3’;

GLUT1: sense, 5’-TGAGCATCGTGGCCATCTTT-3’,

GLUT1: antisense, 5’-CCGGAAGCGATCTCATCGAA-3’;

GAPDH: sense, 5’-CCACTAGGCGCTCACTGTTCT-3’,

GAPDH: antisense, 5’-GCATCGCCCCACTTGATTTT-3’.

Western blotting assay

Western blotting assays were performed to detect protein expression. RIPA lysis buffer (Beyotime, Jiangsu, China) was used to extract the total protein from tissue samples and cells. After quantification with a BCA kit (Thermo Fisher Scientific) and degeneration at 100 °C for 10 min, 25 μg protein from each sample was loaded onto 10% SDS-PAGE and then transferred into PVDF membranes (Thermo Fisher Scientific), followed by immunoblotting by incubating with the indicated primary antibodies overnight at 4 °C. Then, the membranes were incubated with the corresponding secondary antibodies (Zhongshanjinqiao) for 1 hour at room temperature. The blot bands were visualized by an enhanced chemiluminescence regent (ECL; Millipore) and detected on the gel imaging instrument (Eberhardzell, Germany). ImageJ software was used to quantify protein expression. Primary antibodies are as follows: ACSL4 (no. ab110007, Abcam), O-GlcNAc (no. MA1-072, Thermo Fisher Scientific), OGT (1:1000 dilution; no. 24083, Cell Signaling Technology, CA, USA), UAP1 (no. HPA014659, Merck, Darmstadt, Germany), GLUT1 (no. PA5-16793, Thermo Fisher Technology), GLUT2 (no. ab54460, Abcam), GUCY1A3 (guanylate cyclase 1 soluble subunit alpha 1) (no. 12605-1-AP, Wuhan, China), CANT1 (calcium activated nucleotidase 1) (no. HPA019639, Merck), SGLT1 (solute carrier family 5 member 1) (no. ab14686, Abcam), mTOR (no. 2972, Cell Signaling Technology), p-mTOR (no. 5536, Cell Signaling Technology) and GAPDH (1:5000 dilution; no. 5174, Cell Signalling Technology).

Immunoprecipitation (IP)

The IP assay was performed as previously described [48] to assess the interactions between proteins. In detail, Huh-7 cells were collected and lysed in Western/IP lysis buffer (Beyotime, Jiangsu, China) according to the manufacturer’s description. After preclearing with 50 μl of protein A/G-Sepharose (Novex, Oslo, Norway) for 1 hour, the supernatants were incubated overnight at 4 °C with anti-O-GlcNAc (no. 9875, Cell Signaling Technology), anti-ACSL4 antibody (no. ab110007, Abcam) or IgG for crosslinking and then incubated with protein A/G-Sepharose beads and washed with the Western/IP lysis buffer (Beyotime). Then, the beads were subjected to western blotting assay with the indicated antibodies.

CCK-8 (cell counting kit-8) assay

The CCK-8 Kit (MedChemExpress, Shanghai, China) was used to assess cell proliferation. In detail, transfected or untransfected Huh-7 or SK-HEP-1 cells during the logarithmic growth phase were collected to prepare cell suspensions. Next, 100 μl of cell suspension containing 2000 cells was added into each well of the 96-well plates. Then, 10 μL of CCK-8 solution was added into each well after 24, 48, 72 and 96 hours of cell inoculation. OD values were measured at 450 nm with a microplate reader after another 4 hours of incubation.

Flow cytometry assay

The Annexin V (FITC) Apoptosis Detection Kit purchased from BD Biosciences (San Diego, CA, USA) was recruited to determine cell apoptosis. After 48 hours of cell treatment, Huh-7 or SK-HEP-1 cells were collected with 0.25% EDTA-free trypsin (Thermo Fisher Scientific) and resuspended in 100 μl of 1X binding buffer solution containing 5 μl of annexin V and 5 μl PI of solution and incubated in the dark for 15 min. Subsequently, the cells were washed with 1X binding buffer and resuspended in 500 μl of 1X binding buffer. Cell apoptosis was measured with a Beckman FC500 flow cytometer (Beckman Coulter, Inc., Brea, California, USA) and analysed with FlowJo 7.6 software.

Xenotransplantation

Protocols involving animals were approved by the Animal Care and Use Committee of the First Affiliated Hospital of Zhengzhou University. Huh-7 and SK-HEP-1 cells were stably transfected with OE-ACSL4 or OE-ACSL4 + sh-GLUT1 induced by selecting 7 μg/ml puromycin and 7 μg/ml puromycin + 100 μg/ml G418 for 14 days. Then, the cells (5×10⁶) were injected into the armpit area of 6-week-old nude mice (Beijing Vital River Laboratory Animal Technology Co., Ltd., Beijing, China), 5 mice/group. Twenty-eight days post-transplantation, mice were sacrificed, and the tumours were collected for weighing.

Statistical analysis

Each experiment in the present study was performed at least three times, and the data are expressed as the mean ± square deviation (SD). SPSS 17.0 software was used for statistical analysis. In detail, Student’s t test or one-way ANOVA test was applied to perform data analysis between 2 groups or multiple groups, respectively. Pearson chi-squared test was used to determine the clinical significance of ACSL4 expression in patients with HCC. Kaplan-Meier analysis was used to analyse the parameters associated with the overall survival of HCC patients. A P value <0.05 was considered statistically significant.
