Identification and validation of the angiogenic genes for constructing diagnostic, prognostic, and recurrence models for hepatocellular carcinoma

Differentially expressed HCC-related angiogenic gene identification

First, there is a flowchart that graphically illustrates the analysis process for this study Supplementary Figure 1. We identified 132 angiogenic genes from several studies on angiogenesis, and we matched these genes to HCC-related mRNA sequence data in TCGA and ICGC databases; we compared differentially expressed genes (DEGs) in the mRNA expression profiles between HCC tissues and adjacent noncancerous tissues. Using the threshold of FDR < 0.05 and |log2 FC| > 1, 49 differentially expressed angiogenic genes (40 upregulated and 9 downregulated) were obtained from the database from TCGA (Figure 1A, 1B), and 30 differentially expressed angiogenic genes (24 upregulated and 6 downregulated) were obtained in the ICGC database (Figure 1C, 1D). Then, by matching the angiogenic genes in the two databases, we selected 28 genes for subsequent analysis (23 upregulated and 5 downregulated) (Supplementary Figure 2).

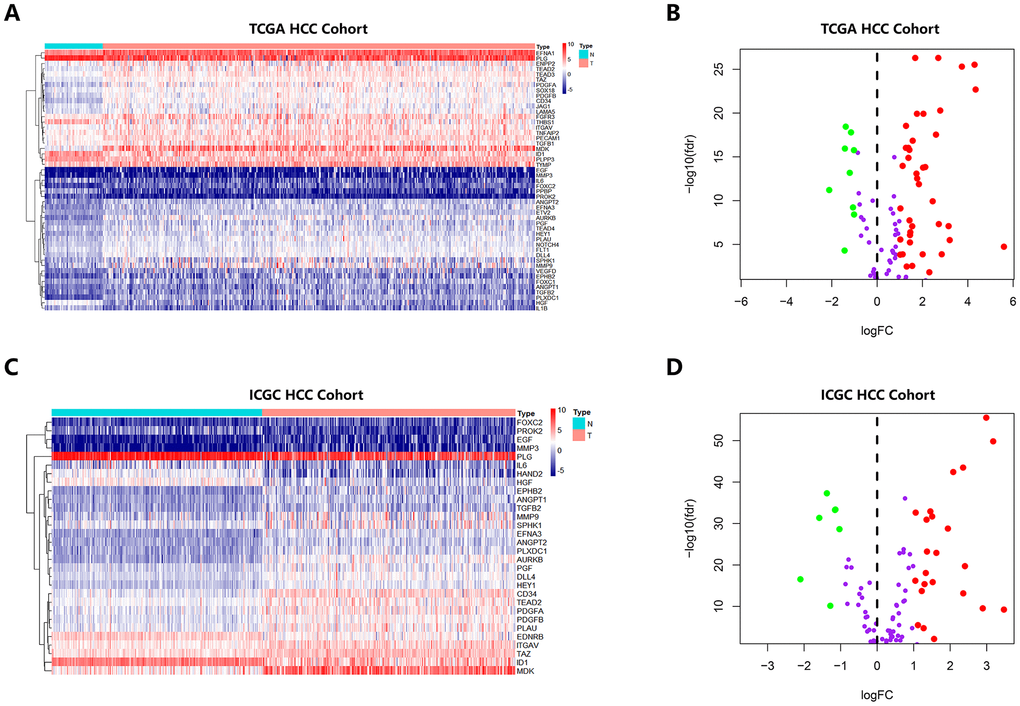

Figure 1. Heatmap and Volcano Plot showed the differentially expressed angiogenic genes of HCC patients in different database. (A, B) Gene expression features in the TCGA database. (C, D) Gene expression levels in the ICGC database.

Identification of key angiogenic genes closely associated with prognosis of HCC

To identify angiogenic genes that were significantly associated with HCC survival, we performed LASSO regression and Cox regression analysis. We first performed LASSO to reduce the number of angiogenic genes. A total of 1000 Cox LASSO regression iterations and 10 cross-validations were performed using the R package glmnet. The higher the nonzero coefficient appeared after 1000 iterations of Cox LASSO regression, the stronger the ability of the corresponding gene to predict prognosis. Using the Cox LASSO regression, we selected 14 angiogenic genes with a strong predictive prognosis (with a recurrence frequency greater than 900 times out of 1000 repetitions) (Supplementary Figure 3). We then used 370 HCC samples from the database from TCGA along with OS time and survival status to investigate the relationship between these 14 angiogenic genes and prognosis using univariate Cox regression analysis. The results confirmed that there were 4 genes (EFNA3, EGF, MMP3 and AURKB) with statistical significance (P<0.01); that is, these four key angiogenic genes were significantly associated with HCC prognosis.

Construction of an angiogenesis-related prognostic signature and validation of its predictive performance

Based on these four angiogenic genes, we established a prognostic signature by multivariate Cox regression as follows: prognostic index (PI) = (β* expression level of EGF) + (β* expression level of MMP3) + (β* expression level of AURKB) + (β* expression level of EFNA3). In the HCC cohort from TCGA, 371 HCC patients with survival status were divided into high-risk and low-risk groups using the optimal cut-off value determined by X-tile software. The OS of the high-risk group was significantly worse than that of the low-risk group (P < 0.001) (Figure 2A). Figure 2B shows the risk score distribution corresponding to the expression level of the genes. In HCC patients with different survival statuses, we found that the risk score of the dead patients was significantly higher than that of the living patients (P<0.01) (Figure 2C). Time-dependent ROC curve analysis was performed to evaluate the specificity and sensitivity of the prognostic signature. The higher the area under the curve (AUC), the better the predictive performance of the prognostic signature. The AUCs of the prognostic signature reached 0.76 at 0.5 years, 0.74 at 1 year, 0.67 at 3 years and 0.65 at 5 years, indicating a great predictive value of the prognostic signature for OS (Figure 2D). For further validation of the prediction ability, the prognostic signature was applied to the ICGC database (containing 243 HCC samples) for survival prediction. Utilizing the formula mentioned earlier and the optimal cutoff value identified by X-tile software, 243 HCC patients were classified into high-risk and low-risk groups, and consistent with previous results, patients in the high-risk group had a significantly worse OS than those in the low-risk group (P < 0.001) (Figure 2E). Figure 2F shows the risk score distribution corresponding to the expression level of the genes. Consistent with previous findings, the risk score of dead HCC patients was much higher than that of living HCC patients (P<0.01) (Figure 2G). The AUCs of the prognostic signature for OS were 0.73 at 0.5 years, 0.79 at 1 year, 0.64 at 3 years and 0.70 at 4 years (Figure 2H).

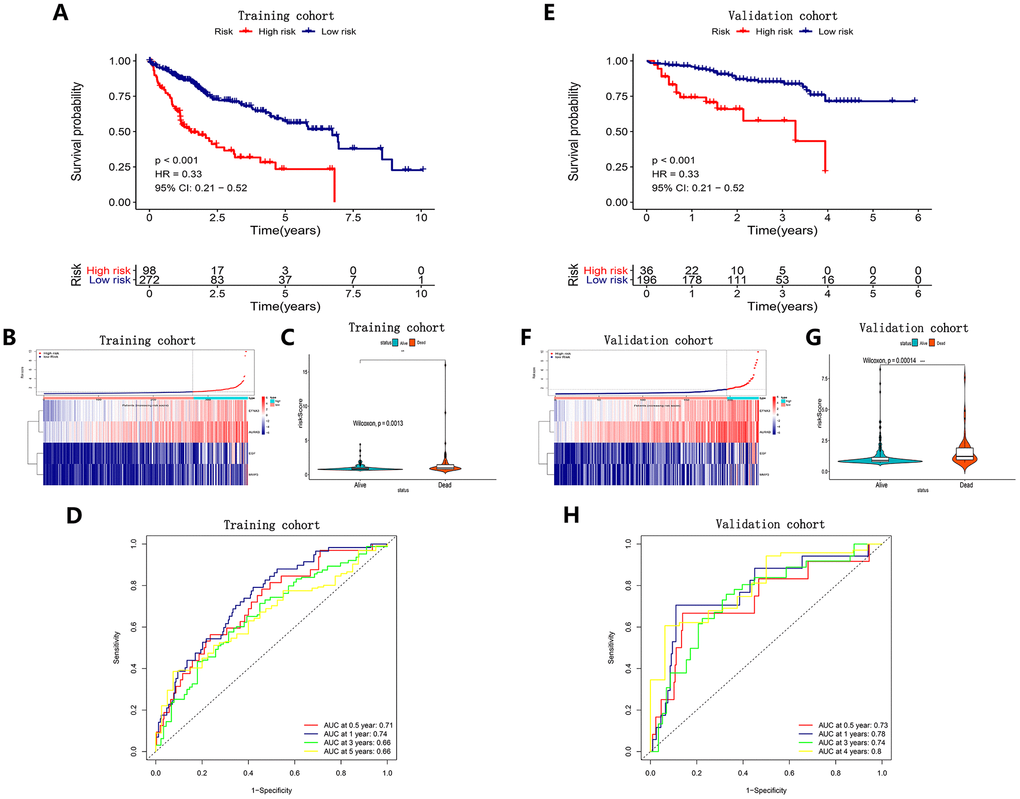

Figure 2. Survival analysis, risk score distribution, Violin plots and time-dependent ROC curves of a prognostic model in the TCGA HCC cohort (A–D) and ICGC HCC cohort (E–H). A and E K-M survival curves showed the OS in the high-risk group was significantly worse than that in the low-risk group (P<0.05). (B, F) Distribution of risk scores of HCC patients with different gene expression levels. (C, G) Risk scores of HCC patients with different survival status. (D, H) ROC curve analysis for OS prediction.

A predictive nomogram for OS prediction was constructed and validated in the HCC cohort from TCGA

To evaluate the independent predictive value of this prognostic signature, we performed univariate and multivariate Cox regression analyses on the risk score of the prognostic signature and clinical characteristics (AFP, weight, vascular tumor invasion, sex, pathological grade, and TNM stage) of 370 HCC patients in the cohort from TCGA. The results of the univariable Cox regression analysis showed that age, TNM stage and the risk score of the prognosis signature had predictive value for OS (HR>1.00, P < 0.05), while AFP, weight, vascular tumor invasion and sex were not associated with OS. Therefore, we incorporated age, TNM stage, and risk score of the prognostic signature in a multivariate Cox regression analysis, and the results showed that TNM stage (HR = 1.961, P < 0.05) and the prognostic signature (HR = 1.315, P < 0.05) were important independent prognostic factors for OS (Figure 3A). To provide clinicians with a quantitative method to more accurately predict the prognosis and survival status of HCC patients, thereby contributing to more individual clinical decisions and treatment options, we constructed a predictive nomogram, which integrated the two independent prognosis factors based on the multivariable Cox regression analysis (Figure 3B). Each independent prognosis factor was assigned a certain score scale, and the total point value was obtained by adding up the specific points corresponding to the individual's prognosis variable, thereby determining the corresponding OS for the individual at 1, 3, and 5 years. The calibration curves of the nomogram at 1, 3, and 5 years were very close to the best prediction curve, showing a great consistency between the predicted OS rates and the actual observations (Figure 3C–3E).

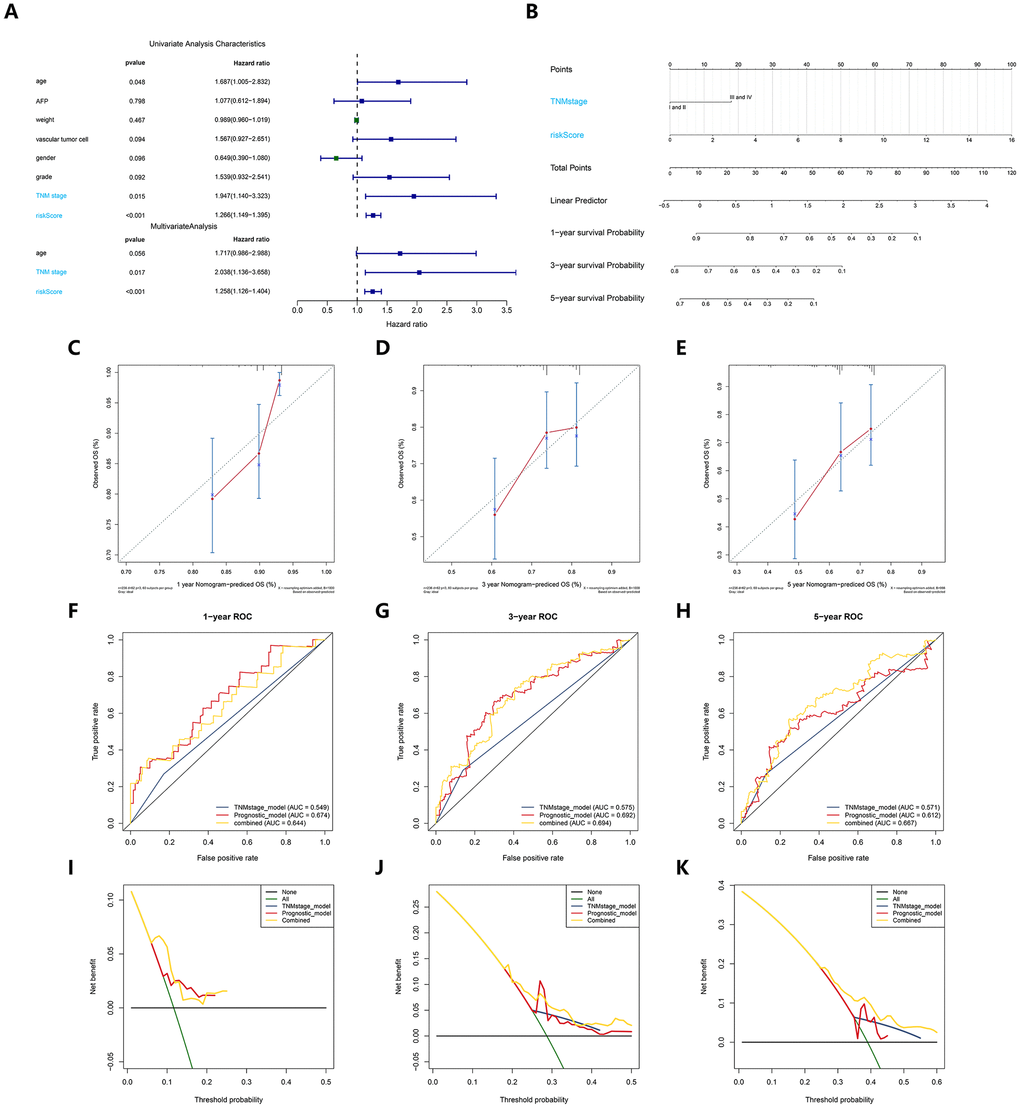

Figure 3. Construction and verification of a predictive nomogram. (A) Univariate and multivariate Cox regression suggested the prognostic model and age were independent prognostic predictors. (B) The nomogram for OS prediction in HCC patients at 1, 3, and 5 years. (C–E) Calibration curves of nomogram for OS prediction at 1, 3, and 5 years. (F–H) ROC curves to evaluate the predictive performance of nomogram. (I–K) DCA curves to evaluate the clinical decision-making benefits of nomogram.

We then adopted the C-index, time-dependent ROC and DCA to verify the prognostic accuracy of the nomogram in OS prediction. The C index of the nomogram in OS prediction was 0.64, with 1000 cycles of bootstrapping (95% CI: 0.56-0.72), which was superior to the C index for the TNM stage (0.54) and the prognostic signature (0.63); these results were consistent between the nomogram’s prediction and actual results. The time-dependent ROC curves showed that the nomogram with the integration of two independent prognosis factors reached 0.641, 0.681 and 0.671 in 1 year, 3 years and 5 years, which was better than a single independent prognosis factor on predictive performance (Figure 3F–3H). The results of the DCA also showed that compared to a single independent prognostic factor, the best net benefit was obtained by prognosis prediction with the nomogram (Figure 3I–3K).

Definition of a recurrence signature based on the key angiogenic genes

We utilized the regression coefficient (β’) of a multivariate Cox proportional hazards model based on four angiogenic genes and patients with release-free survival (RFS) time and recurrent status in the cohort from TCGA and the GSE14520 cohort. Then, we further constructed a recurrence signature as follows: prognostic index (PI) = (β’* expression level of EGF) + (β’* expression level of MMP3) + (β’* expression level of AURKB) + (β’* expression level of EFNA3). Determining the optimal cut-off value by X-tile software, HCC patients were divided into high-risk and low-risk groups. We found that the recurrence rate in HCC patients in the high-risk group was dramatically higher than that of the low-risk group in the same period in the cohort from TCGA (P<0.001) (Figure 4A) and the GSE14520 cohort (P=0.01) (Figure 4D). The distribution of risk scores corresponding to the expression patterns of the angiogenic genes is presented in Figure 4B, 4E. The AUC values for the 0.5-, 1-, 3-, and 5-year recurrence probability with the recurrence signature reached 0.64, 0.68, 0.54 and 0.66 in the cohort from TCGA, respectively (Figure 4C). In addition, the AUCs for 0.5-, 1-, 3-, and 5-year recurrence probability with the recurrence signature reached 0. 57, 0.51, 0.6 and 0.57 in the GSE14520 cohort, respectively (Figure 4F). These results showed that the recurrence signature had a great predictive power for recurrence.

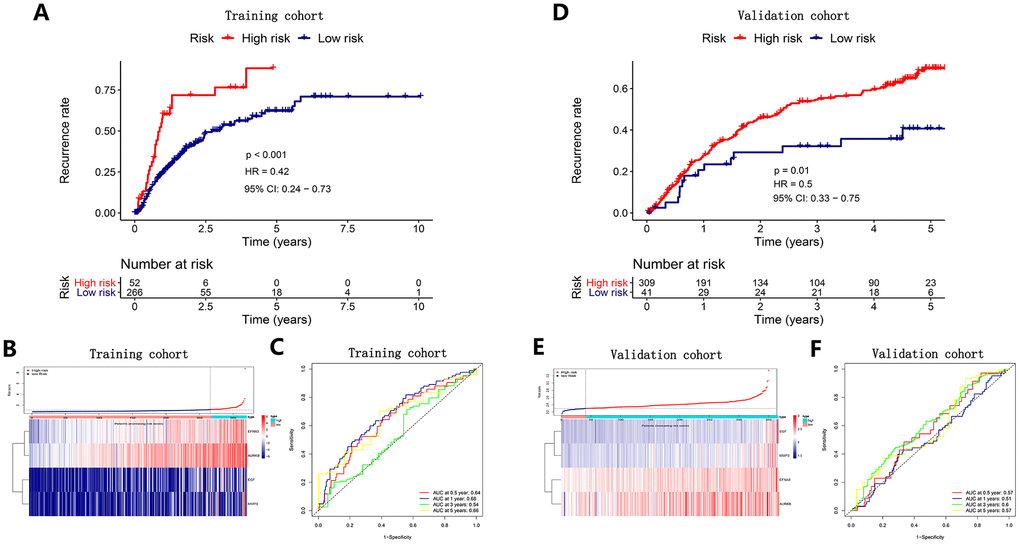

Figure 4. Survival analysis, risk score distribution and time-dependent ROC curves of a recurrence model in the TCGA HCC cohort (A–C) and ICGC HCC cohort (D–F). (A, D) The recurrence rates in the high-risk group was much higher than that in the low-risk group (P<0.05). (B) and E Gene expression levels and corresponding risk scores in HCC patients. (C, F) ROC curve analysis for recurrence prediction.

Establishment and evaluation of a recurrence nomogram in predicting recurrent probability in the HCC cohort from TCGA

To determine whether the predictive performance of the recurrence signature was independent of traditional clinical features, we performed univariate and multivariate Cox regression analysis on these variables in the cohort from TCGA. The analyses confirmed that age (HR =2.198, P < 0.05), TNM stage (HR = 2.499, P < 0.05) and the recurrence signature (HR = 2.883, P < 0.05) were independent of other clinical features (Figure 5A). Then, a recurrence nomogram integrated the three significantly independent factors was established (Figure 5B). The calibration curves of the nomogram for 1-, 3-, and 5-year recurrence probabilities, and the best prediction curve (45°line) was nearly coincident, indicating a great agreement between the predicted recurrence probabilities and the actual observations (Figure 5C–5E).

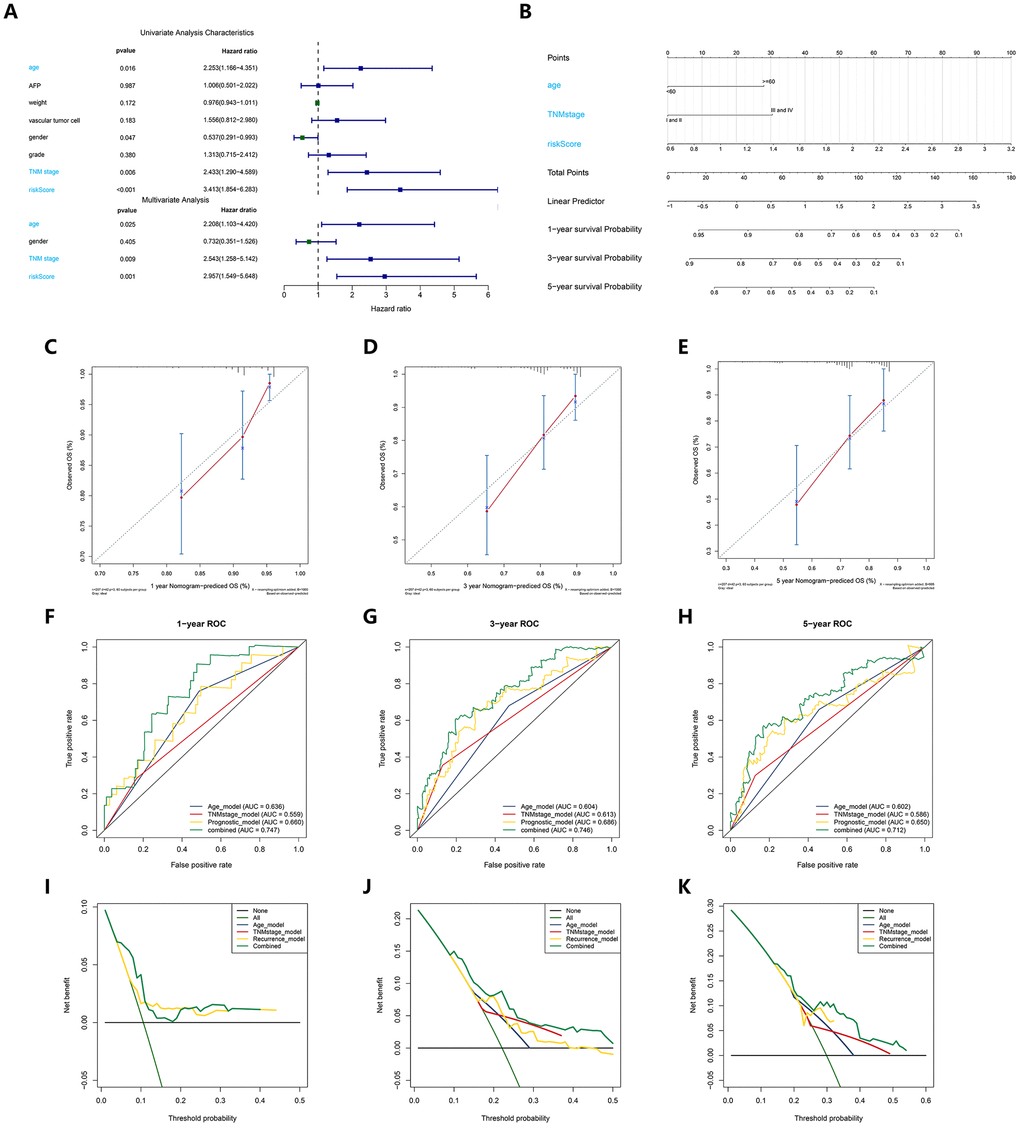

Figure 5. Construction and validation of a recurrence nomogram. (A) Univariate and multivariate Cox regression suggested the recurrence model, TNM stage and age were independent prognostic predictors. (B) The nomogram for recurrence prediction in HCC patients at 1, 3, and 5 years. (C–E) Calibration curves of nomogram for recurrence prediction at 1, 3, and 5 years. (F–H) ROC curves to evaluate the predictive performance of nomogram. (I–K) DCA curves to evaluate the clinical decision-making benefits of nomogram.

Meanwhile, we compared the prediction accuracy between the nomogram and other single individual prognostic factors via C index, time-dependent ROC curve analysis and DCA. The C index of the nomogram reached 0.71, indicating that the nomogram had an excellent predictive accuracy for recurrence in HCC patients. The AUCs for 1-, 3-, and 5-year recurrence probability with the nomogram reached 0.749, 0.748, 0.54 and 0.722, respectively (Figure 5F–5H). The DCA also demonstrated that the nomogram could help clinicians obtain the best net benefits when making clinical decisions (Figure 5I–5K). It was demonstrated that the nomogram had superior predictive performance and clinical value to that of any single independent recurrence factor.

Identification and validation of a diagnostic model based on the four angiogenic genes

To improve the disease outcome of HCC patients, there is a need for prognostic signatures and recurrence signatures to help clinicians adjust the treatment strategy for confirmed HCC patients, but in the early diagnosis, there is also a need for sensitive and specific diagnostic criteria to accurately distinguish HCC patients from normal subjects. To this end, we performed a stepwise logistic regression method to establish a diagnostic model that integrated these four angiogenic genes to distinguish between HCC patients and normal subjects. The diagnostic equation was finally identified as follows: logit (P = HCC) = -75.2125977 + (0.85 × ENFA3 expression level) + (2.61 × EGF expression level) + (3.92 × MMP3 expression level) + (9.98 × AURKB expression level). The diagnostic model was confirmed to achieve a specificity of 94.00% and a sensitivity of 90.00% in the HCC cohort from TCGA (containing 50 normal samples and paired 50 HCC samples) (Figure 6A). The AUC for the diagnostic model reached 0.976, which is a diagnostic value that is superior to other methods (Figure 6B). We then validated the diagnostic model using the ICGC HCC cohort (containing 202 normal samples and 243 HCC samples). The diagnostic model diagnosed HCC patients with a specificity of 92.08%, sensitivity of 83.95% (Figure 6D), and AUC of 0.948 (Figure 6E), confirming that the diagnostic model can accurately distinguish HCC samples from normal samples. We show the correspondence between the predicted results of the diagnostic model and the actual status and the corresponding expression characteristics of angiogenic genes in Figure 6C, 6F.

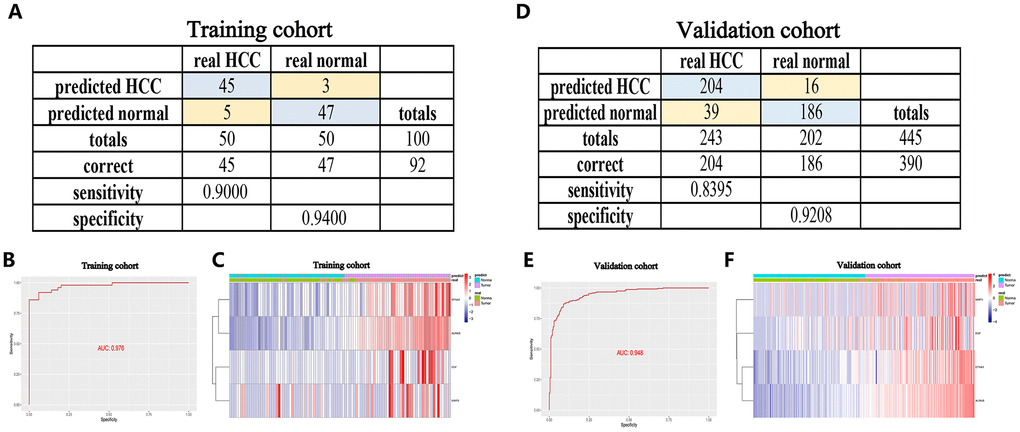

Figure 6. A diagnostic model for distinguishing HCC from normal samples in the TCGA HCC cohort (A–C) and ICGC HCC cohort (D–F). (A, D) Confusion matrix for the binary classification results of the diagnostic model. (B, E) ROC curves for the predictive performance evaluation of the diagnostic model. (C, F) Unsupervised hierarchical clustering of the four angiogenic genes for the diagnostic model.

Furthermore, to improve the early screening rate of HCC and reduce the probability of misdiagnosis, we integrated these four angiogenic genes to establish a diagnostic model in the GSE89377 dataset (containing 22 proliferative nodules samples and 40 HCC samples) to detect whether the diagnostic model could correctly distinguish between HCC and proliferative nodules. We used a stepwise logistic regression method to establish the diagnostic model with a diagnostic formula of logit (P = HCC) = -5.58 + (5.84 × ENFA3 expression level) + (1.84 × EGF expression level) + (-1.04 × MMP3 expression level) + (18.10 × AURKB expression level). The diagnostic model was confirmed to distinguish between HCC and proliferative nodules with high specificity (81.82%) and high sensitivity (90.00%) (Figure 7A). The AUC for the diagnostic model was 0.931, confirming that the diagnosis model had diagnostic capabilities superior to those of other methods (Figure 7B). We then applied this diagnostic model to GSE6764 to further validate its diagnostic performance. The results showed that the diagnostic model had a specificity of 70.59%, a sensitivity of 85.71% (Figure 7D), and an AUC of 0.8848 (Figure 7E), demonstrating that the diagnostic model correctly distinguished HCC and hyperplastic nodules. Figures 7C, 7F show different angiogenic gene expression levels, the correspondence between the predicted results in the diagnostic model and the actual results.

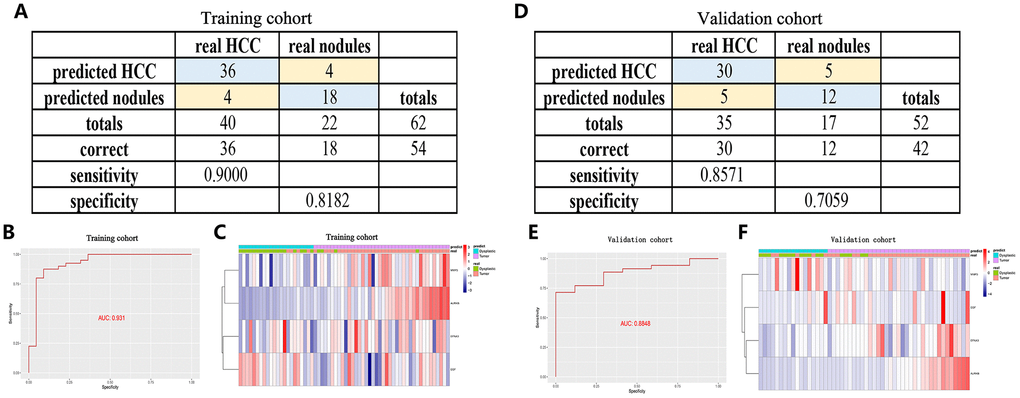

Figure 7. A diagnostic model for distinguishing HCC from proliferative nodules in the training dataset (GSE89377) and validation dataset (GSE6764). (A, D) Confusion matrix for the binary classification results of the diagnostic model. (B, E) ROC curves for the predictive performance evaluation of the diagnostic model. (C, F) Unsupervised hierarchical clustering of the four angiogenic genes for the diagnostic model.

Further internal and external validation of the expression patterns and prognostic predictive value of the angiogenic genes

To examine the value of these four angiogenic genes (ENFA3, EGF, MMP3, and AURKB) for the construction of diagnostic, prognostic and recurrence models, we analyzed the expression patterns of the angiogenic genes in the HCC cohorts from ICGC database and different online database, including cBioportal, UALCAN and Human Protein Atlas database. We first performed genetic alteration detection in the HCC cohort from cBioportal database [19]. It was found that 20.1% (72 HCC samples) showed genetic alterations, 14% of which occurred in ENFA3, where the main alteration was amplification; 5 mutations occurred in EGF (2.2%) (Figure 8A). These genes have the potential to become targeted therapeutic sites and provide new therapeutic targets for the treatment of HCC. Subsequently, in the HCC cohort from UALCAN database [20], we found that the expression levels of the four angiogenic genes in tumor tissues were significantly higher than it was in normal tissues (P < 0.001) (Figure 8B–8E), and this finding was also consistently validated in the ICGC HCC cohort (P < 0.001) (Figure 8F–8I). In addition, to verify the clinical relevance of these four angiogenic genes, we analyzed the expression of proteins encoded by the four genes in clinical HCC specimens and normal specimens from the Human Protein Atlas database [21]. The results showed that ENFA3, MMP3 and AURKB were strongly positive in HCC tissues compared to normal liver tissues (Figure 8J), while EGF was not found in the database. The expression characteristics of angiogenic genes were consistent with the prognosis and recurrence analysis, and the finding indicated that the expression characteristics of these four genes are of great value for constructing diagnostic, prognostic and recurrent models. In addition, the expression levels of the four genes in different cell lines are shown in Figure 8K–8N.

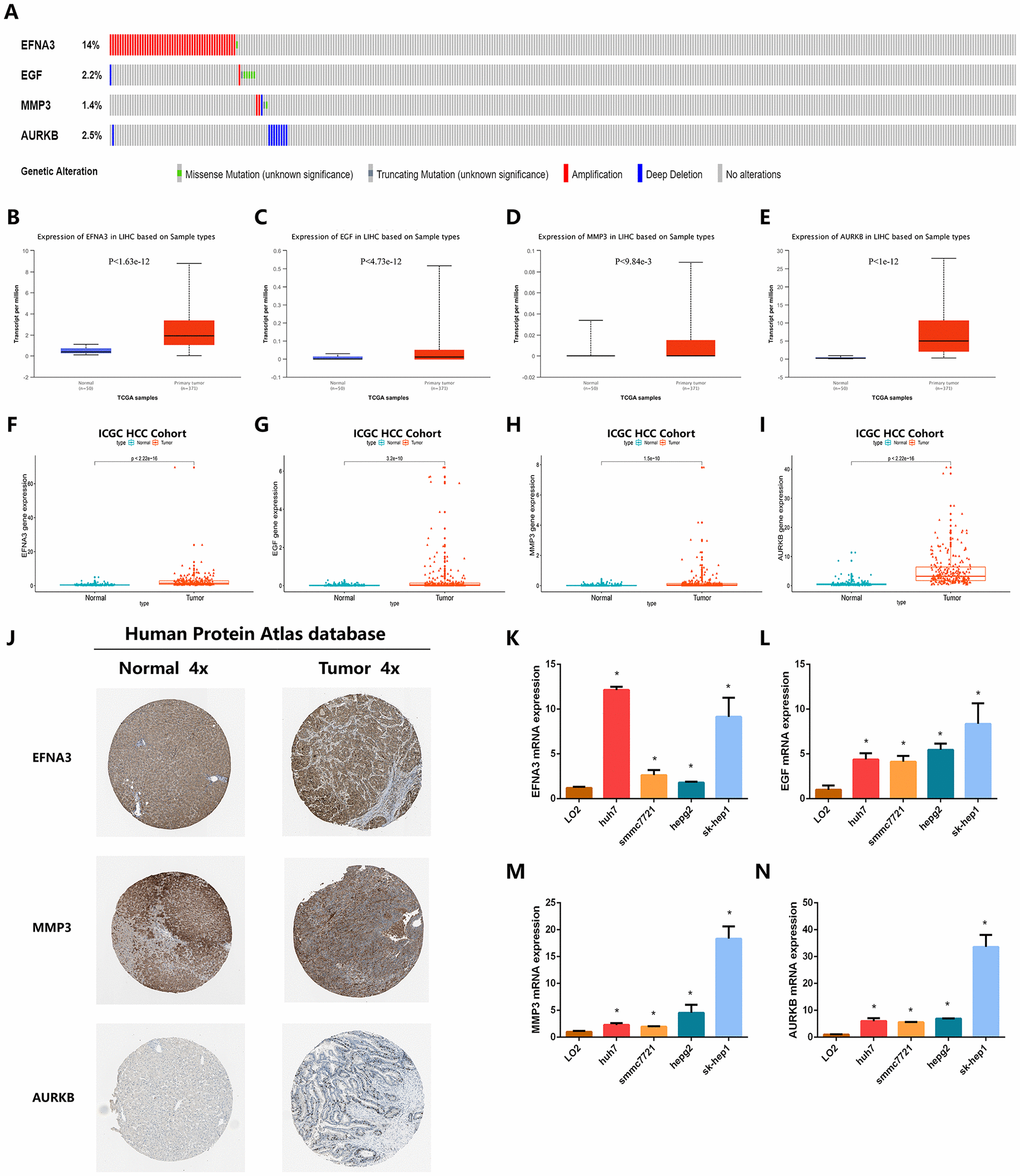

Figure 8. Validation of the expression characteristics of angiogenic genes. (A) Genetic alteration detection of the angiogenic genes in the TCGA HCC cohort. (B–E) Expression levels of angiogenic genes in HCC and normal samples in the TCGA HCC cohort. (F–I) Expression levels of angiogenic genes in HCC and normal samples in the TCGA HCC cohort. (J) The imagines showed the expression patterns of the angiogenic genes in HCC tissues and normal liver tissues. (K–N) The expression profiles of the angiogenic genes in multiple types of HCC cell lines.

Since these four angiogenic genes were highly expressed in HCC patients and were risk factors, we explored the expression correlation of these four genes. We found that ENFA3 and MMP3 have synergistic effects, and their expression levels were positively correlated (Pearson 0.15, P<0.05) (Figure 9A). This result was also verified among other genes (ENFA3 and AURKB, EGF and MMP3, EFNA3 and EGF) (P<0.05) (Figure 9B–9D), while the expression level of AURKB was not significantly correlated with the expression levels of EGF or MMP3 (P>0.05). These results suggested that there was a relationship between these genes and their expression, further contributing to the occurrence of HCC. To verify the association between the expression levels of these four angiogenic genes and the OS of HCC patients, we performed K-M curve analysis of the HCC cohort from TCGA. The analysis showed that the OS of HCC patients with high expression of EFNA3 was significantly lower than that of patients with low expression of ENFA3 (P<0.05). EGF, MMP3 and AURKB also had consistent results; that is, high expression of these genes corresponded to low OS (Figure 9E–9H). The AUCs for 0.5-, 1-, 3- and 5-year OS indicated a great predictive performance based on the expression of the four genes (Figure 9I–9L).

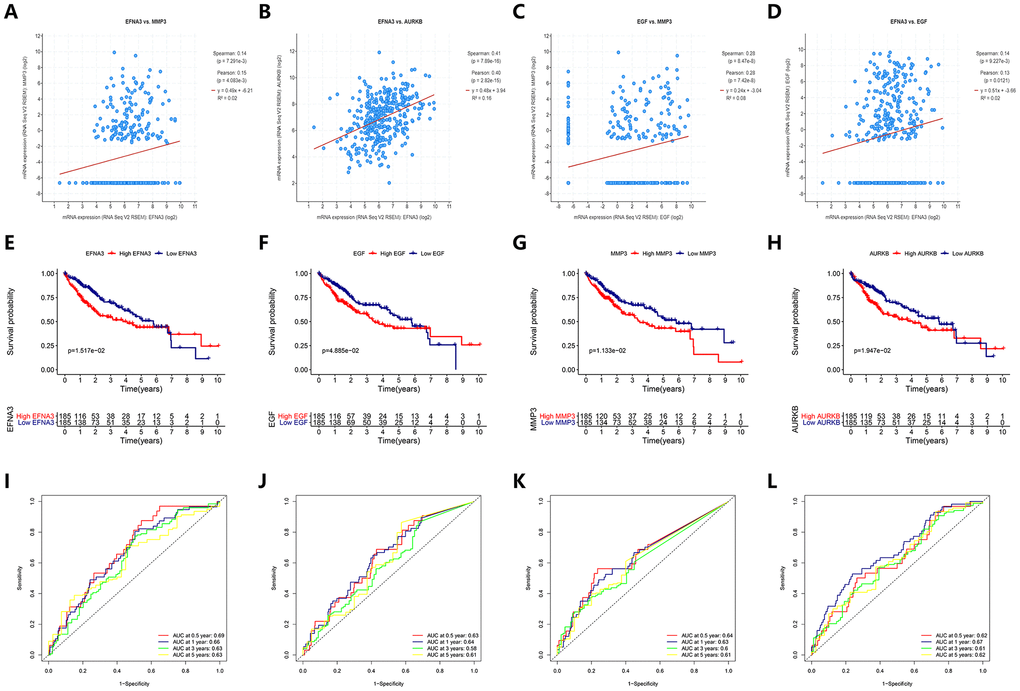

Figure 9. Prediction performance of angiogenic genes for OS and regression analysis between expression levels of different genes. (A–D) The expression of the angiogenic genes was synergistic with each other. (E–H) (K–M) survival curves indicated the OS in the high-expression group was significantly poorer than that in the low-expression group (P<0.05). (I–L) ROC curve analysis for OS prediction at 0.5, 1, 3 and 5 years.

Piperlongumine was found to be an inhibitor of the angiogenic genes

In exploring the clinically targeted therapeutic value of the four angiogenic genes, we identified piperlongumine as an inhibitor of the EGF/EGFR axis through the Cancer Therapeutics Response Portal (CTRP) database (http://portals.broadinstitute.org/ctrp/). (Supplementary Figure 4). Piperlongumine is an amide alkaloid of Piper longum L. (long piper) that exhibits cytotoxicity against a variety of human cancer cell lines and exhibits antitumor activity in rodents [22]. The 3D structure of piperlongumine is shown in Figure 10A. To investigate the effect of piperlongumine on the angiogenesis signature, we first used Autodock software (Version 3.6.1) to dock piperlongumine and angiogenic genes, and we found that piperlongumine could effectively dock to specific sites of EGF, EGFR and MMP3 (Figure 10B–10D, Supplementary Figure 5). When further validation was performed using PharmMapper (http://www.lilab-ecust.cn/pharmmapper/), we found that EGFR and MMP3 were potential targeting regulators of piperlongumine (Figure 10E–10F).

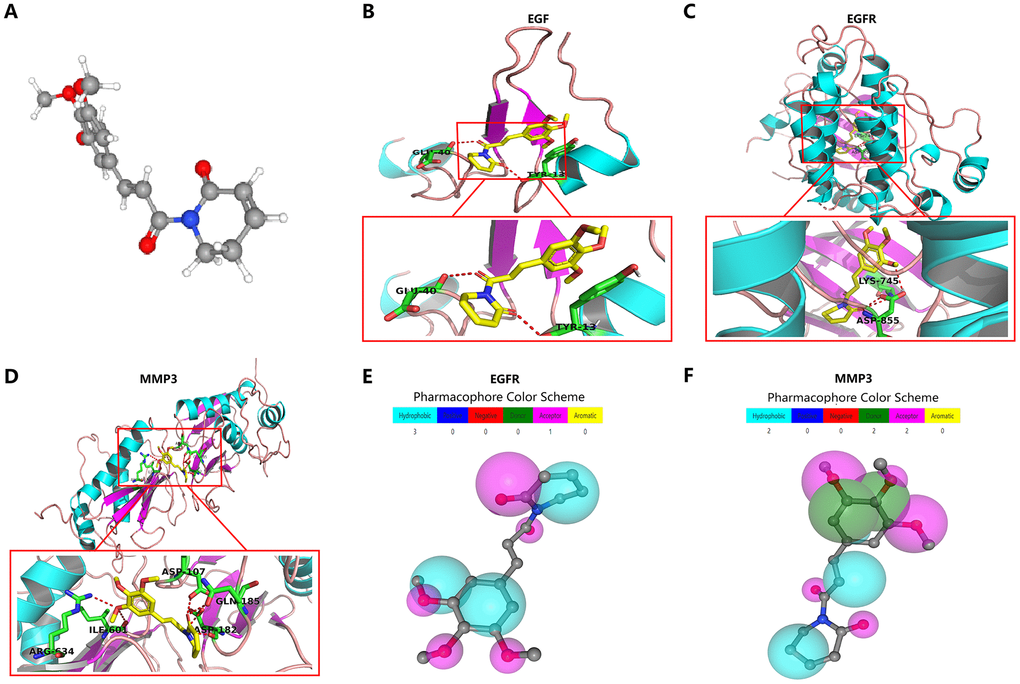

Figure 10. Molecular docking and pharmacophore models for targeted drug identification. (A) The 3D structure of piperlongumine was obtained from the PubChem database (https://pubchem.ncbi.nlm.nih.gov). (B–D) Specific binding site of piperlongumine and EGF (B), EGFR (C) and MMP3 (D). (E, F) The pharmacophore model of EGFR (E) and MMP3 (F).

Analysis of the anti-tumor effect of piperlongumine and its possible molecular mechanism

To further verify whether piperlongumine had anti-tumor effects on HCC, we performed in vitro cell proliferation experiments and tube formation experiments. In the Half Maximal Inhibitory Concentration (IC50) assay, the IC50 of piperlongumine was found to be 7.22 μmol in the SK-HEP1 cell line, 13.23 μmol in the SMMC-7721 cell line, 6.67 μmol in the HUVEC cell line, and 29.54 μmol in human LO2 hepatocytes, indicating that HCC cell lines (SK-HEP1 and SMMC-7721) were much more sensitive than human LO2 hepatocytes to piperlongumine (Figure 11A). To assess the effect on tumor cell proliferation in vitro, we treated SK-HEP1 and SMMC-7721 cell lines with different concentrations of piperlongumine and evaluated them by CCK8 assay, and EdU assay. We found by the CCK8 assay that piperlongumine treatment inhibited cell proliferation in a dose-dependent manner (Figure 11B, 11C), and the EdU assay further confirmed this result (Figure 11D–11E). To investigate the effect of piperlongumine on angiogenesis in the EGF/EGFR signaling pathway, we performed an in vitro HUVEC tube formation assay. The results suggested that piperlongumine inhibited angiogenesis via the EGF/EGFR axis signaling pathway (Figure 11F–11G).

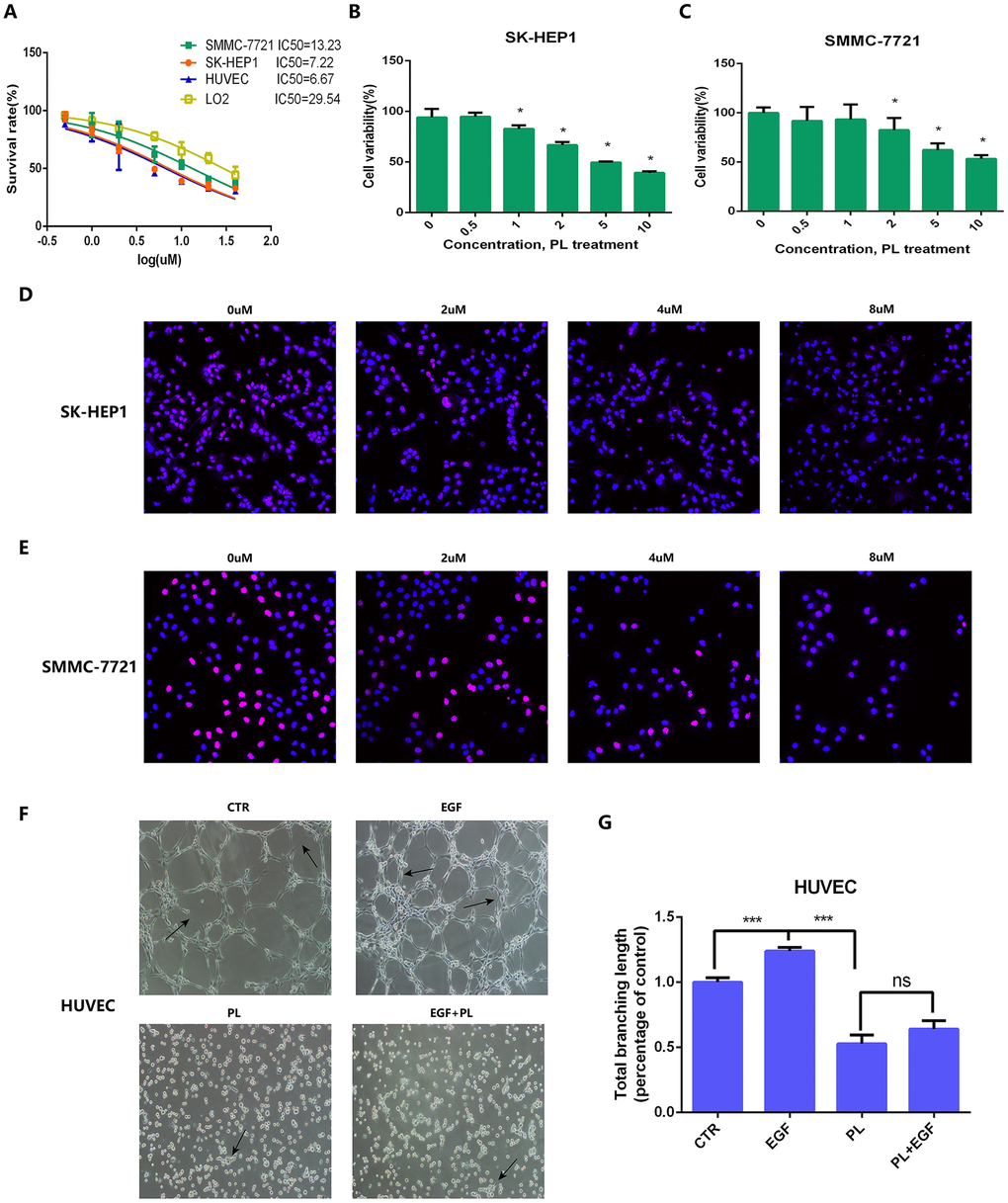

Figure 11. IC50, CCK8 assay, EdU assay and tube formation assay for anti-tumor effect validation of piperlongumine. (A) IC50 of piperlongumine in normal liver cell line (LO2), HUVEC and HCC cell lines. (B, C) CCK8 assay showed piperlongumine inhibited proliferation of SK-HEP1 (B) and SMMC-7721 (C) cell lines in a dose-dependent manner. (D, E) EdU assay showed the inhibition effect of piperlongumine in proliferation of SK-HEP1 (D) and SMMC-7721 (E) cell lines. (F) Tube formation assay suggested that piperlongumine inhibited angiogenesis via EGF/EGFR axis. (G) Statistical analysis to quantify the inhibitory effect of piperlongumine on angiogenesis.

Because we have demonstrated that the anti-tumor effect of piperlongumine was achieved by inhibiting proliferation and angiogenesis, we attempted to clarify the specific mechanism of piperlongumine on HCC cells. In the Cancer Therapeutics Response Portal (CTRP) database (http://portals.broadinstitute.org/ctrp/), we found that 226 genes could be regulated by piperlongumine, and the coexpression features of the corresponding encoded proteins are shown in Figure 12A. Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analyses were performed on these 226 genes. The results suggested that piperlongumine could cause changes in the EGFR tyrosine kinase inhibitor resistance pathway (P<0.01) (Figure 12B, 12C). To further validate the specific mechanism of piperlongumine, we treated SK-HEP1 and SMMC-7721 cells with different concentrations of piperlongumine and then performed western blot assays. As shown in Figure 12D, 12E, piperlongumine treatment reduced the levels of EGFR, p-Akt and p-Erk in a dose-dependent manner, suggesting that piperlongumine inhibited angiogenesis-induced tumorigenesis by targeting EGFR to influence the EGFR/EGF signaling pathway.

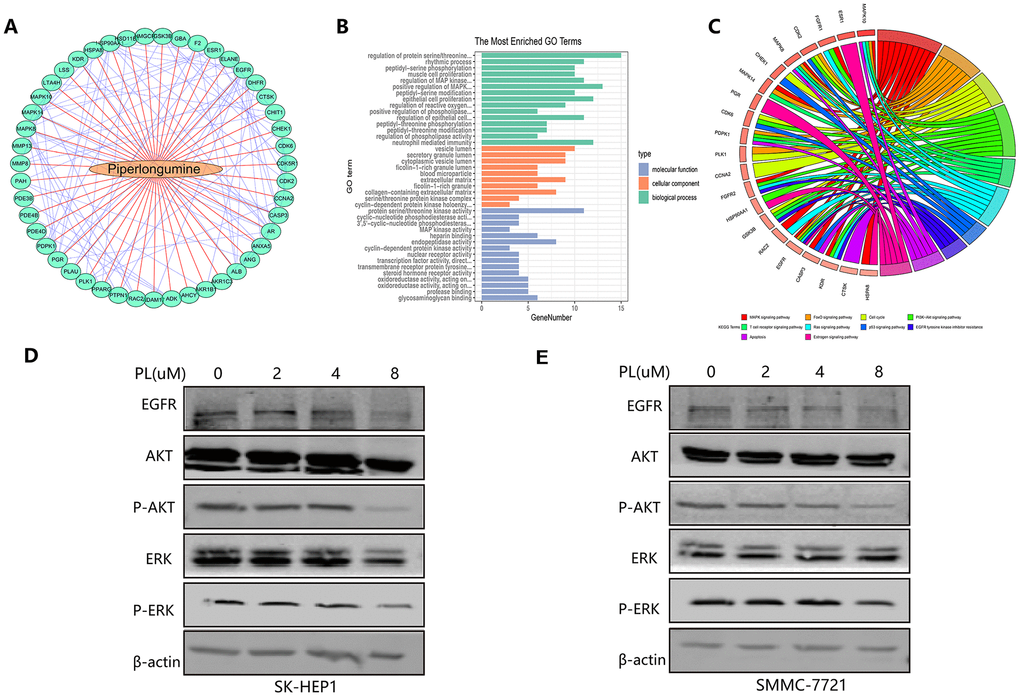

Figure 12. Molecular mechanism of piperlongumine to achieve antitumor effect. (A) The interaction of the corresponding encoded proteins of 226 angiogenic genes regulated by piperlongumine. (B–C) The GO analysis (B) and the KEGG pathway analysis (C) of the 226 angiogenic genes. (D–E) Western blot analysis of SK-HEP1 (D) and SMMC-7721 (E) cell lines.

Angiogenic genes

A total of 132 angiogenesis-related genes were systematically obtained from relevant studies in the Pubmed, EMBASE, Google Scholar, Web of Science and The Cochrane Library by using the search terms: “angiogenesis” OR “angiogenic”. The relevant public papers were downloaded as of October 2019. The references were referred to additional information.

Acquisition of mRNA sequencing data associated with HCC

The mRNA-sequencing data and corresponding clinical information associated with HCC patients were downloaded from TCGA and ICGC databases. There were 370 HCC tissue samples and 50 normal tissue samples as of July 8, 2019, for a total of 19677 encoding mRNA sequences in TCGA HCC cohort, and 202 normal samples, 243 HCC samples and 22913 mRNA sequences in the ICGC HCC cohort. Since these mRNA-sequencing data were obtained from TCGA and ICGC databases and were freely available to the public, and as this study also strictly followed the publication guidelines and access policies of these databases, this study does not require ethical review and approval from an Ethics Committee.

Identification of differentially expressed genes (DEGs) between HCC and adjacent noncancerous tissues

A total of 132 angiogenic genes were matched with HCC-associated mRNA obtained from the RNA-sequencing platform in TCGA database and the ICGC database to identify angiogenic genes associated with HCC. Then, we determined the differentially expressed genes (DEGs) by limma, an R package, with an absolute log2-fold change (FC) > 1 and an adjusted P value < 0.05.

Definition of an angiogenesis-related prognostic signature

The expression profiles of differentially expressed angiogenic genes were assessed via LASSO, univariate and multivariate Cox regression analysis to evaluate the prognostic value of these genes for OS in HCC patients. We first implemented the least absolute shrinkage and selection operator (LASSO) method with an L1 penalty, which reduces the regression coefficient by applying a penalty proportional to its size, so that the number of indicators with a final weight of nonzero is relatively small and so that most potential indicators are reduced to zero [56], thereby reducing the number of angiogenic genes and screening for more relevant angiogenic genes. In the LASSO-penalized Cox regression analysis, we performed 1000 substitution samplings in the data set and selected marker genes with a recurrence frequency greater than 900. Subsequently, we adopted univariate and multivariate Cox regression analysis for these genes to determine key genes with the best prognostic performance. A P value for a gene <0.01 in analyses was considered to represent statistical significance, and the gene was viewed as a crucial prognostic factor in prognostic prediction. Then multivariate Cox regression analysis integrated these statistically significant genes, and the genes univariate Cox regression found no statistical significance but significant clinically relevant, and selected variables by forward selection and backward elimination. The optimal set of genes was obtained according to the test level of the selected variable> the test level of the excluded variable. Finally, we integrated these key genes to establish an optimal apoptosis-related prognostic signature.

Validation analysis of the prognostic signature

Using a linear combination of regression coefficient (β) in a multivariate Cox regression model and angiogenic gene expression levels, we determined a prognostic risk score based on the angiogenesis-related prognostic signature. Prognostic index (PI) = (β* expression level of EGF) + (β* expression level of MMP3) + (β* expression level of AURKB) + (β* expression level of EFNA3). Using X-tile software, we confirmed the optimal cut-off value and thus divided 370 HCC patients into high-risk and low-risk groups. To assess the predictive performance of this angiogenesis-related prognostic signature, we established a Kaplan-Meier (K-M) survival curve and a time-dependent receptor working characteristic (ROC) curve.

Independence of the prognostic signature from other clinical variables

To assess the independence of this angiogenesis-related prognostic signature in predicting OS in HCC patients compared to other clinical features (age, gender, weight, AFP, vascular tumor cell infiltration, clinical stage and pathological grading), we performed univariate and multivariate Cox regression analysis on these variables. A bilateral P value <0.05 was considered statistically significant. The hazard ratio (HR) and 95% confidence interval (CI) for each variable were calculated.

Construction and validation of a nomogram

Based on the multivariate Cox regression model, we determined independent prognostic factors associated with OS in HCC patients with HCC (P < 0.05) and used rms R software to integrate these independent prognostic factors and construct a predictive nomogram and a corresponding calibration map. The calibration map is validated by calibration and discrimination. In this study, we graphically plotted the probability of collinear prediction to the observed rate to evaluate the alignment curve of the nomogram. The closer the calibration curve was to the reference line, representing the best predictor (at the 45° line), the better the prognostic performance of this nomogram. We also adopted a consistency index (C index), which was calculated using a bootstrap method with 1000 resamples to validate the predictive accuracy between the nomogram and the actual result. The C index ranged from 0.5 to 1.0, which means that the ability to correctly distinguish between results and models ranged from random to perfect. ROC curve analyses were performed to validate and compare the predictive performance between single independent prognostic factors and the nomogram. Meanwhile, the, decision curve analysis (DCA) was performed to evaluate the clinical benefit of the nomogram compared to a single prognostic factor. DCA can quantify the clinical applicability of a nomogram by analyzing the clinical outcomes of nomogram-based decisions, and it has great value in determining alternative diagnostic and prognostic strategies [57]. A P value <0.05 was considered to represent statistical significance.

Internal and external validation of gene expression levels of HCC-associated angiogenic genes

Further internal and external validation of the expression patterns of the four angiogenic genes were performed in the cohort from TCGA and the ICGC cohort. Using Wilcoxon signed rank tests in Prism 7.0 (GraphPad, San Diego, CA, USA), we compared the expression profiles of the four angiogenic genes between HCC and normal tissues. A bilateral P value <0.05 was considered to represent statistical significance. In the Human Protein Atlas database, we identified the expression patterns of the four genes using images of HCC and normal tissues. We also explored the extractions among these genes. Finally, the predictive value of each gene for OS in HCC patients was validated using ROC curve analysis.

Cell culture

Human HCC cell lines (SK-HEP1 and SMMC-7721) were purchased from American Type Culture Collection (ATCC) (Manassas, VA, USA). The cell lines were cultured in DMEM (Gibco, Eggenstein, Germany) supplemented with 10% heat-inactivated fetal bovine serum (Gibco, Eggenstein, Germany), and the cell lines were grown in a humidified cell incubator with an atmosphere of 5% CO² at 37°C.

Cell counting kit-8 (CCK8) assay

SK-HEP1 and SMMC-7721 cells (3000 cells/well) were plated in 96-well plates (n=5/group) and were incubated in a humidified cell incubator with an atmosphere of 5% CO2 at 37°C for 24 hours. Cells were treated with piperlongumine (0-10 μmol/ml) for 24, 48 and 72 hours, and CCK8 reagent was added to the wells, and the cells were incubated for an additional 2 hours. The OD was then measured at 450 nm using a microplate reader.

5-ethynyl-2´-deoxyuridine (EdU) cell proliferation assay

SK-HEP1 and SMMC-7721 cells (3000 cells/well) were plated and incubated in complete medium in a 96-well plate (n=5/group) with an atmosphere of 5% CO2 at 37°C overnight. Then, the cells were treated with piperlongumine (0-8 μg/ml) or EGF (200 ng/ml) and incubated with 50 μM EdU for 6 hours. SK-HEP1 and SMMC-7721 cells were then fixed, permeabilized and EdU stained according to the manufacturer's protocol. Proliferative cells were labeled with a Click-iTTM EdU imaging kit (Ruibo, Guangzhou, China). Cell nuclei were stained with Hoechst 33342 (1 μg/ml) for 10 minutes. The proportion of cells that incorporated EdU was detected by fluorescence microscopy.

In vitro HUVEC tube formation assay

Culture plates (96-well) were coated with ECMatrix^TM according to the manufacturer’s instructions for 2 hours. HUVECs in endothelial cell growth medium (EGM, CC-3162, Lonza) treated with piperlongumine solutions (2 μmol/ml) were added to the precoated plate at a density of 1×10⁴ cells/ml. The cultures were incubated in a 37°C humidified incubator for 12 hours, and then an inverted light microscope was used to photograph in vitro angiogenesis at the center of the well.

Western blot analysis

SK-HEP1 and SMMC-7721 cells were treated with an inhibitor and lysed with protein lysis buffer. Then, the debris was removed by centrifugation at 12,000 rpm for 10 min at 4°C. Protein samples were separated using 10% gels via sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) and were then transferred to PVDF membranes. Freshly prepared 5% nonfat milk in TBST was used to block the blots for 1.5 h at room temperature on a shaker. The blots were incubated overnight with a specific primary antibody on a shaker at 4°C to probe the blot, and this was followed by incubation with a horseradish peroxidase-conjugated secondary antibody and treatment with an ECL kit (Bio-Rad) for protein detection. The antibodies used in the study were list in supporting information.

Quantitative real-time PCR (qPCR)

Total RNA was extracted from cultured SK-HEP1 cells, SMMC-7721 cells and HUVECs treated with piperlongumine using TRIzol reagent (Invitrogen, Carlsbad, USA) according to the manufacturer’s instructions. Then, total RNA was reverse transcribed using a cDNA reverse transcription kit (TransGen, Guangzhou, China), and the obtained cDNA was amplified using a SYBR Green PCR kit (TransGen, Guangzhou, China). Quantitative real-time PCR analysis was performed to detect expression in samples. Each experiment was repeated at least three times. The primers used for qRT-PCR were obtained from RiboBio Co., Ltd. The expression of genes was analyzed using 2-ΔΔCT methodology. The specific content of the relevant primers used in qPCR can be found in the support information.

Statistical analysis

All data are presented as the mean ± standard deviation (SD), and each data point represents at least five samples. The differences between two groups were calculated using Student’s two-sided t-tests. P<0.05 was considered to represent a statistical significance.
