Subtype-specific risk models for accurately predicting the prognosis of breast cancer using differentially expressed autophagy-related genes

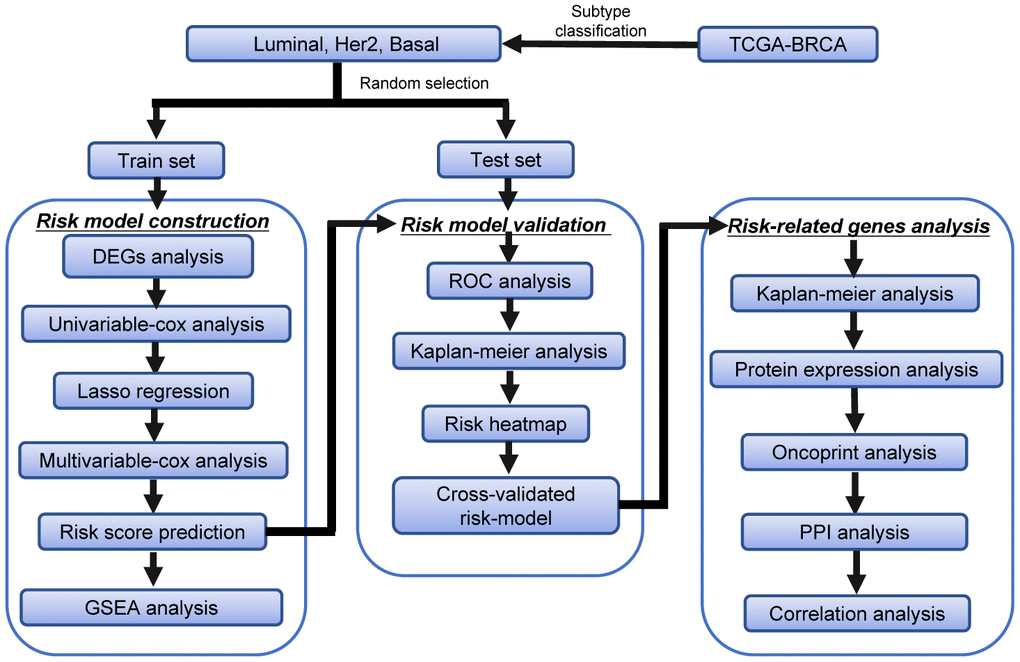

Flowchart of this study

The detailed workflow for the construction of the subtype-specific risk models and downstream analysis was shown in Figure 1. First, we identified the DEARGs in Luminal, Her-2, and Basal-like subtypes of BRCA. Then, subtype-specific risk models were constructed using the data in the training dataset. The risk models were further verified and optimized in the testing datasets. The prediction power of these risk models was investigated by time-dependent ROC analysis. GSEA analysis was performed to analyze the differentially enriched hallmarks and KEGG pathways in the predicted high- and low-risk groups. The 12 genes in the subtype-specific risk model were subjected to Kaplan–Meier, protein expression, oncoPrint, protein–protein interaction (PPI), and correlation analyses.

Differential expression of ARGs in Luminal, Her2, and Basal-like BRCA

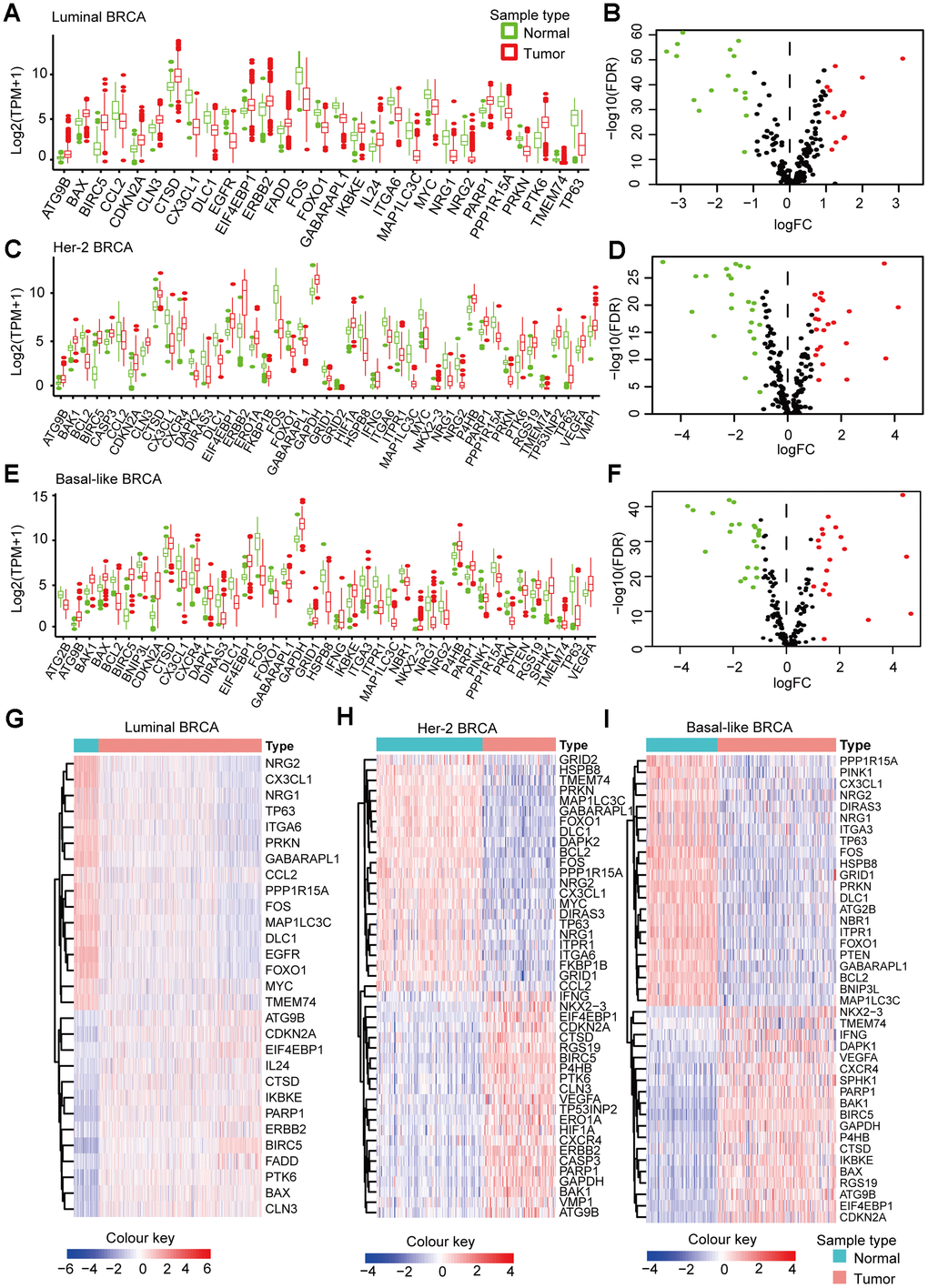

We downloaded the mRNA expression data and clinical information of 1109 BRCA tissue samples and 113 non-tumor samples from the TCGA database (Table 1). After extracting the expression values of 234 ARGs from the three breast cancer subtypes, we obtained the DEARGs and showed the expression patterns of the DEARGs in BRCA and non-tumor tissues by volcano plots and box plots (Figure 2). In Luminal BRCA, 29 differentially expressed genes were identified, among which, 16 and 13 genes were downregulated and upregulated (Figure 2A, 2B, 2G) in tumor tissue, respectively. In Her-2 BRCA, 45 differentially expressed genes were discovered, 23 and 22 of which were downregulated and upregulated in tumor tissue, respectively (Figure 2C, 2D, 2H). We also identified 41 differentially expressed genes in Basal-like BRCA, among them, 22 and 19 genes were upregulated and downregulated in tumor tissue (Figure 2E, 2F, 2I), respectively. In addition, we found that 18 DEARGs were shared by Luminal, Her-2, and Basal-like BRCA (Supplementary Figure 1A).

Functional annotation of the DEARGs

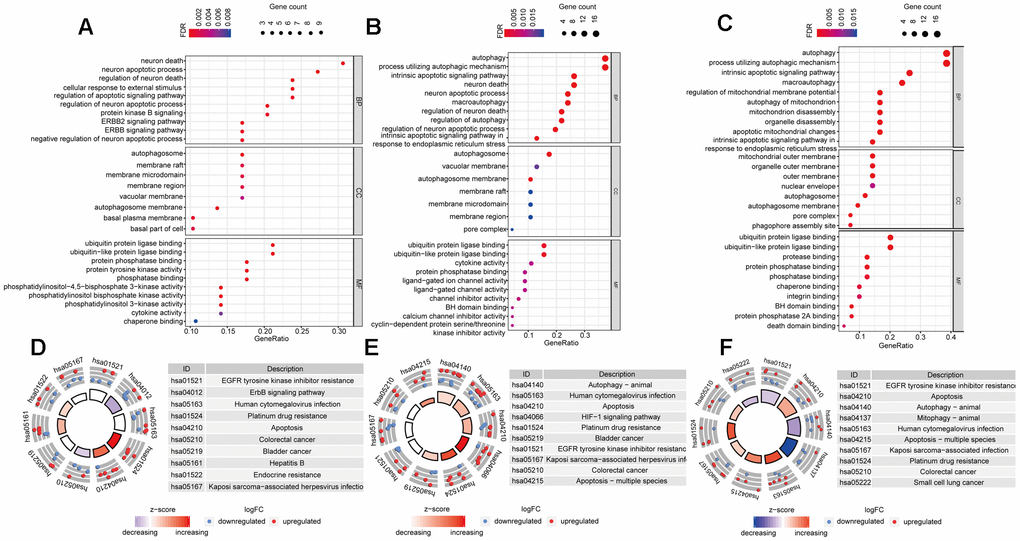

Functional enrichment analysis of the DEARGs provided biological understanding of these genes. The GO terms and KEGG pathway enrichment of these genes were summarized in Figure 3. In Luminal BRCA, we found that the top enriched GO terms for biological processes were as follows: neuron death, neuron apoptotic process, regulation of neuron death. For cellular components, the GO terms were as follows: autophagosome, membrane raft, membrane microdomain. For molecular function, genes were mostly enriched in the following terms: ubiquitin protein ligase binding, ubiquitin-like protein ligase binding, and protein phosphatase binding (Figure 3A). In Her-2 BRCA, we found that the top enriched GO terms for biological processes were as follows: autophagy, process utilizing autophagic mechanism, intrinsic apoptotic signaling pathway. For cellular components, the GO terms were as follows: autophagosome, autophagosome membrane, vacuolar membrane. For molecular function, genes were mostly enriched in the following terms: ubiquitin protein ligase binding, ubiquitin-like protein ligase binding, cytokine activity (Figure 3B). In Basal-like BRCA, we found that the top enriched GO terms for biological processes were as follows: autophagy, process utilizing autophagic mechanism, intrinsic apoptotic signaling pathway. For cellular components, the GO terms were as follows: mitochondrial outer membrane, organelle outer membrane, outer membrane. For molecular function, genes were mostly enriched in the following terms: ubiquitin protein ligase binding, ubiquitin-like protein ligase binding, protease binding (Figure 3C).

In addition, in the KEGG pathway enrichment analysis for the DEARGs, these genes were associated with EGFR tyrosine kinase inhibitor resistance, ERBB signaling pathway, and Human cytomegalovirus infection in Luminal BRCA (Figure 3D). Terms such as Human cytomegalovirus infection and Apoptosis were enriched in Her-2 BRCA (Figure 3E). In Basal-like BRCA, terms such as EGFR tyrosine kinase inhibitor resistance and Apoptosis were significantly enriched (Figure 3F). The PPI analysis using STRING showed that the 18 shared DEARGs (Supplementary Figure 1A) were highly interconnected with PPI P-value < 0.01 (Supplementary Figure 1B). Functional enrichment analysis also suggested that the shared DEARGs were related to mitochondria disassembly, organelle disassembly, and apoptosis (Supplementary Figure 1C).

Construction and validation of subtype-specific prognostic risk models for BRCA

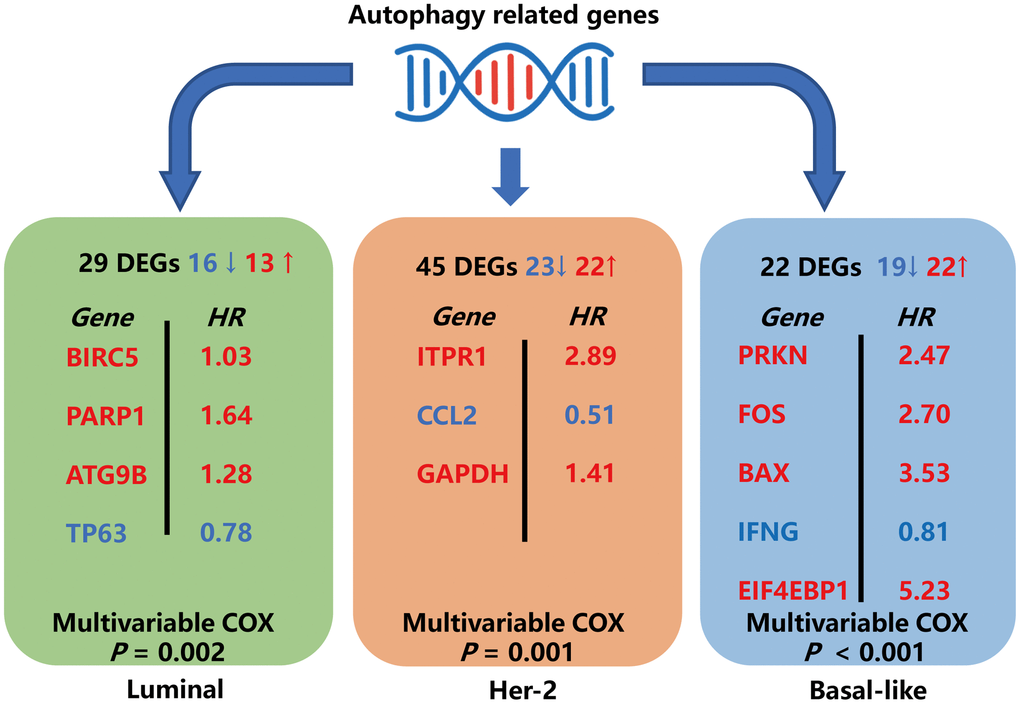

To explore the connection between ARGs and prognosis, we constructed risk models in Luminal, Her-2, and Basal-like breast cancer patients. Initially, univariable Cox regression analysis was performed to obtain the genes that were significantly correlated to prognosis, and then the lasso regression and multivariable Cox regression were adopted to generate the final prognostic model (Table 2, Figure 4A, 5A, 6A).

After the construction of the subtype-specific risk models, patients were grouped into high- and low-risk groups, and then Kaplan–Meier survival analysis was performed in training and testing sets. The results showed that patients with a high risk score have a significantly poor overall survival time compared with patients with a low risk score in Luminal, Her-2, and Basal-like datasets (Figure 4B, 5B, and 6B). In addition, time-dependent ROC analysis indicated that both models can accurately predict the OS of BRCA patients (Figure 4C, 5C, and 6C).

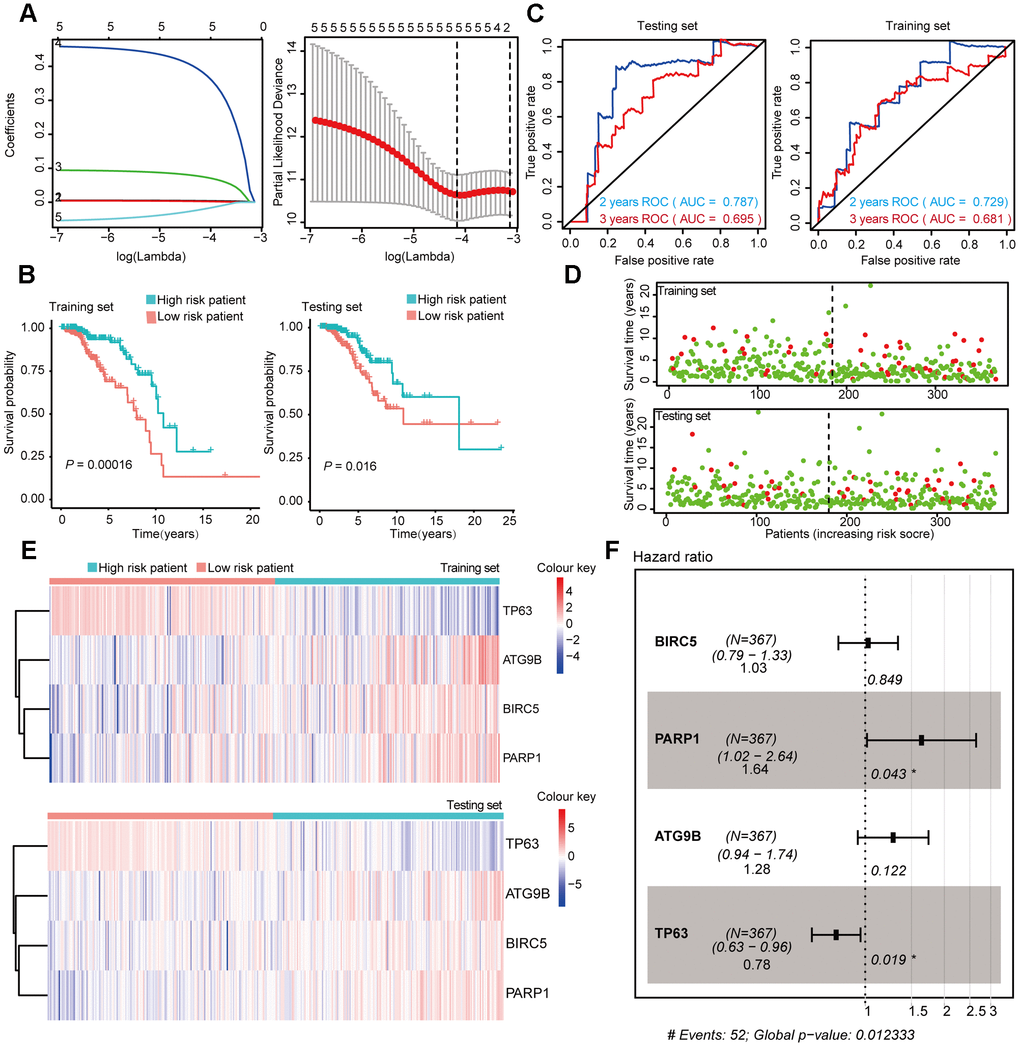

In Luminal BRCA patients, a four-gene model (BIRC5, PARP1, ATG9B, and TP63) was successfully obtained with good prediction power for 2 year survival (area under the curve [AUC] = 0.787 in the training set and AUC = 0.729 in the testing set). The prediction accuracy for 3 year survival of this model was relatively low but acceptable (AUC = 0.695 in the training set and AUC = 0.681 in the testing set). The risk score of each patient was predicted using this model, and we identified that BIRC5, PARP1, and ATG9B were positive risk-correlated genes, whereas TP63 was negative risk-correlated genes (Figure 4E, 4F).

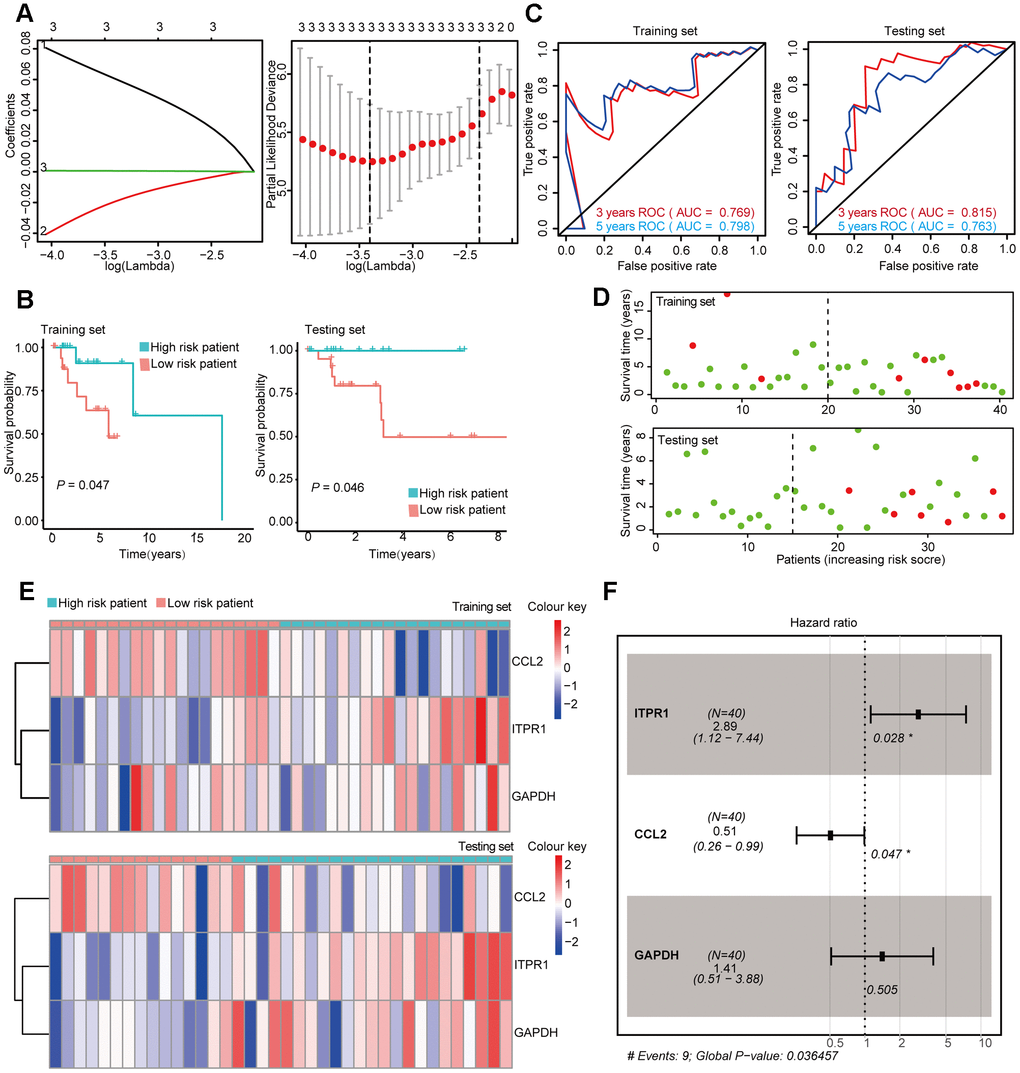

The same data processing and analysis were also performed in other BRCA subtypes. We identified a three-gene risk model (ITPR1, CCL2, and GAPDH) in Her-2 BRCA with good predicting power for both 2 and 3 year survival (AUC > 0.700). The risk scores were then calculated, and ITPR1 and GAPDH were identified as positive risk-correlated genes, and CCL2 was identified as a negative risk-correlated gene (Figure 5E, 5F).

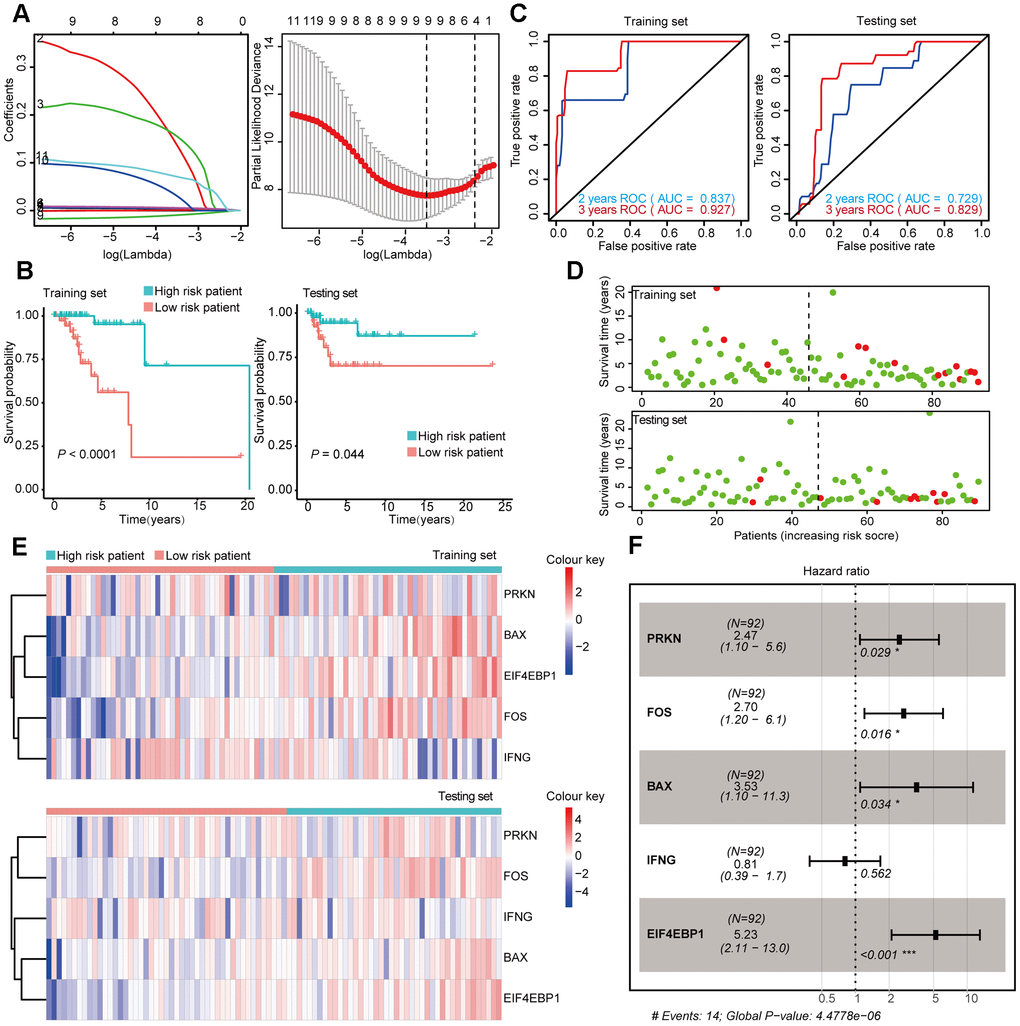

Moreover, we constructed a five-gene risk model (PRKN, FOS, BAX, IFNG, and EIF4EBP1) in patients with Basal-like BRCA, which has a good predicting power for 2 year survival (AUC = 0.837 in the training set and AUC = 0.729 in the testing set). The predicting power of this model for 3 year survival was good but might have mild overfitting problem (AUC = 0.927 in the training set and AUC = 0.829 in the testing set). PRKN, FOS, BAX, and EIF4EBP1 were identified as positive risk-correlated genes, whereas IFNG was identified as a negative risk-correlated gene (Figure 6E, 6F).

Prognostic risk models were independently related to OS in BRCA patients

We used univariable Cox regression and multivariable Cox regression to analyze the correlation among clinical parameters, such as age, histological grade, pathological stage, risk score, and OS in BRCA patients.

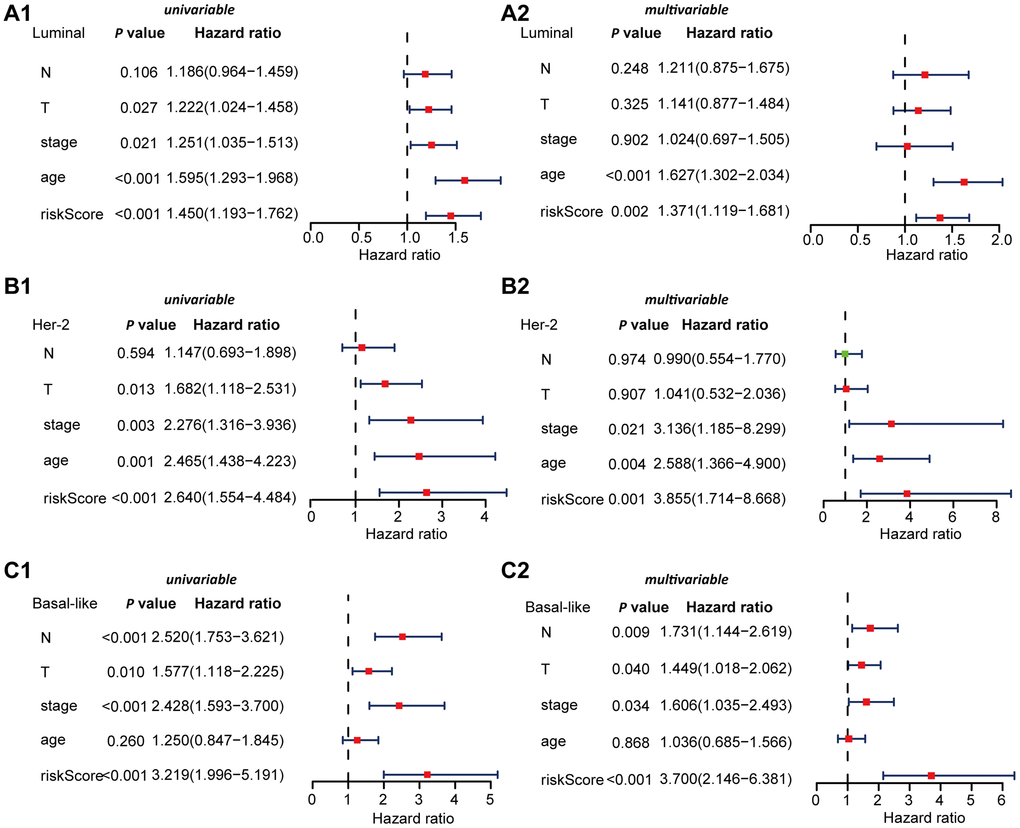

In Luminal BRCA, univariable Cox regression analysis showed that the age, stage, pathological stage T, and risk score were correlated with OS in BRCA patients (P < 0.05). Multivariable Cox analysis showed that age and risk score were correlated with OS in BRCA patients (P < 0.05) (Figure 7A). In Her-2 BRCA, univariable Cox regression analysis showed that age, stage, pathological stage T, and risk score were related to OS in BRCA patients (P < 0.05). Multivariable Cox analysis showed that age, stage, and risk score were correlated with OS in BRCA patients (P < 0.05) (Figure 7B). In Basal BRCA, univariable Cox regression analysis showed that stage, pathological stage T, N, and risk score were correlated with OS of BRCA patients (P < 0.05). Multivariable Cox analysis showed that stage, pathological stage T, N, and risk score were significantly correlated with OS (P < 0.05) (Figure 7C). These results indicated that the identified subtype-specific prognostic models can be used independently to predict OS in BRCA patients with different molecular subtypes.

Comprehensive analysis of genes in subtype-specific autophagy prognostic models

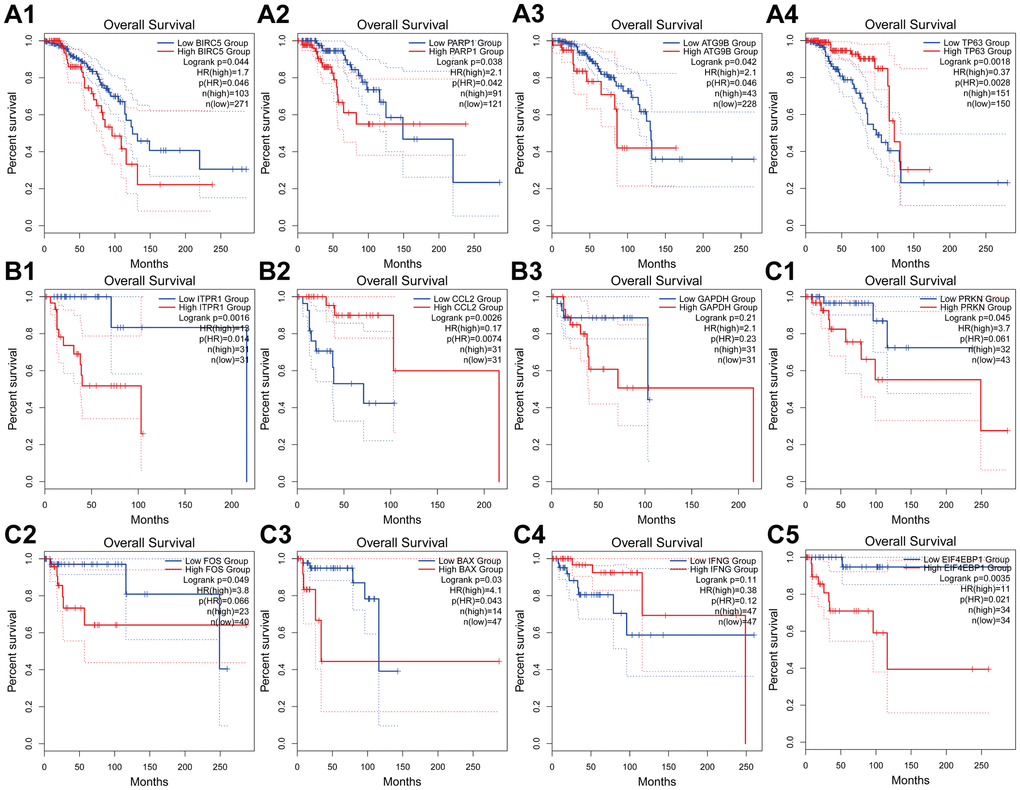

We obtained a total of 12 genes in the subtype-specific risk models, and then we further evaluated the prognostic value of the selected genes in other databases. The genes were subjected to GEPIA database to perform the Kaplan–Meier analysis. The results showed that in Luminal BRCA, BIRC5, PARP1, and ATG9B negatively correlated with OS, whereas the high expression of TP63 indicated a good prognosis (Figure 8A1–4). In Her-2 BRCA, ITPR1 and GAPDH were correlated with bad prognosis, whereas CCL2 was a good prognostic marker (Figure 8B 1–3). In Basal BRCA, the high expression of PRKN, FOX, BAX, and EIF4EBP1 indicated a bad prognosis; however, INFG was a protective molecule that significantly correlated with good prognosis (Figure 8C 1–5). Collectively, the results of Kaplan–Meier analysis were consistent with the results of univariable Cox analysis, which indicated that all genes have been inculcated in the risk-specific models and have a good prognostic predicting power.

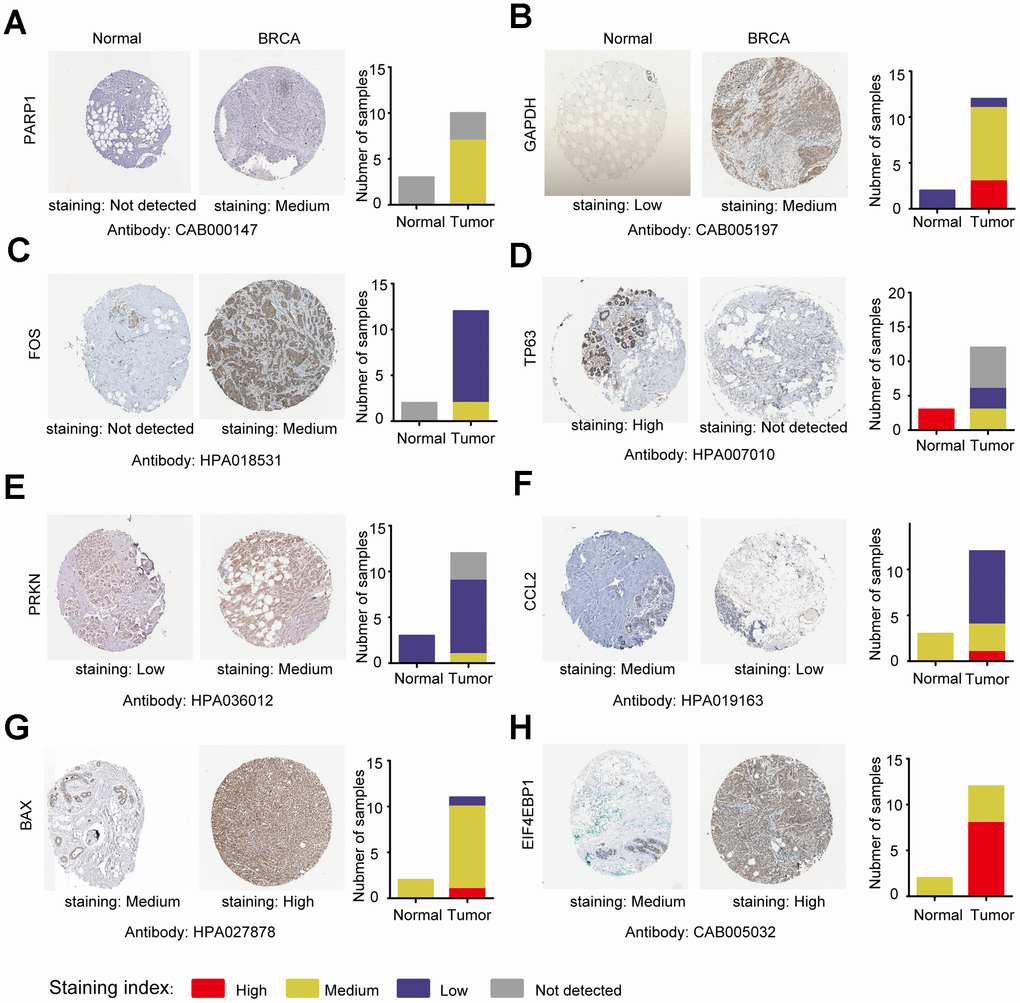

Next, we analyzed the protein expression patterns of the genes in subtype-specific risk models by the HPA database (Figure 9). The results showed that PARP1, GAPDH, and FOS protein were less expressed in normal breast tissues but were moderately expressed in breast cancer tissues (Figure 9A–9C). TP63 was highly expressed in normal tissues but not detected in tumor tissues (Figure 9D). The CCL2 protein was moderately expressed in normal tissues and lowly expressed in cancer tissues (Figure 9F). The EIF4EBP1 protein was moderately expressed in normal tissues and highly expressed in cancer tissues (Figure 9H). These results were consistent with most of our previous mRNA level observations. However, we found that PRKN and BAX protein were only slightly upregulated in cancer tissues (Figure 9E, 9G).

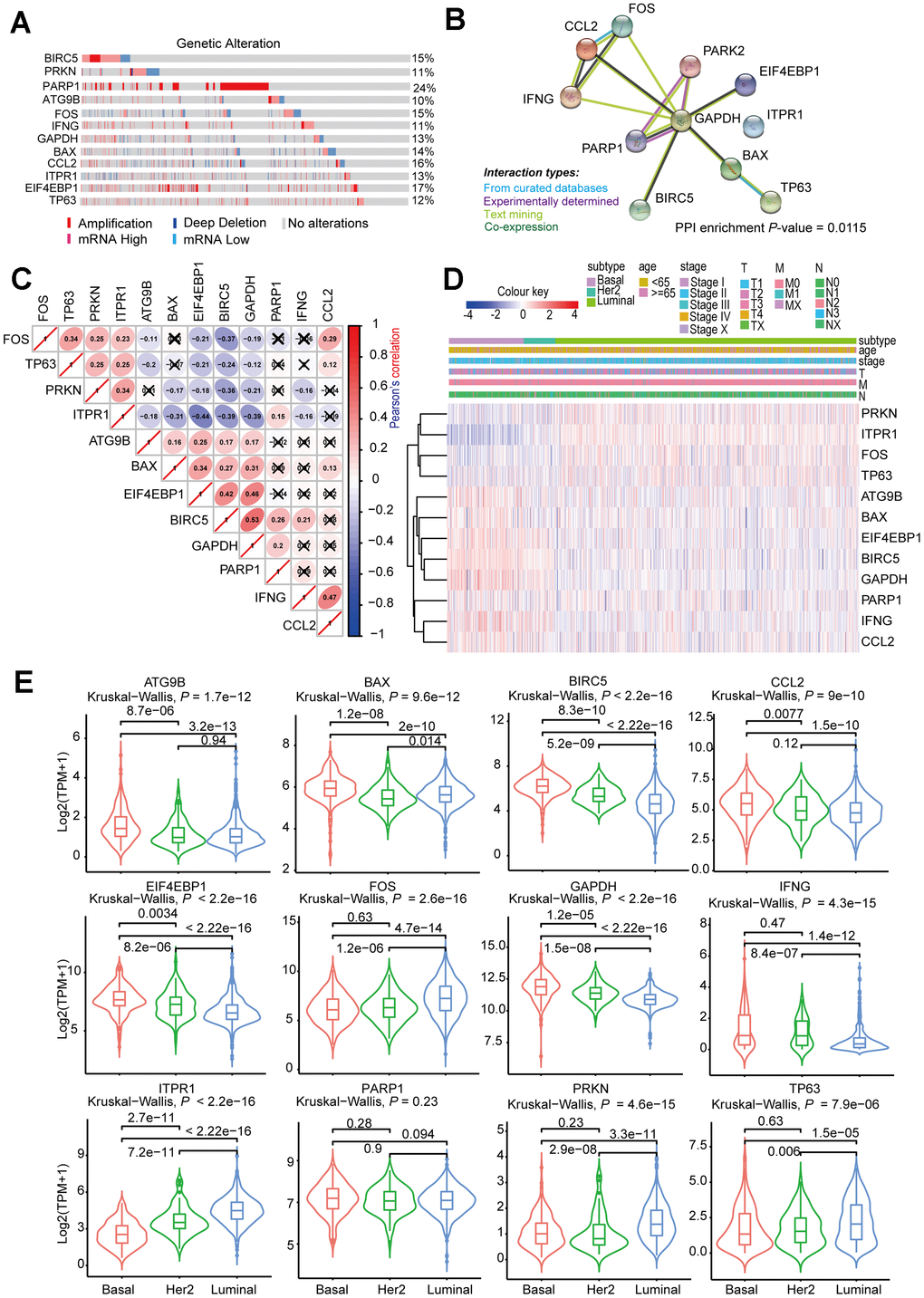

We then investigated the CNV and mRNA expression alternation of the aforementioned genes by using the cbioProtal database (Figure 10A). The results indicated that CNVs contributed to the mRNA expression alterations of these analyzed genes. Notably, PARP1, EIF4EBP1, and CCL2 showed the highest CNVs and mRNA expression alterations throughout the analyzed samples, which might indicate that the CNVs were the primary driving power response to the mRNA expression alterations of such genes. We also analyzed the PPI of the 12 selected genes, and the results suggested that such genes were highly interconnected (PPI enrichment P < 0.05), and GAPDH was the major hub gene in the PPI network (Figure 10B). The correlation analysis of the 12 selected genes was consistent with PPI analysis, which showed that most of the genes were correlated with mRNA expression (Figure 10C). The clustered heatmap showed that the 12 selected genes can be clustered into two groups, one of which showed a universal upregulation pattern in Basal-like BRCA (IFNG, CCL2, ATG9B, BAX, EIF4EBP1, GAPDH, and BIRC5), whereas genes in another cluster (PRKN, FOS, TP63, and ITPR1) displayed a low expression pattern in Basal-like BRCA. This finding might indicate that the two clusters of genes played different functional roles in Basal-like BRCA (Figure 10D). Consistently, the violin plots also showed that most of the selected genes were differentially expressed between Luminal, Basal-like, and Her-2 BRCA (Figure 10E).

Mechanistic exploration of model-predicted high-risk patients by gene set enrichment analysis (GSEA)

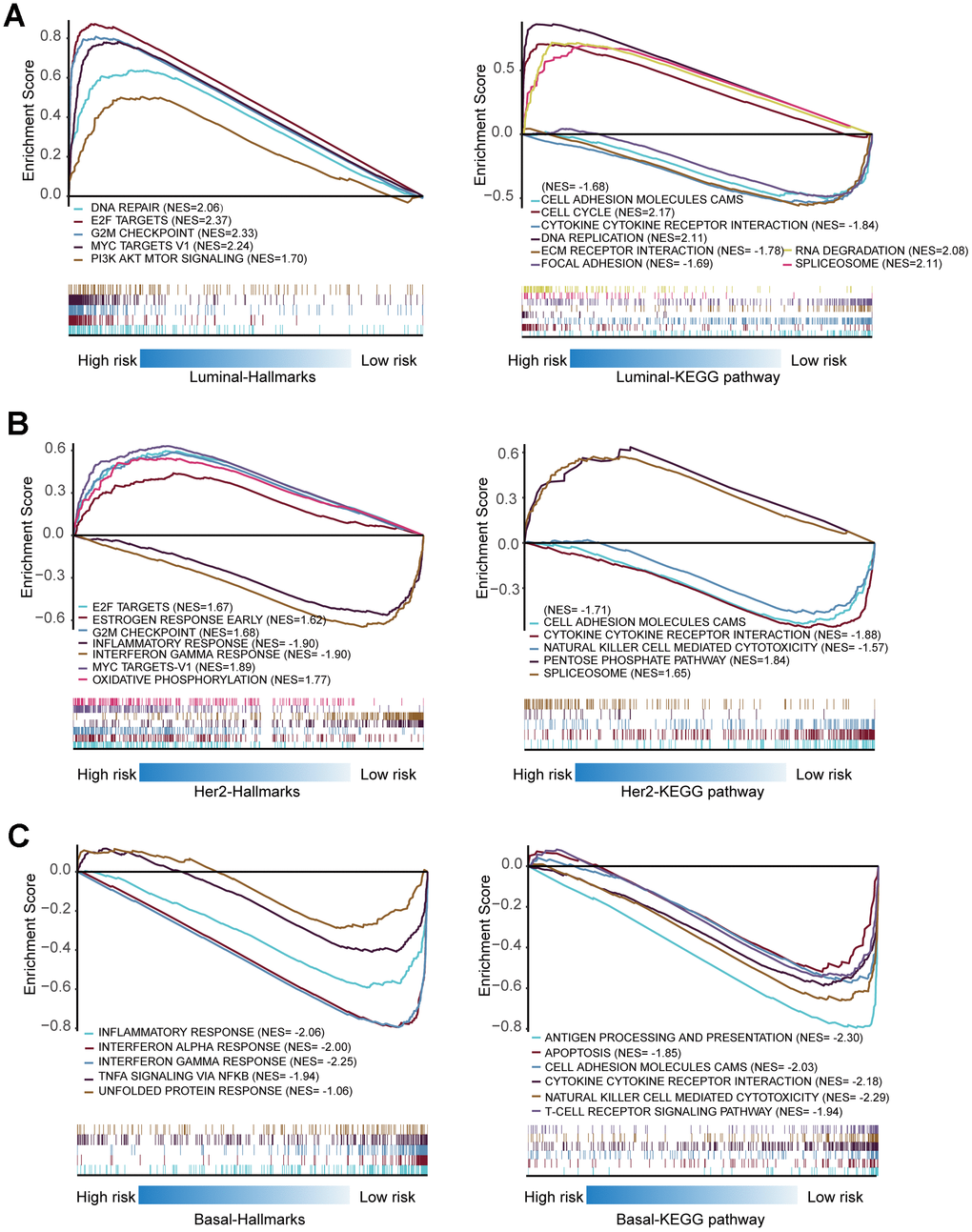

Considering that the high- and low-risk patients had a significant prognostic difference in the OS, we explored the mechanisms that contributed to this observation by a computational approach. The GSEAs were performed in Luminal, Basal-like, and Her-2 BRCA to interpret the enriched hallmarks and pathways between high- and low-risk patients. In Luminal BRCA, the results showed that several canonical tumor-promoting molecules were upregulated in the high-risk groups, including DNA repair, E2F targets, and G2M checkpoint. Otherwise, certain well-recognized Onco-signaling pathways were highly activated in high-risk tumors, such as PI3K AKT mTOR signaling, DNA replication, and cell cycle. High enrichment of focal adhesion, cell adhesion molecules (CAMs), and ECM receptor interaction-related genes were found in low-risk tumors, which might suggest that high-level cell–cell adhesion was a protective event in Luminal BRCA (Figure 11A).

Similar to Luminal BRCA, canonical tumor-promoting molecules and pathways in Her-2 BRCA were also enriched in high-risk tumors. The low-risk tumors were enriched in terms such as cytokine–cytokine receptor interaction and natural killer cell-mediated cytotoxicity, which suggested that the activation of the immune system contributed to the restraints of tumor progression (Figure 11 B).

None of the analyzed hallmarks or KEGG pathways were enriched in Basal-like BRCAs with high risk score; however, several immune-related molecules and signaling pathways were highly enriched in low-risk patients of Basal-like BRCA, such as interferon alpha/gamma response, antigen processing and presentation, cytokine–cytokine receptor interaction, natural killer cell-mediated cytotoxicity, and T-cell receptor signaling pathway (Figure 11C). This observation indicated that the activation of the immune system was important in controlling the progression of Basal-like BRCA.

Collectively, such in silico analyses proposed that ARGs might correlate with several well-known oncogenes and/or Onco-pathways that contributed to the progression of Luminal and Her-2 BRCA, but the dysregulation of ARGs might inhibit the tumor-suppressing immune reactions that exaggerated the aggressive nature of Basal-like BRCA.

Data collection

In this study, ARGs were downloaded from human autophagy database (HADB, http://www.autophagy.lu/index.html), and clinicopathological parameters and RNA sequencing results (FPKM) of BRCA were obtained from the TCGA data portal (https://portal.gdc.cancer.gov/). The expression data were converted to TPM, and the batch effect in the data was analyzed by TCGA Batch Effects Viewer and PCA analysis. No significant batch effect was found. The PAM50 classification information of samples included in this study was downloaded from UCSC Xena (http://xena.ucsc.edu/).

Differential expression analysis of ARGs

The Wilcox test was used to estimate the DEARGs between BRCA and non-tumor samples. Genes with at least a two fold change and corresponding P values of less than 0.05 were selected as ARGs with significant differential expression (DEARGs). A series of gene functional enrichment analyses was then performed to discover the primary biological characteristics of these genes. The clusterProfiler package in R was used to identify the enriched GO and KEGG, and the GOplot package of R was used to visualize the enriched items.

Construction and validation of subtype-specific risk prediction models using DEARGs

We randomly divided the patients with complete OS information into two groups: the training group and the testing group (Table 3). We used the data from the training group to build a Cox regression model for the OS, and we used the testing group to verify the accuracy of the model. Initially, univariable Cox regression analysis was used to select potential prognostic genes. Then, the lasso regression analysis was used to eliminate false-positive parameters caused by overfitting. Finally, Cox proportional risk regression was used to establish an OS prognostic risk model.

Calculation of risk score

The risk score of each patient was calculated by the regression coefficient of a single gene and the expression value of each gene. The calculation formula is as follows:

$\begin{array}{c}Riskscore(Patients)={\Sigma }_{i=1,2,3,i}coefficient(ARGi)\\ \times expression(ARGi)\end{array}$

where ARGi represents the identifier of the i-th selected ARG. The value of coefficient (ARGi) is the regression coefficient estimated by ARGi based on Cox proportional risk regression analysis. The risk score is a measurement of the prognostic risk of each BRCA patient. We divided the BRCA patients into high- and low-risk groups, with the median risk score of the training group as the boundary. High risk scores suggested a poor prognosis for BRCA patients.

Comprehensive analysis of ARGs in the risk-specific model

The ARGs in risk-specific models were subjected to Kaplan–Meier analysis using the GEPIA database (http://gepia.cancer-pku.cn/). The log-rank test was used to determine statistical significance. The protein expression of the selected ARGs was analyzed by comparing immunohistochemistry staging images in The Human Protein Atlas database (http://www.proteinatlas.org/). The samples were annotated as not detected, low, medium, and high on the basis of the staining strength. The 12 ARGs in the risk-specific model were analyzed by using the cbioProtal database (http://www.cbioportal.org/) to assess the copy number variation and mRNA expression variation. The threshold to determine mRNA expression alteration was set as Z-score=1.5. For PPI network construction, the 12 selected ARGs were subjected to STRING database (https://string-db.org/). The interacting proteins (both experimentally determined and computationally predicted) were marked as colored lines between genes. For correlation analysis of selected ARGs, the gene expression data were extracted and logarithmically transformed. Then, Pearson’s correlation was calculated among all the gene pairs. The expression of the selected ARGs was compared among different molecular subtypes of BRCA (Luminal, Her-2, and Basal-like) using the Wilcox test and Kruskal–Wallis test, and the distribution of the gene expression was presented by violin plots.

Gene set enrichment analysis (GSEA)

To explore the hallmarks and pathways that were enriched in the predicted high- and low-risk group, GSEA was performed. Using GSEA, the present study tested whether the activated/repressed gene signatures were enriched for high-risk vs. low-risk cases. The enrichment of pre-defined hallmarks and KEGG pathways was calculated using a normalized enrichment score (NES) and normalized P-value. Terms with |NES|>1 and P<0.05 were considered significantly enriched.

Statistical analysis

All statistical analyses were performed using R software (version 3.6.0). P < 0.05 was considered statistically significant. Wilcox test or Kruskal–Wallis test was used to evaluate the distribution differences among variables. Kaplan–Meier survival curve analysis and log-rank test were used to analyze OS. The Cox regression model was used to analyze the factors influencing the survival of BRCA patients. Cox proportional risk regression model was used for univariable and multivariable analyses. Time-related ROC analysis was used to assess the accuracy of models for predicting prognosis. We used the survival time, survival state, and risk score obtained from the risk models to draw the ROC curve in the R software using the survivalROC package, and both 2 year and 3 year ROC curve was drawn. The AUC value greater than or equal to 0.70 was regarded as the significant prediction value, and AUC value greater than or equal to 0.65 was regarded as the acceptable prediction value.
