A two-gene-based prognostic signature for pancreatic cancer

Common differentially expressed genes between PC and normal tissues

As shown in the analysis process flowchart (Figure 1), after the genomic differential expression analysis of the 3 datasets (GSE28735, GSE62452 and TCGA), there were 222 differentially expressed genes (DEGs) in common (Supplementary Table 1). Using the criteria of P value < 0.01, the number of DEGs in GSE28735, GSE62452 and TCGA are 5250, 7180 and 222, respectively. A Venn diagram was applied to visualize the DEG relationships of the 3 datasets (Figure 2A). We also used a heatmap of the differentially expressed mRNAs to better differentiate normal tissues from PC (Figure 2B and Supplementary Tables 2, 3).

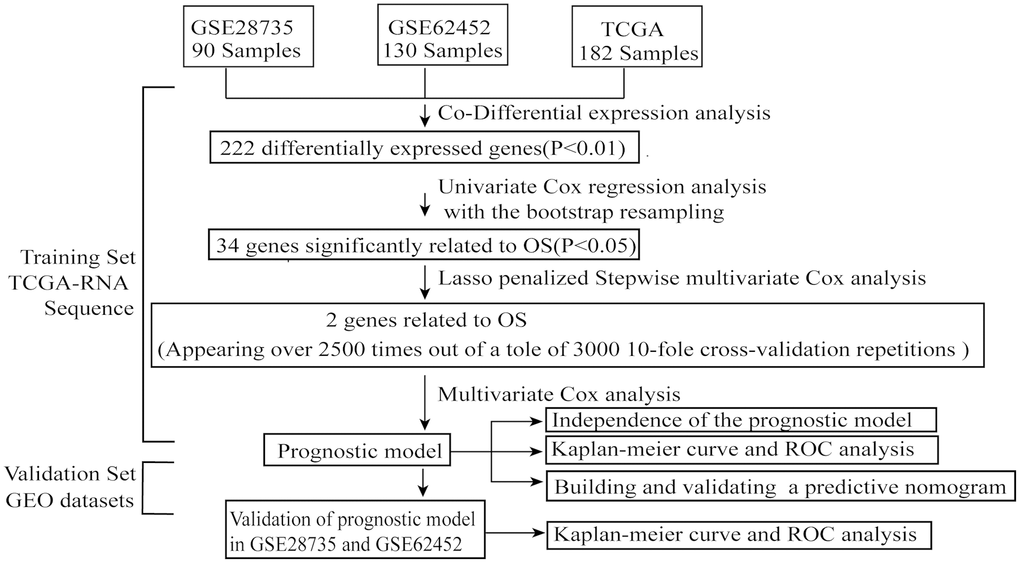

Figure 1. The flowchart of the whole analysis process.

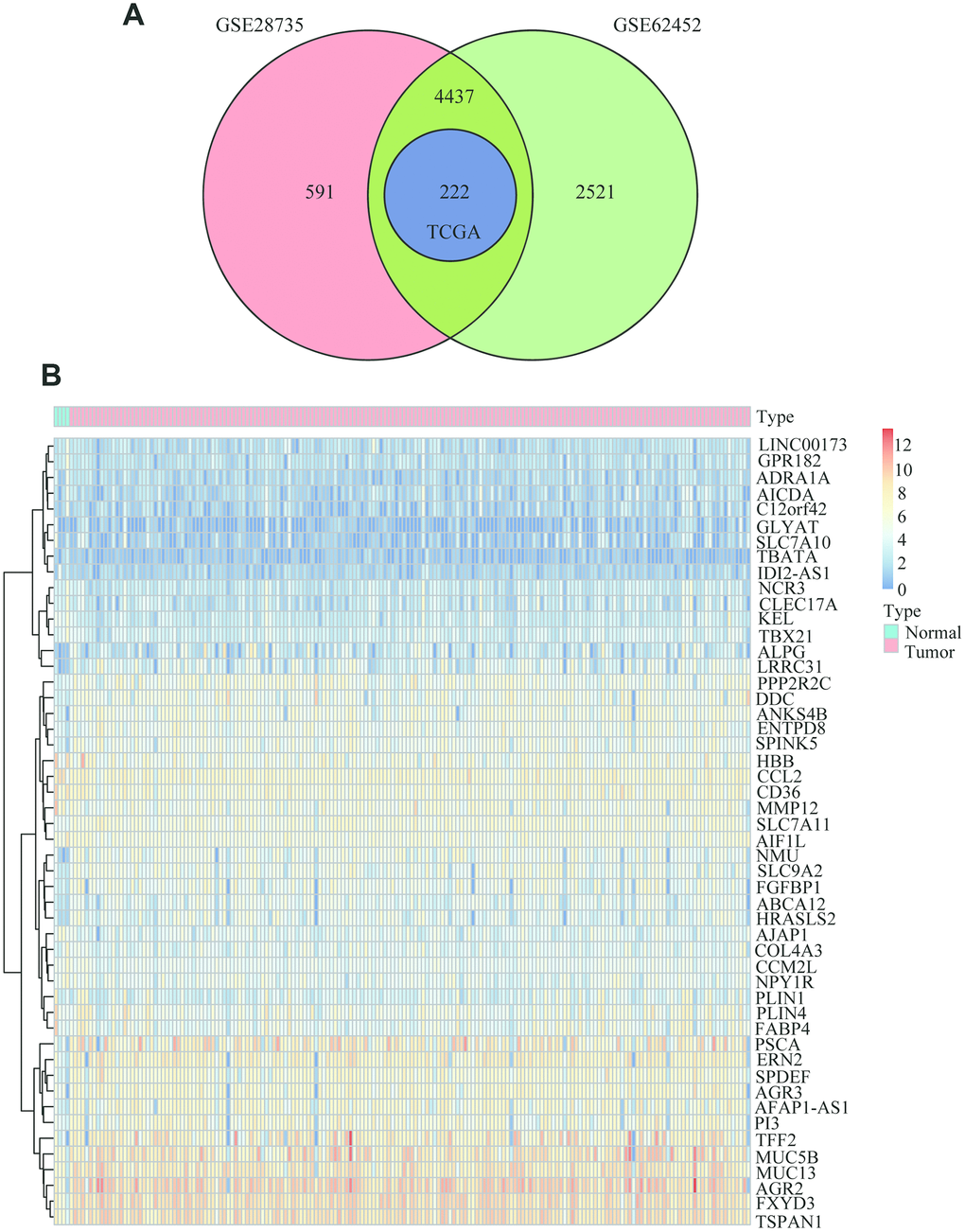

Figure 2. Common differentially expressed genes between PC and normal tissues. (A) Venn diagram showing the common DEGs in PC and adjacent normal tissues from the GSE28735, GSE62452 and TCGA datasets. (B) Heatmap analysis of the 222 DEGs, which contained the 50 highest expressed genes and the 50 the lowest expressed genes according to the log2FC between normal tissues and cancer tissues from the TCGA datasets.

Functional annotation of common DEGs

To further describe the biological functions of the 222 common differentially expressed genes in detail, we performed functional annotation and enrichment analysis using the R package “ClusterProfile”. The biological process indicated that genes were enriched for positive regulation of defense response (Figure 3A). For cell component enrichment, the common differentially expressed genes were primarily enriched for apical part of cell (Figure 3B). The molecular function of the genes was enriched mainly for Alcoholism (Figure 3C). The KEGG pathway indicated that the DEGs were mainly enriched for actin binding (Figure 3D).

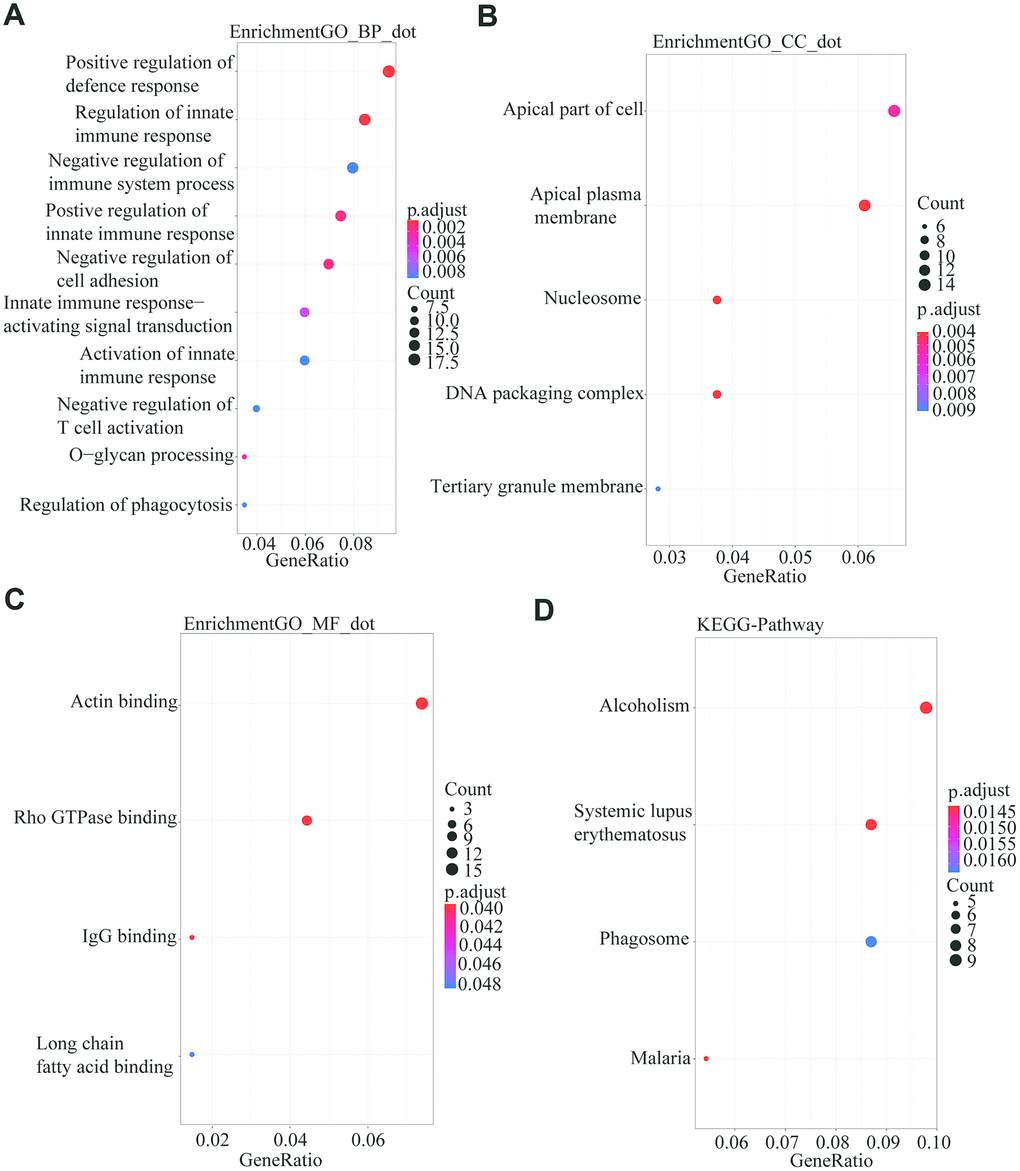

Figure 3. GO and KEGG analysis using the R package “Clusterprofile” for the 222 common DGEs from the three databases. P<0.05 was set as the threshold. (A) Biological process. (B) Cell component. (C) Molecular Function. (D) Kyoto Encyclopedia of Genes and Genomes.

Screening of the prognostic PC gene signature among DEGs

After a univariate Cox analysis with the bootstrap resampling, we found that 34 of the 222 common DEGs were significantly related to PC patient survival (P<0.05). Next, to further reduce the number of genes and overfitting, we subsampled 70% of patients from TCGA dataset (Supplementary Table 4) for analysis at one time and applied a Lasso-penalized regression with a 10-fold cross-validation 3000 times when performing the stepwise multivariate Cox analysis. Two genes, ANLN and HIST1H1C, appeared over 2500 times among the 3000 10-fold cross-validation repetitions (Figure 4A and Supplementary Table 5). Next, we used a box plot to illustrate that ANLN and HIST1H1C are constantly and significantly highly expressed in tumor tissues from all the datasets (GSE28735, GSE62452 and TCGA) (Figure 4B–4G and Supplementary Tables 6–8). Furthermore, the data from Cancer Cell Line Encyclopedia (https://portals.broadinstitute.org/ccle) were conducted as the heatmap displaying the elevated ANLN and HIST1H1C expression levels in several PC cells (Figure 4H and Supplementary Table 9). Next, we wanted to evaluate the protein expression levels of ANLN and HIST1H1C in PC patients. We analyzed the immunohistochemical data from the Human Protein Atlas (http://www.proteinatlas.org/) shown in Figure 4I, and found significantly elevated levels of ANLN and HIST1H1C in the tumor tissues. In addition, the pancancer analysis from GEPIA 2.0 (http://gepia2.cancer-pku.cn/#index) showed that upregulated ANLN and HIST1H1C transcripts are frequently observed in multiple cancer types, including PC (Supplementary Figure 1). Taken together, ANLN and HIST1H1C play potential oncogenic roles in most types of human cancers.

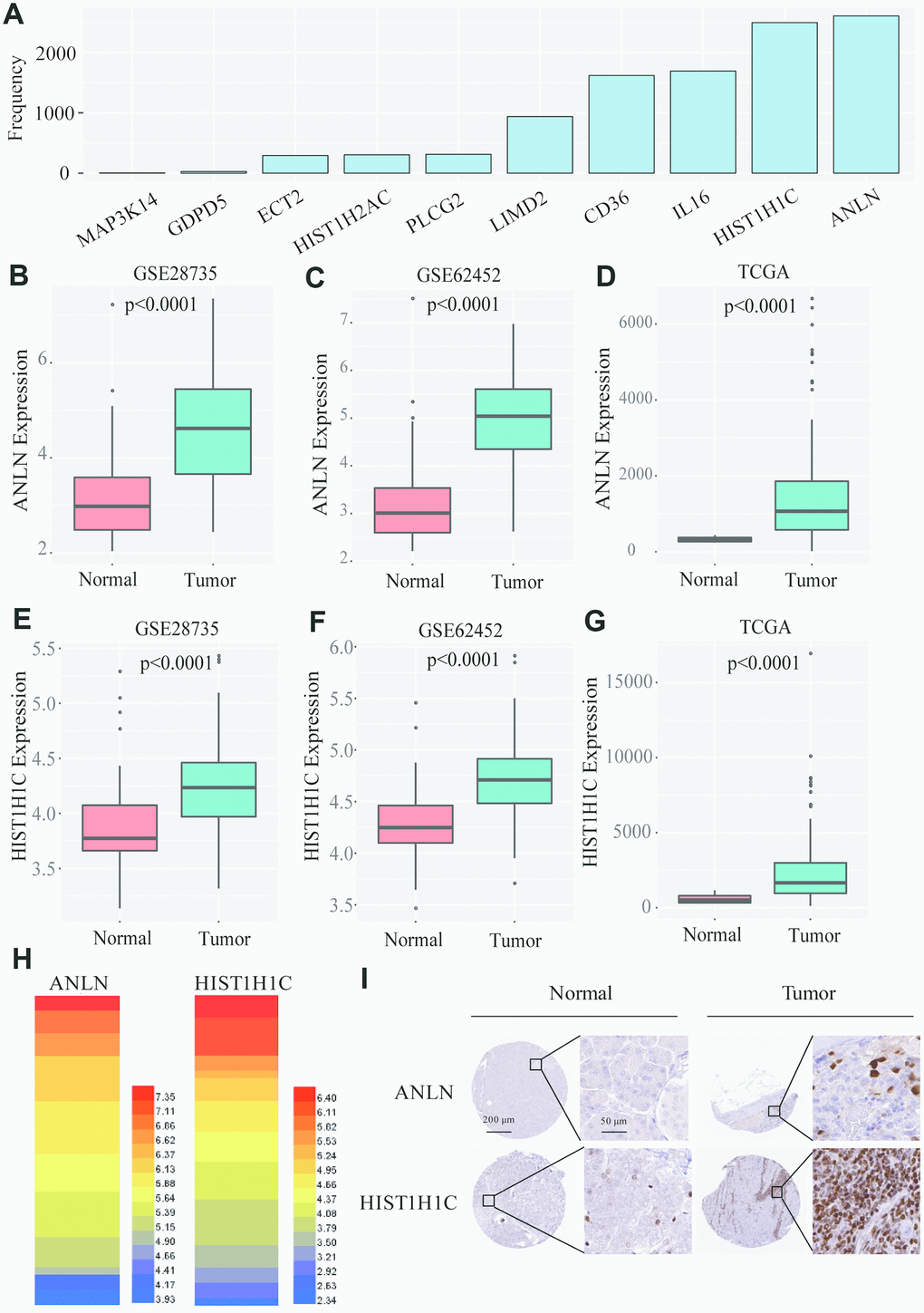

Figure 4. Screening of the two-gene-based signatures in PC patients. (A) After 3000 analyses, ANLN and HIST1H1C appeared more than 2500 times as the independent prognostic genes among 35 survival related genes. (B–D) The boxplot shows that ANLN were constantly high-expressed in GSE28735, GSE62452 and TCGA. (E–G) The boxplot shows that HIST1H1C were constantly high-expressed in GSE28735, GSE62452 and TCGA. (H) The heatmap of ANLN and HIST1H1C mRNA expression in PC cells from Cancer Cell Line Encyclopedia. (I) the Human Protein Atlas project shows representative immunohistochemical images of ANLN and HIST1H1C in PC tissues compared with surrounding normal tissues.

The risk stratification and ROC curve indicate the good performance of the two-gene based signature

Using the TCGA dataset, we generated a predictive model based on the expression of two genes, which was characterized by the linear combination of the expression levels of the two genes weighted by their relative coefficient in the multivariate Cox regression. We subsequently calculated the two-gene expression risk score and used X-tile diagrams to produce the optimal cut-off value for the risk score. According to the risk score cut-off point, 42 patients were classified into the high-risk group, and the remaining 118 patients were assigned to the low-risk group. As is shown in Figure 5A and Supplementary Table 10, the Kaplan-meier (K-M) OS curves of the two groups based on the two genes were significantly different (median OS, 1.81 years vs 1.08 years, P=0.00027). To assess the prognostic capacity of the two-gene signature, the area under curve (AUC) of a time-dependent ROC curve was calculated. The AUCs of the two-gene biomarker prognostic model were 0.781, 0.673 and 0.646 for the 0.5-, 1- and 1.5-year survival times, respectively (Figure 5B). To further evaluate the generality of the two-gene biomarker prognostic model, we verified the model with the GEO dataset (GES28735), which contains both mRNA expression and clinical survival data from 45 PC patients. Using the same data management as in the TCGA, we also calculated the two-gene risk score according to the expression levels in GES28735 and the coefficient of the multivariate Cox regression and found an optimal cut-off value for the risk score by means of the X-tile diagrams. A total of 42 PC patients in the GSE28735 dataset were classified into high-risk group (n=11) and low-risk group (n=31). Consistent with the results in the TCGA, and as is shown in Figure 5C and Supplementary Table 11, the K-M OS curves indicated that the OS of PC patients included in the GSE28735 data in the high-risk group was significantly lower than that in the low-risk group (median OS 0.58 years vs 2.08 years, P=0.0016). Moreover, the time-dependent ROC analyses for the survival prediction of the prognostic model obtained AUCs of 0.624 at 0.5 years, 0.692 at 1 year and 0.664 at 1.5 years (Figure 5D). In addition, we further verified the risk model with the GEO dataset (GSE62452), which contains both mRNA expression and clinical survival data from 69 PC patients. A total of 66 PC patients in the GSE62452 dataset were classified into high-risk group (n=33) and low-risk group (n=33). Consistent with the results in the TCGA and GSE28735, and as is shown in Figure 5E and Supplementary Table 12, the K-M OS curves indicated that the OS of PC patients in the high-risk group from GSE62452 was significantly lower than that in the low-risk group (median OS 1.26 years vs 2.09 years, P=0.002). Moreover, the time-dependent ROC analyses for the survival prediction of the prognostic model obtained AUCs of 0.729 at 2 year and 0.824 at 3 years (Figure 5F). Above all, we concluded that the two-gene signatures were able to predict the prognosis in PC patients.

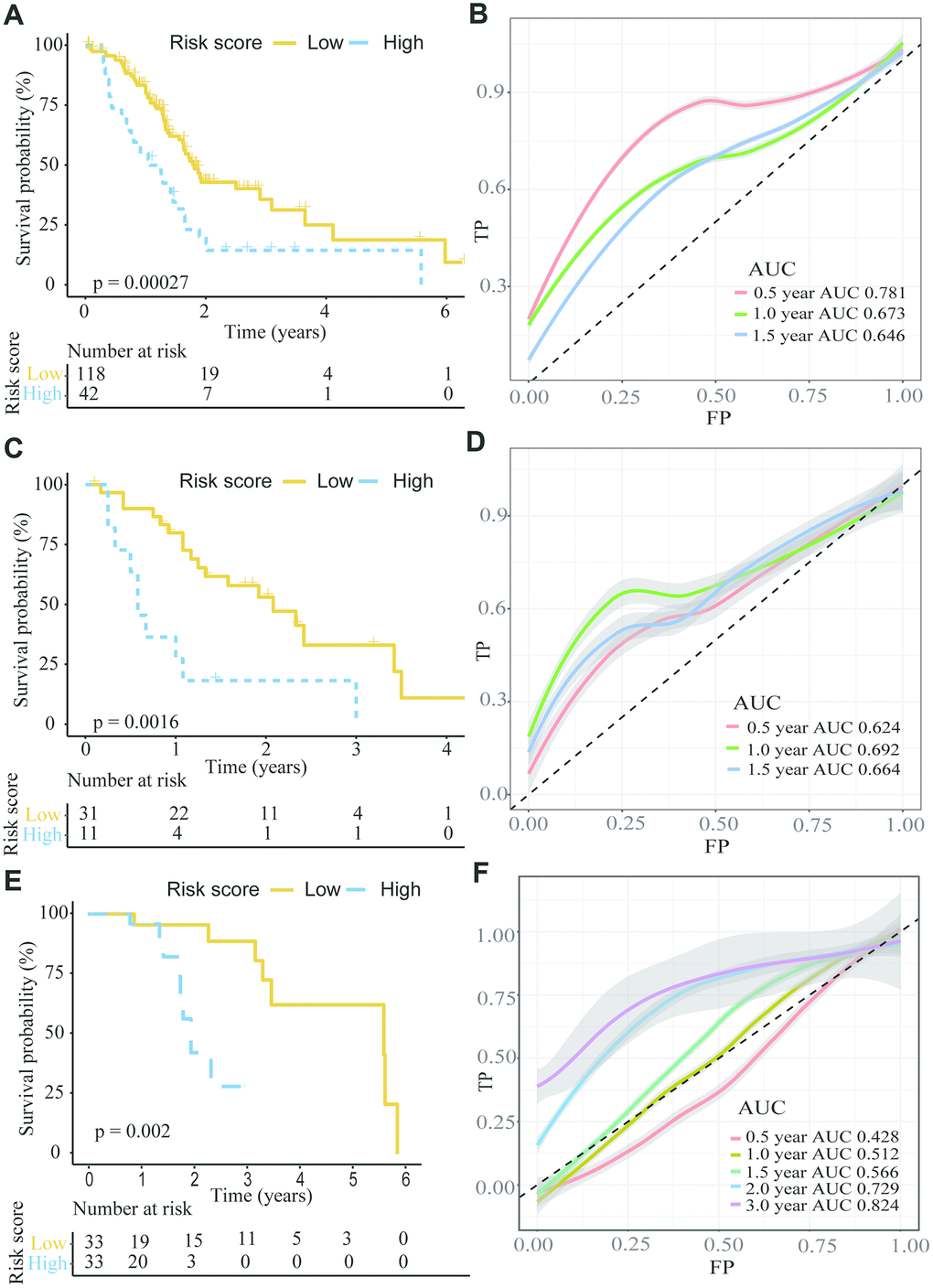

Figure 5. The K-M plot showed a lower overall survival in the high risk group compared to the low risk group divided by the optimal cut-off point. (A, B) K-M and time-dependent ROC curves for the prognostic model based on ANLN and HIST1H1C expression in the TCGA PC cohort. (C, D) K-M and time-dependent ROC curves for the prognostic model based on ANLN and HIST1H1C expression in the GSE28735. (E, F) K-M and time-dependent ROC curves for the prognostic model based on ANLN and HIST1H1C expression in the GSE62452.

Building and validating a predictive nomogram

Univariate and multivariate Cox regression analyses were employed to detect the independent predictive ability of the two-gene-based prognostic model in the abovementioned TCGA PC cohort with detailed clinical information. Using the univariate Cox regression analysis, we found that the prognostic model and age had prognostic values, while the others variables did not significantly correlate with OS (Figure 6). Considering that the margin condition almost reached statistical significance (P=0.054) and might affect the prognosis of PC patients according to the clinical experience, we incorporated age, margin condition and prognostic model into the multivariate Cox regression analysis. As a result, both the age and prognostic model were independent prognostic factors, and the margin condition nearly reached statistical significance (Figure 6).

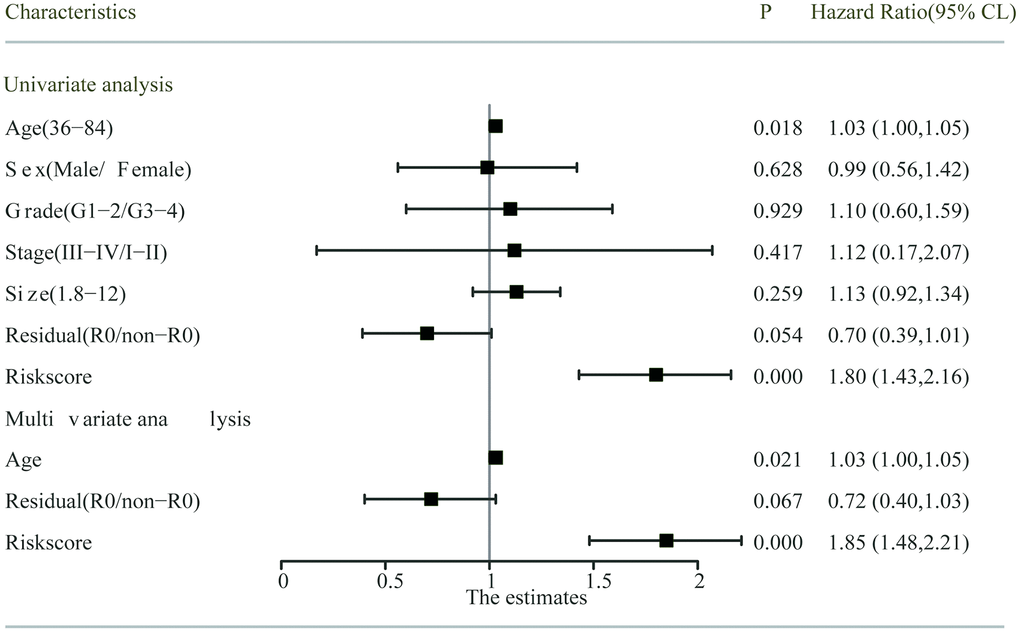

Figure 6. Univariate and multivariate analysis of the risk score and clinicopathological characteristics with OS. The residual (R0/non-R0) and risks core indicated the margin condition and prognostic model, respectively.

To make the prognostic model clinical applicable, a nomogram was applied to predict the probability of the 0.5-, 1-, and 1.5-year OS in the TCGA cohort. The predictive factors in the nomogram include age, margin condition and prognostic model. The C-index of the nomogram model was 0.664, which was higher than the others variables alone (Figure 7A and Supplementary Table 13). Moreover, calibration plots were also used to visualize the performance of the nomograms, with more overlap with the gray-line representing better performance (Figure 7B–7D). The AUCs of the different models were also calculated; the nomogram’s AUC was 0.826 at 0.5 years and 0.726 at 1 year, which was the largest compared to the other models (Figure 8). These findings demonstrated that the nomogram built with the combined model is the best nomogram to predict survival for patients with PC, when compared with nomograms built with a single prognostic factor, and demonstrated significance for facilitating patient counseling, decision-making and follow-up arranging.

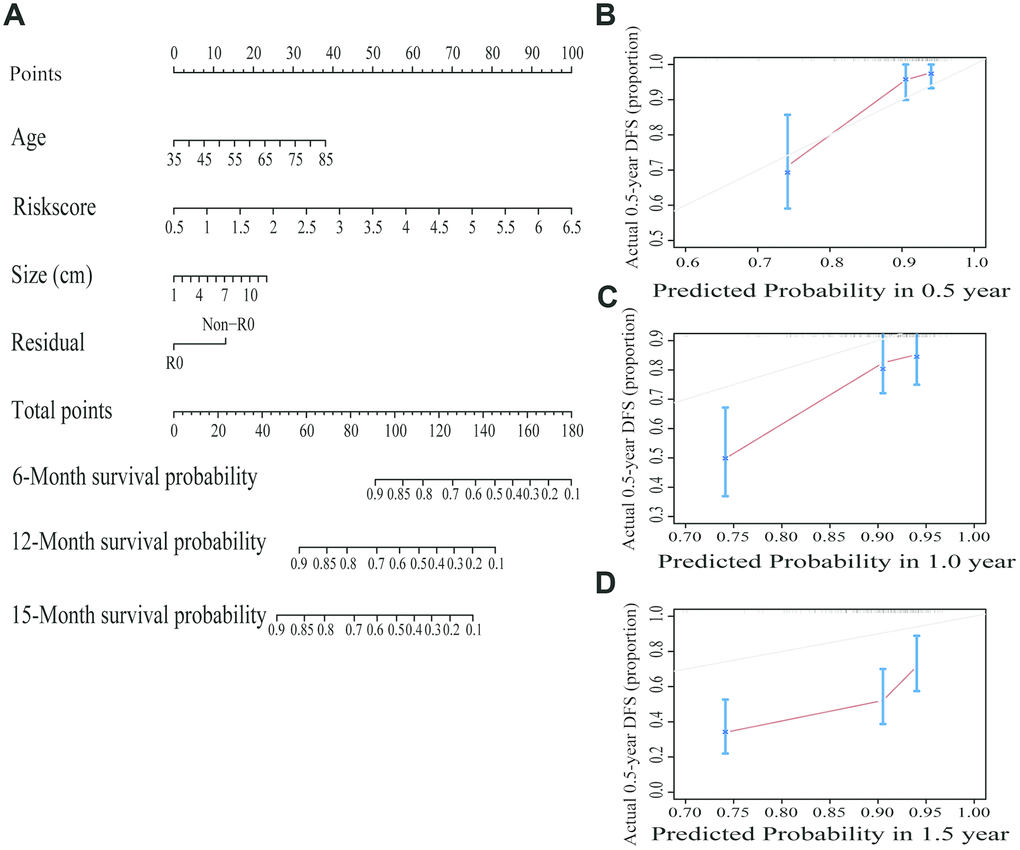

Figure 7. Building and validating a predictive nomogram. (A) A nomogram to predict survival probability at 6, 12 and 15 months after surgery. (B) Calibration curve for the nomogram when predicting 6 months of overall survival. (C) Calibration curve for the nomogram when predicting 12 months of overall survival. (D) Calibration curve for the nomogram when predicting 15 months of overall survival.

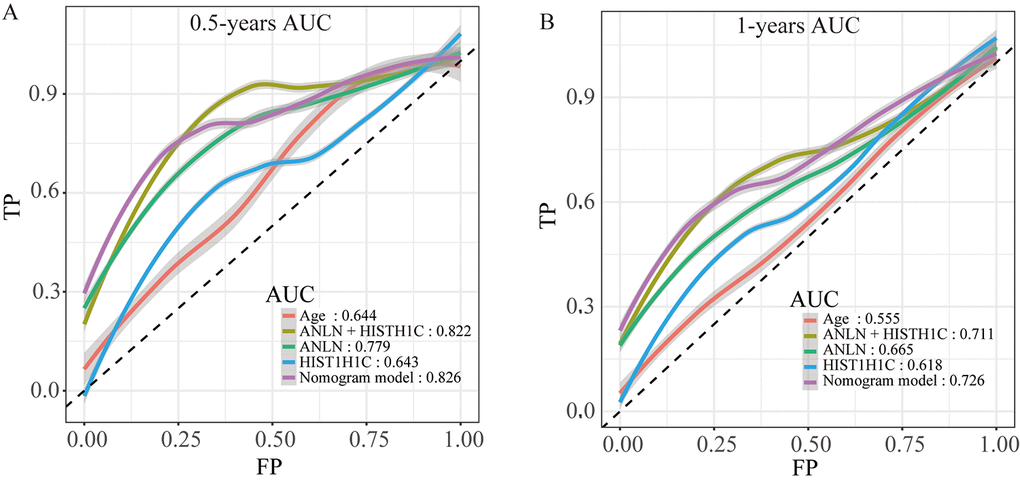

Figure 8. The time-dependent ROC curves of the nomogram and single variables in the model predicting the overall survival after surgery at 0.5 years (A) and 1 year (B).

Patients and samples

The mRNA expression and corresponding clinical data of PC patients were obtained from the TCGA dataset that contained 178 PC tissues and 4 adjacent noncancerous pancreatic tissues, which is in accordance with the report from Lu’s group [32]. This TCGA dataset was downloaded from Genomic Data Commons Data Portal (https://portal.gdc.cancer.gov/) at January 2019. The processed mRNA expression data of patients with pancreatic ductal adenocarcinoma were downloaded from two GEO datasets (GSE28735 and GSE62452) [33, 34] that contained the microarray gene-expression profiles of 69 pancreatic tumors and 61 adjacent nontumor tissues as well as the microarray gene-expression profiles of 45 matching pairs of pancreatic tumors and adjacent nontumor tissues from 45 separate patients. We screened potential GEO datasets according to the following inclusion criteria: 1) PC samples and nonmalignant adjacent tissues, 2) studies with more than 45 PC samples or adjacent noncancerous tissues, 2) expression profiling by array, and 3) all samples from Homo sapiens. As afore mentioned [10], the datasets with samples from other organisms or cell lines, those that performed the expression profiling by high-throughput sequencing, those with non-coding RNA profiling by high-throughput sequencing, those with genome variation profiling by genome tiling array, and those with methylation profiling by array or single nucleotide polymorphism genotyping by array were excluded.

RNA-seq data quantification and analysis

Initially, the raw PC mRNA expression profile counts were downloaded from the TCGA database (https://portal.gdc.cancer.gov/), GSE28735 and GSE62452 (https://www.ncbi.nlm.nih.gov/gds). Second, we calculated the DEGs from the TCGA data by means of the limma package and from the GEO data by means of the “edgeR” package. The DEGs from the datasets with a P<0.01 were selected and a Venn diagram was plotted. Only the DEGs in all three datasets were considered for subsequent analysis.

Functional enrichment analysis

The Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analysis of the common DEGs in the three datasets were performed using the R package “clusterProfiler” for Annotation and Visualization.

Constructing the gene-related prognostic model

We initially employed a univariate COX regression analysis of the TCGA datasets to investigate the correlation between patient OS and the expression levels of each gene, which was considered to be significant when the P<0.05. We then used the R package “glmnet” to perform the Lasso-penalized Cox regression along with a 10-fold cross-validation to further screen significant genes with prognosis [35, 36]. During the Lasso-penalized Cox regression selection, we randomly subsampled 70% of TCGA patients with 3000 replacements and selected the genes with repeat occurrence frequencies greater than 2500 times. We adopted the largest lambda value such that the error was within one standard error of the minimum, which was called “1-se” lambda [37]. Subsequently, a multivariate Cox regression analysis with a stepwise method was performed to assess the contribution of a gene as an independent prognosis factor for patient survival and to further select the best model. The robustness of all the above-mentioned models was validated by bootstrap procedures [38]. Finally, the risk score (RS) of the mRNA signature was calculated according to the following formula: $\text{RiskSore}={\displaystyle {\sum }_{i=1}^n(coe{f}_i\times Exp{r}_i)},$ where Expr was the mRNA expression and coef is the mRNA Lasso coefficient. The optimal cut-off value of RS was determined by X-tile plots version 3.6.1 (Yale University School of Medicine, New Haven, CT, USA) [39]. Based on the cut-off value of RS, patients were classified into the low-risk group and high-risk group, and the K-M curves for the different groups were plotted. Time-dependent receiver operating characteristic (ROC) curve analysis was performed to evaluate the predictive value of the prediction model. Furthermore, the prognostic gene signature was also validated using the GEO dataset (GSE28735).

Independence of the prognostic gene signature from other clinical characteristics

To prove the independent predictive power of the prognostic gene signature when other clinical variables (such as age, sex, histologic grade, AJCC stage, tumor size and tumor residual) were present in patients with PC, univariate and multivariate Cox regression analyses were performed with the clinical characteristics and gene prognostic model set as independent variables and the OS set as the dependent variable. The robustness of all the above-mentioned models was also validated by bootstrap procedures [38]. All reported P values were two-sided. The hazard ratio (HR) and 95% confidence intervals (CI) were calculated.

Building and validating a predictive nomogram

To improve the generalization ability and applicability of the model, we combined clinical variables with prognostic power with the gene signature model, and we applied the nomogram for the prediction of PC patient prognosis. In this study, the combined model based on all independent prognostic factors selected by the multivariable Cox regression analysis was used to construct a nomogram to assess the probability of the 0.5-, 1-, and 1.5-year OS for patients with PC. Subsequently, the C-index was calculated using R with the “survival” package. Then, to prove that the combined model has an advantage over other single variables, time-dependent ROC curves were obtained using the R package “pROC” [40].

Statistical analyses

The levels of ANLN and HIST1H1C that were differentially expressed between cancerous and adjacent noncancerous pancreatic tissues were estimated using Student’s t-test with SPSS 12.0 software. In addition, the significantly annotated KEGG and GO were calculated in clusterProfiler, and false discovery rate was analyzed using Benjamini correction. Significance of survival analysis was performed by K-M curve with log-rank test. A P value less than 0.05 is considered statistically significant.
