Functional connectivity network estimation with an inter-similarity prior for mild cognitive impairment classification

Results

Network visualization

For visual comparison of the FCN by PC, SR, GR and SGR methods, we constructed an FCN adjacency matrix W for each method (Figure 1), with all weights normalized between −1 and 1, for ease of comparison across the different methods.

Figure 1 shows that the full correlation-based FCNs have different topology from the partial correlation-based FCN (i.e., SR, GR and SGR), since they adopt different statistical information by using different data-fitting terms. In addition, compared with SR and GSR, the FCN estimated by SGR tends to be better organized, illustrating the effectiveness of the performance.

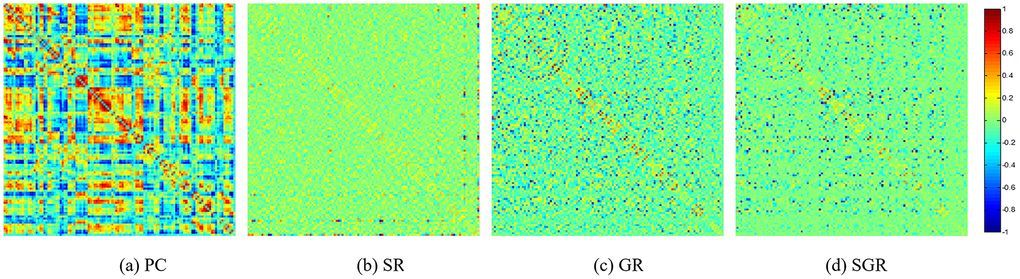

Figure 1. The FCN adjacency matrices of a certain subject, constructed by different methods.

MCI identification

A set of quantitative measurements, including accuracy, sensitivity, specificity, and area under the curve (AUC), are used to evaluate the classification performance of four different methods (PC, SR, GR and SGR). The mathematical definition of the first three measures are as follows:

$Accuracy=\frac{TruePostive+TrueNegative}{\begin{array}{c}TruePostive+FalsePostive+\\ TrueNegative+FalseNegative\end{array}}$(1)

$Sensitivity=\frac{TruePostive}{TruePostive+FalseNegative}$(2)

$Specificity=\frac{TrueNegative}{TrueNegative+FalsePostive}$(3)

Here, TruePositive is the number of the positive subjects that are correctly classified in the MCI identification task. Similarly, TrueNegative, FalsePostive and FalseNegative are the numbers of their corresponding subjects, respectively.

The MCI vs NC classification results on the ADNI dataset are given in Table 1 and Figure 2, with SGR achieving the best results. As seen in Table 1, the partial correlation-based methods work better than the PC method, which reveals the effectiveness of partial correlation information. In addition, the SGR method strongly outperforms the SR and GR methods, which demonstrates the effectiveness of both sparsity and inter-similarity priors.

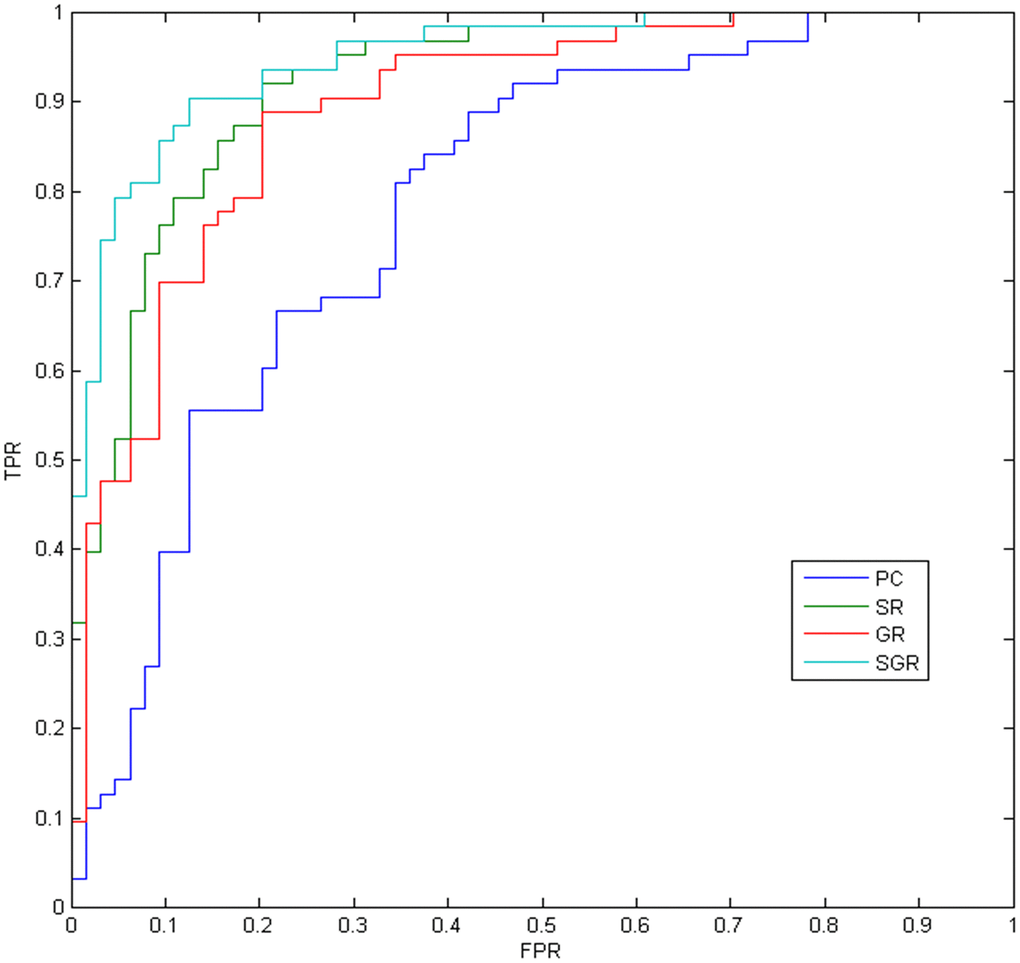

Figure 2. The ROC results of different methods.

Table 1. Classification performance corresponding to different FCN estimation. methods on ADNI dataset.

Method	Accuracy	Sensitivity	Specificity	AUC
PC	71.65	76.56	66.67	0.7852
SR	84.25	85.71	82.81	0.9208
GR	80.31	79.69	80.95	0.8918
SGR	88.19	87.50	88.89	0.9486

Sensitivity to network model parameters

The ultimate classification accuracy is particularly sensitive to the network model parameters. In Figure 3, we show the classification accuracy corresponding to different parametric combinations in the proposed SGR method. In addition, the classification accuracy is computed by the LOO test on all of the subjects. Consequently, Figure 3 shows that we achieve the best accuracy (93.70%) with λ = 2¹ (for sparsity) and γ = 2⁵ (for inter-similarity).

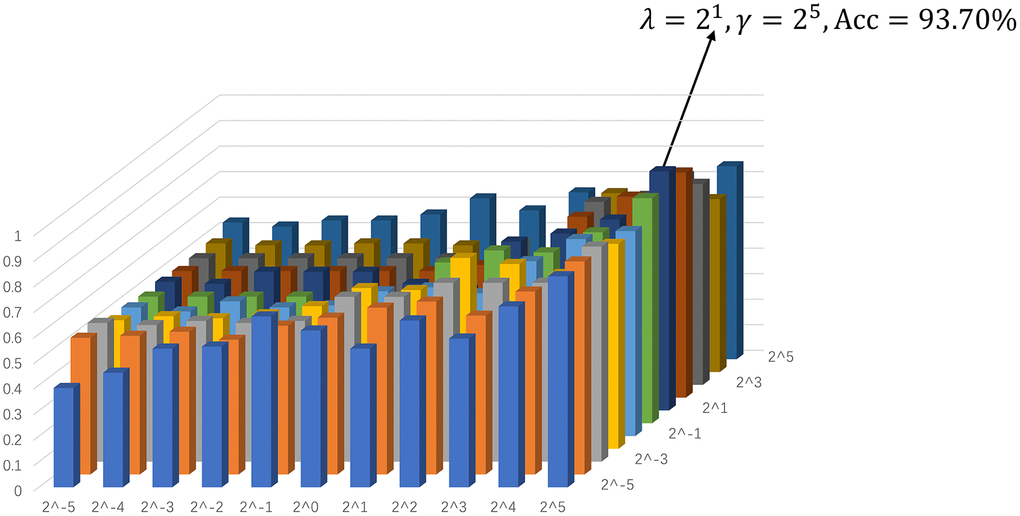

Figure 3. Assification accuracy based on the networks estimated by the proposed method with different regularized parametric values in the interval [2⁻⁵, 2⁵]. The results are obtained by LOO test on all subjects.

Consensus connections

As the selected connections in each inner loop might be different, we recorded the consensus connections for the classification model in each inner LOOCV loop. As mentioned above, we selected the consensus connections with p-value < 0.01 in each loop, and the consensus connections are shown in Table 2 and Figure 4. Specifically, 8 positive consensus connections are listed in Table 2. Most of these discriminative connections were distributed in the frontal, occipital, and parietal lobes. All consensus connections had both enhanced and weakened functional connections in MCI patients. Furthermore, we projected them into the corresponding subnetworks and found that most consensus connections were mainly distributed in the default mode network (DMN), frontoparietal task control network, and sensory/somatomotor hand network.

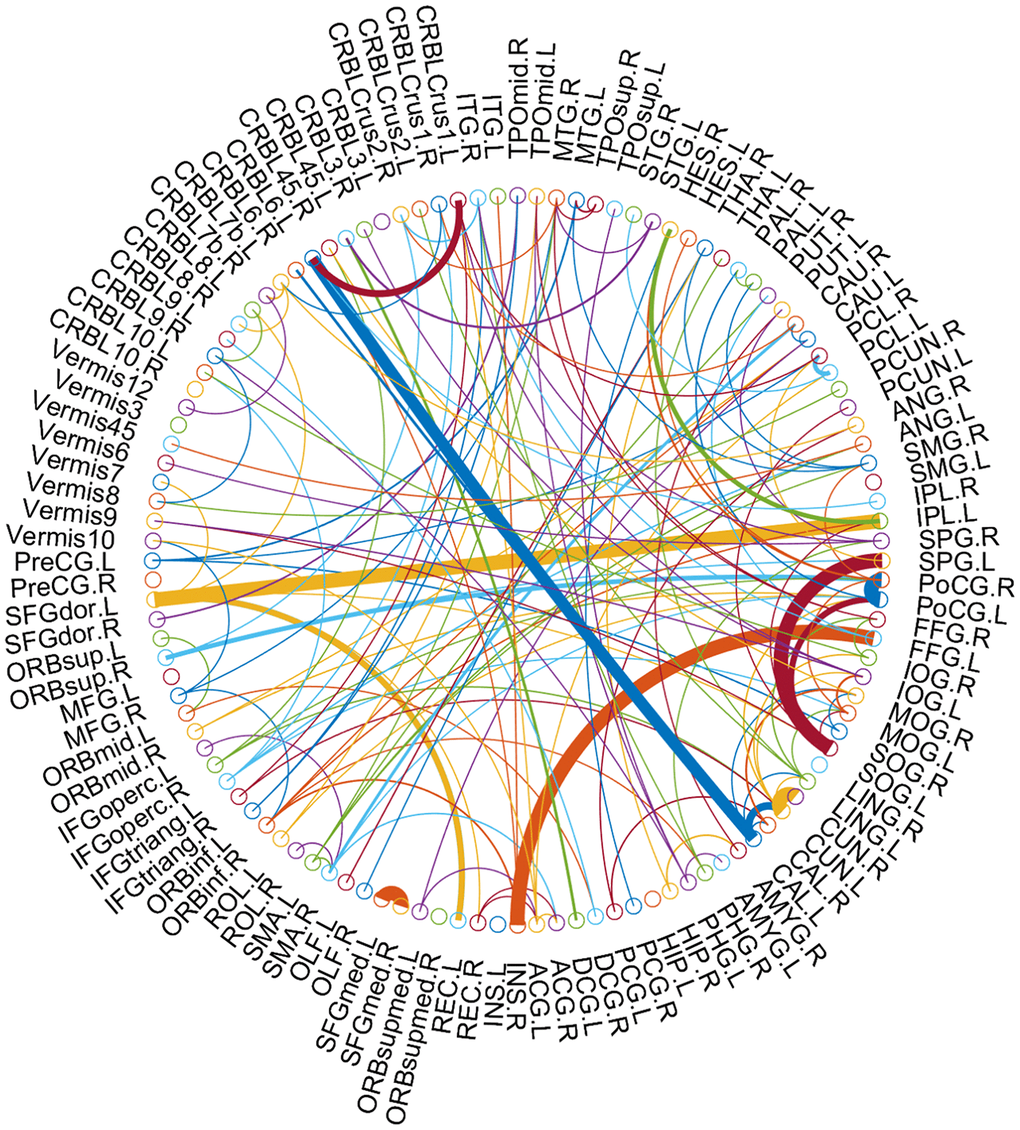

Figure 4. The consensus connections, selected via LOOCV, between MCI and NC for 116 AAL template ROIs. The arc thickness indicates the discriminative power of an edge, which is inversely proportional to the estimated p-values. The arc colors were randomly generated to differentiate ROIs. This figure was created using a Matlab function, circularGraph, shared by Paul Kassebaum (http://www.mathworks.com/matlabcentral/fileexchange/48576-circulargraph).

Table 2. Consensus connections between MCI and NC for 116 AAL template ROIs.

Region	Region	Mean values		P value
		MCI	NC
Frontal_Sup_Medial_L	Frontal_Sup_Medial_R	0.274	0.181	9.72⊆10-8
Postcentral_L	Postcentral_R	0.171	0.135	1.14⊆10-6
Parietal_Sup_L	Occipital_Sup_L	0.024	0.052	4.49⊆10-6
Cuneus_L	Cuneus_R	0.154	0.173	8.89⊆10-6
Fusiform_L	Insula_R	0.036	0.007	1.04⊆10-5
Cuneus_L	Calcarine_L	0.099	0.048	2.18⊆10-5
Cerebelum_Crus1_L	Cerebelum_6_L	0.083	0.118	2.40⊆10-5
Occipital_Inf_L	Occipital_Mid_L	0.142	0.114	1.59⊆10-4

Hub regions of functional network

According to the definition of “hubs”, we identified hub nodes of the FCN estimated by SGR with λ = 2¹ and γ = 2⁵ in MCI patients and NCs. As shown in Table 3, the common hubs of MCI and NCs were located mainly in bilateral middle frontal gyrus, bilateral inferior temporal gyrus, right superior frontal gyrus, right insula and right fusiform gyrus. Most of them were mainly distributed in the DMN, fronto-parietal task control and salience network. Furthermore, it is notable that some hubs were present only in MCI patients and absent in NCs, such as left superior frontal gyrus and left insula. Meanwhile, some hubs were present only in NCs and not in patients with MCI. They were located in the right middle temporal gyrus, left precentral gyrus and left postcentral gyrus. These discriminative brain regions between MCI and NCs were distributed mainly in the DMN, fronto-parietal task control and sensory/somatomotor hand network.

Table 3. Hubs in MCI and NCs defined with the degree.

	AAL Number	Corresponding brain regions	Sub-networks
MCI	8	Frontal_Mid_R	Fronto-parietal task control
	56	Fusiform_R	Default mode network
	3	Frontal_Sup_L	Default mode network
	4	Frontal_Sup_R	Default mode network
	7	Frontal_Mid_L	Default mode network
	23	Frontal_Sup_Medial_L	Default mode network
	29	Insula_L	Salience network
	30	Insula_R	Salience network
	89	Temporal_Inf_L	Default mode network
	90	Temporal_Inf_R	Default mode network
NC	7	Frontal_Mid_L	Fronto-parietal task control
	8	Frontal_Mid_R	Fronto-parietal task control
	4	Frontal_Sup_R	Default mode network
	30	Insula_R	Salience network
	86	Temporal_Mid_R	Default mode network
	1	Precentral_L	Sensory/somatomotor Hand
	56	Fusiform_R	Default mode network
	57	Postcentral_L	Sensory/somatomotor Hand
	90	Temporal_Inf_R	Default mode network
	89	Temporal_Inf_L	Default mode network
AAL: the automated anatomical labeling atlas.

Altered topological properties of functional networks in MCI patients

Based on the FCNs estimated by SGR with λ = 2¹ and γ = 2⁵, several global graph theory metrics as shown in Table 4, including clustering coefficients (C_p), shortest path length (L_p), normalized clustering coefficient (γ), normalized characteristic path length (λ), small-world (σ), global efficiency (E_global) and modularity (Q), were calculated to elaborate on the topological properties of functional networks in MCI and NC groups. As shown in Table 3, both groups fit γ=C_p^real / C_p^rand > 1, λ=L_p^real / L_p^rand ≈1 and σ=γ/λ > 1. Therefore, FCNs estimated by SGR in MCI patients and NCs showed small-world topological attributes [59]. This means that the brain networks of the two groups maintain an economic and efficient brain network that optimizes the balance between local specialization and global integration [60–62]. Further comparison suggested that the L_p values of MCI patients were lower than those in the NC groups (P<0.01), which indicated a reduction of network integration in global information processing in MCI patients. Moreover, the decreased values of γ and Q in MCI patients suggest a reduction of network segregation in local information processing.

Table 4. Comparison of topological properties between MCIs and NCs.

	MCI	NC
Cp	0.125±0.003	0.147±0.006
Lp*	0.746±0.003	0.759±0.005
γ*	1.109±0.071	1.205±0.094
λ	1.040±0.010	1.051±0.015
σ	1.066±0.058	1.149±0.091
Eglobal	0.271±0.001	0.278±0.002
Q*	6.616±0.638	6.736±1.102
* P<0.01

Materials and Methods

Data acquisition

To test the proposed method, we analyzed publicly-available neuroimaging data from the Alzheimer’s Disease Neuroimaging Initiative (ADNI) database (http://adni.loni.ucla.edu) [31]. ANDI was launched in 2003 by the National Institute on Aging, the National Institute of Biomedical Imaging and Bioengineering, the Food and Drug Administration, private pharmaceutical companies and nonprofit organizations. Initially, the goal of ADNI was to define biomarkers for use in clinical trials and to determine the best way to measure the treatment effects of AD therapeutics.

For this study, we analyzed data for 127 participants, including 63 MCIs and 64 NCs. The scanning parameters included: TR/TE = 3000/30mm, flip angle = 80, imaging matrix=64×64, 48 slices, 140 volumes, and voxel thickness = 3.3mm. SPM8 toolbox (https://www.fil.ion.ucl.ac.uk/spm/software/spm8/) and DPARSFA (version 2.2) [32] were used to preprocess the fMRI data according to the standard, well-established pipeline. The preprocessing pipeline includes removing the first 10 volumes, Slice timing, Realign, Normalize to the MNI space, Spatially smooth, Temporally Detrend, Regression out covariates based on friction 24 and Temporally filtering (0.01-0.08 Hz). For alleviating the head motion effect and artifacts, we followed previously published strategies [33, 34]. We calculated framewise displacement (FD) and excluded subjects with more than 2.5 min (50 frames) data of FD>0.5 from subsequent analyses [35]. Finally, depending on the automated anatomical labeling (AAL) atlas [36], the pre-processed BOLD time series signals were partitioned into 116 ROIs. At last, we put these time series into a data matrix $\text{X}\in {\text{R}}^{137\times 116}$.

Functional brain network estimation

After obtaining the fMRI data matrix X from the R-fMRI data, the subsequent task is the FCN estimation. The most commonly used FCN estimation methods are those based on correlation, and since they are more sensitive than some complex higher-order methods [14], we focused on the former in this study. For better notation, we first define the data matrix (i.e., BOLD signal matrix), $\text{X}\in R^{T\times N}$ where T is the number of volumes and N is the number of ROIs. The fMRI time series associated with the ith ROI is represented by ${\text{x}}_i\in R^T,i=1,\cdots ,N$. In addition, such approach can also be adopted on data of different modality, such as EEG [37, 38].

Related methods

As the simplest FCN estimation scheme, Pearson’s Correlation (PC)-based FCN estimation methods are widely using to study FCNs [39]. Then, the edge weights of the FCN $W=(W_{ij})\in R^{N\times N}$ can be calculated by PC as follows:

$W_{ij}=\frac{{\left(x_i-{\overline{x}}_i\right)}^T(x_j-{\overline{x}}_j)}{\sqrt{{\left(x_i-{\overline{x}}_i\right)}^T\left(x_i-{\overline{x}}_i\right)}\sqrt{{(x_j-{\overline{x}}_j)}^T(x_j-{\overline{x}}_j)}}$(1)

In Eq. (1), $x_i-{\overline{x}}_i$is a centralized counterpart of x_i. Due to the effect of the noises mixed in the fMRI data, PC always generates dense FCNs. Thus, a threshold is often used to sparsify the PC-based FCNs for filtering out noisy or weak connections.

Compared with PC measures, the full correlation across ROIs, the interaction among multiple ROIs is neglected due to their cofounding effects. In contrast, the partial correlation is proposed by regressing out the confounding effects from other ROIs. However, partial correlation-based methods can be easily ill-posed due to the need to invert the covariance matrix $\text{\hspace{0.17em}Σ}=X^{T}X$. A base solution is to incorporate an l₁-norm regularizer into the partial correlation model [26], which also naturally incorporates the sparsity prior (SR) of FCN. The model of SR is shown as follows:

$mi{n}_{W_{ij}}{{\displaystyle {\sum }_{i=1}^n\Vert x_i-{\displaystyle {\sum }_{j\ne i}{W}_{ij}{x}_j}\Vert }}^2+\lambda {\displaystyle {\sum }_{j\ne i}\left|W_{ij}\right|},$(2)

the matrix form is proposed as follows:

$\begin{array}{c}mi{n}_W{\Vert X-XW\Vert }_F^2+\lambda \Vert W_1\Vert \\ s.t.W_{ii}=0,\forall i=1,\cdots ,n,\end{array}$(3)

Note that the l₁-norm regularizer in Eq. (4) below plays a key role in achieving a sparse and stable solution [26].

According to a recent review [1], functional brain network (FBN) estimation methods, from simple to complex, include Pearson’s Correlation (PC), partial correlation [40], regularized partial correlation [41], Bayesian network [42], structural equation modeling [43], and dynamic casual modeling [44]. Each of these methods, in our view, can be considered as a trade-off among biological interpretability, computational efficiency, and statistical robustness. Consequently, we can naturally incorporate a regularized term and statistical information into the objective function for constructing a new platform to estimate FCNs. More specifically, the platform can be formulated using a matrix-regularized learning framework as follows:

${\min }_{W}f\left(X,W\right)+\lambda R\left(W\right),\hspace{0.17em}\hspace{0.17em}s.t.\hspace{0.17em}W\in \Delta ,$(4)

where f(X, W) models the statistical information of FCN, and R(W) is the regularization term for incorporating biological priors of FCN and stabilizing the solutions. In addition, some specific constraints such as symmetry or positive semi-definiteness may be included in Δ for shrinking the search space of W, which provides an effective way for obtaining a better FCN. The λ is a hyper-parameter for controling the balance between the first (data-fitting) term and the second (regularization) term.

In fact, many recently-proposed FCN estimation models [45–48] can be unified under this regularized framework with different design of the two terms in Eq. (5) below. The popular data-fitting terms include ${\Vert W-X^{T}X\Vert }_F^2$ used in Eq. (2) and ${\Vert X-XW\Vert }_F^2$ used in Eq. (4), while the popular regularization term is l₁-norm [49]. Beyond unifying the existing methods, the regularized framework also provides a platform for developing new FCN estimation methods. In the following section, we will explain our proposed our model based on this framework.

Our methods

As we mentioned above, the regularization-based FCN estimation framework provides an effective scheme for incorporating the biological or physical priors of FCN. In this paper, we try to encode the inter-similarity prior (similar nodes tend to have similar connections) into the FCN estimation. The basic motivation is given in Figure 5.

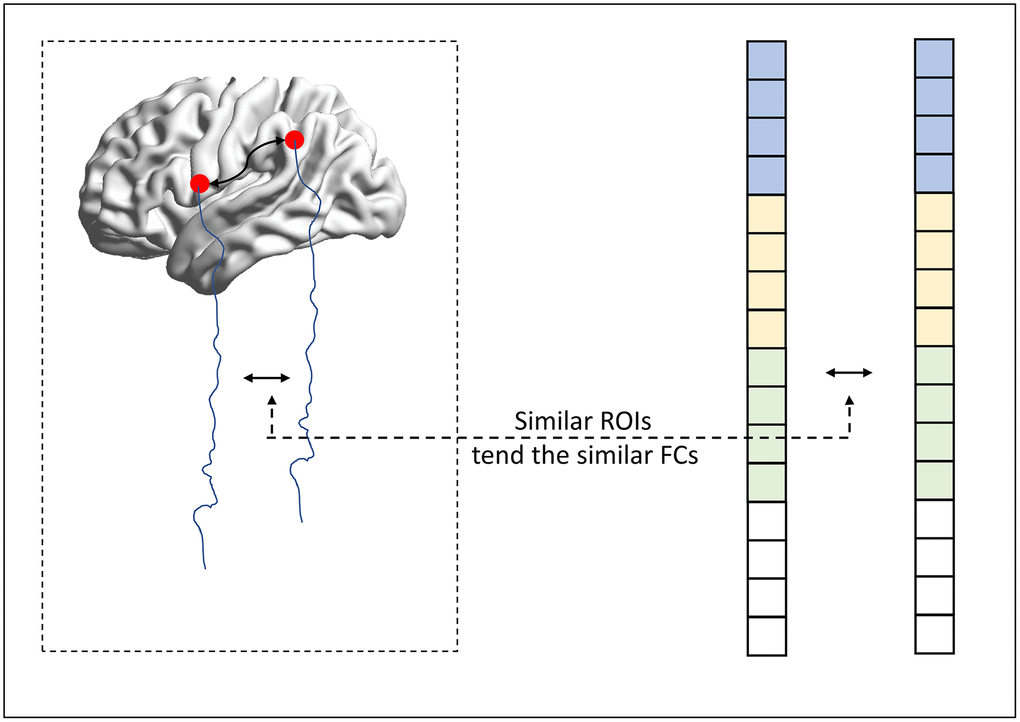

Figure 5. The motivation of the proposed method.

In particular, we supposed that if two ROIs are defined to be similar, indicating that the connections from these two ROIs should have a similar connection pattern. In this way, we naturally formulate the inter-similarity prior into a graph regularizer (namely MR) penalty, which is given as follows:

$\begin{array}{c}mi{n}_{W}f\left(X,W\right)+\beta {\displaystyle \sum }_{\text{i},\text{j}=1}^{\text{nROI}}{\Vert W_{i,:}-W_{j,:}\Vert }_2{S}_{ij}\\ s.t.W_{ii}=0,\forall i=1,\cdots ,n\hspace{0.17em}\end{array}$(5)

where $S_{ij}$ denotes the similarity between ROI $i$ and ROI $j$, $W_{i,:}$ represent the weight vector connections from ROI $i$. Based on the Eq.(5), it is apparent that the more similar ROI $i$ is to ROI $j$, the estimated $W_{i,:}$ and $W_{j,:}$ will also increase in similarity. To simplify, we can reformulate this into matrix form as follows:

$\begin{array}{c}mi{n}_{W}f\left(X,W\right)+\beta \text{tr(}{W}^{T}LW\text{)}\text{.}\\ s.t.W_{ii}=0,\forall i=1,\cdots ,n\end{array}$(6)

where L is the Laplacian matrix computed as $L=I-D^{-\frac{1}{2}}S{D}^{-\frac{1}{2}}$, and D is a diagonal matrix with each item $D_{ii}={\displaystyle {\sum }_{j=1}^{nROI}{W}_{ij}}$. The graph $S$ can be defined in many ways such as Pearson’s Correlation, morphological network [50], the network from the high quality data [30] or the predefined graph (must connect or must cannot connect). In particular, in this study, we only consider the positive connection of PC to construct L.

Moreover, since the estimated FCN should also be sparse, we further incorporate the l₁-norm penalty into the FCN estimation, and the sparse and graph regularizer (namely SGR) is estimated as follows:

$\begin{array}{c}mi{n}_{W}f\left(X,W\right)+\lambda {\Vert W\Vert }_1+\beta \text{tr}(W^{\text{T}}LW).\\ s.t.W_{ii}=0,\forall i=1,\cdots ,n\end{array}$(7)

In addition, we adopt the partial correlation for the date-fitting term due to its efficiency and effectiveness.

$\begin{array}{c}mi{n}_W{\Vert X-XW\Vert }_F^2+\lambda {\Vert W\Vert }_1+\beta \text{tr}(W^{T}LW).\\ s.t.W_{ii}=0,\forall i=1,\cdots ,n\end{array}$(8)

For Eq, (8), based on the regularization framework for FCN estimation, we give the optimization algorithm for estimating FCN by SGR. Note that, the objective function of Eq. (8) is convex but indifferentiable due to the $l_1$-norm regularizer. A range of algorithms have been proposed for addressing such indifferentiable convex optimization problem in the past few years [51–54]. Here, we select the proximal method [55, 56] to solve Eq. (8) due to its simplicity and efficiency. In particular, for the data-fitting term$f\left(\text{X},\text{W}\right)=\text{X}-{\text{XW}}_F^2$ (or$\text{W}-{\text{X}}^T{\text{X}}_F^2$) and graph regulaizer term$\text{tr}({\text{W}}^{\text{T}}\text{LW})$, whose gradient w.r.t $\text{W}$ is ${\nabla }_{\text{W}}f\left(\text{X},\text{W}\right)=2{\text{X}}^T\text{XW}-{\text{X}}^T\text{X}$ (or$\text{W}-{\text{X}}^T\text{X}$) and${\nabla }_{\text{W}}\text{tr}\left({\text{W}}^{\text{T}}\text{LW}\right)=\text{LW}$. Therefore, we have the following updated formula for$\text{W}$, according to the gradient descent criterion:

$W_k=W_{k-1}-{\alpha }_k({\nabla }_{W}f\left(X,W_{k-1}\right)+\beta LW),$(9)

where ${\alpha }_k$ denotes the step size of the gradient descent. The initial value of the step size ${\alpha }_k$ will be adaptively updated based on the line search scheme proposed by Nemirovski [57] according to the used SLEP toolbox (http://www.yelab.net/software/SLEP).

Then, for the regularization term $\lambda {\Vert W\Vert }_1$ in SGP, the proximal operator for weighted l₁-norm is defined as follows [25]:.

$\text{pr}(W)={[sgn(W_{ij})\times \text{max}(abs(W_{ij})-\lambda ,0)]}_{N\times N},$(10)

where $sgn(W_{ij})$ and $abs\left(W_{ij}\right)$ return the sign and absolute value of $W_{ij}$, respectively. As a result, two main steps are involved for solving the proposed SGR FCN estimation methods, as given in Table 5.

Table 5. Algorithm of SGR-based FCN estimation.

Input: X //observed data Output: W //functional brain network

Initialize W; while not converge $W\leftarrow W-\alpha (W-X^{T}X+\beta LW);$ $W\leftarrow proxima{l}_{\lambda {\Vert \cdot \Vert }_1}\left(W\right)={\left[sgn\right(W_{i,j})\times max(abs\left(W_{i,j}\right)-\lambda ,0\left)\right]}_{p\times p};$ end

Experimental setting

To validate the proposed FCN method, we conducted experiments on training a classifier for identifying MCI from NCs, based on estimated FCNs. Also, we adopted the SR and PC methods as a baseline for comparison. Since the FCN matrix is symmetric, we used its upper triangular elements as input features for classification. Unfortunately, in our experiment, each FCN had 116 nodes, and thus could produce 6,670 features (corresponding to 6,670 functional connections between 116 ROIs). Compared to the sample size (less than two hundred), the feature dimension was very high, which not only implied expensive computations but would also affect the generalization of the proposed methods. As pointed out in [18], both the feature selection and classifier design have a big influence on accuracy. Thus, in this study, we adopted the simplest feature selection method (t-test with p value < 0.01) and the most popular used SVM classifier [58], since our main focus was FCN estimation. In other words, had we not done so, it would have been difficult to conclude whether the FCN construction methods or the feature selection/classification methods contributed to the ultimate performance.

Due to the small sample size, we used the leave one out (LOO) cross-validation strategy to assess the performance of the methods, in which only one subject is left out for testing while the others are used to train the models and get the optimal parameters. To choose optimal parameters, an inner LOO cross-validation was conducted on the training data by grid-search strategy. More specifically, for the regularized parameters $\lambda$ and $\beta$, the candidate values ranged in $[2^{-5},2^{-4},\dots ,2^4,2^5]$; for the hard threshold of PC_threshold, we used 11 sparsity levels ranging in $[1\text{\%},10\text{\%},\cdots ,90\text{\%},100\text{\%}]$. For example, 90% means that 10% of the weak edges were filtered out from the FCN. It should be note that selected variables with p-values can be highly complementary to other features, improving the classification result. Thus, to alleviate this issue, the feature selection approach was only applied to the training data.

Author Contributions

All authors developed proposed algorithm, architecture. Wei-kai Li and Xiao-wen Xu designed the evaluation experiments. Xin Gao and Wei Jiang preprocessed the fMRI. Pei-jun Wang revised the manuscript. All authors contributed to preparation of the article, figures, and charts.

Conflicts of Interest

There are no conflicts of interest including any financial, personal, or other relationships with people or organizations for any of the coauthors related to the work described in the article.

Funding

This work was partly supported by Natural Science Foundation Project of CQCSTC (No. cstc2018jcyj A0398), Scientific Research Subjects of Shanghai Universal Medical Imaging Technology Limited Company (No. UV2020Z02), Shanghai Municipal Planning Commission of Science and Research Fund (No. 201740010), Shanghai Municipal Commission of Economy and Informatization, Special Fund for Artificial Intelligence Innovation and Development (No. 2019-RGZN-01079), National Natural Science Foundation of China (Nos. 81830059, 81571655, and 81771889), Shanghai Municipal Commission of Health and Family Planning Smart Medical Special Research Project (No. 2018ZHYL0105), and the Fundamental Research Funds for the Central Universities (No. 22120190219).
