RNA-seq reveals the diverse effects of substrate stiffness on epidermal ovarian cancer cells

Cell area, morphology and cytoskeleton are correlated with substrate rigidity

The transcriptional response to stiffness was profiled in SKOV-3 EOC cells during growth on polyacrylamide hydrogels. Cells were cultured in hydrogels at three stiffnesses spanning a range shown to influence cellular morphology (Figure 1). However, compared with the DIC images (Figure 1A), cells in Figure 1B which were stained using CellTracker fluorescent probes seemed to have the largest spreading areas of 6 kPa compared with 1 kPa or 60 kPa. Considering the introduction of CellTracker and DIC overview, one possible reason is as cell spreading area increased with the increasing of PA gels rigidity, the cells became thinner, resulting in less cytoplasm around the cells, which was not easy to be detected by dye staining.

Figure 1. Cell morphology closely correlate with substrate rigidity. (A) Typical DIC images of SKOV-3 cultured on polyacrylamide hydrogels with different substrate rigidity. SKOV-3 cells were plated on collage I-coated 1 kPa, 6 kPa and 60 kPa hydrogels, and then images were taken at 12 h, 24 h or 48 h. (B) SKOV-3 cells plated on collage I-coated 1 kPa, 6 kPa and 60 kPa hydrogels for 24 h were fixed and stained with CellTracker fluorescent probes (left) and DAPI (middle) to visualize cytoplasm and nucleus respectively. Scale bar - 40 μm.

After 24 h of cultivation, the spreading areas of SKOV-3 cells and nuclei showed a significant increase as the substrate stiffness increased from 1 kPa to 6 or 60 kPa (Figure 2A, 2B). Moreover, both the circularity (4πA/perimeter²) of the cells and nuclei exhibited significant improvements as the stiffness increased from 1 kPa to 6 or 60 kPa (Figure 2C, 2D), as the aspect ratio (long-axis length/short-axis length) of cells and nuclei simultaneously decreased (Figure 2E, 2F), confirming that not only the spreading area but also the morphology of the cells was closely correlated with the substrate rigidity.

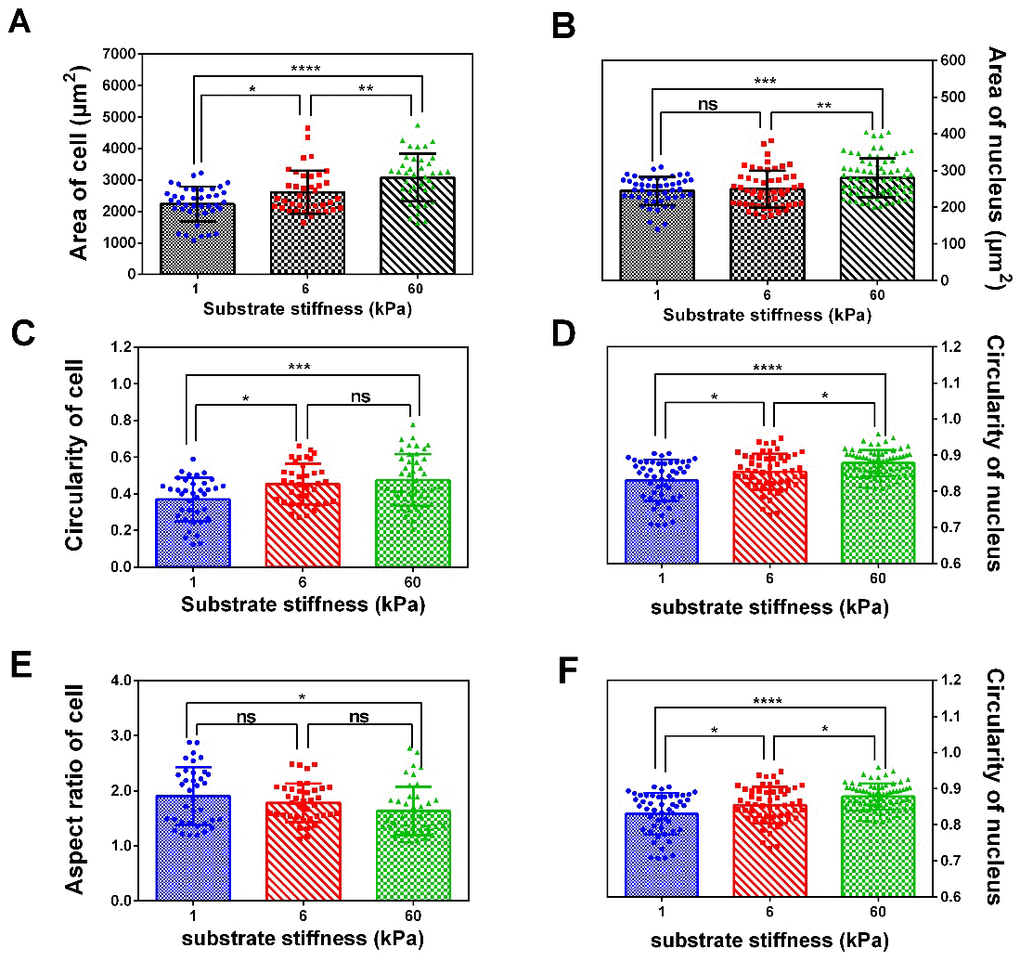

Figure 2. Spread area, circularity and aspect ratio of cell and nucleus correlate with substrate rigidity. Spread area (A and B), circularity (C and D) and aspect ratio (E and F) of SKOV-3 cells and nucleus were analyzed using ImageJ software. Each column represents means ± SE of 40-60 cells from 2 independent experiments. *P < 0.05, ***P <0.001, ****P < 0.0001.

Actin stress fibers are bundles composed of actin filament, and play an important role in connecting the intracellular microenvironment to extracellular microenvironment, Here, we also quantified the effect of substrate rigidity on stress fibers, observing that perinuclear actin stress fibers were significantly influenced by culturing SKOV-3 on hydrogels for 24 h (Figure 3). As shown in Figure 3A, actin stress fibers were detected based the intensity which calculated by ImageJ software (Figure 3B), and typical images of SKOV-3 cells grown on different substrate rigidities and stained with rhodamine phalloidin and DAPI are shown in Figure 3C. The number of stress fibers significantly increased as the substrate rigidity increased from 1 or 6 to 60 kPa, while there was no significant difference between the 1 and 6 kPa treatments (Figure 3D).

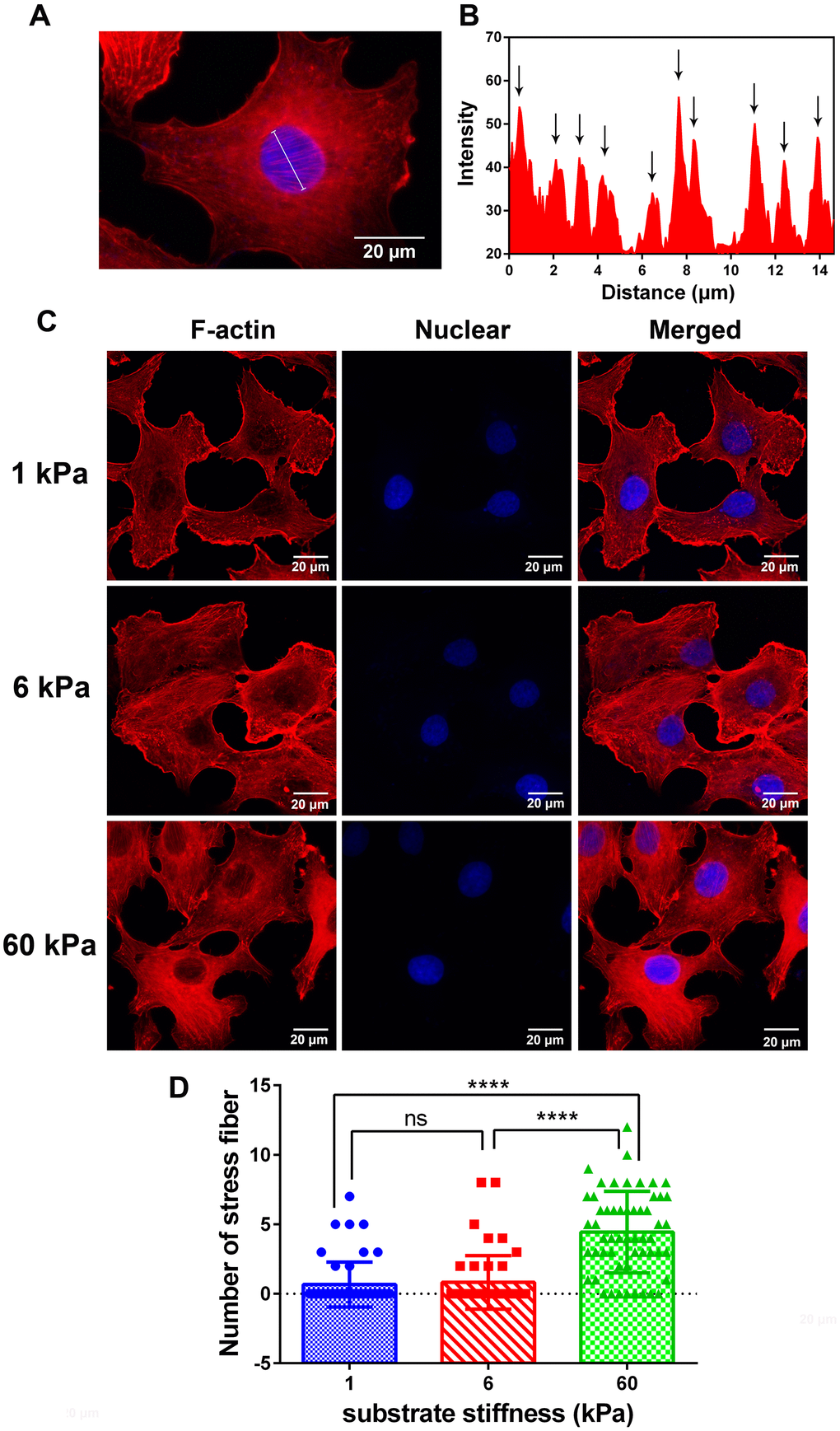

Figure 3. Immunofluorescence images and analysis of F-actin in SKOV-3 cells which grown on substrate with different rigidity. (A) Typical image was presented for defining the perinuclear actin stress fiber, and its analytic method using intensity calculated by ImageJ software (B). (C) SKOV-3 cells plated on collage I -coated 1 kPa, 6 kPa and 60 kPa hydrogels for 24 h were fixed and stained with rhodamine phalloidin (left) and DAPI (middle) to visualize F-actin and nucleus respectively. Scale bar - 20 μm. (D) Numbers of perinuclear actin stress fiber in SKOV-3 cells which grown on collage I-coated 1 kPa, 6 kPa and 60 kPa hydrogels for 24 h. Each column represents means ± SE of 49-55 cells from 2 experiments. **** P < 0.0001.

RNA-seq of SKOV-3 cells and quality control

Considering the results shown in Figuires 1–3, we cultured cells for 24 h and performed RNA-seq to identify the early events involved in stiffness sensing by SKOV-3 cells in a global and unbiased manner to generate hypotheses regarding the effects of stiffness sensing. After quality control, the RNA-seq data were determined to be of high quality and saturation (Suplementary Table 1 and Supplementary Figure 1). Clustering analysis based on the kmean pattern recognition algorithm showed the same group and different group expression patterns in 12 clusters, respectively, suggesting the unity within the group and comparability among the control, high and low groups (Figure 4).

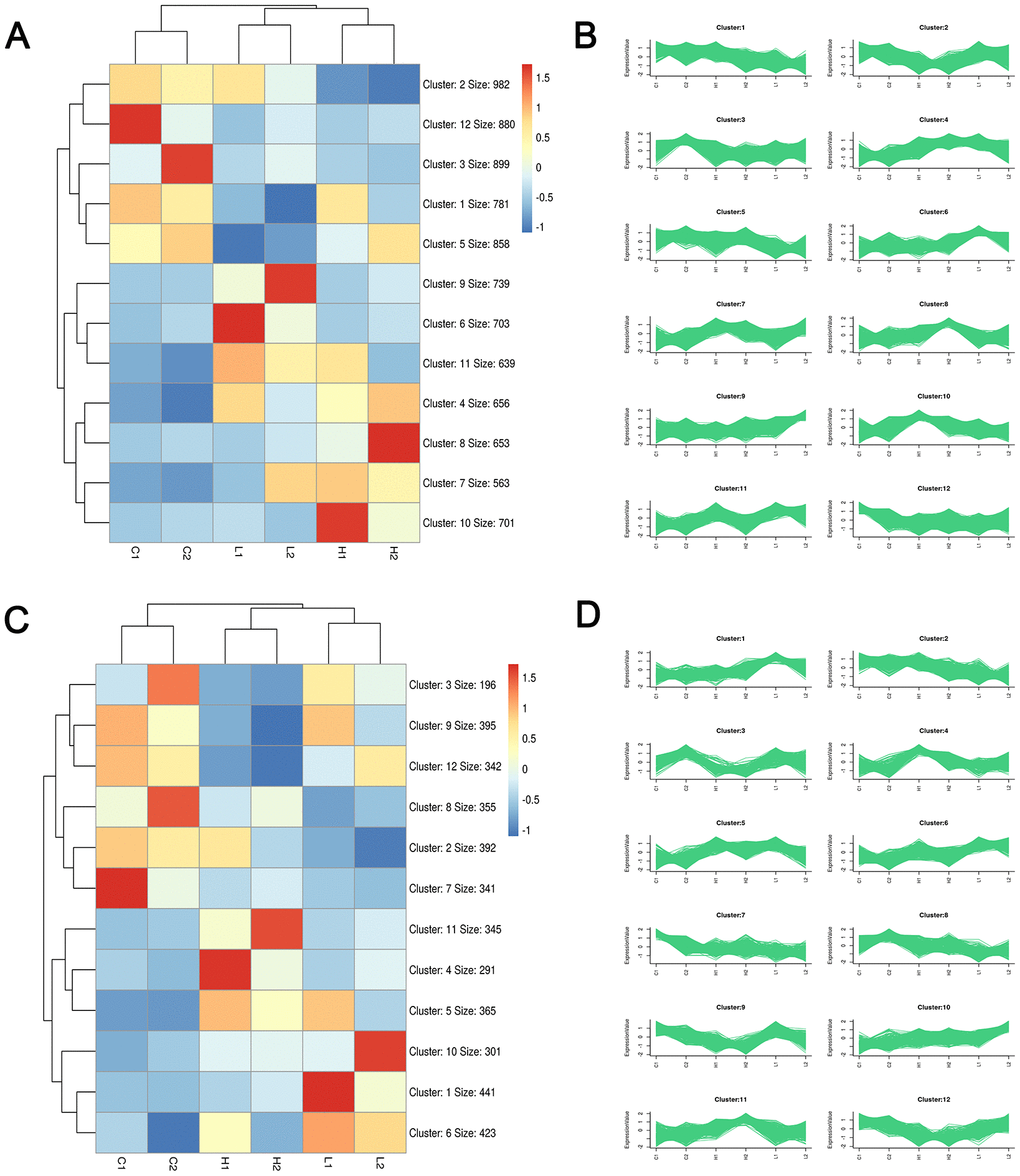

Figure 4. Clustering analysis plots based on Kmeans pattern recognition algorithm. Heatmap and sequence diagram of mRNA (A, B) and LncRNA (C, D) were obtained through EOC sample sequencing data analysis, respectively. Red, blue, and white colors respectively represent the relatively high, low, and equal expression.

Differential gene expression data collection

The sequencing results for the whole transcriptome revealed that set a and set B include 1101 and 1082 DEMs, respectively. Additionally, 390 differentially expressed lncRNAs (DELs) were screened out between the control and low groups and 361 between the control and high groups (p value <0.05). A heatmap and volcano maps of DEMs and DELs showed that these lncRNAs and mRNAs were significantly differentially expressed between the case and control samples (Figure 5). The EOC-associated mRNA expression data and clinical data for 451 samples were obtained from the TCGA database. After screening based on the cut-off criteria, we obtained 4463 DEMs (Supplementary Figure 2). In addition, we used GEO2R to compare samples with versus without metastases in GEO (GSE30587) and identified 1260 DEMs in this dataset.

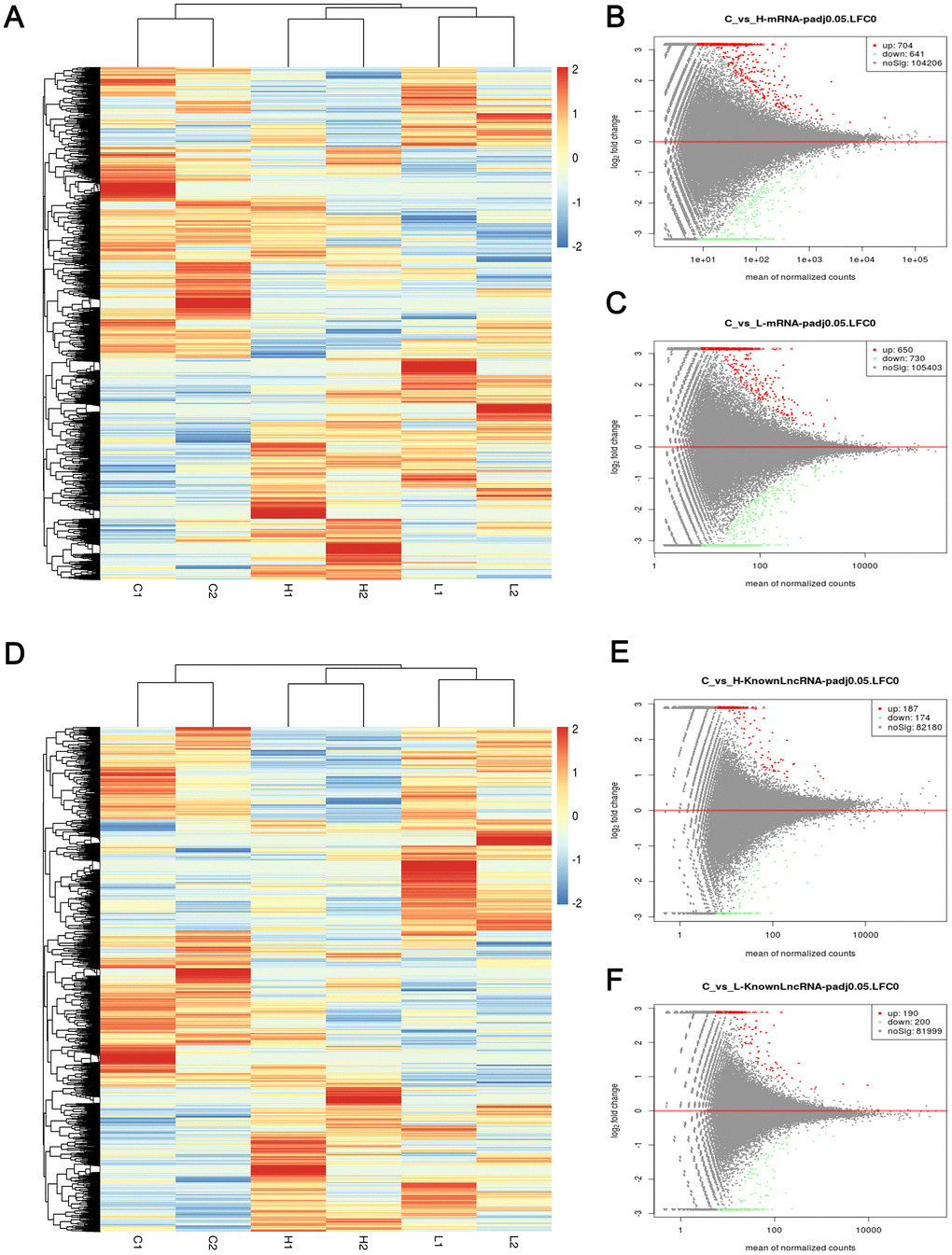

Figure 5. Heatmap and volcano maps of DEMs and DELs. (A) Heatmap based on mRNA sequencing data of 6 samples; (B, C) volcano maps based on mRNA sequencing data of group C versus group H (up-regulated:704, down-regulated: 641) and group C versus group L (up-regulated:650, down-regulated: 730); (D) Heatmap based on LncRNA sequencing data of 6 samples; (E, F) volcano maps based on LncRNA sequencing data of group C versus group H (up-regulated: 187, down-regulated: 174) and group C versus group L (up-regulated: 190, down-regulated: 200). Red, blue, and white colors respectively represent the relatively high, low, and equal expression in heatmap, while green, red, and black colors respectively represent relatively low, high, and equal expression in volcano maps. Group C, L and H represent control (6 kPa), low (1 kPa) and high (60 kPa) group, respectively.

Network construction and pathway enrichment of markers of EOC substrate stiffness

PPI network was performed after excluding redundant unassociated nodes, a network of 1101 DEMs between the control and low groups (917 nodes and 4735 edges) and 1082 DEMs between the control and high groups (800 nodes and 3738 edges) was constructed and analyzed (Figure 6A, 2B).

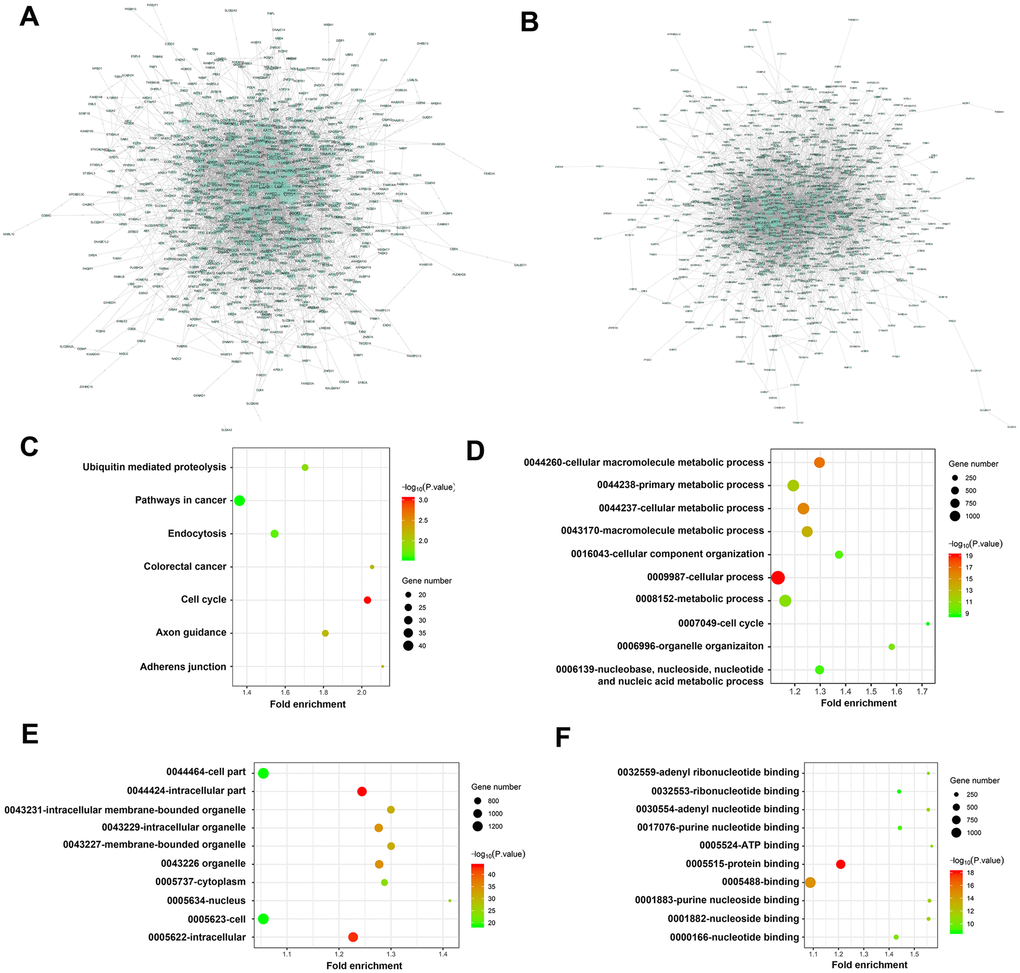

Figure 6. Visualization analysis of PPI network, KEGG pathways and GO terms. (A) Network of 1101 DEMs between C and L group (917 nodes and 4735 edges); (B) Network of 1082 DEMs between C and H group (800 nodes and 3738 edges); KEGG pathway enrichment was shown in (C) biological process, cellular component and molecular function terms were shown in D, E, F, respectively. The cutoff criterion was p < 0.05, and the first 10 pathways are shown. Group C, L and H represent control (6 kPa), low (1 kPa) and high (60 kPa) group, respectively.

Besides, the results of the KEGG pathway enrichment analysis showed that these DEMs were significantly enriched in cancer-associated pathways, demonstrating a high correlation with tumor progression (Figure 6C). The GO results showed that these DEMs were primarily involved in cell cycle and organelle organization at the biological process (BP) (Figure 6D) and cellular component (CC) levels, with the nucleus being the most significant category (Figure 6E). Additionally, at the molecular function (MF) level, adenyl ribonucleotide binding, adenyl nucleotide binding, ATP binding, purine nucleotide binding and nucleotide binding were significantly enriched (Figure 6F).

Identification and characteristic analysis of PLEC and TNS2 enriched in the focal adhesion signaling pathway

TNS2, PLEC and MGRN1 were identified through a Venn analysis (Figure 7A). To evaluate key cellular processes and signaling pathways associated with the changes in substrate stiffness, differential gene regulation was analyzed by GSEA. Interestingly, we observed that the differential regulation of PLEC and TNS2 was significantly enriched in the focal adhesion signaling pathway (Figure 7B, 7C), and the ES values of different trends also showed different expression patterns of the two genes. Focal adhesion is considered crucial in EOC because it not only regulates the internal environment but is also closely associated with EOC metastasis. Consequently, we focused further on focal adhesion in subsequent research examining the key targets TNS2 and PLEC.

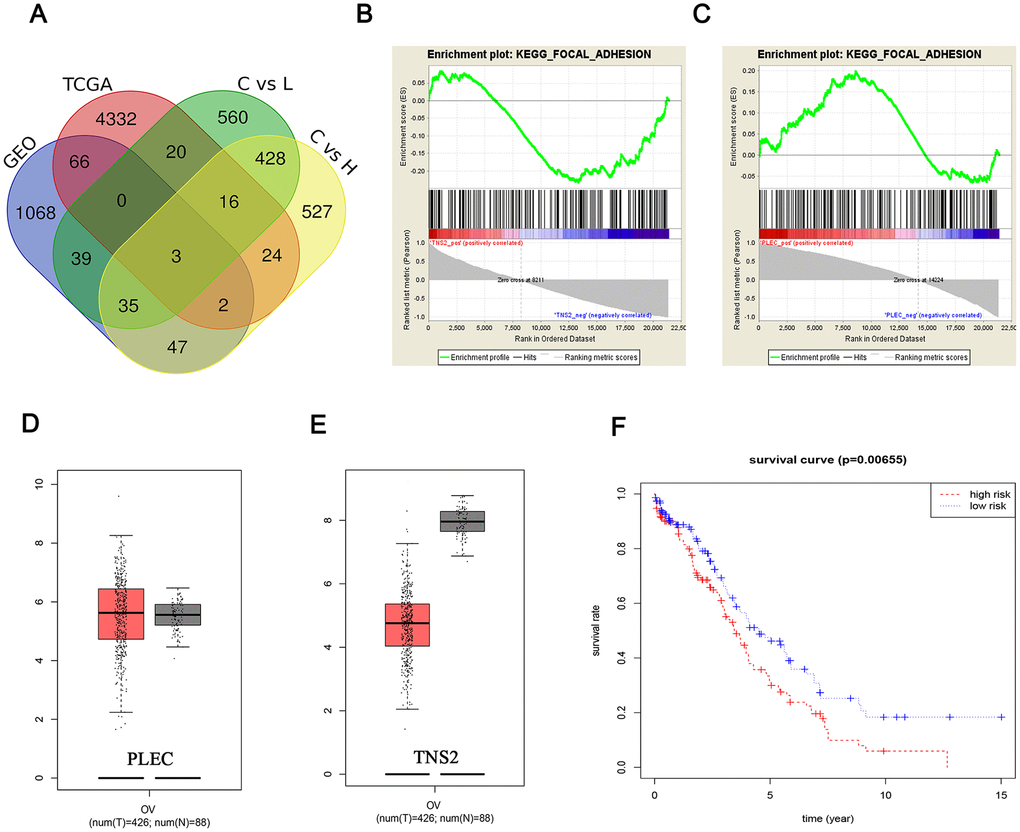

Figure 7. Fishing and characterization of key targets. (A) Venn diagram of the DEMs from four data arrays. A total of 3 significantly overlapping mRNAs were finally obtained; Identification of the enriched gene sets with GSEA analysis focused on a single gene as a phenotype in the merged microarray. Over-representation of negative TNS2 (B) and positive PLEC (C) were associated with focal adhesion pathway; PLEC (D) expression was upregulated in breast tumors compared with that in normal mammary tissues, while the TNS2 (E) expression was on the contrary. Red and black colors respectively represent tumor and normal samples. The total sample was 514, of which the number of tumor samples and normal samples were 426 and 88, respectively; (F) The differences of TNS2 and PLEC cor-survival trend between the high-risk and low-risk groups were determined by the log-rank test.

Based on analysis of sample data from the TCGA and GTEx databases (426 tumor and 88 normal) in GEPIA (http://gepia.cancer-pku.cn), the upregulated of PLEC and downregulation of TNS2 in tumor tissues was found, which further validated the expression trend of the GSEA results (Figure 7D, 7E). In addition, the risk trends of PLEC and TNS2 were summarized, and the clinical data were further integrated to explore the survival analysis. The results showed that the overall low risk resulted in a longer survival time of EOC patients (p value <0.05) (Figure 7F).

Determination of the regulatory relationship of lncRNA-mRNA targets based on coexpression and cis-trans analyses

Based on the related lncRNA and mRNA expression data, coexpression analysis was performed using the Pearson correlation. The results showed that 57 and 77 lncRNAs were highly correlated with TNS2 and PLEC, respectively (Supplementary Table 2, Figure 8A, 8B). Additionally, in another prediction mode of lncRNA-mRNA interaction pairs (cis and trans), 5 and 12 lncRNAs showed possible regulatory relationships with TNS2 and PLEC, respectively (Figure 8C, 8D). Interestingly, lncRNA NONHSAT061240 (lnc-ZNF136) was highly enriched in two regulatory modes, the details for which were obtained using the UCSC and LNCipedia databases, including the sequence information, length, exon number, and position, among others (Supplementary Table 3). Due to the novelty of this lncRNA, its disease correlation merits further characterization.

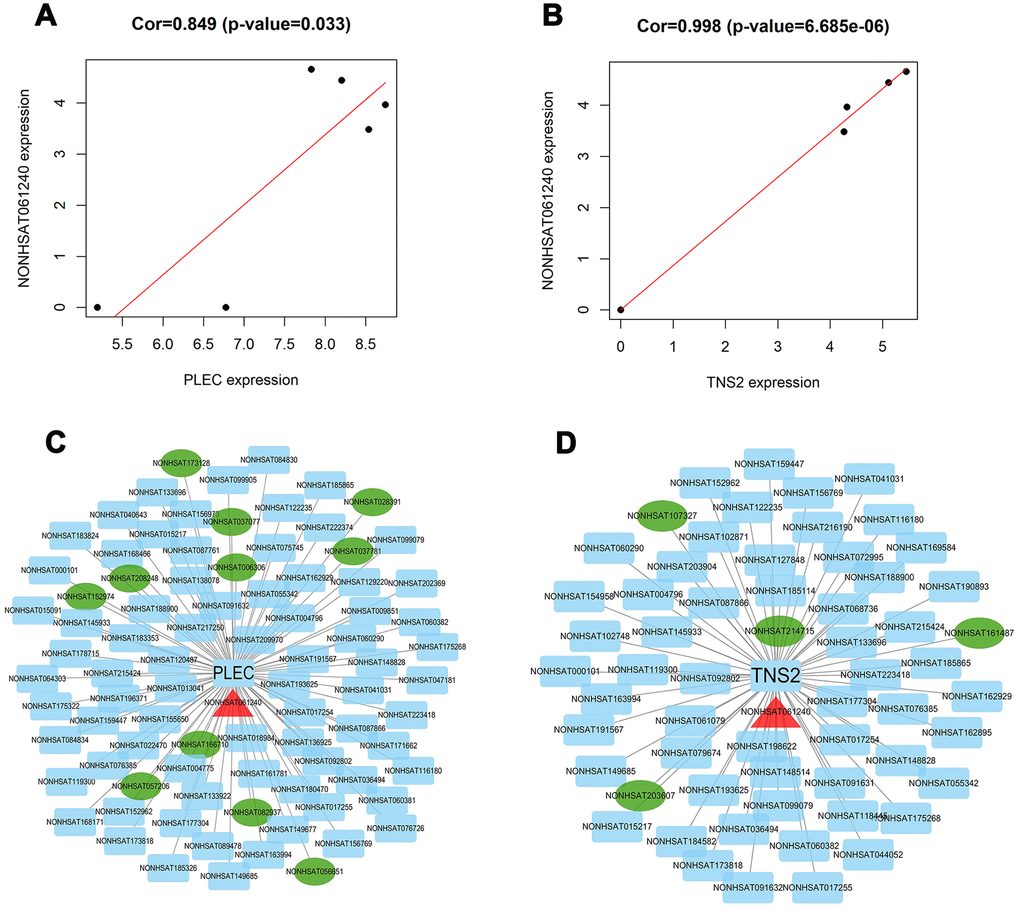

Figure 8. Identification of key lncRNAs associated with TNS2 and PLEC. (A, B) co-expression analysis was performed by using the Pearson correlation in R package. lncRNA NONHSAT061240 was found to be significantly associated with PLEC (score: 0.849) and TNS2 (score: 0.998); (C, D) Visualization network of two lncRNA-mRNA interaction pairs prediction mode. Except for TNS2 and PLEC at the center, the blue rectangle represents the associated LncRNAs obtained by the co-expression model, the green ellipse represents the associated LncRNAs obtained by the trans-cis model, and the red triangle represents the shared LncRNA.

Cell culture

The human epithelial ovarian cancer cell line SKOV-3 (ATCC) was maintained in a humidified incubator at 37°C under an atmosphere containing 5% CO₂ in McCoy’s 5A medium (Thermo Fisher Scientific) supplemented with 10% fetal bovine serum (FBS).

Preparation of polyacrylamide hydrogels

Treatment of bottom coverslips or glass bottom dishes

After sterilization with 70% ethanol, coverslips (48 or 22 mm) or glass bottom dishes (Cellvis) were incubated with 0.1 M NaOH at room temperature for 1 h and then washed 4×10 min with ddH₂O. Subsequently, the coverslips were incubated with 1% (v/v) 3-aminopropyltriethoxysilane (APTES; Johnson Matthey) at room temperature for 1 h, washed 2×10 min with ddH₂O, and then incubated with 1% glutaraldehyde for 1 h. Activated coverslips were either used immediately or stored under desiccation for up to 2 weeks. The treatment protocol for glass bottom dishes was similar to that used to treat coverslips except that APTES and 0.5% glutaraldehyde treatments were performed for 10-15 and 30 min, respectively.

Treatment of top coverslips

After being washed 3×5 min with ddH₂O, the top coverslips were incubated with dimethyldichlorosilane (Sigma-Aldrich) for 5 min and then dried with an appropriate paper.

Preparation of polyacrylamide gels

The polyacrylamide gels contained final concentrations of 3, 7.5 or 10% acrylamide and 0.1, 0.07 or 0.5% bis-acrylamide, which were chosen based on previously published values [24] to provide the desired Young’s elastic modulus values of 1, 6, or 60 kPa. Polymerization was initiated with 5 μl of 10% APS and 0.5 μl of N,N,N’,N’-tetramethyl-ethylenediamine (TEMED) in a final volume of 1 ml. Gels were cast onto activated bottom coverslips in glass bottom dishes by adding 400 μl of gel solution (for 48-mm coverslips) onto the activated surface, which was then overlaid with a smaller top coverslip (45 mm) that was also treated. Gels were allowed to polymerize for 15-20 min and then were soaked in ddH₂O for more than 4 h after removing the top coverslips. Subsequently, the gels were incubated with 0.2 mg/ml sulfosuccinimidyl 6-(4’azido-2’-nitrophenylamino) hexanoate (sulfo-SANPAH; Thermo Fisher Scientific) for 25 min at room temperature under a 365 nm UV light source. The activated gels were washed 3×2 min in 50 mM HEPES (pH 8.5) and then incubated with 200 μg/ml of collagen I (Sigma-Aldrich) at 4°C for 7 h, after which they were washed 3×2 min with PBS and either immediately used or stored at 4°C up to 1 week. This protocol was selected based on its successful use to support SKOV-3 cell growth on gels, as it has been previously reported that these cells do not adhere to uncoated gels or to gels coated with bovine serum albumin [25].

Immunofluorescence and confocal microscopy

SKOV-3 cells that had been grown on gels for 24 h were fixed in 4% formaldehyde in PBS for 10-15 min, washed 3×2 min with ddH₂O, blocked with PBS containing 1% BSA for 1 h at room temperature and then incubated with rhodamine phalloidin (1:40, Invitrogen) containing 1% BSA for 40 min at 37°C. After being washed with PBS, the cells were incubated with Hoechst 33342 (1:500, Invitrogen) containing 1% BSA for 20 min at room temperature, and images were then captured using a confocal laser scanning microscope (LSM-710, Carl Zeiss AG, Germany).

Cell morphological and stress fibers analysis

For the cell morphological analysis, cell counts were determined by staining the cytoplasm using CellTracker fluorescent probes (Thermo Fisher Scientific). Cell morphology was then evaluated using ImageJ (National Institutes of Health, Bethesda, MD, USA), including the area (A), circularity (4πA/perimeter²), and aspect ratio (long-axis length/short-axis length, under Fit Ellipse mode). Besides, number of actin stress fibers was analyzed based on the intensity calculated by ImageJ software.

Cell retrieval from hydrogels

After 24 h of cultivation, SKOV-3 cells were washed with PBS 2×30 sec on ice and then digested with 0.25% trypsin-EDTA for 5 min at 37°C to ensure the removal of cells from the hydrogels. The cells were then centrifuged and rinsed twice before performing additional analyses.

Data sequencing and extraction

Six groups of epithelial ovarian cancer cell samples for sequencing analysis, which were divided into the control group (C, 6 kPa, 2 samples), high group (H, 60 kPa, 2 samples) and low group (L, 1 kPa, 2 samples) with respect to the rigidity of hydrogels. For each sample, 3 μg RNA was used for RNA sample preparations. Ribosomal RNA was removed using Epicenter Ribo-Zero™ Gold kits (Human/Mouse/Rat/other) (Epicenter, USA). Subsequently, sequencing libraries were generated with different index labels using an NEBNext® Ultra™ Directional RNA Library Prep kit for Illumina (NEB, Ipswich, USA) following the manufacturer’s recommendations. For each library, the concentration of the input RNA was measured using a Qubit® RNA Assay kit with a Qubit® 2.0 fluorimeter for preliminary quantification before being diluted to 1 ng/μl. The insert size was assessed using an Agilent Bioanalyzer 2100 system (Agilent Technologies, CA, USA), and the qualified insert size was accurately quantified using a Taqman probe with the AB Step One Plus Real-Time PCR system (valid library concentration > 10 nM). The index-coded samples were clustered with a cBot cluster generation system using a TruSeq PE Cluster kit v4-cBot-HS (Illumina) according to the manufacturer’s instructions. After cluster generation, the libraries were sequenced on an Illumina platform, and 150-bp paired-end reads were generated.

Reads that included mRNAs and lncRNAs were mapped to the human genome using TopHat version 2.1.1 and HISAT2. Gene clustering analysis was performed using the kmeans pattern recognition algorithm based on R package ‘cluster’, and the comparability of each sample was judged by assessing the distribution of the gene clusters in the sample.

Besides, the gene expression and clinical data for EOC were downloaded from the TCGA database (https://cancergenome.nih.gov) and comprised 71 normal tissue samples and 380 tumor tissues. In addition, we conducted a systematic search of the GEO database (https://www.ncbi.nlm.nih.gov/gds) to identify EOC gene expression datasets with tumor metastasis. The gene expression data for GSE30587 (including 9 samples with and 9 samples without metastases) were obtained from the GEO database using “epithelial ovarian cancer” and “metastasis” as search keywords.

Data processing and differential analysis

The goal of transcriptome research is to compare the changes in the expression (reads) of specific genes under different conditions. Differential expression analysis was performed using the R package ‘DESeq’, and differential expression analysis of genes regulated by substrate stiffness was conducted based on the negative binomial distribution pattern. Statistical tests based on negative binomial distribution patterns, such as those developed by Simon Anders and Wolfgang Huber, can be used to determine whether changes in the number of reads are greater than the expected number reads due to random variation. Raw count data were prepared using a custom Perl script based on the results obtained using eXpress software and imported into the DESeq framework. Information regarding the experimental design was also imported into the DESeq framework to form a count data set. Filtering was conducted to remove transcripts in the lowest 40% quantile of the overall sum of counts (irrespective of the biological condition) to increase the differential expression transcript detection rate. The Size Factor function estimate was used to estimate the effective library size to normalize the transcript counts. The Dispersions function estimate was used to estimate dispersion. The binom test function was used to ascertain the differential expression between two conditions. The false discovery rate (FDR) was controlled using the Benjamini-Hochberg method at an FDR of 5%. Besides, the EdgeR package, which is also based on the negative binomial distribution pattern, was used to analyze the differential expression of the TCGA data and to identify differentially expressed mRNAs (DEMs). Furthermore, to identify the key targets associated with epithelial ovarian cancer metastasis, the online analytical tool GEO2R was used to screen DEMs between samples with versus those without metastases in the GEO database.

All three sets of data met the cut-off criteria of P < 0.05. Due to slight difference in mRNA expression in terms of both substrate stiffness and metastasis condition samples, |log2fold change (FC)| ≥ 2 was only used to screen the TCGA data. Through the limitation of three transcription data sets (sequencing, TCGA and GEO data), we can obtain specific targets for EOC metastasis caused by different substrate stiffness.

Protein-protein interaction (PPI) network construction and pathway enrichment analysis

Since proteins not only function individually but also cofunction with their interaction partners, an interaction network of genes was constructed and used for further causal studies. The Search Tool for the Retrieval of Interacting Genes (STRING) database is an online resource that provides protein-protein interaction (PPI) information by reporting both prediction and experimental observations. To analyze PPIs among the differentially expressed transcripts, we mapped the transcripts to nodes of PPIs in the STRING database (https://string-db.org/) via ID conversion. Interaction data were further evaluated using Cytoscape for visualization and bioinformatics analysis. Further, Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analysis, which based on DAVID database (https://david.ncifcrf.gov), revealed the biological functions and pathways of the DEMs.

Target searches for substrate stiffness and ovarian cancer metastasis

DEMs from the control vs low group and control vs high group comparisons were defined as set A and B, respectively, representing the key targets regulating substrate stiffness. Additionally, the DEMs screened from the TCGA were considered the key targets for regulating the occurrence and development of epithelial ovarian cancer and were defined as set C. DEMs screened from the GEO database were considered the key targets of epithelial ovarian cancer metastasis and were defined as set D. The differential mRNAs obtained by the intersection of the four sets were considered the direct regulatory markers regulating substrate stiffness and causing epithelial ovarian cancer metastasis.

Gene set enrichment analysis (GSEA) and characterization of key targets

Gene set enrichment analysis (GSEA) is a computational methodology used to identify key pathways and gene sets between key targets and potential biological mechanisms. In the present study, we used GSEA version 4.0, which was downloaded from the official website. The Pearson method was used to evaluate the correlation between the expression of each gene and key targets, after which gene sets and pathways were ranked according to the correlation score. Gene set permutation was run 1000 times per analysis, and the normalized enrichment score (NES) and nominal P value were used to identify the pathways enriched in every phenotype. We further studied the survival analysis and expression state of the key targets based on sample data from the TCGA and GTEx databases.

Coexpression method for the prediction of lncRNA-related mRNAs

To better evaluate the function of the relevant lncRNAs, we used the above key targets to predict and screen the lncRNA data. We identified lncRNAs that targeted key mRNAs and then analyzed the presence of any overlap among these lncRNAs. This step was performed based on coexpression analysis and trans-cis action mechanisms. LncRNAs can function within their neighboring genomic environment (in cis) and diffuse to distant sites of action (in trans), which is collectively known as the trans-cis action mechanism. Gene regulation may occur in cis or trans. We used the expression data and location information data for lncRNA and protein-coding genes to establish the lncRNA-mRNA action pair relationships. Additionally, the coexpression analysis used the Pearson correlation coefficient, which can directly reflect the linear correlation degree of the variables. The correlation test standard between lncRNA and differential mRNA expression was a p value <0.05.

Statistical analysis

Orange statistical software was used to quantitatively analyze the data. The data are presented as the means ± SD. One-way ANOVA was performed to determine the statistical significance of differences among 2 or 3 orientations. Statistical significance was also determined using Student’s t-test (SPSS 12.0) at 0.05, 0.01, 0.001 or 0.0001 probability levels.
