Morphine may act via DDX49 to inhibit hepatocellular carcinoma cell growth

Patients and tissue specimens

Eighty surgical specimens of HCC tissues and paired adjacent non-cancer tissues were obtained from patients with a mean age of 62 yr (SD, 10 yr) at the Tumor Hospital of Guangxi Medical University between January 2016 and June 2017. Tissue samples were frozen in liquid nitrogen and stored at -80° C. For the present study, HCC and normal liver tissues were confirmed by a pathologist.

Before surgery, patients had provided written informed consent for their clinical samples and medical data to be analyzed and published in an anonymized format for research purposes. The Ethics Committee approved the analysis of the surgical samples.

Cell culture and reagents

The liver cancer cell lines QGY-7703 and SMMC-7721 were obtained from the Cell Bank at the Shanghai Institutes for Biological Sciences of the Chinese Academy of Sciences (Shanghai, China). The cells were maintained in RPMI-1640 medium (Gibco, Carlsbad, CA, USA) supplemented with 10% fetal bovine serum (Gibco, Carlsbad, CA, USA), penicillin (100 U/ml), and streptomycin (100 μg/ml) at 37° C in a humidified chamber under 5% CO₂. Morphine hydrochloride was obtained from Humanwell Healthcare Group (Jiangsu, China).

Cell proliferation assay

We used a commercial MTT assay (Sigma, USA) to assess the proliferation of QGY-7703 cells and SMMC-7721 according to the manufacturer’s instructions. Cells (5×10³) were seeded into 96-well culture plates, allowed to attach, then exposed to morphine for 72 h. Cell survival was determined as described [8].

Wound healing assay

Cells (5x10⁵) were cultured in 6-well sterile plates in complete RPMI-1640 medium. When a confluent monolayer had formed, a sterile 200-μl pipette tip was used to make a scratch across the monolayer in the middle of the plate. At 24 h later, the cells that had moved into the wounded area were photographed under a microscope and analyzed using Image J. Each experiment was performed at least three times.

Transwell migration and invasion assays

For migration assays, transwell inserts (Corning, NY, USA) were inserted into a 24-well plate. QGY-7703 and SMMC-7721 cells (2×10⁴) were pretreated for 72 h with morphine at 0.01, 10, or 1000 μmol/L, then seeded into the upper chamber. Dulbecco’s modified Eagle medium supplemented with 10% FBS was added to the lower chamber as an attractant for the cancer cells. The culture plates were incubated at 37° C for 24 h. Cells that had migrated through the membrane into the lower chamber were fixed using 4% paraformaldehyde (Santa Cruz, USA), stained with 1% crystal violet (Shanghai Sangon Company, China), and imaged under a microscope (Olympus, Japan). Experiments were conducted three times.

For invasion assays, QGY-7703 and SMMC-7721 cells (2×10⁴) were placed into the upper chamber of transwells in which the membrane had been pre-coated with 50 μl Matrigel (BD, Franklin Lakes, NJ, USA). The plates were incubated for 36 h at 37° C, then processed in the same way as in migration assays.

Flow cytometry of cell cycle and apoptosis

For cell cycle assays, QGY-7703 and SMMC-7721 cells were pretreated with the indicated concentrations of morphine, then incubated for 30 min at 37° C with 10 μL of RNase A solution (250 μg/mL) and 0.1% Triton X-100. Flow cytometric analysis was conducted using the EPICS XL-MCL FACS system (Becton Dickinson, CA, USA). Data were analyzed using MultiCycle Software for Windows (Phoenix Flow Systems, CA, USA).

For apoptosis assays, QGY-7703 and SMMC-7721 cells were cultured for 24 h, then processed using the Annexin V/FITC Apoptosis Detection Kit (Jingmei Biotech, Shenzhen, China) according to the manufacturer’s instructions. Cells were analyzed using the EPICS XL-MCL system.

GeneChip analysis

Total RNA was isolated from QGY-7703 cells using TRIzol (Invitrogen, Carlsbad, CA, USA) according to the manufacturer's protocol. Probe synthesis, hybridizations, and analysis of microarray images were performed by Shanghai Genechem (Shanghai, China).

Lentivirus-mediated overexpression and knockdown of DDX49

Lentiviral plasmids encoding DDX49 (LV-DDX49-OE) or the antisense sequence to target 5'-AGGAGCAGATCAAGAAGAA-3' in the DDX49 gene (LV-DDX49-KD) were prepared by Shanghai Genechem. The antisense sequence knocked down DDX49 expression by at least 90% (data not shown) in QGY-7703 and SMMC-7721.

Efficiency of transfection was measured under a fluorescent microscope based on expression of GFP encoded in the lentiviral plasmids. Transfected cells were seeded into 96-well plate at a density of 2000 cells/well (100 μl per well) and incubated for 24 h at 37° C. The Celigo system (Nexcelom, Lawrence, USA) was then used to assay proliferation in each well every day for 5 days.

Western blot assays

Total protein was extracted from cell lines using RIPA buffer, and protein concentration was estimated using a commercial BCA kit (Beijing, China). An aliquot (35 μg per well) was fractionated by SDS-PAGE and blotted onto a nitrocellulose membrane. The membrane was blocked with 5% bovine serum albumin (BSA) for 30 min, then incubated overnight at 4° C with anti-DDX49 antibody (1:1000, CST, USA), followed by a secondary antibody (1:1000, CST, USA). Blots were immunostained with antibody against GAPDF (CST, USA) as a loading control. Immunostained blots were analyzed using an imaging system (Alpha Innotech, San Leandro, CA, USA).

Statistical analysis

Data were reported as mean ± standard error of the mean (S.E.M). Differences between two groups were assessed for significance using Student’s t test, while differences among more than two groups were assessed using one-way analysis of variance (ANOVA). Differences associated with p<0.05 were considered statistically significant. All statistical analyses were performed using SPSS 13.0 (IBM, Chicago, IL, USA).

Ethical approval

This study was carried out in accordance with the Guidelines for Human Specimens for Research in the Guangxi Zhuang Autonomous Region, from the Medical Ethics Committee of Guangxi Zhuang Autonomous Region. The study protocol was approved by the Tumor Hospital of Guangxi Medical University.

Morphine suppresses HCC cell proliferation, migration and invasion in vitro

Morphine inhibited growth of the two HCC cell lines QGY-7703 and SMMC-7721 in a dose- and time-dependent manner (Figure 1). At the lowest concentration of 0.01 μmol/L, morphine inhibited growth by 18% (P < 0.05), which rose to 40% at the highest concentration of 1000 μmol/L (P < 0.05). Morphine also significantly suppressed migration and invasion of both HCC cell lines (Figure 1).

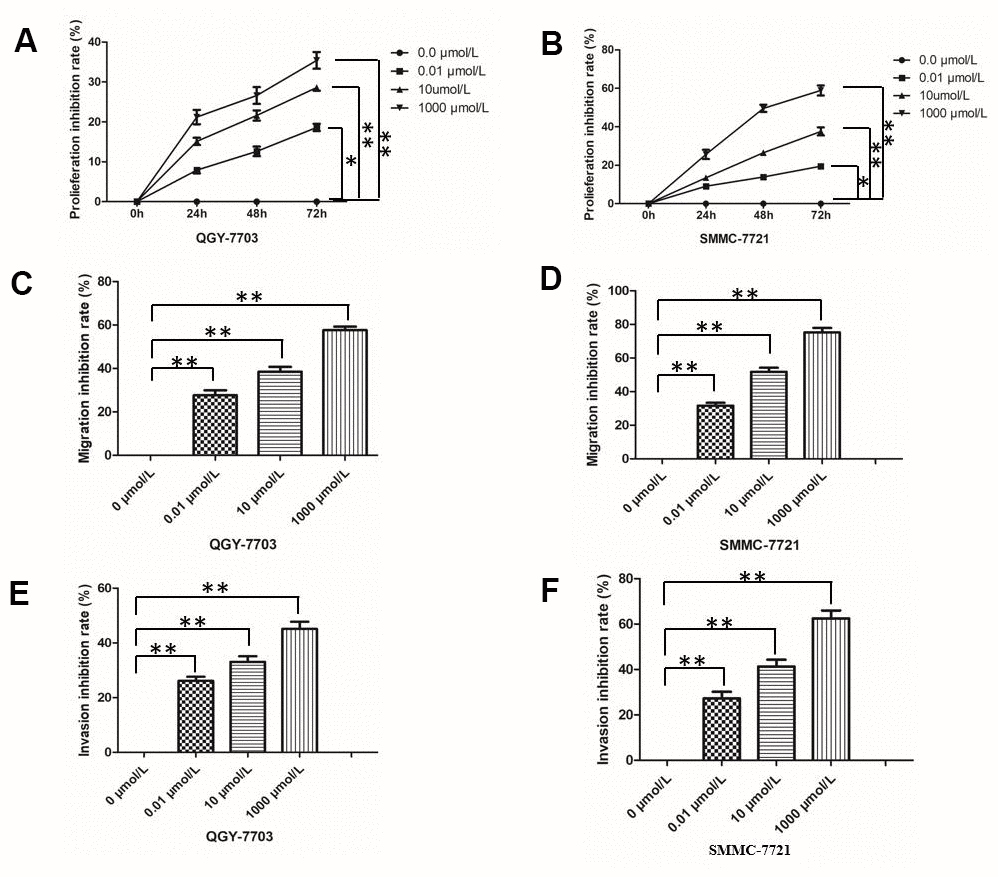

Figure 1. Effect of morphine on HCC cell proliferation, invasion and migration. The HCC cell lines QGY-7703 and SMMC-7721 were treated with morphine (0, 0.01,10, or 1000 μm/L) for 72 h. (A, B) Cell proliferation was assessed by MTT assay. (C, D) Migration of cells was assessed in a transwell assay. (E, F) Invasion by cells was assessed in a transwell assay. *P < 0.05, **P < 0.01.

Morphine arrests HCC cells in G0/G1 and promotes apoptosis in vitro

Morphine significantly reduced the percentage of QGY-7703 and SMMC-7721 cells in S phase and increased the percentage of cells in G0/G1, and these effects were dose-dependent (Supplementary Figure 1). At the same time, morphine (10μM) significantly promoted apoptosis.

Morphine affects the transcriptome of HCC cells in vitro

To begin to clarify how morphine may inhibit HCC cell growth, we compared the transcriptome of QGY-7703 cells before and after treatment with morphine using a GeneChip array. We identified 766 genes up-regulated and 311 genes down-regulated by morphine. Pathway enrichment analysis suggested that genes differentially expressed after morphine treatment were involved mainly in aminoacyl-tRNA biosynthesis; glycine, serine and threonine metabolism; natural killer cell-mediated cytotoxicity; and MAPK signaling (Figure 2).

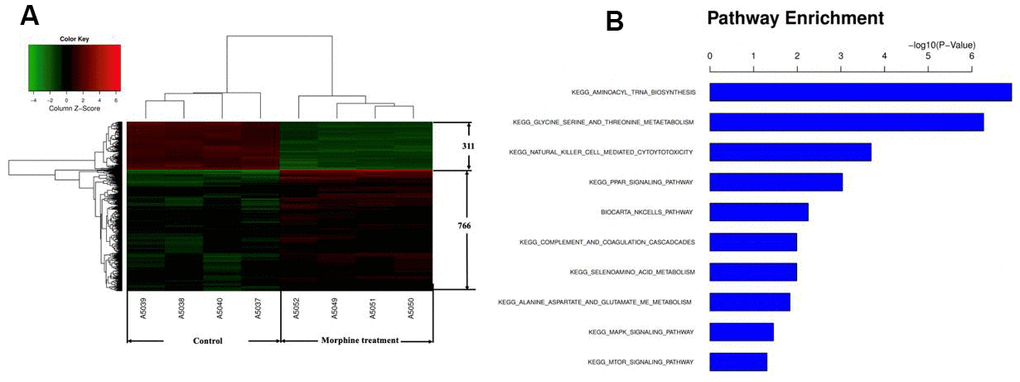

Figure 2. Genes differentially expressed in HCC cells in vitro after morphine treatment. QGY-7703cells were treated with morphine(10μM) for 48 h. (A) Identification of differential gene expression. (B) Enrichment of Kyoto Encyclopedia of Genes and Genomes pathways in differentially expressed genes.

DDX49 is down-regulated by morphine treatment of HCC cells in vitro

To identify genes through which morphine may exert its anti-HCC effects, we analyzed further the 20 most down-regulated genes, based on fold change (Supplementary Table 1). Celigo assay results showed that knocking down the DDX49 gene suppressed QGY-7703 proliferation by 2.07-fold relative to the negative control, while knocking down PNO1 suppressed proliferation by 1.63-fold (Figure 3). We focused on DDX49 in subsequent experiments because of its stronger effect.

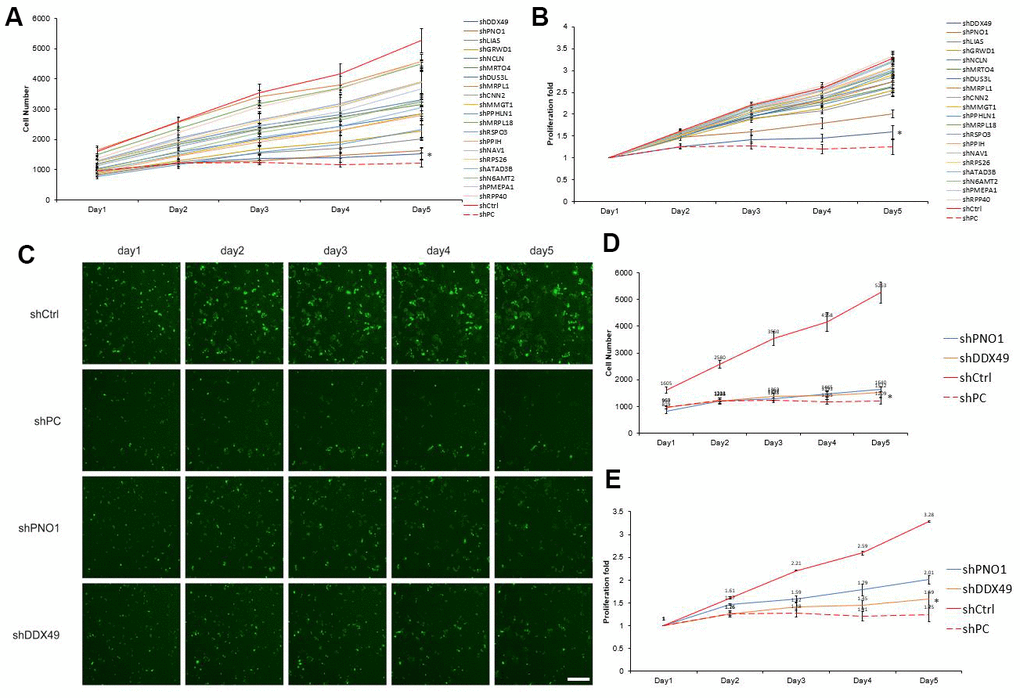

Figure 3. Screening of 20 differentially expressed genes for anti-HCC effects in vitro. (A, B) The 20 genes most down-regulated by morphine treatment were knocked down using lentivirus-delivered shRNA, and effects on QGY-7703 cell proliferation were examined. A) Shows the cells number after the 20 genes were knock down. B) Shows the cells proliferation fold changed after the 20 genes were knock down. (C–E) Cells were treated with a plasmid encoding a negative-control shRNA (shCtrl) or plasmids encoding shRNAs targeting PNO1 (shPNO1) or DDX49 (shDDX49). shPC as the protooncogene X specific-targeting shRNA. Then the cells were analyzed for five days by fluorescence microscopy, and the data were used to measure proliferation. Scale bar, 50 μm. *P < 0.01 compare to the control group.

Knocking down DDX49 inhibits HCC tumor growth in vivo

QGY-7703 cells were transfected with DDX49-shRNA or negative-control shRNA (control) and injected into nude mice. Analysis of tumor size after 6 weeks showed that knocking down DDX49 led to significantly smaller tumors (Figure 4A, P < 0.05).

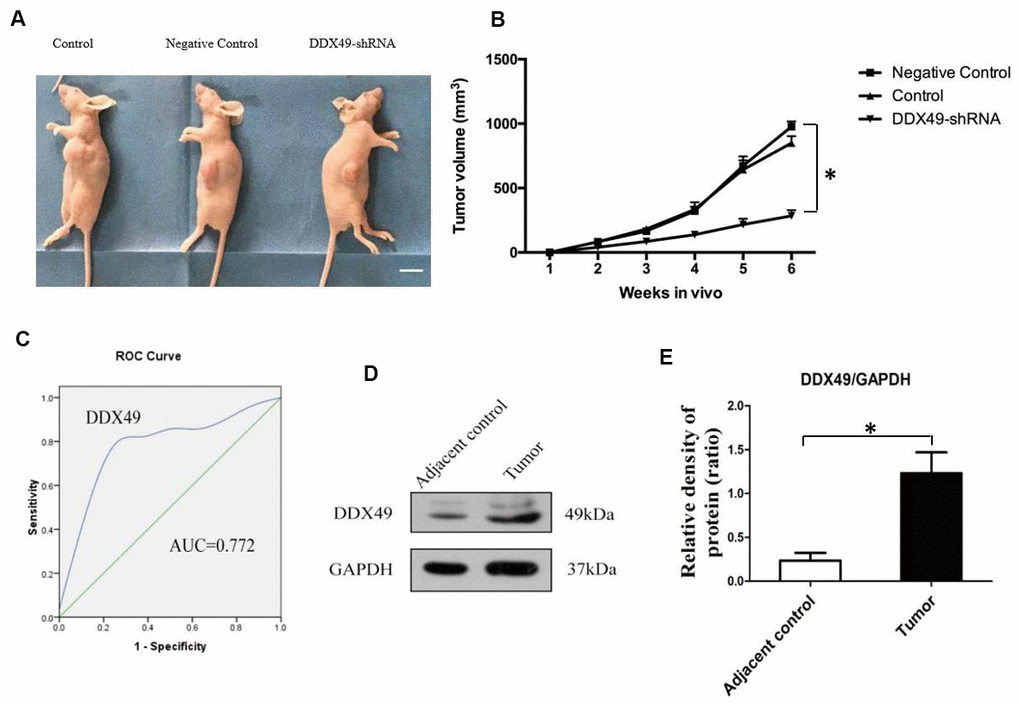

Figure 4. DDX49 expression and its effects on HCC xenografts in mice and HCC in patients. (A, B) QGY-7703 cells were transfected with DDX49-shRNA or negative-control shRNA, then injected into nude mice (N=8 animals/group). Control mice were nude mice inject with tumor cells. Scale bar, 1 cm. After 6 weeks, tumor volume was measured. (C) DDX49 expression in HCC patients was used to differentiate tumor tissue and normal liver tissue. (D, E) Western blot analysis of DDX49 in paired samples of tumor and normal liver tissue from HCC patients. *P < 0.01 compared to the control group.

DDX49 may regulate MAPK activity in HCC

MAPK signaling pathways often play a role in oncogenesis [9], and we found that genes differentially expressed in QGY-7703 cells after morphine treatment were enriched in the KEGG pathway of MAPK signaling. Both of MAPK and DDX49 are located in nucleus, so whether DDX49 have an impact on MAPK raised our interesting. Indeed, we found that knocking down DDX49 led to lower levels of phosphorylated MAPK (Figure 5C), which correlates with less MAPK-mediated signaling [9].

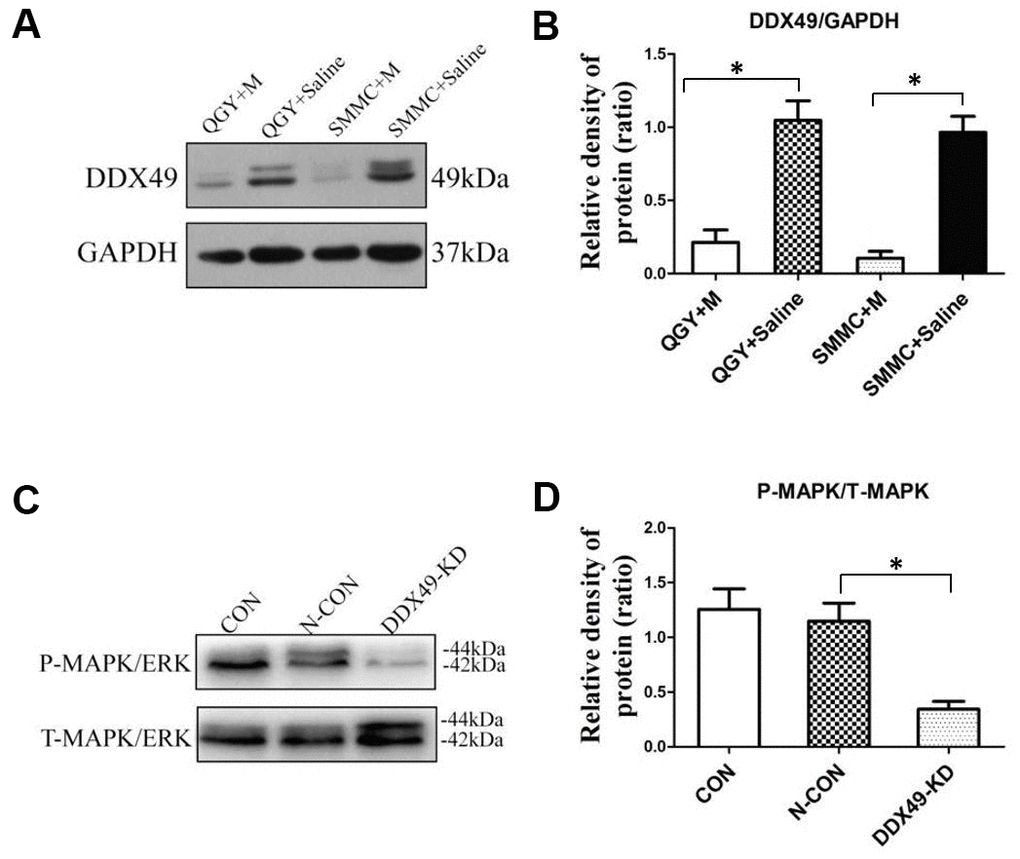

Figure 5. DDX49 expression after morphine treatment and its impact on MAPK signaling. QGY-7703 and SMMC-7721 cells were treated with morphine (10μM) or saline for 48 h. (A, B) Effect of morphine (10μM) on levels of DDX49 in QGY-7703 and SMMC-7721 cells. (C, D) Effect of DDX49 expression on levels of phosphorylated MAPK (P-MAPK) and levels of total MAPK (T-MAPK). *P < 0.01 compared to the respective control group. CON cells were derived cells without any treating. N- CON cells were knock down using negative control vector. DDX49-KD cells were knock down of DDX49 using lentivirus.

DDX49 is up-regulated in HCC tumors from patients

Comparison of paired tumor samples and normal liver tissue from patients with HCC in Barcelona Clinic Liver Cancer (BCLC) stage A showed that DDX49 levels were significantly higher in cancerous tissues (Figure 4D, 4E). Next we examined whether DDX49 might be useful as an HCC biomarker. The area under the receiver operating characteristic curve for differentiating tumor from normal liver tissue was 0.772 (P=0.037), giving sensitivity of 71.4% and specificity of 87.5% (Figure 4C). The Youden index was 0.589.

Morphine down-regulates DDX49 in HCC cells in vitro

Morphine (10μM) significantly down-regulated DDX49 in HCC cells (Figure 5A, P < 0.05).

Overexpressing DDX49 reverses the anti-HCC effects of morphine in vitro, while knocking down DDX49 reinforces them

To identify the functional role of DDX49 in HCC tumorigenesis, we infected QGY-7703 cells with either DDX49 overexpression vector (LV-DDX49-OE) or lentivirus mediated DDX49 silencing vector (LV- DDX49-KD) to increase or knock down the DDX49 expression, respectively. Then cells were treated with morphine for 48h. Overexpression of DDX49 in HCC cells reversed cell proliferation inhibition effects of morphine compare to negative control vector-transfected (Figure 6A). HCC cells with DDX49 knocking down showed significantly proliferation inhibition which was accessed by MTT assay. At day 5 DDX49 deletion inhibit cell growth up to 68.7% compare to the negative control (Figure 6A, P < 0.05).

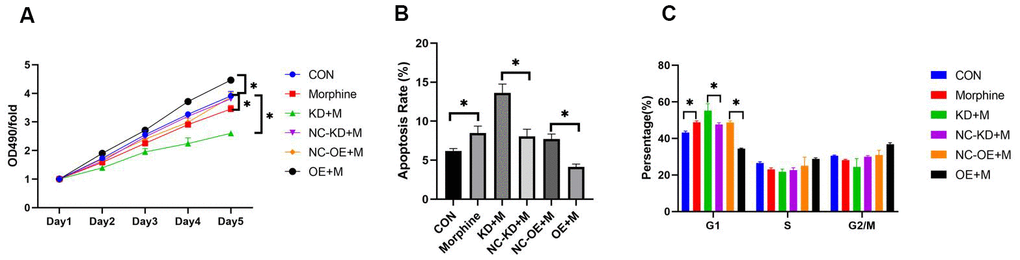

Figure 6. Effect of DDX49 on HCC cell lines treated with morphine. QGY-7703 cells were transfected with LV-DDX49-KD (KD) or LV-DDX49-OE (OE) or the corresponding negative control lentivirus (NC-KD, NC-OE), then treated with morphine (10μM) for 5 days. (A) Proliferation was assessed using the MTT assay. OD490, optical density at 490 nm. (B) Apoptosis rates in the different groups were assessed using flow cytometry. (C) Cell cycle in the different groups were assessed using flow cytometry. *P < 0.01 compared to the respective control group. CON cells were derived cells without any treating. Morphine QGY-7703 cells were treated with morphine (10μM) for 48h. NC-KD+M cells were knock down using negative control vector and treat with morphine for 48h. KD+M cells were knock down of DDX49 using lentivirus and treat with morphine for 48h; OE+M cells were transfected with over-expression of DDX49 lentivirus vector and treat with morphine with 48h; NC-OE+M cells were transfected over-expression of DDX49 negative control vector and treat with morphine for 48h.

To further study the role of morphine in the regulation of cell apoptosis, cells were treated with LV-DDX49-OE or LV- DDX49-KD. Cells with DDX49 over-expressing lentivirus decreased cell apoptosis compare to the negative control virus, P < 0.01. While cells with DDX49 knocking down increased cell apoptosis (Figure 6B). Compare with negative control vector-transfected group, knocking down of DDX49 increase the cells cycle arrest in G1. Whereas overexpressing DDX49 lentivirus decreased the cells cycle arrest in G1 (Figure 6C). There were no significant different between knocking down of DDX49 and negative control in the cells cycle of S, G2 and M. (Figure 6C).

Knocking down DDX49 inhibits colony formation by HCC cells in vitro

Knocking down DDX49 in QGY-7703 cells significantly reduced their ability to form colonies, while overexpressing DDX49 remarkably increased their ability to form colonies (Figure 7).

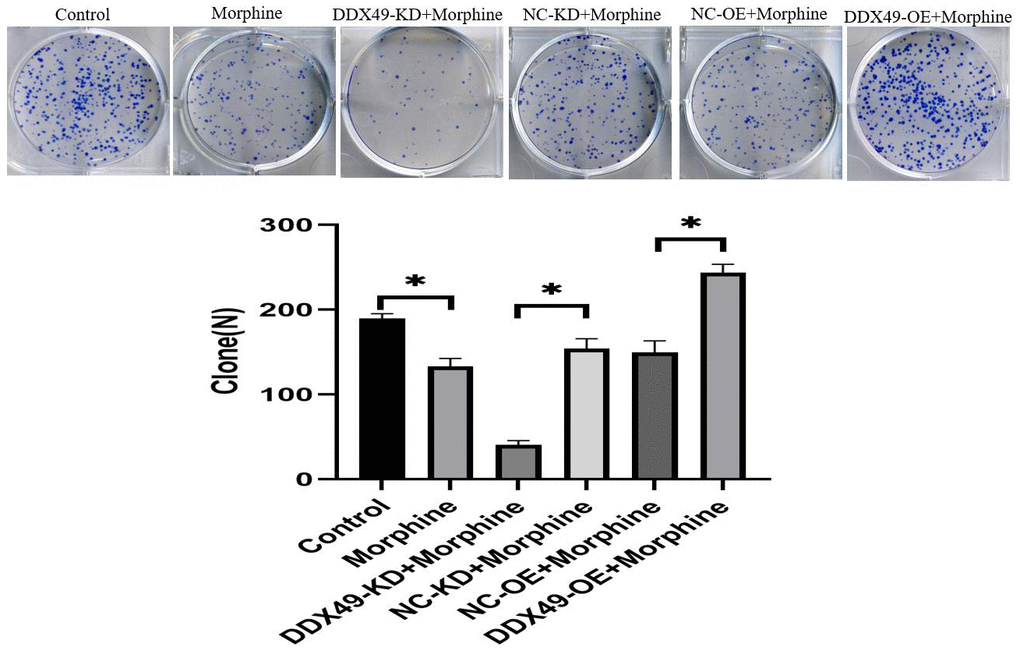

Figure 7. Effect of DDX49 on cell clone formation after HCC cells treat with morphine. Cell colony formation after DDX49 depletion/overexpression treat with morphine(10μM). Morphine QGY-7703 cells were treated with morphine (10μM) for 48h. *P < 0.01 compared to the respective control group.

Knocking down DDX49 inhibits HCC metastasis in vitro

Our data showed that DDX49 has a direct regulation on cell proliferation. This prompted us to investigate whether DDX49 has a regulation role in cancer metastasis. We subsequently investigated the migration and invasion of QGY-7703 cells following the DDX49 deletion or overexpression and then treat with morphine for 48h. We found that DDX49 deletion decreased cells migration (Figure 8) and invasion (Figure 9). Overexpressing DDX49 reversed the cells migration (Figure 8) inhibition effect of morphine, and analogical results can be observed in invasion assay (Figure 9). These data suggested that DDX49 may increase the capacity of migration and invasion in HCC cells.

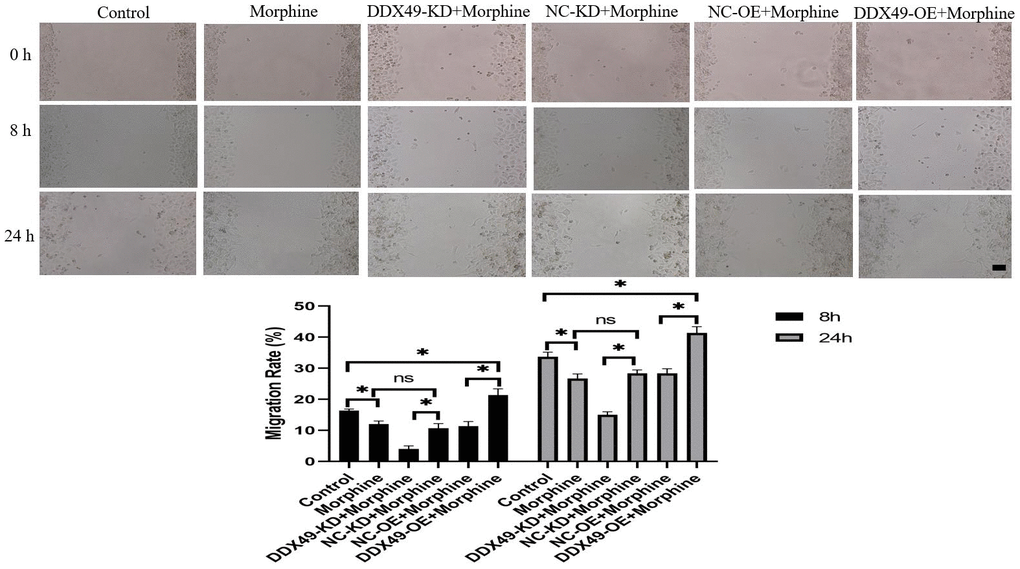

Figure 8. Effect of DDX49 on migration after HCC cells treat with morphine. Phase micrographs of migration HCC cells with DDX49 knock down or over expression in wound healing assay after exposure to morphine(10μM). Scale approximately 500 μm. Morphine QGY-7703 cells were treated with morphine (10μM) for 48h. *P < 0.05 compare to the respective control group. NS non-significant different.

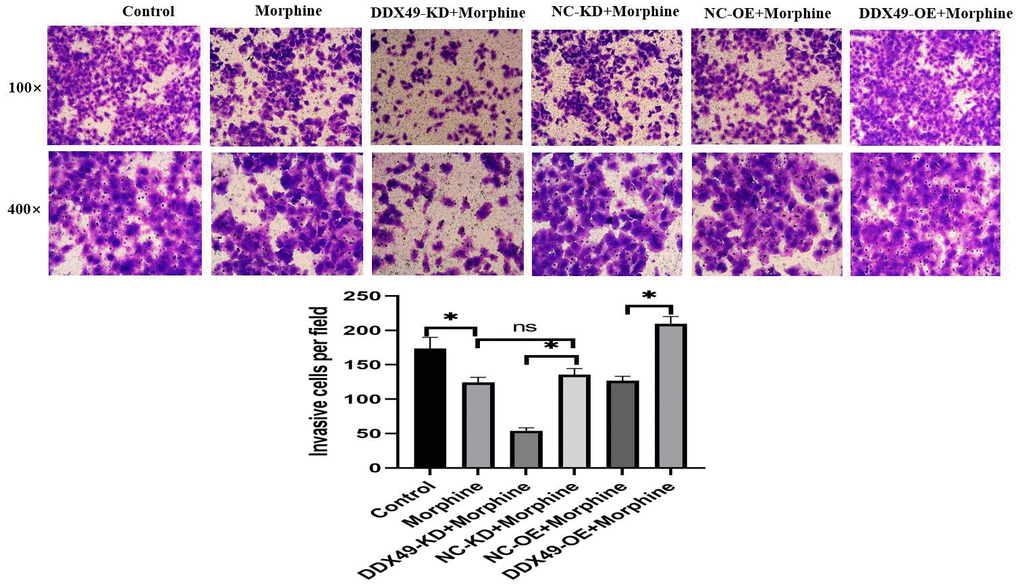

Figure 9. Effect of DDX49 on invasion after HCC cells treat with morphine. Phase micrographs of invading HCC cells with DDX49 knock down or over expression in Matrigel invasion assay after exposure to control or morphine. Morphine QGY-7703 cells were treated with morphine (10μM) for 48h. *P < 0.05 compare to the respective control group. NS non-significant different.

Statement of written informed consent

All authors of the study agreed to submit the manuscript to this journal.
