Hypoxic tubular epithelial cells regulate the angiogenesis of HMEC-1 cells via mediation of Rab7/MMP-2 axis

The expression of Rab7 was upregulated in HK-2 cells under hypoxia condition

To investigate the role of Rab7 in renal hypoxia in CKD, western blot was performed. As indicated in Figure 1A, 1B, the level of Rab7 was significantly upregulated in hypoxia-treated HK-2 cells than normoxia condition. Meanwhile, the expression of Rab7 in HK-2 cells was greatly downregulated by Rab7 silencing (Figure 1C, 1D). In addition, HK-2 cells were more sensitive to Rab7 shRNA1, compared with Rab7 shRNA2 or shRNA3 (Figure 1C, 1D). Thus, Rab7 shRNA1 was selected in further analysis. Furthermore, hypoxia-induced upregulation of Rab7 was significantly reversed by Rab7 shRNA1 (Figure 1E). Taken together, Rab7 was upregulated in HK-2 cells under hypoxia condition.

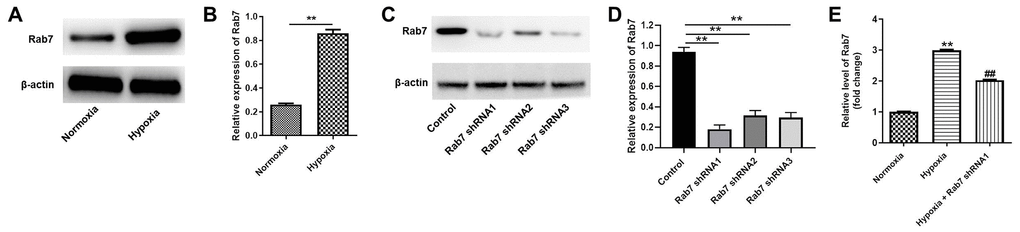

Figure 1. Rab7 expression was upregulated in HK-2 cells under hypoxia condition. HK-2 cells were maintained in normoxia or hypoxia condition. Then, (A, B) the protein expression of Rab7 in HK-2 cells was detected by western blot. β-actin was used for quantification. (C, D) HK-2 cells were transfected with Rab7 shRNA1, Rab7 shRNA2 or Rab7 shRNA3. The protein level of Rab7 in HK-2 cells was investigated by western blot. β-actin was used for quantification. (E) HK-2 cells in hypoxia condition were treated with Rab7 shRNA1. The level of Rab7 in HK-2 cells was tested by RT-qPCR. ^**P<0.01 compared to normoxia or control. ^##P<0.01 compared to Hypoxia.

Knockdown of Rab7 reversed hypoxia-induced inhibition of HMEC-1 cell proliferation

In order to detect the function of Rab7 in hypoxia-treated HK-2 cells, cells were cultured in hypoxia and normoxia, respectively. Then, the cell supernatant was collected and cultured in conditioned medium (CM). After that, HMEC-1 cells were maintained in CM. As demonstrated in Figure 2A, hypoxia notably inhibited the viability of HMEC-1 cells, while Rab7 shRNA1 obviously reversed this phenomenon. Consistently, the proliferation of HMEC-1 cells was significantly inhibited by hypoxia, while the anti-proliferative effect of hypoxia was rescued by knockdown of Rab7 (Figure 2B). Meanwhile, Rab7 knockdown could also increase the viability and proliferation of HMEC-1 cells under nomoxia condition (Figure 2A, 2B). Taken together, knockdown of Rab7 reversed hypoxia-induced inhibition of HMEC proliferation.

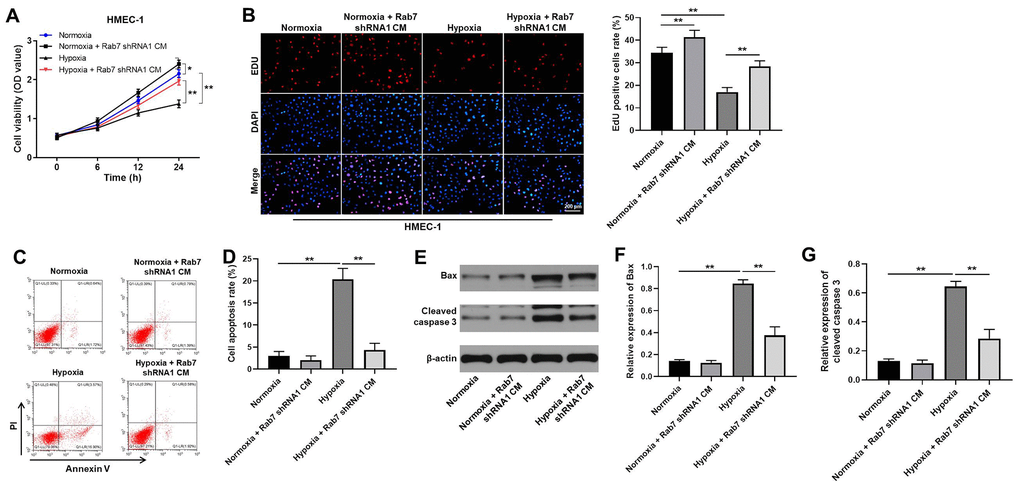

Figure 2. Knockdown of Rab7 reversed hypoxia-induced inhibition of HMEC-1 cell proliferation. In order to detect the function of Rab7 in hypoxia-treated HK-2 cells, cells were cultured in hypoxia and normoxia, respectively. Then, the cell supernatant was collected and cultured in conditioned medium (CM). After that, HMEC-1 cells were maintained in CM. (A) CCK-8 assay was performed to detect the viability of HMEC-1 cells. (B) The proliferation of HMEC-1 cells was tested by EdU staining. (C, D) The apoptosis of HMEC-1 cells was tested by flow cytometry. (E) The protein levels of Bax and cleaved caspase 3 in HMEC-1 cells were detected by western blot. (F, G) β-actin was used for quantification. ^*P<0.05, ^**P<0.01.

Rab7 silencing reversed hypoxia-induced decrease of cell migration and angiogenesis

For the purpose of detecting the cell migration, transwell assay was used. The data indicated that the migration of HMEC-1 cells was significantly decreased by hypoxia, which was markedly rescued by downregulation of Rab7 (Figure 3A). Consistently, hypoxia-induced decrease of angiogenesis was partially reversed in the presence of Rab7 silencing (Figure 3B). Moreover, hypoxia obviously inhibited the activity of MMP-2 in HMEC-1 cells, while this phenomenon was markedly restored by Rab7 shRNA1 (Figure 3C, 3D). Thus, these data revealed that Rab7 silencing reversed hypoxia-induced decrease of cell migration and angiogenesis.

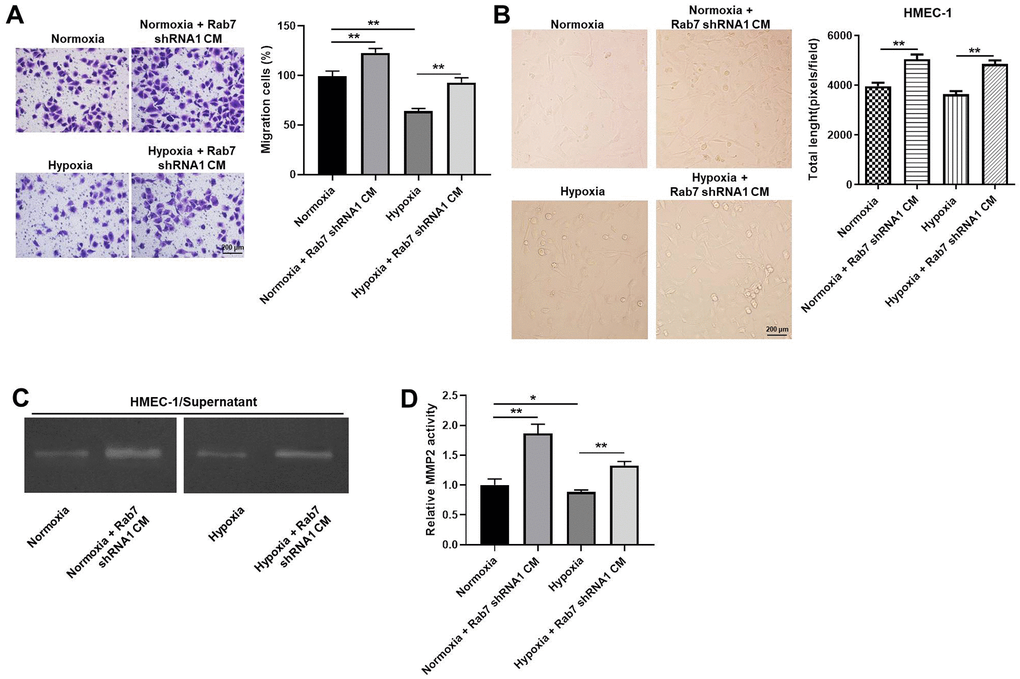

Figure 3. Rab7 silencing reversed hypoxia-induced decrease of cell migration and angiogenesis. (A) The migration of HMEC-1 cells was tested by transwell assay. (B) The angiogenesis of HMEC-1 cells was investigating by calculating the total length. (C, D) The MMP-2 activity in HMEC-1 cells was tested by Gelatin Zymography. ^*P<0.05, ^**P<0.01.

Rab7 silencing reversed hypoxia-induced decrease of MMP-2 activity via regulation of RECK, MMP-14 and Caveolin-1

To investigate the mechanism by which Rab7 reverses hypoxia-induced inhibition of HK-2 cell proliferation, western blot was used. As shown in Figure 4A, 4B, hypoxia significantly upregulated the expression of HIF-1α in HK-2 cells, In contrast, hypoxia-induced decrease of MMP-14 was significantly rescued in the presence of Rab7 knockdown (Figure 4A, 4C). Meanwhile, Rab7 knockdown obviously inhibited the levels of Caveolin-1 and RECK in normoxia/hypoxia-treated HK-2 cells (Figure 4A, 4D, 4E). In summary, Rab7 silencing reversed hypoxia-induced decrease of MMP-2 activity via regulation of RECK, MMP-14 and Caveolin-1.

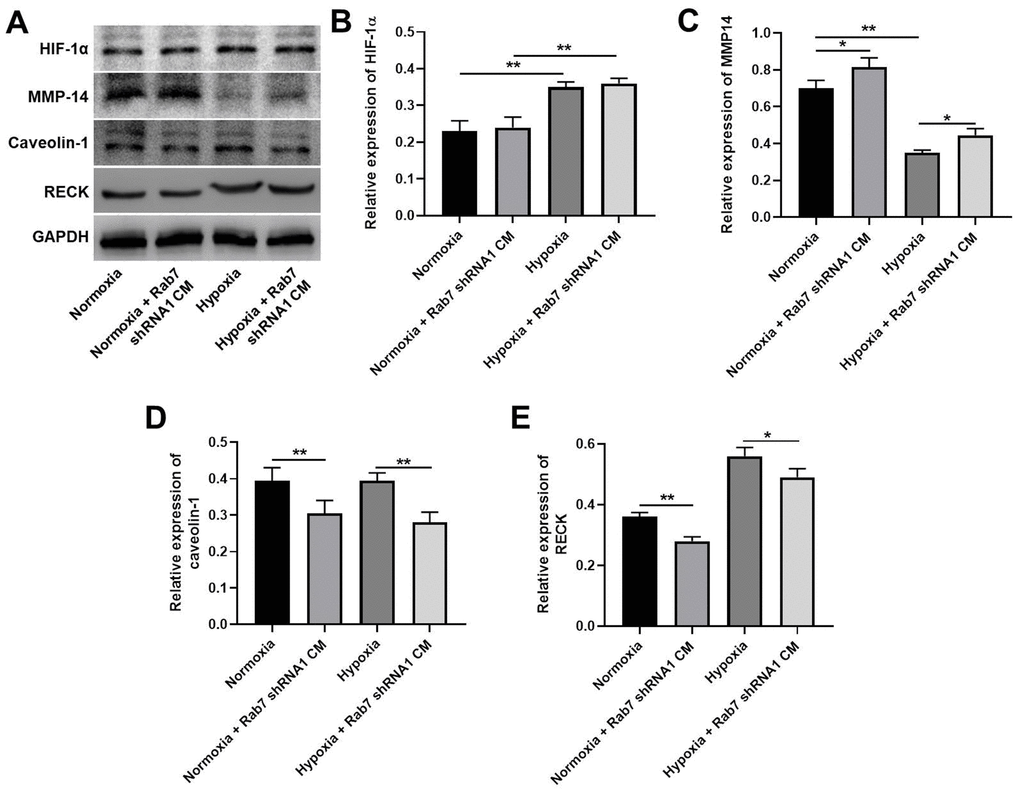

Figure 4. Rab7 silencing reversed hypoxia-induced decrease of MMP-2 activity via regulation of RECK, MMP-14 and Caveolin-1. (A) The protein levels of HIF-1α, MMP-14, Caveolin-1 and RECK in HMEC-1 cells were detected by western blot. (B–E) β-actin was used for quantification. ^*P<0.05, ^**P<0.01.

Rab7 shRNA1 reversed hypoxia-induced decrease of migration and angiogenesis in HMEC-1 cells via upregulation of MMP-2 activity

In order to investigate the correlation between Rab7 and MMP-2 in hypoxia-treated HMEC-1 cells, rescue experiments were performed. As revealed in Figure 5A, 5B, the activity of MMP-2 in normoxia/hypoxia-treated HMEC-1 cells was limitedly affected in the presence of Rab7 shRNA1 and ARP100. Consistently, Rab7 shRNA1 in combination with ARP100 had very limited effect on cell viability, migration and angiogenesis of normoxia/hypoxia-treated HMEC-1 cells (Figure 5C–5E). To sum up, Rab7 shRNA1 reversed hypoxia-induced decrease of migration and angiogenesis in HMEC-1 cells via upregulation of MMP-2 activity.

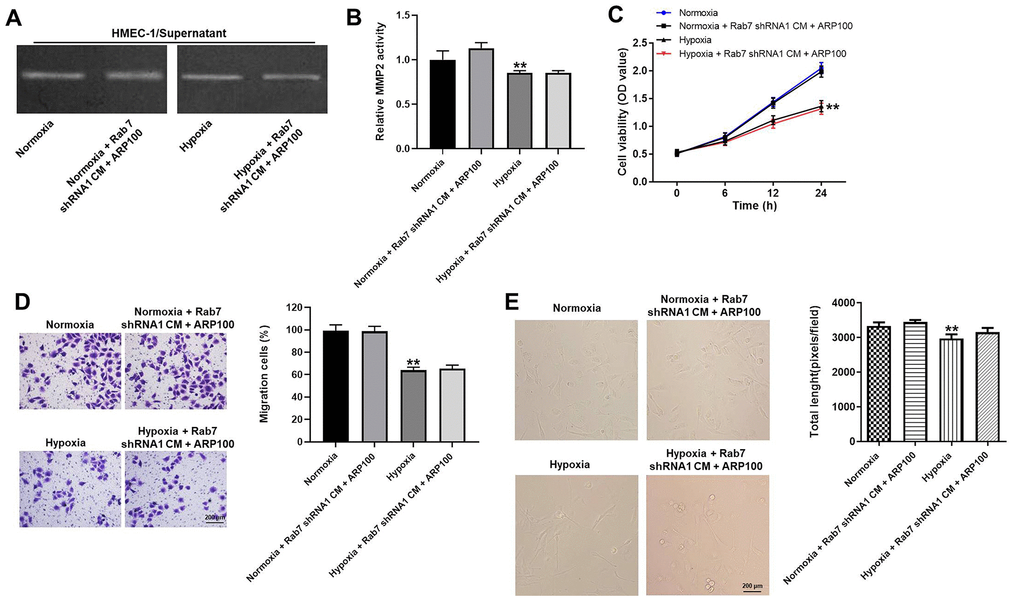

Figure 5. Rab7 shRNA1 reversed hypoxia-induced decrease of migration and angiogenesis in HMEC-1 cells via upregulation of MMP-2 activity. (A, B) The MMP-2 activity in HMEC-1 cells was tested by Gelatin Zymography. (C) The viability of HMEC-1 cells was tested by CCK-8 assay. (D) The migration of HMEC-1 cells was tested by transwell assay. (E) The angiogenesis of HMEC-1 cells was investigating by calculating the total length. ^**P<0.01 compared to normoxia.

Knockdown of Rab7 significantly alleviated the symptom of CKD in vivo

Finally, in vivo model of CKD was established to investigate the function of Rab7 in CKD in vivo. As revealed in Figure 6A, 6B, the relative level of Sirius red in kidney tissues of mice was significantly upregulated by CKD, while Rab7 knockdown reversed this phenomenon. In contrast, CKD-induced inhibition of CD34 level was partially rescued in the presence of Rab7 silencing (Figure 6A, 6B). Moreover, CKD significantly increased the levels of Rab7, RECK and inhibited the expression of MMP-14 in kidney tissues of mice, while Rab7 knockdown reversed these phenomena (Figure 6C–6F). However, Rab7 silencing did not affect CKD-induced upregulation of HIF-1α (Figure 6C, 6G). In summary, knockdown of Rab7 significantly alleviated the symptom of CKD in vivo.

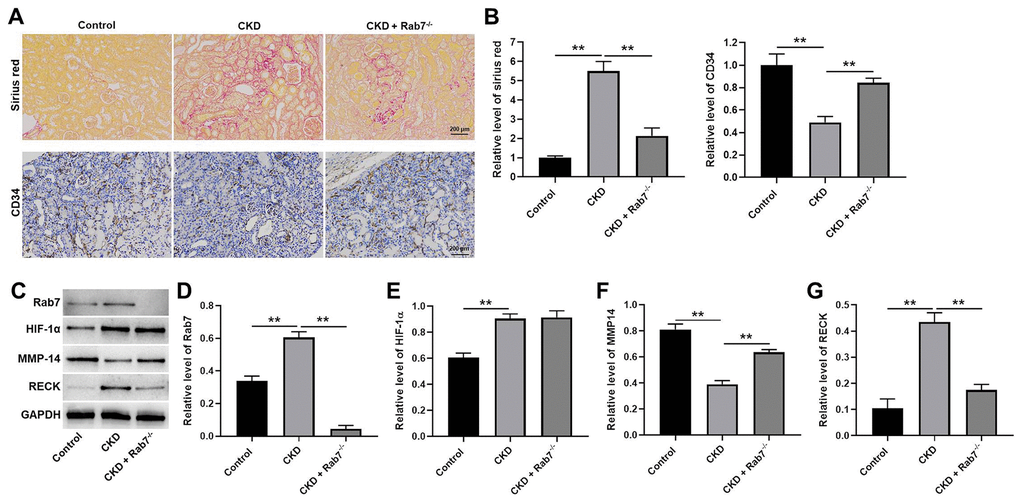

Figure 6. Knockdown of Rab7 significantly alleviated the symptom of CKD in vivo. (A, B) Sirius red staining was used to detect the fibrosis in kidney tissues of mice. The level of CD34 in kidney tissues of mice was detected by IHC staining. (C) The protein levels of HIF-1α, Rab7, MMP-14 and RECK in kidney tissues of mice were detected by western blot. (D–G) β-actin was used for quantification. ^**P<0.01.

Mice and reagents

Animal Care Committee of Southeast University (No. 2019101201) approved this study. Rab7 knockout mice were constructed by using CRISPR/Cas9 technology (SaiyeBiotechnology Co, LTD.). Wild-type mice (C57BL/6, 18-22 g) were bought from Qinglongshan Company (Nanjing, China). Mice were kept in a condition of SPF. Cyclosporine A (CsA, Chem Best, Shanghai, China) was diluted in sunflower oil (10 mg/ml, Arawana, Shanghai, China). Furosemide (10 mg/ml, ZhaoHui) was diluted in distilled water.

Experimental design

The mice were classified into Control, CKD and CKD + Rab7^-/- group. In order to induce chronic renal fibrosis, mice in were treated with 50 mg/kg furosemide 2 days before the experiment and then administrated with 25mg/kg CsA and 50mg/kg furosemide daily for 28 days (except control group). Control mice were administrated with saline for four weeks.

Finally, mice were sacrificed with the anaesthetization of pentobarbital (Xiya, Linyi, China). Kidney tissues of mice were obtained for the investigation of histology and western blot. The experiments were done in line with NIH guide.

Cell culture and treatments

HK-2 and 293T cell lines (human renal proximal tubular epithelial cell line) were obtained from the Chinese Academy of Sciences (Shanghai, China). HMEC-1 cells were obtained from Procell (Wuhan, China). HK-2 and 293T cells were maintained in medium (DMEM/F12, Gibco) containing FBS (10%, Gibco), streptomycin (100 μg/ml) and penicillin (100 U/ml, Gibco). In addition, the supernatants of HK-2 cells were collected and taken for conditioned medium (CM). HMEC-1 cells were cultured in CM. All cells were maintained in a condition of 37° C and 5% CO₂.

Cell transfection

Rab7 shRNA1 (Genepharma), shRNA2 (Genepharma) or shRNA3 (Genepharma) was packaged. After that, lentiviral vector DNAs were transfected into 293T cells including NC and lenti-Rab7 shRNAs. The supernatant was collected after cell transfection. Then, supernatants of three Rab7 shRNAs and negative control were filtered into particles. HK-2 cells were infected with lentiviral particles. Puromycin (2.5 μg/mL, Sigma Aldrich) was used to select the stable cells after incubation. Western blot was used to assess the transfection efficiency.

Reverse transcription quantitative polymerase chain reaction (RT-qPCR)

TRIzol (Invitrogen) was used to isolate RNA from cells. PrimeScript RT Kit (Invitrogen) was applied to synthesize First-strand cDNA. SYBR Green methods were used in RT-qPCR detection with an ABI7500 system. The experimental condition for RT-qPCR was as follows: 95° C for 2 min, 40 cycles at 95° C for 30 sec, 58° C for 30 sec and 72° C for 1 min. The primers originated from GenePharma. 2^-ΔΔCT method was used to quantify the data. β-actin was used for quantification. The primers were obtained from GenePharma (Shanghai, China). Rab7: forward, 5’-TCTGGAGTCGGGAAGACATC-3’ and reverse 5’-CTGTCCTGCTGTGTCCCATA-3’. β-actin: forward, 5’-TCACCCACACTGTGCCCATCTACGA-3’ and reverse 5‘-CAGCGGAACCGCTCATTGCCAATGG-3’.

In vitro angiogenesis assay

HMEC-1 cells (2×10⁵/ml) were cultured overnight. Subsequently, cells were incubated under hypoxic or normoxic condition for 2 h. Cell suspension (100 μL) was added to each well. Then, the tubule networks (capillary-like) were analyzed by investigating total length of the cells per field. The data was quantified by using Image J Software.

Western blot

RIPA was used to extract total protein from tissues or cells. BCA kit (Beyotime, China) was used to quantify the proteins. SDS-PAGE (10%) was used to separate the proteins, and proteins were then transferred into polyvinylidene fluoride (PVDF) membranes. Primary antibodies were used to incubate the membranes overnight after blocked with 3% skim milk for 1 h. After that, secondary antibody (anti-rabbit, Abcam; ab7090, 1:5000) was used to incubate the membranes for 1 h. ECL (Thermo Fisher Scientific) was used to measure the protein bands. The antibodies were as follows: anti-Rab7 (Proteintech; 55469-1-AP, 1:1000), anti-HIF-1α (Proteintech; 20960-1-AP, 1:1000), anti-Caveolin-1 (Proteintech; 16447-1-AP, 1:1000), anti-Bax (Abcam; ab32503, 1:1000), anti-cleaved caspase 3 (Abcam; ab32042, 1:1000), anti-MMP-14 (Bioworld; BS7040, 1:1000), anti-RECK (CST; #3433S, 1:1000) and anti-β-actin (Proteintech; 20536-1-AP, 1:1000). β-actin was used as an internal control.

CCK-8 assay

HK-2 cells, HK-2-Rab7^- cells were cultured under normal or hypoxic conditions, and the supernatants were collected and served as conditioned media. A hypoxia incubator (Thermo) was used to obtain a condition of hypoxic (5% CO₂, 94% N₂ and 1% O₂). HMEC-1 cells were cultured in condition medium. According to the types of conditioned media (CM), the cells (4 × 10³ cells/well) were divided into 6 groups (Normoxia, Hypoxia, Normoxia + Rab7 CM shRNA1, Hypoxia + Rab7 shRNA1 CM, Normoxia + Rab7 shRNA1 CM +ARP100 and Hypoxia + Rab7 shRNA1 CM +ARP100. After that, cells were exposed to CCK-8 (Beyotime, China) and incubated for another 2 h, OD values were assessed at 450nm by a micro plate reader.

Immunofluorescence

HMEC-1 cells were cultured in condition medium for 24h. After that, the cells were fixed with 4% par formaldehyde for 1 h, and then Triton X-100 (0.5%) was used to permeabilize the cells for 10 min. Nonspecific binding was blocked with sheep serum (10%, BOSTER). Primary antibodies against EdU (1:200) (Proteintech, China) was applied to incubate the cells overnight, and then the appropriate secondary antibody (1:1000, Thermo Fisher Scientific) was used to incubate the cells for 1 h. DAPI was used to stain the nuclei for 5 min. The result was observed by a microscopy (Olympus, Japan).

Transwell assay

Cells (2.5×10³) were plated into the upper chamber in medium containing 1% FBS. The lower chamber was supplemented with the medium containing 20% FBS. After incubation, the transwell chamber was rinsed, fixed. After that, 0.1% crystal violet was used to stain the chamber for 30 minutes. The migrated cells were observed under a microscope.

Gelatin zymography

After being cultured in the condition media for 24h, the endothelial cells were further cultured in free serum DMEM/F12 medium for 12h, and then the supernatants were collected. The activity of MMP-2 in the condition media and the supernatants of the endothelial cells were assessed by gelatin zymography (Applygen, China) [33]. The supernatants were collected after centrifugation and the content of protein in cell supernatants was detected by a BCA kit (Beyotime, China). The equal protein amount of supernatants (40μg) were separated by 8% poly acryl amide gel containing 0.1% bovine gelatin (Sigma, USA). After electrophoresis, the gel had been transferred to Triton X-100 solution (2.5%, 5 h) and then had been incubated in Tris-HCl buffer (pH 7.4) overnight. Coomassie Brilliant Blue R-250 (0.1%) was used to treat the gel. and white bands were visualized After the gel was destained in 30% methanol and 10% acetic acid, white bands were visualized. Finally, the data were analyzed by Image J Software.

Cell apoptosis detection

Cells were trypsinized, washed and re-suspended in Annexin V Binding Buffer. Then, cells were stained with FITC (5 μl, BD) and 5 μl propidium (PI, BD) in the dark for 15 min. Flow cytometer (BD) was used to analyze the cells.

Sirius red staining

After euthanasia, the kidney tissues were quickly removed, and kidney portion of samples were removed and frozen. Par formaldehyde (4%) was used to fix the remaining kidney tissues, and then tissues were embedded and sectioned. Sirius red staining was used to evaluate renal fibrosis in different groups.

Immunohistochemistry stain

Tissues were fixed in 4% paraformaldehyde overnight, paraffin-embedded, and cut into sections (5-μm-thick). After sections were deparaffinized and rehydrated, they were heated for antigen retrieval. Next, sections were washed for 5 min, and 3% H₂O₂ was used to incubate the samples for 25 min. Then, samples were blocked and incubated for 30 min after washed for 5 min. Afterwards, primary antibodies (anti-CD34, 1:400; Proteintech, Rosemont, IL, USA) were applied to stain the samples overnight. Samples were then incubated with secondary antibody (HRP-labeled) for 30 min. Color was developed by DAB. The antibodies were bought from Abcam. The tissues were observed under a fluorescence microscope.

Statistical analysis

Three independent experiments were done in each group, and mean ± standard deviation (SD) was applied to represent the data. Student’s t-test (only 2 groups) or one-way analysis of variance (ANOVA) followed by Tukey’s test (more than 2 groups, Graphpad Prism7) was applied to analyze the differences between different groups. P<0.05 suggested a great change.

Ethical statement

The protocols for animal care and use of laboratory animals were in accordance with Medical School of Southeast University (No. 2019101201). All in vivo experiments were performed in accordance with National Institutes of Health guide for the care and use of laboratory animals.
