Age-related alterations of brain metabolic network based on [18F]FDG-PET of rats

Results

Differences in metabolic connectivity of the brain metabolic networks of aged and young rats

All of the rat brain regions included in the study are listed in Table 1. The group-level metabolic correlation matrix is shown in Figure 1 (A, the aged group; B, the young group). Compared to young rats, significantly decreased metabolic connectivity between regions related to visual (left visual cortex, right visual cortex), auditory (right auditory cortex), and olfactory (right entorhinal cortex) senses, as well as significantly increased metabolic connectivity between limbic brain regions (right raphe, left raphe, right nucleus accumbens core, right nucleus accumbens shell), were observed in aged rats (Table 2 and Figure 1). All significance tests were conducted at the threshold p < 0.001 without correction.

Table 1. All of the rat brain regions included in the study.

No.	Brain regions	Abbreviation	No.	Brain regions	Abbreviation
1	Nucleus Accumbens Core_R	AcbC_R	49	Nucleus Accumbens Core_L	AcbC_L
2	Nucleus Accumbens Shell_R	AcbSh_R	50	Nucleus Accumbens Shell_L	AcbSh_L
3	Amygdala_R	Amy_R	51	Amygdala_L	Amy_L
4	Bed Nucleus of the Stria Terminalis_R	BNST_R	52	Bed Nucleus of the Stria Terminalis_L	BNST_L
5	Caudate Putamen_R	CPu_R	53	Caudate Putamen_L	CPu_L
6	Corpus Collosum_R	CoC_R	54	Corpus Collosum_L	CoC_L
7	Cortex- Auditory_R	Aud_R	55	Cortex- Auditory_L	Aud_L
8	Cortex- Cingulate_R	CiC_R	56	Cortex- Cingulate_L	CiC_L
9	Cortex- Entorhinal_R	EC_R	57	Cortex- Entorhinal_L	EC_L
10	Cortex- Frontal Association_R	FrA_R	58	Cortex- Frontal Association_L	FrA_L
11	Cortex- Insular_R	In_R	59	Cortex- Insular_L	In_L
12	Cortex-Medial Prefrontal_R	mPFC_R	60	Cortex-Medial Prefrontal_L	mPFC_L
13	Cortex- Motor_R	M1_R	61	Cortex- Motor_L	M1_L
14	Cortex- Orbitofrontal_R	OFC_R	62	Cortex- Orbitofrontal_L	OFC_L
15	Cortex- Parietal Association_R	ParA_R	63	Cortex- Parietal Association_L	ParA_L
16	Piriform Cortex_R	PC_R	64	Piriform Cortex_L	PC_L
17	Cortex- Retrosplenial_R	RSC_R	65	Cortex- Retrosplenial_L	RSC_L
18	Cortex- Somatosensory_R	S1_R	66	Cortex- Somatosensory_L	S1_L
19	Cortex- Temporal Association_R	TeA_R	67	Cortex- Temporal Association_L	TeA_L
20	Cortex- Visual_R	V1_R	68	Cortex- Visual_L	V1_L
21	Diagonal Band_R	DB_R	69	Diagonal Band_L	DB_L
22	Globus Pallidus_R	GPa_R	70	Globus Pallidus_L	GPa_L
23	Antero-Dorsal Hippocampus_R	adHIP_R	71	Antero-Dorsal Hippocampus_L	adHIP_L
24	Posterior Hippocampus_R	pHIP_R	72	Posterior Hippocampus_L	pHIP_L
25	Postero-Dorsal Hippocampus_R	pdHIP_R	73	Postero-Dorsal Hippocampus_L	pdHIP_L
26	Hippocampus Subiculum_R	sHIP_R	74	Hippocampus Subiculum_L	sHIP_L
27	Ventral Hippocampus_R	vHPC_R	75	Ventral Hippocampus_L	vHPC_L
28	Lateral Hypothalamus_R	LH_R	76	Lateral Hypothalamus_L	LH_L
29	Medial Hypothalamus_R	MH_R	77	Medial Hypothalamus_L	MH_L
30	Internal Capsule_R	Ic_R	78	Internal Capsule_L	Ic_L
31	Interstitial Nucleus of the Posterior Limb of the Anterior Commissure_R	IPAC_R	79	Interstitial Nucleus of the Posterior Limb of the Anterior Commissure_L	IPAC_L
32	Medial Geniculate_R	MG_R	80	Medial Geniculate_L	MG_L
33	Mesencephalic Region_R	MR_R	81	Mesencephalic Region_L	MR_L
34	Olfactory Nuclei_R	ON_R	82	Olfactory Nuclei_L	ON_L
35	Olfactory Tubercle_R	OT_R	83	Olfactory Tubercle_L	OT_L
36	Periaqueductal Grey_R	PAG_R	84	Periaqueductal Grey_L	PAG_L
37	Pons_R	Pons_R	85	Pons_L	Pons_L
38	Raphe_R	Raphe_R	86	Raphe_L	Raphe_L
39	Septum_R	Septum_R	87	Septum_L	Septum_L
40	Substantia Innominata_R	SI_R	88	Substantia Innominata_L	SI_L
41	Substantia Nigra_R	SN_R	89	Substantia Nigra_L	SN_L
42	Superior Colliculus_R	SC_R	90	Superior Colliculus_L	SC_L
43	Dorsolateral Thalamus_R	DLT_R	91	Dorsolateral Thalamus_L	DLT_L
44	Dorsal Midline Thalamus_R	dMT_R	92	Dorsal Midline Thalamus_L	dMT_L
45	Ventromedial Thalamus_R	VMT_R	93	Ventromedial Thalamus_L	VMT_L
46	Ventral Pallidum_R	VP_R	94	Ventral Pallidum_L	VP_L
47	Ventral Tegmental Area_R	VTA_R	95	Ventral Tegmental Area_L	VTA_L
48	Zona Incerta_R	ZI_R	96	Zona Incerta_L	ZI_L

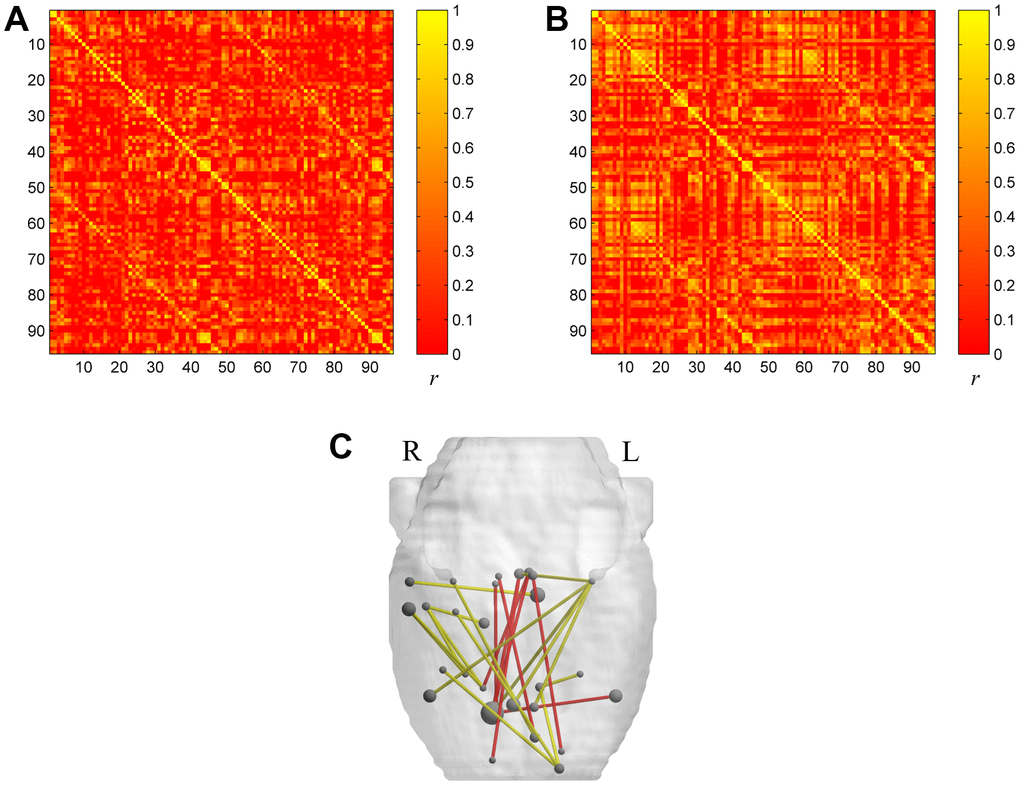

Figure 1. The metabolic brain networks of the two groups (A for the aged group and B for the young group). The color bar indicates the Pearson correlation coefficient between each pair of brain regions. The rank and row successively represent the 96 brain regions (Table 4). (C) The 3D Figure represents metabolic connections with significant differences between the two groups. Metabolic connections are overlaid on an anatomical map using nodes and edges. The red line shows significantly increased metabolic connectivity in the aged group (p<0.001) compared with the young group. The yellow line shows significantly reduced metabolic connectivity in the aged group (p<0.001) compared with the young group.

Table 2. Significant differences in metabolic connectivity between regions.

Aged group < young group				Aged group > young group
Brain region	Brain region	P values		Brain region	Brain region	P values
V1_L	AcbC_R	<0.001		Raphe_R	AcbC_R	<0.001
V1_L	CiC_R	<0.001		Raphe_R	ON_R	<0.001
V1_L	CiC_L	<0.001		Raphe_L	AcbC_R	<0.001
V1_L	Raphe_R	<0.001		Raphe_L	VP_R	<0.001
V1_L	In_R	<0.001		AcbSh_R	MR_R	<0.001
V1_R	mPFC_L	<0.001		AcbSh_R	In_L	<0.001
Aud_R	IPAC_R	<0.001		SC_R	mPFC_L	<0.001
Aud_R	VP_R	<0.001		OFC_L	PAG_L	<0.001
EC_R	IPAC_R	<0.001
EC_R	VP_R	<0.001
EC_R	ZI_R	<0.001
FrA_L	S1_R	<0.001
FrA_L	ParA_R	<0.001
FrA_L	DB_L	<0.001
TeA_R	VTA_L	<0.001
DB_L	IPAC_L	<0.001
V1, Cortex- Visual; AcbC, Nucleus Accumbens Core; CiC, Cortex- Cingulate; In, Cortex- Insular; mPFC, Cortex-Medial Prefrontal; IPAC, Posterior Limb of the Anterior Commissure; VP, Ventral Pallidum; ZI, Zona Incerta; FrA, Cortex- Frontal Association; S1, Cortex- Somatosensory; ParA, Cortex- Parietal Association; DB, Diagonal Band; TeA, Cortex- Temporal Association; VTA, Ventral Tegmental Area; AcbSh, Nucleus Accumbens Shell; SC, Superior Colliculus; OFC, Cortex- Orbitofrontal; ON, Olfactory Nuclei; MR, Mesencephalic Region; PAG, Periaqueductal Grey.

No intergroup differences in global topological properties

There were no significant differences in global network properties (path length (Lp), clustering coefficient (Cp), global efficiency (E_glob), or local efficiency (E_loc), σ, γ, λ) between aged rats and young rats (p > 0.05) (Table 3 and Figures 2, 3).

Table 3. Intergroup differences of global network properties.

Global network properties	p values
Path length	0.498
Clustering coefficient	0.160
Global efficiency	0.456
Local efficiency	0.652
σ	0.594
γ	0.669
λ	0.350

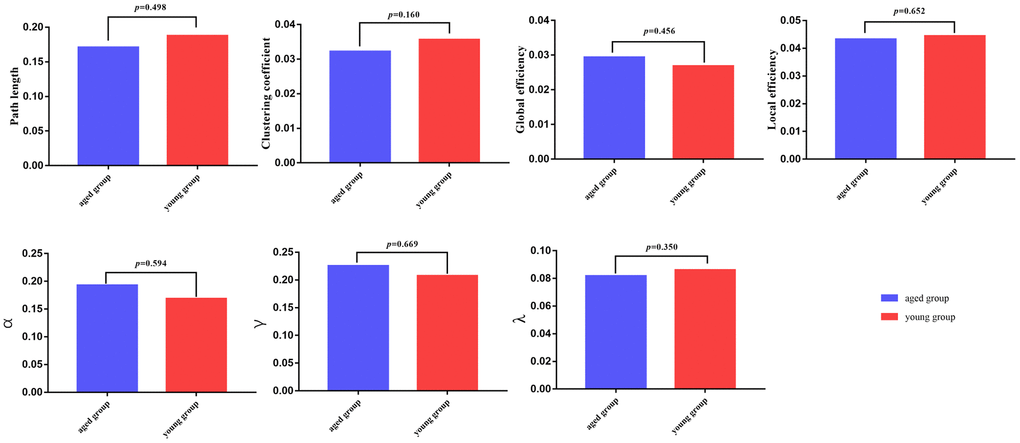

Figure 2. Global parameters are displayed in the bar chart, with blue bars for the aged rats and red bars for the young rats. In all of the parameters, no significant differences were found between the aged group and young group.

Figure 3. Global network properties of aged rats and young rats across a specific range of sparsity (0.05-0.5) at an interval of 0.01.

Lower regional topological properties of the aged brain metabolic network

Intergroup differences of the regional network parameters are listed in Table 4. Compared with young rats, aged rats showed significantly lower betweenness centrality (BC) in the left superior colliculus (p < 0.001) and a lower degree (D) in the right parietal association cortex (p < 0.001) (Figure 4).

Table 4. Brain regions show significant differences in any of the three nodal characteristics.

Brain regions	p values
	Betweenness centrality	Degree	Efficiency
Young rats>Aged rats
Cortex_Parietal_Association_R	-	<0.001	-
Superior_Colliculus_L	<0.001	-	-

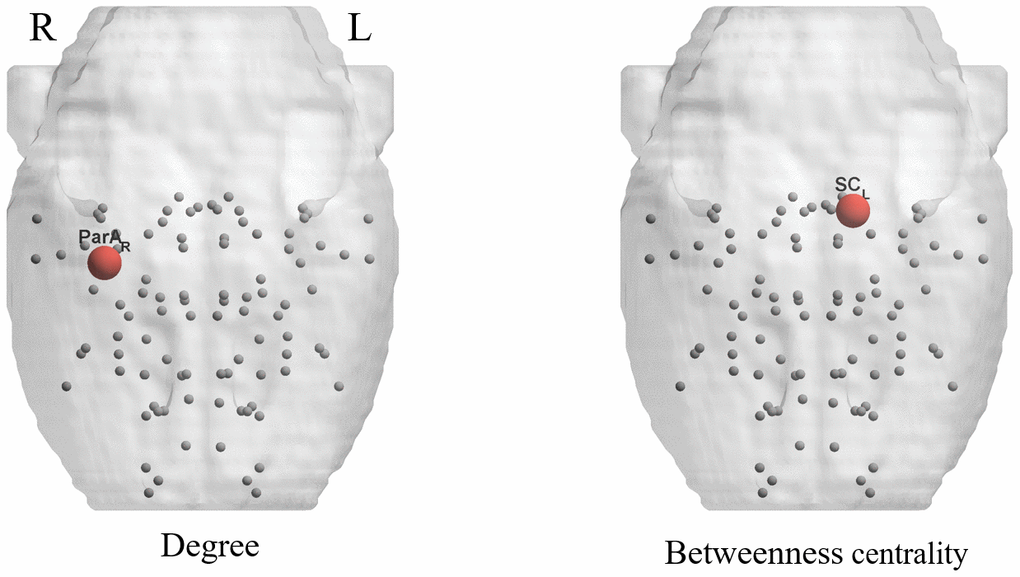

Figure 4. Significant differences in nodal parameters are shown by 3D schematic Figures, corresponding to Table 3. Red nodes indicate significant decreases in the aged group compared with the young group.

Lower robustness to virtual attacks in the aged brain metabolic network

Compared with aged rats, the networks of young rats were generally more robust to random failure and targeted attack in order of nodal BC.

Random failure analysis

When 1%, 4%, 5%, 9%, 13%, 15%, 17%, 22%, 24%, 27%, 39%, 41%, 44% and 67% of nodes were randomly removed, the Cp of brain networks in aged rats was significantly lower than that in young rats (p < 0.05). When 41%, 70% and 73% of nodes were randomly removed, the E_loc of brain networks in aged rats was significantly lower than that in young rats (p < 0.05) (Figure 5).

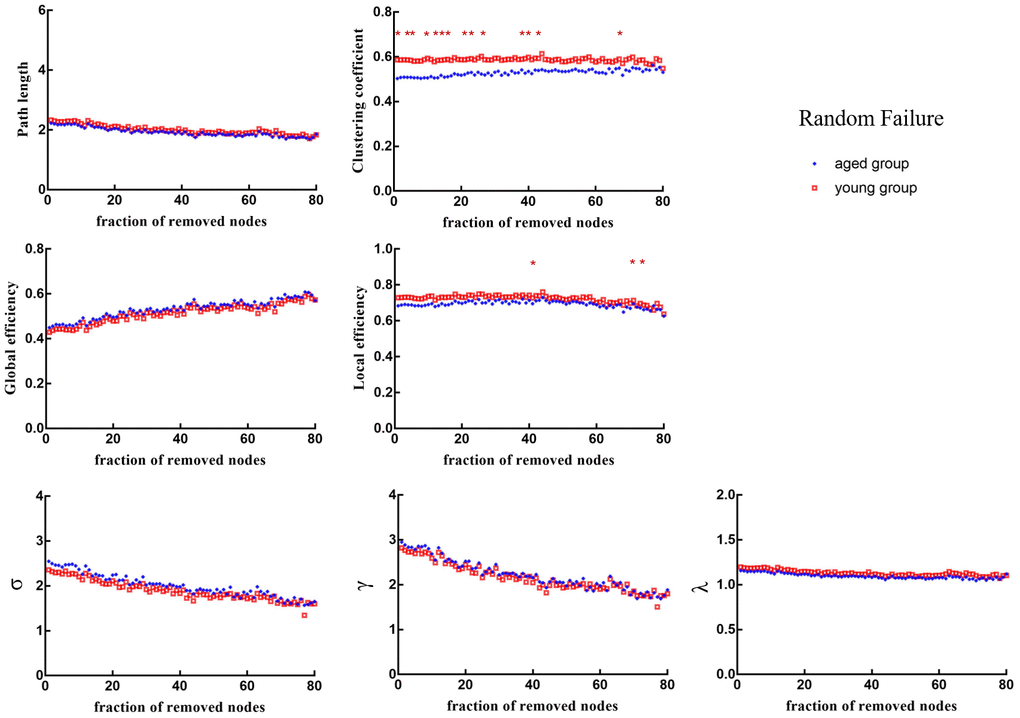

Figure 5. Changes in topological properties of the global network of the remaining network after random failure. The red * marker represents significant differences between aged rats and young rats.

Targeted attack analysis

When 39%, 40%, 43%, 44%, 45%, 50% and 53% of nodes were removed in order of nodal BC, the E_loc of brain networks in aged rats was significantly lower than that in young rats (p < 0.05) (Figure 6). Figure 7 shows the brain regions in descending order of BC. We also calculated the size of the largest remaining component when nodes were continuously removed. When the nodes were removed, the size of the largest connecting component in both groups steadily and approximately decreased (p > 0.05) (Figure 8).

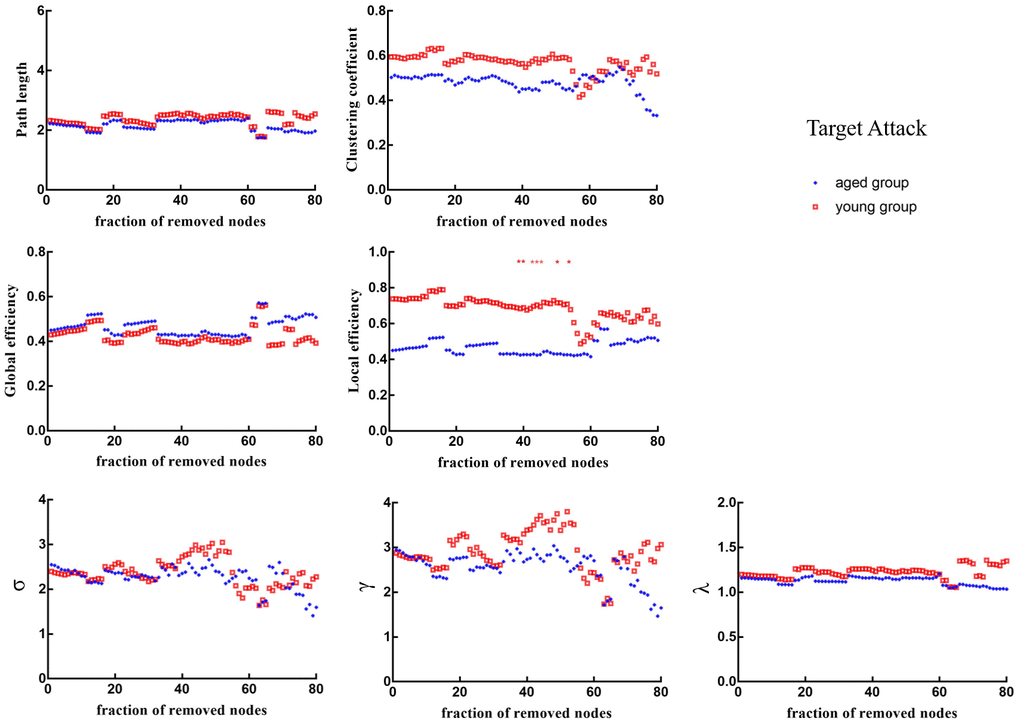

Figure 6. Changes in topological properties of the global network of the remaining network after target attack in order of nodal betweenness centrality. The red * marker represents significant differences between aged rats and young rats.

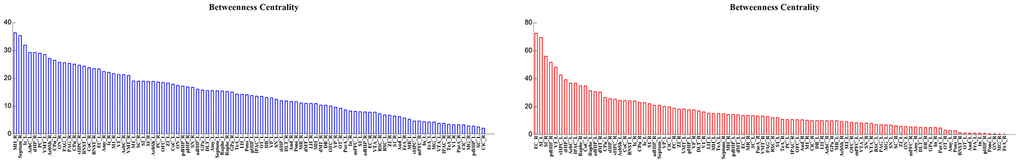

Figure 7. Hubs in decreasing order of betweenness centrality in the aged group (blue) and the young group (red).

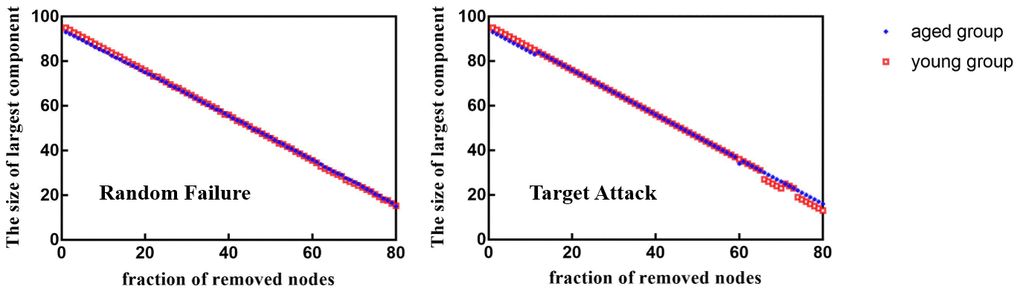

Figure 8. Between-group differences in network resilience to target attack and random failure.

Materials and Methods

Rats

In the study, 24 healthy aged female Sprague–Dawley (SD) rats (weight 350–380 g, age 18 months) and 24 healthy young female SD rats (weight 180–200 g, age 8 weeks) were included. Rats were raised under laboratory conditions of 21° C–23° C with a 12-h light-dark cycle and given sufficient food and water for 1 week before the examination.

All rats were obtained from the Shanghai Slack Laboratory Animal Limited Liability Company (Shanghai, China). All procedures for animals were carried out in accordance with the Guide for the Care and Use of Laboratory Animals (US National Institutes of Health) and approved by the Animal Ethical Committee of Shanghai University of Traditional Chinese Medicine.

18 F-FDG PET/CT scan

Scanning was conducted on a PET/CTR4 bed (Siemens Inc., USA). To enhance brain absorption of the tracer, all rats were fasted overnight before scanning. After 0.5 mCi 18F-FDG was injected through the tail vein, the rats were placed in a quiet space for an uptake period of 40 minutes. During scanning, halothane gas was used to anesthetize the rats, with a 5% induction and a 1.5% maintenance dose. After acquisition, the attenuation correction was automatically carried out, and images were obtained in a 128 × 128 matrix and recombined in OSEM3D mode. PET/CT acquisition showed the following parameters: spherical tube voltage (80 kV), current (500 μA), and time (492 s).

All rats were in a normal active state before 18F-FDG PET/CT scanning. One aged rat was excluded from the final analysis because of poor image quality. Thus, 23 aged rats and 24 young rats were included in the final data analysis.

Data preprocessing

Data preprocessing was performed using the Statistical Parametric Mapping 8 toolbox (SPM 8; http://www.fil.ion.ucl.ac.uk/spm/) based on the MATLAB 2013b platform (Mathworks, Inc., Natick, MA, USA). Preprocessing was performed as previously reported [41]. The DICOM-format PET/CT images were adapted into the NIFTI format by ImageJ software (Image Processing and Analysis in Java, National Institutes of Health, Bethesda, MD, USA). A hand drawing mask was applied to extract the rats’ PET images of the skull-stripped brain. The orientation of these images was modified by resetting the origin and adjusting pitch/roll/yaw parameters according to a standard template. To fit the algorithm in SPM8, the voxels were upscaled by a factor of 10. Accordingly, each brain PET image was normalized and resampled to a resolution of 2.06 × 2.06 × 2 mm³. In addition, the images were smoothed by a full width at half maximum (FWHM) twice the voxel size (FWHM = 4 mm). Finally, the 18F-FDG uptake value of each voxel was globally normalized by the mean uptake value of the whole brain [42].

Construction and property analysis of the metabolic brain network

Metabolic brain network construction and network property analysis were processed with the Brain Connectivity Toolbox (BCT, version 2017-15-01, http://www.brain-connectivity-toolbox.net/). Based on the standard rat brain template including 96 brain regions [43], the standard uptake value (SUV) of each brain region of all rats was extracted, and the Pearson correlation coefficient of each two brain regions was calculated to generate the group-level metabolic brain network in an intersubject manner. The nodes of the network were defined as the brain regions. The edges of the network were considered to be the correlation between each pair of brain regions. Figure 9 shows the locations of the 96 brain regions, and the explanation of the abbreviated region names is given in Table 1. To ensure that all of the networks had the same number of edges, the specific range of sparsity (0.05-0.5) at an interval of 0.01 was set for the correlation matrix [44], resulting in a set of undirected and unweighted binary networks. Finally, we explored the differences in topological properties of the metabolic brain network in aged rats and young rats by using graph theory network analysis. In addition, a simple analysis of network robustness against random failure and targeted attacks was performed. The diagram of network construction and analysis is shown in Figure 10.

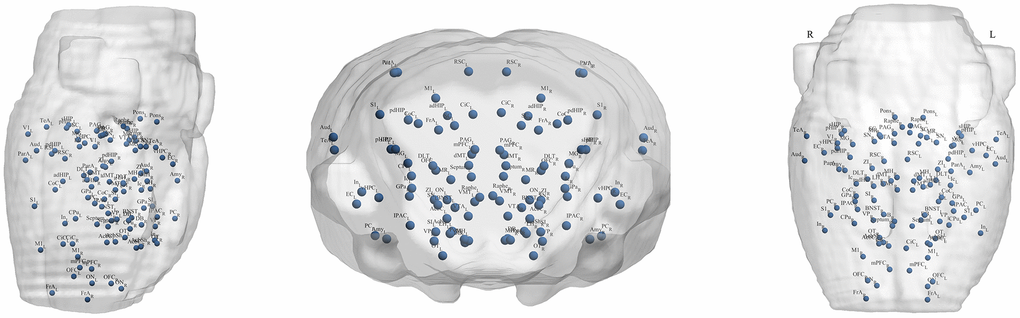

Figure 9. Locations of the 96 brain regions.

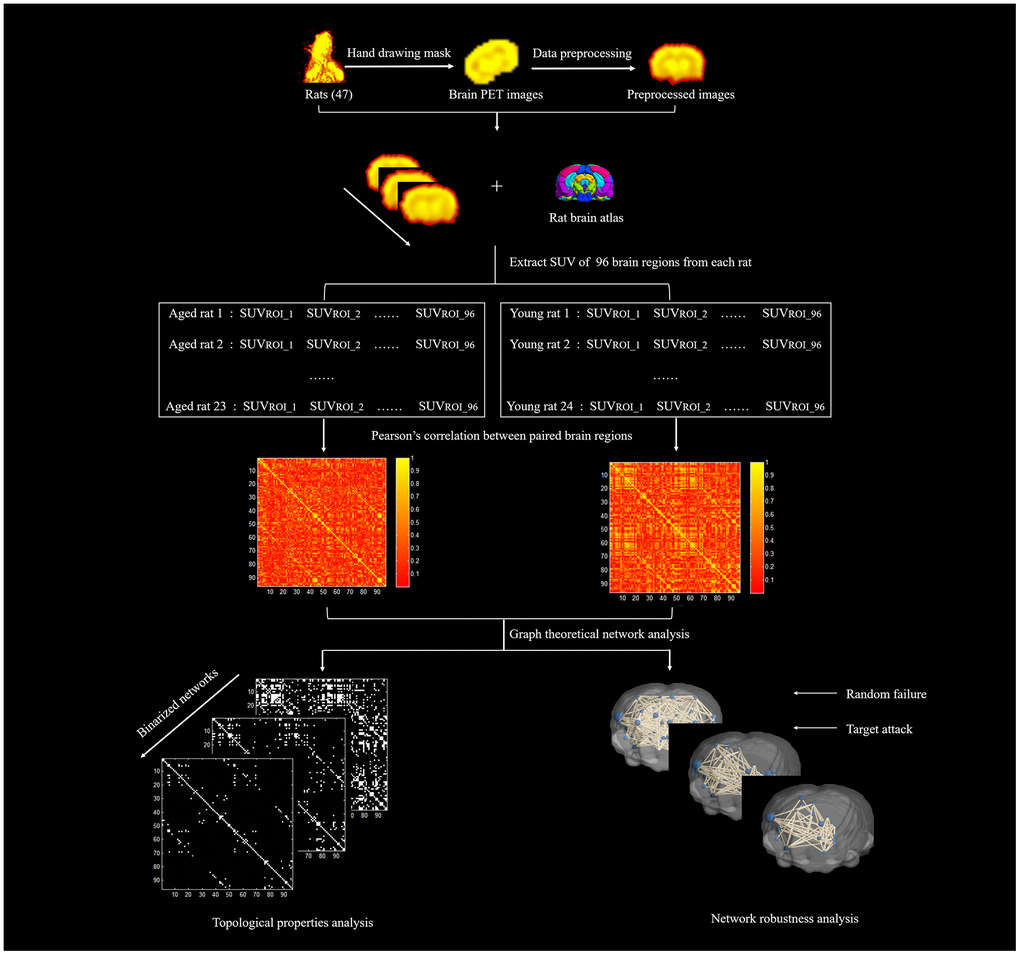

Figure 10. The diagram of network construction and analysis.

Global network properties

The topological properties of the global network, including path length (Lp), clustering coefficient (Cp), global efficiency (E_glob), local efficiency (E_loc) and small-worldness indices (σ, γ, λ), were calculated to describe the network’s global and local information transmission capability [45]. The Lp of the network refers to the average of the shortest path’s edges in the network’s node pairs [46]. The Cp of a node is the ratio of existing edges to all the others in its direct neighbors. The Cp of a network is the mean of Cp over all nodes, reflecting the local interconnectivity of the network [46]. E_glob refers to the inverse of all the network nodes’ average shortest Lp [45], and E_loc represents that of a node’s nearest neighbors [47]. By comparing the Cp and Lp to the mean Cp_rand and Lp_rand of 5000 random networks, the normalized Cp (γ) and normalized Lp (λ) were calculated. A network’s small-worldness is defined as σ = γ/λ, representing the balance between all of the network nodes’ segregation and integration [48, 49]. When the ratio is greater than 1, the network is considered a small-worldness network.

Regional network properties

Three topological characteristics of the regional network were used to demonstrate the nodal characteristics: degree (D), betweenness centrality (BC) and node efficiency (E_nod). D refers to the number of neighbors of a given node, reflecting the importance of the node [50]. BC is defined as the fraction of shortest paths of a network through a given node, which is an indicator of the importance of a node in the network [51]. E_nod is the average of the inverse of the shortest path between a given node and all other nodes and is an evaluation of regional connectivity [52].

Network robustness

Network robustness against simulated damage was analyzed by the iterative ‘random’ and ‘targeted’ removal of nodes [7, 53]. A random node attack refers to the continuous removal of a certain proportion of random nodes from the 96 × 96 connectivity matrix. Each random removal of nodes was repeated 40 times. In procedures requiring the targeted node attack, the 96 nodes are arranged in order of BC value from high to low. Nodes were removed in order of BC value, starting with the nodes of higher connectivity. In the case that information transfer follows the shortest path, BC reflects the centrality of nodes in the network. Therefore, the nodes with high centrality have a greater impact on the information transfer in the network. After each removal of nodes, the above global topological measures, including Lp, Cp, E_glob, E_loc, σ, γ, and λ, were calculated for the resulting networks thresholded at minimum density with full connectivity. In addition, the size of the largest connected component was calculated when nodes were continuously removed. Additionally, the network properties of the resulting networks after each random attack were averaged across 40 repetitions of random removal.

Statistical analysis

A 5000-repetition nonparametric permutation test was used to determine the between-group differences’ statistical significance. Metabolic Connectivity Analysis. We performed statistical comparison on the edges of the metabolic network between groups by 5000 permutation tests. In each repetition, the SUV of the ROIs of all rats was randomly assigned to two new groups with the sample sizes as the original groups, and then the Pearson correlation coefficient of each two brain regions was calculated to generate a new group-level metabolic brain network. After 5000 permutations, we obtained 5000 random intergroup differences in metabolic connectivity. Thus, the p value was obtained according to the percentile position of the real intergroup difference in the corresponding permutation distribution. Graph Theoretical Network Analysis. First, during each repetition, the SUV values of each rat were randomly assigned to either the aged group or the young group to form two randomized groups with the same number of rats as the original group. Second, the undirected and unweighted binarized network was established for each randomized group based on the new dataset. Third, the network properties of randomized groups were calculated through all sparsity thresholds, and the area under the curve (AUC) corresponding to the sparsity ranges of both groups was calculated in each permutation cycle. Last, the AUC difference between the two groups obtained under 5000 permutations constituted the permutation distribution under the original hypothesis. The p value was obtained from the AUC’s actual intergroup difference at the distribution. The above procedure was also used to investigate significant differences in the network robustness between the two groups. After each removal of nodes, the network properties of the two remaining networks were compared by a nonparametric permutation test with 5000 repetitions mentioned above. The significance level for the global network analysis was set at p < 0.05. p <0.05 after FDR correction for multiple comparisons was the significance level for regional network analysis.

Abbreviations

18F-FDG PET: [18F]Fluorodeoxyglucose with positron emission tomography; Lp: path length; Cp: clustering coefficient; E_glob: global efficiency; E_loc: local efficiency; BC: betweenness centrality; D: degree; E_nod: node efficiency; SUV: standard uptake value; AUC: area under the curve.

Author Contributions

Xin Xue and Jia-Jia Wu contributed equally to this work. Xin Xue and Jia-Jia Wu: data analysis and manuscript drafting. Bei-Bei Huo, Xiang-Xin Xing: conducted experiments and data collection; Jie Ma: resources; Yu-Lin Li: visualization; Xu-Yun Hua, Mou-Xiong Zheng, and Jian-Guang Xu: study design and manuscript revision. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

Funding

This work was supported by the National Key R&D Program of China (Grant No. 2018YFC2001600, 2018YFC2001604); National Natural Science Foundation of China (Grant Nos.: 81802249, 81871836, 81902301); Shanghai Rising-Star Program (Grant No.: 19QA1409000); Shanghai Municipal Commission of Health and Family Planning (Grant No.: 2018YQ02); Shanghai Youth Top Talent Development Plan and Shanghai “Rising Stars of Medical Talent” Youth Development Program (Grant No.: RY411.19.01.10); Shanghai Key Laboratory of Peripheral Nerve and Microsurgery (17DZ2270500), Key Laboratory of Hand Reconstruction, Ministry of Health, Shanghai, People’s Republic of China.
