Differential impact of glycemic control and comorbid conditions on the neurophysiology underlying task switching in older adults with type 2 diabetes

Demographic, behavioral and disease status results

Four participants had to be excluded due to MEG technical issues or artifactual MEG data. Two additional participants were excluded due to behavioral performance at or near chance levels on the task switching paradigm (see Figure 1A). This resulted in a sample of 48 participants (25 with significant comorbidities, 23 without). See demographics and blood panel values in Table 1. Groups did not differ by age (p = 0.497), sex (p = 0.951), race (p = 0.845), education (p = 0.132), handedness (p = 0.502), BMI (p = 0.180), and HbA_1c (p = 0.205). Of those with comorbidities, 11 had nephropathy (GFR 45–60, ACR 41.45–375), five had retinopathy (mild), 14 had peripheral neuropathy (generally mild, limited to specific extremities), and six had cardiovascular disease (three stents, three bypasses), with nine (36%) of these participants having two or more of these conditions. Participants performed well, with an average accuracy of 95.5 ± 3.6%, average reaction time of 1527.67 ± 216.02 ms, and an average behavioral switch cost, or the difference in reaction times between conditions, of 79.27 ± 96.37 ms. Accuracy did not differ between groups (t₄₆ = −0.88, p = 0.381), but there was a trend for behavioral switch costs differences by group (t₄₆ = 1.79, p = 0.080, see Figure 1B), as those without comorbidities were less affected by the switch.

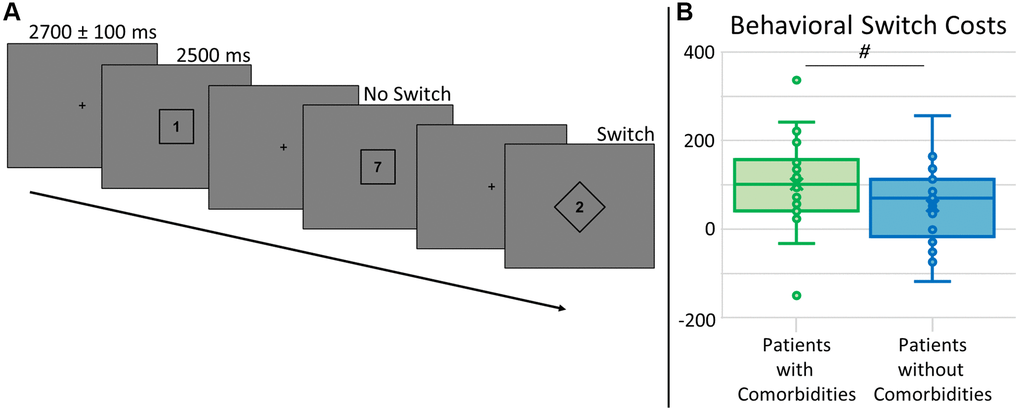

Figure 1. Task switch paradigm and behavioral switch costs. (A) A fixation cross was presented for 2700 ± 100 ms, followed by a number (possible values: 1–4, 6–9) surrounded by a square or diamond, indicating the rule set for that trial, presented for 2500 ms. For trials with a number within a square, participants had to respond by button press as to whether the number was below (index finger) or above (middle) 5. For trials with a number within a diamond, participants had to answer whether the number was odd (index finger) or even (middle) by button press. Trials were pseudorandomized such that 50% of trials were the same rule set as the previous trial (No Switch) and 50% were a different rule set from the previous trial (Switch). All analyses were relative to the difference between these conditions, or switch costs. (B) Accuracy did not differ by group (not shown), but there was a trend for group differences in behavioral switch costs (t₄₆ = 1.79, p = 0.080), where those with type 2 diabetes and additional comorbidities (shown in green) had longer reaction times relative to those without comorbidities (shown in blue). ^# denotes 0.050 < p < 0.100.

Sensor level results

To identify significant oscillatory responses for dynamic imaging, t-tests between the active and baseline periods per time-frequency bin were computed across all participants and both conditions, which were then corrected for multiple comparisons using nonparametric permutation testing. Significant time-frequency windows were found in alpha (8–12 Hz) from 350–1050 ms and in gamma (40–52 Hz, 62–74 Hz) from 150–650 ms (p < 0.001; Figure 2). To study early and late dynamics of task switch processing, alpha was imaged from 350–700 and 700–1050, while both gamma frequency bins were imaged from 150–400 and 400–650 ms. To identify the anatomical origins of these oscillatory responses, images per response window were grand averaged across conditions and participants and this revealed that alpha responses originated in parieto-occipital regions throughout the task period, while both low (40–52 Hz) and high (62–74 Hz) gamma were strongest in bilateral occipital cortices (Figure 2).

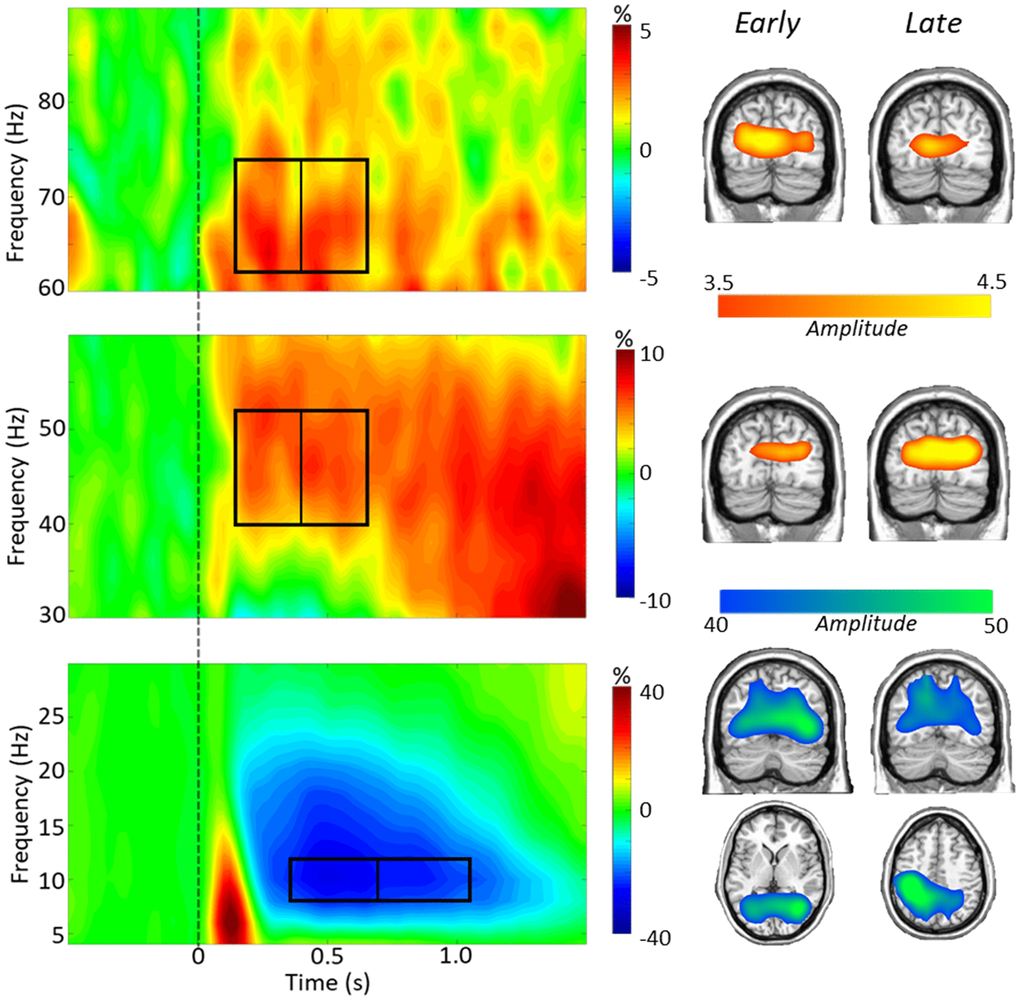

Figure 2. Task switch spectrograms. Left: Grand-averaged time-frequency spectrograms are shown, derived from representative parieto-occipital MEG sensors. Time is shown on the x-axis in seconds, frequency is shown on the y-axis in Hz. Spectrograms are shown from 4–30 Hz (bottom), 30–60 Hz (middle), and 60–90 Hz (top). The colors reflect power increases (red) and decreases (blue) relative to the baseline, with the scale bar shown to the right of each time-frequency plot. Time-frequency windows for source imaging (beamforming) were derived from statistical analysis of the sensor-level data across all participants (ps < 0.001). A clear alpha (8–12 Hz) decrease can be seen throughout the task period, as well as a lower gamma (40–52 Hz) and a higher gamma (62–74 Hz) synchronization during the task period. Right: Grand average images from each time-frequency bin show the alpha dynamics in parietal and occipital regions, and gamma dynamics largely restricted to bilateral occipital cortices.

Source level results

Neural switch cost differences by patient groups

In order to examine neural switch cost effects, whole brain subtraction maps were computed (switch – no-switch) and these maps were compared using independent-sample t-tests to identify group effects (patients with comorbidities vs. patients without comorbidities). As shown in Figure 3, our results revealed high gamma (62–74 Hz) differences from 150–400 ms in the left cerebellum (t₄₅ = 3.32, p = 0.002), left inferior frontal (t₄₅ = 3.78, p < 0.001), left superior frontal (t₄₅ = 3.70, p < 0.001), and right inferior parietal (t₄₅ = 3.76, p < 0.001) cortices. In the later 400–650 ms window, high gamma group differences were found in the left precentral (t₄₅ = 4.55, p < 0.001), left occipital (t₄₅ = 3.53, p < 0.001), left cerebellum (t₄₅ = 3.68, p < 0.001), and right parieto-occipital (t₄₅ = −3.03, p = 0.004) regions. In all cases except the right parieto-occipital, the group with comorbidities exhibited stronger high gamma oscillations during task performance (Figure 3). No group differences were detected in low gamma. As per alpha, a significant group difference in neural switch cost was found in the right parietal lobe during the 350–700 ms time window (t₄₄ = −3.42, p = 0.001) such that those with comorbidities had greater switch costs in this region, while no group differences were found in the later alpha time window. Notably, none of these effects were associated with HbA_1c level (ps from 0.436 to 0.797).

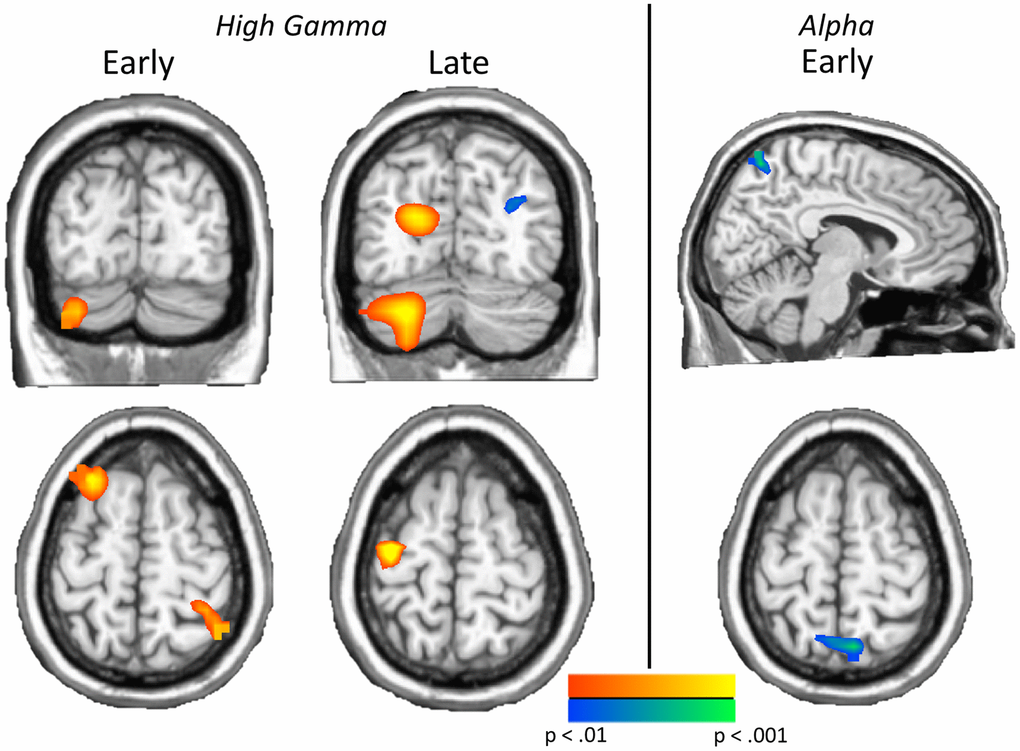

Figure 3. Neural switch costs differ by comorbidity status. Left: Significant group effects on neural switch costs were found in both time bins of high gamma, including the left cerebellum, left inferior (not shown) and superior frontal regions and the right parietal cortex in the early high gamma window, and left precentral, left occipital, left cerebellum, and right parieto-occipital regions in late high gamma activity. Right: Greater neural switch costs in early bin parietal alpha activity were found in type 2 diabetes patients with additional comorbidities, relative to those without comorbidities. These effects show the impact of comorbidities on neural switch costs across the spectrum. Images are thresholded from p < 0.01 to p < 0.001, with a minimum cluster size of 20 4 mm³ voxels.

Neuro-behavioral switch cost associations

Peak values were extracted from each of the significant group difference clusters and correlations with behavior were computed. Significant correlations across both groups were found between neural and behavioral switch costs. Specifically, in the early high gamma window, a significant relationship between the left cerebellar peak and behavioral switch cost was apparent (r₄₅ = 0.34, p = 0.020; Figure 4A), such that as the behavioral switch cost became larger, so too did the neural switch costs in this region. In the later high gamma window, a significant inverse relationship between the right parieto-occipital peak and behavioral switch cost emerged (r₄₅ = −0.35, p = 0.016), as increased behavioral switch cost was associated with reduced neural switch costs (Figure 4B). Because of the differing trajectories of these responses across time, we probed the relationship between neural switch costs in these two regions and found a significant reciprocal effect, whereby increased switch costs in one region tracked with decreased switch costs in the other. To determine whether this reciprocal pattern was related to group, a repeated-measures ANCOVA was computed to determine the relationship between neural and behavioral switch costs and group identity. In this model, a significant interaction between neural switch costs at each peak and behavioral switch cost was again apparent (F_1,43 = 4.31, p = 0.044). Further, controlling for the effect of behavior, there was a significant interaction of peak by group, such that each group tended to have greater neural switch costs in one peak over the other to complete the task (F_1,43 = 5.52, p = 0.024, see Figure 4C). In this case, participants with type 2 diabetes and comorbidities tended to have higher switch costs in the early bin left cerebellum peak and lower switch costs in the late bin right parieto-occipital peak, whereas participants with type 2 diabetes and no comorbidities tended to have higher switch costs in the late bin right parieto-occipital peak and lower switch costs in the early bin left cerebellum peak. No significant interaction of group by behavioral switch costs (F_1,43 = 0.12, p = 0.735), nor peak by group by behavioral switch cost (F_1,43 = 0.04, p = 0.851) was found. These findings suggest a differential impact of comorbidities on neural oscillatory responses serving higher order cognition in type 2 diabetes, but group membership did not specifically predict behavioral outcomes.

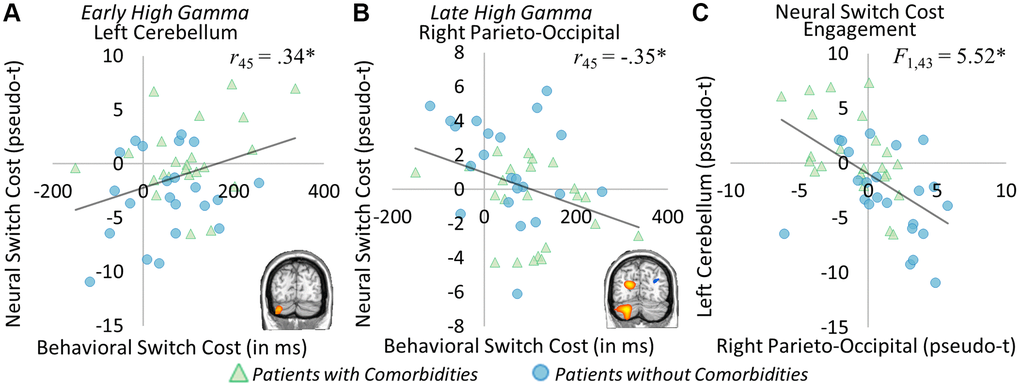

Figure 4. Neural and behavioral switch cost correlations. Significant correlations between neural and behavioral switch costs were apparent in the early high gamma left cerebellar peak ((A) r₄₅ = 0.34, p = 0.020) and the late high gamma right parieto-occipital peak ((B) r₄₅ = −0.35, p = 0.016). In the left cerebellum, greater neural switch costs were associated with greater behavioral switch costs, while in the right parieto-occipital lower neural switch costs were related to greater behavioral switch costs. This distinct pattern of neural responses leading to differential behavioral outcomes was further investigated, and this analysis showed group-specific recruitment of each region ((C) F_1,43 = 5.52, p = 0.024), whereby those with comorbid conditions (shown in green) had greater switch costs in left cerebellum, while those without comorbidities (shown in blue) had greater switch costs in the right parieto-occipital region. ^*p < 0.05, ^**p < 0.01, ^***p < 0.001.

Neural switch cost correlations with clinical metrics

To investigate the relationship between switch costs and glycemic control, we ran whole brain correlations on the neural switch cost maps. Several areas correlated with HbA_1c level in the late high gamma window including the left parietal (r₄₅ = 0.48, p < 0.001), left lateral occipital (r₄₅ = 0.48, p < 0.001), right inferior occipital (r₄₅ = 0.46, p = 0.001), and left inferior temporal (r₄₅ = 0.40, p = 0.005) regions. These effects were such that as HbA_1c increased, high gamma switch costs also increased in each region (Figure 5A–5D). A significant correlation with HbA_1c was also apparent in the early low gamma window in the left occipital cortex (r₄₅ = −0.52, p < 0.001), such that as HbA_1c levels increased, low gamma switch costs decreased (Figure 5E). None of these effects differed by comorbidity distinction (ps from 0.386 to 0.965). These results suggest largely distinct effects of glycemic dysregulation and the presence of comorbid conditions.

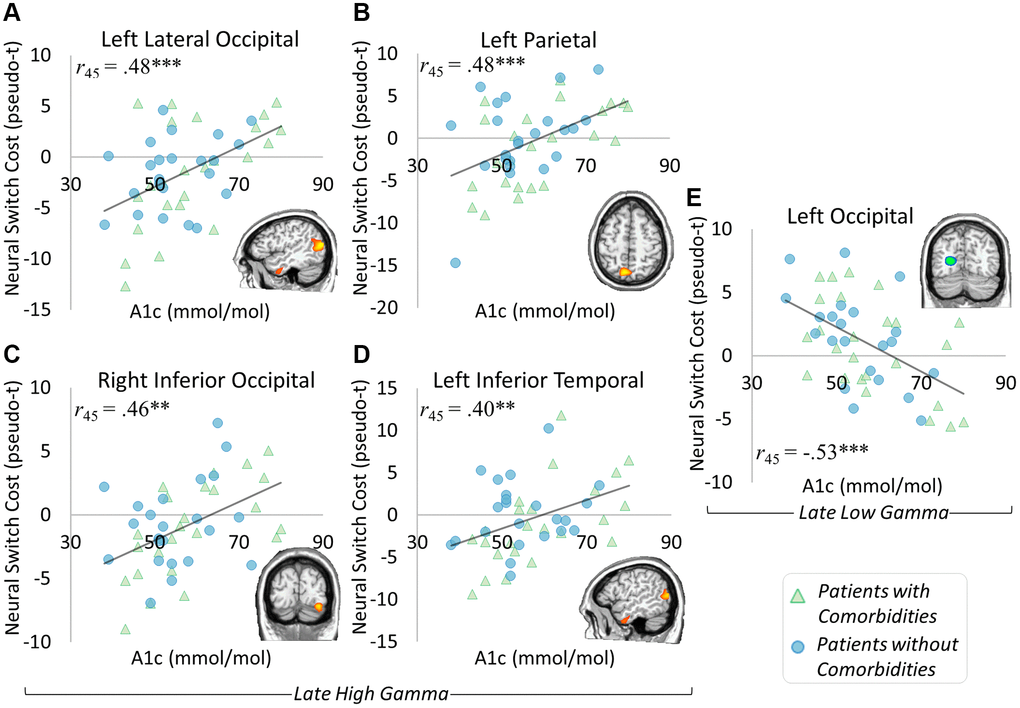

Figure 5. Glycemic control and neural switch cost associations. Significant correlations between neural switch cost dynamics and glycemic control level were apparent in the late high gamma and late low gamma windows. Specifically, gamma responses in the left lateral occipital ((A) r₄₅ = 0.48, p < 0.001), left parietal ((B) r₄₅ = 0.48, p < 0.001), right inferior occipital ((C) r₄₅ = 0.46, p = 0.001), and left inferior temporal ((D) r₄₅ = 0.40, p = 0.005) regions exhibited greater neural switch costs in the context of higher HbA_1c levels. Interestingly, greater neural switch costs were associated with lower HbA_1c levels in the left occipital region’s late low gamma response ((E) r₄₅ = −0.53, p < 0.001). These results show a differential impact of glycemic control level on neural switch costs, with separable effects from those seen in differences by comorbidity status. ^*p < 0.05, ^**p < 0.01, ^***p < 0.001.

Participants

Fifty-four participants with type 2 diabetes (25 without and 29 with significant comorbid conditions) were recruited from the Diabetes Clinic at the University of Nebraska Medical Center (UNMC; age range: 55–73 years, 33 females). Participants had to be formally diagnosed with type 2 diabetes for at least 1 year prior to entering the study. Participants with additional complications and comorbidities were considered as such if any of the following conditions were met: (1) nephropathy, as characterized by glomerular filter rate of 45–60 and/or microalbuminuria of 30–300, (2) retinopathy, excluding proliferative retinopathy, (3) peripheral neuropathy, confirmed by documented symptoms or monofilament testing, and/or (4) cardiovascular disease, except recent major cardiovascular events (heart attack, stroke) in the previous 6 months from enrollment. Exclusionary criteria included: (1) any medical diagnosis affecting brain function (e.g., psychiatric and/or neurological disease), (2) known brain neoplasm or lesion, (3) history of cerebrovascular events (i.e., CVA, stroke, TIA) based on previous diagnosis and chart review, (4) history of significant head trauma, seizures or epilepsy, (5) current substance use disorder within the past 6 months, (6) pregnancy or lactation, (7) hospitalization within the previous 90 days, (8) any type of cancer diagnosis or treatment in the past 5 years, except skin cancer, (9) uncontrolled hypertension, with blood pressures greater than 140/90 or 160/100 if currently on medication treatment, (10) body mass index of greater than or equal to 40, (11) liver disease (AST or ALT > 3× normal), (12) any untreated thyroid or B12 deficiencies, (13) history of brain radiation, (14) treatment with antipsychotics, antidepressants, and related medications known to affect brain function, with the exception of as-needed antidepressants following a 24 hour washout period, and (15) ferromagnetic implants.

To study the long-term effects of type 2 diabetes on the brain in a more controlled manner, relative euglycemia (70 to 200 mg/dl) in these participants at the time of study was a prerequisite for participation, measured by point-of-care device prior to study commencement. Written informed consent was obtained from each participant following the guidelines of UNMC’s Institutional Review Board, who approved the study protocol, in accordance with the Declaration of Helsinki.

Prior to MEG, participants underwent a panel of blood tests according to the standards of care described by the American Diabetes Association [48]. Furthermore, demographic and medical history data were collected. For full lab results and general characteristics of the patient groups, see Table 1. Participants then completed cognitive tasks while undergoing MEG, to probe the neurophysiological changes related to essential cognitive processes in this sample.

Task switch paradigm

During the MEG session, participants were seated in a nonmagnetic chair and instructed to fixate on a crosshair presented centrally for 2600–2800 ms. Following fixation, participants were shown a single centrally-presented integer from 1–4 or 6–9 for 2500 ms, surrounded by either a square or a diamond shape which cued the participant to the appropriate rule set for the trial. If the number was surrounded by a square, the participant had to respond by button press whether the number was less than (index) or greater than (middle) five. If the number was surrounded by a diamond, the participant had to respond by button press whether the number was odd (index) or even (middle). Each rule set occurred 50% of the time, with a pseudo-randomized trial order to have about 50% of all trials repeat the previous rule set (No-Switch) and the remaining trials change rule set from the previous trial (Switch). This ensured participants could not anticipate whether any particular trial would switch or not from the previous rule set. Each trial was 5200 +/− 100 ms, with a total of 200 trials (see Figure 1A). This task has been previously validated by our group [19]. Behavioral metrics were collected concurrently with MEG data, including reaction time and accuracy. Behavioral switch costs, or the difference (i.e., increase) in reaction time between Switch and No-Switch conditions, were computed to characterize the cognitive control component of the task more directly.

MEG methods and analyses

MEG acquisition and analysis methodology followed standardized pipelines, corresponding to MEG studies previously published by our group [19]. Briefly, MEG data were recorded using a 306-sensor Elekta Neuromag MEG system (Elekta/MEGIN, Helsinki, Finland), sampled at 1 kHz with an acquisition bandwidth of 0.1 – 330 Hz. Each participant’s data were corrected for head motion and subjected to noise reduction using the signal space separation method with a temporal extension [49]. Each participant’s MEG data were then coregistered with structural T1-weighted MRI data. Blink and cardiac artifacts were removed by signal-space projection [50].

The continuous time series was divided into 5000 ms epochs, with a 400 ms baseline directly preceding stimulus onset (−400 to 0 ms). Epochs were rejected using a fixed threshold method, supplemented with visual inspection. The distribution of amplitude and gradient was examined per participant across all trials, and the epochs with highest extrema amplitude and/or gradient values relative to that individual’s distribution were rejected with fixed amplitude and gradient thresholds. Cutoffs were determined individually so as to minimize bias due to head size, sensor proximity, and related variables that influence the signal amplitude, since magnetic field strength decreases exponentially with distance from the source. When appropriate, artifact-free trials in some participants were randomly omitted to balance the total number of trials across groups and/or conditions, which ensures results are not confounded by signal-to-noise ratio differences arising from imbalances in the number of trials. Only correctly answered trials were included in final analyses and participants with poor performance (i.e., near chance accuracy) were excluded from final analyses. The resulting artifact-free trials were transformed in the time-frequency domain using complex demodulation, and the resulting spectral power estimations per sensor were averaged over trials to generate time-frequency plots of mean spectral density. Sensor-level data were normalized by dividing the power of each time-frequency bin by the mean baseline power. Statistical analysis of the sensor-level spectrograms comparing the active window relative to the baseline period across the array of gradiometers during the task period were then computed to determine time-frequency windows to be examined in source-space.

Each data point in the spectrogram was initially evaluated using a mass univariate approach based on the general linear model (GLM), and then corrected for multiple comparisons in stage two. First, t-tests were conducted on each data point against the mean baseline value at that frequency and the output spectrograms of t-values were thresholded at p < 0.05 to define time-frequency bins containing potentially significant oscillatory deviations across all participants. In stage two, time-frequency bins that survived the threshold were clustered with other significant temporally and/or spectrally neighboring bins, and a cluster value was derived by summing the t-values of all data points in the cluster. Nonparametric permutation testing was then used to derive a distribution of cluster-values and the significance level of the observed clusters were tested directly using this distribution [51, 52]. From these analyses, time-frequency windows with significant oscillatory responses across all participants and conditions were then imaged at a 4.0 × 4.0 × 4.0 mm resolution using a linearly-constrained minimum variance vector beamformer [53, 54], as implemented in the Brain Electrical Source Analysis (BESA) software (v 7.1). This beamformer method uses spatial filters in the time-frequency domain to calculate source power for the entire brain volume. Following convention, we computed noise-normalized source power per voxel in each participant using active (i.e., task) and passive (i.e., baseline) periods of equal duration and bandwidth. As mentioned above, the passive period was defined as the 400 ms pre-stimulus baseline period (i.e., −400 to 0 ms). The resultant images are referred to as pseudo-t maps, with units that reflect noise-normalized power differences at each voxel. Each participant’s functional MEG images were transformed into standardized space using the transform that was previously applied to the structural images and spatially-resampled.

Oscillatory responses that were longer than the baseline in duration (>400 ms) were broken down into non-overlapping time windows of 400 ms or less and imaged separately using the same baseline. These images were then averaged across all relevant windows comprising the oscillatory response to derive a single map per oscillatory response per participant. These whole brain maps were then averaged across all participants to determine the anatomical basis of the oscillatory responses identified in the sensor-level analyses. Next, the whole brain maps of activity were subtracted (switch – no-switch) per individual to compute neural switch costs, or the increased amount of recruitment required to switch rule sets, per oscillatory response. T-tests for differences between patients with and without comorbid conditions were computed for each time-frequency window and all output statistical maps of the neural switch cost were thresholded at p < 0.01, using a spatial extent threshold (i.e., cluster restriction; k = 20 4 mm³ voxels) based on the theory of Gaussian random fields [55]. Significant peaks from these t-tests were extracted for post-hoc analyses that focused on correlations with behavioral switch costs. A follow-up analysis of covariance (ANCOVA) was also computed to test the interaction between neural and behavioral switch costs by group, to determine whether the directionality of effects was driven by the presence or absence of comorbid conditions. Further, to examine the specific effects of glycemic control level on task switching in the brain, a whole brain correlational approach was used, with HbA_1c as our measure of glycemic control.
