HIF-1α antagonizes p53-mediated apoptosis by triggering HIPK2 degradation

Introduction

HIPK2 is a potential tumor suppressor gene; it is a nuclear serine/threonine kinase that acts as co-repressors for transcription factors [1] and is considered a central switch in the targeting of cells toward apoptosis upon genotoxic stress by phosphorylating tumor suppressor p53 at serine 46 (Ser46) [2,3]. The p53Ser46 modification triggers irreversible apoptosis by determining p53-dependent promoter selection [4]. HIPK2 contributes to p53 apoptotic activation by inducing Ser46 phosphorylation but also lysine 382 (Lys382) acetylation [2,3,5]. Thus, we found that HIPK2, through repression of Nox1 gene, strongly regulates p53 acetylation/deacetylation balance that along with (p)Ser46 is important for full p53 apoptotic activity [6]. A major determinant of tumor progression and cancer therapy is the ability of cancer cells to activate apoptotic cell death, mainly through intact p53 function. Understanding how aberrant signalling within tumors can interfere with p53 apoptotic activation is therefore of particular importance. Although mutations in the p53 gene are detected in ~50% of human cancers, indirect mechanism also leads to p53 inactivation [7]. Previous work has shown that knock-down of HIPK2, mainly by siRNA, leads to loss of p53 function, reduced apoptotic drug-response and increased tumor progression [8]. Therefore, an intact HIPK2 function is crucial for the apoptotic activation of wtp53 in tumors.

A physiological condition that inhibits HIPK2 functions in solid tumor is hypoxia which is a hallmark of tumor progression and failure of tumor therapies. Hypoxia-induced ubiquitin ligases such as Siah2 [9] or p53 targets MDM2 [10] and Siah1 [11] trigger HIPK2 degradation strongly affecting drug-induced p53 apoptotic activity. The key molecule expressed under hypoxia is hypoxia inducible factor-1 (HIF-1), a heterodimeric transcription factor that consists of the HIF-1β subunit, constitutively expressed in cells, and the oxygen-sensitive HIF-1α subunit. Under normal oxygen levels, HIF-1α is hydroxylated at key proline residues facilitating interaction to von Hippel-Lindau protein (pVHL) which allows HIF-1α proteasomal degradation. Under hypoxic conditions, prolyl hydroxylation is inhibited, HIF-1α accumulates, dimerizes with HIF-1β forming the active HIF-1 complex for regulation of transcription of several genes involved in many aspects of cancer progression, including angiogenesis, metabolic adaptation, apoptosis resistance, invasion and metastasis [12]. HIF-1α synthesis and transactivation can also be activated by non-hypoxia-mediated mechanisms such as genetic alterations in a variety of cancer types. In this regard, we have shown that HIPK2 represses the HIF-1α transcription, thus, HIPK2 knock-down leads to HIF-1α upregulation with induction of a “constitutive hypoxic” phenotype [13]. Increased HIF-1α levels have been shown to be associated with increased resistance to conventional chemo- and radiotherapy in many solid tumors and play a negative role in patient prognosis. Thus, the downregulation of the activity of HIF-1α could have an immediate effect on its target genes contributing to blocking tumor angiogenesis, glycolysis and tumor growth and also improve the efficacy of classical therapies [14].

HIF-1α interacts with p53 and stimulates p53 transcriptional activity [15] although it antagonizes p53-mediated apoptosis [16]. Here we report a previously unknown regulatory circuitry between HIF-1α, HIPK2 and p53 apoptotic activity as the molecular mechanisms underlying HIPK2 regulation by HIF-1α have never been addressed.

Results and Discussion

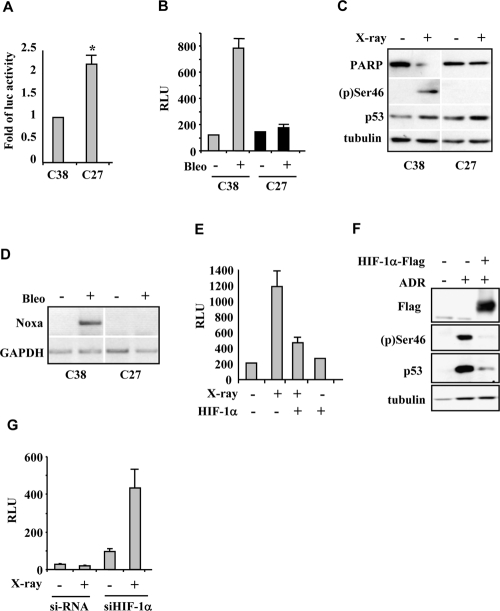

We first analyzed the effect of HIF-1α on DNA-damage-induced p53 apoptotic activation by using an ex vivo experimental model consisting of cell populations derived from explants of prostate cancer patients characterized by stabilized HIF-1α protein in normoxia (“constitutively hypoxic” phenotype) and associated with bad prognosis (namely C27 cells), and cell populations with a phenotype negative for HIF-1α expression under aerobic condition associated with good prognosis (namely C38 cells) [17]. The presence of HIF-1α overexpression at mRNA (Figure 1A) and protein level (see Figure 2F) in C27 cells led to a marked inhibition of drug-induced luciferase activity of the p53AIP1 reporter gene (Figure 1B and Supplementary Figure 1a) which is a well established target of p53-Ser46 modification and of p53 apoptotic activity [4]. Thus, in response to X-ray or to the radiomimetic drug bleomycin, both Ser46 phosphorylation, the cleavage of the apoptotic marker PARP, and p53 apoptotic gene transcription were impaired in HIF-1α upregulated C27 cells, compared to C38 cells negative for HIF-1α expression under aerobic condition (Figure 1C, 1D). Two lines of evidence indicate that the p53 apoptotic defect in C27 cells is due to stabilization of HIF-1α rather than to alternative mechanism of drug resistance or impairment of p53 downstream signalling. First, increasing HIF-1α levels in C38 prostate and RKO colon cancer cells by protein overexpression also conferred resistance to X-ray- or to drug-induced p53 transcriptional activity (Figure 1E and Supplementary Figure S1b, S1c) and inhibited Ser46 phosphorylation (Figure 1F). Second, loss of HIF-1 function by HIF-1α knock-down, restored the sensitivity to X-ray-induced p53AIP1-luciferase activity in C27 cells (Figure 1G). These results show that HIF-1α levels are relevant to the p53-mediated cellular response because they antagonized drug-induced p53Ser46 apoptotic transcriptional activity.

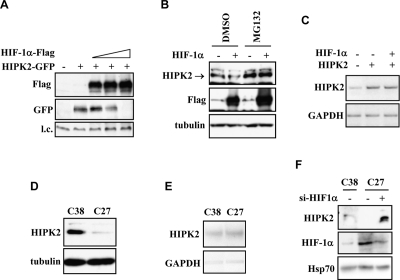

P53Ser46 phosphorylation is triggered by several kinases including HIPK2 whose knock-down strongly inhibits p53 apoptotic activity [5,8]. Therefore, an intact HIPK2 function is crucial for the apoptotic activation of wtp53 in tumors. We first evaluated whether HIF-1α affected HIPK2 mRNA expression. RT-PCR analyses of ADR-treated RKO cells showed that endogenous HIPK2 messenger RNA levels were not altered by HIF-1α upregulation (Supplementary Figure S1c), although HIF-1α inhibited the drug-induced p53(p)Ser46 (Figure 1F), arguing for HIF-1α-mediated regulation of HIPK2 at the post-transcriptional level. We then performed experiments under conditions of HIF-1α and HIPK2 overexpression. Expression of increasing amounts of HIF-1α in 293 cells correlated with abolishment of HIPK2 protein levels (Figure 2A). A test for protein degradation showed that HIF-1α-induced HIPK2 downregulation in prostate C38 cells could be rescued by cell treatment with the proteasome inhibitor MG132 (Figure 2B), confirming a HIPK2 post-translational regulation. Thus, HIF-1α co-overexpression did not affect HIPK2 gene transcription in RKO colon cancer cells (Figure 2C). We next analysed these issues in C27 prostate cancer cells whereas HIF-1α upregulation antagonizes drug-induced p53Ser46 apoptotic transcriptional activity, suggesting that they should harbour reduced HIPK2 levels. Indeed, western blot analysis showed reduced HIPK2 protein levels in “constitutively hypoxic” C27 cells compared to the C38 cells with a phenotype negative for HIF-1α expression under aerobic condition (Figure 2D), while the HIPK2 mRNA levels were comparable expressed between the two cell lines (Figure 2E). Was the reduction of HIPK2 levels caused by HIF-1α upregulation? We addressed this issue by silencing of HIF-1α with siRNA that indeed rescued HIPK2 protein levels in C27 cells (Figure 2F). We thus conclude that HIF-1α regulates HIPK2 stability.

How could HIF-1α inhibit HIPK2? First, being a transcription factor, HIF-1 might promote the expression of target genes that induce HIPK2 degradation. Alternatively, HIF-1 might directly interact with and regulate HIPK2. To discriminate between these two scenarios, exogenous HIPK2 and HIF-1α proteins were co-expressed in 293 cells for co-immunoprecipitation analysis. We found absence of interaction between HIPK2 and HIF-1α (Supplementary Figure S2a), suggesting rather a transcription-dependent regulation. The latter hypothesis was evaluated by the use of a HIF-1α mutant encoding the dominant negative form of HIF-1α without DNA binding and trans-activation domains (HIF-1αDN) [18]. The results unequivocally showed that the HIF-1αDN mutant could not inhibit HIPK2 stability (Supplementary Figure S2b).

Previous studies showed that HIF-1 may induce p53 transcriptional activity [15], although not the apoptotic one [16], and that p53 target genes such as MDM2 [10] or Siah1 [11] may trigger HIPK2 degradation under hypoxia. Moreover, the putative HIF-1 target WD40-repeat/SOCS box protein WSB-1 [19] has been shown to trigger HIPK2 degradation [20]. To evaluate whether p53 transcriptional activity plays a role in HIF-1α-induced HIPK2 degradation, HIF-1α and HIPK2 proteins were co-expressed in H1299 lung cancer (p53 null) cells and assayed for western immunoblotting. In the absence of p53, HIF-1α was still able to reduce HIPK2 protein levels (Supplementary Figure S2c). We conclude that HIF-1α inhibits HIPK2 via transcriptional upregulation of one or more target genes.

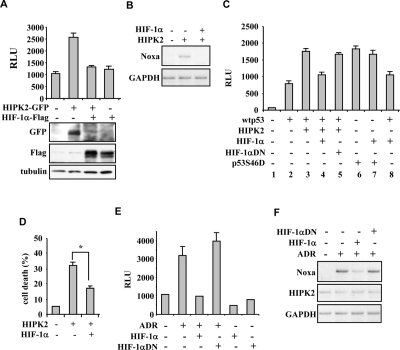

The above results demonstrate that HIF-1α upregulation reduces both HIPK2 protein levels and p53 apoptotic activation. The direct effect of HIF-1α on HIPK2-induced p53 activation was then analysed under conditions of proteins overexpression. The luciferase assay performed in 293 cells clearly showed that the positive effect of HIPK2 on endogenous p53 apoptotic transcriptional activity was eliminated by HIF-1α co-expression that indeed abolished HIPK2 levels (Figure 3A). The abolishment of p53 transcriptional activity was confirmed in vivo in RKO cells by RT-PCR analysis (Figure 3B). We then performed experiments with p53 overexpression in H1299 cells. HIF-1α abolished the HIPK2 additive effect on p53-induced Noxa-luc activity (Figure 3C, compare lane 3 with lane 2 and lane 4 with lane 3), while HIF-1αDN mutant failed to do so (Figure 3C, compare lane 5 with lane 4), suggesting that HIF-1α is acting on HIPK2 function. To finally demonstrate this issue, the transcriptional activity of a p53S46D mutant, which expresses constitutive Ser46 phosphorylation, was not inhibited by HIF-1α (Figure 3C, compare lane 7 with lane 6), confirming that HIPK2 is indeed the target of HIF-1α-induced p53 regulation. Next, we investigated the effect of HIPK2 inhibition on apoptosis. The results clearly showed that HIF-1α significantly counteracted HIPK2-induced cell death (Figure 3D). Finally, HIF-1α overexpression led to marked reduction of ADR-induced p53AIP1-luc activity in RKO cells, while the HIF-1α-DN mutant did not show such effect (Figure 3E), as also tested by in vivo by RT-PCR analyses (Figure 3F). These results recapitulate the negative effect of constitutive hypoxic phenotype on HIPK2-induced p53 apoptotic transcriptional activity and cell response to drug.

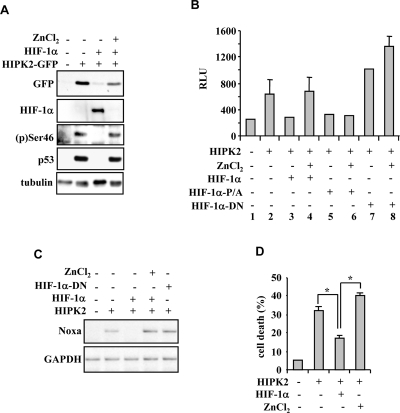

We recently reported that zinc inhibits HIF-1α stability in vitro and in vivo by acting on prolyl hydroxylation and VHL interaction [21]. We also showed that zinc inhibits MDM2 ubiquitin ligase activity, counteracting MDM2-induced p53 degradation and re-establishing HIPK2 stability [22]. Restoration of wtp53 function is decisive for the success of anti-tumor therapies and for tumor regression in vivo [23,24]. Therefore, zinc treatment of tumor cells with HIF-1α upregulation and that retain wild-type p53 should result in (i) reconstitution of HIPK2-induced p53Se46 phosphorylation, (ii) activation of p53-apoptotic genes and (iii) restoration of drug-induced apoptosis. The HIPK2-induced p53(p)Ser46 in RKO cells, abolished by HIF-1α co-expression, was completely re-established by zinc treatment that, as expected, concomitantly rescued the HIF-1α-induced HIPK2 downregulation (Figure 4A). The HIPK2-induced p53 transcription of p53AIP1-luc reporter, inhibited by HIF-1α, was strongly recovered by zinc treatment (Figure 4B, compare lane 4 with lane 3), while the inhibition triggered by a HIF-1α expression vector with prolyl mutations P402A and P564A (HIF-1αP/A) was not rescued by zinc (Figure 4B, compare lane 6 with lane 5), in agreement with our findings that the HIF-1αP/A mutant is not downregulated by zinc [21]; finally, the HIF-1αDN mutant did not inhibit the HIPK2-induced p53AIP1-luc activity (Figure 4B, compare lane 7 with lanes 5 or 3) that was rather superinduced by zinc (Figure 4B, compare lane 8 with lane 7), suggesting inhibition of endogenous HIF-1α by the HIF-1αDN mutant. The positive effect of zinc on rescue of HIPK2/p53 activity in the presence of HIF-1α upregulation was confirmed by in vivo RT-PCR analysis of p53 apoptotic target genes (Figure 4C) and by cell death analysis (Figure 4D).

The above results demonstrate that zinc treatment counteracts the HIF-1α-mediated inhibition of HIPK2, allowing restoration of p53 response to antitumor therapies. Thus, this issue was addressed in C27 prostate cancer cells in which both HIPK2 and p53 are disabled by constitutive HIF-1α upregulation. The results clearly showed that zinc restored (i) the endogenous p53 transcriptional activity in response to X-irradiation, (ii) the in vivo transcription of p53 target genes in response to drug and (iii) the cell death to genotoxicity (Supplementary Figure S3a-c), again implicating the HIF-1α/HIPK2 circuitry as shown by rescue of endogenous HIPK2 stability by zinc (Supplementary Figure S3d). These results are consistent with several observations by us showing that zinc supplementation can increase tumor response to drugs and counteract the negative effect of hypoxia, by acting on several interconnected signalling molecules such as HIPK2, HIF-1 and p53 [25].

Restoration of HIPK2 activity was finally monitored by chromatin immunoprecipitation assay as HIPK2 is able to modulate the transcription of several factors involved in cell survival and apoptosis [1]. The results showed that HIPK2 recruitment onto target genes such as Bcl-2 [26] or CYP1B1 [9] was present in basal condition only in C38 cells compared to the C27 cells where it was instead rescued by zinc treatment (Supplementary Figure S4). HIPK2 recruitment onto Bcl-2 promoter is again indicative of functioning p53 as HIPK2 has been shown to be involved in the transcriptional repression of Bcl-2 promoter exerted by p53 [26].

HIF-1α stabilization due to low oxygen or because genetic alterations is responsible of increased chemo-resistance and tumor cell viability in part due to inhibition of p53 apoptotic gene transcription [10]. The discovery here of the HIF-1α/HIPK2 circuitry gives a mechanistic explanation of the p53 apoptotic inhibition in response to drug under hypoxia in those tumors that retain a not functional wild-type p53. Thus, for the first time, it is shown a direct effect of HIF-1α on HIPK2 protein stability. Moreover, our findings also open novel and unexpected scenarios in tumor development and ask to whether HIPK2 might participate to the regulation of cancer stem cells (SCs). Hypoxia and HIFs-α subunits are considered a critical component of a cancer stem cell niche in different tumors including glioblastoma [27] and stem-like cells may be integral to the development and maintenance of human cancers [28]. Our data raise the possibility that HIPK2, because of the HIF-1α relationship is involved in the homeostasis of cancer SCs and in its subversion in tumors. Recent findings showed that loss of p53 favours symmetric divisions of cancer SCs, contributing to tumor growth [29]. As HIPK2 inhibition negatively affects p53 activity [8,30] it would be interesting to evaluate whether loss of p53 function in cancer SCs depends on HIF-1α-induced HIPK2 inhibition and propose an additional mechanism of tumorigenesis. Identification of the cell types capable of initiating and sustaining growth of the neoplastic clone in vivo is a fundamental problem in cancer research. Understanding the nature of the more quiescent cancer stem-like cells and their niches has the potential to development of novel cancer therapeutic protocols including pharmacological targeting of self-renewal pathways. Therefore, our data strengthen the notion that unleashing the growth suppressor activity of both HIPK2 and p53 by targeting HIF-1α with zinc is a potentially valuable adjuvant strategy for cancer treatment.

Methods

Supplementary Materials

Figure S1.

HIF-α confers resistance to drug-induced p53 apoptotic activation. (a) Luciferase assay showed impaired p53AIP1-luc activity in C27 cells in response to X-ray irradiation, compared to the C38 cells. Results represent mean ± s.d. from three experiments. (b) Luciferase assay of RKO cells stable transfected with p53AIP1-luc reporter where HIF-1α overexpression inhibited the adryamicin (ADR)-induced p53 transcriptional activity. Results represent mean ± s.d. from three experiments. (c) RT-PCR analysis of p53 apoptotic target genes in RKO colon cancer cells where HIF-1α overexpression inhibited the adryamicin (ADR)-induced p53 target gene transcription. GAPDH was a loading control.

Figure S2.

HIF-1α inhibits HIPK2 through its transcriptional activity. (a) 293 cells were co-transfected with 4 μg HIPK2-GFP and 8 μg HIF-1α-Flag and 24 h after later equal amount of total cell extracts were immune-precipitated with anti-Flag antibody and immunoblotted with anti-GFP antibody to detect protein/protein interaction. Input is 1/10 of the total cell extracts used for immune-precipitation. (b) Immunoblot of 293 cells co-transfected with HIPK2-GFP (4 μg) alone or in combination with the HIF-1αDN (8 μg) expression vectors. The HIPK2 protein levels were not abolished by HIF-1αDN. Anti-tubulin was used as protein loading control. (c) Immunoblot in H1299 cells (p53 null) co-transfected as in (b). The HIPK2 protein levels were strongly abolished by HIF-1α. Anti-tubulin was used as protein loading control.

Figure S3.

Zinc restores p53 activity in HIF-1α-upregulated cells. (a) Luciferase assay showed that the impaired Noxa-luc activity in C27 cells in response to X-ray irradiation was counteracted by zinc treatment. Results represent mean ± s.d. from three experiments. (b) Similar result was obtained in C27 cells by RT-PCR analysis where zinc restored the p53 apoptotic gene transcription in response to bleomycin (Bleo). GAPDH was used as internal control. (c) Tunel assay of C27 cells showing increased apoptotic cell death only after zinc supplementation to Bleo treatment. (d) Immunoblot showing increased endogenous HIPK2 levels in C27 after zinc treatment. Anti-tubulin was used as protein loading control.

Figure S4.

Zinc restores HIPK2 recruitment onto target promoter in HIF-1α-upregulated cells. Chromatin immunoprecipitation (ChIP) analysis performed with anti-HIPK2 antibody on C38 cells and C27 cells untreated or treated with zinc (100 μM for 24 h). PCR analyses were performed on the immunoprecipitated DNA samples using specific primers for the human Bcl-2 and CYP1B1 gene promoters. A sample representing linear amplification of the total input chromatin (Input) was included as control. Additional controls included immunoprecipitation performed with non-specific immunoglobulins (No Ab).
