Identification of differentially expressed genes in non-small cell lung cancer

Identification of DEGs in NSCLC

The GEO dataset GSE103512 was selected for identification of DEGs in 60 human NSCLC specimens against 9 matched normal tissue samples using the GEO2R tool. Genes were defined as DEGs if they had a log₂FC > 1.5 or < -1.5 and p < 0.01. A total of 118 genes were identified as DEGs; among these, 11 were upregulated and 107 were downregulated in NSCLC (Figure 1). A full DEG list is shown in Supplementary Table 1.

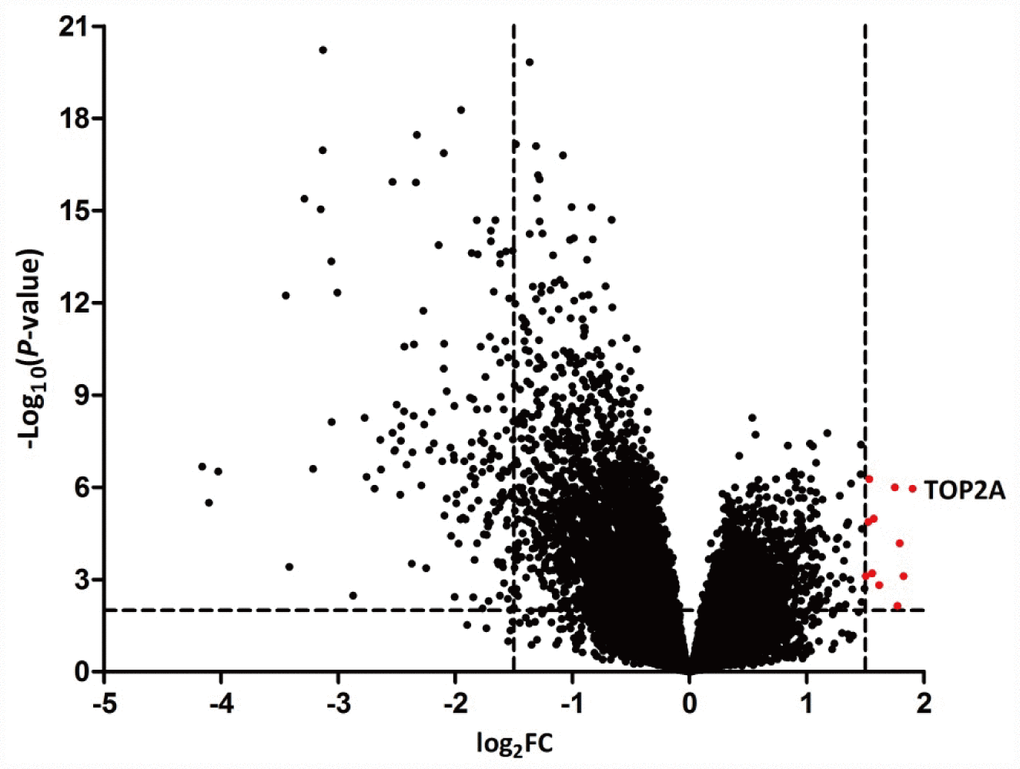

Figure 1. Volcano plots of DEGs in NSCLC. NSCLC samples were analyzed against matched normal lung tissues in the GEO GSE103512 dataset. Data points in red represent upregulated genes. TOP2A was the most significant DEG.

GO enrichment analysis of DEGs

GO enrichment analysis was conducted on the 118 DEGs identified above. For cellular component (CC), the top ten terms were GO: 0005615~extracellular space, GO: 0031012~extracellular matrix, GO: 0044421~extracellular region part, GO: 0005576~extracellular region, GO: 0005578~proteinaceous extracellular matrix, GO: 0031988~membrane-bounded vesicle, GO: 0070062~ extracellular exosome, GO: 1903561~extracellular vesicle, GO: 0043230~extracellular organelle, and GO: 0016323~basolateral plasma membrane (Figure 2A). For molecular function (MF), the top ten terms were GO: 0005539~glycosaminoglycan binding, GO: 0008201~heparin binding, GO: 1901681~sulfur compound binding, GO: 0050840~extracellular matrix binding, GO: 0005509~calcium ion binding, GO: 0005201~extracellular matrix structural constituent, GO: 0030234~enzyme regulator activity, GO: 0016209~antioxidant activity, GO: 0097367~carbohydrate derivative binding, and GO: 0008047~enzyme activator activity (Figure 2B). For biological process (BP), the top ten terms were GO: 1901700~response to oxygen-containing compound, GO: 0042060~wound healing, GO: 0009611~response to wounding, GO: 0072593~reactive oxygen species metabolic process, GO: 0070887~cellular response to chemical stimulus, GO: 0022610~biological adhesion, GO: 0006979~response to oxidative stress, GO: 0010033~response to organic substance, GO: 0009605~response to external stimulus, and GO: 0007155~cell adhesion (Figure 2C).

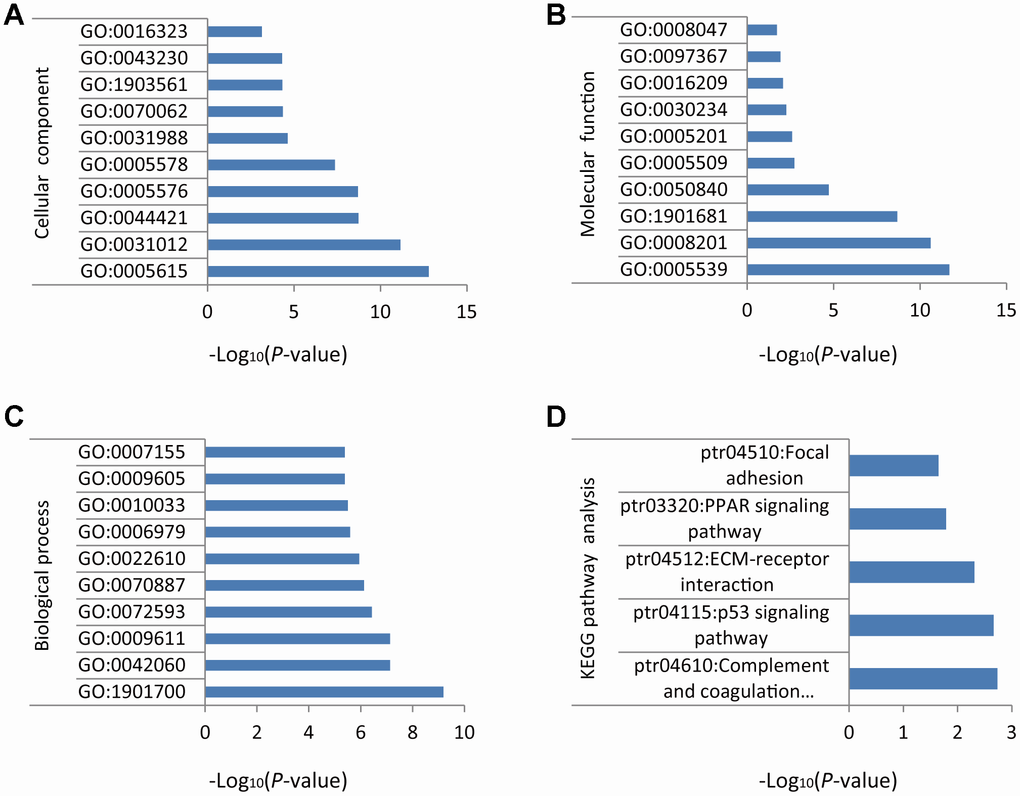

Figure 2. GO and KEGG enrichment analysis of DEGs in NSCLC. (A) Cellular component. (B) Molecular function. (C) Biological process. (D) Biochemical and signal transduction pathways revealed by KEGG pathway analysis.

KEGG pathway analysis of DEGs

KEGG pathway analysis was performed using the Database for Annotation, Visualization and Integrated Discovery (DAVID) v6.8. Results indicated that the DEGs identified in NSCLC samples were mainly related to ‘complement and coagulation cascades’, ‘p53 signaling pathway’, ‘ECM-receptor interaction’, ‘PPAR signaling pathway’, and ‘focal adhesion’ (Figure 2D).

Validation of upregulated DEGs

The DEGs upregulated in NSCLC were selected for validation by quantitative real-time PCR (qPCR) on 17 paired NSCLC/adjacent non-tumor samples collected from surgical patients. The overall trend indicated that all the upregulated DEGs from the GEO database were also overexpressed at the mRNA level in our clinical NSCLC specimens. However, overexpression in NSCLC samples vs normal lung tissues was only significant for TOP2A (P = 0.018), SLC2A1 (P = 0.011), TPX2 (P = 0.016), and ASPM (P = 0.049) (Figure 3A–3K).

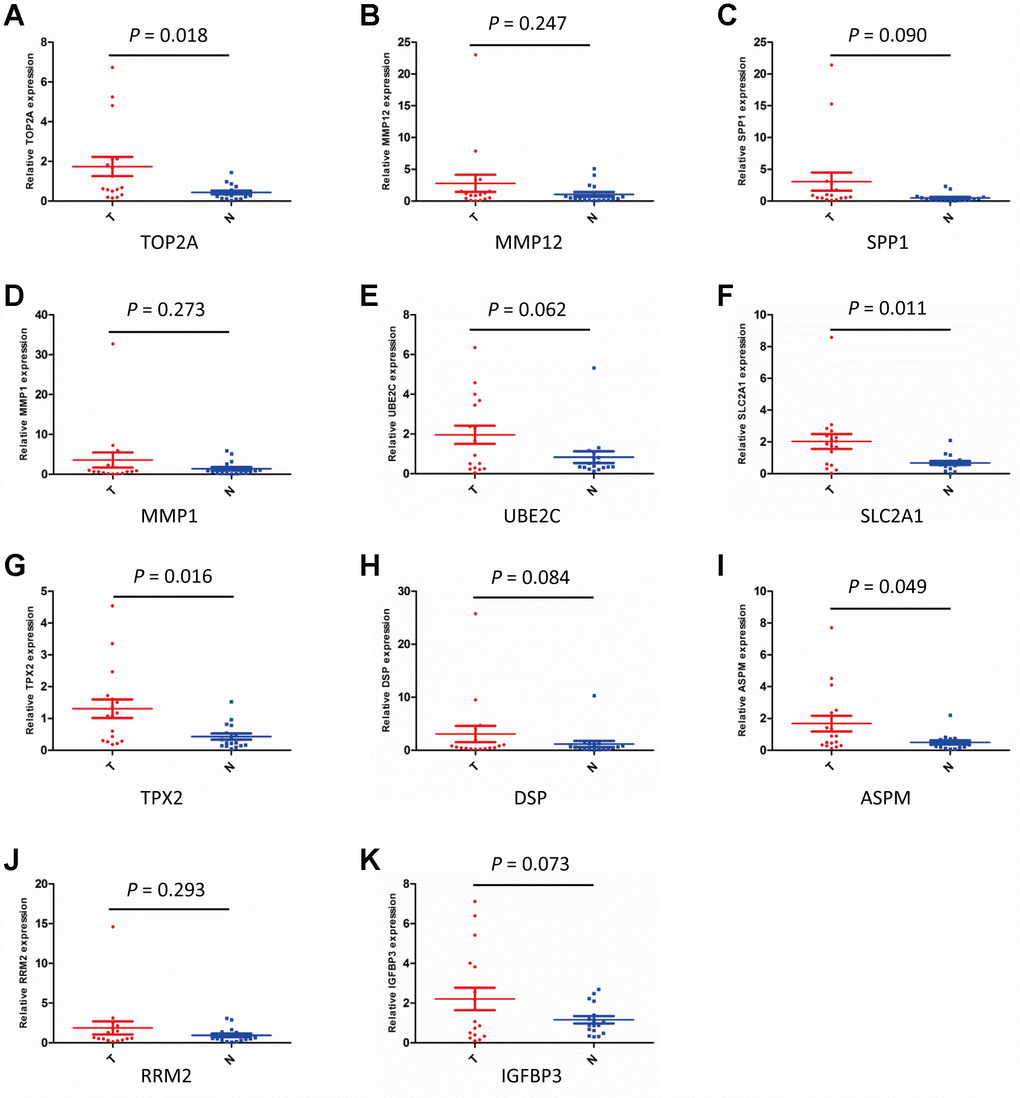

Figure 3. Validation of DEGs expression by qPCR. (A–K) Detection of DEGs expression in NSCLC (T) and adjacent non-tumor lung specimens (N) using qPCR. (n = 17; P < 0.05 indicates significance).

Using Gene Expression Profiling Interactive Analysis (GEPIA), a newly developed interactive web server for analyzing RNA-Seq expression data, we confirmed on NSCLC datasets retrieved from TCGA and GTEx projects that TOP2A (P < 0.05), SLC2A1 (P < 0.05), TPX2 (P < 0.05), and ASPM (P < 0.05) were upregulated in lung adenocarcinoma (LUAD) and lung squamous cell carcinoma (LUSC) specimens, compared to adjacent normal lung samples (Figure 4A–4D).

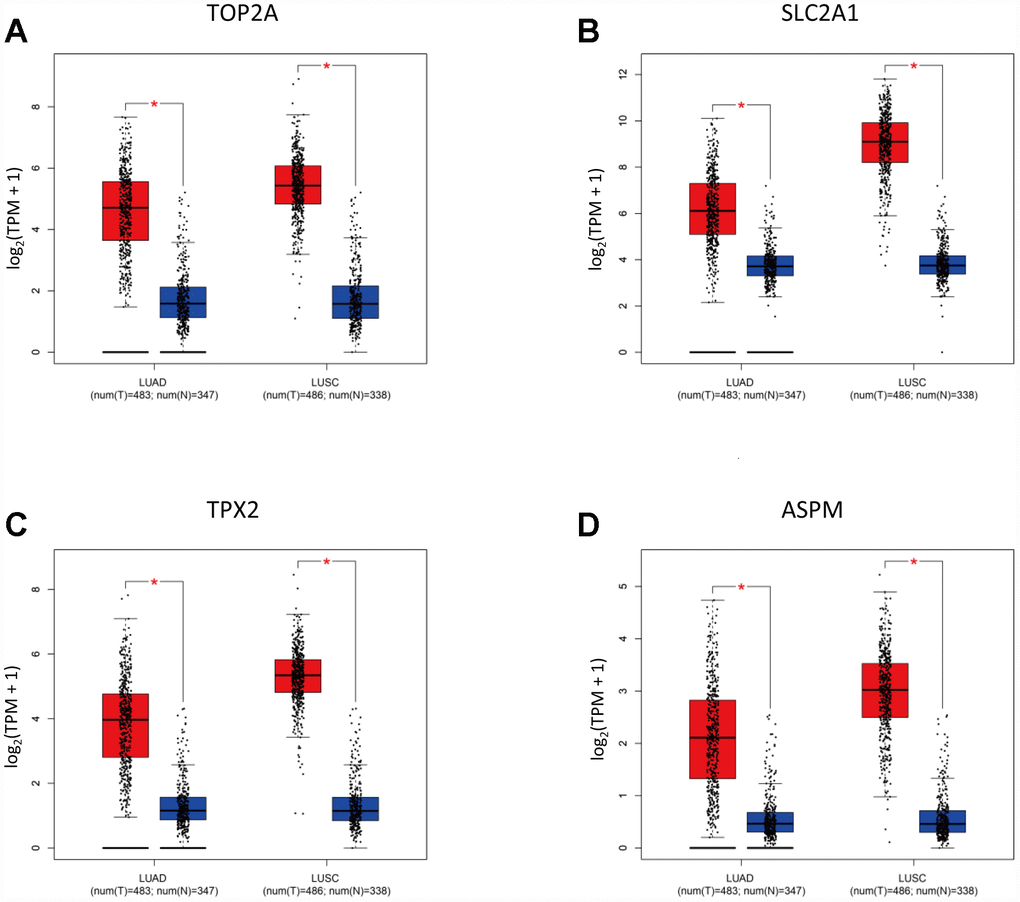

Figure 4. Validation of selected DEGs by GEPIA. (A–D) Expression of TOP2A, SLC2A1, TPX2, and ASPM in NSCLC subtypes (LUAD, n = 483; LUSC, n = 486) and normal lung tissues.

Protein-protein interaction network and correlation analysis of upregulated DEGs

We used the STRING database (https://string-db.org/) to construct protein-protein interaction (PPI) networks for 11 DEGs upregulated in NSCLC (Figure 5A). Results showed that TOP2A, TPX2, and ASPM were interconnected. GEPIA was next used to conduct correlation analysis on these three genes. The correlation coefficients for TOP2A & ASPM, TOP2A & TPX2, and TPX2 & ASPM were 0.63, 0.57, and 0.69 respectively (P = 0.000) (Figure 5B–5D). These data suggest that overexpression of TOP2A, TPX2, and ASPM may significantly impact the development or progression of NSCLC.

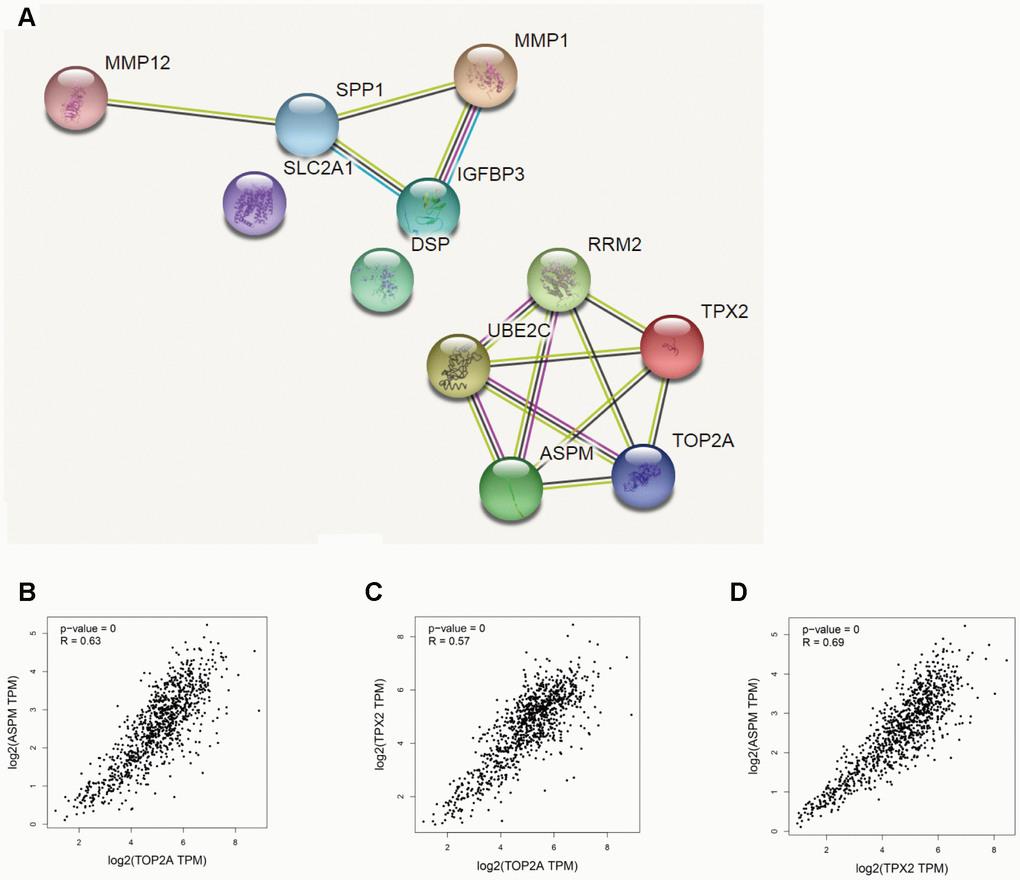

Figure 5. Correlation analysis of DEGs in NSCLC. (A) PPI network of upregulated DEGs. (B–D) Analysis of TOP2A, TPX2, and ASPM by GEPIA’s correlation model. The correlation coefficients for TOP2A & ASPM, TOP2A & TPX2, and TPX2 & ASPM were 0.63, 0.57, and 0.69, respectively (P = 0.000).

Correlations between upregulated DEGs in NSCLC and patient survival

To assess whether upregulation of TOP2A, SLC2A1, TPX2, and ASPM in NSCLC is correlated with patient overall survival (OS), we interrogated NSCLC datasets using the Kaplan Meier plotter platform (http://kmplot.com/analysis/). Results showed that high expression of TOP2A, SLC2A1, TPX2, or ASPM was significantly associated with poor OS (P = 1.6e-11, P < 1e-16, P < 1e-16, and P = 1.4e-11, respectively) (Figure 6A–6D).

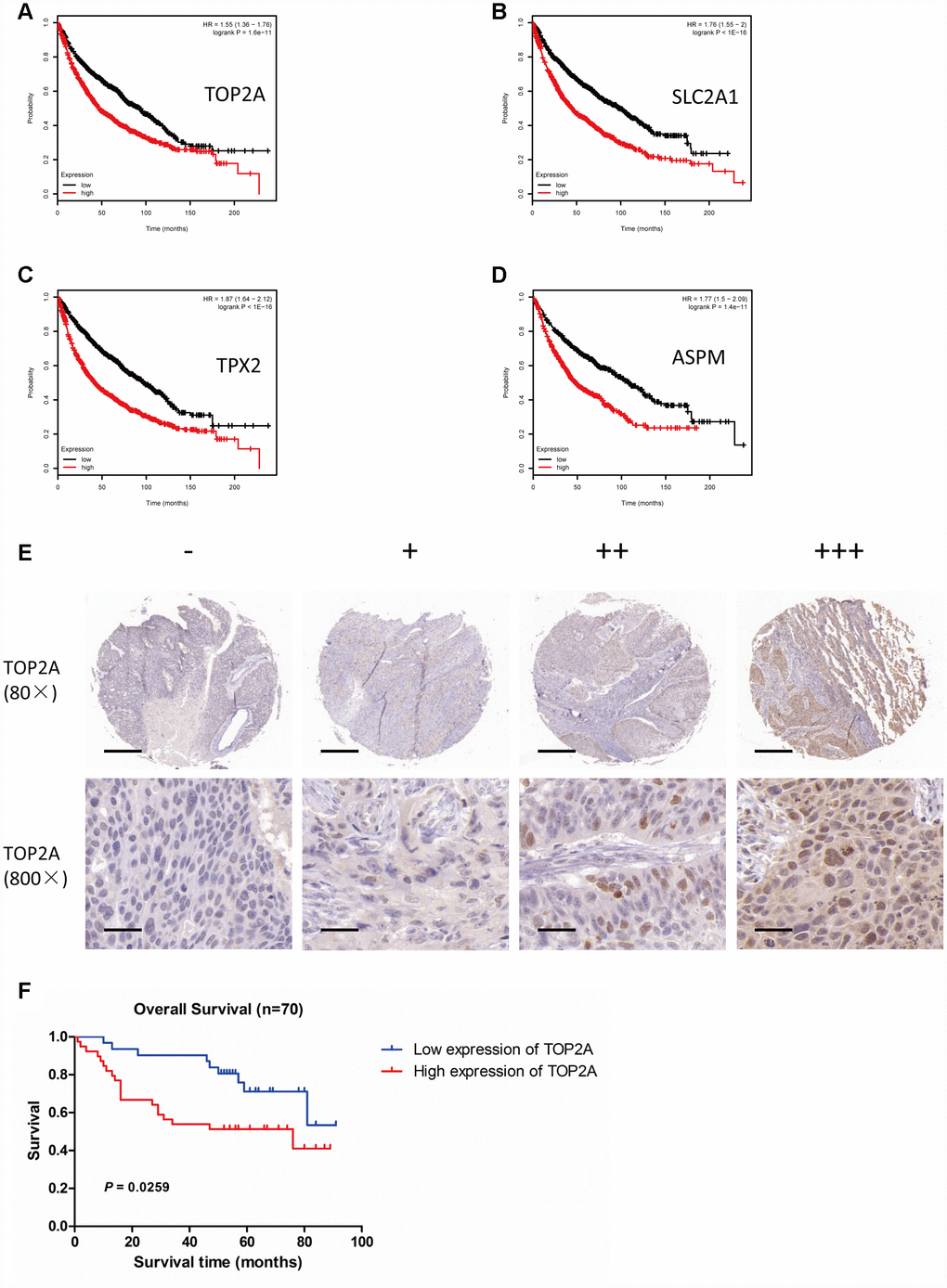

Figure 6. Association of TOP2A, SLC2A1, TPX2, and ASPM with overall survival in patients with lung cancer. Survival analyses were conducted using the Kaplan Meier plotter tool. (A) OS based on high vs low TOP2A expression (P = 1.6e-11). (B) OS based on high vs low SLC2A1 expression (P < 1e-16). (C) OS based on high vs low TPX2 expression (P < 1e-16). (D) OS based on high vs low ASPM expression (P = 1.4e-11). (E) IHC analysis of TOP2A expression in NSCLC (80X and 800X magnifications). (F) OS of NSCLC patients with high or low TOP2A protein expression (P = 0.0259).

To confirm the relationship between TOP2A (the most significantly upregulated DEG) and patient prognosis, we analyzed TOP2A protein expression in a tissue microarray (TMA) of NSCLC samples by immunohistochemistry (IHC). TOP2A signal localized mainly in the nucleus and to a lesser extent in the cytoplasm of tumor cells. TOP2A immunoreactivity was next categorized into four levels, i.e. “-”, “+”, “++”, and “+++”, according to the intensity and density of TOP2A-positive cells in each sample (Figure 6E). Using sample-associated clinical data, Kaplan-Meier analysis confirmed that patients with high TOP2A expression had significantly worse OS (P = 0.0259) (Figure 6F). These results strongly suggest that assessment of TOP2A expression, at the protein and/or mRNA levels, could be a valuable aid for NSCLC prognosis evaluation.

To further investigate the possible impact of TOP2A expression on lung cancer, we analyzed the relationship between TOP2A expression and clinical characteristics of lung cancer patients in the Kaplan-Meier plotter databases (Table 1). High TOP2A expression was significantly associated with poor OS in both female (P = 1.3e-05) and male (P = 5.8e-06) patients. In addition, high TOP2A expression was associated with poor OS in Stage 1 (P = 9.6e-08), Stage T1 (P = 7.6e-05), Stage N0 (P = 3.6e-04), and Stage M0 (P = 3.2e-05) patients. These results indicated that TOP2A expression levels can inform prognosis in early-stage lung cancer patients. Therefore, we propose that TOP2A may serve as an efficient survival biomarker to significantly improve the prediction of NSCLC prognosis.

TOP2A expression correlates with immune infiltration in NSCLC

Tumor-infiltrating immune cells may restrict or promote tumor growth and thus play a critical role in tumor development. Therefore, we investigated the relationship between TOP2A expression and immune infiltration in NSCLC using Tumor IMmune Estimation Resource (TIMER), which allows systematic analysis of immune infiltrates across diverse cancer types (https://cistrome.shinyapps.io/timer/). Six immune cell types (B cells, CD4+ T cells, CD8+ T cells, neutrophils, macrophages, and DCs) were assessed by TIMER against TCGA lung cancer datasets. Results showed a slight correlation of TOP2A expression with B cells (partial.cor = -0.137, P = 2.48e-03), CD4+ T cells (partial.cor = -0.128, P = 4.65e-03), CD8+ T cells (partial.cor = 0.09, P = 4.65e-02), and neutrophils (partial.cor = 0.105, P = 2.10e-02) in LUAD, and with macrophages (partial.cor = -0.225, P = 7.16e-07) and DCs (partial.cor = -0.1, P = 2.93e-02) in LUSC (Figure 7). The further define the correlation between TOP2A expression and immune infiltrates in lung cancer, gene markers of tumor-infiltrating immune cells were also evaluated. Again, slight correlations with TOP2A levels were determined for gene markers of B cells, CD4+ T cells, CD8+ T cells, neutrophils, macrophages, and DCs (Figure 8A–8F). Especially, we detected a more significant negative correlation between TOP2A expression and gene markers of DCs in LUSC (HLA-DPA1: cor = -0.265, P = 2.08e-09; HLA-DPB1: cor = -0.3, P = 9.02e-12; HLA-DQB1: cor = -0.268, P = 1.23e-09; HLA-DRA: cor = -0.27, P = 1e-09; CD1C: cor = -0.346, P = 1.62e-15; NRP1: cor = -0.281, P = 1.69e-10; ITGAX: cor = -0.27, P = 7.71e-10) (Figure 8F). Therefore, we speculate that TOP2A overexpression might influence antitumor immune responses in the NSCLC microenvironment.

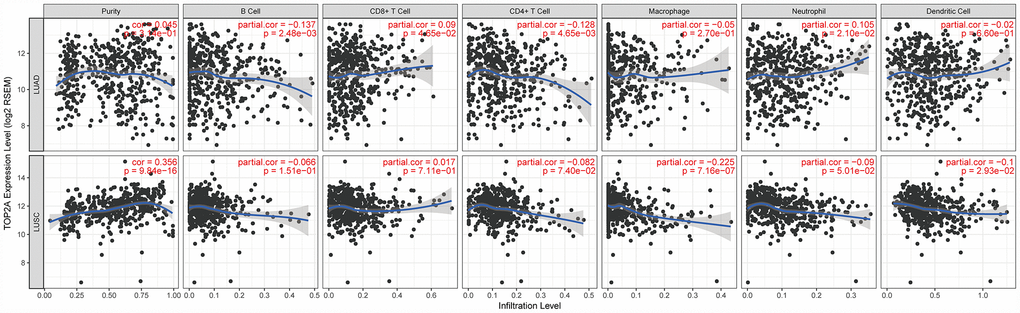

Figure 7. Correlation of TOP2A expression with immune cell infiltration levels in LUAD and LUSC. Tumor-infiltrating immune cells included B cells, CD4+ T cells, CD8+ T cells, neutrophils, macrophages, and DCs. Gene expression levels against tumor purity are displayed in the left-most panel.

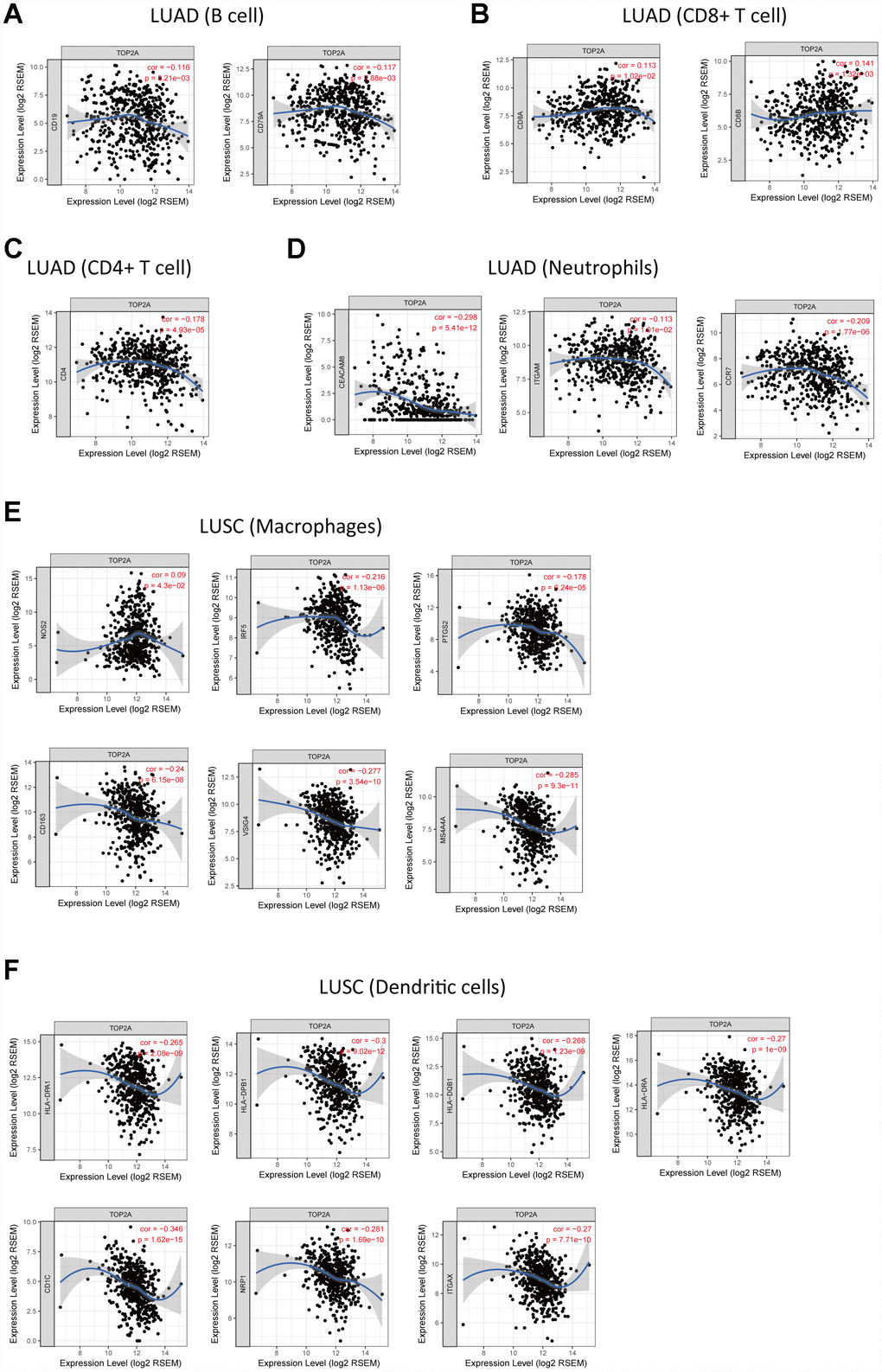

Figure 8. Correlation of TOP2A expression with gene markers of tumor-infiltrating immune cells in NSCLC. (A) Correlation with gene markers of B cells in LUAD. (B) Correlation with gene markers of CD8+ T cells in LUAD. (C) Correlation with gene markers of CD4+ T cells in LUAD. (D) Correlation with gene markers of neutrophils in LUAD. (E) Correlation with gene markers of macrophages in LUSC. (F) Correlation with gene markers of DCs in LUSC.

GEO dataset

The GEO dataset GSE103512 [31] was selected for our study. The platform for GSE103512 is GPL13158, [HT_HG-U133_Plus_PM] Affymetrix HT HG-U133+ PM Array, which includes 280 formalin-fixed, paraffin embedded normal and tumor samples of four cancer types (breast, colorectal, prostate, and non-small cell lung cancer). The array contains 65 breast cancer samples with 10 matched normal samples; 57 colorectal cancer samples with 12 matched normal samples; 60 NSCLC samples with 9 matched normal samples; and 60 prostate cancer samples with 7 matched normal samples. We only analyzed NSCLC samples and their matched controls for DEG identification.

Identification of DEGs

Gene expression analysis of NSCLC and matched normal tissues was performed with the GEO2R tool (https://www.ncbi.nlm.nih.gov/geo/geo2r/?acc=GSE103512). DEGs were sorted by log₂FC > 1.5 or < -1.5 and p < 0.01.

Enrichment analysis

GO enrichment and KEGG pathway analyses were performed using DAVID v6.8 (https://david.ncifcrf.gov/), an online set of functional annotation tools to infer biological activities for large gene lists [32, 33]. P < 0.05 denoted statistical significance.

RNA extraction and qPCR analysis

For qPCR validation of DEGs defined in the GEO dataset GSE103512, 17 paired NSCLC and adjacent non-tumor lung samples were collected from patients who underwent surgery in the Department of Thoracic Surgery (Tangdu Hospital, Fourth Military Medical University). The study was approved by the Ethics Committee of First Affiliated Hospital of Fourth Military Medical University (KY20183327-1). Total RNA was extracted from samples using Total RNA Kit II (Omega Bio-tek, GA, USA) following manufacturer’s instructions, and then reversely transcribed to cDNA using the PrimeScript RT Reagent Kit (TaKaRa, Kusatsu, Japan). qPCR was carried out using the SYBR Premix Ex Taq II Kit (TaKaRa, Kusatsu, Japan). PCR primers are listed in Table 2.

GEPIA-based analysis of RNA-sequencing expression data

GEPIA [34] is a newly developed interactive web server for analyzing RNA-Seq expression data of 9,736 tumors and 8,587 normal samples from TCGA and GTEx projects using a standard processing pipeline (http://gepia.cancer-pku.cn/index.html). It is developed by Zefang Tang, Chenwei Li, and Boxi Kang (Zhang Lab, Peking University), and provides customizable functions such as differential expression analysis, profiling according to cancer type or pathological stage, patient survival analysis, similar gene detection, and correlation and dimensionality reduction analyses. We selected NSCLC specimens and normal lung tissues for differential expression analysis, and DEGs for correlation analysis. The Spearman method was used to determine significant correlations.

PPI network analysis

PPI network analysis was performed on DEGs using STRING software (https://string-db.org/) [35].

Survival analysis

The Kaplan Meier plotter [36, 37] (http://kmplot.com/analysis/) is an open source software that allows to assess the effect of 54,000 genes on survival in 21 cancer types. TOP2A, SLC2A1, TPX2, and ASPM were the DEGs selected for validation as survival biomarkers by the Kaplan Meier plotter. OS was calculated using Kaplan-Meier analysis and log-rank test.

Immunohistochemistry

A TMA of 90 NSCLC and matched normal samples was purchased from Shanghai Biochip Company (Shanghai, China). Twenty paired samples were excluded from analysis owing to incomplete patient information and/or sample absence. Therefore, IHC was performed as reported previously [4] on 70 matched specimens. Paraffin sections were dewaxed, followed by antigen retrieval with Tris-EDTA buffer (pH 9). Deparaffinized sections were treated with methanol containing 3% hydrogen peroxide for 15 min, washed with PBS, and incubated with blocking serum for 30 min. Then, sections were incubated with anti-TOP2A (66541-1-Ig, Proteintech, USA) diluted 1:100, at 4°C overnight. Immunoperoxidase staining was conducted using a streptavidin-peroxidase kit and 3,3′-diaminobenzidine (Zhongshan Jinqiao Co., Beijing, China). Hematoxylin was used to counterstain the nuclei. Intensity and density of TOP2A-positive cells was evaluated and scored as reported before [4].

TIMER analysis

TIMER (https://cistrome.shinyapps.io/timer/) [38, 39] is a comprehensive resource for systematic analysis of immune infiltrates across diverse cancer types using RNA-Seq expression profiling data. Six immune cell types (B cells, CD4+ T cells, CD8+ T cells, neutrophils, macrophages, and dendritic cells) were assessed by TIMER on NSCLC sample data, and the correlation between TOP2A expression and immune infiltration was determined. In addition, we assessed the correlations between TOP2A expression and gene markers of tumor-infiltrating immune cells [40].

Statistical analysis

Data were analyzed using GraphPad Prism 5.0. Expression levels of DEGs between NSCLC and matched normal tissues were compared by paired two-tailed t-test. OS was calculated using Kaplan-Meier analysis and log-rank test. P < 0.05 was considered significant.
