Circular RNA circRGNEF promotes bladder cancer progression via miR-548/KIF2C axis regulation

High hsa_circ_0072995 (circRGNEF) expression predicted an unfavorable BC prognosis

To characterize the association between abnormal circRNA expression and BC progression, we performed RNA-Seq analysis for ribosomal RNA-depleted total RNA in four samples of tissue (two BC and two adjacent normal tissues). The data confirmed that circRGNEF expression was significantly increased in BC tissues (Supplementary Materials 1). To survey the role of circRGNEF in BC, we explored circRGNEF expression in BC as well as adjacent normal tissues from 90 BC patients by RT-qPCR. circRGNEF expression was significantly increased in BC tissues (Figure 1A). We used 90 pairs of human BC and adjacent normal tissues to perform circRGNEF FISH assays, which verified that circRGNEF was mainly localized in the cytoplasm (Figure 1B). We also discovered that high circRGNEF expression was correlated with lymph node metastasis, high pathological T stage, and high stage (Table 1). High circRGNEF expression was also correlated with poorer overall survival (Figure 1C) compared to patients with low circRGNEF expression. hsa_circ_0072995 is derived from circularizing two exons of the RGNEF gene, which is within the region chr5:73069679–73076570. RGNEF consists of 6891 bp and the spliced mature circRNA is 435 bp (Figure 1D); we therefore named hsa_circ_0072995 as circRGNEF.

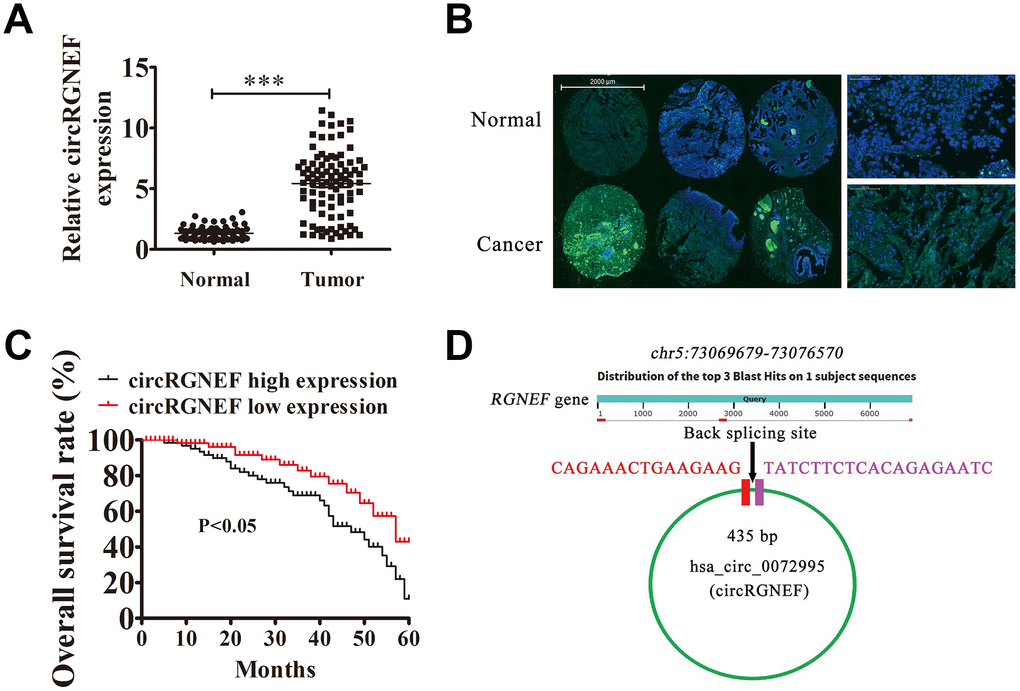

Figure 1. High expression of hsa_circ_0072995 (circRGNEF) predicted an unfavorable prognosis of bladder cancer (BC). (A) RT-qPCR assay of circRGNEF in 90 paired BC tumor and adjacent non-tumor tissues. Data are means ± standard deviation (SD). ***P < 0.001 vs. normal controls. (B) Fluorescent in situ hybridization (FISH) indicates the subcellular localization of circRGNEF. (C) The prognostic significance of circRGNEF expression for BC patients was performed with FISH values using the median value as the cut-off. The observation time was 60 months. (D) Genomic loci of RGNEF and circRGNEF. The red signal indicates back splicing.

circRGNEF expression in BC cell lines increased and circRGNEF knockdown suppressed cell proliferation in vitro and in vivo

circRGNEF expression in BC cell lines was increased compared with normal SV-HUC cells (Figure 2A). T24 and UM-UC-3 cells had higher circRGNEF expression, so we used T24 and UM-UC-3 cells for further experiments. We generated a siRNA targeting circRGNEF (si-circRGNEF); circRGNEF expression was decreased significantly compared to the NC group in both UMUC-3 and T24 cells following circRGNEF knockdown (Figure 2B). Cell cycle distribution analysis confirmed that the number of cells in S-phase decreased significantly and the G2/M-phase proportion increased following depletion of circRGNEF (Figure 2C), indicating cell cycle arrest at G2/M. CCK8 (Figure 2D and 2E), colony formation (Figure 2F), and EdU (Figure 2G and 2H) assays showed that downregulation of circRGNEF suppressed cell proliferation in both UMUC-3 and T24 cells. The xenograft results verified that circRGNEF knockdown suppressed T24 tumor weight and volume compared with the NC group (Figure 3A–3C). Immunohistochemical detection with Ki67 staining showed that circRGNEF silencing suppressed Ki67 expression in tumor tissues (Figure 3D), indicating that circRGNEF knockdown suppressed tumor growth.

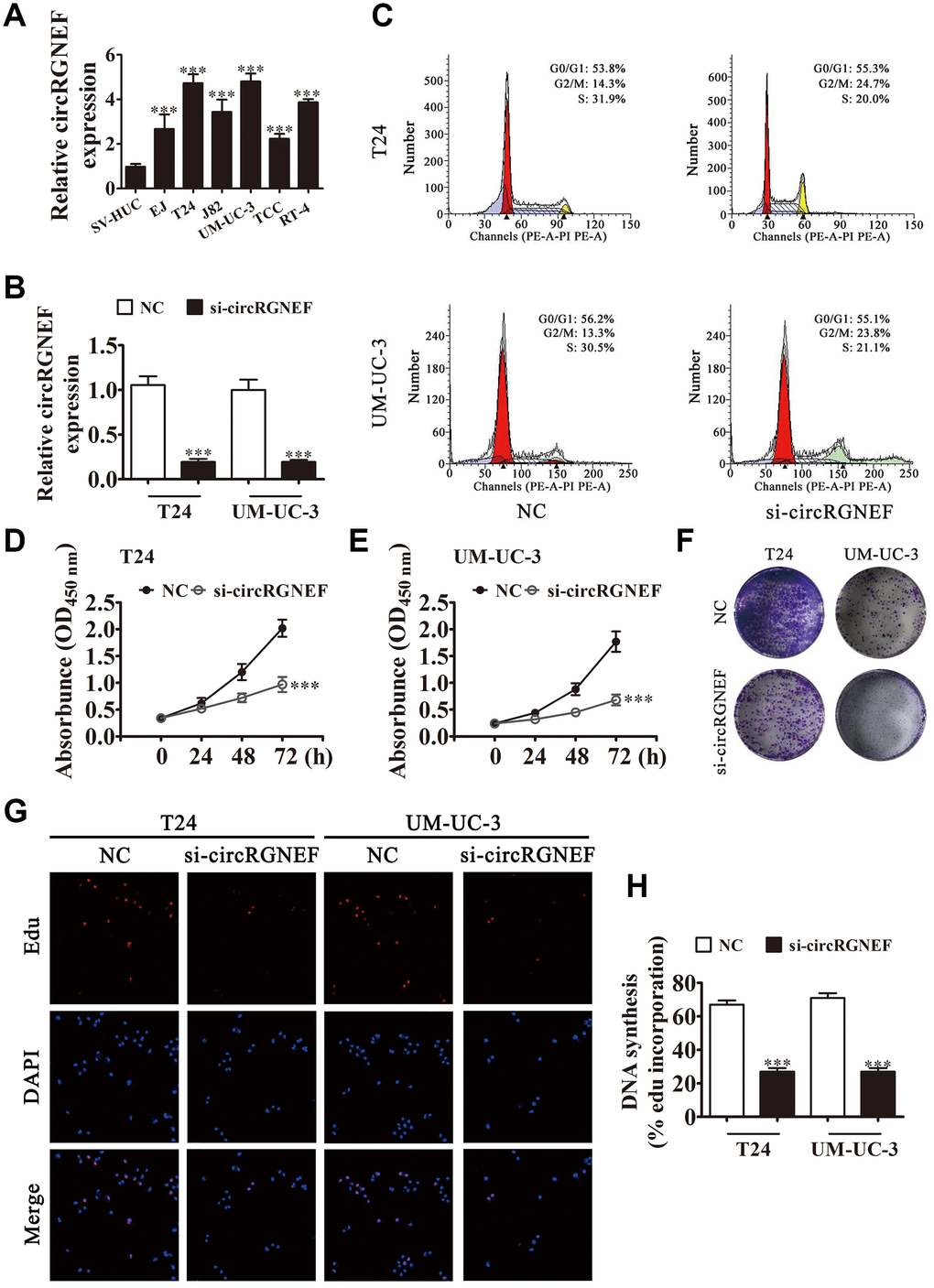

Figure 2. circRGNEF expression was also increased in BC cell lines and knockdown of circRGNEF suppressed cell proliferation. (A) RT-qPCR detection of circRGNEF expression in BC cell lines EJ, T24, J82, UM-UC-3, TCC, and RT-4, and the normal cell line SV-HUC. Data are presented as the mean ± SD. ^***P < 0.001 vs. SV-HUC. (B) RT-qPCR detection shows the expression of circRGNEF in both T24 and UM-UC-3 cells following transfection with small interfering RNA targeting circRGNEF (si-circRGNEF) or negative control (NC). Data are presented as the mean ± SD. ^***P < 0.001 vs. NC. (C) Cell cycle distribution by flow cytometry after propidium iodide staining. (D, E) CCK8 assay shows the proliferation of T24 and UM-UC-3 cells with or without circRGNEF silencing. Data are presented as the mean ± SD. ^***P < 0.001 vs. NC. (F) Colony formation assay was performed to determine the colony-forming ability of T24 and UM-UC-3 cells. (G, H) circNRIP1 silencing significantly inhibited DNA synthesis, as determined by the EdU assay. Data are presented as the mean ± SD. ^***P < 0.001 vs. NC.

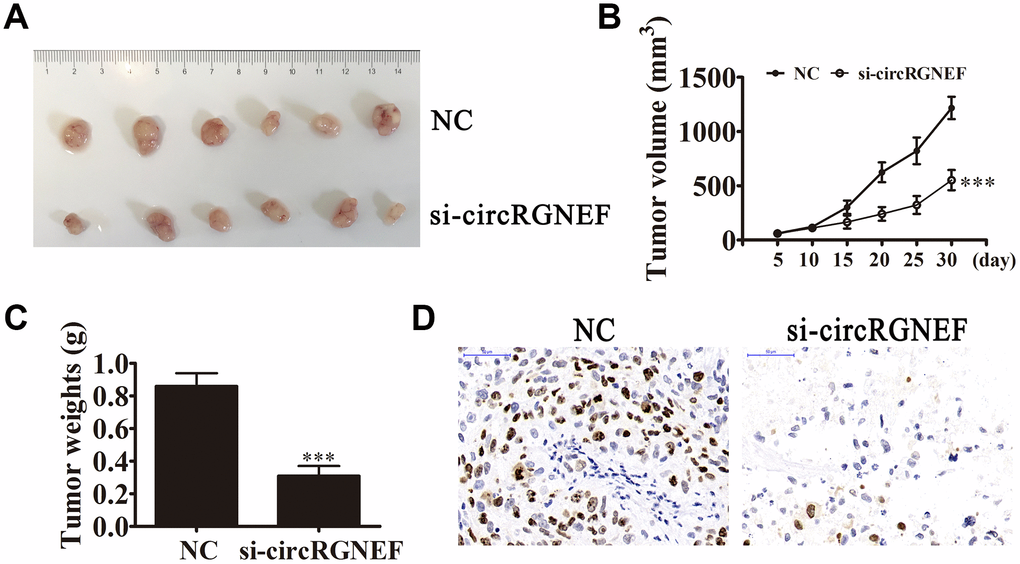

Figure 3. circRGNEF silencing suppressed tumor growth of xenografts in nude mice. (A, B) Photographs of tumors and curve of T24 tumor volume growth (B) of the nude mice. Data are presented as the mean ± SD. ^***P < 0.001 vs. NC. (C) Tumor weights. Data are presented as the mean ± SD. ^***P < 0.001 vs. NC. (D) Ki67 staining of tumor tissues.

Knockdown of circRGNEF decreased BC cell invasion in vivo and in vitro

Invasion and migration analyses by Transwell assay revealed that depletion of circRGNEF decreased T24 and UMUC-3 cell invasion and migration (Figure 4A–4C). T24 cell metastasis was also decreased after circRGNEF silencing, as assessed by live imaging (Figure 4D), suggesting that knockdown of circRGNEF suppresses BC invasion in vivo and in vitro.

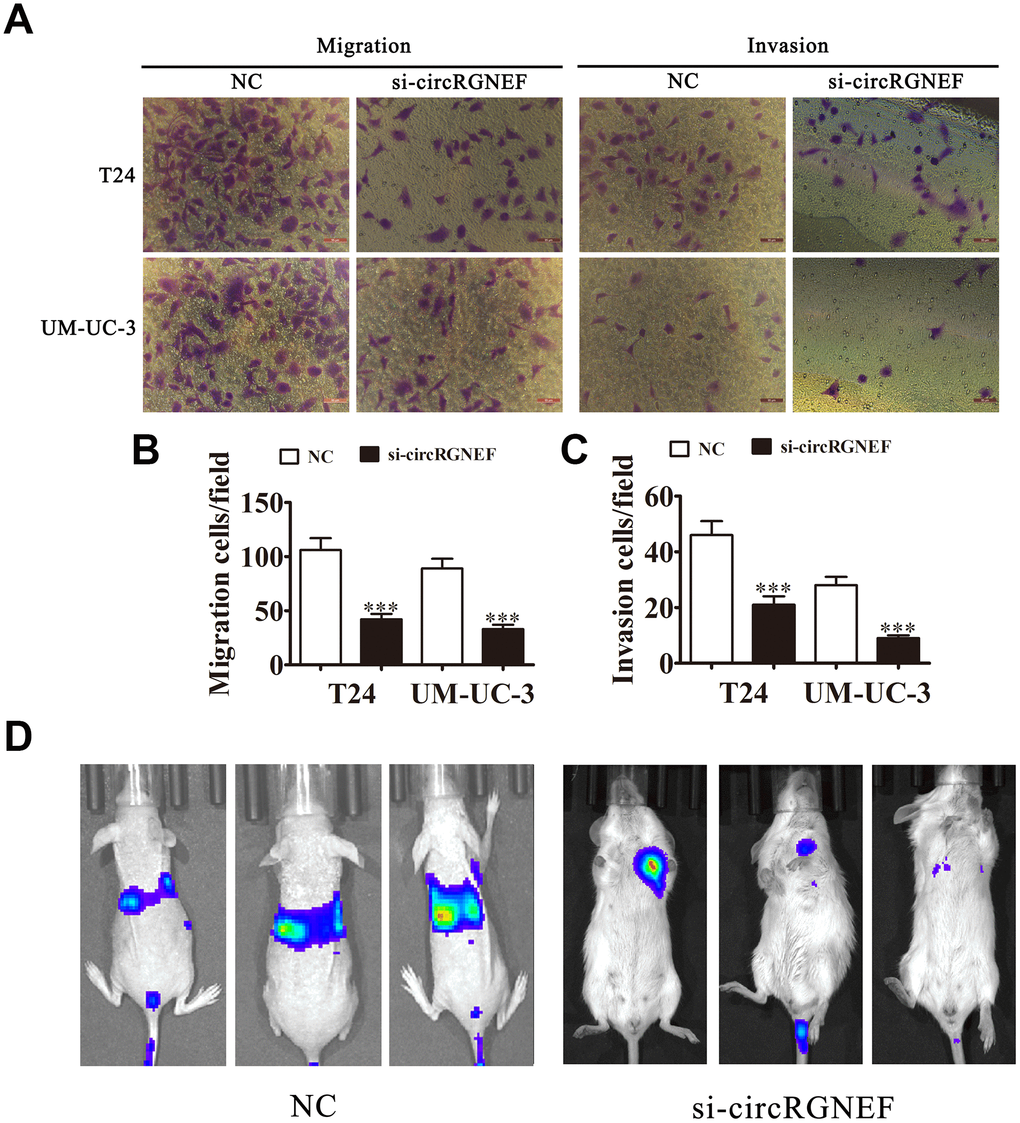

Figure 4. Knockdown of circRGNEF decreased the invasion ability of BC in vitro and in vivo. (A–C) Cell migration and invasion were assessed in T24 and UM-UC-3 cells using Transwell assays. Data are presented as the mean ± SD. ^***P < 0.001 vs. NC. (D) Live imaging shows the effects of circRGNEF on metastasis of T24 cells 30 days after intravenous tail injection.

miR-548 and KIF2C are downstream targets of circRGNEF

Several studies have confirmed that circRNAs, including miRNA response elements, can correlate to miRNAs as competitive endogenous RNAs and regulate target mRNA expression [10, 13]. Thus, we selected T24 cells with or without circRGNEF silencing for high-throughput sequencing. circRGNEF depletion resulted in upregulation of a number of miRNAs (Supplementary Materials 2). Combined with the biological analysis, these results infer that miR-548 is a circRGNEF target (Figure 5A). RR-qPCR revealed that miR-548 expression was decreased in BC and adjacent normal tissues of 90 BC patients (Figure 5B). Bioinformatics analyses indicated that miR-548 is a downstream target of circRGNEF. To verify the relationship between circRGNEF and miR-548, we inserted WT or Mut circRGNEF sequences including the miR-548 binding sequence into luciferase reporter vectors (Figure 5C). We then transfected the luciferase reporter vectors into HEK293T cells in the presence or absence of miR-548 mimic. Luciferase reporter analyses showed that miR-638 inhibited luciferase activity in WT cells though not in Mut cells (Figure 5D), indicating that miR-548 is a target of circRGNEF.

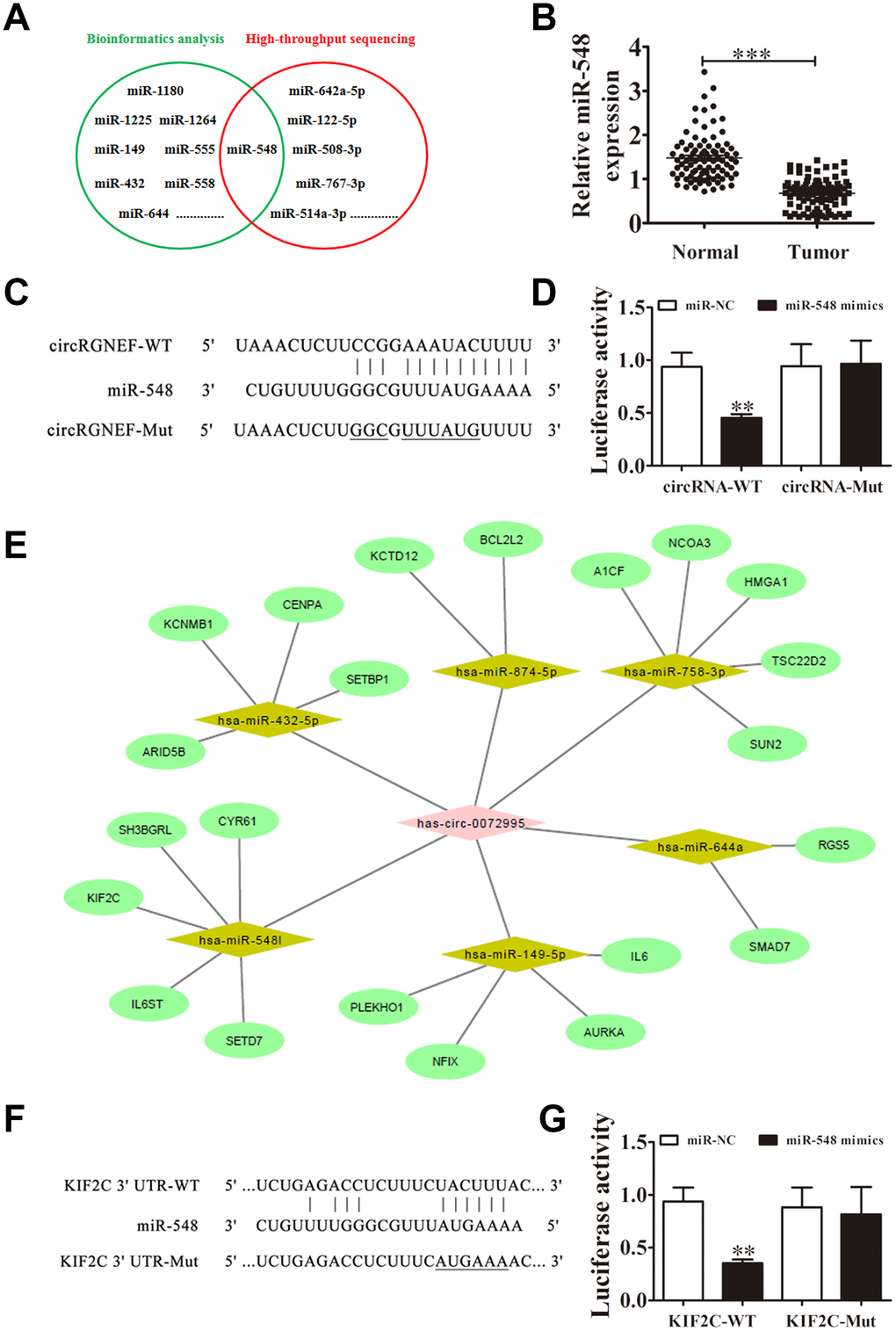

Figure 5. miR-548 and KIF2C are downstream targets of circRGNEF. (A) Bioinformatics analysis (https://circinteractome.nia.nih.gov/bin/mirnasearch) and high-throughput sequencing indicated miR-548 is a target of circRGNEF. (B) RT-qPCR assay of miR-548 in 90 paired BC tumor and adjacent non-tumor tissues. Data are means ± SD. ***P < 0.001 vs. normal controls. (C) The mutated (Mut) version of circRGNEF is shown. (D) The relative luciferase activity was determined 48 h after transfection of HEK293T cells with miR-548 mimic/normal control (NC) or circRGNEF wild-type/Mut. Data are presented as the mean ± SD. ^***P < 0.001. (E) Bioinformatics analysis (http://circnet.mbc.nctu.edu.tw/ and http://www.targetscan.org/vert_71/) indicated KIF2C is a direct target of miR-548. (F) The mutated (Mut) version of the 3’UTR-KIF2C is shown. (G) The relative luciferase activity was determined 48 h after transfection of HEK293T cells with miR-548 mimic/normal control (NC) or 3’UTR-KIF2C wild-type/Mut. Data are presented as the mean ± SD. ^***P < 0.001.

Bioinformatics analyses also suggested that KIF2C is a downstream target of miR-548 (Figure 5E). To validate the relationship between KIF2C and miR-548, we inserted WT or Mut 3’UTR-KIF2C sequences including the miR-548 binding sequence into luciferase reporter vectors (Figure 5F). We then transfected the luciferase reporter vectors into HEK293T cells in the presence or absence of miR-548 mimic. Luciferase reporter analysis suggested that miR-548 inhibited luciferase activity in WT cells while not in Mut cells (Figure 5G), indicating that KIF2C is a target of miR-548.

miR-548 downregulation or KIF2C overexpression restored proliferation, migration, and invasion after circRGNEF silencing

RT-qPCR analysis showed that circRGNEF silencing suppressed circRGNEF and KIF2C expression, but promoted miR-548 expression. When combined with treatment with miR-548 inhibitor, miR-548 expression was suppressed and KIF2C expression was restored. miR-548 inhibitor had no effect on circRGNEF expression. Following transfection with a KIF2C overexpression vector, KIF2C expression increased significantly in UMUC-3 and T24 cells but there was no change in the expression of circRGNEF and miR-548 (Figure 6A–6F), suggesting that miR-548 and KIF2C are downstream targets of circRGNEF. DNA synthesis assessed by EdU assay revealed that miR-548 downregulation or KIF2C overexpression restored proliferation of both T24 and UMUC-3 cells after circRGNEF silencing (Figure 6G–6I). Analysis of migration and invasion showed that downregulation of miR-548 or overexpression of KIF2C restored invasion and migration abilities in both UMUC-3 and T24 cells after circRGNEF silencing (Figure 6J–6N).

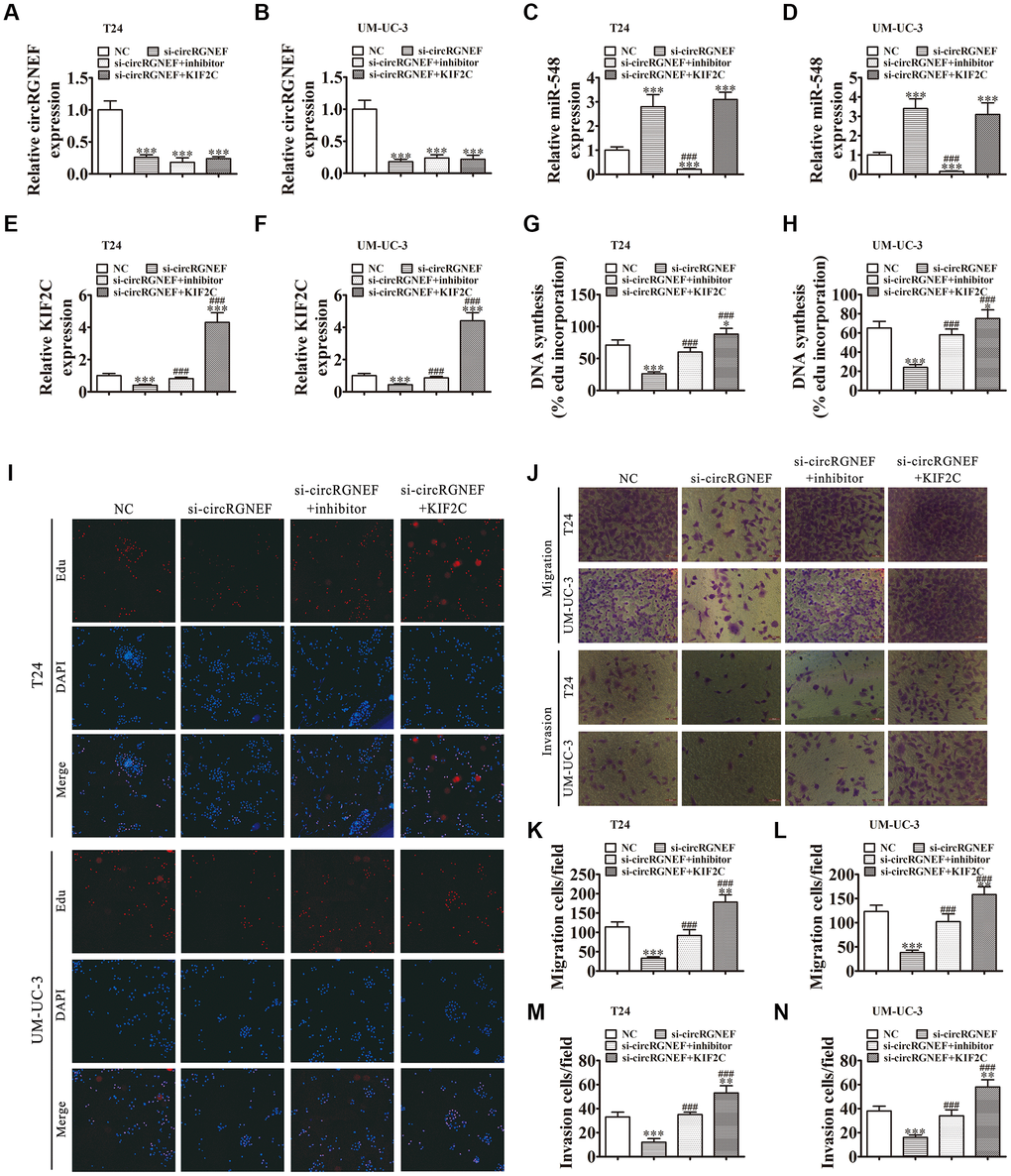

Figure 6. Downregulation of miR-548 or overexpression of KIF2C restored proliferation, migration, and invasion after circRGNEF silencing. (A–F) RT-qPCR shows the expression of circRGNEF (A, B), miR-548 (C, D), and KIF2C (E, F) in T24 and UM-UC-3 cells following transfection or treatment with NC, si-circRGNEF, miR-548 inhibitor, KIF2C overexpression vector (KIF2C) single or combined. Data are presented as the mean ± SD. ^***P < 0.001 vs. NC. ^###P < 0.001 vs. si-circRGNEF. (G–I) Cell proliferation was analyzed by EdU assays. Data are presented as the mean ± SD. ^***P < 0.001 vs. NC. ^###P < 0.001 vs. si-circRGNEF. (J–N) Cell migration and invasion were assessed in T24 and UM-UC-3 cells using Transwell assays. Data are presented as the mean ± SD. ^***P < 0.001 vs. NC. ^###P < 0.001 vs. si-circRGNEF.

KIF2C overexpression reversed miR-548-induced cell invasion, migration, and growth inhibition in vitro

To validate the relationship between miR-548 and KIF2C, we constructed miR-548-overexpressing cells in the presence or absence of KIF2C overexpression. miR-548 expression was increased in T24 and UMUC-3 cells together with transfection of the miR-548 mimic. However, KIF2C overexpression had no effect on miR-548 expression (Figure 7A and 7B). The results also showed that miR-548 overexpression decreased KIF2C expression in UMUC-3 cells following transfection with miR-548 mimic. But KIF2C overexpression significantly promoted KIF2C expression because heterogeneous transfection of KIF2C with no 3’UTR cannot interact with and be degraded by miR-548 (Figure 7C and 7D), suggesting that KIF2C is a downstream target of miR-548.

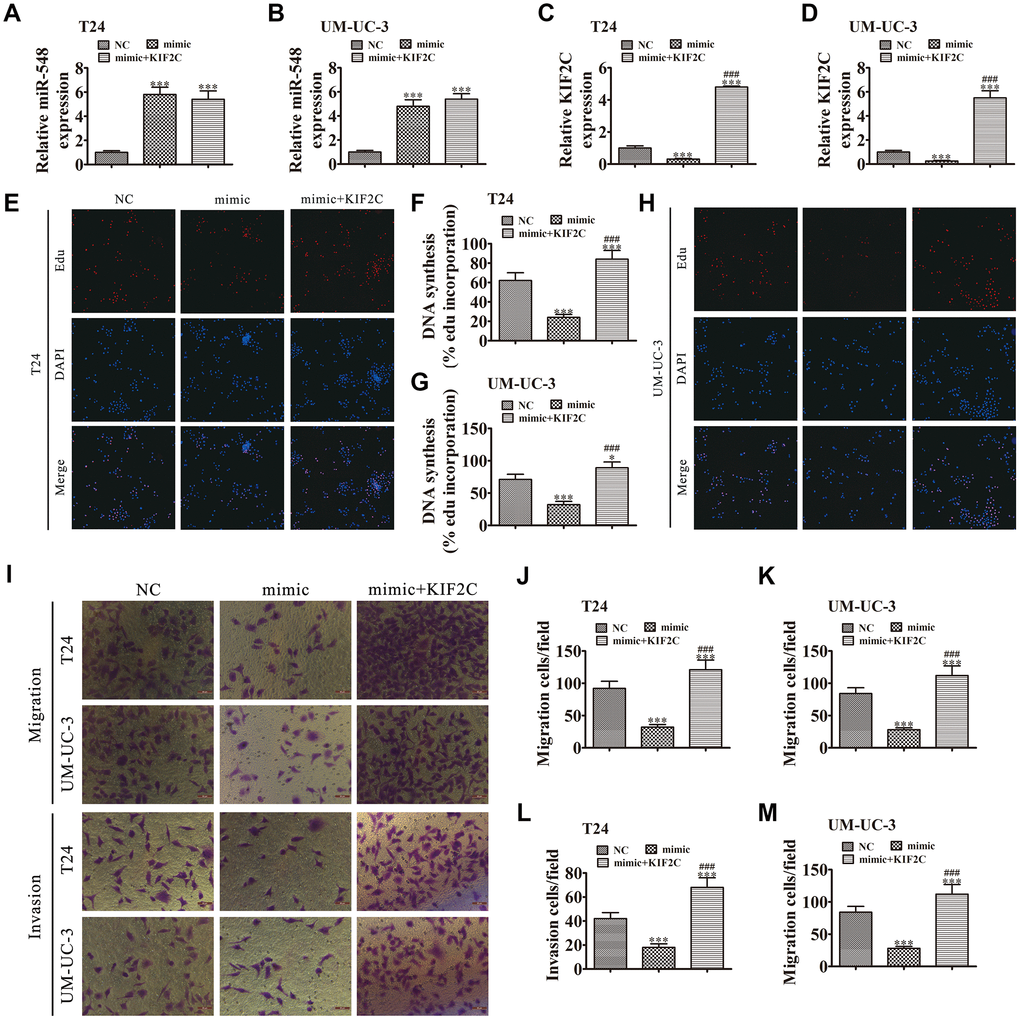

Figure 7. KIF2C overexpression reversed miR-548-induced cell migration, invasion, and growth inhibition in vitro. (A–D) T24 and UM-UC-3 cells were transfected with miR-548 mimics with or without the KIF2C overexpression vector. RT-qPCR shows the expression of miR-548 (A, B) and KIF2C (C, D) in T24 and UM-UC-3 cells. Data are denoted by the mean ± SD. ^***P < 0.001 vs. NC. ^###P < 0.001 vs. mimic. (E–H) EdU assay showing the proliferation of T24 (E, F) and UM-UC-3 (G, H) cells. Data are denoted by the mean ± SD. ^*P < 0.05, ^***P < 0.001. ^###P < 0.001 vs. mimic. (I–M) Cell migration and invasion were determined in T24 and UM-UC-3 cells by Transwell assays. Data are denoted by the mean ± SD. ^***P < 0.001 vs. NC. ^###P < 0.001 vs. mimic.

The EdU assay verified that miR-548 upregulation suppressed T24 and UMUC-3 cell proliferation whereas overexpression of KIF2C restored T24 and UMUC-3 cell proliferation after miR-548 overexpression (Figure 7E–7H). Transwell assays showed that overexpression of KIF2C restored invasion and migration abilities in T24 and UMUC-3 cells following miR-548 overexpression (Figure 7I–7M).

Animal ethics statement

We used 12 BALB/c nude mice aged 4 weeks and weighing 15~20 g (SLARC, Shanghai, China) in the present study. Ethics Committee in Huashan Hospital, Fudan University approved animal experiments.

Patients and samples

In total, we collected 90 pairs of BC and adjacent normal tissues from BC patients enrolled in Huashan Hospital, Fudan University from January 2007 to January 2013. No patients received preoperative local or systemic treatment in prior specimen collection. We acquired informed consent from patients or patients’ relatives. Ethics Committee at Huashan Hospital, Fudan University approved this project. We directly deposited collected tissues in liquid nitrogen and 4% paraformaldehyde for further use.

High-throughput RNA-Seq and strand-specific RNA-Seq library construction

We extracted total RNA from two pairs of BC and adjacent noncancerous tissues or T24 cells with or without small interfering RNA targeting circRGNEF (si-circRGNEF) via TRIzol reagent (Invitrogen, Carlsbad, CA, USA). We subjected nearly 3 μg of total RNA from every sample to VAHTS Total RNA-seq (H/M/R) Library Prep Kit for Illumina (Vazyme Biotech Co., Ltd, Nanjing, China) to eliminate ribosomal RNA. We retained other RNA such as non-coding RNA and mRNA. We treated purified RNA with RNase R (Epicenter, 40 U, 37°C for 3 h), and then performed TRIzol purification. We prepared RNA-Seq libraries through the KAPA Stranded RNA-Seq Library Prep Kit (Roche, Basel, Switzerland), which were subjected to deep sequencing through Illumina HiSeq 4000 at Aksomics, Inc., Shanghai, China (accession number: H1712024).

Cell culture and transfection

We obtained SV-HUC and BC (J82, EJ, T24, TCC, UM-UC-3, and RT-4) cell lines from Type Culture Collection (Shanghai, China) in Chinese Academy of Sciences. Cells were culturedin Dulbecco’s modified Eagle medium (DMEM; Gibco, Grand Island, NY, USA) with 10% fetal bovine serum (FBS) at 37°C in a humidified incubator with 5% CO₂.

We transfected si-circRGNEF, miR-548 inhibitors, miR-548 mimics, KIF2C overexpression vector, and respective negative controls into cultured UM-UC-3 and T24 cells using Lipofectamine 2000 (Invitrogen) following standard procedure. To further verify the effects of circRGNEF in vivo, we constructed lentiviral stabilized circRGNEF-silenced T24 cells.

Bioinformatics analyses

We predicted circRNA/miRNA target genes via the web-based tool Circular RNA Interactome. We predicted correlations between KIF2C and miR-548 through TargetScanHuman and the http://circnet.mbc.nctu.edu.tw/ website.

Colony formation and cell proliferation assays

We used Cell Counting Kit-8 (CCK-8; Gibco) assay to assess cell viability. We seeded transfected cells into 96-well plates at a density of 2000 cells per well in triplicate wells. We detected cell viability at 0, 24, 48, and 72 h after seeding according to standard procedure.

For the colony formation assay, we seeded transfected cells into 6-well plates at a density of 2000 cells per well. Cells were maintained in DMEM medium containing 10% FBS for 10 days. We fixed and stained samples, and counted and imaged colonies.

5-Ethynyl-2′-deoxyuridine (EdU) assay

We used the EdU assay kit (RiboBio, China) to assess cell proliferation and DNA synthesis. We cultured 10,000 treated PC cells in a 96-well plate overnight. The following day, we added EdU solution (25 μM) and incubated cells for 1 day. We then fixed cells with 4% formalin at room temperature for 2 h. Afterwards, 0.5% Triton X-100 was applied for 10 min to permeabilize the cells and Apollo reaction solution (200 μL) was added to stain EdU for 30 min and 4,6-diamidino-2-phenylindole (DAPI; 200 μL) to stain nuclei. Lastly, a Nikon microscope (Nikon, Japan) was used to detect proliferation and DNA synthesis, reflected by blue and red signals, respectively.

Fluorescence in situ hybridization (FISH)

We prepared specific probes to circRGNEF (Dig-5′ -AAACTGAAGAAGTATCTTCTCACAGAG -3′-Dig) (Geneseed Biotech, Guangzhou, China). We detected signals using FITC-conjugated anti-biotin antibodies (Jackson ImmunoResearch Inc., West Grove, PA, USA). We counterstained cell nuclei with DAPI. We obtained images using Zeiss LSM 700 confocal microscope (Carl Zeiss, Oberkochen, Germany).

Migration and invasion assay

We measured cell invasion and migration using a BD Transwell chamber with 24 wells (Costar, Boston, MA, USA), uncoated or pre-coated with Matrigel, following the standard procedure. We seeded cells (6 × 10⁴ cells per well for migration; 8 × 10⁴ cells per well for invasion) in 500 μl serum-free medium to the insert, and placed media supplemented with 10% FBS as a chemoattractant in the lower chamber. After incubation at 37°C for 1 day, we fixed and stained the invaded cells at the lower surface of the insert with 1% crystal violet. We then counted and imaged cells.

RT-qPCR

We conducted RNA extraction using TRIzol reagent (Invitrogen) as previously described [33]. We obtained cDNA using a pTRUEscript 1^st Strand cDNA Synthesis Kit (Aidlab, Beijing, China). We conducted RT-qPCR with the 2× SYBR Green qPCR Mix (Aidlab) on the ABI 7900HT sequence detection machine (Thermo Fisher Scientific, Waltham, MA, USA). Expression fold differences were determined via the 2^−ΔΔCT method.

Luciferase reporter assay

We amplified wild type (WT) cDNA fragments of circRGNEF or the KIF2C 3’ untranslated region (UTR) including predicted miR-548 binding sites and generated mutated (Mut) fragments by overlap extension PCR. We cloned WT and Mut fragments into psiCHECK-2 (Promega, Madison, WI, USA). For the luciferase reporter assay, we co-transfected HEK293T cells with WT or Mut vector and miR-548 or control mimics using Lipofectamine 2000 (Thermo Fisher Scientific). After 2 days of transfection, we detected luciferase activity through the dual-luciferase reporter assay kit (Promega) followed by normalization with Renilla luciferase activity. Experiments were performed in triplicate.

Metastasis assays and tumor xenograft formation

We injected 2 × 10⁷ viable cells from negative control (NC) or si-circRGNEF T24 cells into nude mice right flanks as previously described [34]. We measured tumor sizes every 5 days through a vernier caliper. We calculated tumor volume by the equation: volume = length × width² × 0.5. Mice were euthanatized for qRT-PCR analysis 1 month after implantation.

For metastasis analyses, we transfected T24 cells with luciferase expression vectors into both NC- and si-circRGNEF-silenced cells (2 × 10⁵). We intravenously injected cells into mice tails. After 1 month, we analyzed T24 cell metastasis by bioluminescence imaging with intravenous luciferin injection (150 mg luciferin/kg body weight) into tails of mice.

Statistical analysis

We denoted data by mean ± standard deviation. We used GraphPad Prism (GraphPad, La Jolla, CA, USA) to calculate group differences. P ≤ 0.05 inferred a statistical significance.

Ethics approval and consent to participate

Huashan Hospital Fudan University Committee approved the present study.
