TCF7L2 rs290487 C allele aberrantly enhances hepatic gluconeogenesis through allele-specific changes in transcription and chromatin binding

TCF7L2 rs290487 SNP is associated with hepatogenous diabetes

We analyzed the correlation between the TCF7L2 rs290487 SNPs and clinical parameters in 195 cirrhotic patients who were susceptible to HD. As shown in Table 1, patient characteristics such as age, gender, BMI, primary liver diseases, and comorbidities were similar in patients with different rs290487 genotypes (Table 1). However, patients with the rs290487 C/C genotype showed significantly higher levels of fasting serum insulin, HOMA-IR index, and post-prandial plasma glucose compared to those with the rs290487 T/T genotype (P < 0.05, Table 1). Moreover, the incidence of HD was higher in patients with the rs290487 C/C (42.1%) compared to those with rs290487 C/T (27.4%) or rs290487 T/T (24.7%) genotypes, but was not statistically significant.

High expression of some liver TCF7L2 transcripts positively correlates with HOMA-IR values in patients with the rs290487 C/C genotype

Previous studies report that TCF7L2 SNPs such as rs7903146 and rs12255372 are associated with changes in alternate-spliced TCF7L2 transcripts and TCF7L2 mRNA expression [15]. Therefore, we performed qRT-PCR analysis to quantify alternate TCF7L2 transcripts in 54 patient liver tissue samples. We did not detect transcripts containing exons 11-14 (transcript No. 12) and exons 13b-14 (pancreas-specific transcript No. 9 and 10) that have been described in a previous study [16]. Moreover, patients with the rs290487 C/C variant genotype showed increased levels of total TCF7L2 mRNA and those of liver-specific alternate-spliced TCF7L2 transcripts such as transcript No. 2, 4, and 5 [16] compared to patients with the wild-type T/T genotype (Figure 1A). Furthermore, the levels of total TCF7L2 mRNA and some liver transcripts were significantly higher in patients with HD than in patients without HD (Figure 1B). We also observed a positive correlation between HOMA-IR values and the levels of liver TCF7L2 transcripts (Figure 1C).

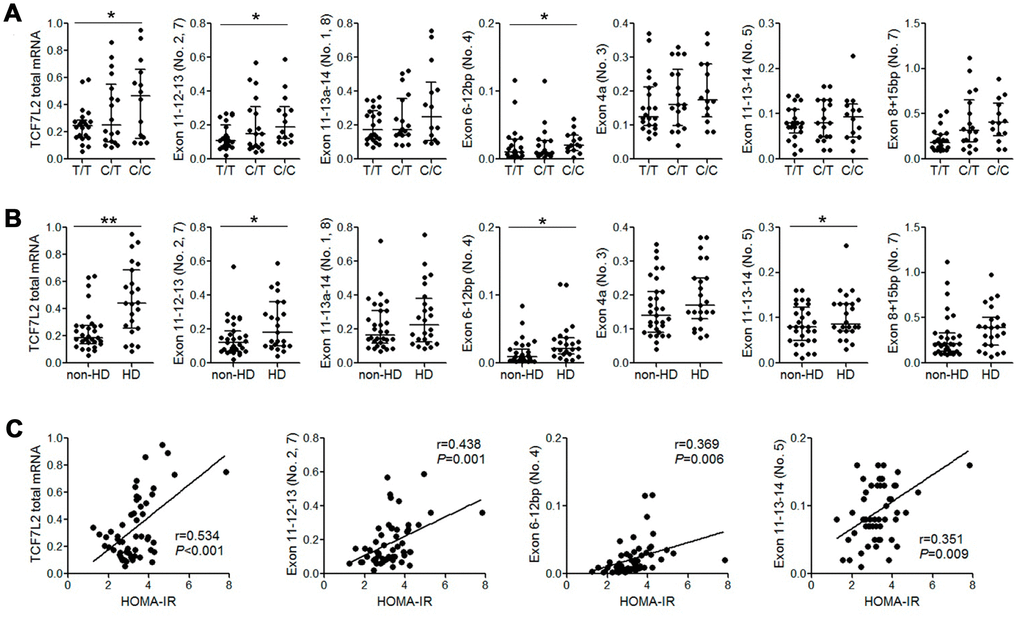

Figure 1. The expression of liver TCF7L2 transcripts correlated with rs290487 variant and the diabetic status of cirrhotic patients. (A) QRT-PCR analysis shows that the levels of total TCF7L2 mRNA and the liver-specific alternately spliced TCF7L2 transcripts containing exons 11-12-13 and exons 6-12bp are significantly higher in patients with the rs290487 C/C genotype compared to those with the rs290487 T/T genotype. (B) QRT-PCR analysis shows that levels of total TCF7L2 mRNA in the liver and liver-specific alternately spliced TCF7L2 transcripts containing exons 11-12-13, exons 6-12bp, and exons 11-13-14 were significantly higher in HD patients compared to the non-HD patients. (C) Correlation analysis shows that HOMA-IR value is positively associated with the levels of total TCF7L2 mRNA in the liver and the levels of liver-specific TCF7L2 transcripts. Note: *P< 0.05; ** P< 0.01.

PLC-PRF-5 cells with the risk rs290487 C allele show enhanced hepatic gluconeogenesis

Next, to study the effects of rs290487 SNPs on hepatic glucose metabolism, we generated the rs290487 C/T SNP in PLC-PRF-5 cells (C/T cells) using CRISPR/Cas9 knock-in approach (Figure 2A). Targeted sequencing showed that the parental PLC-PRF-5 cells contain rs290487 C/C homozygous genotype (C/C cells). We analyzed glucose metabolism in these isogenic C/C and C/T cell lines and found increased glucose production under fasting state and decreased glucose uptake, particularly under insulin-stimulated conditions, in the C/C cells compared to the C/T cells (Figure 2B–2C).

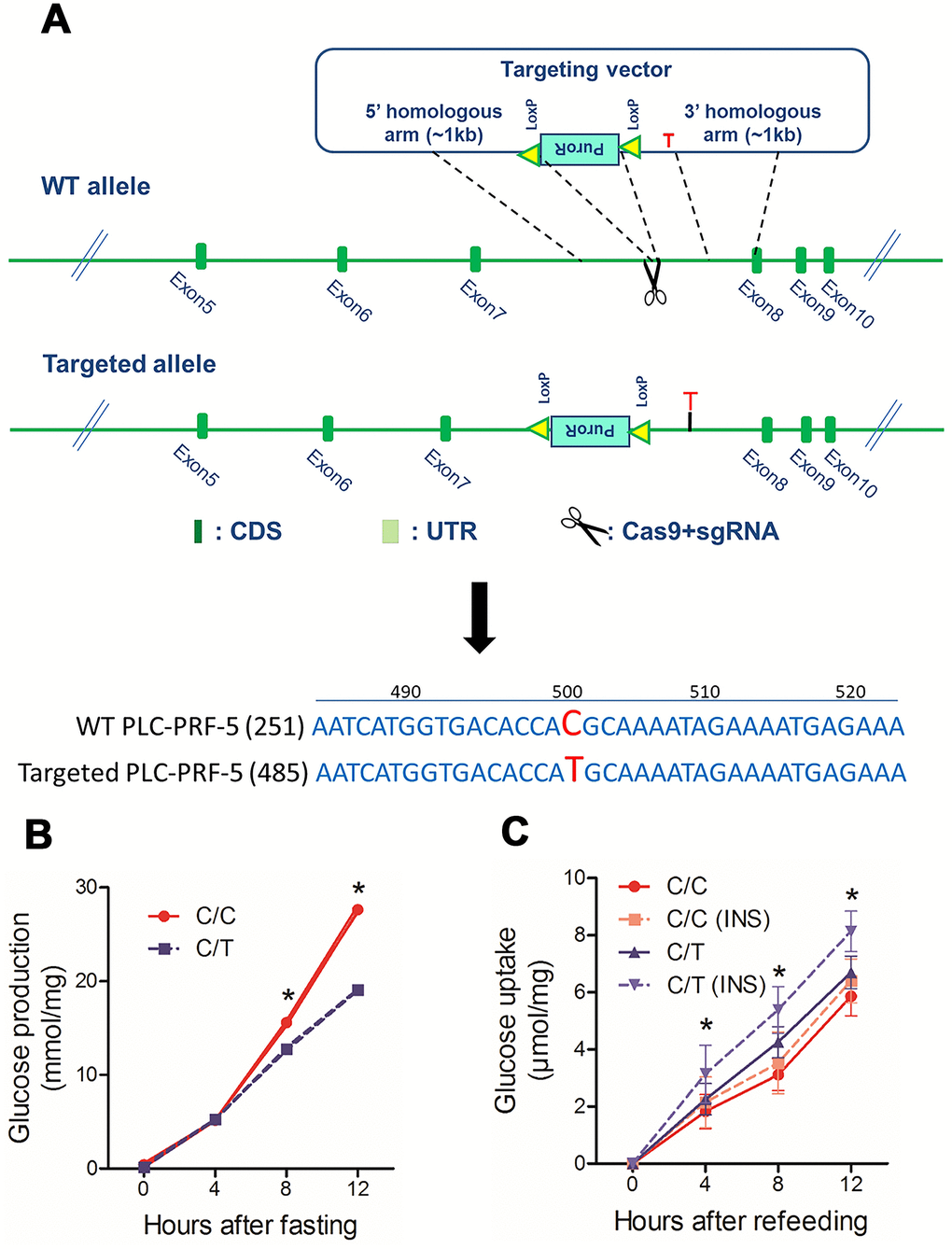

Figure 2. The rs290487 variant modulates glucose metabolism in PLC-PRF-5 cells. (A) Schematic diagram showing protocol for the generation of PLC-PRF-5 cell line with rs290487 C/T point mutation using the CRISPR/Cas9 knock-in approach. (B) Glucose production is significantly higher in C/C cells compared to the C/T cells under fasting states. (C) Flow cytometry results show reduced 2NBDG uptake in insulin-stimulated C/C cells compared to the C/T cells under serum-free and glucose-free conditions. *: P< 0.05; **: P< 0.01.

QRT-PCR analysis showed significant reduction in the expression of total TCF7L2 mRNA and transcript No. 5 and 7 in C/C cells compared to the C/T cells (Figure 3A). The dual luciferase reporter assays showed that the relative luciferase activity was significantly reduced in cells with the rs290487 C allele compared to those with the rs290487 T allele (Figure 3B). Western blot analysis showed that both cytoplasmic (68kDa) and nuclear (58kDa) TCF7L2 protein levels were significantly reduced in C/C cells compared to the C/T cells (Figure 3C). The distribution of the two TCF7L2 protein isoforms was confirmed in other cell lines and human liver tissues (Supplementary Figure 1).

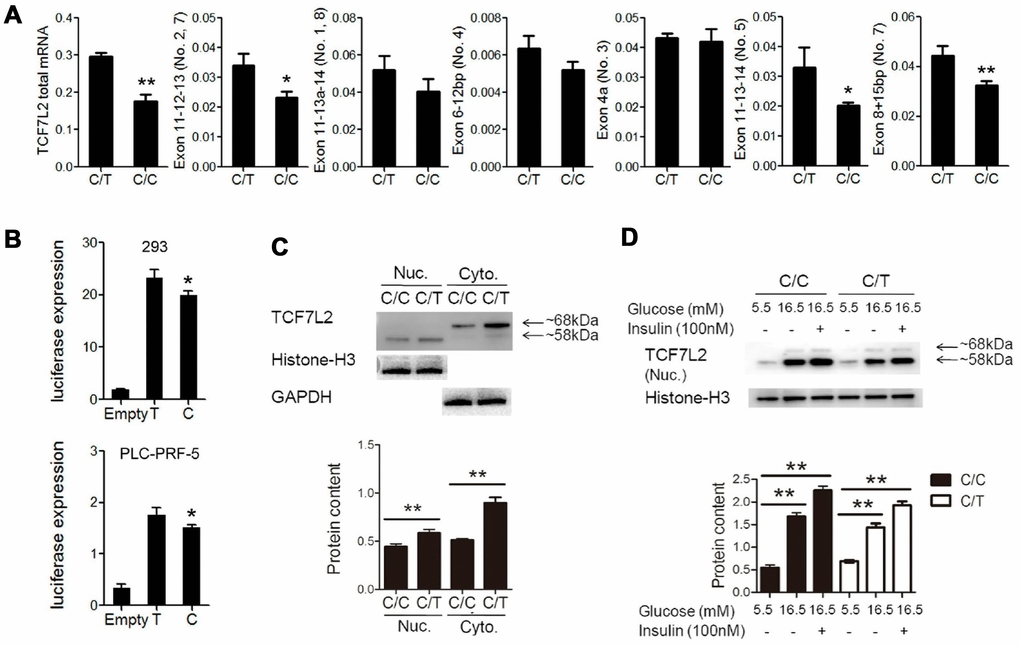

Figure 3. Basic characterization of PLC-PRF-5 cells with rs290487 C/C and rs290487C/T genotypes. (A) QRT-PCR analysis results show significant reduction in the expression of total TCF7L2 total mRNA and liver-specific alternative spliced transcripts containing exons 11-12-13, exons 11-13-14, and exon 8+15bp in the C/C cells compared to the C/T cells. (B) Dual luciferase reporter assay results show reduction in relative luciferase activity in cells transfected with pGL3-basic-promoter-rs290487 C/C transfected with pGL3-basic-promoter-rs290487 T/T. (C) Western blot results show that TCF7L2 protein levels are reduced in C/C cells compared to the C/T cells. (D) Western blot results show that TCF7L2 protein levels are increased in insulin- and high glucose- treated C/C and C/T cells. Note: * P< 0.05; ** P< 0.01.

TCF7L2 protein expression is influenced by genetic factors such as SNPs and environmental factors such as insulin and glucose [17]. We observed that treatment with insulin and high glucose concentration significantly increased TCF7L2 nuclear protein levels in both C/C and C/T cells compared to the corresponding untreated controls (Figure 3D). The effects of high glucose and insulin levels on TCF7L2 nuclear protein expression were also confirmed in several liver cell lines (Supplementary Figure 2).

ChIP-seq and ATAC-seq show rs290487 allele-specific transcription factor binding

Next, we used ChIP-seq to determine genome-wide TCF7L2 binding sites and evaluate differential gene expression because of altered TCF7L2 protein expression.

We identified 7156 and 5778 peaks in C/C and C/T cells, respectively (Figure 4A). Furthermore, we identified 4101 peaks with differential TCF7L2 binding affinity (fold change > 2, P < 0.05), including 1934 C/C- and 1669 C/T-specific binding sites (Figure 4A). The differential binding sites were frequently in the “distal intergenic” (41.0%), “intron” (37.3%), and “promoter” (15.1%) regions of 2319 annotated genes (Figure 4A). KEGG pathway analysis of these 2319 annotated genes showed significant enrichment in cancer, metabolism, and cell signaling pathways (Figure 4B). The C/C cells showed differential binding affinity compared to C/T cells in some previously identified TCF7L2 target genes that are involved in diabetes, such as ACSL5, ATM, AKT2, LEF1, and PDK4 [18]. Moreover, analysis of glucose metabolism-associated genes showed gain of specific TCF7L2 binding sites in genes such as TBC1D4, PHKB, PFKP, PPARGC1A, and CREB1, and loss of TCF7L2 binding sites in genes such as PGK1, PGM1, PIK3CG and GCG.

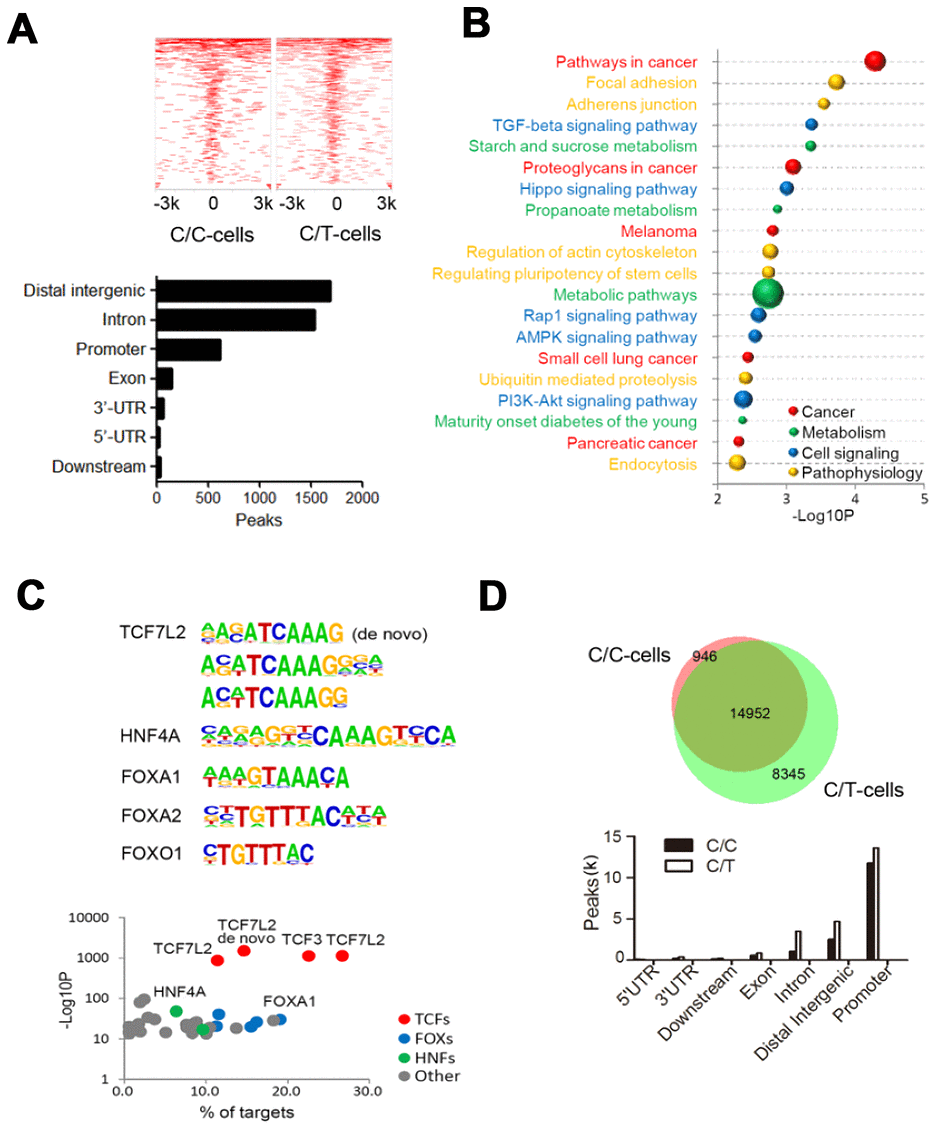

Figure 4. ChIP sequencing analysis of genome-wide TCF7L2 binding specificity in PLC-PRF-5 cells with rs290487 C/C and rs290487 C/C genotypes. (A) ChIP-seq analysis shows comparative genome-wide TCF7L2 binding in C/C and C/T cells. The clustered heatmap displays the distribution of TCF7L2 binding sites in a ±3 kb sequence relative to the transcript start site (TTS). Bar graph shows the genomic regions of differential ChIP-seq peaks. (B) The bubble chart shows the KEGG enrichment analysis of genes in the differential ChIP-seq peaks between C/C- and C/T-cells. The size of bubble represents the number of differentially expressed genes enriched in each pathway. (C) Differential motif enrichment analysis in the differential ChIP-seq peak regions. These regions are enriched for de novo and known TCF7L2 binding sites and other transcription factors that regulate gluconeogenesis. Scatter plot shows the significance of top 30 transcription factors. (D) ATAC-seq analysis of open chromatin regions in C/C and C/T cells. The Venn diagram represents the overlap of ATAC-seq peaks in both cells. The bar graph depicts the genomic regions in the differential ATAC-seq peaks.

Then, we assessed the motifs associated with the sequences corresponding to these 4101 differential peaks and found significant enrichment in de novo and known TCF7L2 binding sites, thereby suggesting that the rs290487 variant altered the binding affinity of TCF7L2 protein (Figure 4C). We also found known motifs in other transcription factors such as FOXA1/2, FOXO1, and HNF4A, which act as TCF7L2 partners or competitors and play significant roles in modulating the expression of genes involved in gluconeogenesis (Figure 4C).

To further assess allele-specific binding, we performed genome-wide ATAC-seq. The C/C cells showed 30% fewer open chromatin regions (peaks) than the C/T cells (Figure 4D). The comparison of open chromatin structures between the C/C and C/T cells is shown in Figure 4D. There was no unique peak in the TCF7L2 gene but weaker common peaks at intron 4 of C/C cells compared to C/T cells. Furthermore, we observed 7196 significant differential open chromatin regions (fold change > 2, P < 0.05) that were enriched for binding site motifs for a variety of transcription factors including TCF7L2 and its partners or competitors such as FOXA1/2, FOXO1, and HNF4A.

Integrated analysis of RNA-seq and metabolomics reveals rs290487 allele-specific transcriptional regulation in glucose metabolic pathways

We performed RNA-seq analysis to determine the allele-specific gene expression changes between C/C and C/T cells. We identified 1401 differentially expressed genes or DEGs (fold change > 2, P < 0.05, Figure 5A–5B). KEGG pathway analysis demonstrated that these DEGs were highly enriched in metabolic pathways (104 DEGs), especially in the glucose metabolic pathways (Figure 5C). The genes related to gluconeogenesis such as G6PC, PCK1, PPARGC1A, and HNF4A were significantly up-regulated and the genes related to insulin signaling transduction pathway such as PPP1R3B and MLXIPL were significantly down-regulated in the C/C cells compared to the C/T cells (Figure 5D–5E).

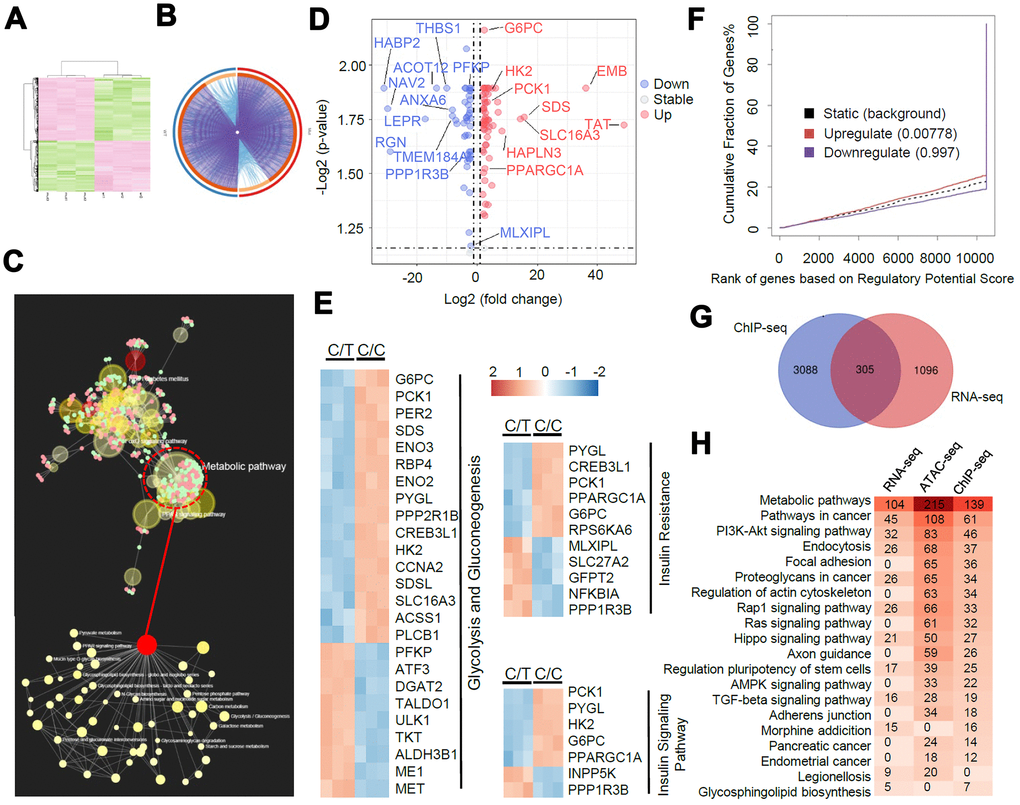

Figure 5. A genome-wide analysis of transcriptome divergence in PLC-PRF-5 cells with the rs290487 C/C genotype. (A) Heatmap of 1401 differentially expressed genes (DEGs) in C/C and C/T cells. (B) The Circos plot shows statistically significant DEGs identified by pairwise comparison of C/C vs. C/T cells. (purple lines). (C) KEGG enrichment analysis of 1401 DEGs using the MetaboAnalystR 2.0 server demonstrates strong enrichment in metabolic pathways (124 DEGs), particularly glucose metabolic pathways (red circle). (D) Scatter plot shows DEGs in glucose metabolic pathways identified by global enrichment analysis. The up- and down-regulated (fold change > 2, FDR< 0.05, P< 0.05) genes are annotated in red and blue, respectively. (E) Heatmap shows DEGs significantly enriched in glycolysis/gluconeogenesis and insulin signaling pathways. (F) BETA analysis shows integration of differential gene expression and TCF7L2 targets. The P value listed in the center represents the significance of the UP or DOWN group relative to the NON group as determined by the Kolmogorov-Smirnov test. (G) The diagram shows the overlap between the 1401 DEGs from the RNA-seq data analysis and the genes linked to the differential peaks from the ChIP-seq data analysis. (H) Integrative analysis of overlapping KEGG pathways from RNA-seq, ChIP-seq and ATAC-seq datasets. Heatmap shows the number of genes in each KEGG pathway.

Next, we performed BETA analysis by integrating ChIP-seq and RNA-seq data to further assess the association between altered TCF7L2-DNA binding and transcription. We found that the upregulated DEGs in C/C cells were also significantly enriched in the ChIP-seq peaks, thereby indicating a transcriptional activator role for the rs290487 C variant (Figure 5F). Moreover, 305 of the 1401 DEGs were potential direct targets of altered TCF7L2 binding (Figure 5G). KEGG pathway analysis of RNA-seq, ChIP-seq, and ATAC-seq datasets showed great similarity, and were enriched in pathways associated with metabolism and cancer (Figure 5H).

We then used the UPLC-QTOF/MS based metabolomics approach to evaluate the SNP-associated metabolite profiles. Principal component analysis (PCA) was used for quality control (Figure 6A). We used the selection criteria such as Variable Importance in the Projection (VIP) > 1, fold change > 2.0, and P< 0.05, and identified 821/3904, and 351/1940 significant differentially expressed metabolites in positive and negative ion modes, most of which were classified as lipids, lignans, and organic acids (Supplementary Figure 3). Mummichog analysis showed that the metabolic features discriminating the C/C and C/T cell datasets were associated with glucose metabolic pathways (Figure 6B), especially glycolysis and gluconeogenesis (Figure 6C). Then, we analyzed the metabolic networks in the glycolysis and gluconeogenesis pathways (Figure 6C) and found that gluconeogenesis was increased significantly in the C/C cells (Figure 6D).

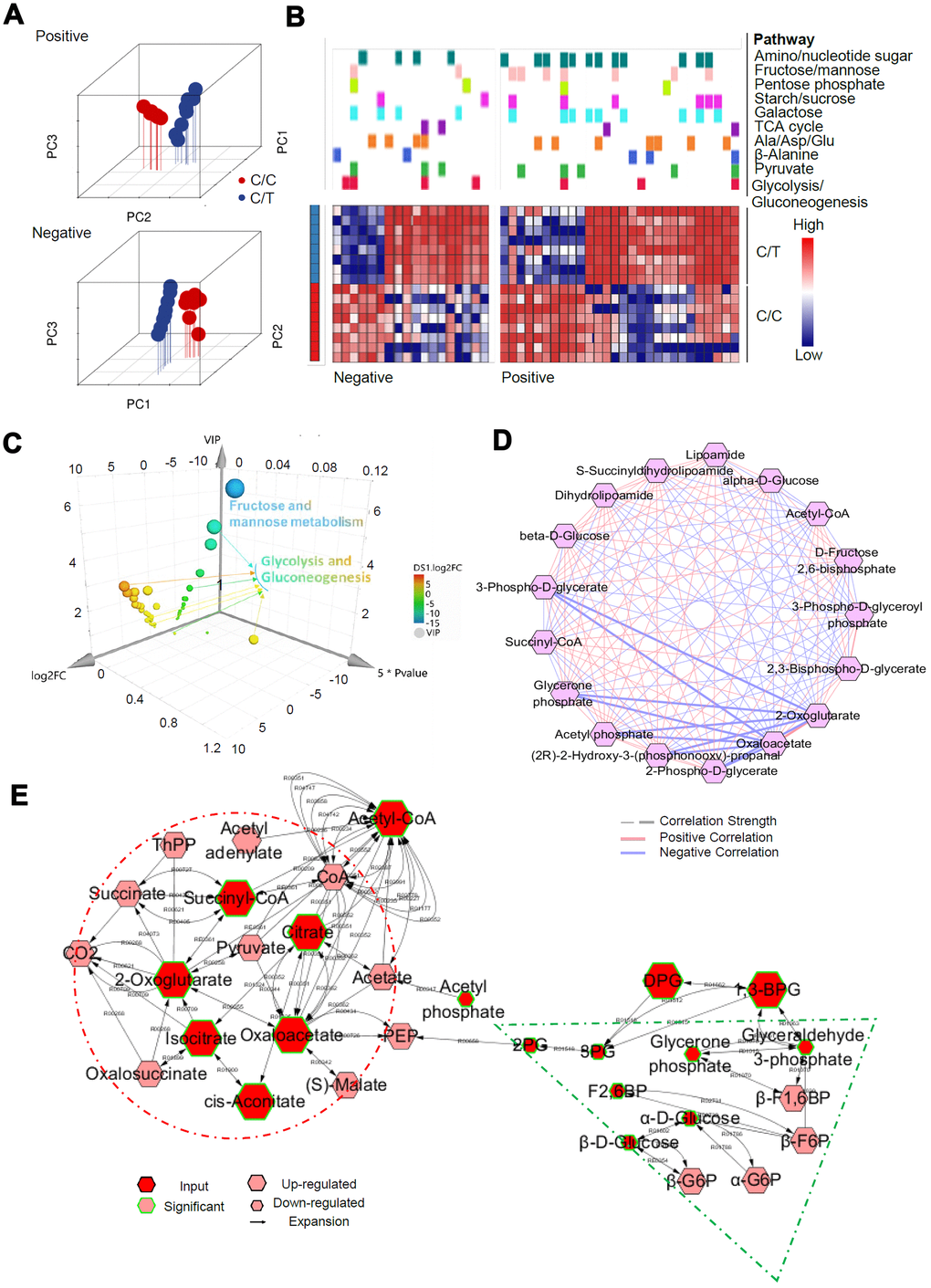

Figure 6. Metabolomic alterations in PLC-PRF-5 cells with the rs290487 C/C genotype. (A) 3D Principal component analysis (PCA) plots of metabolomics data from C/C and C/T cells. (B) Mummichog 2.0 analysis results of altered pathways (glucose metabolic pathways) in C/C cells compared to C/T cells. (C) 3D bubble plot shows altered metabolic features, especially changes in the glycolysis/gluconeogenesis pathway in C/C cells compared to C/T cells using SIMCA 14, the online multivariate tool. The X, Y, and Z-axis represent log₂fold change, P value, and VIP, respectively. (D) Correlation-based network of metabolites related to glycolysis and gluconeogenesis visualized using Metscape 3. (E) The expression of metabolites related to glycolysis and gluconeogenesis visualized using Metscape 3. The red circle shows the increased metabolites related to gluconeogenesis such as Oxaloacetate, whereas the green triangle represents decreased glycolytic metabolites such as, D-Glyceraldehyde 3-phosphate.

Furthermore, we integrated the RNA-seq and metabolomics datasets and performed a multi-omics pathway analysis using OmicsNet [19] and Metscape 3 [20] online tools. We identified 75 significantly regulated pathways (P < 0.05, Supplementary Table 1) in the network, which involved interactions between 104 DEGs and 351metabolites in the metabolic pathways (Figure 7A). The top 3 metabolic pathways were endocrine resistance, glycolysis/gluconeogenesis, and amino sugar and nucleotide sugar metabolism. Further analysis of the interactome using MetScape 3 showed the importance of glucose metabolic pathways, especially glycolysis and gluconeogenesis (Figure 7B). Then we focused on the glucose metabolic pathways and constructed correlation models (subgroup of the network) between DEGs and metabolites with the same biological functions (OmicsNet, Figure 7C). PCK1 showed the highest correlation degree within the biological network. Based on this network and pathway analyses, we propose that the rs290487 C allele enhances gluconeogenesis (Figure 7D).

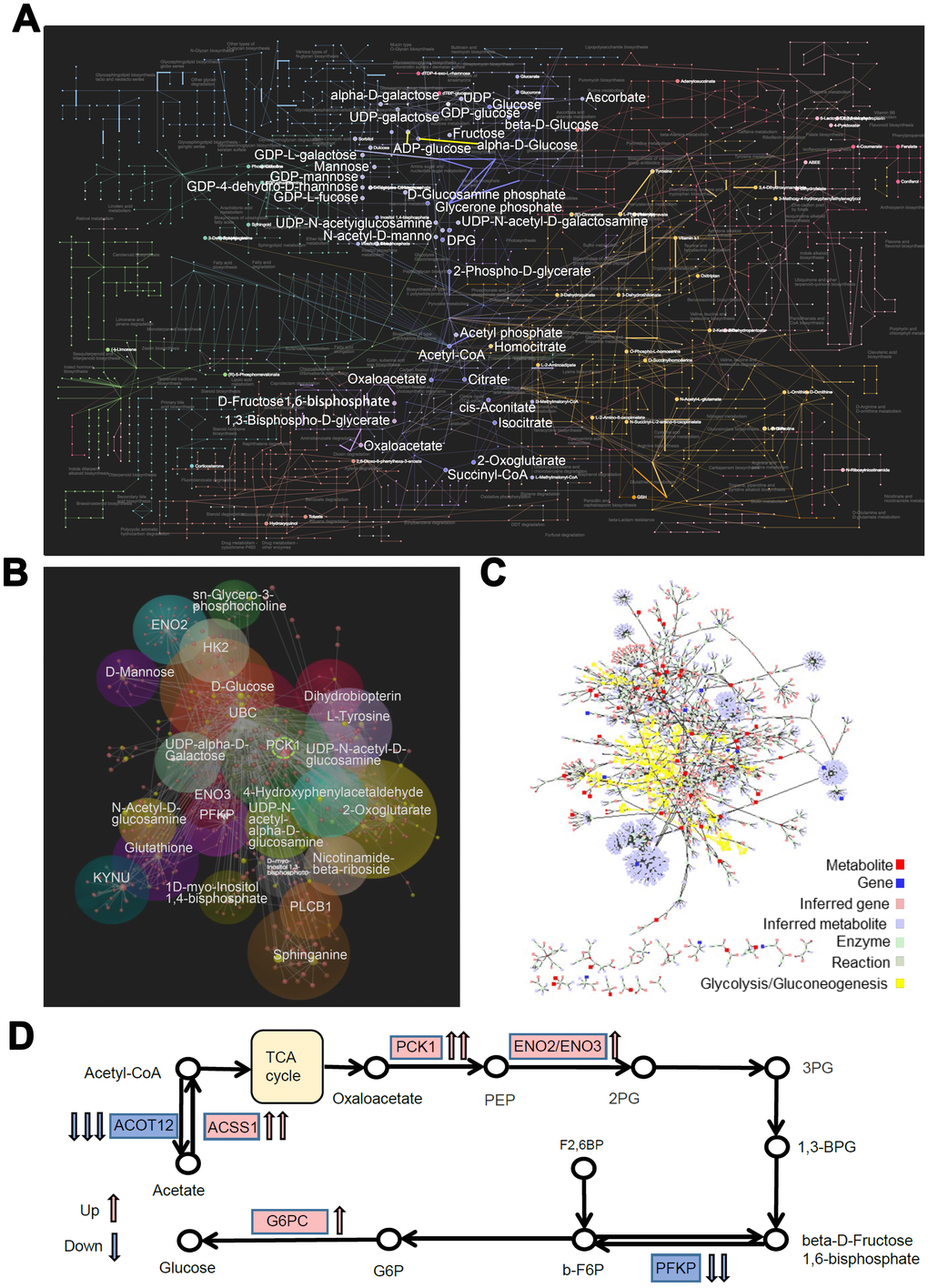

Figure 7. Network and pathway analyses of transcriptome and metabolome changes in pathways related to glucose metabolism in PLC-PRF-5 cells with the rs290487 C/C genotype. (A) The network shows interactions between DEGs and metabolites in the metabolic pathways visualized using OmicsNet. The bold dots and lines represent metabolites and genes in the glucose metabolic pathway, respectively. (B) The interactome network between transcripts and metabolites visualized using MetScape 3. The transcripts and metabolites highlighted in yellow represent those involved in the glycolysis and gluconeogenesis pathway. (C) The subgroup analysis of the network shows the interactions between DEGs and metabolites in the glucose metabolic pathways as visualized using OmicsNet. Red and yellow dots represent genes and metabolites, respectively. The sizes of the dots are based on their degree values. (D) The probable mechanism of C-allele enhanced gluconeogenesis.

Clinical specimens

Between 2015 and 2017, we enrolled adult hepatitis B virus-related cirrhotic patients who were admitted as liver transplant candidates to the First Affiliated Hospital, Zhejiang University School of Medicine. We excluded patients with pre-existing type diabetes mellitus 2, those in need of intensive care unit (ICU) support, or those who were not followed-up. Finally, we included 195 cirrhotic patients for this study and obtained their blood samples. We also collected 54 liver samples from abdominal surgery out of the 195 patients. The samples were immediately frozen in liquid nitrogen and stored at -80°C. We analyzed genetic polymorphisms using Applied Biosystems SNaP-Shot and TaqMan technology [14]. We obtained clinical data including age, gender, primary liver diseases, comorbidities, body mass index (BMI), and serum biochemical parameters. The diagnosis of HD and estimation of homeostatic model assessment for insulin resistance (HOMA-IR) was performed as described previously [13]. The study was in accordance with the Declaration at Helsinki, and was approved by the Ethics Committee and Institutional Review Board of The First Affiliated Hospital, Zhejiang University School of Medicine. We obtained informed consent from all patients enrolled in this study. The methodology is shown in Supplementary Figure 4.

Cell culture, glucose production and glucose uptake tests

The PLC-PRF-5 cell line was purchased from the American Type Culture Collection (ATCC, Manassas, VA, USA) and maintained in DMEM medium supplemented with 10% fetal bovine serum. For experiments, cells were seeded in 24-well plates for 24 h. Then, we changed the medium to serum- and glucose-free DMEM medium for another 8 h. The glucose uptake and production tests have been described in our previous study [27].

Targeted mutant PLC-PRF-5 cell line construction by the CRISPR/Cas9 system

The genome editing of PLC-PRF-5 cells was performed by the Beijing Biocytogen Co. Ltd. using the CRISPR/Cas9 system. We designed and synthesized four guide RNAs (Supplementary Table 2) and sgRNA2 to delete a 23 bp region around the SNP. We also designed cloning primers as shown in Supplementary Table 3. The TCF7L2 mKI targeting vector was constructed by ligating the homologous arm into the LscKO-3G vector. Then we electroporated the sgRNA2 and TCF7L2 mKI targeting vector into the PLC-PRF-5 cell line using the Celetrix CTX-1500A electroporator (Manassas, VA, US). Then, the transformed cells were selected by growing in DMEM medium containing 1μg/mL Puromycin. The positive colonies were screened by limiting dilution and genotyping using the Junction PCR (Supplementary Table 4). Eventually, we confirmed the heterozygous PLC-PRF-5 cell line with the rs290487 C/T genotype by sequencing.

Dual-luciferase report assay

Dual-luciferase expression assay was performed as described previously [28]. The relative luciferase activity was comparable between groups. The sequence of TCF7L2 mini promoter (1324bp) is shown in Supplementary Table 5.

Quantitative real-time PCR

Quantitative real-time PCR was performed as described previously [28]. The qPCR primers are shown in Supplementary Table 6.

Western blotting

Western blotting was carried out as described previously [28]. The nuclear proteins were extracted using the Nuclear and Cytoplasmic Protein Extraction Kit (Beyotime, Shanghai, China). The blots were probed with primary antibody against TCF4/TCF7L2 antibody (Cat. No. ab76151, 1:1000, Abcam, Shanghai, China). Antibodies against GAPDH (Cat. No. 60004-1-Ig, 1:5000, Proteintech, Wuhan, China) and nuclear Histone-H3 (Cat. No. 17168-1-AP, 1:3000, Proteintech) were used to detect GAPDH and Histone H3 as internal controls.

ChIP-seq

ChIP-seq was performed by Omigen Inc. (Hangzhou, China) using the ChIP-IT Express Enzymatic shearing kit (Cat. No. 53035, Active Motif) according to manufacturer’s protocols. Briefly, the cells were harvested and fixed. Then, the cells were lysed and homogenized using the Dounce homogenizer. The cell debris was removed by centrifugation and the soluble chromatin was quantified in the Nanodrop 2000 (ThermoFisher Scientific). ChIP was performed using Dynabeads Protein G (ThermoFisher Scientific), 4 μL anti-TCF4/TCF7L2 antibody (Cat. No. 2569; Cell Signaling Tech., USA) or rabbit IgG (Cat. No. ab172730, Abcam), and 20-50 μg soluble chromatin. The beads with the protein G -antibody-chromatin complexes were washed in wash buffer according to manufacturer’s protocols. The chromatin was then reverse cross-linked by treatment with RNase A and proteinase K at 65°C overnight. The DNA was then cleaned up using the QIAGEN MinElute PCR Purification Kit (Cat. No. 28004, QIAGEN). ChIP-seq libraries were prepared using the KAPA Hyper Prep Kit (Cat. No. KK8504, Illumina) and sequenced using the Illumina HiSeq X-Ten instrument (Illumina).

ATAC-seq

ATAC-seq was performed by Omigen Inc. Briefly, 50,000 cells from each sample were pelleted by centrifugation and lysed in buffer containing 0.1% NP40, 0.1% Tween 20, and 0.01% Digitonin to obtain the nuclei. The nuclei were then processed using the TruePrep DNA Library Prep Kit V2 for Illumina kit (Cat. No. TD501-01, Illumina) according to the manufacturer’s protocols. Immediately after transposition, the DNA fragments were purified using the MinElute PCR Purification Kit (Cat. No. 28004, QIAGEN) and PCR-amplified with the barcode and primers for 10-12 cycles. The resulting libraries were purified and assessed by the Qubit 3 Fluorometer (Invitrogen) and Agilent 2100 Bioanalyzer (Agilent), and sequenced using the Illumina HiSeq X-Ten instrument (Illumina).

Chromatin and motif analysis

The clean sequenced reads from the ChIP- or ATAC-seq were aligned to human reference genome using Bowtie2 (v2.3.4.1) and the enriched chromatin regions were identified using MACS2 (v2.1.1). The peak visualization was performed using Integrative Genomics Viewer (v2.3.5). The differential peak analysis was performed using the MAnorm software (v1.2.0). The motifs were analyzed using the findMotifsGenome.pl from HOMER software (v4.10).

RNA-seq

Transcriptome was sequenced by Omigen Inc. using the Illumina paired-end RNA-seq approach according to the standard protocol. Briefly, the mRNAs were purified from the total cellular RNA using the magnetic beads attached to the poly-dT oligo. Then, the double-stranded complementary DNAs were synthesized using random hexamer primers and M-MuLV Reverse Transcriptase (Invitrogen). Then, the cDNA library was constructed and sequenced using the Illumina HiSeq X-Ten instrument (Illumina).. The sequencing data was analyzed by first indexing and aligning the paired-end clean reads to the reference genome using the TopHat2 (v2.0.9) and Bowtie2 (v2.3.4.1) software. Then, the HTSeq (v0.6.1) software was used to count the number of reads that map to each gene. The DESeq2 R (1.10.1) software package was used to analyze differentially expressed genes. Enrichment analysis of the differentially expressed genes was performed using KOBAS 3.0 software.

Metabolomics

The cells were rinsed with PBS, pelleted by centrifugation the cell pellets were quickly extracted using 1mL chilled MeOH/H₂O (4:1, 140 v/v) and frozen in liquid nitrogen, and stored at -80°C. The ultra-performance liquid chromatography-mass spectrometry (UPLC/MS)-based metabolomics analysis was performed as described previously [29]. The raw data was processed using the Compound Discoverer 3.0 (CD 3.0, Thermo Fisher) and peak alignment, identification, and quantization was performed for each metabolite. The peaks were then matched with the mzCloud (https://www.mzcloud.org/) and the ChemSpider (http://www.chemspider.com/) database was used for qualitative and quantitative analysis. Functional and pathway analysis was performed using MetaboAnalystR 2.0 [30], SIMCA 14 [31] and mummichog algorithm. Multi-Omics molecular interaction analysis was perfrormed using OmicsNET [19] (http://www.omicsnet.ca) and Metscape 3 [20] (http://metscape.med.umich.edu/) web tools.

Statistical analysis

SPSS version 13.0 software (SPSS Inc., Chicago, IL) was used for statistical analysis. P value < 0.05 was considered statistically significant. Quantitative variables are presented as mean ± SD or median ± interquartile range and compared using the Student’s t test or Mann-Whitney test. Categorical variables are presented as values (percentages) and compared using the Pearson’s χ² test. Correlation analysis was performed using Pearson linear regression. The sequence data generated and/or analyzed in this study have been submitted to the GEO repository (GSE138781).
