Molecular subtypes based on DNA promoter methylation predict prognosis in lung adenocarcinoma patients

Identification of overall survival -correlated prognostic methylation sites using the training dataset

TCGA DNA methylation profiling of LADC was exploited to cluster the LADC prognostic molecular subtypes. Firstly, the numbers for data pre-processing was optimized, which included absent value adaptation, removal of batch effect, sex chromosome, and single nucleotide polymorphisms, and the CpG sites in promoter regions extraction (Materials and Methods). For every CpG site obtained from the training set (generated from 335 tumor tissues), a univariate COX proportional risk regression model was established using the methylation status of the CpG sites and patient survival outcomes. The analysis resulted in 1302 CpG sites that were significantly correlated with the patients’ survival (p<0.05). Then, these CpG sites were entered into a multivariate COX proportional risk regression model combining the age, gender, TNM classification, and clinical stages as covariates to determine the independent prognostic features. Eventually, from both the regression models, 774 CpG sites were chosen and exploited as the conclusive classification characteristics (Supplementary Table 1).

Identification of distinct DNA methylation prognosis subgroup by consensus clustering and inter-cluster prognosis analyses

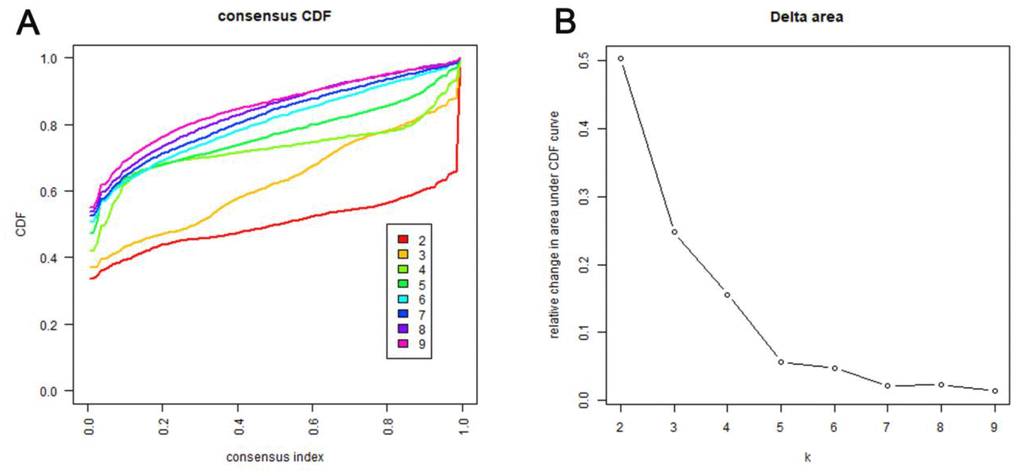

Consensus clustering of 774 prospective prognostic methylation sites was performed to determine the distinguishable DNA methylation-based molecular subtypes of LADC for the prognosis. Several clusters were identified based on the following criteria: comparatively high consistency within the cluster with no apparent rise in area under the CDF curve. Based on the category numbers, we determined the cluster consensus average and coefficient of variation within the clusters. The area under the CDF curve becomes steady after five categories (Figure 1A, 1B). To advance the prognostic potential of LADC classifications, greater cluster numbers were selected whenever feasible. A consensus matrix was further exploited (mentioned in the Materials and Methods) to define the ideal cluster numbers. The consensus matrix displayed in Figure 2A indicates k = 7 consensus and a seven-block structure was identified. Heatmap, as per the dendrogram, is shown in Figure 2A with TNM category, stage, age, gender, and DNA methylation subtype, while annotations are displayed in Figure 2B.

Kaplan-Meier survival curve exhibited a considerable difference in the outcomes of the seven clusters (P<0.05). As revealed in Figure 3A, Clusters 6 and 7 showed the most promising prognosis, while, cluster 1 was the least promising. Next, we examined the intra-cluster fractions for the 7 clusters according to the stage (Figure 3B), TNM category (Figure 3C–3E), age (Figure 3F), and gender (Figure 3G), respectively. Predilections for correlations between features and certain clusters are listed below: Clusters 1 and 2 were correlated with the advanced stages; Clusters 3, 4, and 6 with lower T grade; while Cluster 1 was correlated with higher N grade and along with Cluster 6 it was related to higher M grade as well; Cluster 4 was associated with older ages; Cluster 5 was correlated with more number of females. This elaborated the rationale that cluster 1 showed the worst prognosis since it was more predisposed to disseminate and progress the malignancies while exhibiting a similar etiology as the DNA methylation aberrations. These data demonstrate that every single clinical feature corresponded to a different intra-cluster fraction.

Identifying the features by DNA methylation clustering and screening the cluster-specific methylation sites

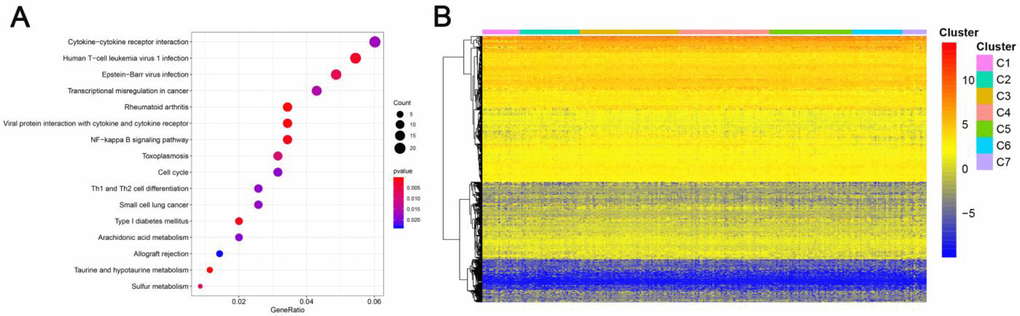

Genomic level annotations for the outlined 774 CpG sites were exploited to locate the associated 893 promoter related genes in total. Subsequently, we performed the functional enrichment analysis for these 893 genes and identified 16 dramatically enriched pathways (P<0.05), as exhibited in Figure 4A and Supplementary Table 2. The three most considerably enriched pathways included rheumatoid arthritis, Taurine and hypotaurine metabolism, and viral protein interaction with cytokine and cytokine receptors. Later, we examined the expression level of the methylated genes determined in the subgroups. The heatmap of gene expression is displayed in Figure 4B, and the raw data are listed in Supplementary Table 3. The patterns of gene expression diverged among different subtypes, implicating that DNA methylation levels represent corresponding gene expressions.

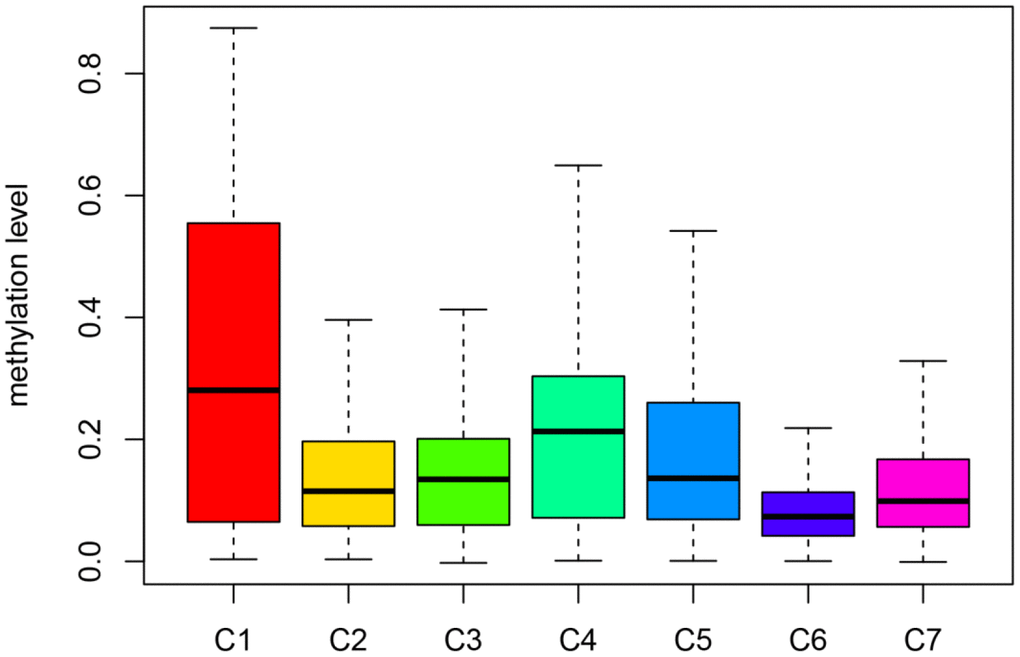

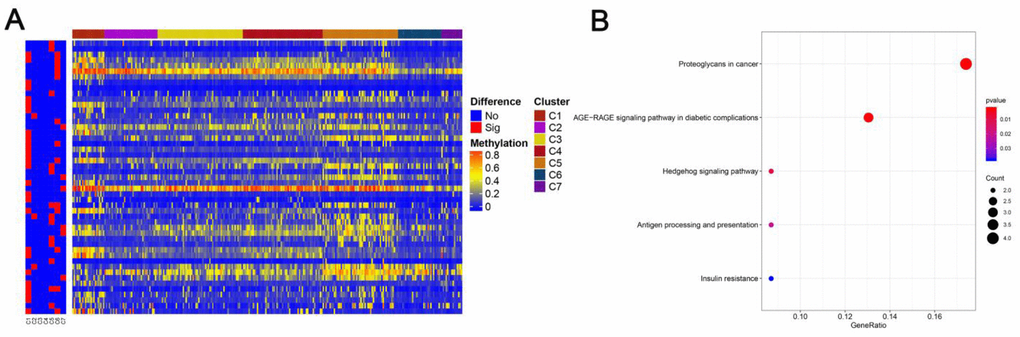

Then, we filtered the cluster-specific methylation sites by referring them as features of corresponding clusters. Firstly, the differences within the 7 clusters were evaluated for each methylation site, as illustrated in Materials and Methods. The resultant, 61 cluster-specific methylation sites are listed in Supplementary Table 4 along with the heatmap in Figure 4A. Cluster 6 exhibited the best prognosis with 13 particular sites, all of which showed hypomethylation, and their methylation status was the lowest compared to all other clusters (Figure 6). Genomic annotations were applied to these 61 particular sites to define their match-up genes. ClusterProfiler analyses revealed the genes that were enriched in the five pathways, displayed in Figure 5B (Supplementary Table 5). These data revealed that each cluster possesses distinctive gene expression signature and pathway features.

Establishment and evaluation of the LADC prognosis predicting platform

We chose Cluster 6 as a seed cluster since it was associated with a good prognosis and then established the Cox Proportional Hazard Model according to the methylation status profiling of the 18 specified sites integrated with the prognosis records using formulae described in Materials and Methods. Finally, five methylation sites (cg03476195, cg03699566, cg07572341, cg14896516, cg19224164) in hazard ratio model were identified. Subsequently, we developed a risk score equation: Risk score = 1.3247 × β value of cg03476195 + 2.3568 × β value of cg03699566+ –6.9075 × β value of cg07572341+ –6.9075 × β value of cg14896516+ 1.3834 × β value of cg192241646.

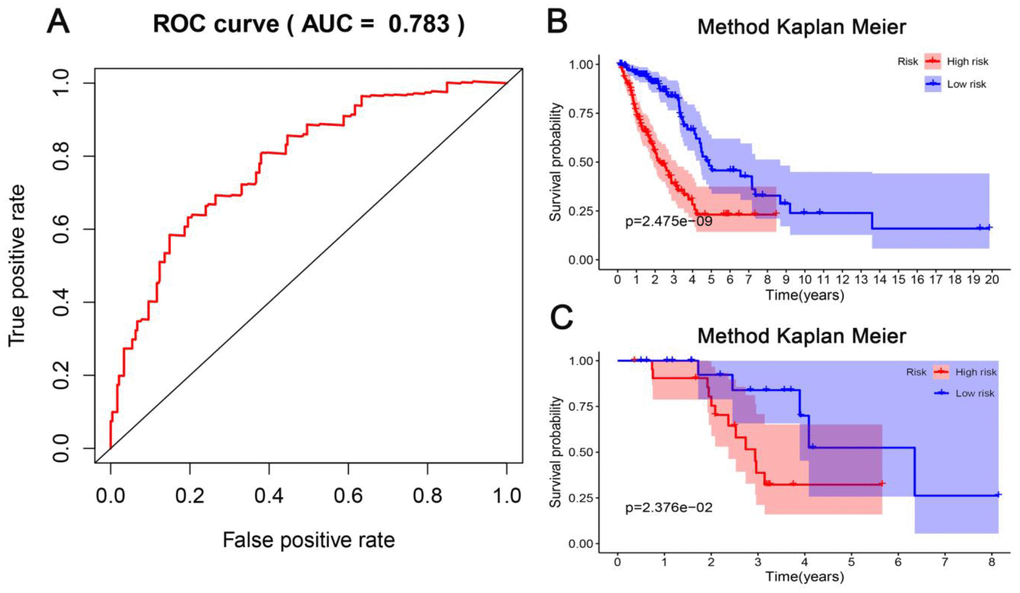

According to the risk scoring formula, we conducted the ROC analysis on the risk scores of each sample, as displayed in Figure 7A. The area under the curve (AUC) was 0.783, which indicated that this platform performs well in predicting prognostic outcomes. Next, we classified the patients into high- and low-risk subgroups with the median risk as a dividing line. Through Kaplan-Meier survival analysis, we found that the patients in high-risk subgroup showed drastically poorer outcomes compared to those in the low-risk group (Figure 7B), which was also verified in the test group, indicating the predictive reliability and durability of this platform. (Figure 7C). Additionally, we ranked the samples according to the risk scores to specify if the level of methylation changed regularly with the risk scores. Figure 8 shows a scatter plot of the risk score distribution and the patient status, where high risk is related to more deaths. The Heatmap showed a comparison of the methylation status of the five methylation sites between the high- and low-risk groups. The methylation levels of cg03699566, cg03476195, cg19224164 increased with the increasing risk, while the methylation levels in cg14896516 and cg07572341 increased with the decreasing risk.

Data collection and analysis

RNA-seq data from 594 cases of LADC were obtained from TCGA (https://cancergenome.nih.gov/, accessed 08 Mar 2020). The patient information, along with the follow-up records of 522 cases, is listed in Supplementary Table 6. Dataset of methylation was generated using Illumina Infinium HumanMethylation450 and 27 BeadChip arrays from 503 and 150 patients, respectively, through the UCSC website (http://genome.ucsc.edu/, accessed 08 Mar 2020. Only cases with the follow-up records of over 30-days were recruited in this study. The methylation status of every single site was exhibited as a β value, which starts at zero (non-methylation) and peaks at one (full methylation). Over 70% of the cases were with missing CpG sites and dismissed for the analyses. Cross-reactive genome CpG sites that were characterized in “Discovery of cross-reactive probes and polymorphic CpG in the Illumina Infinium HumanMethylation450 microarray” were eliminated as well. Additional CpG sites with no longer accessible raw data were imputed by k-nearest neighbors (KNN) imputation steps. ComBat algorithm in the sva R package [26] was applied to eliminate batch effects by assembling the entire DNA methylation array dataset integrating the batch and clinical information. Unsteady genomic regions, for example, the CpG sites located at sex chromosomes or single nucleotide polymorphisms (SNPs), were also excluded. Considering that methylation of the DNA promoter affects the gene expressions, we specifically assessed the CpG sites at the promoter regions. Promoters are well-characterized regions present 2 kilobases upstream and 0.5 kilobases downstream from the transcription starting site. We finally adopted the samples whose gene expression profiling was accessible. Overall, 479 samples, including 21,120 methylation sites, were selected for the analyses. All the cases were segregated into two cohorts: the training cohort (HumanMethylation 450 BeadChip data) and the testing cohort (HumanMethylation 27 BeadChip data).

Determining the classification feature by COX proportional risk regression model

Preliminary data suggested that LADC molecular subtypes exhibited distinct prognostic outcomes among the analyzed cases; hence, CpG sites that considerably affected the survival outcomes were selected as classification signatures. Firstly, the univariate COX proportional risk regression model was established by integrating the methylation status of each CpG site, TNM category, age, stage, and survival information. Significant CpG sites selected through the univariate COX proportional risk regression model were then put into the multivariate COX proportional risk regression model utilizing the same covariates as in the univariate model, such as TNM category, age, and stage, etc. Eventually, the CpG sites that were significant in both the models were adopted as signature CpG sites.

Correlation of molecular subgroups with prognosis determination by consensus clustering

Consensus clustering was implemented by the ConsensusClusterPlus package in R [27] to determine the LADC subtypes according to the most unstable CpG sites. The algorithm started through sub-sampling the proportions of items together with characteristics based on dataset matrix, where every sub-group was separated up to k groups by k-means. This step was repeated for multiple rounds set by the users, and multiplex clustering algorithm runs were utilized to determine the consensus values along with examining the constancy of recognized clusters. Pairwise consensus values specified as clustering fraction was established, out of which two items were pooled together, analyzed, and recorded in a consensus matrix for every k. Later, for every single k, an ultimate agglomerative hierarchical consensus clustering was finalized using the distance of 1-consensus values and pruned to k groups. This algorithm established the “consensus” clustering by examining the clustering outcome stability via applying a provided clustering approach to randomly selected data subunits. For every single iteration, 80% of the samples were selected, while exploiting the k-means algorithm with Euclidean squared distance metric. Similar outputs were compiled over 100 iterations. Following the implementation of ConsensusClusterPlus, we acquired the cluster consensus and item-consensus output. Graphical data incorporated the heatmaps of consensus matrices, which revealed the clustering data, consensus cumulative distribution function (CDF) plots, and delta area plots enabling us to define an approximate number of clusters. The Cluster numbers were defined based on the following standards: the ones with comparatively high consistency among the cluster, low coefficient of variation, and without an apparent increase in the area under the CDF curve. The coefficient of variation was computed based on the following equation: CV =(SD/MN)*100%, where SD stands for the standard deviation while MN is the sample number average. The number of categories was determined according to the area under the CDF curve but with no significant alteration. To generate further in-depth classifications of LADC, larger cohorts were preferably needed.

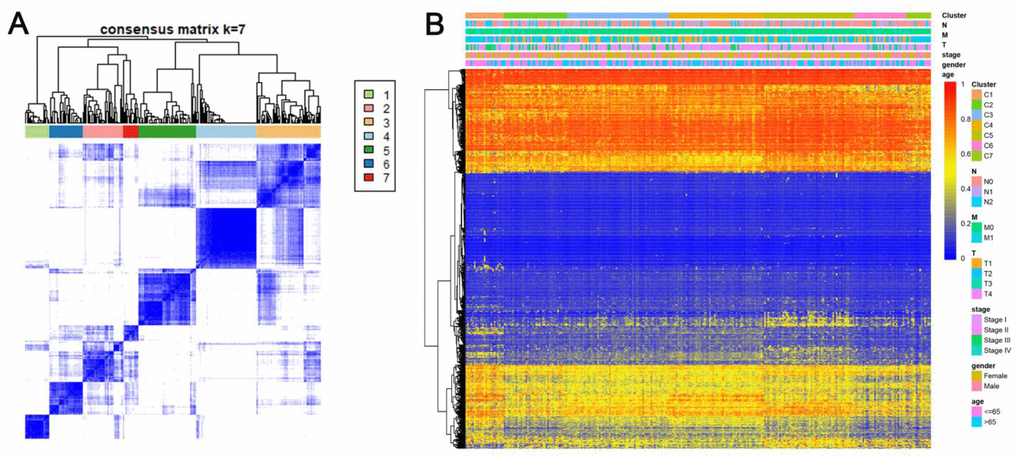

Heatmaps associated with the consensus clustering were produced by the pheatmap R package. Consensus values starting from zero (white) to one (dark blue) were represented by color-gradient mode, and a matrix was organized such that the samples correlating to a specific cluster were exhibited as adjacent. Here, the matrix correlated with a perfect consensus exhibiting a color-coded heatmap featured by blue blocks along the diagonals with a white background. The color-coded heatmap corresponding to the consensus matrix using consensus clustering is displayed in Figure 2A depicting the consensus for k = 7 by identifying the seven-block structure.

Survival outcome and clinical feature analysis

Kaplan–Meier plots were generated to demonstrate overall survival within the LADC subtypes characterized by DNA methylation profiling. The Log-rank test was performed to examine the significant differences between the clusters. Survival outcomes were analyzed by survival packages in R. Correlations among clinical characteristics, and DNA methylation clusters were analyzed utilizing the chi-squared test. All analyses carried out were two-sided; P<0.05 was regarded as statistically significant for each analysis.

Functional enrichment analyses and genomic annotation

We applied the cluster profile package in R [28] with KEGG for the gene enrichment analysis of Gene Ontology, Biological Pathways, and Regulatory motifs in DNA and Protein gene groups.
