Online ISSN: 1945-4589
Research Paper Volume 13, Issue 10 pp 13968—14000

Untargeted metabolomics for uncovering plasma biological markers of wet age-related macular degeneration

Yanhui Deng1,2, *, , Ping Shuai3, *, , Haixin Wang1, , Shanshan Zhang1, , Jie Li4, , Mingyan Du1,2, , Peirong Huang5, , Chao Qu4, , Lulin Huang1,2, &, ,

  • 1 The Key Laboratory for Human Disease Gene Study of Sichuan Province and the Center of Laboratory Medicine, Sichuan Provincial People’s Hospital, University of Electronic Science and Technology of China, Chengdu, Sichuan, China
  • 2 Research Unit for Blindness Prevention of Chinese Academy of Medical Sciences (2019RU026), Sichuan Academy of Medical Sciences, Chengdu, Sichuan, China
  • 3 Health Management Center and Physical Examination Center of Sichuan Provincial People's Hospital, School of Medicine, University of Electronic Science and Technology of China, Chengdu, Sichuan, China
  • 4 Department of Ophthalmology, Sichuan Provincial People’s Hospital, School of Medicine, University of Electronic Science and Technology of China, Chengdu, Sichuan, China
  • 5 Shanghai General Hospital, Shanghai, China
* Equal contribution

Received: July 23, 2020       Accepted: March 27, 2021       Published: May 4, 2021      

https://doi.org/10.18632/aging.203006
How to Cite

Copyright: © 2021 Deng et al. This is an open access article distributed under the terms of the Creative Commons Attribution License (CC BY 3.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Abstract

Wet age-related macular degeneration (wAMD) causes central vision loss and represents a major health problem in elderly people. Here we have used untargeted metabolomics using UHPLC-MS to profile plasma from 127 patients with wAMD (67 choroidal neovascularization (CNV) and 60 polypoidal choroidal vasculopathy (PCV)) and 50 controls. A total of 545 biochemicals were detected. Among them, 17 metabolites presented difference between patients with wAMD and controls. Most of them were oxidized lipids (N=6, 35.29%). Comparing to controls, 28 and 18 differential metabolites were identified in patients with CNV and PCV, respectively. Two metabolites, hyodeoxycholic acid and L-tryptophanamide, were differently distributed between PCV and CNV. We first investigated the genetic association with metabolites in wet AMD (CFH rs800292 and HTRA1 rs10490924). We identified six differential metabolites between the GG and AA genotypes of CFH rs800292, five differential metabolites between the GG and AA genotypes of HTRA1 rs10490924, and four differential metabolites between the GG and GA genotypes of rs10490924. We selected four metabolites (cyclamic acid, hyodeoxycholic acid, L-tryptophanamide and O-phosphorylethanolamine) for in vitro experiments. Among them, cyclamic acid reduced the activity, inhibited the proliferation, increased the apoptosis and necrosis in human retinal pigment epithelial cells (HRPECs). L-tryptophanamide affected the proliferation, apoptosis and necrosis in HRPECs, and promoted the tube formation and migration in primary human retinal endothelial cells (HRECs). Hyodeoxycholic acid and O-phosphorylethanolamine inhibited the tube formation and migration in HRECs. The results suggested that differential metabolites have certain effects on wAMD pathogenesis-related HRPECs and HRECs.

Introduction

Age-related macular degeneration (AMD) is one of the leading causes of blindness worldwide. As the world population ages, the number of people with AMD is expected to increase to 288 million in 2040 [1]. AMD is a multiple factor disease. Age, hypertension [2, 3], atherosclerosis [4], diabetic retinopathy (DR) [5, 6], smoking [7] and heavy drinking [8, 9] all increase the risk of AMD. Genetic factors also greatly contribute to the occurrence of AMD [10]. Complement factor H (CFH) [11–13] and high temperature requirement factor A1 (HTRA1) [14–16] are two major susceptibility genes for AMD. In addition, complement factor B (CFB) and complement component 2 (C2) [17], complement component 3 (C3) [18], age-related maculopathy susceptibility 2 (ARMS2) [19], apolipoprotein E (APOE) [20, 21] and FGD6 [22] also play an important role in the development of AMD.

There are two main types of AMD: dry (atrophic) AMD and wet (exudative) AMD (wAMD). Dry AMD shows geographic atrophy and no blood or serum leakage [23]. Wet AMD occurs in approximately 10-15% of people who develop AMD in Western populations and a higher proportion in Eastern populations. Wet AMD has the obvious symptoms of leakage and neovascularization. Although controversial, wet AMD can be divided into choroidal neovascularization (CNV) and polypoidal choroidal vasculopathy (PCV) [24]. The pathology of wet AMD progresses more quickly than the pathology of the dry form. Wet AMD causing significant deterioration to central vision within a short period of time. At present, the pathogenesis of wAMD is not very clear.

Metabolites are produced by the cumulative effect of the genome and its interaction with the environment. It is thought to be closely related to the phenotype of diseases, especially multifactorial diseases [25]. Metabolomics is a new omics approach after genomics and proteomics, which is mainly to conduct qualitative and quantitative analysis of all low molecular weight metabolites of a certain organism or cell in a specific physiological period to explore the relative relationship between metabolites and physiological and pathological changes. Metabolomics has made important achievements in the study of cardiovascular diseases [26], breast cancer [27, 28], Parkinson's disease [29] and diabetes [30]. Recently, researchers have also discovered the potential and versatility of metabolomics in the study of eye diseases [31–33]. For AMD, Lains et al. reported metabonomics research mainly based on white ethnicity and found that the glycerophospholipid pathway was significantly enriched [34–36].

It is well known that microorganisms are closely related to human diseases. A recent study [37] showed that microbial characteristics may play an important role in the diagnosis of cancer. Rob Knight's team found unique microbial signals in blood and tissue samples from most cancer patients. They also found that using only plasma-derived, cell-free microbial nucleic acids can distinguish between healthy, cancer-free individuals and samples from a variety of cancer patients.

In this study, we conducted plasma metabonomics research in Asian ethnicity-base on a Chinese population. The current study has three goals: (1) to characterize the plasma metabolomic profiles of patients with wAMD and to compare them with those of controls (including wAMD vs controls, CNV vs controls, PCV vs controls, CNV vs PCV); (2) to characterize the plasma differential metabolites of participants with different genotypes of major associated genes CFH rs800292 and HTRA1 rs10490924; and (3) to identify specific metabolites of microorganisms in plasma of patients with wAMD. Finally, we aim to support the development of novel metabolic biomarkers for wAMD diagnosis and prognosis, as well as for drug development.

Results

Study population

Participants in this study included 127 wet AMD patients (67 CNV, 60 PCV) and 50 healthy people. The demographic characteristics of the three groups of participants are shown in Supplementary File 1.

Screening of metabolites with significant differences

Three-dimensional principal component analysis (PCA) showed the trend of metabolites partially separated between groups, indicating differences among them [38]. The PCA results showed that the difference between the PCV group and CNV group was relatively small among all the comparison group, while the difference between the control group and CNV group was relatively large among all the comparison group (Figure 1).

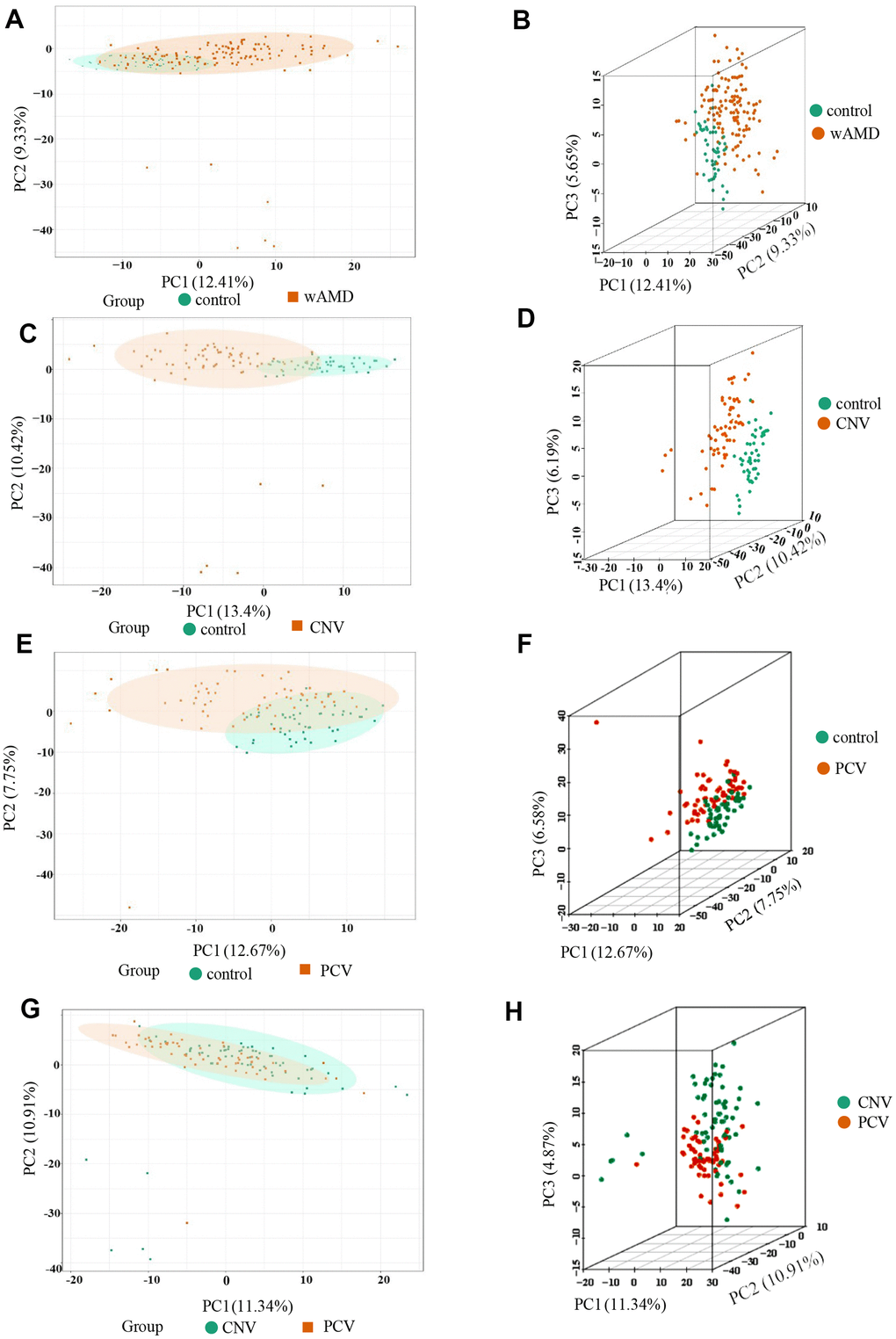

PCA result of the wAMD group, PCV group, and CNV group. (A, C, E, G) are the two-dimensional images of the PCA results of each group. (B, D, F, H) are the 3D images of the PCA results of each group. The X-axis represents the first principal component, the Y-axis represents the second, and the Z-axis represents the third. wAMD: represents the mixture of the CNV group and PCV group.

Figure 1. PCA result of the wAMD group, PCV group, and CNV group. (A, C, E, G) are the two-dimensional images of the PCA results of each group. (B, D, F, H) are the 3D images of the PCA results of each group. The X-axis represents the first principal component, the Y-axis represents the second, and the Z-axis represents the third. wAMD: represents the mixture of the CNV group and PCV group.

Using the partial least squares discriminant analysis (PLS-DA) model, we calculated the comparison results between groups (Supplementary File 2). In wAMD compared with controls, 164 metabolites with VIP values >1 accounted for 30.10% of all metabolites detected. In CNV compared with controls, 171 metabolites had VIP values >1 (31.38%). In PCV compared with controls, 159 metabolites had VIP values >1 (29.18%). In CNV compared with PCV conditions, 145 metabolites had VIP values > 1 (26.61%). Then, according to the screening criteria for significantly differential metabolites discussed in the Methods section, totally 24 significantly differential metabolites were detected between disease conditions and controls. These metabolites include oxidized lipids (25.00%), benzene and its substituted derivatives (16.67%), nucleotide metabolism (12.50%) and amino acid metabolism (12.50%) (Table 1).

Table 1. Types of differential metabolites.

ClassCompoundsProportion (N=24)
Alcohol1-Aminopropan-2-ol4.17%
Amino Acid metabolomicsL-Tryptophan; Trimethylamine N-Oxide; L-Alanyl-L-Lysine12.50%
Bile AcidsHyodeoxycholic Acid4.17%
Benzene and substituted derivatives2,6-Di-tert-butyl-4-methylphenol; 2-Methylbenzoic acid; 2,4-Dihydroxybenzoic Acid; 1,2,3-Trihydroxybenzene16.67%
Benzoic Acid and its derivatives2-Methoxybenzoic Acid4.17%
Co Others Enzyme Factor and vitaminVitamin D34.17%
Lipids Others PhospholipidO-Phosphorylethanolamine4.17%
Nucleotide metabolomicsUDP-glucose; Phosphocholine; 1-Methylxanthine12.50%
Organic Acid and its derivatives1-Methyluric Acid; Carbamoyl phosphate8.33%
Oxidized lipid(±)4-HDHA; (±)12-HEPE; (±)12-HETE; 14(S)-HDHA; (±)9-HETE; 15-oxoETE25.00%
Phenols and its derivativesHydroquinone4.17%

Metabolites with significant differences in wAMD vs controls

Totally 17 significantly differential metabolites were identified between patients with wAMD and controls (Figures 2, 3 and Table 2). These metabolites included six oxidized lipids ((±)12-HEPE, (±)12-HETE, (±)4-HDHA, (±)9-HETE, 14(S)-HDHA and 15-oxoETE), two benzene and substituted derivatives (2,4-dihydroxybenzoic acid and 1,2,3-trihydroxybenzene), two organic acid and its derivatives (1-methyluric acid and carbamoyl phosphate), two amino acid metabolomics (trimethylamine N-oxide and L-tryptophanamide), two nucleotide metabolomics (1-methylxanthine and UDP-glucose), 1-aminopropan-2-ol, 2-methoxybenzoic acid and vitamin D3. Except for UDP-glucose and carbamoyl phosphate, which presented lower concentrations in wAMD, the other metabolites showed higher concentrations in wAMD, suggesting that these metabolites accumulate in plasma under wAMD conditions.

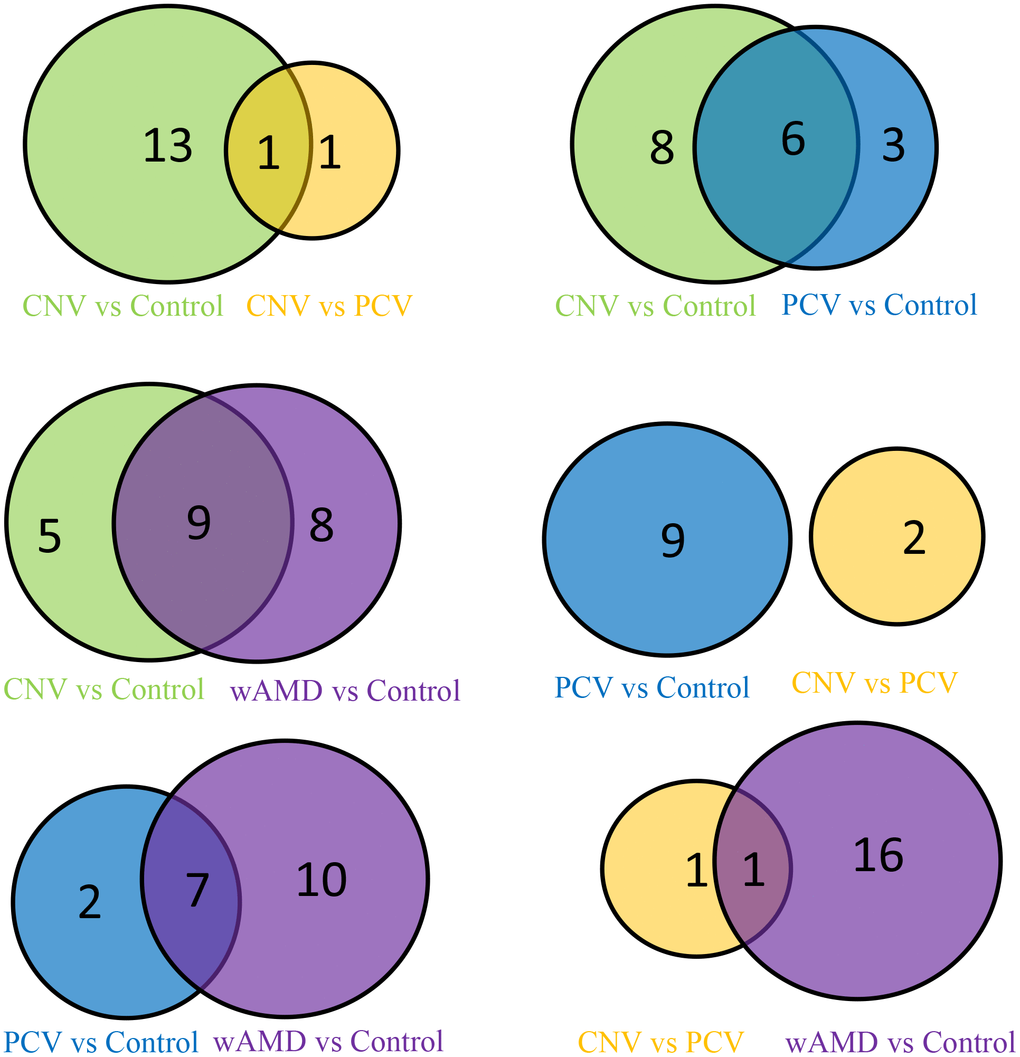

Venn map of the wAMD group, PCV group, and CNV group.

Figure 2. Venn map of the wAMD group, PCV group, and CNV group.

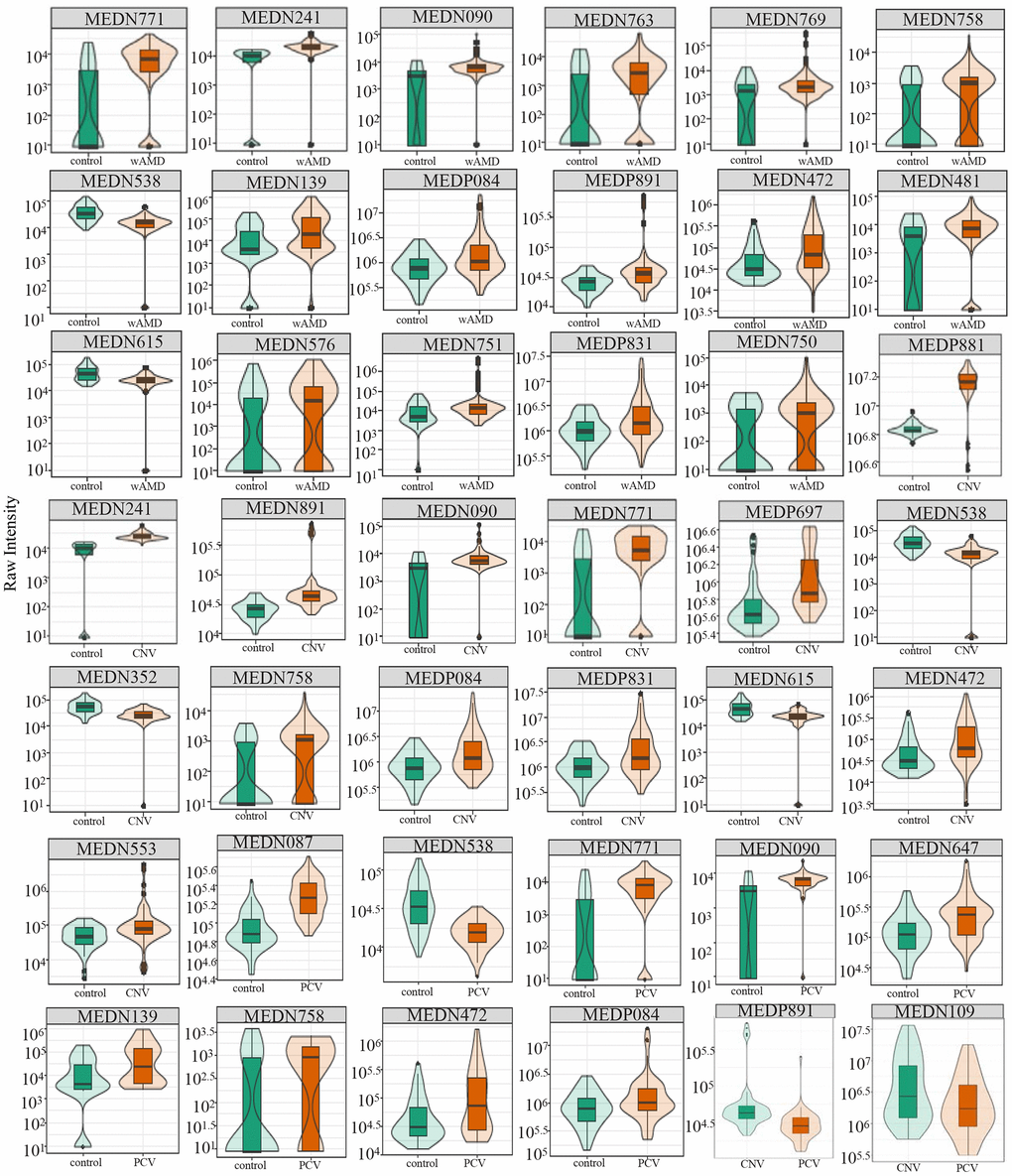

Relative contents of differential metabolites among wAMD group, CNV group, and PCV group. The box in the middle represents the quartile range, the thin black line extending from it represents the 95% confidence interval, the black horizontal line in the middle is the median, and the external shape represents the distribution density of the data. wAMD: Wet AMD group (CNV and PCV together).

Figure 3. Relative contents of differential metabolites among wAMD group, CNV group, and PCV group. The box in the middle represents the quartile range, the thin black line extending from it represents the 95% confidence interval, the black horizontal line in the middle is the median, and the external shape represents the distribution density of the data. wAMD: Wet AMD group (CNV and PCV together).

Table 2. Differential metabolites in wAMD and subtypes.

GroupIndexCompoundsClassVIPP valueFold_changeLog2FCType
wAMD vs control (total=17, down- regulated=2, up- regulated=15)MEDP8311-Aminopropan-2-olAlcohol1.06419.34×10-52.33391.2227up
MEDP084Trimethylamine N-OxideAmino acid metabolomics1.22767.70×10-52.37601.2485up
MEDP891L-Tryptophan amideAmino acid metabolomics1.21838.39×10-42.23781.1621up
MEDN4812,4-Dihydroxybenzoic AcidBenzene and substituted derivatives1.15293.80×10-52.15391.1070up
MEDN5761,2,3-TrihydroxybenzeneBenzene and substituted derivatives1.12704.92×10-22.26421.1790up
MEDN0902-Methoxybenzoic AcidBenzoic acid and its derivatives1.94072.01×10-52.42121.2757up
MEDN241Vitamin D3Coothers enzyme factor and vitamin2.04212.59×10-212.36741.2433up
MEDN1391-MethylxanthineNucleotide metabolomics1.33051.80×10-53.95261.9828up
MEDN538UDP-glucoseNucleotide metabolomics1.43157.78×10-80.3640-1.4581down
MEDN4721-Methyluric AcidOrganic acid and its derivatives1.21681.24×10-52.89011.5311up
MEDN615Carbamoyl phosphateOrganic acid and its derivatives1.14954.84×10-60.4812-1.0554down
MEDN750(±)12-HEPEOxidized lipid1.03852.53×10-23.38241.7581up
MEDN751(±)12-HETEOxidized lipid1.09964.56×10-29.06563.1804up
MEDN758(±)4-HDHAOxidized lipid1.43349.30×10-32.81551.4934up
MEDN763(±)9-HETEOxidized lipid1.57781.73×10-22.02441.0175up
MEDN76914(S)-HDHAOxidized lipid1.54654.22×10-24.35382.1223up
MEDN77115-oxoETEOxidized lipid2.13493.93×10-83.33911.7394up
CNV vs control total=14, down- regulated=3, up- regulated=11)MEDP8311-Aminopropan-2-olAlcohol1.06348.85×10-42.68751.4263up
MEDP084Trimethylamine N-OxideAmino acid metabolomics1.14749.40×10-42.62201.3906up
MEDP891L-TryptophanAmino acid metabolomics1.64381.76×10-33.12481.6437up
MEDN5532-Methylbenzoic acidBenzene and substituted derivatives1.00114.16×10-24.97302.3141up
MEDP6972,6-Di-tert-butyl-4-methylphenolBenzene and substituted derivatives1.42781.20×10-42.07031.0498up
MEDN0902-Methoxybenzoic AcidBenzoic acid and its derivatives1.53432.22×10-32.77881.4745up
MEDN241Vitamin D3Co others enzyme factor and vitamin1.72975.56×10-262.94891.5602up
MEDN352O-PhosphorylethanolamineLipids’ others phospholipid1.34831.96×10-70.4769-1.0681down
MEDN538UDP-glucoseNucleotide metabolomics1.39093.68×10-80.3373-1.5679down
MEDP881PhosphocholineNucleotide metabolomics2.48721.92×10-262.11941.0837up
MEDN4721-Methyluric AcidOrganic acid and its derivatives1.01148.89×10-42.53621.3427up
MEDN615Carbamoyl phosphateOrganic acid and its derivatives1.05992.48×10-60.4564-1.1315down
MEDN758(±)4-HDHAOxidized lipid1.23484.54×10-23.50471.8093up
MEDN77115-oxoETEOxidized lipid1.51857.42×10-63.26641.7077up
PCV vs control (total=9, down- regulated=1, up- regulated=8)MEDP084Trimethylamine N-OxideAmino acid metabolomics1.02502.13×10-22.10131.0713up
MEDP087L-Alanyl-L-LysineAmino acid metabolomics2.75404.26×10-132.28451.1919up
MEDN0902-Methoxybenzoic AcidBenzoic acid and its derivatives1.81512.83×10-72.02181.0157up
MEDN1391-MethylxanthineNucleotide metabolomics1.49398.86×10-44.75862.2505up
MEDN538UDP-glucoseNucleotide metabolomics2.41562.37×10-70.3938-1.3446down
MEDN4721-Methyluric AcidOrganic acid and its derivatives1.28401.45×10-33.28521.7160up
MEDN758(±)4-HDHAOxidized lipid1.44502.06×10-32.04591.0327up
MEDN77115-oxoETEOxidized lipid2.37103.91×10-63.42021.7741up
MEDN647HydroquinonePhenols acid and its derivatives1.59797.32×10-42.00601.0043up
CNV vs PCV(total=2, down-regulated=2)MEDP891L-Tryptophan amideAmino acid metabolomics2.11516.25×10-30.3992-1.3248down
MEDN109Hyodeoxycholic AcidBile Acids1.39083.14×10-30.4805-1.0575down
An index is a number set for the detected metabolites; total represents the number of screened differential metabolites; up-regulated represents the number of differential metabolites with increased relative content; down-regulated represents the number of differential metabolites with decreased relative content. Note: Index refers to the index we set for each metabolite detected. total= total sigmetabolites; up-regulated=The number of up-regulated metabolites; down-regulated=The number of down-regulated metabolites.

Metabolites with significant differences in CNV vs control

In total, 14 significantly differential metabolites were found in the CNV group compared with the control group; most of them are also contributed to wAMD (Figures 2, 3 and Table 2). These metabolites include (±)4-HDHA and 15-oxoETE (oxidized lipids), 2-Methylbenzoic acid and 2,6-Di-tert-butyl-4-methylphenol (benzene and substituted derivatives), 1-methyluric acid and carbamoyl phosphate (organic acid and its derivatives), trimethylamine N-oxide and L-tryptophanamide (amino acid metabolomics), UDP-glucose and phosphocholine (nucleotide metabolomics), 1-aminopropan-2-ol (alcohol), 2-methoxybenzoic acid (benzoic acid and its derivatives), vitamin D3 (Coothers enzyme factor and vitamin) and O-phosphorylethanolamine (lipids' others phospholipid). Except for O-phosphorylethanolamine, UDP-glucose and carbamoyl phosphate are down-regulated in CNV, and the others are up-regulated in CNV.

Metabolites with significant differences in PCV vs control

In total, nine significantly differential metabolites were found in patients with PCV compared with the controls; most of them also contributed to wet AMD (Figures 2, 3 and Table 2). The following three metabolites were specifically detected in patients with PCV: 1-methylxanthine (nucleotide metabolomics), hydroquinone (phenols and their derivatives) and L-alanyl-L-lysine (amino acid metabolomics). The rest were shared with patients with CNV, suggesting their close relationship at the metabolic level.

Metabolites with significant differences in CNV vs PCV

When comparing CNV to PCV, two significantly differential metabolites were identified: hyodeoxycholic acid (bile acids) and L-tryptophanamide (amino acid metabolomics) (Figures 2, 3 and Table 2). Both of them accumulate in PCV.

Pathway analysis of differential metabolites

Metabolites may interact with each other to form different pathways. By using KEGG annotation of the differential metabolites [39], metabolites were classified according to the type of pathway in KEGG (Figure 4 and Table 3). These results showed that metabolic pathways involved in metabolites included vitamin digestion and absorption, pyrimidine metabolism, biosynthesis, metabolic pathway, glycerophospholipid metabolism and other pathways.

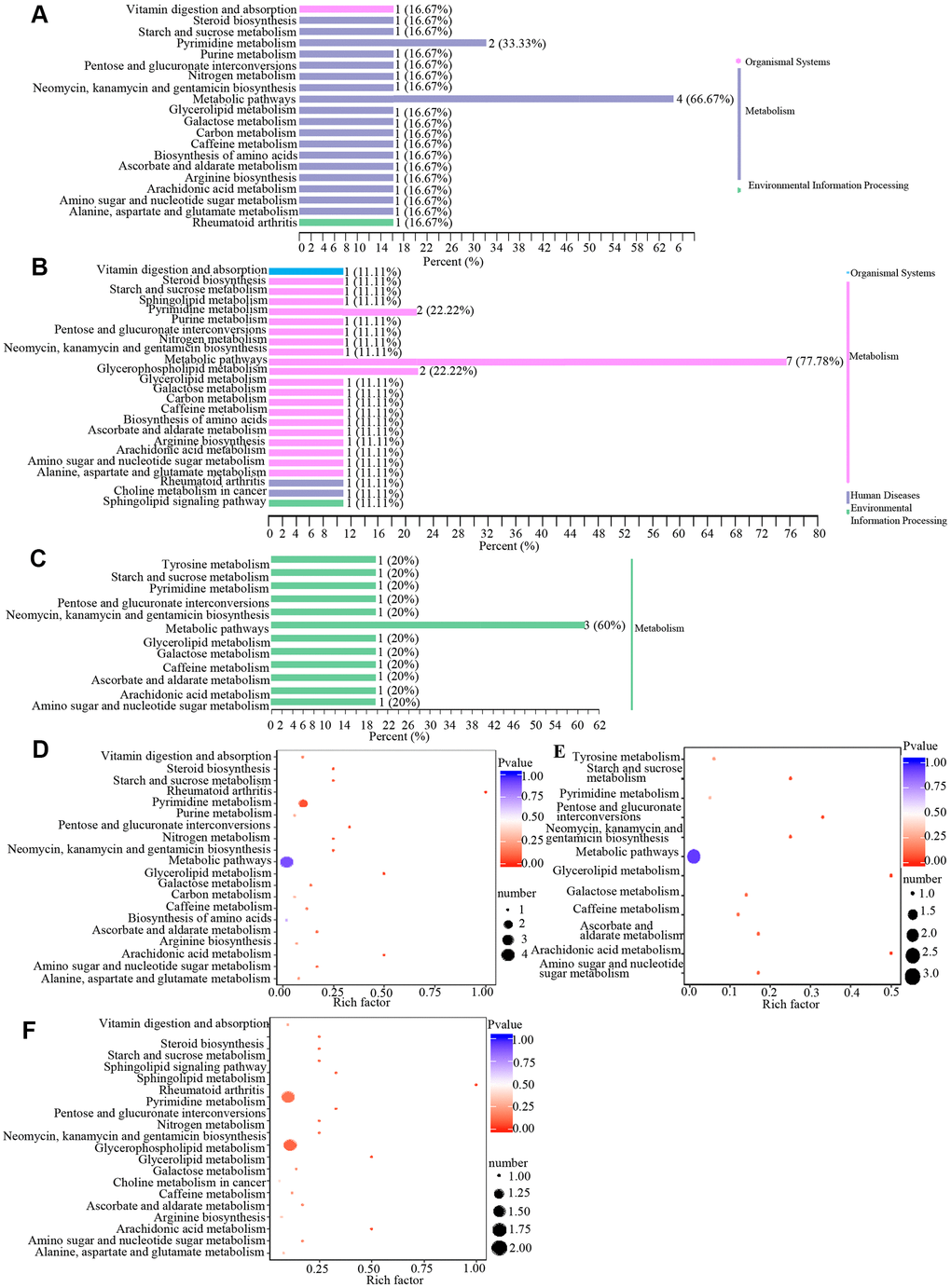

Classification and enrichment of KEGG pathways of differential metabolites in wAMD, CNV, and PCV groups. (A–C) are KEGG classification diagrams of differential metabolites of wAMD vs control, CNV vs control, and PCV vs control, respectively. The ordinate is the name of the KEGG metabolic pathway, and the abscissa is the number of metabolites from the annotation to the pathway and the proportion of the number of metabolites to the total number of annotated metabolites. (D–F) are the KEGG enrichment analysis graphs of differential metabolites wAMD vs control, PCV vs control, and CNV vs control. The rich factor is the ratio of the number of metabolites in the corresponding pathway to the total number of metabolites detected and annotated in the pathways. The larger the value is, the greater the enrichment degree is. The closer the p-value is to 0, the more significant the enrichment is. The size of the midpoint represents the number of significant metabolites enriched in the corresponding pathway.

Figure 4. Classification and enrichment of KEGG pathways of differential metabolites in wAMD, CNV, and PCV groups. (A–C) are KEGG classification diagrams of differential metabolites of wAMD vs control, CNV vs control, and PCV vs control, respectively. The ordinate is the name of the KEGG metabolic pathway, and the abscissa is the number of metabolites from the annotation to the pathway and the proportion of the number of metabolites to the total number of annotated metabolites. (D–F) are the KEGG enrichment analysis graphs of differential metabolites wAMD vs control, PCV vs control, and CNV vs control. The rich factor is the ratio of the number of metabolites in the corresponding pathway to the total number of metabolites detected and annotated in the pathways. The larger the value is, the greater the enrichment degree is. The closer the p-value is to 0, the more significant the enrichment is. The size of the midpoint represents the number of significant metabolites enriched in the corresponding pathway.

Table 3. KEGG annotation results for differential metabolites.

GroupIndexCompoundscpd_IDkEGG_map
control vs wAMDMEDN0902-Methoxybenzoic Acid----
MEDN1391-Methylxanthine----
MEDN241Vitamin D3C05443ko00100,ko01100,ko04977,ko05323
MEDN4721-Methyluric AcidC16359ko00232
MEDN4812,4-Dihydroxybenzoic Acid----
MEDN538UDP-glucoseC00029ko00040,ko00052,ko00053,ko00240,ko00500,ko00520,ko00524,ko00561,ko01100
MEDN5761,2,3-Trihydroxybenzene----
MEDN615Carbamoyl phosphateC00169ko00220,ko00230,ko00240,ko00250,ko00910,ko01100,ko01200,ko01230
MEDN750(±)12-HEPE----
MEDN751(±)12-HETE----
MEDN758(±)4-HDHA----
MEDN763(±)9-HETE----
MEDN76914(S)-HDHA----
MEDN77115-oxoETEC04577ko00590
MEDP084Trimethylamine N-OxideC01104ko01100
MEDP8311-Aminopropan-2-ol----
MEDP891L-Tryptophan amide----
control vs CNVMEDN0902-Methoxybenzoic Acid----
MEDN241Vitamin D3C05443ko00100,ko01100,ko04977,ko05323
MEDN352O-PhosphorylethanolamineC00346ko00564,ko00600,ko01100,ko04071
MEDN4721-Methyluric AcidC16359ko00232
MEDN538UDP-glucoseC00029ko00040,ko00052,ko00053,ko00240,ko00500,ko00520,ko00524,ko00561,ko01100
MEDN5532-Methylbenzoic acidC07215ko01100
MEDN615Carbamoyl phosphateC00169ko00220,ko00230,ko00240,ko00250,ko00910,ko01100,ko01200,ko01230
MEDN758(±)4-HDHA----
MEDN77115-oxoETEC04577ko00590
MEDP084Trimethylamine N-OxideC01104ko01100
MEDP6972,6-Di-tert-butyl-4-methylphenol----
MEDP8311-Aminopropan-2-ol----
MEDP881PhosphocholineC00588ko00564,ko01100,ko05231
MEDP891L-Tryptophanamide----
control vs PCVMEDN0902-Methoxybenzoic Acid----
MEDN1391-Methylxanthine----
MEDN4721-Methyluric AcidC16359ko00232
MEDN538UDP-glucoseC00029ko00040,ko00052,ko00053,ko00240,ko00500,ko00520,ko00524,ko00561,ko01100
MEDN647HydroquinoneC00530ko00350,ko01100
MEDN758(±)4-HDHA----
MEDN77115-oxoETEC04577ko00590
MEDP084Trimethylamine N-OxideC01104ko01100
MEDP087L-Alanyl-L-Lysine----
CNV vs PCVMEDN109Hyodeoxycholic Acid----
MEDP891L-Tryptophan amide----
Cpd_ ID is the code of the corresponding metabolite in KEGG database_ Map is the number of pathways involved in the corresponding metabolites in KEGG database. Note: Index refers to the Index we set for each metabolite detected; Cpd_ID represents the corresponding ID of each metabolite in the KEGG database; KEGG_map refers to the number of pathways in which each metabolite participates in the KEGG database.

Metabolites with significant differences linked to genotypes of AMD major associated genes CFH and HTRA1

AMD is a multifactorial disease, and genetic components play an important role in the pathogenesis of the disease [10]. Previous studies [11, 12, 14, 15] have shown that HTRA1 and CFH are two major genes for AMD. To determine whether there are differences in plasma metabolites among different genotypes, we tested the genotypes of CFH r800292 and HTRA1 rs10490924 (both are in the haplotype of the susceptible loci of CFH and HTRA1) in participants and then analyzed the metabolites and their differences among alleles. In total, 12 differential metabolites were identified in this analysis.

Metabolites with significant differences between genotypes of CFH rs800282

According to the PCA analysis results of metabolites detected in three genotypes of CFH rs800292 (Figure 5A, 5B), the degree of variation between genotypes is small, especially between genotype AA and genotype AG. The OPLS-DA S-plot was used to directly display the proportion of metabolites with VIP values greater than 1 or less than 1 in each group (Figure 5C). According to the screening criteria of differential metabolites, a total of six differential metabolites (1-methylxanthine, L-fucose, 3-hydroxybutyrate, malonic acid, 2,4-dihydroxybenzoic acid, (±)4-HDHA) were identified between genotypes GG and AA (Table 4 and Figure 5D). There were no significant metabolites between genotypes GG and AG. According to KEGG analysis, these six differential metabolites are mainly involved in the synthesis and degradation of ketone bodies, pyrimidine metabolism, fructose and mannose metabolism, fatty acid metabolism, fatty acid biosynthesis, the cAMP signaling pathway, and the C-type lectin receptor signaling pathway (Figure 5E, 5F and Table 4).

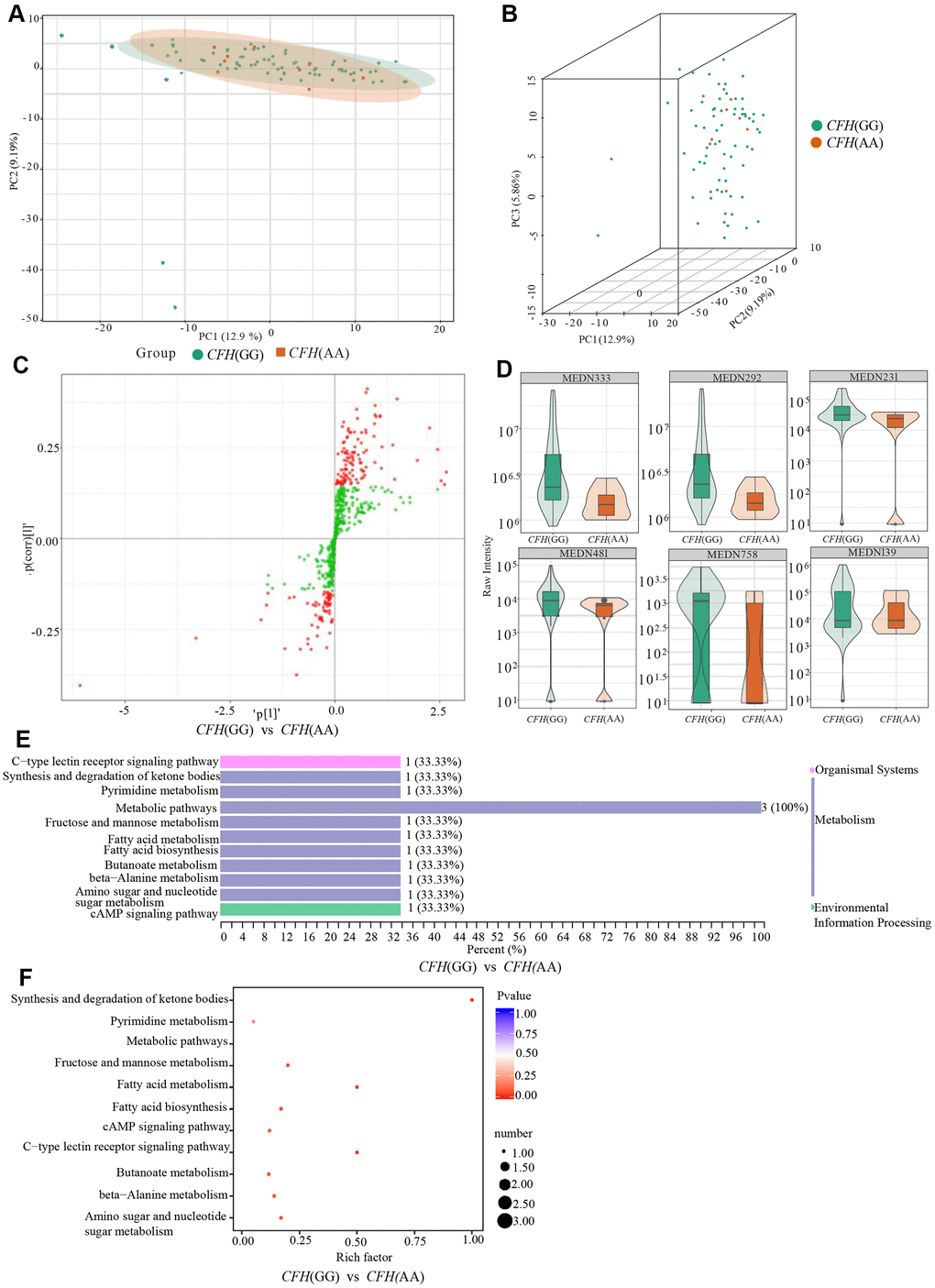

Comparison of genotypes GG and AG of CFH rs800292. (A) shows the two-dimensional PCA map of the degree of variation between the two groups of genotypes GG and AA, and (B) is the 3D images of PCA results of them. (C) is the OPLS-DA S-plot of CFH genotypes GG and AA. The abscissa represents the correlation coefficient of the principal component and metabolite, and the ordinate represents the correlation coefficient of the principal component and metabolite. The red dots indicate that the metabolites have VIP values greater than or equal to 1, and the green dots indicate that the metabolites have VIP values less than 1. (D) shows Relative contents of differential metabolites between CFH genotypes GG and AA. (E, F) are the results of KEGG classification and enrichment of differential metabolites between-group genotypes GG and group AA of CFH.

Figure 5. Comparison of genotypes GG and AG of CFH rs800292. (A) shows the two-dimensional PCA map of the degree of variation between the two groups of genotypes GG and AA, and (B) is the 3D images of PCA results of them. (C) is the OPLS-DA S-plot of CFH genotypes GG and AA. The abscissa represents the correlation coefficient of the principal component and metabolite, and the ordinate represents the correlation coefficient of the principal component and metabolite. The red dots indicate that the metabolites have VIP values greater than or equal to 1, and the green dots indicate that the metabolites have VIP values less than 1. (D) shows Relative contents of differential metabolites between CFH genotypes GG and AA. (E, F) are the results of KEGG classification and enrichment of differential metabolites between-group genotypes GG and group AA of CFH.

Table 4. Differential metabolites between GG and AA of CFH rs800292.

IndexCompoundsClassVIPP valueFold_changeLog2FCTypecpd_IDKEGG_map
MEDN4812,4-Dihydroxybenzoic AcidBenzene and substituted derivatives1.70057.01×10-40.4132-1.2752down----
MEDN231L-FucoseCarbohydrate metabolomics2.11014.25×10-40.4389-1.1881downC01019ko00051,ko00520,ko01100,ko04625
MEDN1391-MethylxanthineNucleotide metabolomics1.13221.09×10-20.3048-1.7141down----
MEDN2923-HydroxybutyrateOrganic Acid And its Derivatives2.32871.77×10-50.3617-1.4673downC01089ko00072,ko00650,ko01100,ko04024
MEDN333MalonicacidOrganic Acid And its Derivatives2.34571.92×10-50.3639-1.4584downC00383ko00061,ko00240,ko00410,ko01100,ko01212
MEDN758(±)4-HDHAOxidized lipid1.49312.06×10-20.4390-1.1876down----

Metabolites with significant differences between genotypes of HTRA1 rs10490924

Similar to CFH, the PCA analysis results suggested that three genotypes of HTRA1 rs10490924 had small variations (Figure 6A–6D). The HTRA1 OPLS-DA S-plot was used to visually display the proportion of metabolites with VIP values greater than 1 or less than 1 among groups (Figure 6E, 6F). According to the screening criteria of differential metabolites, five differential metabolites (cyclamic acid, indoxylsulfuric acid, phenylacetyl-L-glutamine, 3-indolepropionic acid, 2-phenylacetamide) were identified between GG and AA (Table 5 and Figure 7A, 7B). The relative contents of these five metabolites in HTRA1 genotype AA were higher than those in group GG. Four differential metabolites (marmesin, indoxylsulfuric acid, phenylacetyl-L-glutamine, and 2-phenylacetamide) were identified between genotypes GG and AG. KEGG analysis showed that three of these metabolites were repetitive and were closely related to tyrosine metabolism, phenylalanine metabolism, and metabolic pathways (Table 5 and Figure 7C–7F).

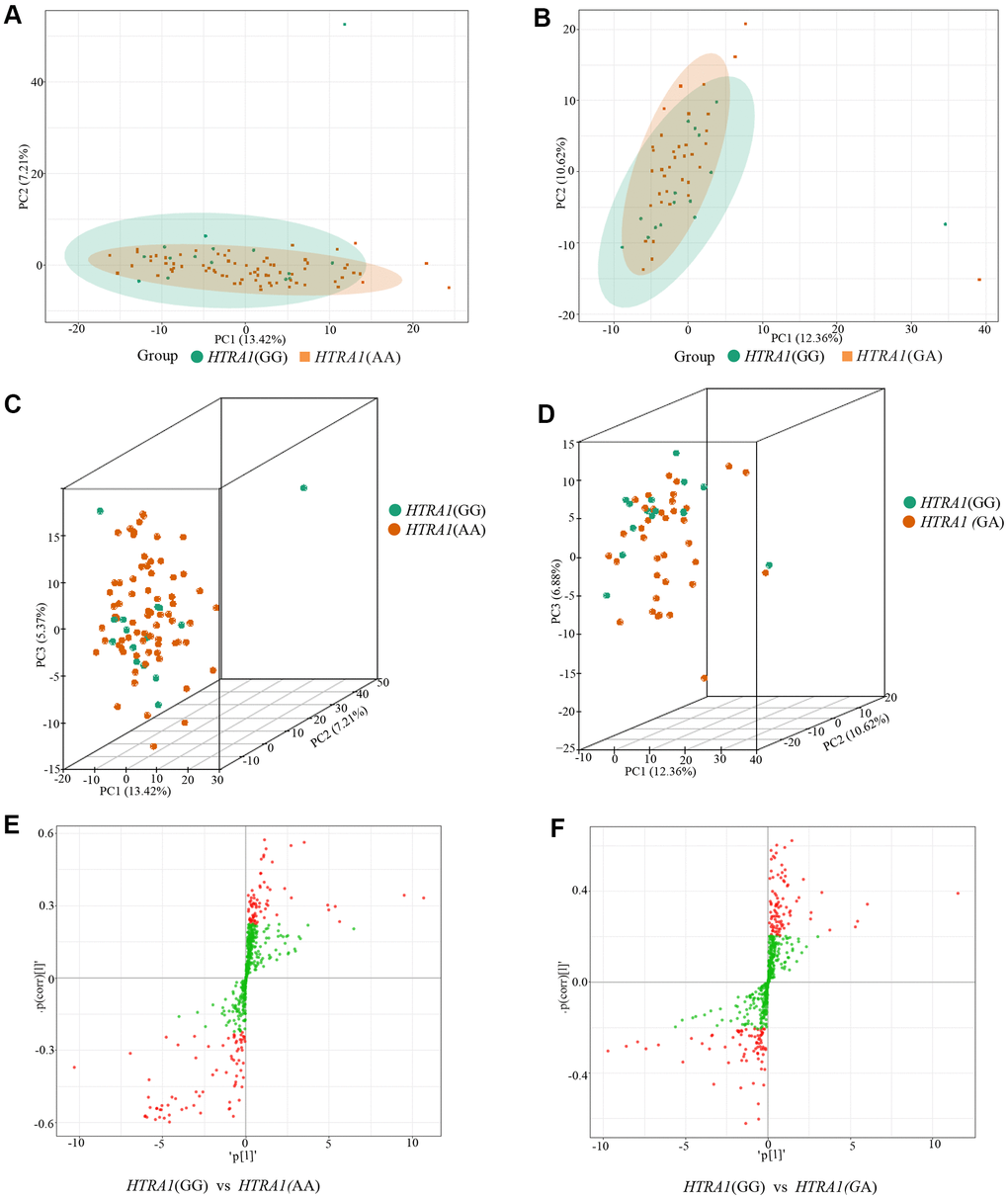

PCA results and OPLS-DA S-plot of three HTRA1 rs10490924 genotypes. (A, B) show the two-dimensional PCA map of the degree of variation between the two groups of genotypes GG and AA, GG and GA. (C, D) are the three-dimensional PCA map. From the graphs, we can see that the degree of variation between genotypes GG and AA or between genotype GG and GA is relatively small. (E, F) are OPLS-DA S-plot of three HTRA1 genotypes compared among groups. (E) shows the results of HTRA1 genotypes GG and AA, and (F) shows the results of GG and GA. This diagram mainly shows the number of metabolites whose VIP value is greater than or less than 1 in the detected metabolites between groups. The abscissa represents the correlation coefficient of the principal component and metabolite, and the ordinate represents the correlation coefficient of the principal component and metabolite. The closer the metabolite is to the upper right corner and the lower-left corner, the more significant the difference is. The red dots indicate that the metabolites have VIP values greater than or equal to 1, and the green dots indicate that the metabolites have VIP values less than 1.

Figure 6. PCA results and OPLS-DA S-plot of three HTRA1 rs10490924 genotypes. (A, B) show the two-dimensional PCA map of the degree of variation between the two groups of genotypes GG and AA, GG and GA. (C, D) are the three-dimensional PCA map. From the graphs, we can see that the degree of variation between genotypes GG and AA or between genotype GG and GA is relatively small. (E, F) are OPLS-DA S-plot of three HTRA1 genotypes compared among groups. (E) shows the results of HTRA1 genotypes GG and AA, and (F) shows the results of GG and GA. This diagram mainly shows the number of metabolites whose VIP value is greater than or less than 1 in the detected metabolites between groups. The abscissa represents the correlation coefficient of the principal component and metabolite, and the ordinate represents the correlation coefficient of the principal component and metabolite. The closer the metabolite is to the upper right corner and the lower-left corner, the more significant the difference is. The red dots indicate that the metabolites have VIP values greater than or equal to 1, and the green dots indicate that the metabolites have VIP values less than 1.

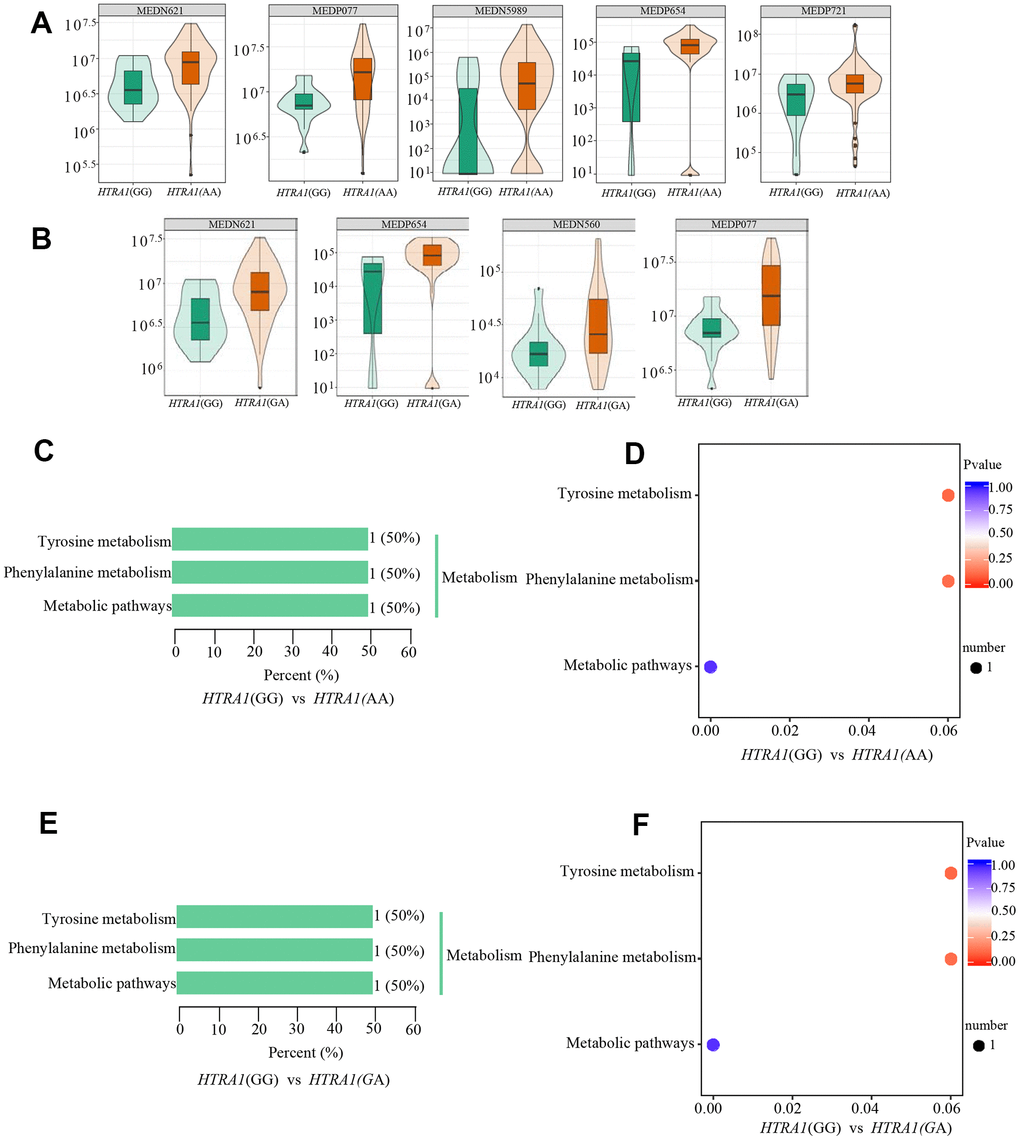

Relative contents and the results of KEGG classification and enrichment of differential metabolites between HTRA1 rs10490924 genotypes GG, AA, and GA. (A, B) are relative contents of differential metabolites between HTRA1 genotypes GG, AA, and GA. (C, D) are the results of KEGG classification and enrichment genotypes GG and AA. (E, F) are the results of KEGG classification and enrichment genotypes GG and GA. Because there are three kinds of repeated metabolites in the two groups, the classification and enrichment analysis results of KEGG are very similar.

Figure 7. Relative contents and the results of KEGG classification and enrichment of differential metabolites between HTRA1 rs10490924 genotypes GG, AA, and GA. (A, B) are relative contents of differential metabolites between HTRA1 genotypes GG, AA, and GA. (C, D) are the results of KEGG classification and enrichment genotypes GG and AA. (E, F) are the results of KEGG classification and enrichment genotypes GG and GA. Because there are three kinds of repeated metabolites in the two groups, the classification and enrichment analysis results of KEGG are very similar.

Table 5. Differential metabolites between GG, AA and GA of the HTRA1 rs10490924.

GroupIndexCompoundsClassVIPP valueFold_changeLog2FCTypecpd_IDKEGG_map
GG vs AAMEDP077Phenylacetyl-L-GlutamineAmino acid metabolomics1.70936.13×10-82.31341.2100upC05595ko00350
MEDP6542-PhenylacetamideBenzene and substituted derivatives1.09777.66×10-83.20731.6813upC02505ko00360, ko01100
MEDP2713-Indolepropionic AcidIndole and its derivatives1.48221.09×10-23.60821.8513up--
MEDN589Cyclamic acidOrganic acid and its derivatives1.65731.30×10-29.87403.3036up--
MEDN621Indoxylsulfuric acidOrganic acid and its derivatives1.79611.01×10-42.02351.0168up--
GG vs GAMEDP077Phenylacetyl-L-GlutamineAmino acid metabolomics2.20413.75×10-52.37491.2478upC05595ko00350
MEDP6542-PhenylacetamideBenzene and substituted derivatives1.30552.04×10-53.37791.7561upC02505ko00360, ko01100
MEDN560MarmesinCarbohydrate metabolomics1.25171.23×10-22.06771.0480up--
MEDN621Indoxylsulfuric acidOrganic acid and its derivatives1.81299.93×10-42.04311.0308up--

Metabolites of microorganisms

To explore whether the metabolites of microorganisms participate in the occurrence of wAMD, we noted the 545 metabolites detected in patients in the METLIN database (https://metlin.scripps.edu) and identified 24 microbial-specific metabolites (Table 6 and Supplementary File 3), most of which are organic acids and their derivatives (N = 6, 25.0%), followed by benzene and its substituted derivatives (N = 4, 16.67%). However, these metabolites did not show significant differences between patients and controls. Among them, we found that the cyclamic acid concentration was different between genotypes GG and AA of HTRA1 rs10490924 (P = 0.01, VIP = 1.66, fold change = 9.87), and its relative concentration of genotype AA was higher than that of genotype GG.

Table 6. Twenty-four microorganisms metabolites.

IndexCompoundsClasscpd_ID
MEDP8311-Aminopropan-2-olAlcoholC05771
MEDP844furfuryl alcoholAlcoholC20441
MEDP716cis-CitralAldehydeC09847
MEDP672CyclohexylamineAminesC00571
MEDN5761,2,3-TrihydroxybenzeneBenzene and substituted derivativesC01108
MEDP102Syringic AcidBenzene and substituted derivativesC10833
MEDP1113-(4-Hydroxyphenyl)-Propionic AcidBenzene and substituted derivativesC01744
MEDP796PyreneBenzene and substituted derivativesC14335
MEDN228D-ArabinoseCarbohydrate metabolomics-
MEDN625FormononetinCarbohydrate metabolomicsC00858
MEDN679MaltolHeterocyclic compoundC11918
MEDP546OxindoleIndole and its derivativesC12312
MEDP799(-)-MenthoneKetonesC00843
MEDP839PulegoneKetonesC09893
MEDP561FarneseneLipids_fatty acidsC09665
MEDN334Mandelic AcidOrganic acid and its derivativesC01984
MEDN338Phenyllactate (Pla)Organic acid and its derivativesC01479
MEDN346Vanillic AcidOrganic acid and its derivativesC06672
MEDN589Cyclamic acidOrganic acid and its derivativesC02824
MEDP303Chlorogenic AcidOrganic acid and its derivativesC00852
MEDN6543-Methylsalicylic acidOrganic acid and its derivativesC14088
MEDP1304-NitrophenolPhenols and its derivativesC00870
MEDP668m-CresolPhenols and its derivativesC01467
MEDP7914-aminophenolPhenols and its derivativesC02372

In vitro functional validation

Of the discovered differential metabolites, hyodeoxycholic acid and L-tryptophanamide are the only two differential metabolites between CNV and PCV. Cyclamic acid is one of the unique metabolites of microorganisms that can inhibit intercellular communication [40] and affect cell morphology [41]. The relative content of cyclamic acid in the AMD risk genotype AA was higher than that in the protective genotype GG in rs10490924 (HTRA1 locus) [15]. O-phosphoethanolamine is a protective metabolite for CNV group. O-phosphoethanolamine is involved in the metabolism of glycerophospholipids and sphingolipids, and is associated with Alzheimer's disease, a degenerative disease that shared some common genetic variants with AMD [42–45]. Therefore, to further explore the effects of these differential metabolites, we selected cyclamic acid, hyodeoxycholic acid, L-tryptophanamide, and O-phosphorylethanolamine on, for testing their effects on human retinal pigment epithelium cells (HRPECs) and primary human retinal endothelial cells (HRECs) which are highly related with the pathogenesis of AMD.

Effects on HRPECs

The results of CCK-8 cell proliferation and cytotoxicity assay of the four metabolites and controls in HRPECs are presented in Figure 8 and Supplementary File 4. Treatment of HRPECs with 30μmol/ml and 40μmol/ml of cyclamic acid for 24h and 48h significantly inhibited the activity of HRPECs comparing to curcumin, a positive control (Figure 8A and Supplementary File 4). The proliferation of HRPECs was significantly inhibited by 10μmol/ml and 20μmol/ml cyclamic acid for 48h (Figure 8B and Supplementary File 4). Hyodeoxycholic acid and L-tryptophanamide had no significant effect on the activity of HRPECs comparing to curcumin (Figure 8C–8E and Supplementary File 4). However, after 48h treatment of L-tryptophanamide, the proliferation inhibition rate of HRPECs increased comparing to curcumin (Figure 8F and Supplementary File 4). O-phosphorylethanolamine increased the activity of HRPECs comparing to curcumin suggesting a promote function for the proliferation of HRPECs (Figure 8G, 8H and Supplementary File 4). The results of apoptosis and necrosis assay after treating the four selected metabolites in HRPECs were presented in Figure 9 and Tables 7–10. Cyclamic acid treatment of HRPECs increased cells’ apoptosis and necrosis comparing with curcumin (Figure 9 and Table 7). The effects of hyodeoxycholic acid, L-tryptophanamide and O-phosphorylethanolamine on HRPECs are in between curcumin and DMSO (Figure 9 and Tables 8–10).

Effects of cyclamic acid, hyodeoxycholic acid, L-tryptophanamide, and O-phosphorylethanolamine on the activity and proliferation of HRPECs. (A, C, E, G) respectively reflected the changes of cell activity after hRPE cells were treated with cyclamic acid, hyodeoxycholic acid, L-tryptophanamide, and O-phosphorylethanolamine. (B, D, F, H) respectively reflected the changes of cell proliferation inhibition rate after treatment. C-10, C-20, C-30 and C-40 represent 10 μmol/ml, 20 μmol/ml, 30 μmol/ml and 40 μmol/ml cyclamic acid, respectively. H-40, H-80, H-120 and H-160 represent 40 μM, 80 μM, 120 μM, 160 μM hyodeoxycholic acid, respectively. L-25, L-50, L-75 and L-100 represent 25 μM, 50 μM, 75 μM and 100 μM L-tryptophanamide. O-5, O-10, O-15 and O-20 represent 5 μmol/ml, 10 μmol/ml, 15 μmol/ml and 20 μmol/ml O-phosphorylethanolamine. ΔΔ and ΔΔΔ indicated that the positive control group (cur) was significantly different from the 0.1% ✰ ✰ DMSO group (0.001

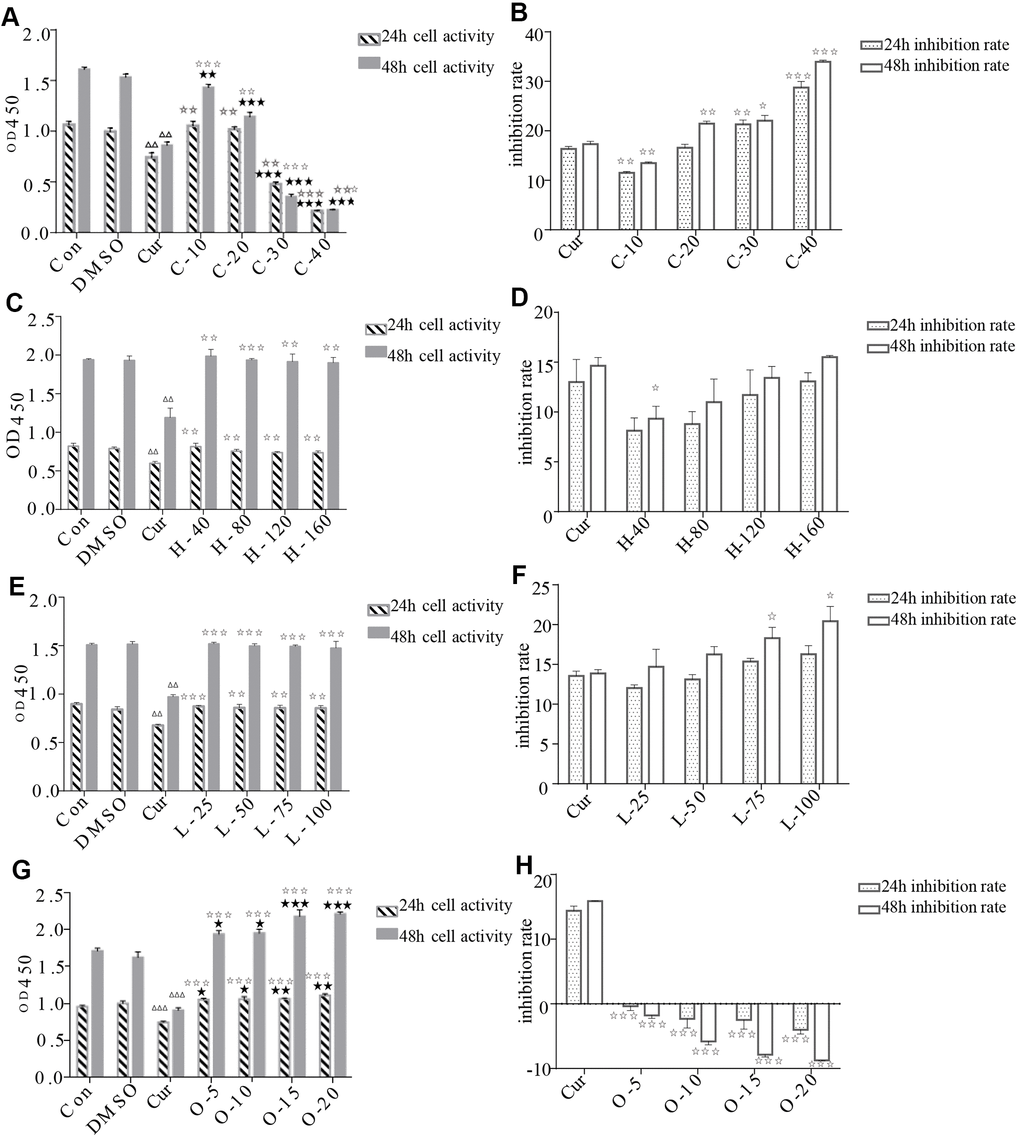

Figure 8. Effects of cyclamic acid, hyodeoxycholic acid, L-tryptophanamide, and O-phosphorylethanolamine on the activity and proliferation of HRPECs. (A, C, E, G) respectively reflected the changes of cell activity after hRPE cells were treated with cyclamic acid, hyodeoxycholic acid, L-tryptophanamide, and O-phosphorylethanolamine. (B, D, F, H) respectively reflected the changes of cell proliferation inhibition rate after treatment. C-10, C-20, C-30 and C-40 represent 10 μmol/ml, 20 μmol/ml, 30 μmol/ml and 40 μmol/ml cyclamic acid, respectively. H-40, H-80, H-120 and H-160 represent 40 μM, 80 μM, 120 μM, 160 μM hyodeoxycholic acid, respectively. L-25, L-50, L-75 and L-100 represent 25 μM, 50 μM, 75 μM and 100 μM L-tryptophanamide. O-5, O-10, O-15 and O-20 represent 5 μmol/ml, 10 μmol/ml, 15 μmol/ml and 20 μmol/ml O-phosphorylethanolamine. ΔΔ and ΔΔΔ indicated that the positive control group (cur) was significantly different from the 0.1% ✰ ✰ DMSO group (0.001

Apoptosis and necrosis of HRPECs. The apoptosis and necrosis of HRPECs after being treated with cyclamic acid, hyodeoxycholic acid, L-tryptophanamide, and O-phosphorylethanolamine for 48h. Blue fluorescence shows normal cells, bright blue shows apoptotic cells, and red shows necrotic cells.

Figure 9. Apoptosis and necrosis of HRPECs. The apoptosis and necrosis of HRPECs after being treated with cyclamic acid, hyodeoxycholic acid, L-tryptophanamide, and O-phosphorylethanolamine for 48h. Blue fluorescence shows normal cells, bright blue shows apoptotic cells, and red shows necrotic cells.

Table 7. The effects of cyclamic acid on apoptosis and necrosis of HRPECs.

GroupMean±SEM (%)Comparing groupP value
Apoptosis rate (24h)Con4.745 ± 0.167Con vs DMSO0.956
DMSO4.774 ± 0.451DMSO vs Cur0.002
Cur11.960 ± 0.844C-10 vs Con0.107
C-105.273 ± 0.193C-20 vs Con0.012
C-206.011 ± 0.238C-30 vs Con0.005
C-306.274 ± 0.208C-40 vs Con0.000
C-401.524 ± 0.154C-10 vs Cur0.002
C-20 vs Cur0.003
C-30 vs Cur0.003
C-40 vs Cur0.000
Apoptosis rate (48h)Con6.937 ± 0.245Con vs DMSO0.571
DMSO7.518 ± 0.911DMSO vs Cur0.032
Cur12.190 ± 1.125C-10 vs Con0.923
C-106.820 ± 1.105C-20 vs Con0.016
C-208.952 ± 0.436C-30 vs Con0.000
C-3038.030 ± 1.714C-40 vs Con0.000
C-400.196 ± 0.108C-10 vs Cur0.027
C-20 vs Cur0.055
C-30 vs Cur0.000
C-40 vs Cur0.000
Necrosis rate (24h)Con0.045 ± 0.045Con vs DMSO0.892
DMSO0.037 ± 0.037DMSO vs Cur0.000
Cur1.382 ± 0.051C-10 vs Con0.012
C-100.590 ± 0.115C-20 vs Con0.002
C-200.781 ± 0.085C-30 vs Con0.010
C-305.889 ± 1.272C-40 vs Con0.025
C-4038.820 ± 11.150C-10 vs Cur0.003
C-20 vs Cur0.004
C-30 vs Cur0.024
Necrosis rate (48h)Con0.046 ± 0.023Con vs DMSO0.864
DMSO0.041 ± 0.020DMSO vs Cur0.048
Cur3.548 ± 1.248C-10 vs Con0.012
C-100.615 ± 0.128C-20 vs Con0.006
C-200.828 ± 0.141C-30 vs Con0.003
C-309.430 ± 1.451C-40 vs Con0.000
C-4096.600 ± 1.589C-10 vs Cur0.080
C-20 vs Cur0.139
C-30 vs Cur0.040
C-40 vs Cur0.000
Con stands for control group, DMSO for 0.1% DMSO group, cur for curcumin group. C-10, C-20, C-30 and C-40 represent 10 μmol/ml, 20 μmol/ml, 30 μmol/ml and 40 μmol/ml cyclamic acid, respectively.

Table 8. The effects of hyodeoxycholic acid on apoptosis and necrosis of HRPECs.

GroupMean±SEM (%)Comparing groupP value
Apoptosis rate (24h)Con4.945 ± 0.147Con vs DMSO0.149
DMSO5.568 ± 0.317DMSO vs Cur0.001
Cur11.480 ± 0.677H-40 vs DMSO0.221
H-404.974 ± 0.260H-80 vs DMSO0.607
H-805.072 ± 0.832H-120 vs DMSO0.479
H-1205.133 ± 0.458H-160 vs DMSO0.055
H-1605.898 ± 2.684H-40 vs Cur0.001
H-80 vs Cur0.004
H-120 vs Cur0.002
H-160 vs Cur0.023
Apoptosis rate (48h)Con6.631 ± 0.072Con vs DMSO0.616
DMSO6.637 ± 0.565DMSO vs Cur0.001
Cur13.410 ± 1.915H-40 vs DMSO0.323
H-405.047 ± 0.716H-80 vs DMSO0.054
H-805.105 ± 0.558H-120 vs DMSO0.042
H-1205.222 ± 0.871H-160 vs DMSO0.005
H-1607.301 ± 0.533H-40 vs Cur0.002
H-80 vs Cur0.003
H-120 vs Cur0.004
H-160 vs Cur0.002
Necrosis rate (24h)Con0.057 ± 0.032Con vs DMSO0.992
DMSO0.095 ± 0.063DMSO vs Cur0.027
Cur1.300 ± 0.113H-40 vs DMSO0.156
H-400.220 ± 0.091H-80 vs DMSO0.126
H-800.351 ± 0.071H-120 vs DMSO0.244
H-1200.387 ± 0.077H-160 vs DMSO0.442
H-1600.565 ± 0.053H-40 vs Cur0.015
H-80 vs Cur0.014
H-120 vs Cur0.018
H-160 vs Cur0.037
Necrosis rate (48h)Con0.085 ± 0.014Con vs DMSO0.643
DMSO0.100 ± 0.027DMSO vs Cur0.001
Cur2.474 ± 0.252H-40 vs DMSO0.000
H-401.257 ± 0.061H-80 vs DMSO0.000
H-801.318 ± 0.059H-120 vs DMSO0.003
H-1201.458 ± 0.207H-160 vs DMSO0.002
H-1601.499 ± 0.199H-40 vs Cur0.009
H-80 vs Cur0.011
H-120 vs Cur0.036
H-160 vs Cur0.039
Con stands for the control group, DMSO for 0.1% DMSO group, cur for curcumin group. H-40, H-80, H-120 and H-160 represent 40 μM, 80 μM, 120 μM, 160 μM hyodeoxycholic acid, respectively.

Table 9. The effects of L-tryptophanamide on apoptosis and necrosis of HRPECs.

GroupMean±SEM (%)Comparing groupP value
Apoptosis rate (24h)Con4.733 ± 0.029Con vs DMSO0.601
DMSO4.395 ± 0.596DMSO vs Cur0.037
Cur8.232 ± 0.607L-25 vs DMSO0.096
L-256.248 ± 0.611L-50 vs DMSO0.074
L-506.945 ± 0.876L-75 vs DMSO0.049
L-757.538 ± 0.948L-100 vs DMSO0.016
L-1008.034 ± 0.691L-25 vs Cur0.083
L-50 vs Cur0.294
L-75 vs Cur0.570
L-100 vs Cur0.840
Apoptosis rate (48h)Con7.635 ± 0.726Con vs DMSO0.843
DMSO7.845 ± 0.324DMSO vs Cur0.000
Cur10.650 ± 0.334L-25 vs DMSO0.079
L-257.542 ± 0.161L-50 vs DMSO0.008
L-507.944 ± 0.292L-75 vs DMSO0.007
L-7511.420 ± 0.777L-100 vs DMSO0.000
L-10013.050 ± 0.656L-25 vs Cur0.007
L-50 vs Cur0.110
L-75 vs Cur0.173
L-100 vs Cur0.052
Necrosis rate (24h)Con0.085 ± 0.044Con vs DMSO0.805
DMSO0.100 ± 0.055DMSO vs Cur0.004
Cur0.943 ± 0.046L-25 vs DMSO0.449
L-250.372 ± 0.102L-50 vs DMSO0.832
L-500.703 ± 0.108L-75 vs DMSO0.013
L-750.744 ± 0.111L-100 vs DMSO0.002
L-1000.800 ± 0.025L-25 vs Cur0.001
L-50 vs Cur0.004
L-75 vs Cur0.415
L-100 vs Cur0.031
Necrosis rate (48h)Con0.110 ± 0.030Con vs DMSO0.801
DMSO0.104 ± 0.013DMSO vs Cur0.001
Cur3.216 ± 0.306L-25 vs DMSO0.008
L-250.485 ± 0.076L-50 vs DMSO0.002
L-500.820 ± 0.095L-75 vs DMSO0.000
L-751.304 ± 0.075L-100 vs DMSO0.000
L-1001.970 ± 0.162L-25 vs Cur0.001
L-50 vs Cur0.002
L-75 vs Cur0.004
L-100 vs Cur0.023
Con stands for the control group, DMSO for 0.1% DMSO group, cur for the curcumin group. L-25, L-50, L-75 and L-100 represent 25 μM, 50 μM, 75 μM and 100 μM L-tryptophanamide.

Table 10. The effects of O-phosphorylethanolamine on apoptosis and necrosis of HRPECs.

GroupMean±SEM (%)Comparing groupP value
Apoptosis rate (24h)Con3.376 ± 0.133Con vs DMSO0.718
DMSO3.490 ± 0.262DMSO vs Cur0.000
Cur11.330 ± 0.173O-5 vs Con0.007
O-54.682 ± 0.224O-10 vs Con0.005
O-105.301 ± 0.324O-15 vs Con0.019
O-156.817 ± 0.895O-20 vs Con0.000
O-206.967 ± 0.245O-5 vs Cur0.000
O-10 vs Cur0.000
O-15 vs Cur0.008
O-20 vs Cur0.000
Apoptosis rate (48h)Con3.536 ± 0.139Con vs DMSO0.067
DMSO3.985 ± 0.113DMSO vs Cur0.000
Cur12.070 ± 0.0595 vs Con0.014
O-54.701 ± 0.24310 vs Con0.028
O-105.671 ± 0.62015 vs Con0.000
O-156.903 ± 0.17320 vs Con0.013
O-207.650 ± 0.947O-5 vs Cur0.000
O-10 vs Cur0.001
O-15 vs Cur0.000
O-20 vs Cur0.010
Necrosis rate (24h)Con0.101 ± 0.009Con vs DMSO0.893
DMSO0.094 ± 0.048DMSO vs Cur0.000
Cur1.133 ± 0.0125 vs Con0.219
O-50.163 ± 0.04210 vs Con0.485
O-100.165 ± 0.08315 vs Con0.171
O-150.191 ± 0.05420 vs Con0.064
O-200.228 ± 0.049O-5 vs Cur0.000
O-10 vs Cur0.000
O-15 vs Cur0.000
O-20 vs Cur0.000
Necrosis rate (48h)Con0.104 ± 0.027Con vs DMSO0.729
DMSO0.116 ± 0.018DMSO vs Cur0.000
Cur3.029 ± 0.05250 vs Con0.098
O-50.166 ± 0.01010 vs Con0.307
O-100.180 ± 0.05915 vs Con0.060
O-150.210 ± 0.03020 vs Con0.132
O-200.232 ± 0.062O-5 vs Cur0.000
O-10 vs Cur0.000
O-15 vs Cur0.000
O-20 vs Cur0.000
Con stands for control group, DMSO for 0.1% DMSO group, cur for curcumin group. O-5, O-10, O-15 and O-20 represent 5 μmol/ml, 10 μmol/ml, 15 μmol/ml and 20 μmol/ml O-phosphorylethanolamine.

Effects on HRECs

Angiogenesis is related to wAMD pathogenesis. Tube formation assay has been typically employed to demonstrate the angiogenic activity of vascular endothelial cells in vitro. We, therefore, performed the tube formation experiments by using HRECs (Figure 10 and Table 11). Cyclamic acid treated HRECs with 20 μmol/ml, the number of tubules increased comparing with the control group. However, tubules could not form after treated with higher concentrations (30μmol/ml and 40μmol/ml) (Figure 10 and Table 11), suggesting a concentration dependence effect. The number of tubules in HRECs treated with hyodeoxycholic acid had no difference with that in DMSO group, but was significantly higher than that in bevacizumab group, an inhibitor of vascular production (Figure 10 and Table 11). The number of tubules in HRECs treated with L-tryptophanamide was significantly more than that in DMSO and bevacizumab groups, suggesting a tube formation promote effect (Figure 10 and Table 11). HRECs treated with O-phosphorylethanolamine showed lower tube formation ability than that in control and bevacizumab groups, suggesting a tube formation inhibit effect (Figure 10 and Table 11).

HRECs tube formation. Effects of cyclamic acid, hyodeoxycholic acid, L-tryptophanamide, and O-phosphorylethanolamine on the tubule formation of HRECs after treatment of 6h.

Figure 10. HRECs tube formation. Effects of cyclamic acid, hyodeoxycholic acid, L-tryptophanamide, and O-phosphorylethanolamine on the tubule formation of HRECs after treatment of 6h.

Table 11. Statistics of branching points in tubule formation assay of HRECs.

GroupMean±SEMComparing groupP value
Con48.000 ± 1.155Con vs DMSO0.067
DMSO44.670 ± 0.667Con vs Bev0.001
Bev37.000 ± 0.577C-10 vs Con0.340
C-1045.000 ± 2.517C-20 vs Con0.000
C-2075.330 ± 1.764C-30 vs Con0.000
C-300.000 ± 0.000C-40 vs Con0.000
C-400.000 ± 0.000C-10 vs Bev0.036
C-20 vs Bev0.000
C-30 vs Bev0.000
C-40 vs Bev0.000
Con46.670 ± 0.333Con vs DMSO0.609
DMSO46.000 ± 1.155Con vs Bev0.000
Bev38.000 ± 0.577H-40 vs DMSO0.279
H-4045.000 ± 0.577H-80 vs DMSO0.399
H-8046.330 ± 0.333H-120 vs DMSO0.530
H-12052.000 ± 1.732H-160 vs DMSO0.004
H-16063.330 ± 1.202H-40 vs Bev0.001
H-80 vs Bev0.001
H-120 vs Bev0.002
H-160 vs Bev0.000
Con46.670 ± 0.882Con vs DMSO0.368
DMSO44.670 ± 1.764Con vs Bev0.001
Bev37.000 ± 0.577L-25 vs DMSO0.250
L-2541.000 ± 2.082L-50 vs DMSO0.899
L-5045.000 ± 1.732L-75 vs DMSO0.057
L-7550.330 ± 1.202L-100 vs DMSO0.001
L-10062.670 ± 1.453L-25 vs Bev0.138
L-50 vs Bev0.012
L-75 vs Bev0.001
L-100 vs Bev0.000
Con45.670 ± 0.333Con vs DMSO0.692
DMSO45.000 ± 1.528Con vs Bev0.000
Bev38.670 ± 0.333O-5 vs Con0.374
O-545.000 ± 0.577O-10 vs Con0.000
O-1038.330 ± 0.333O-15 vs Con0.000
O-1534.670 ± 0.882O-20 vs Con0.001
O-2034.000 ± 1.155O-5 vs Bev0.001
O-10 vs Bev0.519
O-15 vs Bev0.013
O-20 vs Bev0.018

Wound healing assay has been used as an important tool to study cell polarization, tissue matrix rearrangement, and to predict cell proliferation and migration in HRECs. The wound-healing assay results of HRECs treated with the four selected metabolites are presented in Table 12. The migration rates of HRECs were significantly decreased after treatment with cyclamic acid comparing with bevacizumab. After hyodeoxycholic acid treatment, the migration rates were decreased compared with bevacizumab. After L-tryptophanamide treatment, the mobility increased comparing with DMSO. After 5 μmol/ml O-phosphorylethanolamine treatment with HRECs, the mobility was higher than that of bevacizumab, while after 10-20 μmol/ml O-phosphorylethanolamine treatment, the mobility was decreased compared with bevacizumab, suggesting a concentration dependence effect (Table 12).

Table 12. Migration rate of HRECs.

MetabolitesGroupMean±SEMComparing groupP value
Cyclamic acidCon60.256 ± 0.675Con vs DMSO0.849
DMSO60.441 ± 0.616Con vs Bev0.000
Bev47.897 ± 0.281C-10 vs Con0.000
C-1035.971 ± 1.161C-20 vs Con0.000
C-206.367 ± 0.464C-30 vs Con0.000
C-303.297 ± 0.170C-40 vs Con0.000
C-402.589 ± 0.057C-10 vs Bev0.001
C-20 vs Bev0.000
C-30 vs Bev0.000
C-40 vs Bev0.000
Hyodeoxycholic acidCon59.621 ± 0.429Con vs DMSO0.670
DMSO59.070 ± 1.259Con vs Bev0.000
Bev47.936 ± 0.325H-40 vs DMSO0.787
H-4059.817 ± 2.261H-80 vs DMSO0.052
H-8055.416 ± 0.438H-120 vs DMSO0.001
H-12046.414 ± 0.066H-160 vs DMSO0.000
H-16038.208 ± 1.341H-40 vs Bev0.007
H-80 vs Bev0.000
H-120 vs Bev0.010
H-160 vs Bev0.002
L-TryptophanamideCon59.688 ± 0.616Con vs DMSO0.974
DMSO59.718 ± 0.619Con vs Bev0.003
Bev47.100 ± 1.747L-25 vs DMSO0.106
L-2561.042 ± 0.139L-50 vs DMSO0.119
L-5061.933 ± 0.934L-75 vs DMSO0.042
L-7562.246 ± 0.596L-100 vs DMSO0.021
L-10063.925 ± 0.953L-25 vs Bev0.001
L-50 vs Bev0.002
L-75 vs Bev0.001
L-100 vs Bev0.001
O-PhosphorylethanolamineCon59.083 ± 0.741Con vs DMSO0.372
DMSO59.860 ± 0.227Con vs Bev0.000
Bev47.430 ± 0.412O-5 vs Con0.001
O-550.880 ± 0.260O-10 vs Con0.000
O-1040.802 ± 0.715O-15 vs Con0.000
O-1515.243 ± 0.487O-20 vs Con0.000
O-203.998 ± 0.067O-5 vs Bev0.002
O-10 vs Bev0.001
O-15 vs Bev0.000
O-20 vs Bev0.000

Discussion

By using UPLC and MS/MS, we investigated the different plasma metabolites between wAMD and normal people and between genotypes of AMD major associated genes CFH and HTRA1. These differential metabolites will provide potential targets for diagnosis and pathogenesis research of wAMD. The advantages of liquid-phase mass spectrometers are high sensitivity, wide dynamic range and no need for derivatization. LC-MS high-resolution metabolic profiling can be used to comprehensively evaluate up to 7000 plasma metabolites [46]. Standards and secondary spectra were used for the identification of metabonomics. Among them, the standard is the platinum standard for substance identification, and the analysis of secondary spectrum is the necessary data and technology for accurate identification of substances, so the quality is more accurate.

Most of the differentially up-regulated metabolites in plasma for wAMD vs normal controls were oxidized lipids, including (±)4-HDHA, (±)12-HEPE, (±)12-HETE, 14(S)-HDHA, (±)9-HETE, and 15-oxoETE. Among them, (±)12-HEPE, (±)12-HETE, (±)9-HETE and 15-oxoETE, are involved in arachidonic acid metabolism. Lipid oxide is the product of the oxidative stress reaction. Lipid oxide can produce oxidative stress itself and can also cause inflammatory reaction [47]. Oxidative stress plays an important role in the occurrence and development of wAMD [48], and antioxidants have a certain role in delaying the progress of CNV [49]. HDHA is a metabolite of omega-3 polyunsaturated fatty acids. It plays a role in the process of peroxisome proliferator-activated receptor γ (PPARγ), directly blocking endothelial cell proliferation and germinating angiogenesis, and is an effective direct inhibitor of vascular endothelial growth factor (VEGF)-induced CNV [50].

Vitamin D is the regulator of the immune system, which cooperates with CFH and CFI in the complement system and is involved in wAMD pathogenesis [51]. We found that there was a significant difference in vitamin D3 between the wAMD or CNV and controls. Previous studies [51, 52] showed that a vitamin D-rich diet can prevent or delay the occurrence and development of AMD, especially CNV. Vitamin D has also been shown to be antiangiogenic [53], which is involved in cell proliferation, differentiation and apoptosis [54]. In addition, vitamin D3 is also involved in steroid biosynthesis, vitamin digestion and absorption, and arthritis. The detailed role of vitamin D3 in wAMD pathogenesis is still to be further revealed.

Hyodeoxycholic acid and L-tryptophanamide were the only two differential metabolites in plasma of CNV group and PCV group, and their relative content in CNV group was higher than that in PCV group. In the experiment, it was found that hyodeoxycholic acid had no significant effect on HRPECs, but the migration rate of HRECs was significantly affected. L-tryptophanamide inhibited the proliferation of HRPECs, increased the necrosis rate of HRPECs, and promoted the formation and migration of HRPECs tubules. Therefore, L-tryptophanamide might damage HRPECs, promote the formation and migration of HRECs tubules, increase angiogenesis of CNV phenotype.

O-phosphorylethanolamine is involved in the metabolism of glycerophospholipids and sphingolipids. A study [55] found that other metabolites related to glycerophospholipids metabolism were low in AMD patients, such as diacylglycerol and phosphatidylcholine. In our experiment, we also found that the relative content of O-phosphoethanolamine in CNV patients was significantly lower than that in the control group. O-phosphoethanolamine significantly increased the activity of HRPECs, seemed to promote the proliferation of HRPECs, and inhibited the formation and migration of HRPECs tubules. O-phosphoethanolamine may play a protective role in the development of CNV, but more experiments are needed to explore whether it plays a role in preventing the occurrence of wet AMD.

A higher concentration of cyclamic acid was detected in the AA risk genotype than in the GG protective genotype of HTRA1 rs10490924. Unabsorbed cyclamic acid can be metabolized into cyclohexylamine by intestinal microorganisms [56–59], and cyclohexylamine has greater toxicity [60]. According to the KEGG, both cyclamic acid and cyclohexylamine are involved in microbial metabolism in diverse environments (KEGG note: map01120). The common food additive sweetener- sodium cyclamate is similar to cyclamic acid. Morimoto's study found that sodium cyclamate can inhibit intercellular communication [40]. Later studies also found that trace sodium cyclamate can affect cell morphology, hinder cell movement, and even cause apoptosis [41]. In our experiments, we found that sodium cyclamate inhibited the proliferation, increased the apoptosis and necrosis in HRPECs. Besides, HRECs treated with sodium cyclamate affected tubule formation and migration in HRECs (Supplementary Files 5, 6). These results suggested a harmful effect of cyclamic acid on HRPECs and HRECs.

This study has some limitations. The first limitation is that the sample size of this study is small. The second limitation is that we did not sub-classify the samples according to the severity of the disease because of the limited sample size. There may be some differences between individuals with different degrees of disease which were ignored in this study. We need to pay more attention to collect samples in future studies. Third, although our study identified differential metabolites between wet AMD patients and normal people, as well as between different genotypes of CFH rs800292 and HTRA1 rs10490924, the specific role of differential metabolites in the development of complex disease wAMD or its subtypes, still needs to be revealed by further investigation.

Materials and Methods

Sample collection

This study was approved by the Ethics Committee of Sichuan Provincial People's Hospital (approval no. 2016(23)). Informed consents were obtained from all plasma donors. From 2016 to 2018, patients diagnosed with wet AMD (CNV patients and PCV patients) and participants without AMD were recruited from Sichuan Provincial People's Hospital of China. Other eye diseases (eye infections, diabetic retinopathy, etc.), diabetes, and people who have had any eye surgery were excluded. All participants underwent comprehensive eye examinations, including best-corrected vision assessment, fundus photography, optical coherence tomography (OCT)/optical coherence tomography angiography (OCTA), fluorescein angiogenesis (FA), or indocyanine green angiography (ICGA), which were used for wAMD diagnosis. Fasting plasma from 2 ml peripheral venous blood was collected from each participant and stored in a refrigerator at -80° C.

LC-MS/MS analysis

Before chromatography-mass spectrometry analysis, sample extraction was performed. In short, the sample was taken out from the -80° C refrigerator, thawed, and vortexed for 10 seconds. Fifty microliters were placed into the EP tube, and 150 μL of precooled iced methanol (containing 1 μg/mL of 2-chlorophenylalanine as the internal standard) was added. Then, it was vortexed and centrifuged for 3 min at 12000 r/min. Then, the supernatant was centrifuged at 4° C for 10 min and absorbed into another new EP tube. The supernatant was centrifuged with 12000 r/min at 4° C for another 5 min. Finally, the supernatant was placed into the liner tube of the injection bottle for LC-MS/MS analysis. Chromatographic and mass spectrometry acquisition conditions and related data acquisition instrument systems are shown in Supplementary File 7.

Data analysis

The demographic characteristics of the participants were described employing the mean and standard deviation. Metabolite differences between groups were compared by variance analysis and the chi-square test. Metabolomics data have the characteristics of "high dimension and mass", so it needs not only univariate statistical analysis but also multivariate statistical analysis.

Principal component analysis (PCA) is an unsupervised pattern recognition method for statistical analysis of multidimensional data and one of the commonly used dimensionality reduction techniques. It can derive a few principal components from the original variables and reveal the internal structure of multiple variables [61]. PCA and partial least squares discriminant analysis (PLS-DA) was used in multivariate statistical analysis. When using PCA to analyze the trend of separation between groups, we selected the first two and three features that best reflect the characteristics of data sets. PC1 represents the most obvious feature in the multidimensional data matrix, PC2 represents the most obvious feature in the data matrix other than PC1, and so on.

PLS-DA is a multivariate statistical analysis method with supervised pattern recognition that can maximize intergroup differentiation [62], which is conducive to finding differential metabolites. Based on the variable import in projection (VIP) of the PLS-DA model, we can combine the p-value or the fold change of univariate analysis to further screen the differential metabolites [63]. VIP value combined with p-value or fold change of univariate analysis was used to further screen differential metabolites. The screening criteria are as follows:

(1) Metabolites with fold change ≥ 2 and fold change ≤ 0.5 were selected. The difference in metabolites between the control group and the experimental group was more than 2 times or less than 0.5.

(2) Metabolites with a p-value < 0.05 were selected. The difference in metabolites in different groups was statistically significant.

(3) Metabolites with VIP ≥ 1 were selected. The VIP value indicates the influence intensity of the difference between the corresponding metabolites in the classification of samples in each group in the model. Generally speaking, the metabolites with VIP ≥ 1 are significantly different.

If the above three conditions were satisfied, the metabolite was significantly different between the groups.

Public databases

The METLIN database (metlin.scripps.edu), MassBank database (http://www.massbank.jp/), HMDB database (http://www.hmdb.ca/), new drugs and metabolites mass spectrometry database (http://www.ualberta.ca/_gjones/mslid.htm), and the KEGG database (http://www.genome.jp/kegg/ligand.html) [64] were used for metabolite identification and pathway analysis.

Genotyping of CFH rs80092 and HTRA1 rs10490924

DNA was extracted from whole blood. The concentration of DNA was determined by using NanoDrop. Primers for CFH rs80092 (F:5' GATTGCAATGAACTTCCTCCA 3'; R:5' CCAGGCGATAGAGGGAGACT 3') and HTRA1 rs10490924 (F:5' TTGTGTGACGGGAAAAGACA3'; R:5' AAGCTTTGGGTTTCTGCTCA 3') were designed with Primer3 to PCR-amplify the 400–500bp region flanking the SNPs. The amplification was then Sanger sequenced on an Applied Biosystems (ABI) 3730 capillary sequencer. The Sanger sequencing results were analyzed with Sequencer software (ABI).

Culture of HRPECs

HRPECs were obtained from ATCC (#CRL-2302). The cells were cultured in Dulbecco's modified Eagle's medium (Gibco, China) containing 10% fetal bovine serum (Gibco, Australia) and 1% penicillin-streptomycin (HyClone, USA). Cells were cultured in a CO2 incubator at 37° C and 5% CO2.

Culture of HRECs

Primary human retinal endothelial cells were obtained from Cell Systems (#ACBRI 181). The cells were cultured in endothelial cell basal medium-2 (Lonza, USA) containing EGMTM-2 Single Quots Kit (Lonza, USA), 10% fetal bovine serum (Gibco, China), and 1% penicillin-streptomycin solution (HyClone, USA). The cells were cultured in a CO2 incubator at 37° C and 5% CO2.

Chemicals

O-phosphorylethanolamine (Sigma, USA, #P0503-1G), hyodeoxycholic acid (Sigma, USA, H3878-5G), L-tryptophanamide (Selleck, USA, #S6155), cyclamic acid (Yuanye Biology, China, #S70017-5G), sodium cyclamate (Sigma, USA, #47827), curcumin [65] (Selleck, USA, #S1848), bevacizumab (Selleck, USA, #A2006). Blank control group (culture medium), negative control (0.1% DMSO group), curcumin (positive control group when studying the effect of differential metabolites on HRPECs), bevacizumab group (positive control group when studying the effect of differential metabolites on HRECs) were set.

Detection of activity and proliferation inhibition of HRPECs

CCK-8 cell proliferation and cytotoxicity assay kit (Solarbio, China) was used according to the manufacturer's instructions. The HRPECs suspension was seeded in 96 well plates with 100 μL (about 1×104 cells). After cells adhered to the wall, relevant reagents were added and incubated for 24 h and 48 h. Then, a 10 μL CCK-8 cell proliferation and cytotoxicity assay kit was added to each well, and cultured for 1-4 h. The optical density (OD) at 450 nm was determined by an enzyme-labeled instrument.

Detection of apoptosis and necrosis of HRPECs

Hoechst 33342 / PI double stein kit (Solarbio, China) was used according to the manufacturer's instructions. The cell suspension was seeded on a 6-well plate with 2 ml cell suspension per well with about 106 cells in each well. After the cells adhered to the wall, the culture medium was replaced with a culture medium containing related reagents and cultured for 24 h and 48 h. Then, the medium was discarded, cells were washed with phosphate-buffered saline (Gibco, China) once. Then, 1 ml of cell staining buffer, 5 uL of Hoechst staining solution, and 5 uL of PI staining solution were added and stained at 4° C for 20-30 minutes. After staining, phosphate-buffered saline was washed once and then observed under a fluorescence microscope.

Tubule formation assay

First, growth factor reduced basement membrane matrix (Corning, USA) was spread on the 15 μ-slide angiogenesis (ibidi, Germany), 10 uL per well, 50 uL of HRECs suspension was added to each well (about 2×104 cells per well), and cultured in a CO2 incubator at 37° C and 5% CO2 for 6 h, then observed under a microscope. The tube number was counted by image J software.

Wound healing assay

The HRECs suspension (5×105 cells/ml) was added into culture-insert (ibidi, Germany) with 10 uL per well. They were cultured in a CO2 incubator at 37° C with 5% CO2. After cell adhesion, the medium was replaced with corresponding new medium containing reagents and observed at 6h, 12h, and 24h respectively.

Statistical analysis

Analysis 1.6.3, MWDB, multi quart software, R, KEGG database were used for qualitative and quantitative analysis of metabolites. Graphpad prism was used to analyze the results of in vitro experiments, and an independent t-test was used to analyze the significant differences.

Author Contributions

L.H. designed the study. L.H., P.S., H.W., J.L., M.D. and C.Q. enrolled all the participants. Y.D. and S.Z. performed the data analysis. Y.D. conducted the experiments. Y.D. wrote the manuscript, and L.H edited the manuscript. All of the authors critically revised and provided final approval of the manuscript.

Acknowledgments

We thank all participants for supporting this study. Furthermore, we gratefully acknowledge the patients and control subjects for their donation of peripheral blood samples. We thank Y.M. for helpful discussions.

Conflicts of Interest

The authors have no conflicts of interest to declare.

Funding

This work was supported by the National Natural Science Foundation of China (81970839 (L.H.), 81670895 (L.H.), and 81300802 (L.H.)); the Department of Science and Technology of Sichuan Province, China (2021YFS0033 (L.H.), 2017JQ0024 (L.H.), 2016HH0072 (L.H.) and 2013JY0195 (L.H.); the Department of Science and Technology of Sichuan Province, China (2017JZ0039 (P.S.).

Editorial Note

&

This corresponding author has a verified history of publications using a personal email address for correspondence

References

  • 1. Wong WL, Su X, Li X, Cheung CM, Klein R, Cheng CY, Wong TY. Global prevalence of age-related macular degeneration and disease burden projection for 2020 and 2040: a systematic review and meta-analysis. Lancet Glob Health. 2014; 2:e106–16. https://doi.org/10.1016/S2214-109X(13)70145-1 [PubMed]
  • 2. Chakravarthy U, Wong TY, Fletcher A, Piault E, Evans C, Zlateva G, Buggage R, Pleil A, Mitchell P. Clinical risk factors for age-related macular degeneration: a systematic review and meta-analysis. BMC Ophthalmol. 2010; 10:31. https://doi.org/10.1186/1471-2415-10-31 [PubMed]
  • 3. Choudhury F, Varma R, McKean-Cowdin R, Klein R, Azen SP, and Los Angeles Latino Eye Study Group. Risk factors for four-year incidence and progression of age-related macular degeneration: the Los Angeles latino eye study. Am J Ophthalmol. 2011; 152:385–95. https://doi.org/10.1016/j.ajo.2011.02.025 [PubMed]
  • 4. Fischer T. [The age-related macular degeneration as a vascular disease/part of systemic vasculopathy: contributions to its pathogenesis]. Orv Hetil. 2015; 156:358–65. https://doi.org/10.1556/OH.2015.30017 [PubMed]
  • 5. Srinivasan S, Swaminathan G, Kulothungan V, Ganesan S, Sharma T, Raman R. Age-related macular degeneration in a South Indian population, with and without diabetes. Eye (Lond). 2017; 31:1176–83. https://doi.org/10.1038/eye.2017.47 [PubMed]
  • 6. Choi JK, Lym YL, Moon JW, Shin HJ, Cho B. Diabetes mellitus and early age-related macular degeneration. Arch Ophthalmol. 2011; 129:196–99. https://doi.org/10.1001/archophthalmol.2010.355 [PubMed]
  • 7. Willeford KT, Rapp J. Smoking and age-related macular degeneration: biochemical mechanisms and patient support. Optom Vis Sci. 2012; 89:1662–66. https://doi.org/10.1097/OPX.0b013e31826c5df2 [PubMed]
  • 8. Nidhi B, Mamatha BS, Padmaprabhu CA, Pallavi P, Vallikannan B. Dietary and lifestyle risk factors associated with age-related macular degeneration: a hospital based study. Indian J Ophthalmol. 2013; 61:722–27. https://doi.org/10.4103/0301-4738.120218 [PubMed]
  • 9. Chong EW, Kreis AJ, Wong TY, Simpson JA, Guymer RH. Alcohol consumption and the risk of age-related macular degeneration: a systematic review and meta-analysis. Am J Ophthalmol. 2008; 145:707–15. https://doi.org/10.1016/j.ajo.2007.12.005 [PubMed]
  • 10. Deng Y, Qiao L, Du M, Qu C, Huang L. Age-related macular degeneration: epidemiology, genetics, pathophysiology, diagnosis, and targeted therapy. Genes Dis. 2021. [Epub ahead of print]. https://doi.org/10.1016/j.gendis.2021.02.009
  • 11. Klein RJ, Zeiss C, Chew EY, Tsai JY, Sackler RS, Haynes C, Henning AK, SanGiovanni JP, Mane SM, Mayne ST, Bracken MB, Ferris FL, Ott J, et al. Complement factor H polymorphism in age-related macular degeneration. Science. 2005; 308:385–89. https://doi.org/10.1126/science.1109557 [PubMed]
  • 12. Edwards AO, Ritter R 3rd, Abel KJ, Manning A, Panhuysen C, Farrer LA. Complement factor H polymorphism and age-related macular degeneration. Science. 2005; 308:421–24. https://doi.org/10.1126/science.1110189 [PubMed]
  • 13. Haines JL, Hauser MA, Schmidt S, Scott WK, Olson LM, Gallins P, Spencer KL, Kwan SY, Noureddine M, Gilbert JR, Schnetz-Boutaud N, Agarwal A, Postel EA, Pericak-Vance MA. Complement factor H variant increases the risk of age-related macular degeneration. Science. 2005; 308:419–21. https://doi.org/10.1126/science.1110359 [PubMed]
  • 14. Yang Z, Camp NJ, Sun H, Tong Z, Gibbs D, Cameron DJ, Chen H, Zhao Y, Pearson E, Li X, Chien J, Dewan A, Harmon J, et al. A variant of the HTRA1 gene increases susceptibility to age-related macular degeneration. Science. 2006; 314:992–93. https://doi.org/10.1126/science.1133811 [PubMed]
  • 15. Dewan A, Liu M, Hartman S, Zhang SS, Liu DT, Zhao C, Tam PO, Chan WM, Lam DS, Snyder M, Barnstable C, Pang CP, Hoh J. HTRA1 promoter polymorphism in wet age-related macular degeneration. Science. 2006; 314:989–92. https://doi.org/10.1126/science.1133807 [PubMed]
  • 16. Deangelis MM, Ji F, Adams S, Morrison MA, Harring AJ, Sweeney MO, Capone A Jr, Miller JW, Dryja TP, Ott J, Kim IK. Alleles in the HtrA serine peptidase 1 gene alter the risk of neovascular age-related macular degeneration. Ophthalmology. 2008; 115:1209–15.e7. https://doi.org/10.1016/j.ophtha.2007.10.032 [PubMed]
  • 17. Kaur I, Katta S, Reddy RK, Narayanan R, Mathai A, Majji AB, Chakrabarti S. The involvement of complement factor B and complement component C2 in an Indian cohort with age-related macular degeneration. Invest Ophthalmol Vis Sci. 2010; 51:59–63. https://doi.org/10.1167/iovs.09-4135 [PubMed]
  • 18. Johnson LV, Leitner WP, Staples MK, Anderson DH. Complement activation and inflammatory processes in Drusen formation and age related macular degeneration. Exp Eye Res. 2001; 73:887–96. https://doi.org/10.1006/exer.2001.1094 [PubMed]
  • 19. Coleman HR, Chan CC, Ferris FL 3rd, Chew EY. Age-related macular degeneration. Lancet. 2008; 372:1835–45. https://doi.org/10.1016/S0140-6736(08)61759-6 [PubMed]
  • 20. Ishida BY, Bailey KR, Duncan KG, Chalkley RJ, Burlingame AL, Kane JP, Schwartz DM. Regulated expression of apolipoprotein E by human retinal pigment epithelial cells. J Lipid Res. 2004; 45:263–71. https://doi.org/10.1194/jlr.M300306-JLR200 [PubMed]
  • 21. Li CM, Clark ME, Chimento MF, Curcio CA. Apolipoprotein localization in isolated drusen and retinal apolipoprotein gene expression. Invest Ophthalmol Vis Sci. 2006; 47:3119–28. https://doi.org/10.1167/iovs.05-1446 [PubMed]
  • 22. Huang L, Zhang H, Cheng CY, Wen F, Tam PO, Zhao P, Chen H, Li Z, Chen L, Tai Z, Yamashiro K, Deng S, Zhu X, et al. A missense variant in FGD6 confers increased risk of polypoidal choroidal vasculopathy. Nat Genet. 2016; 48:640–47. https://doi.org/10.1038/ng.3546 [PubMed]
  • 23. Fine SL, Berger JW, Maguire MG, Ho AC. Age-related macular degeneration. N Engl J Med. 2000; 342:483–92. https://doi.org/10.1056/NEJM200002173420707 [PubMed]
  • 24. Wong CW, Yanagi Y, Lee WK, Ogura Y, Yeo I, Wong TY, Cheung CM. Age-related macular degeneration and polypoidal choroidal vasculopathy in Asians. Prog Retin Eye Res. 2016; 53:107–39. https://doi.org/10.1016/j.preteyeres.2016.04.002 [PubMed]
  • 25. Nicholson JK, Holmes E, Kinross JM, Darzi AW, Takats Z, Lindon JC. Metabolic phenotyping in clinical and surgical environments. Nature. 2012; 491:384–92. https://doi.org/10.1038/nature11708 [PubMed]
  • 26. Dunn WB, Broadhurst DI, Deepak SM, Buch MH, McDowell G, Spasic I, Ellis DI, Brooks N, Kell DB, Neyses L. Serum metabolomics reveals many novel metabolic markers of heart failure, including pseudouridine and 2-oxoglutarate. Metabolomics. 2007; 3:413–26. https://doi.org/10.1007/s11306-007-0063-5
  • 27. Asiago VM, Alvarado LZ, Shanaiah N, Gowda GA, Owusu-Sarfo K, Ballas RA, Raftery D. Early detection of recurrent breast cancer using metabolite profiling. Cancer Res. 2010; 70:8309–18. https://doi.org/10.1158/0008-5472.CAN-10-1319 [PubMed]
  • 28. Oakman C, Tenori L, Claudino WM, Cappadona S, Nepi S, Battaglia A, Bernini P, Zafarana E, Saccenti E, Fornier M, Morris PG, Biganzoli L, Luchinat C, et al. Identification of a serum-detectable metabolomic fingerprint potentially correlated with the presence of micrometastatic disease in early breast cancer patients at varying risks of disease relapse by traditional prognostic methods. Ann Oncol. 2011; 22:1295–301. https://doi.org/10.1093/annonc/mdq606 [PubMed]
  • 29. Caudle WM, Bammler TK, Lin Y, Pan S, Zhang J. Using ‘omics’ to define pathogenesis and biomarkers of Parkinson’s disease. Expert Rev Neurother. 2010; 10:925–42. https://doi.org/10.1586/ern.10.54 [PubMed]
  • 30. Wang TJ, Larson MG, Vasan RS, Cheng S, Rhee EP, McCabe E, Lewis GD, Fox CS, Jacques PF, Fernandez C, O’Donnell CJ, Carr SA, Mootha VK, et al. Metabolite profiles and the risk of developing diabetes. Nat Med. 2011; 17:448–53. https://doi.org/10.1038/nm.2307 [PubMed]
  • 31. Young SP, Wallace GR. Metabolomic analysis of human disease and its application to the eye. J Ocul Biol Dis Infor. 2009; 2:235–42. https://doi.org/10.1007/s12177-009-9038-2 [PubMed]
  • 32. Midelfart A. Metabonomics--a new approach in ophthalmology. Acta Ophthalmol. 2009; 87:697–703. https://doi.org/10.1111/j.1755-3768.2009.01516.x [PubMed]
  • 33. Tan SZ, Begley P, Mullard G, Hollywood KA, Bishop PN. Introduction to metabolomics and its applications in ophthalmology. Eye (Lond). 2016; 30:773–83. https://doi.org/10.1038/eye.2016.37 [PubMed]
  • 34. Brantley MA, Osborn MP, Cai J, Sternberg P Jr. Oxidative Stress and Systemic Changes in Age-Related Macular Degeneration. In: Stratton R, Hauswirth W, Gardner T, editors. Studies on Retinal and Choroidal Disorders. Oxidative Stress in Applied Basic Research and Clinical Practice. Humana Press. 2012. https://doi.org/10.1007/978-1-61779-606-7_18
  • 35. Laíns I, Duarte D, Barros AS, Martins AS, Gil J, Miller JB, Marques M, Mesquita T, Kim IK, Cachulo MD, Vavvas D, Carreira IM, Murta JN, et al. Human plasma metabolomics in age-related macular degeneration (AMD) using nuclear magnetic resonance spectroscopy. PLoS One. 2017; 12:e0177749. https://doi.org/10.1371/journal.pone.0177749 [PubMed]
  • 36. Laíns I, Chung W, Kelly RS, Gil J, Marques M, Barreto P, Murta JN, Kim IK, Vavvas DG, Miller JB, Silva R, Lasky-Su J, Liang L, et al. Human Plasma Metabolomics in Age-Related Macular Degeneration: Meta-Analysis of Two Cohorts. Metabolites. 2019; 9:127. https://doi.org/10.3390/metabo9070127 [PubMed]
  • 37. Poore GD, Kopylova E, Zhu Q, Carpenter C, Fraraccio S, Wandro S, Kosciolek T, Janssen S, Metcalf J, Song SJ, Kanbar J, Miller-Montgomery S, Heaton R, et al. Microbiome analyses of blood and tissues suggest cancer diagnostic approach. Nature. 2020; 579:567–74. https://doi.org/10.1038/s41586-020-2095-1 [PubMed]
  • 38. Chen Y, Zhang R, Song Y, He J, Sun J, Bai J, An Z, Dong L, Zhan Q, Abliz Z. RRLC-MS/MS-based metabonomics combined with in-depth analysis of metabolic correlation network: finding potential biomarkers for breast cancer. Analyst. 2009; 134:2003–11. https://doi.org/10.1039/b907243h [PubMed]
  • 39. Ogata H, Goto S, Sato K, Fujibuchi W, Bono H, Kanehisa M. KEGG: Kyoto Encyclopedia of Genes and Genomes. Nucleic Acids Res. 1999; 27:29–34. https://doi.org/10.1093/nar/27.1.29 [PubMed]
  • 40. Morimoto S. Alteration of intercellular communication in a human urothelial carcinoma cell-line by tumor-promoting agents. Int J Urol. 1996; 3:212–17. https://doi.org/10.1111/j.1442-2042.1996.tb00519.x [PubMed]
  • 41. Chen Z, Chen G, Zhou K, Zhang P, Ren X, Mei X. Toxicity of food sweetener-sodium cyclamate on osteoblasts cells. Biochem Biophys Res Commun. 2019; 508:507–11. https://doi.org/10.1016/j.bbrc.2018.11.172 [PubMed]
  • 42. Farooqui AA. Lipid mediators and their metabolism in the nucleous: implications for Alzheimer's disease. J Alzheimers Dis. 2012 (Suppl 2); 30:S163–78. https://doi.org/10.3233/JAD-2011-111085 [PubMed]
  • 43. Frisardi V, Panza F, Seripa D, Farooqui T, Farooqui AA. Glycerophospholipids and glycerophospholipid-derived lipid mediators: a complex meshwork in Alzheimer’s disease pathology. Prog Lipid Res. 2011; 50:313–30. https://doi.org/10.1016/j.plipres.2011.06.001 [PubMed]
  • 44. Sivak JM. The aging eye: common degenerative mechanisms between the Alzheimer’s brain and retinal disease. Invest Ophthalmol Vis Sci. 2013; 54:871–80. https://doi.org/10.1167/iovs.12-10827 [PubMed]
  • 45. Chen W, Esselman WJ, Jump DB, Busik JV. Anti-inflammatory effect of docosahexaenoic acid on cytokine-induced adhesion molecule expression in human retinal vascular endothelial cells. Invest Ophthalmol Vis Sci. 2005; 46:4342–47. https://doi.org/10.1167/iovs.05-0601 [PubMed]
  • 46. Soltow QA, Strobel FH, Mansfield KG, Wachtman L, Park Y, Jones DP. High-performance metabolic profiling with dual chromatography-Fourier-transform mass spectrometry (DC-FTMS) for study of the exposome. Metabolomics. 2013; 9:S132–43. https://doi.org/10.1007/s11306-011-0332-1 [PubMed]
  • 47. Handa JT, Cano M, Wang L, Datta S, Liu T. Lipids, oxidized lipids, oxidation-specific epitopes, and Age-related Macular Degeneration. Biochim Biophys Acta Mol Cell Biol Lipids. 2017; 1862:430–40. https://doi.org/10.1016/j.bbalip.2016.07.013 [PubMed]
  • 48. van Lookeren Campagne M, LeCouter J, Yaspan BL, Ye W. Mechanisms of age-related macular degeneration and therapeutic opportunities. J Pathol. 2014; 232:151–64. https://doi.org/10.1002/path.4266 [PubMed]
  • 49. Ambati J, Fowler BJ. Mechanisms of age-related macular degeneration. Neuron. 2012; 75:26–39. https://doi.org/10.1016/j.neuron.2012.06.018 [PubMed]
  • 50. Sapieha P, Stahl A, Chen J, Seaward MR, Willett KL, Krah NM, Dennison RJ, Connor KM, Aderman CM, Liclican E, Carughi A, Perelman D, Kanaoka Y, et al. 5-Lipoxygenase metabolite 4-HDHA is a mediator of the antiangiogenic effect of ω-3 polyunsaturated fatty acids. Sci Transl Med. 2011; 3:69ra12. https://doi.org/10.1126/scitranslmed.3001571 [PubMed]
  • 51. Kaarniranta K, Pawlowska E, Szczepanska J, Jablkowska A, Błasiak J. Can vitamin D protect against age-related macular degeneration or slow its progression? Acta Biochim Pol. 2019; 66:147–58. https://doi.org/10.18388/abp.2018_2810 [PubMed]
  • 52. Merle BM, Silver RE, Rosner B, Seddon JM. Associations Between Vitamin D Intake and Progression to Incident Advanced Age-Related Macular Degeneration. Invest Ophthalmol Vis Sci. 2017; 58:4569–78. https://doi.org/10.1167/iovs.17-21673 [PubMed]
  • 53. Millen AE, Voland R, Sondel SA, Parekh N, Horst RL, Wallace RB, Hageman GS, Chappell R, Blodi BA, Klein ML, Gehrs KM, Sarto GE, Mares JA, and CAREDS Study Group. Vitamin D status and early age-related macular degeneration in postmenopausal women. Arch Ophthalmol. 2011; 129:481–89. https://doi.org/10.1001/archophthalmol.2011.48 [PubMed]
  • 54. Iseki K, Tatsuta M, Uehara H, Iishi H, Yano H, Sakai N, Ishiguro S. Inhibition of angiogenesis as a mechanism for inhibition by 1alpha-hydroxyvitamin D3 and 1,25-dihydroxyvitamin D3 of colon carcinogenesis induced by azoxymethane in Wistar rats. Int J Cancer. 1999; 81:730–33. https://doi.org/10.1002/(sici)1097-0215(19990531)81:5<730::aid-ijc11>3.0.co;2-q [PubMed]
  • 55. Laíns I, Kelly RS, Miller JB, Silva R, Vavvas DG, Kim IK, Murta JN, Lasky-Su J, Miller JW, Husain D. Human Plasma Metabolomics Study across All Stages of Age-Related Macular Degeneration Identifies Potential Lipid Biomarkers. Ophthalmology. 2018; 125:245–54. https://doi.org/10.1016/j.ophtha.2017.08.008 [PubMed]
  • 56. Deeb KK, Trump DL, Johnson CS. Vitamin D signalling pathways in cancer: potential for anticancer therapeutics. Nat Rev Cancer. 2007; 7:684–700. https://doi.org/10.1038/nrc2196 [PubMed]
  • 57. Drasar BS, Renwick AG, Williams RT. The role of the gut flora in the metabolism of cyclamate. Biochem J. 1972; 129:881–90. https://doi.org/10.1042/bj1290881 [PubMed]
  • 58. Bopp BA, Sonders RC, Kesterson JW, Renwick AG. Toxicological aspects of cyclamate and cyclohexylamine. Crit Rev Toxicol. 1986; 16:213–306. https://doi.org/10.3109/10408448609037465 [PubMed]
  • 59. Buss NE, Renwick AG, Donaldson KM, George CF. The metabolism of cyclamate to cyclohexylamine and its cardiovascular consequences in human volunteers. Toxicol Appl Pharmacol. 1992; 115:199–210. https://doi.org/10.1016/0041-008x(92)90324-l [PubMed]
  • 60. Renwick AG, Thompson JP, O’Shaughnessy M, Walter EJ. The metabolism of cyclamate to cyclohexylamine in humans during long-term administration. Toxicol Appl Pharmacol. 2004; 196:367–80. https://doi.org/10.1016/j.taap.2004.01.013 [PubMed]
  • 61. Chi YY, Gribbin MJ, Johnson JL, Muller KE. Power calculation for overall hypothesis testing with high-dimensional commensurate outcomes. Stat Med. 2014; 33:812–27. https://doi.org/10.1002/sim.5986 [PubMed]
  • 62. Brereton RG, Lloyd GR. Partial least squares discriminant analysis: taking the magic away. J Chemometr. 2014; 28:213–25. https://doi.org/10.1002/cem.2609
  • 63. Urpi-Sarda M, Almanza-Aguilera E, Llorach R, Vázquez-Fresno R, Estruch R, Corella D, Sorli JV, Carmona F, Sanchez-Pla A, Salas-Salvadó J, Andres-Lacueva C. Non-targeted metabolomic biomarkers and metabotypes of type 2 diabetes: A cross-sectional study of PREDIMED trial participants. Diabetes Metab. 2019; 45:167–74. https://doi.org/10.1016/j.diabet.2018.02.006 [PubMed]
  • 64. Kanehisa M, Goto S. KEGG: kyoto encyclopedia of genes and genomes. Nucleic Acids Res. 2000; 28:27–30. https://doi.org/10.1093/nar/28.1.27 [PubMed]
  • 65. Sun Y, You ZP. Curcumin inhibits human retinal pigment epithelial cell proliferation. Int J Mol Med. 2014; 34:1013–19. https://doi.org/10.3892/ijmm.2014.1861 [PubMed]
Download PDF
Corresponding Author

Lulin Huang
huangluling@yeah.net
https://orcid.org/0000-0002-1204-5957

Keywords
wAMD CNV PCV plasma metabonomics
Table of Contents
