Integrated analysis of 14 lymphoma datasets revealed high expression of CXCL14 promotes cell migration in mantle cell lymphoma

Deregulated genes overview in three types of lymphoma

The details of lymphoma datasets see our previous publication [19]. This study collected 240 HL samples, 891 DLBCL samples, 216 MCL samples, and 64 health samples. Deregulated genes in each lymphoma dataset were illustrated in Table 1. We used different fold-change (FC) thresholds to show the trend of deregulated genes in three types of lymphoma. Within the FC cutoff of 2.0 (the threshold value used in this study), we obtained 2590 up-regulated and 541 down-regulated genes, 2441 up-regulated and 903 down-regulated genes, as well as 2560 up-regulated and 515 down-regulated genes in HL, DLBCL, and MCL, respectively. Within the FC cutoff of 1.5, there were more than 4000 up-regulated genes and more than 2000 down-regulated genes in each lymphoma dataset. Within the FC cutoff of 4.0, there were also more than 600 up-regulated genes in each lymphoma dataset, however, only a handful of down-regulated genes in these lymphoma datasets. These results suggested that up-regulated genes may play a more important role in the progression of lymphoma. The top 20 differentially-expressed genes in three types of lymphoma are shown in Supplementary Table 1, all these top genes were over-expressed. Furthermore, 5 over-expressed cytokines (CCL18, CCL19, CXCL9, CXCL10, and CXCL13) were in these top 20 genes.

Damaged immune functions and signaling pathways in lymphomas

KEGG pathway enrichment results of HL, DLBCL, and MCL showed in Supplementary Tables 2–4. The results showed that several immune functions and signaling pathways were significantly enriched in all three lymphomas (Figure 1). Among these immune functions, we found that chemokine signaling pathway, complement and coagulation cascades, systemic lupus erythematosus, rheumatoid arthritis, and primary immunodeficiency were enriched in all three lymphomas. Furthermore, hematopoietic cell lineage, Th1 and Th2 cell differentiation, allograft rejection, and graft-versus-host disease were enriched in HL and MCL. These results indicated that the immune functions were seriously damaged in HL, DLBCL, and MCL. Among signaling pathways, we found cytokine-cytokine receptor interaction, NF-κB signaling pathway, and TNF signaling pathway was enriched in all three lymphomas. Given the large number of cytokines involved in these pathways, it is necessary to further analyze the expression and function of cytokines in different lymphomas.

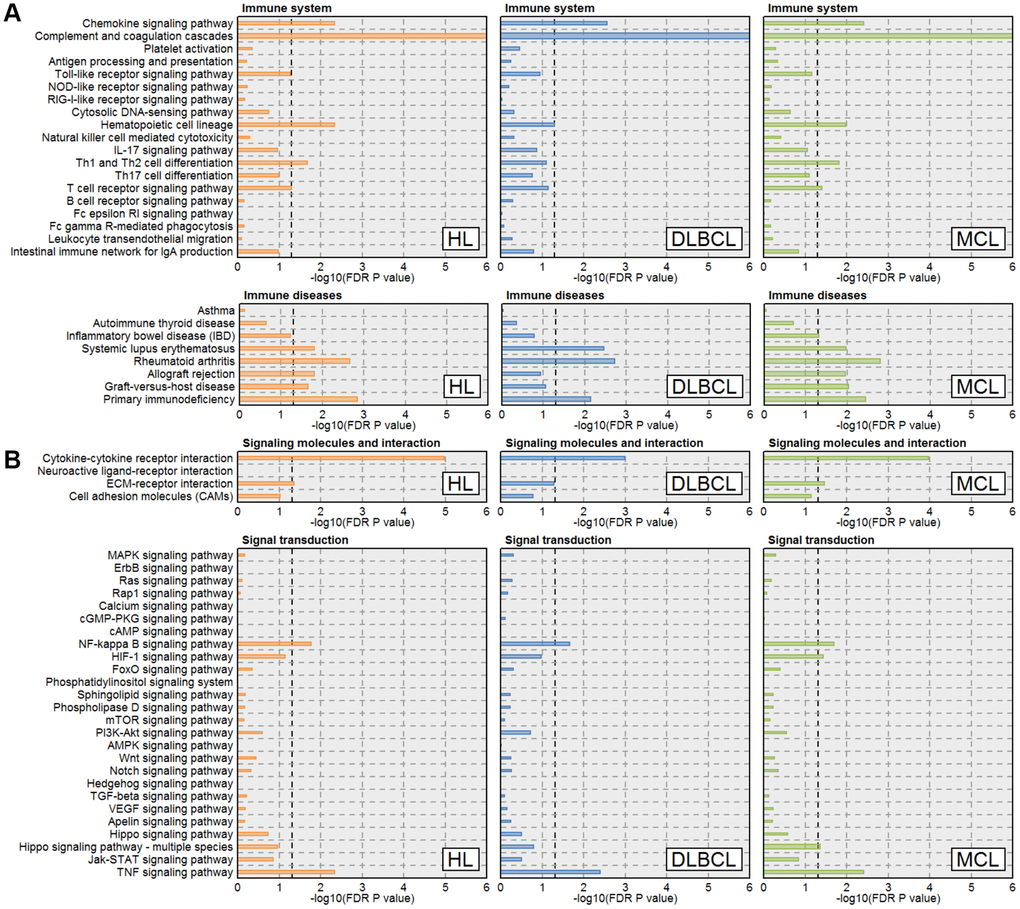

Figure 1. Immune function and signaling pathway enrichment result in three types of lymphoma. (A) Immune-related pathways enrichment results. (B) Signal transduction-related pathways enrichment results. The orange, blue and green lines represent the HL, DLBCL, and MCL, respectively. The line width indicates the enrichment percentage. The dotted line in the box indicates the significance threshold (FDR P-value = 0.05). Abbreviations: HL: Hodgkin's lymphoma; DLBCL: diffuse large B-cell lymphoma; MCL: mantle cell lymphoma.

Differentially expressed cytokines and their functions

We used the collected cytokines to match the lymphoma database and got 44 interleukins, 43 chemokines, 17 interferons, 3 colony stimulating factors, and 18 tumor necrosis factors. Expression profiles of these cytokines in HL, DLBCL, and MCL showed in Figure 2. There were 34 up-regulated cytokines in all three lymphomas. In addition, we found IL8, IL9, IL12B, IL17B, IL26, CCL20, CCL24, LIF and TNFSF10 expressed varies in three types of lymphoma. The protein-protein interaction network of the 35 commonly deregulated cytokines showed in Figure 3. By k-means clustering, we divided these cytokines into three categories. We found there were strong interactions between multiple C-C motif chemokine ligands and C-X-C motif chemokine ligands. Only IL17C has no interaction with other cytokines. There were 32 significantly enriched KEGG pathways of these commonly deregulated cytokines. Most of these pathways are associated with immune function and signaling pathways, such as cytokine-cytokine receptor interaction, chemokine signaling pathway, TNF signaling pathway, NF-κB signaling pathway, NOD-like receptor signaling pathway, and Jak-STAT signaling pathway.

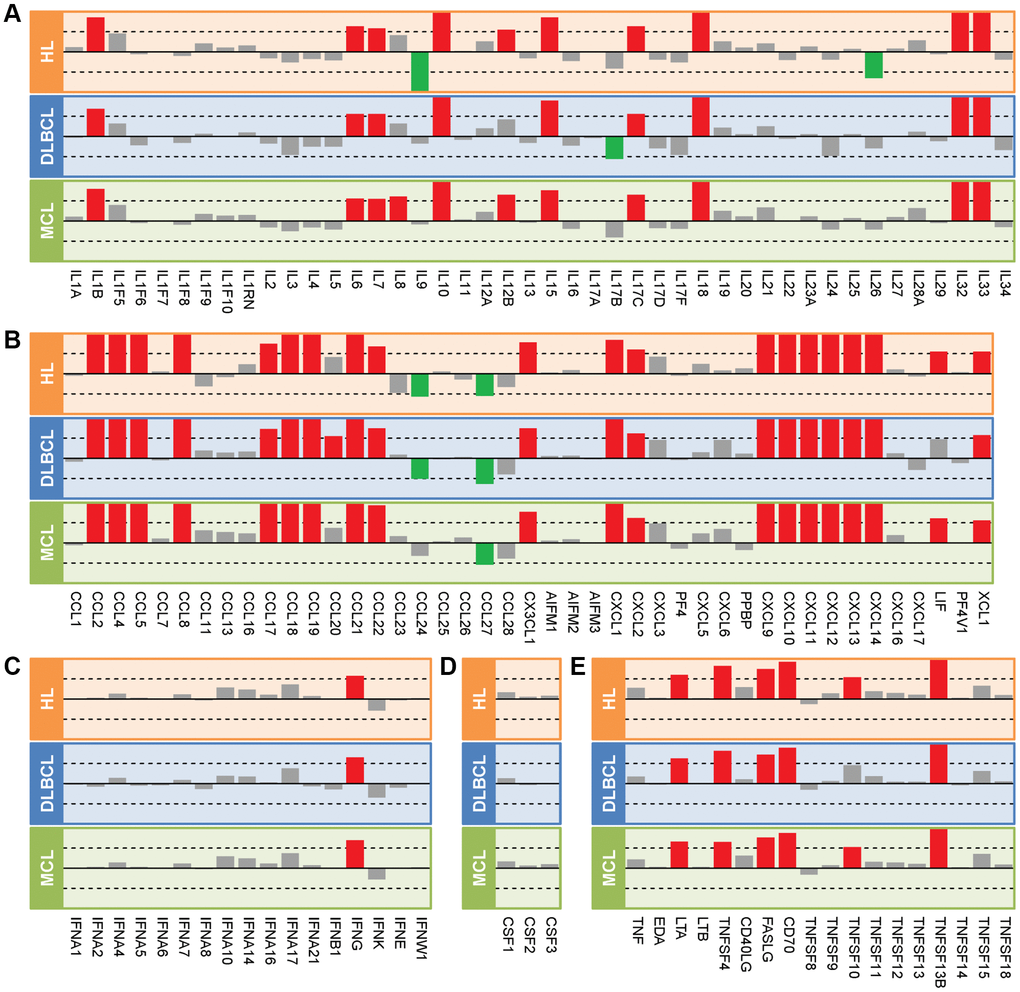

Figure 2. Expression profiles of cytokines in three types of lymphoma. (A) Interleukins. (B) Chemokines. (C) Interferons. (D) Colony stimulating factors. (E) Tumor necrosis factors. The length of the bar indicates the log2(fold-change) between lymphoma samples and controls. The red, green, and gray colors represent the up-regulated genes, down-regulated genes, and no change genes, respectively. The dotted line in the box indicates the log2FC = 1. Abbreviations: HL: Hodgkin's lymphoma; DLBCL: diffuse large B-cell lymphoma; MCL: mantle cell lymphoma.

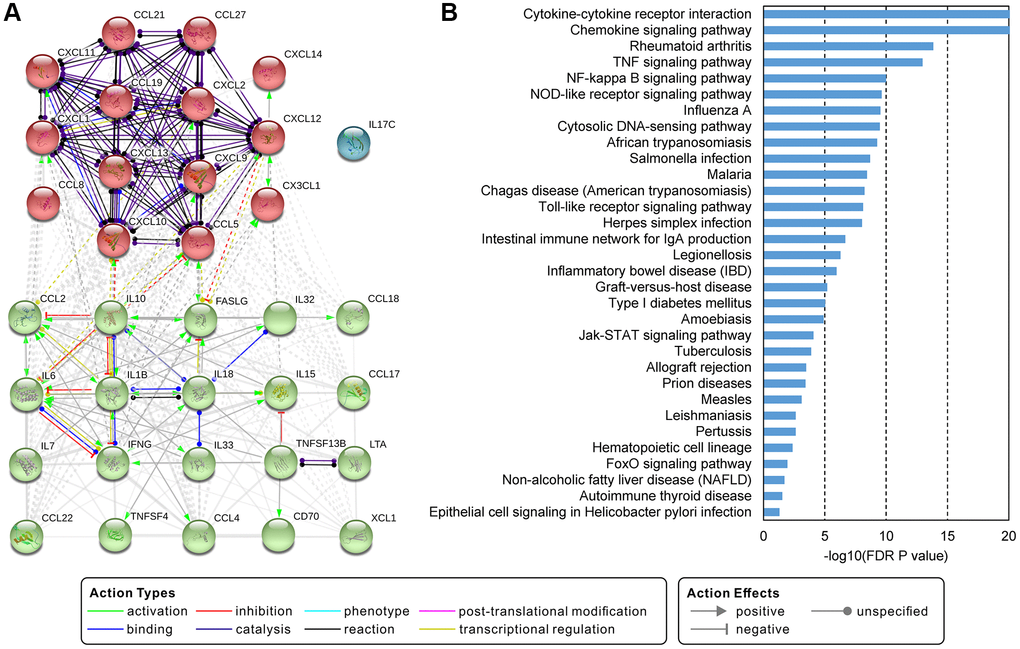

Figure 3. Interactions and functions of commonly deregulated cytokines. (A) Protein-protein interaction network of 35 commonly deregulated cytokines. The network uses the k-means clustering method and is clustered into 3 specified groups. (B) Significantly enriched KEGG pathways of genes in the network. A pathway with an FDR P-value less than 0.05 was considered significant.

Identify key cytokines and their functions through network analysis

Co-expression networks of deregulated cytokines and related genes in HL, DLBCL, and MCL showed in Figure 4. According to our screening criteria, there were 19 cytokines and 174 co-expressed genes in the HL network (Figure 4A), 4 cytokines and 14 co-expressed genes in the DLBCL network (Figure 4B), and 22 cytokines and 422 co-expressed genes in the MCL network (Figure 4C). The number of nodes in the DLBCL network is too small and lacks statistical power. The MCL network had the highest clustering coefficient and network centralization (Supplementary Table 5). There were no more than 100 nodes of cytokines in the HL or DLBCL network. However, there were 11 cytokines with nodes more than 100 in the MCL network (CXCL14, CCL19, IL33, CXCL12, CXCL13, CCL21, IL32, CCL2, CXCL9, CXCL10, and IL18, Supplementary Table 6). Therefore, we identified these genes as key cytokines in MCL. Among these genes, CXCL14 has the largest number of nodes and its function on lymphoma has not been reported yet. The functional interaction network showed there was physical interaction between CXCL14 and CXCR4 (Figure 4D). GO biological process enrichment analysis of these CXCL14 related genes suggested that CCL13, CCL23, CXCL12, CXCR4, and PROS1 were involved in the following 5 biological processes: leukocyte migration, cell chemotaxis, leukocyte chemotaxis, chemokine activity, and chemokine receptor binding.

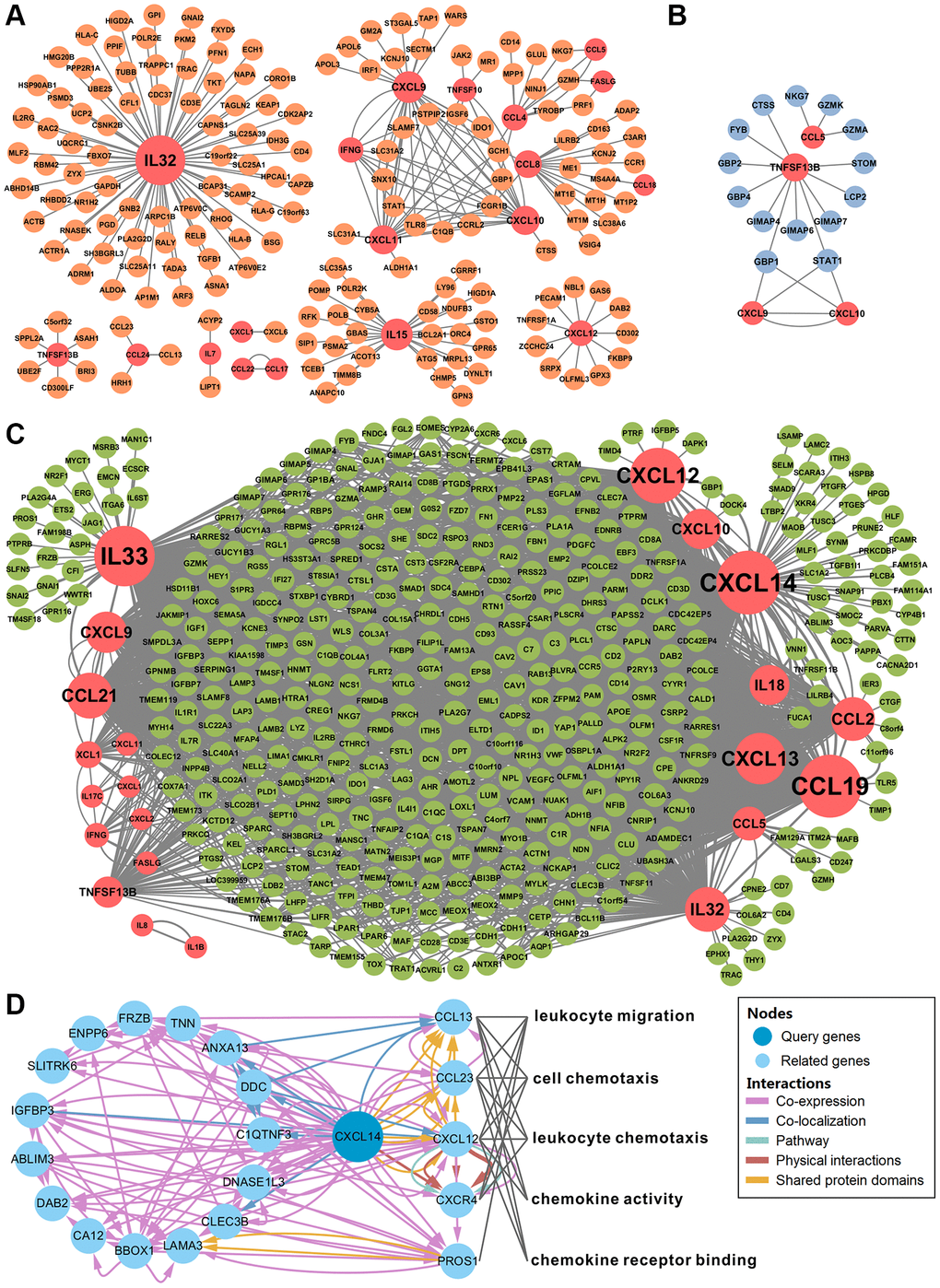

Figure 4. Network analysis identified CXCL14 as a key cytokine gene. (A–C) showed the gene co-expression networks of differentially expressed cytokines and other genes in Hodgkin's lymphoma, diffuse large B-cell lymphoma, and mantle cell lymphoma. Cytokine-gene pairs with correlation coefficients higher than 0.7 were chosen to build the network. The red circles represent the cytokines. The orange, blue and green circles represent the genes in each type of lymphoma. The size of the circle indicates the number of nodes. (D) Functional interaction network analysis of CXCL14. The network shows the CXCL14 related genes and their functions. Each color line represents a different interaction; the color line width indicates the weight of the interactions. There were 5 significantly enriched biological functions and the grey line indicates the gene is involved in the biological function.

Functional experiment of CXCL14 on mantle cell lymphoma

We examined the mRNA and protein expression of CXCL14 in a normal B cell line (GM12878) and MCL cell lines (Z138 and G519). CXCL14 mRNA and protein level in Z138 were higher than in GM12878 whereas in G519 showed a lower expression (Supplementary Figure 1). To explore the function of CXCL14 on MCL, we constructed CXCL14 knockdown MCL cell lines (Z138 and G519) and performed a cell proliferation and migration assay. The results showed a lower CXCL14 protein level in the siCXCL14 group compared with control and scramble groups in Z138 and G519 cell lines (Figure 5A–5C). There was no influence of CXCL14 knockdown on cell proliferation (Figure 5D, 5E). Interestingly, the siCXCL14 group showed a significantly decreased relative migration rate compared with control and scramble groups in both two MCL cell lines (Figure 5F, 5G). The above analysis showed that high expressed CXCL14 affected cell chemotaxis and migration functions in MCL (Figure 5H). Combined with the experimental results, we speculated that high expressed CXCL14 may promote cell migration and aggravate MCL.

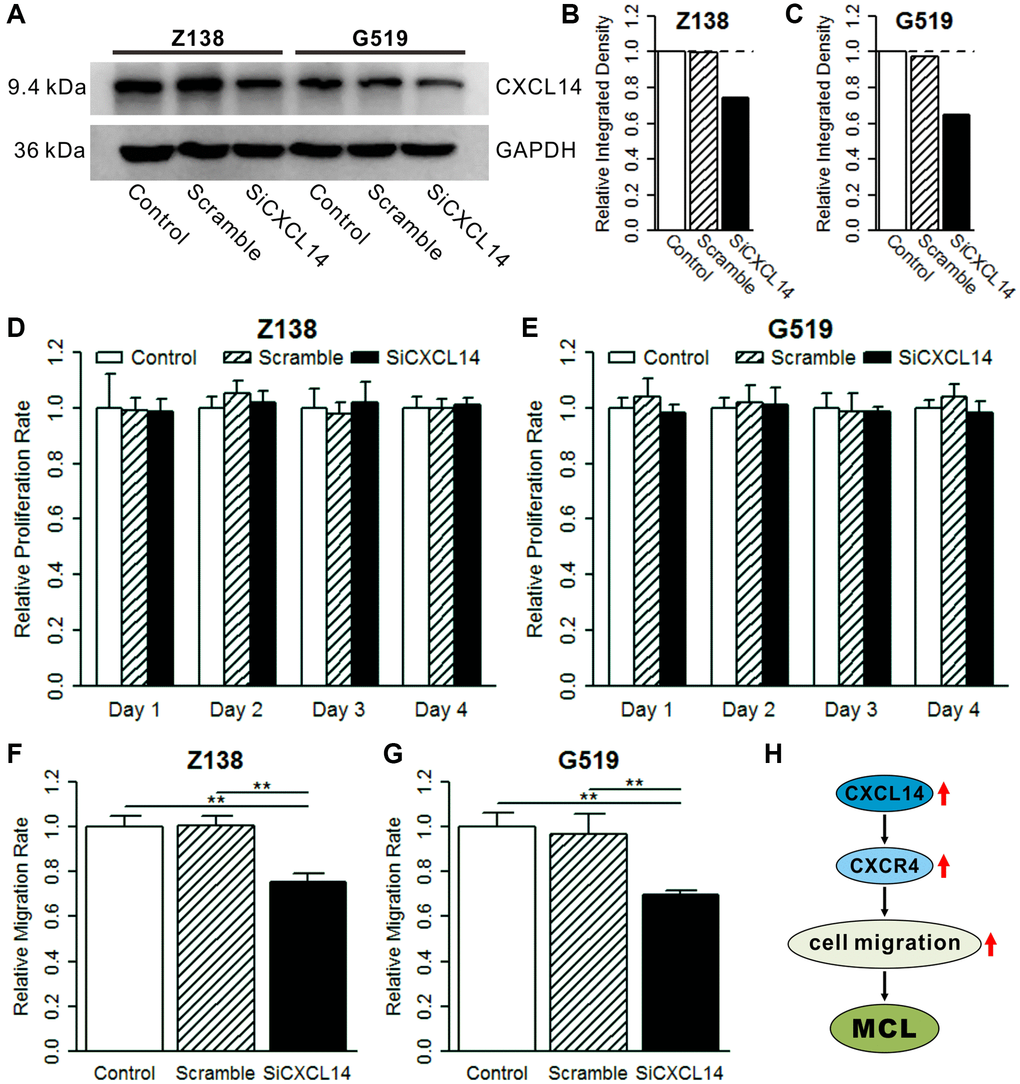

Figure 5. Effect of CXCL14 on cell proliferation and migration. (A) Western blot of CXCL14 in three treatment groups. Z138 and G519 cells were grown and transiently transfected with CXCL14 or negative control for 48 h and then subjected to western blotting. (B) Quantified band intensities in Z138 cell lines. (C) Quantified band intensities in G519 cell lines. The dotted line indicates the reference integrated density (control group). (D) Knockdown of CXCL14 on cell proliferation in Z138 cells. (E) Knockdown of CXCL14 on cell proliferation in G519 cells. The reference proliferation rate was defined as in the control group in each day. (F) Knockdown of CXCL14 on cell migration in Z138 cells. (G) Knockdown of CXCL14 on cell migration in G519 cells. The reference migration rate was defined as in the control group. Significance: ^***P < 0.001, ^**P < 0.01, ^*P < 0.05. (H) High expressed CXCL14 promotes cell migration and aggravates mantle cell lymphoma.

Lymphoma datasets and cytokines collection

Transcriptome datasets of HL, DLBCL, and MCL were downloaded from NCBI-GEO (https://www.ncbi.nlm.nih.gov/geo/). For detailed data inclusion and exclusion criteria, please refer to our previous work [19]. Briefly, this study collected 14 lymphoma datasets including 240 HL samples, 891 DLBCL samples, 216 MCL samples, and 64 healthy samples.

Human cytokine genes were collected from Cytokines and Cell Online Pathfinder Encyclopedia (COPE) database (http://www.cells-talk.com/index.php/page/about). According to the records of the database, cytokines are mainly divided into 5 categories: interleukins, chemokines, interferons, colony stimulating factors, and tumor necrosis factors. In total, we got 69 interleukins, 59 chemokines, 18 interferons, 3 colony stimulating factors, and 18 tumor necrosis factors from COPE (Supplementary Table 7). Then we mapped these cytokines to our datasets for subsequent analysis. The receptors of collected cytokines were obtained from previous literature [34, 35].

Data preprocessing and differential expression analysis

R statistical software v3.4.1 (https://www.r-project.org/) was used to perform data preprocessing and differential gene expression gene analysis. The data preprocessing process has been described in detail in our previous work [19]. The empirical Bayesian algorithm in the limma package [43] was used to detect differentially expressed genes between lymphoma patients and controls. Up- and down-regulated genes were defined as a log2 transformed fold-change (logFC) ≥1 or ≤−1, respectively. A false discovery rate (FDR) corrected P value ≤ 0.05 was considered as significant.

KEGG and GO enrichment analysis

Differentially expressed genes in three types of lymphoma were used to performed KEGG pathway enrichment analysis. The corresponding relationships between human genes and pathways were downloaded from the Kyoto Encyclopedia of Genes and Genomes (KEGG) database (http://www.kegg.jp/). For the formula for enrichment analysis see the previous report [44]. The enrichment percentage in each subsystem was calculated as the number of differentially expressed genes divided by the number of all genes. GO biological process enrichment analysis of filtered gene list was using BiNGO plugin in Cytoscape [45]. BiNGO is a tool to determine which Gene Ontology (GO) categories are statistically overrepresented in a set of genes or a subgraph of a biological network. We use the default parameters to perform enrichment analysis, and FDR P-value ≤ 0.05 was considered significantly enriched.

Gene networks analysis

Protein-protein interaction (PPI) networks were used to explore the interactions of commonly deregulated cytokines in three types of lymphomas. We used the STRING web server (https://string-db.org/cgi/input.pl) to construct PPI networks of cytokines and other related genes. The parameter settings were: (1) the meaning of network edges was set as molecular action (line shape indicates the predicted mode of action); (2) the active interaction sources choose all types (including text-mining, experiments, databases, co-expression, neighborhood, gene fusion, and co-occurrence); (3) the minimum required interaction score was set as medium confidence of 0.4; and (4) the max number of interactors in the first shell was query proteins only, the max number of interactors in the second shell was set none or no more than 10 according to the number of query proteins. Gene co-expression networks were used to explore key cytokines. Firstly, we calculate the correlation coefficients of significantly differentially expressed cytokines and other genes in HL, DLBCL, and MCL. Then chose the cytokines-genes pairs with correlation coefficients ≥0.7 and FDR P values ≤ 0.05 to construct the gene co-expression networks in each lymphoma. Cytokines with the most nodes in the network were defined as key cytokines. GeneMANIA plugin in Cytoscape was used to explore the functional interaction of key cytokines and related genes [46]. Functional association networks of queried key cytokines and related genes were generated based on their relationships, such as co-expression, co-localization, pathway, physical interactions, genetic interactions, shared protein domains, and predicted. The biological functions of these genes were automatically generated and an FDR P-value ≤ 0.05 were considered significantly enriched.

Cell culture

The MCL cell lines Z138 and G519 and human normal B cell line GM12878 were purchased from the Shanghai cell bank of the Chinese Academy of Sciences. The cells were maintained in RPMI 1640 medium (Gibco, Jenks, OK, USA) supplemented with 10% fetal bovine serum (Gibco, Jenks, OK, USA), 100 units/mL penicillin, and 100 μg/mL streptomycin (Gibco, Jenks, OK, USA), in a humidified atmosphere with 5% CO₂ at 37°C.

Transfections

The experimental group was divided into the control group (untreated Z138 and G519 cells), scramble group (mock treatment), and siCXCL14 group (CXCL14 knockdown). Z138 and G519 cells in the logarithmic growth phase were inoculated in a 6-well plate at 5 × 10⁵ cells per well. The medium was replaced with the new medium without double antibiotics. 100-pmol siRNA and 5-lL Lipofectamine 3000 were incubated at room temperature and then mixed. Consequently, the mixture was incubated for another 20 min and added to a 6-well plate. The medium was replaced after 6 h of regular cultivation. The protein expression level was detected 48 h after transfection. All siRNA duplexes targeting CXCL14 and negative control siRNAs were purchased from Ribobio Co. (Guangzhou, China), with sequences of Si CXCL14: sense, 5′-GGGUCCAAAUGCAAGUGCU-3′ and antisense, 5′-AGCACUUGCAUUUGGACCC-3′. Besides, RFect siRNA Transfection Reagent (BIO-TRAN) was used for the transfection of siRNA duplexes.

RT-qPCR

Total RNA was extracted from individual types of Z138 and G519 cells using the RNeasy kit according to the manufacturer’s protocol (Omega Bio-Tek, Norcross, GA, USA) and reversely transcribed into cDNA using the SuperScript II reverse transcriptase (Fisher, Pittsburgh, PA, USA). The relative levels of CXCL14 mRNA transcripts in individual samples were determined using the CFX Connect (Bio-Rad, Hercules, CA, USA). The sequences of specific primers were forward 5′-GTTCTCTGAGGAACTCAAGTTTGG-3′ and reverse 5′-CTTTAAGGATCATTTGTCTCGCC-3′ for CXCL14. All samples were normalized to internal controls, and fold changes were calculated through relative quantification 2^−ΔΔCt. The experiments were performed in triplicate.

Western blot

Western blot was performed as previously described [47]. The primary CXCL14 antibodies is purchased from PeproTech (0.2 ug/ml, PeproTech, Inc., Cranbury, NJ, USA, Cat:500-P237). Band intensities were quantified by densitometry using ImageJ software [48].

Cell proliferation assay

Cell proliferation assay was measured using the cell counting kit-8 (CCK8) method. 2 × 10³ tumor cells/well were seeded into 96-well plates and grown for 24 h, then treated as follows: control group, scramble group, and siCXCL14 group. After incubation for 24 h, 48 h, 72 h, and 96 h), 10 μl of CCK-8 solution (Dojindo Laboratories, Japan) was added to each well of the plate. The plate was incubated for an additional 4 h, and the absorbance was measured at 450 nm using a microplate reader (BioTek, Winooski, VT, USA). The percentage of cell viability (relative proliferation rate) was calculated by comparison with the control group. The experiments were performed in triplicate.

Cell migration assay

MCL cells were treated as follows: control group, scramble group, and siCXCL14 group. After transfection of 48 h, 2 × 10⁶ cells/mL of each cell type was starved in serum-free 1640 for 12 hours at 37°C in 5% CO₂. Migration assays were subsequently performed using Transwell chambers with 8-μm pore filters (Corning, Corning, NY, USA). Cell suspensions (2 × 10⁵ in 100 μL) were added to the upper chambers and 600 μL of medium either containing 10% FBS was added to each of the lower chambers. After transwells were incubated for 24 hours at 37°C in 5% CO₂, the cells in each lower chamber were recovered and counted using CCK8 assay; the entire assay was repeated 3 times.

Statistical analysis

R statistical software v3.4.1 was used for statistical analysis. The difference in cell proliferation and cell migration in the three groups were compared using the one-way analysis of variance (ANOVA). Tukey’s honestly significant difference (HSD) test was used to compared the difference between the two groups. P < 0.05 was considered to indicate a statistically significant difference.
