Downregulation of Focal Adhesion Kinase (FAK) by cord blood stem cells inhibits angiogenesis in glioblastoma

Inhibition of angiogenesis by conditioned media of hUCBSC

To evaluate the effect of hUCBSC on glioma angiogenesis, we co-cultured glioma cells with hUCBSC for 72h. The conditioned medium from both single and co-cultures were collected and HMEC cells were grown in these conditioned media. The process of vessel formation was observed for 24 to 48h after the addition of conditioned media. All the HMEC cells grown in glioma conditioned media showed extensive vessel formation after 48h. On the other hand, HMEC cells grown in co-culture media showed disorganized vessel formation or no vessel formation (Figure 1). To evaluate the mechanism of action of hUCBSC, we repeated the experiment with FAK inhibitor and siRNA to FAK (siFAK). In both the experiments, vessel formation by HMEC cells was highly disorganized compared to control glioma cells conditioned media. These results confirm that hUCBSC are acting by a mechanism similar to FAK inhibitor or siFAK. This proves our hypothesis that hUCBSC probably downregulate FAK in order to inhibit angiogenesis of glioma cells. To determine the effect of hUCBSC on the proteins involved in angiogenesis, we ran immunoblot analysis of lysates from single and co-cultures of glioma cells. FAK, pFAK, Akt and pAkt showed reduced expression in co-cultures (Figure 2A). Further, we tested the effect of hUCBSC on ERK1/2, pERK1/2. We observed that both these molecules were downregulated by hUCBSC treatments in co-cultures. We also tested the signaling molecule VEGF involved in angiogenesis and observed that stem cells decreased the expression of VEGF in glioma cells. These results prove that hUCBSC are able to downregulate proteins involved in angiogenesis, thereby preventing vessel formation. Similar to these results, transcriptional status of the molecules FAK, VEGF and VEGFR1 were also downregulated by hUCBSC (Figure 2B). In order to evaluate the specific effect of hUCBSC on glioma cells, we co-cultured glioma cells with human lung fibroblasts for 72h and ran immunoblot analyses for the above proteins. Fibroblasts did not show any effect on glioma cells in controlling their angiogenic proteins (Figure 2C). These results confirm that hUCBSC alone are effective in controlling the angiogenic proteins of glioma cells.

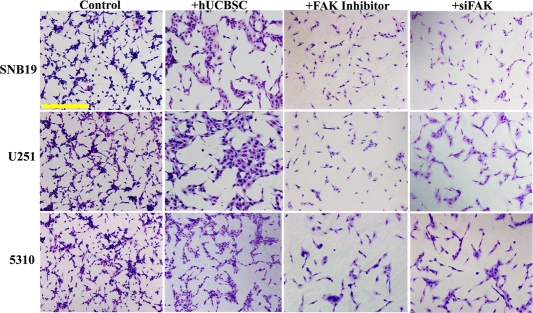

Figure 1. Inhibition of vessel formation by hUCBSC treatment. Conditioned medium was collected from the single and co-cultures (with hUCBSC) of glioma cells (SNB19, U251 and 5310) and added to HMEC cells pre-seeded (5000 cells/well) in 96-well plates. After 72h of incubation, HMEC cells were observed for capillary-like network formation and photographed under a light microscope. Bar = 500μm. Similarly, conditioned medium was collected from the glioma cells treated either with FAK inhibitor (10μM for 1.5h) or transfected with siFAK. Conditioned medium was added to HMEC cells pre-seeded (5000 cells/well) in 96-well plates. After 72h of incubation, HMEC cells were observed for capillary-like network formation and photographed under a light microscope.

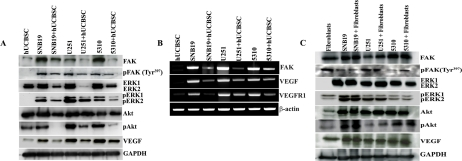

Figure 2. Downregulation of angiogenesis related proteins by hUCBSC. (A) Equal amounts of proteins (40μg) from the single and co-cultures were loaded onto 8-14% gels and transferred onto nitrocellulose membranes, which were then probed with respective antibodies. GAPDH was used a positive loading control. (B) Reverse-transcription based PCR analysis of single and co-cultures of glioma cells showing expression of FAK, VEGF, VEGFR1 and β-actin. (C) Single and co-cultures of glioma cells with fibroblasts showing expression of proteins by immunoblot analyses. The results are from 3 separate experiments.

FAK is a widely expressed cytoplasmic protein tyrosine kinase involved in integrin-mediated signal transduction and plays an important role in the control of several biological processes, including cell spreading, migration, survival and angiogenesis. We evaluated the expression of FAK by immunofluorescence and observed that hUCBSC inhibited the expression of FAK (Figure 3A). In co-cultures of glioma cells, the number of cells expressing FAK was very low as compared to control cells. Also, FACS analysis of single and co-cultures of glioma cells revealed that FAK expression was significantly inhibited by hUCBSC treatment (Figure 3B). This downregulation was significantly pronounced in co-cultures of SNB19 compared to U251 and 5310 co-cultures. Since FAK is associated with integrin signaling, we tested the expression of integrin α_vβ₃ in glioma cells and their co-cultures. Similar to FAK expression, hUCBSC inhibited the expression of α_vβ₃ in co-cultures (Figure 3C). Quantitative analysis revealed that SNB19 had a lower percentage of cells expressing α_vβ₃ followed by 5310 and U251 (Figure 3D). To confirm these results, we isolated total RNA from single and co-cultures of glioma cells with hUCBSC and converted it into cDNA. We ran cDNA microarrays to test the array of genes related to angio-genesis that were affected by hUCBSC treatment. Most of the genes involved in angiogenesis were downregulated many times over by hUCBSC treatment (Table 1). In particular, Ang1 and Ang2 genes were downregulated apart from the growth factors EGF, FGF2, IGF1, PDGF-A and VEGF-A. This is associated with downregulation of Akt. These results confirm that hUCBSC influence a wide array of genes involved in angiogenesis, thereby controlling the growth of glioma cells.

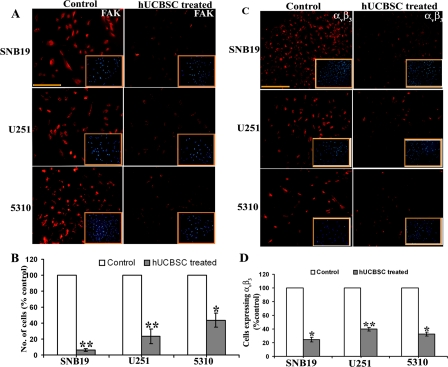

Figure 3. Detection of in situ expression of FAK and α_vβ₃. (A) Single and co-cultures were maintained for 24h in 8-well chamber slides. 4×10⁴ of glioma cells in single cultures and 4×10⁴ glioma cells and 1×10⁴ of hUCBSC for co-cultures were seeded in each well. The cells were then processed for immunocytochemistry of FAK. Inset pictures show DAPI. (B) FACS analysis of cells expressing FAK. The single cultures and co-cultures were detached from the plates using Trypsin and gentle scraping followed by centrifugation at 1000rpm for 3min. The cells were then processed and analyzed for FAK expression using a flow cytometer (BD FACSCalibur). In each sample, 5000 cells were analyzed. (C) Detection of in situ expression of α_vβ₃. The cells were processed for immunocytochemistry to check the expression of α_vβ_3. Inset picture showing DAPI. (D) Quantitative estimation based on (C). Bar = 200μm. The results from three separate experiments are expressed as mean + SE. **p<0.01; *p<0.05.

Downregulation of FAK by hUCBSC treatment has an anti-angiogenic effect in U251 and 5310 glioma nude mice models

Our in vitro experiments have proven that co-culture with hUCBSC can efficiently inhibit glioma angiogenesis by downregulating many genes involved in angiogenesis. Therefore, we investigated the anti-angiogenic effect of these stem cells in vivo using U251 and 5310 cells in nude mice. For this, we implanted U251 and 5310 cells into the right side of the brains of nude mice by intracranial administration as explained in Materials and Methods. After 7 days, hUCBSC were administered in a similar way but towards the left side of the brain. After the mice were implanted with U251, 5310 and hUCBSC, the mice were observed for 21 days. At that point, tumor samples were taken, and paraffin-embedded sections were prepared for immunohistopathological examination. Hematoxylin and Eosin (H&E) staining of the in vivo sections clearly showed that the tumors in hUCBSC-treated mice were inhibited significantly and were one-third the size of the tumors in control mice brains (Figure 4A). We checked for the presence of hUCBSC in the nude mice brains using mesenchymal stem cell markers CD29 by immunofluorescence. Control tumor sections did not show the expression of CD29. CD29⁺ cells were present only in the hUCBSC-treated brain sections, which confirm the presence of stem cells in the treated brains (Figure 4B). Further, we performed the dorsal skin fold chamber assay by introducing U251 and 5310 cells below the skin folds of athymic nude mice. In a similar fashion, co-cultures of both these cells with hUCBSC were also introduced below the skin folds of nude mice. The mice were euthanized after 14 days, and the skins were removed and observed under a bright field microscope. Extensive vessel formation was observed in the skins of mice treated with U251 and 5310 cells whereas skins having co-cultures of glioma cells with hUCBSC did not show vessel formation (Figure 5A). This in vivo assay proves that hUCBSC inhibited vessel formation under in vivo conditions.

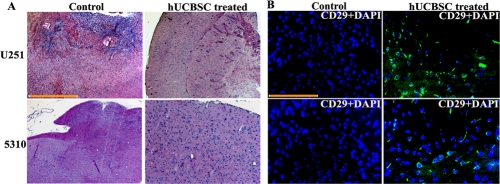

Figure 4. Intracranial regression of tumor growth by hUCBSC. (A) Nude mice with pre-established intracranial human glioma tumors (U251 or 5310) were treated with hUCBSC by intracranial injection (2x10⁵). Fourteen days after hUCBSC administration, the brains were harvested, sectioned, and stained with Hematoxylin and Eosin. Bar = 2000μm (B) Characterization of hUCBSC in nude mice brain sections: Fourteen days after hUCBSC administration, the brains were harvested, sectioned and immunoprobed with mesenchymal stem cell markers CD29 using Alexa fluor-594 secondary antibody. (n = 3). Scale bar = 100μm.

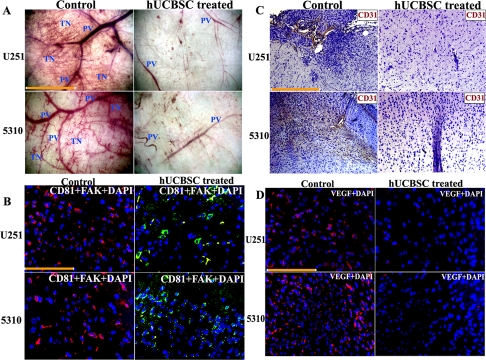

Figure 5. Inhibition of in vivo angiogenesis by hUCBSC. (A) Glioma cells, from single and co-cultures with hUCBSC, were suspended in serum-free medium and injected into the diffusion chambers. The chambers were sealed with bone wax and placed in serum-free medium to keep until used. Animals were anesthetized and 5mL of air was injected to create a dorsal skin sac. A 1.5-2 cm incision was made along the edge of the dorsal air sac. The chambers were then carefully placed through the incision under the skin, and the incision was closed. The animals were sacrificed after 2 weeks. The skin around the implanted chambers were carefully removed and observed under the phase contrast microscope. The novel (delicate, irregularly arising) branches were recorded as tumor-induced neovascularization. These branches were then compared to the more organized, pre-existing vasculature. PV=Pre-existing vasculature; TN=Tumor induced neovasculature. Bar = 50μm. (B) Immunofluorescence analysis for the downregulation of FAK. Orthotopic intracranial tumors were established in nude mice by injecting the glioma cells (U251 and 5310) and then treating with hUCBSC. The paraffin-embedded brain sections were subjected to immunofluorescence detection for (B) FAK and CD81 and (D) VEGF. FAK (anti-rabbit) is conjugated with goat anti-rabbit secondary antibody. CD81 (anti-goat) with FITC and VEGF (anti-mouse) was conjugated with Texas-red secondary antibodies. Bar=100μm. (C) DAB immunohistochemistry of CD31 expression in control and treated brain sections. Bar = 200μm.

We also checked the expression of FAK in the control tumor and hUCBSC-treated tumor sections. For this, we did co-localization experiments with CD81 (mesenchymal stem cell marker) and FAK antibody. FAK was highly expressed in the control tumor brains as compared to hUCBSC-treated brain sections, which showed high expression of CD81 (Figure 5B). We then checked the expression of CD31 or PECAM-1 (Platelet Endothelial Cell Adhesion Molecule-1) in both control tumors of hUCBSC-treated mice brain sections. DAB immunohistochemistry revealed that CD31 was highly expressed in both U251 and 5310 control tumor brains, whereas in hUCBSC-treated mice brains, expression of CD31 was almost negligible (Figure 5C). Next, we checked for expression of VEGF in the brain sections. Control tumor sections showed high expression of VEGF in the tumor areas, whereas in hUCBSC-treated tumors, very low level of expression of VEGF was observed (Figure 5D). These results confirm that FAK and VEGF expression were highly downregulated in vivo in hUCBSC-treated tumor brains.

To evaluate the mechanism by which angiogenesis is inhibited in the nude mice tumor brains, we analyzed the tissue lysates by immunoblot analysis and observed that FAK was downregulated in tissue lysates of hUCBSC treatments. Then, we analyzed different phospho-forms of FAK, pFAK (Tyr³⁹⁷, Tyr⁵⁷⁶ and Tyr⁹²⁵). In hUCBSC-treated mice brains, downregulation of FAK and pFAK at Tyr³⁹⁷ was significant (Figure 6B). Out of all these phospho-forms of FAK, only pFAK (Tyr³⁹⁷) was significantly downregulated in hUCBSC treatments with no significant change in other phospho forms. This indicates that hUCBSC are targeting the phosphorylation of Tyr³⁹⁷ (Figure 6A). Other proteins that are involved in angiogenesis including ERK1/2, pERK1/2, Akt and pAkt were also downregulated in the hUCBSC treatments (Figure 6C). Quantification confirmed that these molecules were downregulated in tumor brains treated with hUCBSC (Figure 6D). Similar to our in vitro results VEGF, Tie2 and Ang1 were also downregulated under in vivo conditions (Figure 6E). Similar to immunohistochemistry results, VEGF was showing downregulation in tissue lysates also (Figure 6F). Finally, we evaluated the molecules that are involved in the process of angiogenesis by reverse-transcription based PCR. Growth factors VEGF, VEGFR1 along with FAK, Tie2 and Ang1 showed reduced expression, confirming that the process of inhibition by hUCBSC initiated at the transcription level (Figure 6G). Theseresults confirm that downregulation of FAK in mice tumor brains induces the downregulation of integrins as well as growth factors necessary for angiogenesis. Taken together, these results confirm the anti-angiogenic effect of hUCBSC in vivo and that tumor cell angiogenesis in vitro is efficiently inhibited by hUCBSC.

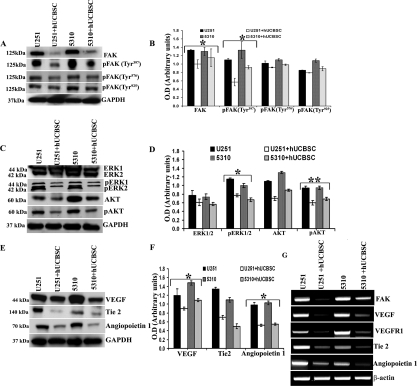

Figure 6. Inhibition of angiogenic molecules by hUCBSC in vivo. Immunoblot analysis for the expression of various angiogenic molecules in the tissue lysates of brains extracted from nude mice. Orthotopic intracranial tumors were established in nude mice by injecting glioma cells (U251 and 5310) and then treating with hUCBSC. Equal amounts of proteins (40μg) from untreated and treated mice brains were loaded on 8-14% gels and transferred onto nylon membranes, which were then probed with respective antibodies. GAPDH was used a positive loading control. (A, C & E) Western blots showing the downregulation of various angiogenic molecules by hUCBSC treatment. (B, D & F) Quantitative estimations of (A), (C) & (E). (G) Downregulation of various angiogenic molecules at the RNA level by hUCBSC. β-actin expression was used to serve as a loading control. The results from three separate experiments are expressed as mean + SE. **p<0.01; *p<0.05.

Ethics Statement

After obtaining informed consent, human umbilical cord blood was collected from healthy volunteers according to a protocol approved by the Peoria Institutional Review Board, Peoria, IL, USA. The consent was written and approved. The approved protocol number is 06-014, dated December 10, 2009. The Institutional Animal Care and Use Committee of the University Of Illinois College Of Medicine at Peoria, Peoria, IL, USA approved all surgical interventions and post-operative animal care. The consent was written and approved. The approved protocol number is 851, dated November 20, 2009.

Cell Cultures

Two high-grade human glioma cell lines (SNB19 and U251) and a xenograft cell line (5310) were used for this study. SNB19 and U251 cells were obtained from ATCC. The xenograft cell line (5310) was kindly provided by Dr. David James at the University of California San Francisco. SNB19 and U251 cells were grown in Dulbecco's modified Eagle medium (DMEM) supplemented with 10% fetal bovine serum (FBS) and 1% penicillin-streptomycin. 5310 cells were grown in RPMI 1640 medium supplemented with 10% FBS and 1% penicillin-streptomycin. After obtaining informed consent, human umbilical cord blood was collected from healthy volunteers according to a protocol approved by the Institutional Review Board. Human umbilical cord blood was enriched by sequential Ficoll density gradient purification. Next, we selected cells using CD29⁺ and CD81⁺ markers as described previously [27]. The nucleated cells were suspended at a concentration of 1×10⁶/μL in Knockout DMEM (Invitrogen) supplemented with 10% FBS, 10% Knockout serum replacement (Invitrogen) and 1% penicillin-streptomycin and plated in 100-mm culture dishes. For co-culture experiments, hUCBSC and glioma cells were cultured at a ratio of 1:4. Co-cultures of hUCBSC and SNB19, hUCBSC and U251 were grown in DMEM; co-cultures of hUCBSC and 5310 were grown in RPMI-1640.Primary cultures of human lung fibroblasts were obtained from ATCC and were grown in DMEM supplemented with 10% FBS and 1% penicillin-streptomycin. Co-cultures of fibroblasts and SNB19, fibroblasts and U251 were grown in DMEM; co-cultures of fibroblasts and 5310 were grown in RPMI-1640.Cultures were maintained at 37°C in a humidified 5% CO₂ atmosphere. In all experiments co-cultures were grown for 72h. Cultures were fed every 3 days with fresh medium.

In vitro angiogenesis assay

The endothelial tube-like formation assay was performed as described previously [28]. Matrigel was plated into flat-bottomed 96-well tissue culture plates and then incubated at 37^oC for 20min to allow the Matrigel to polymerize. Human microvascular endothelial cells (HMEC) were seeded in the matrigel-coated plates. After cells adhered to the wells (12h), growth medium was replaced by conditioned medium. Conditioned medium from SNB19, U251 and 5310 control and hUCBSC-treated glioma cells were added to HMEC cells. After 48h in the treated media, dead floating cells were washed away and the cells showing angiogenesis were stained by Hema-3 stain. We quantified tube formation by measuring the number of branch points and the total number of branches per point in triplicate wells.

Dorsal skin fold chamber model

Tumor angiogenesis was quantified in vivo using the transparent dorsal skin fold chamber model [29]. Briefly, after total body anesthesia with ketamine (50mg/kg) and xylazine (5mg/kg), a dorsal air sac was made in the mouse by injecting 5 mL of air. After dorsal skin fold preparation, chambers were inoculated with 2×10⁶ glioma cells or co-cultures of glioma cells and hUCBSC.. 14 days later, the animals were anesthetized and sacrificed. The animals were carefully skinned around the implanted chambers, and the implanted chambers were removed from the subcutaneous air fascia. The skin fold covering the chambers was photographed under visible light. The number of blood vessels within the chamber in the area of the air sac fascia was counted, and their lengths were measured.

Immunocytochemistry

Cultured hUCBSC were checked for mesenchymal markers by immuno-cytochemistry. Cultured cells plated in 2-well chamber slides were rinsed twice with phosphate buffered saline (PBS) and fixed in 4% paraformaldehyde. After additional PBS rinses, cells were blocked with 10% goat serum for 1h. Primary antibodies (1:100 dilutions) specific for mesenchymal markers [mouse anti-CD29 (Millipore), goat anti-CD81 (Santa Cruz)] were diluted in goat serum and applied overnight at 4^oC. Texas Red conjugated anti-mouse or anti-rabbit secondary antibodies were diluted (1:200) in goat serum and applied individually for 1 to 2h at room temperature. Before mounting, the cells were stained with 4'. 6-diamidino-2-phenylindole (DAPI). In a similar manner single and co-cultures of glioma cells in 8-well chamber slides were processed with FAK and α_vβ₃ antibodies. The cells were observed using a fluorescence microscope (Olympus IX71, Melville, NY) and/or a confocal microscope (Olympus Fluoview) and photographed.

Construction of shRNA-expressing plasmid and transfection of siFAK

For this study, pSilencer™ 4.1-CMV plasmid vector (Ambion, Austin, TX) was used in the construction of the shRNA-expressing vector. The human FAK target sequenceAAGCCTTAACAATGC GTCAGTTTwas used for the siRNA sequence. Inverted repeat sequences were synthesized for FAK. The inverted repeats were laterally symmetrical making them self-complimentary with a 9-bp mismatch in the loop region. This 9-bp mismatch would aid in the loop formation of the shRNA. Oligonucleotides were heated in a boiling water bath in 6X SSC for 5 min and self-annealed by slow cooling to room temperature. The resulting annealed oligonucleotides were ligated to pSilencer at the BamHI and HindIII sites. For transfection, the cancer cells were cultured as mentioned previously. Cells at 60-70% confluency in 100mm tissue culture plates were transfected with 10μg of siRNA-expressing plasmid constructs (siFAK) using Fugene HD as per manufacturer's instructions (Roche).

RNA extraction and quantitative real time PCR

All primer sequences were determined using established human GenBank sequences and designed using Primer3 software (v.0.4.0). For real time polymerase chain reaction (RT-PCR) analysis and RT-PCR-based micro-array analysis SA Biosciences, Frederick, MD), total RNA was isolated from control and hUCBSC-treated glioma cells and reverse transcribed into first strand cDNA. PCR amplification was performed using primer sets and amplified by 35 cycles (94^oC, 1 min; 60^oC, 1 min; 72^oC, 1 min) of PCR using 20 pM of specific primers. Further quantitative analysis of genes was done by SYBR green based real-time PCR using Bio-Rad iCycler iQ Real-Time PCR Detection System. Each sample was measured in triplicate and normalized to the reference GAPDH or β-actin gene expression. Delta C_T (ΔC_T) and DDC_T values were calculated and the fold change in the test gene expression was finally calculated. A statistical evaluation of real-time PCR results was performed using one-way analysis of variance (ANOVA) to compare test gene expression between cancer cells and their co-cultures with hUCBSC.

Primers used for PCR

cDNA microarray analysis

We used human Angiogenesis PCR array (SA Biosciences) because of its advantage of real-time PCR performance combined with the ability of microarrays to detect the expression of many genes simultaneously. Real time PCR was carried out under the following conditions: one cycle of 95^oC for 10 min, 40 cycles of 95^oC for 15 sec and 60^oC for 1 min. Changes in gene expression were illustrated as a fold increase/decrease according to manufacturer's instructions. The cut-off induction determining expression was 2.0 or -2.0 fold changes. Genes that met these criteria were considered to be upregulated or downregulated. We performed these experiments in duplicate.

Immunoblot analysis

Single and co-cultures of glioma cells or nude mice brain tissues were harvested and homogenized in four volumes of homogenization buffer and processed for cell lysates as described previously [27]. Samples (40μg of total protein) were subjected to 8-14% SDS-PAGE and transferred onto nitrocellulose membranes. The reaction was detected using Hyperfilm-MP autoradiography film (Amersham, Piscataway, NJ). The following antibodies were used for Western blot analysis: mouse anti-FAK (1:200; Santa Cruz Biotechnology, Santa Cruz, CA), mouse anti-pFAK and all other pFAK antibodies (1:500; Santa Cruz), goat integrin α_vβ₃ (1:500; Santa Cruz), mouse anti-ERK (1:5000; BD Biosciences, Franklin Lakes, NJ), rabbit anti-AKT (1:1000; Cell Signaling), mouse anti-Ang1 (1:1000; Cell Signaling), rabbit anti-VEGF [Phospho-Rac1/cdc42 (Ser⁷¹) antibody (1:1000; Cell Signaling], and mouse anti-Tie2 (1:1000; BD Biosciences). Immunoblots were stripped and redeve-loped with GAPDH antibody [mouse anti-GAPDH (1:1000; Santa Cruz)]to ensure equal loading levels. Experiments were performed in triplicate. Values for treated and untreated samples were compared using one-way ANOVA. A p value of <0.05 was considered significant.

Intracranial tumor growth

The Institutional Animal Care and Use Committee of the University Of Illinois College Of Medicine at Peoria approved all surgical interventions and post-operative animal care. U251 (1×10⁶ cells) and 5310 (8×10⁵ cells) tumor cells were intracerebrally injected into the right side of the brains of nude mice, as described previously [30]. Seven days after tumor implantation, the mice were injected with hUCBSC near the left side of the brain. The ratio of the hUCBSC to glioma cells was maintained at 1:4. Three weeks after tumor inoculation, six mice from each group were sacrificed by cardiac perfusion with 4% formaldehyde in PBS, their brains were removed, and paraffin sections were prepared. Sections were stained with H&E to visualize tumor cells and to examine tumor volume. The sections were blind reviewed by a neuropathologist and scored semiquantitatively for tumor size. Whole-mount images of brains were also taken to determine infiltrative tumor morphology. The average tumor area per section integrated to the number of sections where the tumor was visible was used to calculate tumor volume; tumor volumes were compared between controls and treated groups.

Immunohistochemical analysis

Brains of control and hUCBSC-treated mice brains were fixed in formaldehyde and embedded in paraffin as per standard protocols. Sections were deparaffinized as per standard protocol. After H&E staining, transmitted light images were obtained to visualize the morphology of the sections. For immunohistochemistry, sections were blocked in 10% goat serum for 1h, and were subsequently transferred to primary antibody diluted in 10% goat serum (1:100) overnight at 4^oC in a humidified chamber. Sections were then washed in 1% BSA in PBS, incubated with the appropriate secondary antibody for 1h and visualized using a fluorescence microscope. For immunofluorescence, sections were treated with primary antibodies overnight at 4^oC and then treated with appropriate Alexa fluor secondary antibodies at room temperature for 1h. Negative controls were maintained either without primary antibody or using IgG.

Statistical analyses

Quantitative data from cell counts, Western blot analysis, and other assays were evaluated for statistical significance using one-way analysis of variance (ANOVA). Data for each treatment group were represented as mean ± SE and compared with other groups for significance by one-way ANOVA followed by Bonferroni's post hoc test (multiple comparison tests) using Graph Pad Prism version 3.02, a statistical software package. Results were considered statistically significant at a p value less than 0.05.
