Ageing transcriptome meta-analysis reveals similarities and differences between key mammalian tissues

Most significant ageing gene expression signatures

The global meta-analysis across various tissues in mice, rats and humans identified 449 genes overexpressed with age and 162 underexpressed with age. This is considerably more than the results of de Magalhães, et al. [4], where 56 overexpressed and 17 underexpressed genes were identified. For the tissue-specific analyses, in brain 147 genes were overexpressed and 16 genes were underexpressed, in heart 35 genes were overexpressed and 5 genes were underexpressed, and in muscle 49 genes were overexpressed with 73 genes underexpressed. The top-5 overexpressed genes for each analysis are presented in Table 1 and the top-5 underexpressed genes for each analysis are presented in Table 2.

	All Tissues – 449 genes
	Symbol	Gene name	p-value (1.01e-3)
	C1QA	Complement C1q A chain	3.54e-22
	GPNMB	Glycoprotein nmb	1.64e-21
	B2M	Beta-2-microglobulin	2.55e-20
	EFEMP1	EGF containing fibulin extracellular matrix protein 1	8.06e-20
	C1QC	Complement C1q C chain	1.07e-18
	Brain – 147 genes
	Symbol	Gene name	p-value (2.95e-4)
	C1QA	Complement C1q A chain	1.21e-15
	GFAP	Glial fibrillary acidic protein	1.00e-13
	C1QB	Complement C1q B chain	7.06e-13
	C1QC	Complement C1q C chain	2.06e-12
	B2M	Beta-2-microglobulin	1.19e-11
	Heart – 35 genes
	Symbol	Gene name	p-value (6.43e-4)
	MGP	Matrix Gla protein	5.57e-4
	MAOA	Monoamine oxidase	5.57e-4
	CP	Ceruloplasmin	5.57e-4
	VAT1	Vesicle amine transport 1	8.63e-4
	TMED3	Transmembrane p24 trafficking protein 3	8.63e-4
	Muscle – 49 genes
	Symbol	Gene name	p-value (4.89e-4)
	CDKN1A	Cyclin dependent kinase inhibitor 1A	1.84e-8
	RNF115	Ring finger protein 115	7.22e-7
	EFEMP1	EGF containing fibulin extracellular matrix protein 1	7.22e-7
	CHRNA1	Cholinergic receptor nicotinic alpha 1 subunit	2.57e-6
	RPS27L	Ribosomal protein S27 like	4.22e-6
The value given between brackets in the ‘p-value’ column header is the p-value threshold at which FDR <0.05.

	All Tissues – 162 genes
	Symbol	Gene name	p-value (7.13e-4)
	UQCRFS1	Ubiquinol-cytochrome c reductase, Rieske iron-sulfur polypeptide 1	1.96e-9
	SUCLG1	Succinate-CoA ligase alpha subunit	4.11e-9
	MLF1	Myeloid leukemia factor 1	1.37e-8
	UROS	Uroporphyrinogen III synthase	4.46e-8
	FKBP4	FKBP prolyl isomerase 4	4.58e-8
	Brain – 16 genes
	Symbol	Gene name	p-value (4.12e-5)
	CX3CL1	C-X3-C motif chemokine ligand 1	1.23e-8
	OPCML	Opiod binding protin.cell adhesion molecule like	2.45e-7
	SOX11	SRY-box transcription factor 11	6.97e-7
	DLG3	Discs large MAGUK scaffold protein 3	1.13e-6
	DCLK1	Doublecortin like kinase 1	3.69e-6
	Heart – 5 genes
	Symbol	Gene name	p-value (2.67e-3)
	FKBP4	FKBP prolyl isomerase 4	3.38e-5
	NDUFS7	NADH:ubiquinone oxidoreductase core subunit S7	1.79e-3
	APOOL	Apolipoprotein O like	2.67e-3
	OSGEPL1	O-sialoglycoprotein endopeptidase like 1	2.67e-3
	KLHL30	Kelch like family member 30	2.67e-3
	Muscle – 73 genes
	Symbol	Gene name	p-value (4.88e-4)
	TFRC	Transferrin receptor	1.78e-9
	STRADB	STE20 related adaptor beta	2.88e-8
	NDUFC1	NADH:ubiquinone oxidoreductase subunit C1	4.05e-7
	COL15A1	Collagen type XV alpha 1 chain	9.30e-7
	CKMT2	Creatine kinase, mitochondrial 2	9.30e-7
The value given between brackets in the ‘p-value’ column header is the p-value threshold at which FDR <0.05.

The most significantly overexpressed genes in this meta-analysis were principally involved in immune responses and inflammation, particularly for the global and the brain-specific analyses. Several complement proteins were overexpressed in these analyses, with C1QA appearing at the top of both the global and brain-specific analyses, C1QC likewise appears in both lists. The top genes in the heart-specific results include the structural protein gene MGP, genes involved in amine metabolism and oxidation-reduction processes (MAOA and VAT1) as well as the iron and copper metabolism gene CP. In muscle the top overexpressed gene was CDKN1A, a cell cycle regulator. Other interesting genes overexpressed in muscle include EFEMP1, a gene involved in eye morphogenesis that has demonstrated involvement in premature-aging like phenotypes in mice, possibly playing a role in fascial structural integrity [6], and that has recently been shown to be overexpressed in aged mouse aorta [7] and CHRNA1 that codes for a muscle acetylcholine receptor subunit.

A common theme across the top underexpressed genes is mitochondrial metabolism. In the global results, the top underexpressed gene is UQCRFS1, a subunit of mitochondrial complex III, while in heart NDUFS7, a component of mitochondrial complex I, is the second most significantly underexpressed gene. Another mitochondrial complex I subunit, NDUFC1 was the third most significantly underexpressed gene in muscle. The brain is the only tissue studied that did not see an underexpression of mitochondrial genes. Indeed, all the top-5 genes underexpressed in the brain signature have clear roles in neuronal signalling and/or development. Complete lists of all significant genes for all the analyses can be found in Supplementary Tables 3–10, while intersections between the results from each analysis can be found in Supplementary Table 27.

Interestingly, several genes with known involvement in ageing-modulating pathways were differentially expressed, for instance IGF1 was underexpressed, while IGF2R and RICTOR were overexpressed in the global meta-analysis.

Comparison with GenAge signature

The results from the complete meta-analysis were first compared to the results from the 2009 microarray meta-analysis available on the GenAge database [4]. These two meta-analyses used similar methods, and this new analysis identified 66% and 56.3% of the genes identified previously for over- and underexpressed categories respectively. The overlap for each class of differential expression (over- and underexpressed) between this and the previous meta-analysis are shown in Figure 1.

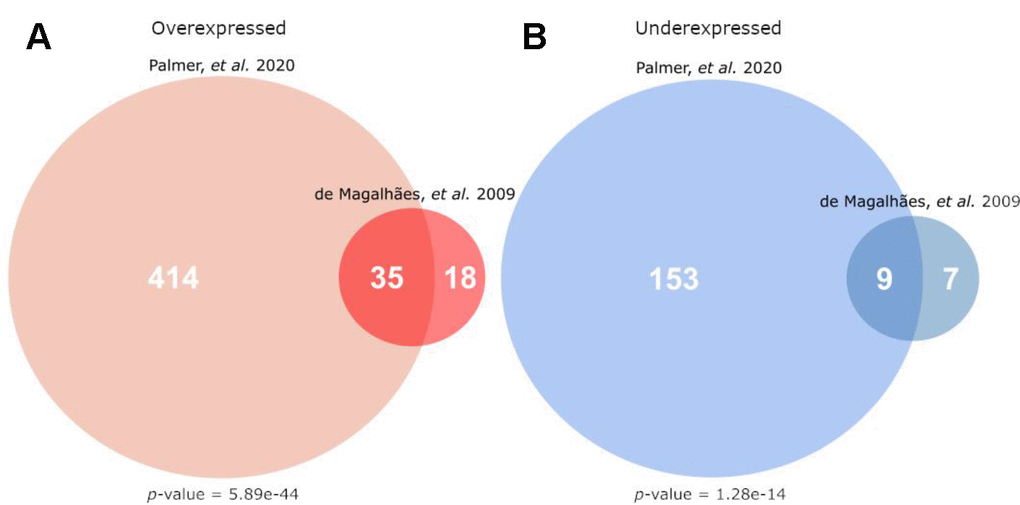

Figure 1. Overlap of this current work’s meta-analysis (Palmer et al.) with the microarray signature of mammalian ageing currently hosted on GenAge (de Magalhães, et al.) [4]). (A) Gives the overlap for genes overexpressed with age, while (B) gives the overlap for genes underexpressed with age. The p-values given are the result of a hypergeometric test, testing the significance of the given overlap using all other protein-coding genes as a background (i.e. all genes not differentially expressed in the direction of the given analysis).

There was significant overlap between these results and the GenAge signature for both over- (Figure 1A) and underexpressed (Figure 1B) genes (hypergeometric test, p<1e-10 for both comparisons), expected given the large overlap of studies included in both analyses.

Further, the overlap between the global and tissue-specific analyses was tested for overexpressed and underexpressed genes separately using pairwise hypergeometric tests (Bonferroni corrected). The overlaps between the analyses are shown in Figure 2.

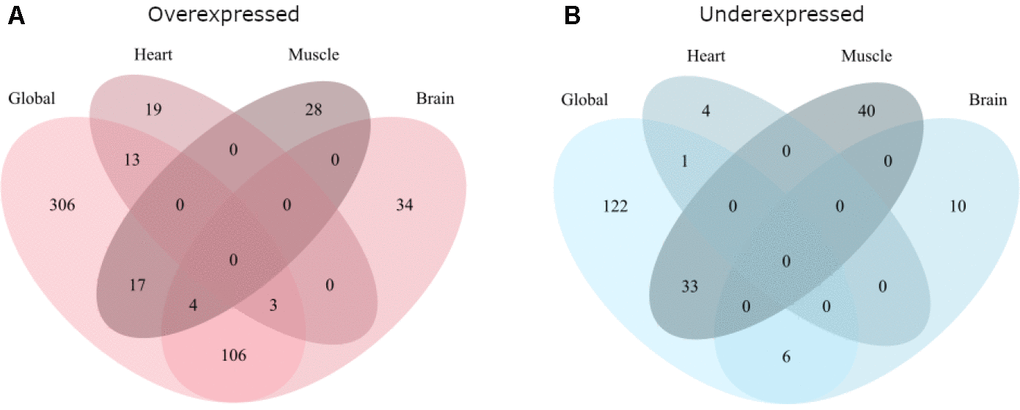

Figure 2. Overlap of the global and tissue-specific results of this meta-analysis. (A) Gives the overlap for genes overexpressed with age while (B) gives the overlap for genes underexpressed with age.

For overexpressed genes (Figure 2A) there was significant overlap between the global analysis and all three tissues (hypergeometric test, p<1e-10 for all comparisons). The brain analysis also overlapped significantly with the heart (hypergeometric test, p=1.43e-2) and muscle (hypergeometric test, p=3.17e-3).

For underexpressed genes (Figure 2B) the global analysis only significantly overlapped with the brain (hypergeometric test, p=1.44e-8) and the muscle (hypergeometric test, p<1e-10) analyses. No other overlaps were significant.

For both over- and underexpressed genes, there were no genes differentially expressed in all four analyses, nor in both heart and muscle.

Overlap with other ageing databases

In addition to the GenAge ageing expression signature, this meta-analysis was compared to other gene lists hosted on the Human Ageing Genomic Resources (HAGR). These were the GenAge database of genes suspected to be involved in human ageing [8], the GenDR database of genes differentially expressed with dietary restriction in model organisms [5] and the LongevityMap database of human genes with genetic variants associated with longevity [9].

There was a significant overlap of the genes differentially expressed with age in the complete meta-analysis with both human GenAge genes and the genes with longevity associated variants found in LongevityMap, however there was no overlap with the dietary restriction signature from GenDR, or the human homologues of mouse genes that can modulate longevity in either direction (Table 3).

Functional classification analysis

The detected ageing expression signature was tested for GO enrichment, in addition to the use of data mining methods to identify the most important GO terms that could be used in the assignment of each gene to a differential expression class. The purpose of this dual analysis was to provide functional descriptions from two very different methods, hopefully providing a robust description of functional changes with age.

GO enrichment analysis was performed for each meta-analysis (global, brain, heart, muscle) on the over- and underexpressed expression signatures separately and the significantly enriched GO terms were ranked by p-value (Supplementary Tables 11–18).

The machine learning analysis was likewise conducted on each tissue, and the GO terms determined to be predictive of each expression class (overexpressed, underexpressed or unchanged) were ranked in terms of descending average probability (Supplementary Tables 19–26).

To provide a comprehensive picture of the functional changes associated with the ageing expression signature, top-ranked terms that overlap between these two analyses are presented below for GO terms associated with overexpressed (Table 4) and underexpressed genes (Table 5), for each tissue. The criteria for inclusion in these tables is that the term was significantly differentially expressed (p<0.05) and present in the top-20 terms for the prediction of the given expression class. The data mining precision was prioritised over enrichment significance, and so they have been ranked in the following tables according to their precision value. Note that although many of the precision values for the top-ranked terms are relatively low, they are much higher than the class label’s relative frequency (given in the column header), which is the precision that a classifier would get by randomly classifying the genes.

	All tissues (Overexpressed)
	GO.ID	Term	p-value	Precision (0.0251)
	GO:2001198	Regulation of dendritic cell differentiation	2.00e-4	0.613
	GO:0071276	Cellular response to cadmium ion	2.90e-5	0.571
	GO:0071294	Cellular response to zinc ion	3.00e-6	0.452
	GO:0006958	Complement activation, classical pathway	1.30e-6	0.276
	O:0051043	Regulation of membrane protein ectodomain proteolysis	3.30e-4	0.267
	Brain (Overexpressed)
	GO.ID	Term	p-value	Precision (0.0083)
	GO:2001198	Regulation of dendritic cell differentiation	1.40e-4	0.298
	GO:0006958	Complement activation, classical pathway	3.30e-7	0.135
	GO:0071803	Positive regulation of podosome assembly	7.90e-5	0.128
	GO:1902106	Negative regulation of leukocyte differentiation	2.20e-4	0.118
	GO:0032570	Response to progesterone	9.30e-4	0.109
	Heart (Overexpressed)
	GO.ID	Term	p-value	Precision (0.0025)
	GO:0071295	Cellular response to vitamin	2.56e-2	0.0761
	GO:0042246	Tissue regeneration	5.90e-3	0.0462
	GO:0055072	Iron ion homeostasis	4.49e-2	0.0323
	GO:0007205	Protein kinase C-activating G protein-coupled receptor signalling pathway	1.90e-3	0.0289
	GO:0018149	Peptide cross-linking	5.70e-3	0.0285
	Muscle (Overexpressed)
	GO.ID	Term	p-value	Precision (0.0028)
	GO:0031571	Mitotic G1 DNA damage checkpoint	2.70e-4	0.08
	GO:0032925	Regulation of activin receptor signalling pathway	4.21e-2	0.0566
	GO:0006195	Purine nucleotide catabolic process	6.99e-3	0.0279
	GO:0042771	Intrinsic apoptotic signaling pathway in response to DNA damage by p53 class mediator	2.70e-4	0.0251
	GO:2000379	Positive regulation of reactive oxygen species metabolic process	5.03e-3	0.025
Presented here are a selection of terms for each tissue which were both significantly enriched in the given gene list and present in the top-20 terms, ranked by precision, for the prediction of a gene as being overexpressed by the Random Forest model. The value given between brackets in the Precision column header is the class label’s relative class frequency, i.e. the precision that a classifier would get by randomly classifying the genes.

	All tissues (Underexpressed)
	GO.ID	Term	p-value	Precision (0.0090)
	GO:0010510	Regulation of acetyl-CoA biosynthetic process from pyruvate	3.20e-6	0.374
	GO:0006122	Mitochondrial electron transport, ubiquinol to cytochrome c	1.60e-9	0.356
	GO:0006099	Tricarboxylic acid cycle	1.50e-10	0.281
	GO:0006107	Oxaloacetate metabolic process	1.20e-4	0.217
	GO:0007528	Neuromuscular junction development	3.06e-2	0.204
	Brain (Underexpressed)
	GO.ID	Term	p-value	Precision (0.0008)
	GO:0021782	Glial cell development	3.69e-2	0.0489
	GO:0021510	Spinal cord development	4.20e-2	0.0425
	Muscle (Underexpressed)
	GO.ID	Term	p-value	Precision (0.0041)
	GO:0043455	Regulation of secondary metabolic process	1.16e-3	0.203
	GO:0006094	Gluconeogenesis	1.50e-9	0.170
	GO:0061621	Canonical glycolysis	4.30e-6	0.146
	GO:0042776	Mitochondrial ATP synthesis coupled proton transport	4.90e-5	0.119
	GO:0006107	Oxaloacetate metabolic process	9.70e-4	0.103
Presented here are a selection of terms for each tissue which were both significantly enriched in the given gene list and present in the top-20 terms, ranked by precision, for the prediction of a gene as being underexpressed by the Random Forest model. The value given between brackets in the Precision column header is the class label’s relative class frequency, i.e. the precision that a classifier would get by randomly classifying the genes. It should be noted that the list of genes underexpressed in the heart was too small for a meaningful analysis and so has been left out.

Terms describing the overexpressed genes were predominantly related to immune responses; for instance, “Regulation of dendritic cell differentiation” was the best predictor of overexpression in both the global and brain analyses, with an average precision of 0.613 and 0.298 respectively, while also being significantly enriched in both cases. Likewise, “Complement activation, classical pathway” another immune term was highlighted in both these analyses, while in brain “Positive regulation of podosome assembly” and “Negative regulation of leukocyte differentiation” were both identified strongly by both analysis methods.

Another theme amongst the overexpressed genes that crosses tissues is cellular response functions, particularly in relation to stress, for instance terms raised by the global analysis include “Cellular response to cadmium ion” and “Cellular response to zinc ion”, while in heart “Cellular response to vitamin” and “Iron ion homeostasis” were identified, and finally in muscle “Positive regulation of reactive oxygen species metabolic process” was determined to be of interest.

Terms describing the underexpressed genes were less precise and in lower number than those describing overexpressed genes due to the lower numbers of underexpressed genes overall (excepting muscle). The global meta-analysis is dominated by metabolic and developmental terms, with the metabolic theme being shared with muscle (e.g. “Oxaloacetate metabolic process” was considered important in both) while the developmental theme was shared with the brain. Interestingly, the machine learning and enrichment analyses shared little specific agreement regarding genes underexpressed in the brain, with only two terms being agreed on as interesting by both methods, this is likely due to the low number of genes underexpressed in the brain (16).

Tissue specificity of the ageing transcriptome

To determine if there was an association between tissue specificity and the ageing expression signature, the τ index of tissue specificity was calculated for all genes studied in the meta-analysis, using the expression data from the GTEx project. This yielded a bimodal distribution of gene specificity, typical of this measure (Supplementary Figure 2).

There was a weak negative association detected between differential expression with age and high (τ>0.8) tissue specificity for overexpressed genes in the global (p<1e-10, chi-squared; phi=-0.87) and brain (p=2.59e-7; phi=-0.042) analyses, and for underexpressed genes in the global (p=6.43e-7, phi=-0.041) and muscle (p=1.84e-4, phi=-0.033) analyses. Complete analysis and median tau values are presented in Supplementary Table 2.

Network analysis of ageing signatures

For the protein-protein interactions (PPI) network (Supplementary Figure 3A), degree centrality (Supplementary Figures 4A–7A, 8) was higher for genes over- (median=1.06e-3) and underexpressed (median=1.43e-3) in the global analysis when compared to unchanged (median=6.23e-4) genes (p<1e-10 and p=4.3e-10, respectively). The muscle signature showed the same result for overexpressed genes (median=1.37e-3) although degree was lower (median=9.97e-4) in genes underexpressed with age in the muscle compared to unchanged (median=6.23e-4) genes (p=0.026 and p=0.013, respectively). Interestingly, degree centrality was borderline significantly higher in overexpressed genes (median=9.35e-4) compared to unchanged genes (median=6.23e-4) in the brain (p=0.048), but there was no such difference for genes underexpressed in the brain. The heart signature showed no difference in degree centrality, or indeed any other centrality measure.

Betweenness centrality in the PPI network (Supplementary Figures 4B–7B, 9) saw a very similar pattern. As with degree, betweenness was higher in genes both over- (median=2.8e-5) and underexpressed (median=4.57e-5) in the global analysis when compared to unchanged (median=8.59e-6) genes (p<1e-10 and p=1.9e-10, respectively), as well as being higher in both over- (median=3.5e-5) and underexpressed (median=2.29e-5) genes, compared to unchanged (median=9e-6) in the muscle (p=0.0138 and p=5.7e-3, respectively). Again, betweenness was also higher in genes overexpressed (median=2.5e-5) compared to unchanged (median=9.02e-6) in the brain (p=3.3e-4), but there was no change in genes underexpressed in the brain.

Closeness centrality in the PPI network (Supplementary Figures 4C–7C, 10) was higher in both over- (median=0.331) and underexpressed (median=0.334) genes in the global analysis compared to unchanged (median=0.321) genes (p=2.7e-10 and p=4.3e-6, respectively), however this was not observed in any other signature, and the increase in the global signature was very small.

For the co-expression network (Supplementary Figure 3B), degree centrality (Supplementary Figures 11A–14A, 15) was lower in genes underexpressed in the global (p=1.7e-3, median=9.47e-4) and muscle (p=0.025, median=9.92e-4) analyses compared to unchanged genes (median=2.08e-3), yet in the brain analysis degree was higher in the underexpressed genes (median=1.59e-2) compared to either overexpressed (p=8.8e-4, median=2.08e-3) or unchanged genes (p=5.81e-3, median=2.08e-3).

Betweenness centrality in the co-expression network (Supplementary Figures 11B–14B, 16) was only changed in the brain signature, where, as with degree, the underexpressed genes (median=3.98e-4) had a higher betweenness than unchanged genes (p=0.034, median=7.88e-4), although in this case there was no significant difference between over- and underexpressed genes.

Finally, closeness centrality in the co-expression network (Supplementary Figures 11C–14C, 17) was lower in both over- (p<1e-10, median=0.154) and underexpressed (p=2.1e-4, median=0.152) genes relative to unchanged genes (median=0.163) in the global analysis as well as in overexpressed genes in the heart analysis (median=0.145) when compared to unchanged genes (p=4.2e-4, median=0.163) and underexpressed genes in the muscle analysis (median=0.151) when compared to unchanged genes (p=1.3e-3, median=0.163). In the brain analysis, closeness was lower in the overexpressed genes (median=0.154) compared to both unchanged (p=1.1e-5, median=0.163) and underexpressed (p=2.8e-5, median=0.187) genes, while the underexpressed genes also had higher closeness compared to the unchanged genes (p=0.021).

Evolutionary conservation of ageing signature genes

There were no significant differences between dN/dS ratios (the ratio of nonsynonymous to synonymous substitutions between the species) of genes over- or underexpressed with age when compared to either unchanged genes or to the opposite expression category, for either human-mouse or human-rat ratios (Supplementary Figures 18, 19). The median values tended towards a lower dN/dS in those genes underexpressed with age relative to those overexpressed with age, with the median dN/dS being 0.096 and 0.093 in underexpressed genes and 0.12 and 0.11 in overexpressed genes for human-mouse and human-rat comparisons, respectively.

Preparation of the dataset

In total, 127 datasets were downloaded from AGEMAP [30] and the Gene Expression Omnibus (GEO) [38] (Supplementary Table 1), covering a total of 37 tissues and cell types. AGEMAP contains the results of microarray experiments on mice at various ages, while the GEO datasets downloaded were identified using the search string:

“((“age”[Subset Variable Type]) or “development stage”[Subset Variable Type]) and “mammals” [organism]”,

returning 335 microarray and RNA-Seq datasets. These were manually filtered to remove non-single channel arrays, single-pathway arrays as well as species that were not of interest. Mutant or diseased samples were likewise removed. Next, RNA-Seq datasets containing raw reads were normalised as reads per kilobase million (RPKM), and all datasets were log2 transformed, if they were not supplied so already.

Linear regression was carried out on each dataset to determine differential expression with age (Equation 1) where Y_ij is the expression level of gene j in sample i, Age_i is the age at which sample i was taken and ϵ_ij is the error term. Coefficients β₀ and β₁ were estimated by least squares, and significance was calculated using an F-test.

$Y_{ij}={\beta }_{0j}+{\beta }_{1j}Ag{e}_i+{ϵ}_{ij}$ (1)

A cumulative binomial test was then used to identify genes that were significantly differentially expressed across the datasets, taking the probability of success as the probability that any gene was not over-/underexpressed in any dataset, the number of trials as the number of datasets in which the given gene was detected, and the number of successes as the number of datasets in which the given gene was not detected as significant. Thus the test asks, “for a gene; given the number of times a gene was tested across all the data sets, the number of times a gene was significantly differentially expressed across all the data sets, and the probability of seeing any gene differentially expressed, what is the probability that this gene is differentially expressed more than we expect to see by chance?”. False discovery rate (Q) was controlled by randomising the datasets 10,000 times, repeating the analyses with these randomised data, and then carrying out a linear regression on the simulated results to estimate the p-value cut-off at which Q<0.05.

The meta-analysis was repeated three times, using only the datasets from specific tissues. Thus, four analyses were carried out, a global analysis of all tissues (127 datasets) and tissue-specific analyses of brain (29 datasets), heart (9 datasets) and muscle (26 datasets).

A summary of the method is given in Supplementary Figure 1.

Determination of tissue specificity

The expression data from version 7 of the GTEx project [39] was downloaded and used to calculate a τ index for each gene. The τ index is an indicator of how specifically or broadly expressed a gene is, with a τ of 1 indicating expression specific to only one tissue, and a τ of 0 indicating equal expression across all tissues [40]. The τ index for a given gene can be calculated as shown in Equation 2, where N is the number of tissues being studied and x_i is the expression profile component for a given tissue, normalised by the maximal component value for that gene (i.e. the expression of that gene in the tissue it is most highly expressed in).

$\tau =\frac{{{\displaystyle \sum }}_{i=1}^N\left(1-x_i\right)}{N-1}$ (2)

Analysis of differentially expressed genes

Comparison with relevant ageing gene lists

The overlap between the global signature and relevant ageing gene lists was tested using the hypergeometric test [41] with all the genes included in the meta-analysis as the background set. When comparing to the GenAge expression signature, over- and under-expressed genes were considered separately. Comparison to the other Human Ageing Genomic Resource (HAGR) databases (human genes from GenAge [8], GenDR [5] and LongevityMap [9]) was performed ignoring the direction of expression change (Bonferroni corrected).

Tissue specificity of ageing genes

The association between differential expression with ageing according to the meta-analysis and tissue specificity (defined as a having τ index of >0.8 based on the GTEx data) was tested using a chi-squared test and the phi coefficient was calculated to indicate the strength of the correlation. Association was tested for both over- and underexpressed genes, for all four meta-analyses (Bonferroni corrected).

Enrichment analysis

The topGO package (v2.28.0) [42] was used in the R programming environment using the weight01 algorithm [43] and Fisher’s exact test to calculate enrichment of GO terms. Genes were mapped to the GO-2017-03-29 release since this is the release utilised by the GO.db package version in Bioconductor 3.5 [44].

Rule-based precision analysis

To complement the enrichment analysis, Random Forest (RF) machine learning models were used to identify the most important GO terms for the classification of genes as over- or underexpressed with age. The RF algorithm builds many Random Trees (RT) during its training (model construction) phase. Each node in a RT contains a condition that splits the instances (the genes) into two subsets according to the values of the selected feature (in our case, the presence or absence of a GO term in a gene), creating two child nodes. The RF algorithm aims to select features that best split genes (based on their change in expression label) into the two groups, so that genes of different class labels (over vs. under-expressed) are assigned as much as possible to different groups. Next, the algorithm re-runs the previously described split procedure in the two newly generated groups until some user-defined condition is met.

To predict the class label of an unseen gene, for every RT, the conditions in the tree (starting in the root node) are matched against the gene’s features (GO terms from GO-2017-03-14) until a leaf node is reached. When the instance (gene) reaches a leaf node, the most frequent class in the node is selected to be the prediction of the tree. The final prediction of the whole RF model is defined by the simple voting of all RTs.

We used Rule-Based Precision (RBP) [45] to measure the importance of features used by the model. Briefly speaking, to measure the RBP we build several RFs, where each of them in turn comprises many RTs. For each tree and feature (a GO term), we identify all paths in the decision trees from root to leaf that use the positive value of the GO term feature, that is, paths in the tree that “capture” a gene only if the GO term annotates that gene. Then, the method calculates the overall precision of these paths, and uses this precision to rank the GO terms regarding predictive power. The main motivation for using the RBP measure is that it was designed specifically to reward “positive” feature values (GO term annotations), rather than “negative” feature values (lack of GO term annotations), since the former are more reliable. Actually, a negative feature value denotes lack of evidence, rather than evidence for the absence of a given gene function.

Network analysis

The human PPI network was downloaded from BioGRID version 3.3.123 [46] and non-physical interactions were removed, leaving 219,240 interactions. Additionally, an unweighted co-expression network of highly correlated genes from the GeneFriends RNA-seq co-expression map (V3.1) was also used [47]. The betweenness, closeness and degree (normalised by dividing by the maximum degree of a graph n-1, where n is the number of nodes in graph G) of each gene in these networks were calculated using the ‘networkx’ Python library [48], and the average betweenness, closeness and degree of the genes in each expression signature was determined. The centrality measures of over- and underexpressed genes were then compared to their opposite category, as well as the non-differentially expressed genes by pairwise Mann-Whitney U tests (Bonferroni corrected).

dN/dS analysis

To identify any differences in the evolutionary conservation of genes differentially expressed with age, the dN/dS ratios for comparison between humans and mice, and humans and rats were obtained from Ensembl Biomart release 96, keeping only those genes with 1 to 1 ortholog homology type between the relevant species and high orthology confidence. These dN/dS ratios compare the rates of synonymous and nonsynonymous substitutions between species for a given gene, giving an idea of the type of selection that gene may be under, if any [49]. The distribution of dN/dS scores was compared by pairwise Mann-Whitney U tests (Bonferroni corrected) across all comparisons between genes overexpressed with age, underexpressed with age and unchanged with age.

Data availability

The data that supports the findings of this study are available in the supplementary material of this article, which are available on the Integrative Genomics of Ageing Group AgeingSignatures2020_supplementary GitHub repository (https://github.com/maglab/AgeingSignatures2020_supplementary). These data were derived from the resources listed in Supplementary Table 1.
