Aging-related markers in rat urine revealed by dynamic metabolic profiling using machine learning

Food intake, body weight, and urine metabolic profiles with aging

In this study, the training group included 60 male Wistar rats, and the test group consisted of 30 male Wistar rats. They were fed pelleted chow starting from 8 weeks. The food intake and body weight trajectory of rats with aging in the training and test groups are shown in Figure 1A and 1B. Food intake in both the training and test groups fluctuated with increasing age (Figure 1A). The body weight in the training group increased in the first 58 weeks with the increase in age. Then slowly stabilized, and started dropping from 93 weeks (Figure 1B). The downward trend continued with the increase in age (data are not shown), suggesting that the rats entered the fragile state. Similar results were observed for the test group (Figure 1B). Moreover, at 100 weeks, a total of 43 rats died naturally (data not shown), further indicating that the rats entered the aging stage at 100 weeks. Compared with the test group, the food intake, on average, in the training group was lower (p < 0.05), but body weights displayed no statistical difference (p > 0.05) (Figure 1A and 1B).

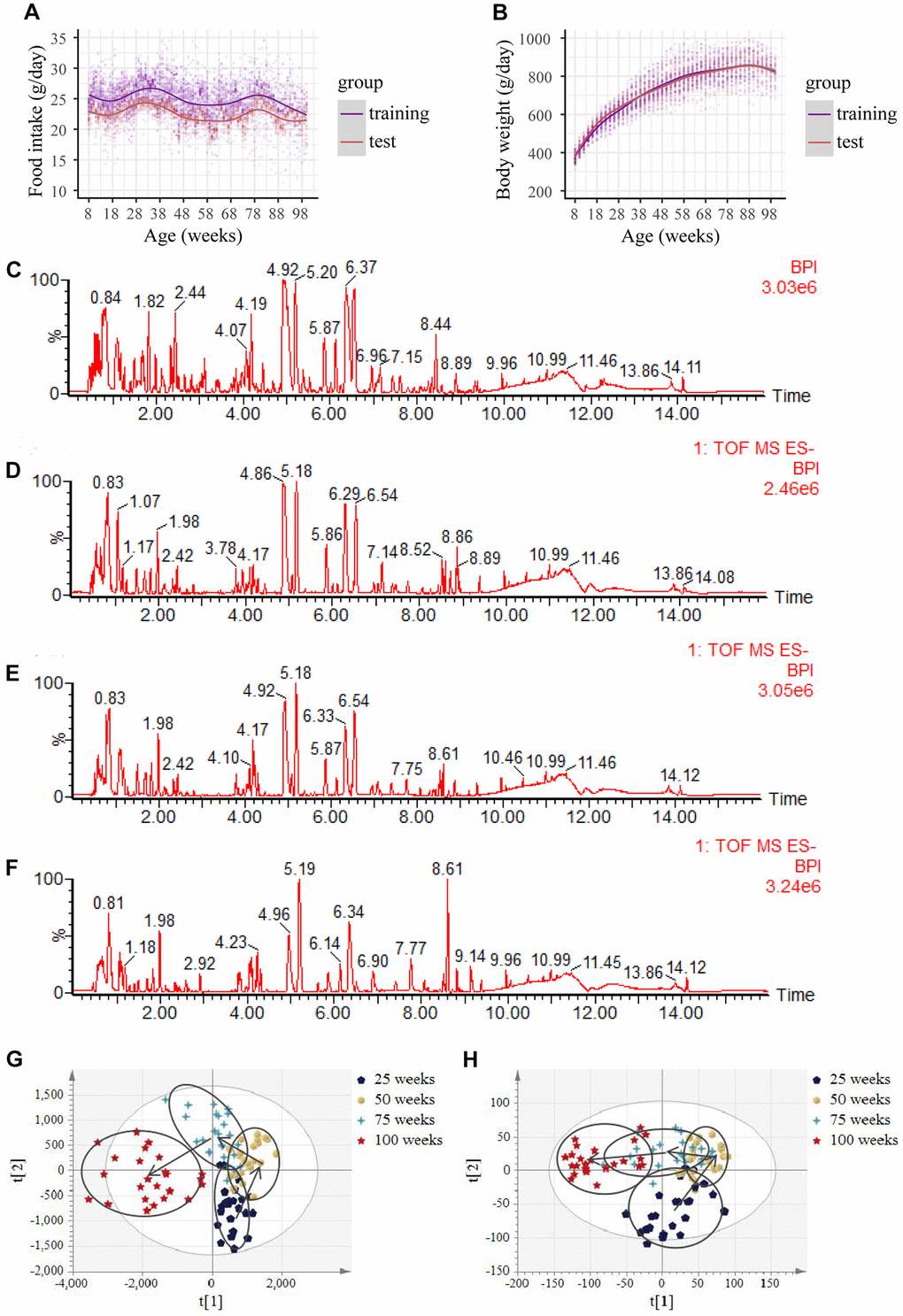

Figure 1. Food intake, body weight, base peak intensity chromatograms and urine metabolic profiles with aging. (A) Food intake in both the training and test group. (Initial sample size: n = 60 in the training group; n = 30 in the test group). (B) Body weight in both the training and test group. (Initial sample size: n = 60 in the training group; n=30 in the test group). (C–F) Representative negative base peak intensity (BPI) chromatograms at the age of (C) 25 weeks, (D) 50 weeks, (E) 75 weeks and (F) 100 weeks of rats using UPLC-Q-TOF-MS in electrospray ionization negative (ESI−) ion mode in the training group. (G–H) PLS-DA scores plots of urine obtained from the UPLC-Q-TOF-MS with age in (G) left: the negative mode, and (H) right: the positive mode in the training group. (n = 24 each time point).

During the study period, the urine of rats in the training group was dynamically collected for metabolomic analysis, and detected by ultra-high-performance liquid chromatography-tandem quadrupole time-of-flight mass spectrometry (UPLC-Q-TOF-MS). Principal component analysis, including a quality control (QC) sample and an experimental sample of time data of the training group in the positive or negative modes, was performed. The QC results were tightly clustered (Supplementary Figure 1A, 1B), suggesting the stability of the system and the reliability of the data. Representative chromatograms of the base peak intensity at four time points are displayed in Figure 1C–1F. Using the “80% rule” filter criteria of primary data in the training group, we derived a list of 10,729 metabolites in the negative mode and a list of 27,962 metabolites in the positive mode for subsequent multivariate statistical analysis. The partial least squares-discriminant analysis (PLS-DA) score plots from both electrospray ionization (ESI)+ and ESI− based on all raw metabolites revealed a perfect separation trajectory in one direction, at different time points, and with increasing age (Figure 1G and 1H). In total, the results suggest that metabolic remodeling occurs during aging, leading to alterations in urinary metabolites.

Metabolite aging trajectories based on a time-series analysis

To dynamically identify age-related metabolic trajectories, we performed a time-series analysis and predefined nine clusters based on metabolite aging trajectories in the negative and positive modes (Figure 2A and Supplementary Figure 2A). Considering as many age-related metabolites as possible, we selected clusters 1, 3, 5, 7, 8, and 9 containing 60.8% of the metabolites in the negative mode and clusters 3, 4, 7, and 8 contained 71% of the metabolites in the positive mode, as these clusters tended to display an age-related increase or decline in metabolites, which are likely to be sensitive to aging. Notably, metabolites in the ESI− mode in clusters 8 and 9 exhibited a gradual increasing or decreasing trend with increasing age (Figure 2A), and the same was true for clusters 3 and 4 in the ESI+ mode (Supplementary Figure 2A).

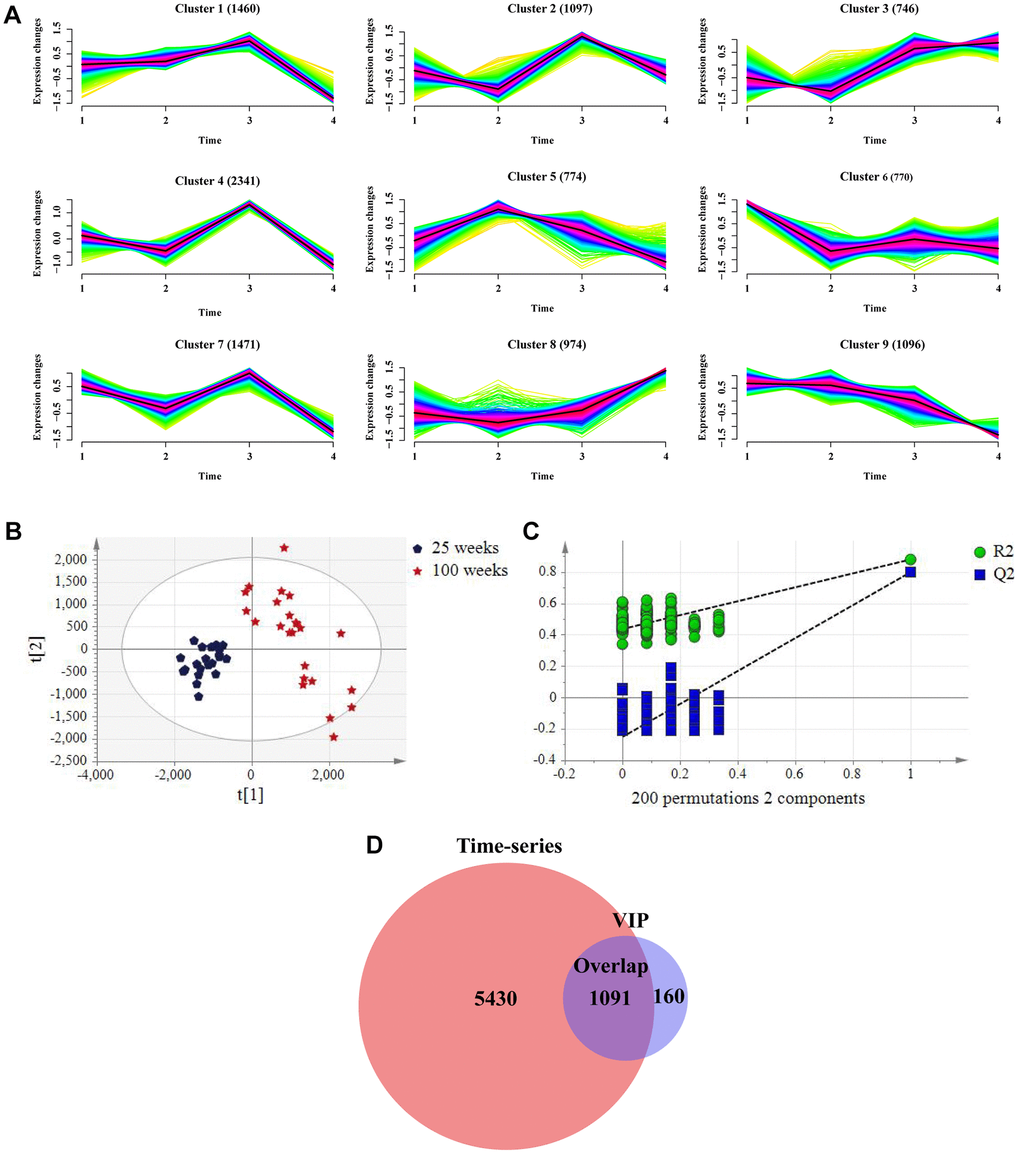

Figure 2. Screening metabolites in combination with time-series analysis and variable importance in the project (VIP) value in the negative mode in the training group. (A) Metabolic aging trajectories. Fuzzy c-mean clustering of all 10729 metabolite abundances. Average trend of clusters is shown as a black line. (B) PLS-DA scores plots of rat urine at 25 weeks and 100 weeks. (ESI−, R2Y= 0.881, Q2 = 0.80). (n = 24 each time point). (C) Permutation test with 2 components of PLS-DA score plot. (D) Venn diagrams demonstrated the overlap of metabolites in combination with two algorithms.

To further narrow down the age-related metabolites, the PLS-DA score between two points in time (25 and 100 weeks) was plotted for both the ESI− and ESI+ modes. This revealed a clear separation between the two points in time (Figure 2B), which was validated by the permutation test, as reflected by that all R2X and Q2 values on the left were lower than the original points on the left (Figure 2C); the same was true for the positive mode (Supplementary Figure 2B, 2C). In total, 1,251 metabolites in ESI− mode and 2,907 metabolites in ESI+ mode were selected by VIP (VIP > 1.0) based on PLS-DA score, of which 1,091 in ESI− mode and 1,559 in ESI+ mode overlapped with the time-series data (Figure 2D and Supplementary Figure 2D).

We next attempted to determine if there were conserved changes in urinary metabolite profiling and conducted a parallel analysis in the test group. Using the “80% rule” filter criteria of primary data in the test group, we derived a list of 9,008 metabolites in the negative mode and 24,951 metabolites in the positive mode for subsequent multivariate statistical analysis. Similar results were obtained for classification trends by the PLS-DA trajectory analysis and PLS-DA score plot of the two time points (Supplementary Figure 3A–3F), suggesting the repeatability of our data.

Screening of aging-related metabolites based on machine learning

Considering the data characterized by small sample sizes with high dimensionality, we next combined two different machining learning algorithms to select the aging-related metabolites for classifying 25 and 100 weeks based on 1,091 metabolites in ESI− mode or 1,559 metabolites in ESI+ mode. First, we used the LASSO algorithm to narrow down the range of aging-related metabolites in the training cohort (Figure 3A and Supplementary Figure 4A). For the LASSO penalized regression model, the variables were determined by finding the lambda (λ) with the smallest classification error. As a result, a total of 14 metabolites in ESI− mode and 16 metabolites in ESI+ mode were screened. We also applied the SVM-RFE algorithm to select aging-related metabolites (Figure 3B and Supplementary Figure 4B). The SVM-RFE algorithm selects a feature by eliminating variables one by one based on the feature value ranks computed by the SVM classifier. To obtain more data generated by the intersection of the two methods, we selected the top 300 metabolites based on feature value ranks in the ESI− or ESI+ mode. In combination with the LASSO and SVM-RFE algorithms, 300 metabolites in ESI− mode and 305 metabolites in ESI+ mode related to aging were identified by the union, 14 of which in ESI− mode and 11 in ESI+ mode as candidate metabolites were selected simultaneously by two algorithms (Figure 3C and Supplementary Figure 4C). In addition, we applied these candidate metabolites to predict the aging status in the test cohort using receiver operating characteristic analysis. We found that these metabolites perfectly separated the young and old status in the test cohort, and the area under the curve was 1 in either the ESI− or ES1+ mode (Figure 3D and Supplementary Figure 4D), suggesting that the 25 candidate metabolites could be good aging predictors. The 25 candidate metabolites are shown in the heat map (Figure 3E), reflecting the dramatic metabolic changes at the old stage.

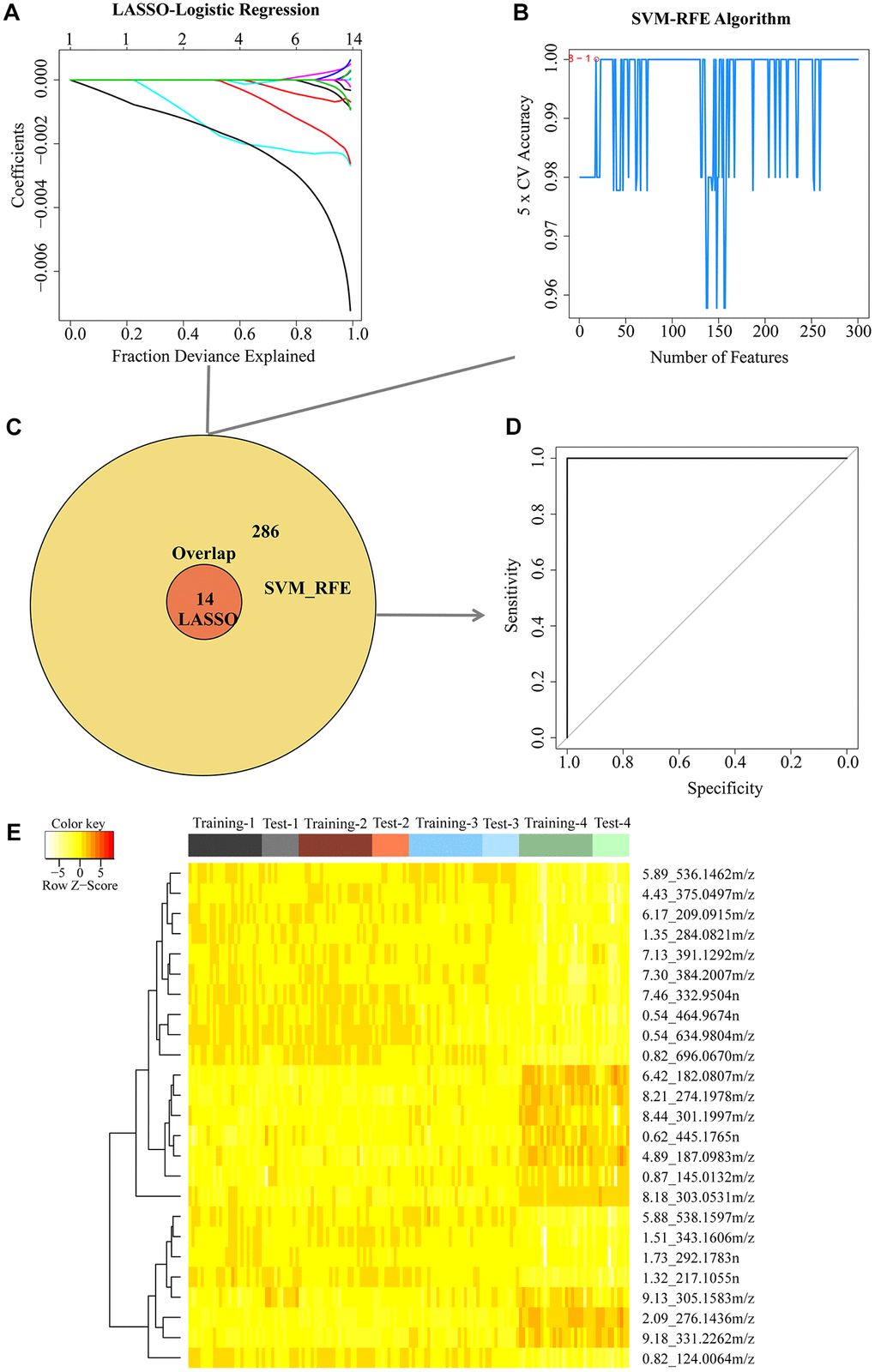

Figure 3. Two algorithms based on machine learning were used for feature selection in the negative mode. (A) Least Absolute Shrinkage and Selector Operation (LASSO) algorithm in the training group. (B) Support Vector Machine-Recursive Feature Elimination (SVM-RFE) algorithm in the training group. (C) Venn diagrams demonstrated the overlap of metabolites in combination with two algorithms. (D) 14 candidate metabolites detected in the training group were validated in the test group using receiver operator characteristic (ROC) curve analysis. (E) Cluster analysis of 25 metabolites in both the negative and positive mode simultaneously selected from the LASSO and SVM-RFE algorithms in the training group.

Identification of aging-associated biomarkers

In this study, 25 candidate metabolites related to aging biomarkers were confirmed by comparing their retention times, exact mass, and tandem mass spectrometry fragmentation patterns with those of the standards using MassFragment software. As a result, a total of six metabolites were identified (Table 1). The abundance of these metabolites in both the positive and negative modes is shown in Figure 4A–4L. Epinephrine and glutarylcarnitine levels in rats aged 25 weeks were remarkably higher than those in rats aged 100 weeks, whereas L-kynurenine, N-acetylcitrulline, taurine, and 3-hydroxydodecanedioic acid in rats aged 25 weeks were robustly lower than those in rats aged 100 weeks, in both the training and test cohorts (Figure 4A–4L). Of particular interest, we found that these identified metabolites were in cluster 8 or 9 in the negative mode and in cluster 3 or 4 in the positive mode (Table 1), indicating that these identified metabolites can be reliable aging biomarkers reflecting the aging trajectories.

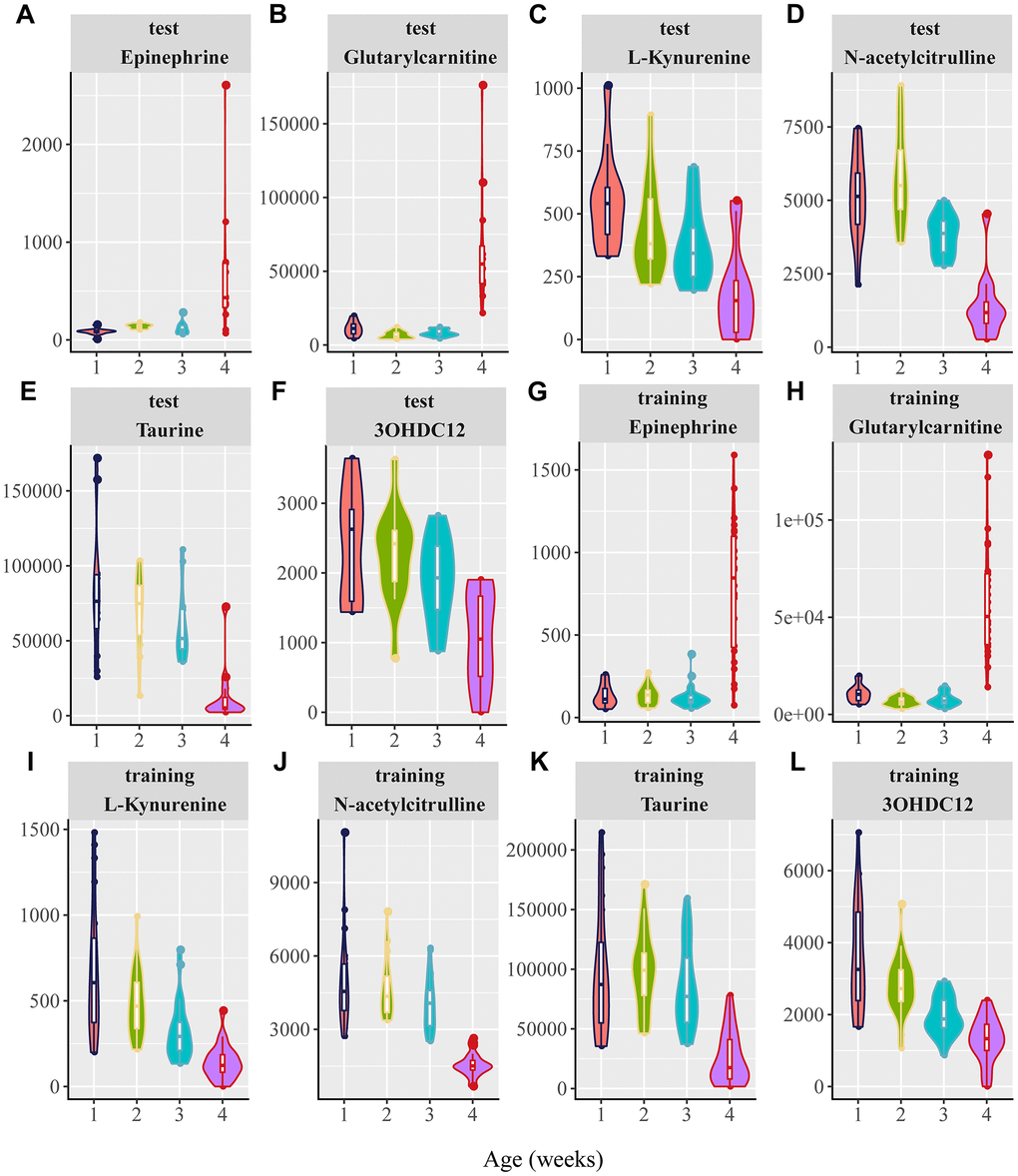

Figure 4. Violin plots for the six potential biomarkers abundance with aging. 1, 2, 3, and 4 in the X axis are represented as 20, 25, 50, 75, and 100 weeks, respectively. (A–F) Normalized abundance of metabolites in both the negative and positive modes in the test group, including (A) epinephrine, (B) glutarylcarnitine, (C) L-kynurenine, (D) N-acetylcitrulline, (E) taurine, and (F) 3-hydroxydodecanedioic acid (3OHDC12). (G–L) Normalized abundance of metabolites in the negative and positive modes in the training group, including (G) epinephrine (H) glutarylcarnitine, (I) L-kynurenine, (J) N-acetylcitrulline, (K) taurine, and (L) 3-hydroxydodecanedioic acid (3OHDC12). (P < 0.0001 for the comparisons between 25 and 100 weeks for the six candidate metabolites in both the test and training groups; one-way ANOVA).

Aging-associated biomarkers and tumor occurrence in rats

Given that we observed that many rats carried spontaneous tumors during the long-term feeding period (Table 2), it is interesting to determine whether there are mechanistic links between aging and tumors. Although no tumors were found in 25-week-old rats, some developed tumors after 25 weeks. Therefore, we first selected rats aged 25 weeks to explore the relationship between the identified aging-related metabolites and the occurrence of tumors in the future (predicting tumor). Epinephrine, glutarylcarnitine, L-kynurenine, taurine, and N-acetylcitrulline did not differ between tumor-free rats and tumor-bearing rats, whereas the 3-hydroxydodecanedioic acid level was higher in the tumor-bearing rats than in the tumor-free rats (Figure 5A–5F). To further investigate the potential contribution of aging-related metabolites to tumors, the rats aged 100 weeks were analyzed. We found that, compared to that in tumor-free rats, epinephrine, glutarylcarnitine, L-kynurenine, taurine, and 3-hydroxydodecanedioic acid levels were not different, but N-acetylcitrulline in the tumor-bearing rats was obviously increased (Figure 5G–5L).

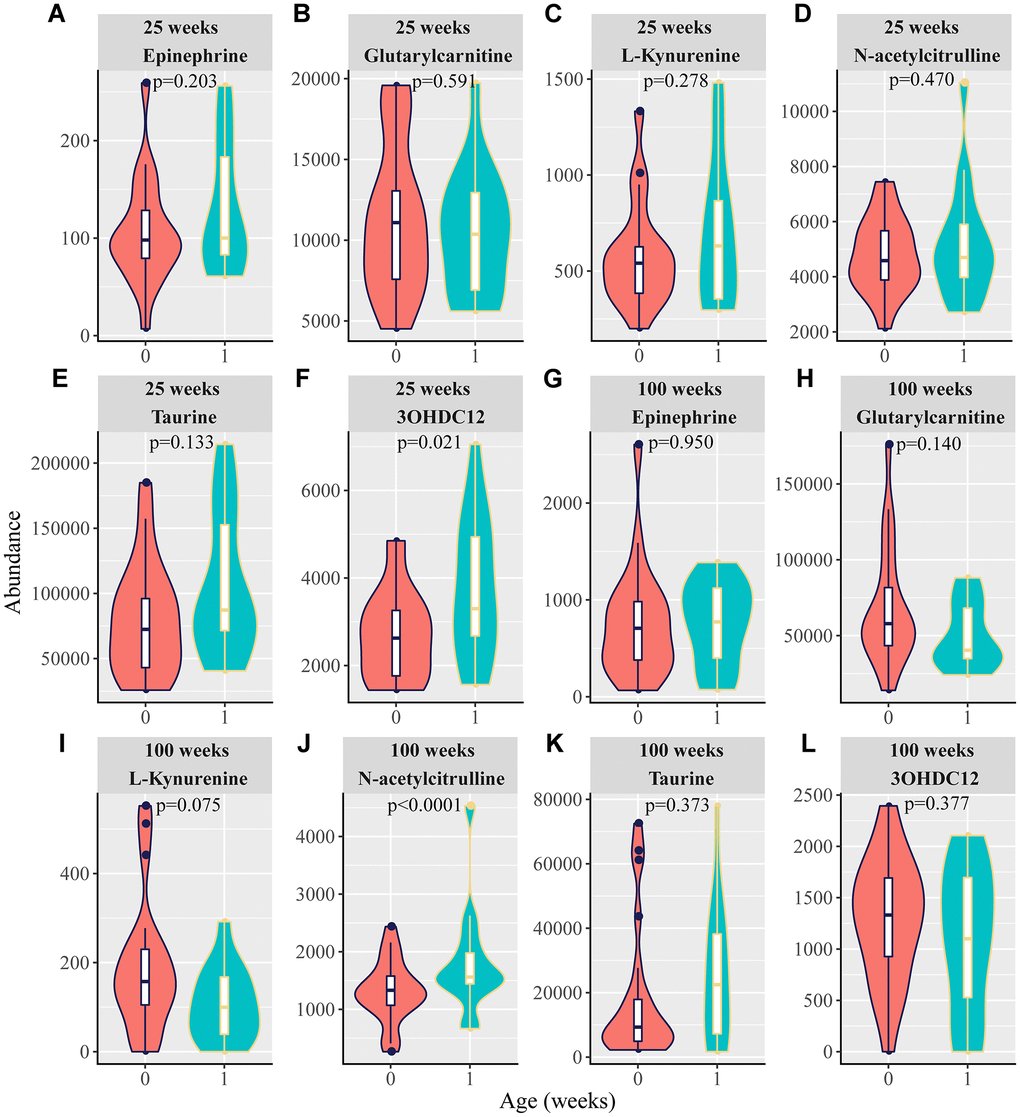

Figure 5. Violin plots for the six potential biomarkers abundance between tumor-free rats and predicting tumor-bearing rats or tumor-bearing rats. At 25 weeks, 0 and 1 in the X-axis are represented as tumor-free rats and tumor-bearing rats, respectively. At 100 weeks, 0 and 1 in the X-axis are represented as tumor-free rats and tumor-bearing rats, respectively. (A–F) Normalized abundance of metabolites in both the negative and positive modes at 25 weeks, including (A) epinephrine, (B) glutarylcarnitine, (C) L-kynurenine, (D) N-acetylcitrulline, (E) taurine, and (F) 3-hydroxydodecanedioic acid (3OHDC12). (G–L) Normalized abundance of metabolites in both the negative and positive modes at 100 weeks, including (G) epinephrine (H) glutarylcarnitine, (I) L-kynurenine, (J) N-acetylcitrulline, (K) taurine, and (L) 3-hydroxydodecanedioic acid (3OHDC12). (p < 0.05 was considered statistically significant; t-test).

Animals and diets

A total of 90 male Wistar rats aged 8 weeks were supplied by the Vital River Laboratory Animal Technology Company LTD (Beijing, China). After three days of adaptation, all rats were randomly assigned to three groups with different purified diets based on the standard purified rodent diet (AIN-93G) paradigm: regular control diet (AIN-93G diet), high-protein diet, and high-fat diet. A high-protein feed was developed by adjusting the content of casein, corn starch, and sucrose according to AIN-93G. The high-fat feed was developed by adjusting lard, corn starch, sucrose content, and micronutrient content according to AIN-93G. In this study, we combined the first two diet groups as the training group and the other diet group as the test group. We aimed to investigate aging trajectories and aging-related metabolites, regardless of diet influence. All animals were housed in a single stainless-steel cage. The rats were fed daily, and food intake was recorded once every one–two days. To ensure palatability, pellet chow was produced every 3 months and stored at -20°C. Body weight was monitored weekly in the morning. Rats were maintained in a light/dark cycle for 12/12 h at a temperature of 21 ± 2°C and humidity of 50%–60% under pathogen-free conditions. In this long-term experiment, rats were euthanized when they were considered inharmonious with continued survival based on the euthanasia criteria from the AAALAC guidelines (data not shown). All protocols were approved by the Medical Ethics Committee of Harbin Medical University (Harbin, China) and were performed in accordance with the Guide for Care and Use of Laboratory Animals (ethics number: 2015138).

Collection of urine

Animal urine was dynamically collected at four time points using metabolic cages (training group: n = 24 each time, test group: n = 12 each time; age = 25, 50, 75, and 100 weeks). A 24-h urine was collected and then divided into several tubes and stored at −80°C for further measurement after being centrifuged at 3000 rpm for 15 min at 4°C.

Metabolomics analysis of rat urine by UPLC/Q-TOF MS

Urinary untargeted metabolomics analysis was performed using ultra-performance liquid chromatography and quadrupole time-of-flight tandem mass spectrometry (UPLC-Q-TOF-MS) is described as follows:

Chemicals and reagents

The following reagents used are high-performance liquid chromatography (HPLC) grade: acetonitrile (Fisher Scientific Los Angeles, CA, USA), methanol (Fisher Scientific Los Angeles, CA, USA), formic acid (Sigma-Aldrich, St Louis, MO, USA) and leucine-enkephalin (Sigma-Aldrich, St Louis, MO, USA). Ultrapure water was prepared using an Ultra Clear System (Siemens Water Technologies, Nuremberg, Germany).

Sample preparation

Urine samples were thawed at 4°C, vortex-mixed for 1 min, diluted 1:11 (v/v) with water, mixed by vortexing for 1 min, and centrifuged at 12 000 × g for 10 min at 4°C. The supernatant was transferred to an autosampler vial. All samples were taken equally and mixed well to prepare quality control (QC) samples.

Chromatography

Chromatographic separation was carried out using a Waters ACQUITY UPLC System (Waters, Milford, MA) with an HSS T3 column (100 × 2.1 mm; id. 1.7 um; Waters). A 2 μL urine sample was injected into the column maintained at 35°C at a flow rate of 0.45 mL/min through a 4°C autosampler. The mobile phase included solutions A (0.1% formic acid in water) and solution B (pure acetonitrile). The elution gradients were as follows: 2% B for 0–0.5 min, 2%–20% B for 0.5–7 min, 20%–35 % B for 7–8 min, 35%–70% B for 8–9.5 min, 70%–98% B for 9.5–11 min, 98% B for 11–13 min, 2% B for 13–14 min, 2% B for 14–16 min in the positive and negative ion modes. Acetonitrile as a blank and QC were injected every 15 samples, respectively, and urine samples at different time points were run alternately to eliminate the bath effect.

Mass spectrometry

Mass spectrometry was performed using a Waters Micromass Q-TOF (Waters, Manchester, UK) equipped with electrospray ionization (ESI) in the positive and negative modes. The parameters were set as follows: capillary voltage, 0.5 kV; sample cone voltage, 60 V; collision energy, 6 eV; source temperature, 110°C; desolvation gas (nitrogen) flow, 900 L/h; desolvation temperature, 450°C; cone gas (nitrogen) flow, 50 L/h; collision gas, argon; and MCP detector voltage, 2550 V. The scan mass range was 50–1200 m/z for 0–16 min. A concentration of 200 pg/μL leucine-enkephalin was used as the mass spectrum correction ion lock mass ([M+H] = 556.277 1, [M–H] = 554.261 5). Scan frequency was set at 0.2 s every 15 s scans for correction. The MS/MS spectra of the potential biomarkers were obtained by UPLC-QTOF-MS/MS.

Data processing

Raw data were uploaded to the QI (version 2.1; Waters Corporation, Milford, MA, USA) for peak detection and alignment, and were further analyzed using EZ info software (version 2.0; Umetrics AB, Umea, Sweden) and SIMCA-P (version 12.0; Umetrics AB, Umea, Sweden). To eliminate the variations in urine concentrations of different rats, normalization of each ion intensity to the total ion intensity for each chromatogram was performed. Prior to multivariate statistical analysis, the “80% rule” filter criteria as a common method were used to filter missing values that arise from technology or sample and impact the statistical analysis in metabonomics research [56]. Multivariate statistical analysis was performed based on the Pareto-scaled or UV-scaled data. Principal component analysis (PCA) was conducted by combining QC samples and all experimental samples to evaluate the reproducibility and quality of the data. Partial least squares-discriminant analysis (PLS-DA) was applied to visualize the maximal separation at different time points. 200 Random permutation testing was carried out to avoid over-fitting of PLS-DA models using SIMCA-P software (version 12.0; Umetrics AB, Umea, Sweden). Metabolites with variable importance in the project (VIP) value above 1.0, were selected for analysis.

The metabolites were first identified using Progenesis QI software linked to online databases, such as ChemSpider (http://www.chemspider.com), the Human Metabolome Database (HMDB) (http://www.hmdb.ca), METLIN (http://metlin.scripps.edu/) and Pubchem (http://pubchem.ncbi.nlm.nih.gov/) (the tolerance mass was set at 10 ppm). The MassFragment™ application manager (MassLynx v4.1, Waters Corp., USA) was used to facilitate the MS/MS fragment ion analysis process based on chemically intelligent peak-matching algorithms. Finally, the biomarkers were further confirmed by standard substances based on both retention times and MS/MS spectra.

Pathology examinations

Tumors were fixed in 4% paraformaldehyde and embedded in paraffin. Paraffin sections (6 μm thick) were stained with hematoxylin and eosin (H&E). Histological examinations were performed by pathologists who were blinded to the study groups.

Statistical analysis

Unless otherwise stated, data are presented as the mean ± SD. Food intake and body weight trajectories were plotted using generalized additive models to fit a smooth curve, using R version 3.6.2. The packages of Mfuzz, glmnet, and e1071 were loaded to calculate time-series, LASSO, and SVM-RFE, respectively, using R software. Receiver operator characteristic (ROC) curve analysis was performed by R. Differences were analyzed by one-way ANOVA test or nonparametric Kruskal–Wallis test and p value < 0.05, which was considered statistically significant.
