GRSF1 deficiency in skeletal muscle reduces endurance in aged mice

GRSF1 is highly expressed in differentiating skeletal muscle cells

To begin investigating a possible role for GRSF1 in muscle physiology, we first analyzed the GRSF1 expression pattern in cultured human skeletal muscle myoblast lines AB678 and AB1167 [15]. Human myoblasts were then entered into a myogenic differentiation program that resembled myogenesis during embryonic development and adult muscle regeneration. Specifically, proliferating myoblasts were cultured to high density and the culture media was replaced by media containing horse serum to trigger myogenic differentiation; by 2 days, myotubes began to appear, and were fully established by 3-5 days, as previously described [15].

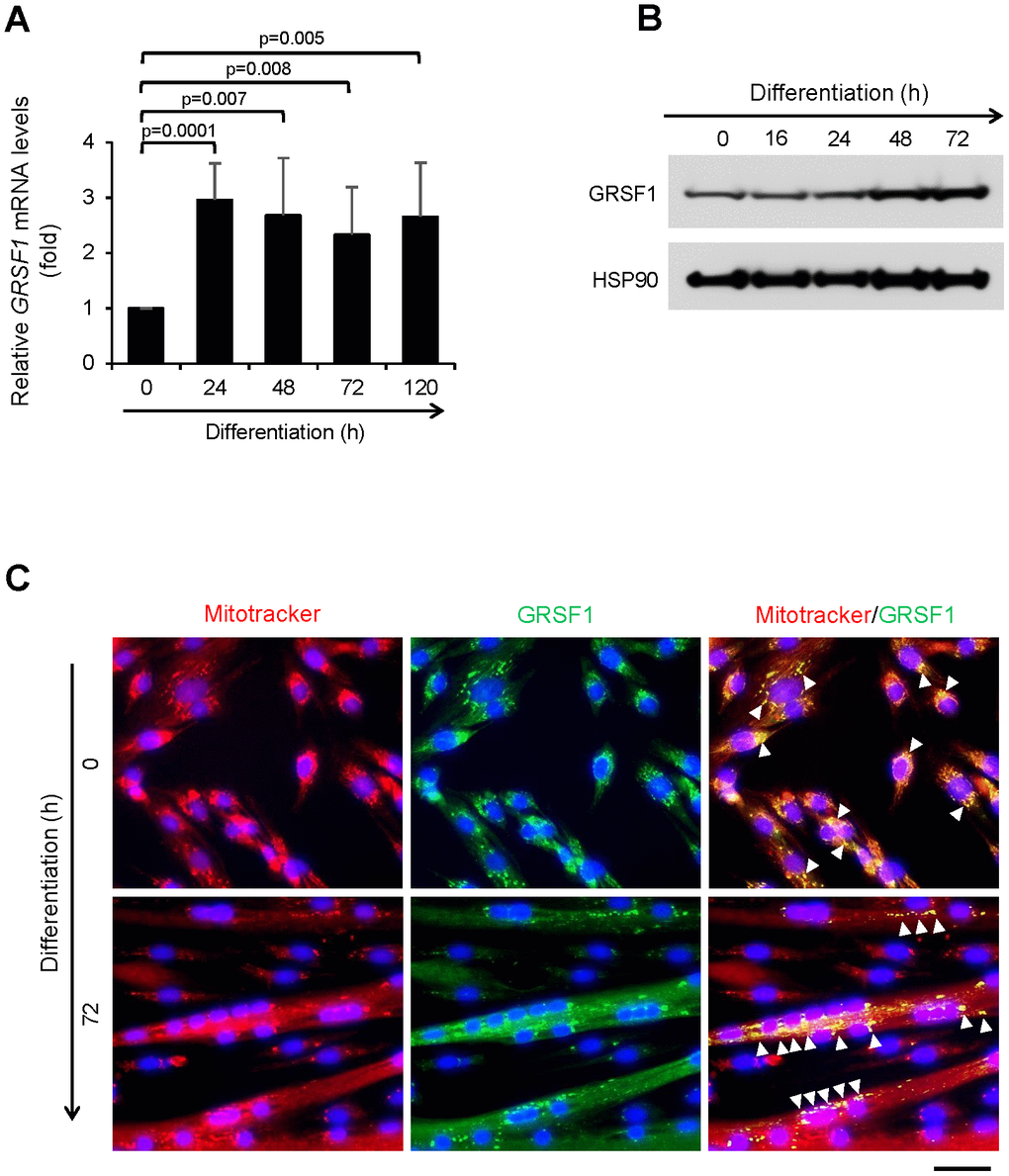

By reverse transcription followed by quantitative polymerase chain reaction (RT-qPCR) analysis, GRSF1 mRNA was easily detectable in proliferating myoblasts, increasing as myoblasts progressed through myogenesis, and remaining elevated between 24-120 h of myogenic differentiation (Figure 1A). Western blot analysis revealed a rise in GRSF1 protein levels by 48 h of differentiation and sustained high levels of GRSF1 thereafter (Figure 1B). By immunofluorescence microscopy, GRSF1 showed a punctate expression pattern that displayed extensive colocalization with MitoTracker, a mitochondria-specific dye, in both proliferating myoblasts and differentiating myotubes (Figure 1C). These observations in a human cell culture model of myogenesis suggest that GRSF1 may be involved in skeletal muscle development in vivo.

Generation of skeletal muscle specific Grsf1 knockout mice

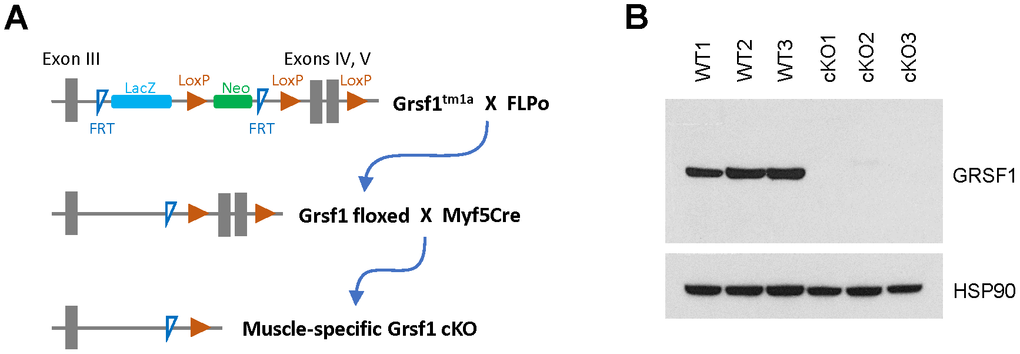

To analyze GRSF1 function in skeletal muscle in vivo, we generated mice in which the Grsf1 gene was selectively ablated in skeletal muscle. Using heterozygous Grsf1 mutant mice (Grsf1^tm1a) from the European Mouse Mutant Archive (EMMA), a LacZ cassette, a Neo cassette, 2 FRT (flippase recognition target) sites, and 3 LoxP (locus of X-over P1) sites were inserted into a Grsf1 allele (Figure 2A). We then removed the LacZ and Neo cassettes by crossing the Grsf1^tm1a mice with FLPo (flippase recombinase transgenic) mice (Figure 2A). In the resulting Grsf1-LoxP mice, exons IV and V of Grsf1 were floxed. The Grsf1-floxed mice were further crossed with Myf5Cre mice to generate skeletal muscle-specific Grsf1 knockout (Grsf1cKO) mice (Figure 2A). As expected, Western blot analysis confirmed that GRSF1 protein production was almost undetectable in skeletal muscle of the homozygous knockout progeny (Figure 2B). Grsf1cKO mice were viable and fertile, and they appeared healthy (data not shown).

Grsf1cKO mice showed weak muscle endurance at advanced ages

To understand the effects of Grsf1 ablation in skeletal muscle, we measured muscle endurance in sex- and age-matched WT control and Grsf1cKO mice at 2-4, 7-9, and 16-18 months of age. The Grsf1cKO mice showed comparable endurance in the treadmill test to that of WT mice until 7-9 months of age (Supplementary Figure 1A). Body weight, lean mass, fat mass and the ratio of lean/fat were similar between WT and Grsf1cKO mice at this age (Supplementary Figure 1B, 1C). These results suggest that Grsf1 is dispensable for skeletal muscle development and maturation through at least 9 months of age.

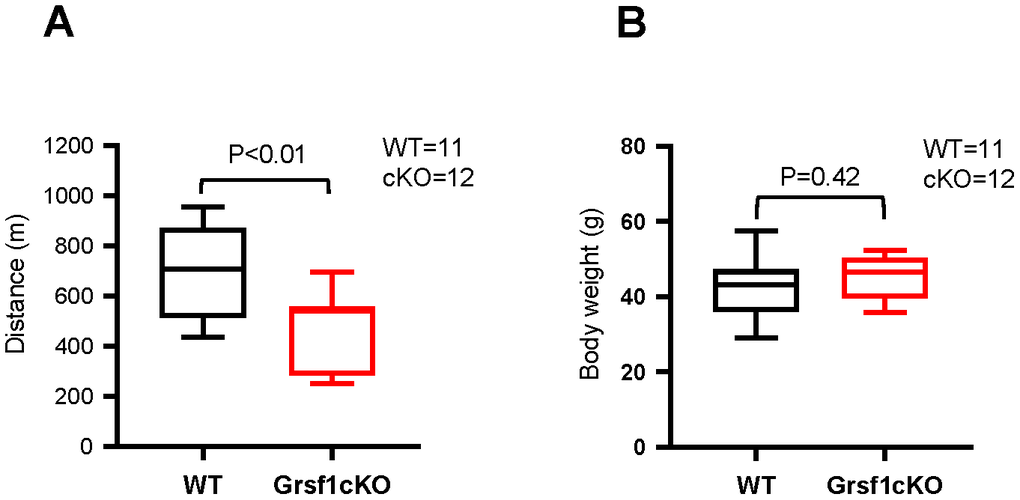

Interestingly, aged (16-18 months old) Grsf1cKO mice showed weaker muscle endurance compared to WT controls (Figure 3A). The Grsf1cKO mice at this age ran about a 30% shorter treadmill distance on average relative to WT controls (Figure 3A). The test was repeated two weeks later with the same mice and the results were comparable. The Grsf1cKO and WT control mice had similar body weights and gross appearances at this age (Figure 3B). Histological analysis showed both normal (Supplementary Figure 2A, upper left panel) and degenerating fibers (arrows in Supplementary Figure 2A, lower left panel) in WT mice at this age, indicating normal progression of natural muscle aging, with similar morphological features in Grsf1cKO skeletal muscle (Supplementary Figure 2A, right panels). These results suggest that the impact of losing GRSF1 on skeletal muscle function in mice may not be apparent until later in life. The ages of the mice tested at the time of analysis are listed in Supplementary Figure 1D.

Differentially expressed mRNAs in WT vs Grsf1cKO muscle by expression profiling analysis

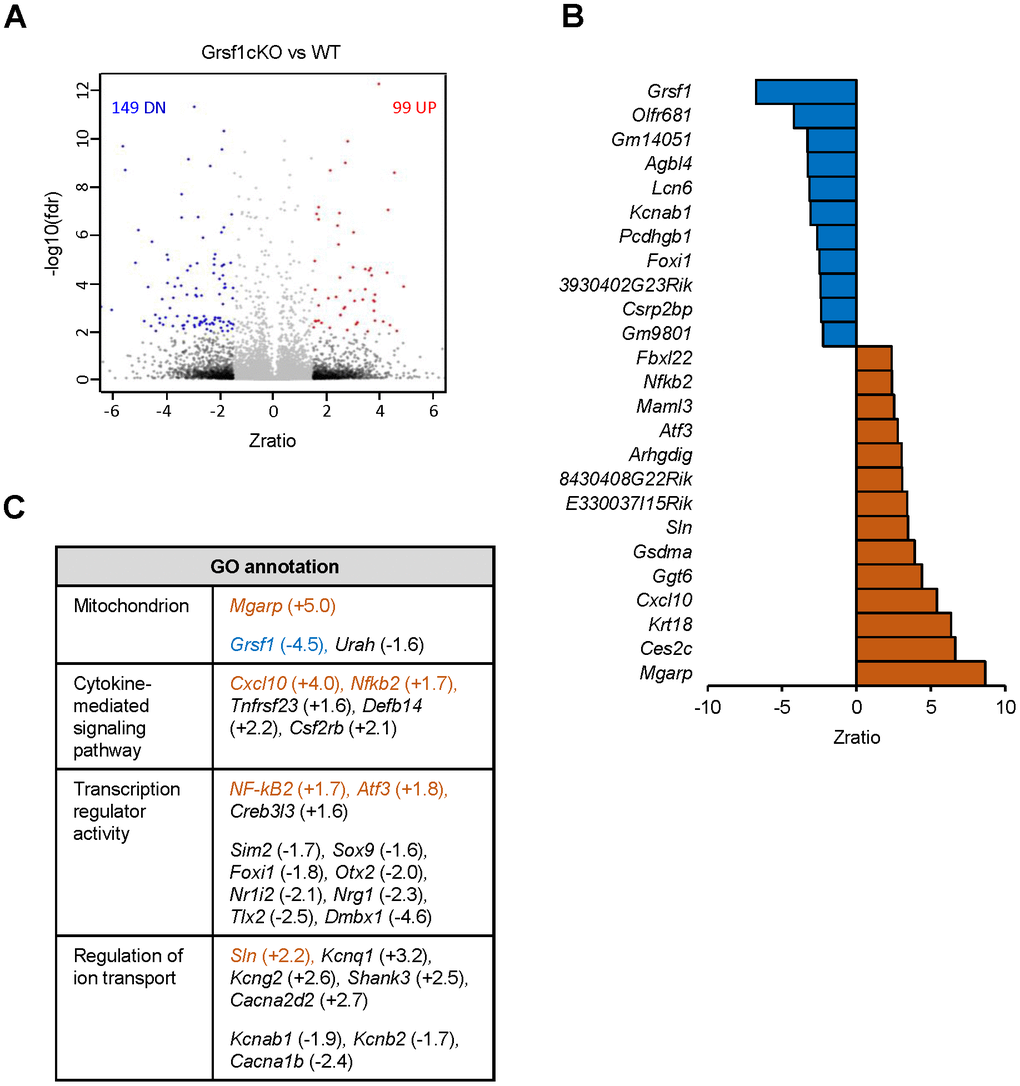

To understand the molecular changes accompanying the decline of muscle endurance in aged Grsf1cKO mice, we carried out gene expression analysis in skeletal muscle harvested from Grsf1cKO mice and WT mice by using microarrays. We isolated total RNA from a quadricep muscle, the rectus femoris (RF), which contains both slow and fast muscle fibers [16]. Three 17-month-old Grsf1cKO mice and three age- and sex-matched WT control mice were analyzed (GEO accession number GSE172311). We found 99 transcripts elevated and 149 transcripts decreased in abundance in the Grsf1cKO muscle compared to WT controls using these criteria: fold-change > 1.5, FDR < 0.2, and p < 0.01 (Figure 4A, and Supplementary Table 1 for full list). The top 25 RNAs significantly altered in expression levels in the Grsf1cKO muscle are shown in Figure 4B. As expected, Grsf1 mRNA abundance was dramatically lower in the Grsf1cKO muscle (Figure 4B, Figure 5, and Supplementary Table 1), but many RNAs also showed increased abundance in Grsf1KO muscle samples. GO annotation analysis using g:Profiler further identified several functional clusters from the significantly altered RNAs, including mitochondrial proteins, inflammatory proteins, ion transporters, and transcription factors (Figure 4C). This group included the hypoxia-inducible mitochondrial transcript Mgarp mRNA [17] and inflammation-related transcripts Cxcl10 and Nfkb2 mRNAs, all elevated in the Grsf1cKO muscle (Figure 4C). Sarcolipin, a key regulator of the sarcoplasmic reticulum calcium pump SERCA, encoded by the Sln mRNA [18], was also significantly elevated in the Grsf1cKO muscle (Figure 4B, 4C).

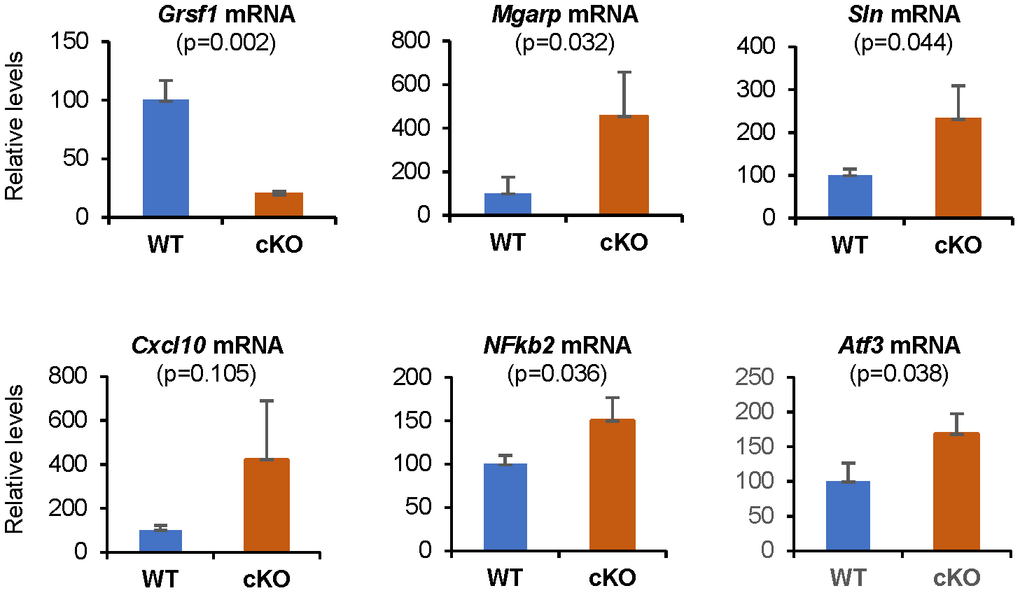

We validated the microarray data by performing RT-qPCR analysis (Figure 5), and confirmed significant changes in the expression levels of several transcripts, including Grsf1, Mgarp, Sln, Cxcl10, Nfkb2, and Atf3 mRNAs. Mgarp mRNA, almost undetectable in WT controls, was significantly more abundant in Grsf1cKO muscles. Cxcl10 mRNA levels were elevated in all 3 Grsf1cKO mice analyzed, but to varying degrees, ranging from two to seven-fold, which yielded a p value of 0.105 (Figure 5, Cxcl10 mRNA), despite plausible biological significance.

We further analyzed the expression levels of several markers of tissue aging and cell senescence in both Grsf1cKO and WT control muscles (including Il6, Tnf, ND6, p15, p16, and p21 mRNAs) using RT-qPCR analysis and one to three different probe/primer sets for each mRNA (Materials and Methods), with no significant expression changes indicated (data not shown).

Subtle changes in ROS production in the Grsf1cKO muscle

No obvious inflammatory cell infiltration or regenerating muscle fibers were found in WT or Grsf1cKO mice by histological analysis (Supplementary Figure 2A). To assess ROS production in the Grsf1cKO and WT control mice, we carried out dihydroethidium (DHE) staining. DHE fluorescence in the cell nuclei indicates the presence of ROS [19]. Comparable DHE positive signals were seen in the nuclei of both WT and Grsf1cKO in 17-month-old mice muscle (Supplementary Figure 2B, middle and right panels), suggesting similar ROS production in the Grsf1cKO and WT control mice. As a DHE-positive control, we included a sample from a naturally aged (30-month-old) WT mouse [20, 21] (Supplementary Figure 2B, left panels). These results suggest that, at least in conditions of normal development in adult mice, loss of GRSF1 does not influence oxidative stress levels in skeletal muscle. Taken together, our results indicate that loss of GRSF1 in mouse skeletal muscle did not cause overt changes in morphology or ROS production with advancing age, but it did change gene expression programs and impaired muscle endurance.

Differentiation of myoblasts in culture

Immortalized human myoblasts AB678 and AB1167, which were previously described [15], were cultured in growth medium (equal volume mixture of Hamm's F10 media with 20% FBS and Promocell Skeletal Muscle Cell Growth Medium). Myoblasts were induced to differentiate for up to 120 h by growth to confluency and replacement of the growth medium with differentiation medium (DMEM with 2% horse serum). For RT-qPCR, Western blot, and immunofluorescence analyses, cells were harvested at the times indicated after initiating differentiation (Figure 1).

Reverse transcription (RT) and real-time quantitative (q) PCR analysis

For RT-qPCR analysis, cultured myoblasts were harvested at 0, 24, 48, 72 and 120 hours after the beginning of differentiation. Total RNA from cultured cells was isolated using the Direct-zol™ RNA MiniPrep kit (ZymoResearch), which includes a digestion step using DNase I. After reverse transcription (RT) using Maxima reverse transcriptase following the manufacturer’s protocol (Thermo Fisher Scientific), real-time quantitative (q)PCR amplification was carried out using SYBR green and the following specific primers (forward and reverse in each case): GRSF1-F, CAGGGAGCTGATTGCTGAATAand GRSF1-R, ACGCATAAAGGGACACATACTC to amplify GRSF1 mRNA, and GAPDH-F, TCTGCTCCTCCTGTTCGAC and GAPDH-R, ACGACCAAATCCGTTGACTC to amplify GAPDH mRNA. Relative RNA levels were calculated after normalizing to GAPDH mRNA using the 2^-ΔΔCt method.

For RT-qPCR assays of mouse tissue, total RNA was isolated from frozen RF muscles with Trizol (Ambion, 15596-026) and the Purelink RNA mini kit (Ambion, 12183018A) followed by on-column Purelink DNase (Ambion, 12185-010) treatment. RT was performed by synthesizing cDNAs from the Grsf1cKO and WT control RNAs with the Superscript IV VILO Master Mix (Invitrogen, 11756050) and qPCR amplification was carried out using ready-to-use Taqman probe/primer sets (Applied Biosystems) to detect Grsf1 mRNA (Mm00618578_g1), Mgarp mRNA (Mm00471236_m1), Cxcl10 mRNA (Mm00445235_m1), Nfkb2 mRNA (Mm00479807_m1), Sln mRNA (Mm00481536_m1), Atf3 mRNA (Mm00476033_m1), Il6 mRNA (Mm00446190_m1; Mm00446191_m1), ND6 mRNA [Mm04225325_g1; qMmuCED0041184 (SybrGreen); qMmuCED0061740 (SybrGreen)], Tnf mRNA (Mm00443258_m1; Mm99999068_m1; Mm00443260_g1), p15 mRNA (Mm00483241_m1), p16 mRNA (Mm00494449_m1), and p21 mRNA (Mm04205640_g1). Three biological replicates were used for the WT and Grsf1cKO genotypes and assayed in triplicate. Quantification of PCR products was performed using standard curves for each probe/primer set and RNA from WT muscles, except in the case of Mgarp mRNA, which was very low in WT muscle, so the Grsf1cKO RNA was used here. Reactions were normalized to Gapdh mRNA levels, and the data were analyzed for significance using Student's t-test.

Western blot analysis

For Western blot analysis, protein lysates were prepared from cultured myoblasts using RIPA buffer (Thermo Fisher Scientific, 25 mM Tris-HCl pH 7.6, 150 mM NaCl, 1% NP-40, 1% sodium deoxycholate, 0.1% SDS). Protein lysates were also prepared from rectus femoris (RF) muscles that were harvested under a dissection microscope from euthanized 4-month-old Grsf1cKO and WT control mice. Muscles were then homogenized in RIPA buffer containing a protease inhibitor cocktail, PMSF, and sodium orthovanadate (Santa Cruz, SC-24948). Homogenates were centrifuged at 10,000 × g for 10 min, and the supernatants were collected. The protein concentration of the supernatants was quantified with the BioRad Protein Assay Dye Reagent (Bradford reagent, 5000006). Protein aliquots (30 μg from each sample) were resolved on 1.5-mm thick, 4-12% gradient bis-tris polyacrylamide gels (Invitrogen, NPO322PK2) and blotted onto nitrocellulose membranes (Bio-Rad, 1704270). Membranes were blocked in 5% milk (Bio-Rad, 1706404xtu) for 1 h at 25° C, and the primary and secondary antibodies were diluted in this same solution. Membranes were incubated fo 16 h with anti-GRSF1 antibody (Sigma Aldrich, #HPA036985, 1:1000; Abcam, ab205531, 1:3000) or anti-HSP90 antibody (Santa Cruz, SC-13119, 1:10000 or SC-101494, 1:2000) at 4° C for 16 h. An HRP-conjugated anti-rabbit secondary antibody (Kindle Biosciences, R1005, 1:10,000) was incubated with the membrane for 1 h at 25° C. Positive bands were visualized using the ECL (enhanced chemiluminescence) reagent (Millipore, WBKLS0500).

Generation of skeletal muscle-specific Grsf1 knockout mice

The generation and analysis of the mutant mice were approved by the Animal Care and Use Committee of the National Institute on Aging. C57BL/6N-A^tm1Brd Grsf1^{tm1a(EUCOMM)Wtsi}/WtsiIeg (Grsf1^tm1a) mice harboring a mutant allele in the Grsf1 locus were purchased from the European Mouse Mutant Archive (EMMA, EM:10950). In the mutant allele, exons 4 and 5 of Grsf1 were floxed by two LoxP sites (Figure 1A). Additionally, a LacZ and a Neo cassette, sandwiched by two FRT (Flippase recognition target) sites were inserted into intron 3. To generate conditional Grsf1-LoxP mice, we deleted the LacZ and Neo cassettes by crossing Grsf1^tm1a mice with FLPo mice (Stock No: 007844, Jackson Laboratory) expressing the Flippase widely under the Gt(ROSA)26Sor promoter. The resultant Grsf1-LoxP (Grsf1 floxed) mice were crossed further with the Myf5Cre mice (Stock No: 007893, the Jackson Laboratory) to generate skeletal muscle-specific Grsf1 knockout (Grsf1cKO) mice (Figure 1A). Genotyping was done by Transnetyx (Cordova, TN) following protocols from EMMA and Jackson Laboratories.

Muscle endurance test and whole-body composition analysis

Treadmill tests were carried out using the Exer 3/6 Animal Treadmill (Columbus Instruments), which was maintained with an 8.75% (5-degree) incline and 3 Hz, 0.15 mA, 163 V electric stimulus. For training, mice were subjected to the following scheme prior to the test: run 5 min at 5 m/min speed, followed by 5 min at 10 m/min, and 5 min at 5 m/min (first day); run 5 min at 5 m/min, followed by 5 min at 10 m/min, 5 min at 15 m/min, and 5 min at 5 m/min (second day); repeat the second day protocol (third day). For the test, mice were allowed to run for 5 min at 5 m/min, followed by 20 min at 10 m/min, 20 min at 15 m/min, 20 min at 20 m/min, 20 min at 25 m/min, and to exhaustion at 30 m/min. The test was ended and mice considered exhausted after they made contact with the electric stimulus 3 times within a period of 5 seconds. Whole body composition analysis was done in live animals using a Bruker Minispec Lf50 Body Composition Analyzer according to the manufacturer’s protocol.

Gene expression profiling by microarrays

Total RNA was isolated from frozen RF muscles from three 17-month-old Grsf1cKO and three WT control mice using Trizol (Ambion, 15596-026) and the Purelink RNA mini kit (Ambion, 12183018A) followed by on-column Purelink DNase treatment (Ambion, 12185-010). RNA concentration and quality were assessed by using a NanoDrop (ThermoFisher, Waltham, MA, USA) and on the Agilent Bioanalyzer RNA 6000 Chip (Agilent, Santa Clara, CA). Two-hundred ng total RNA was labeled using the Agilent Low-Input QuickAmp Labeling Kit, and purified and quantified following the manufacturer’s recommendations. A total of 600 ng Cy3-labeled cRNA was hybridized for 17 h to Agilent SurePrint G3 Mouse GE v2 8x60K microarrays (G4852B, Design ID 074809), containing 34,134 mRNA and 4,578 lncRNA probes. Following post-hybridization rinses, arrays were scanned using an Agilent SureScan microarray scanner at 3 micron resolution, and hybridization intensity data extracted from the scanned images using Agilent’s Feature Extraction Software. Individual sample signal intensities were sample-wise quantile normalized to obtain consistent distributions prior to obtaining log2-transformed z-scores and performing z-test statistics. Sample clustering, correlation, and principal component analysis (PCA) were used to assess data quality and identify possible outlier sample(s). Filtering at the sample level probe p-value enabled calculation of a Present-Absent Index (PA call) to identify globally detected probe sets, which were used for analysis of statistically differentially expressed genes. A global, one-way ANOVA test grouped on the sample group was used to filter out the most diverse probes in the sample set, and to ensure that the inter-sample group variance was smaller than the intra-sample group variance. Pairwise z-test comparisons for each comparison were performed to select probes with (1) an absolute z-ratio ≥ 1.5, (2) z-test p-value ≤ 0.01, (3) fdr ≤ 0.20, and (4) an average z-normalized gene expression in the comparison set > 0. Significant gene sets for each comparison were further studied using Ingenuity Pathway Analysis (IPA) suite and the gene expression deferential values are used to do gene set enrichment analysis against Gene Ontology and Pathway gene sets for functional analysis results by the PAGE algorithm. Raw and z-score normalized hybridization intensity data have been deposited with GEO under accession number GSE172311.

Histology and ROS detection

For histological analysis, RF muscles collected from Grsf1cKO and WT mice were immediately frozen in liquid nitrogen-chilled isopentane (Sigma-Aldrich, M32631) for 45 sec and stored at -80° C until use. Tissues were sectioned at -20° C at 5-8 μm onto silane-pre-treated slides (Sigma-Aldrich, S4651), dried at 25° C for >30 min and kept at -20° C until use. For general histology, frozen sections were stained with Mayer’s Hematoxylin solution (Sigma-Aldrich, MHS128) and Eosin Y solution (Sigma-Aldrich, HT1102128) according to the manufacturer’s recommendations.

ROS levels were assessed by using a dihydroethidium (DHE) fluorescent staining protocol adapted from a previous publication [32]. The frozen RF sections from three 17-month-old Grsf1cKO mice and three 17-months-old WT control mice were fixed in cold acetone (-20° C) for 3 min and then rinsed in 1X phosphate buffered saline (PBS, pH 7.4) three times for 5 min each time. A DHE stock solution (5 mM, Invitrogen, D23107) was diluted to 50 μM in 1X PBS, and this working solution was applied to the sections for 30 min at 37° C in a dark, humidified container. Slides were rinsed in 1X PBS three times and covered with a coverslip with SlowFade™ Diamond Antifade Mountant (Invitrogen, S36963). Images were acquired using a DeltaVision Microscope System (Applied Precision, 20x magnification) equipped with a 542-nm (TRITC) excitation laser. Heart sections from a 30 month old WT mouse were used as a positive control.

Immunofluorescence

For immunostaining of differentiated muscle cells, cells were incubated with MitoTracker (Invitrogen, #M7512) for 30 min at 50 nM, followed by fixation in 4% paraformaldehyde in PBS for 10 min and permeabilization in 0.5% TritonX-100 in 1X PBS for 5 min. Slides were then incubated with a GRSF1 antibody (Sigma Aldrich, HPA036985, 1:200) overnight at 4° C, followed by incubation in an Alexa Fluor 594 donkey anti-rabbit secondary antibody (Invitrogen, A21207, 1:1000) for 45 min at 25° C. Signals were visualized with the same DeltaVision microscope system described above but at 10x magnification and using 390-nm (DAPI) and 475-nm (FITC) excitation lasers in addition to the TRITC laser.
