The pan-cancer analysis identified DIAPH3 as a diagnostic biomarker of clinical cancer

Differential gene screening in GEO and TCGA databases

Differential genes were screened by R software, and two results were obtained. One thousand four hundred sixty-seven differential genes were screened in GSE29570, including 847 upregulated genes and 620 downregulated genes (Figure 1A), and 2,488 differential genes were screened in GSE63514, including 848 upregulated genes and 1,640 downregulated genes (Figure 1B). Seven hundred ninety-four differential genes were screened from the TCGA database, including 500 upregulated genes and 294 downregulated genes (Figure 1C). Using the online Venn diagram maker, we intersected the differentially expressed genes (DEGs) in the three data sets and further constructed the Venn diagram to obtain 146 common DEGs (Figure 1D). The gene symbol of 146 genes are shown in (Table 1).

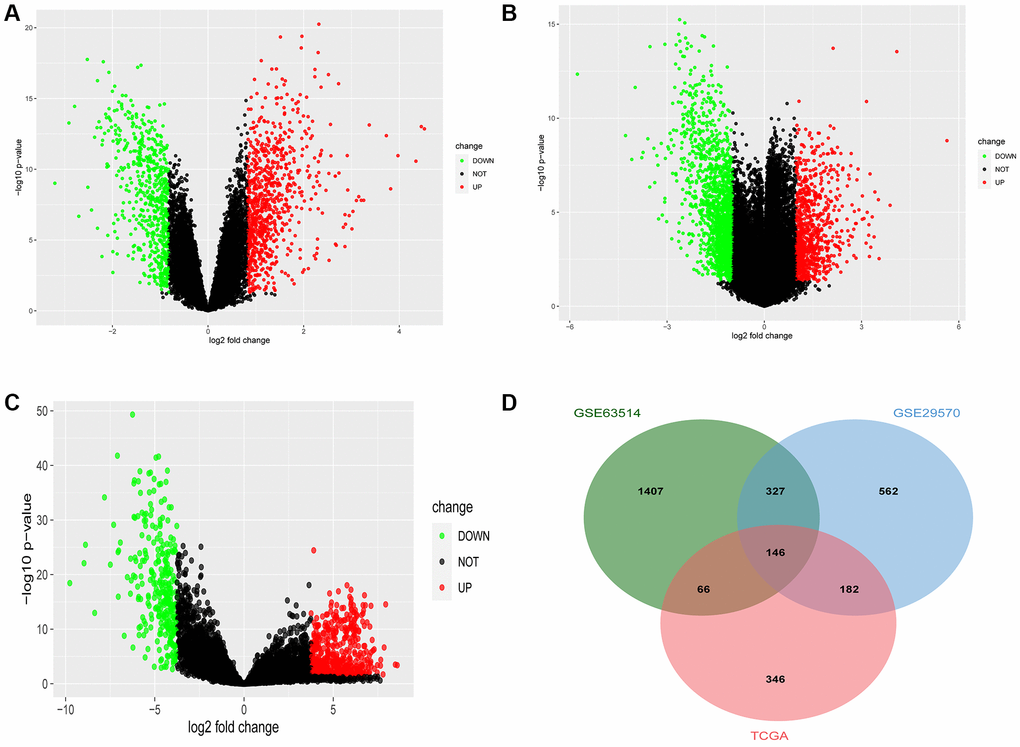

Figure 1. Common differentially expressed genes (DEGs) of Gene Expression Omnibus database (GEO) and The Cancer Genome Atlas (TCGA). (A) The DEGs in the GSE29570 database in cervical cancer. (B) The DEGs in the GSE63514 database in cervical cancer. (C) The DEGs in the TCGA database in cervical cancer. (D) The Venn diagram of DEGs in the above-mentioned three databases in cervical cancer.

Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analyses of DEGs

The results of functional enrichment analysis of these common DEGs revealed the presence of chromosome region, spindle, centrosome, and condensed chromosome in cellular components (Figure 2A) and their enrichment in organelle division, mitosis, chromosome segregation, and nuclear chromosome separation in biological processes (Figure 2B). Considering molecular function, the differential genes were enriched in tubulin binding, microtubule-binding, microtubule motility, and DNA-dependent ATP activity (Figure 2C). The results of the KEGG enrichment analysis revealed that the DEGs were mainly enriched in the cell cycle, p53 signal pathway, cell senescence, oocyte meiosis, and oocyte maturation mediated by progesterone (Figure 2D).

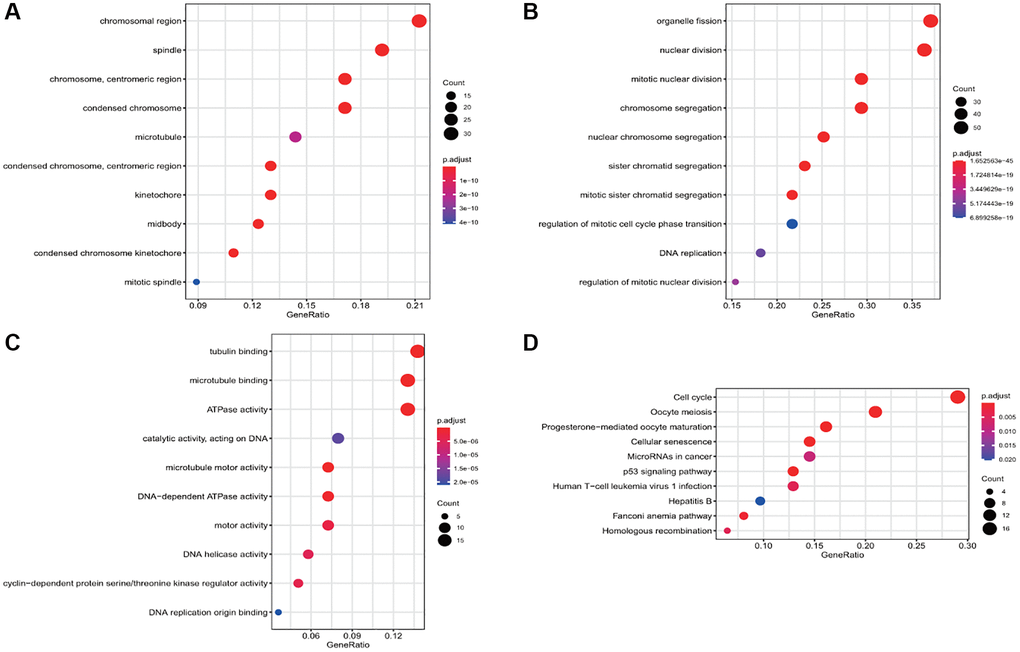

Figure 2. Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analyses of the differential gene. (A) The enrichment of common differential genes by GO_CC. (B) The enrichment of common differential genes by GO_BP. (C) The enrichment of common differential genes by GO_MF. (D) The enrichment of common differential genes by KEGG.

Enrichment analysis of differential gene diseases and construction of protein-protein interaction (PPI) network

The 146 common differential genes were added to the STRING database to construct a PPI network among differential genes. There were 4,307 nodes and 4,307 edges; the average node degree was 59; the clustering coefficient was 0.697 (P < 1.0e-16) (Figure 3A). These proteins were mainly involved in DNA replication, cell cycle regulation, p53 signal regulation, and cell senescence. The disease enrichment analysis of the aforementioned common differential genes demonstrated that the diseases related to these genes were mainly cervical intraepithelial neoplasia, invasive breast carcinoma, and anaplastic astrocytoma (Figure 3B).

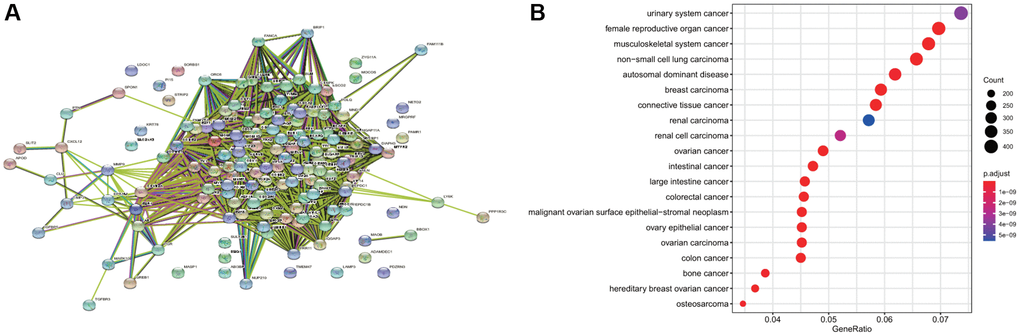

Figure 3. Disease enrichment of differential genes and protein-protein interaction (PPI). (A) The network map of PPI of common differential genes. (B) The enrichment of diseases related to common differential genes.

Construction and verification of prognostic characteristics of differential genes

The 146 genes were subjected to LASSO Cox regression analysis (Figure 4A) to construct a prognosis model. The clear formula of risk characteristics related to prognosis is indicated in the Figure 4. We included 13 genes (Figure 4B). The distribution of risk scores of these genes and the correlation between risk scores and survival data are depicted in a scatter chart. According to the median value of the risk scores in the TCGA cervical squamous cell carcinoma (CESC) cohort, patients were divided into low- and high-risk groups. Gene expression profiles of prognostic risk genes in the high-risk group and low-risk group are presented in the heat map (Figure 4C). Kaplan−Meier (KM) survival analysis revealed that the survival probability of the low-risk group was significantly higher (p < 0.0001) (Figure 4D). The area under the receiver operator characteristic (ROC) curve (AUC) of the 1,3- and 5-year survival probability risk scores was 0.784, 0.714, and 0.737, respectively, with good sensitivity and specificity (Figure 4E).

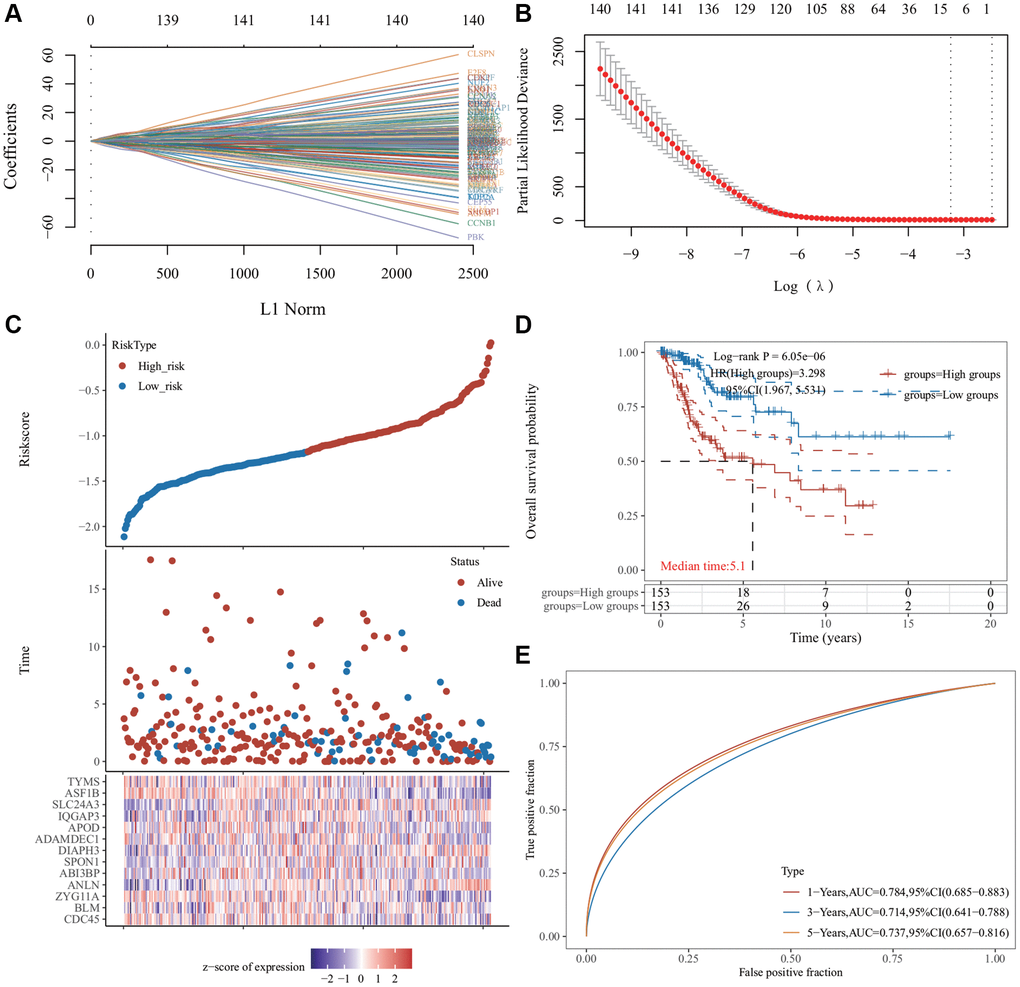

Figure 4. Least absolute shrinkage and selection operator (LASSO) regression analysis of common differentially expressed genes. (A) The LASSO coefficient curve. The abscissa represents the value of the independent variable lambda; the ordinate represents the coefficient of the independent variable. (B) It plots the relationship between partial likelihood deviation and log (λ) using the LASSO-Cox regression model. (C) The risk score, survival time, and survival status of the dataset selected, wherein the top represents the risk score scatter map from low to high, and different colors represent different risk groups; the middle represents the scatter plot distribution of survival time and survival state corresponding to different sample risk score; the bottom diagram represents the expression heat map of genes contained in the signature. (D) The Kaplan−Meier (KM) survival curve distribution of the risk model in the data set, in which different groups were tested using log-rank. High-risk (HR) represents the risk coefficient of the high-risk group relative to the low-risk group. HR >1 represents the risk model; HR <1 represents the protection model; 95% CI represents the HR confidence interval. The mean of time represents the time in which the survival rates of the HR and the low-risk groups were 50% (i.e., the median survival time) in unit years. (E) The receiver operator characteristic (ROC) curve and area under the ROC curve (AUC) of the risk model at different times, in which the higher the AUC value, the stronger the prediction ability of the model. (Riskscore = (−0.0685) × CDC45 + (−0.451) × BLM + (−0.2443) × ZYG11A + (0.465) × ANLN + (−0.1119) × ABI3BP + (0.1099) × SPON1 + (0.3614) × DIAPH3 + (−0.1009) × ADAMDEC1 + (−0.0683) × APOD + (0.3228) × IQGAP3 + (0.1394) × SLC24A3 + (−0.5415) × ASF1B + (−0.0287) × TYMS. The cutoff value of riskcore = −1.137103259).

Cox regression and survival analyses of 13 genes

Univariate analysis revealed that most of these genes were associated with prognosis and PT and PTM stages of tumor (Figure 5A). Multivariate regression analysis revealed that four genes (DIAPH3, BLM RecQ like helicase (BLM), IQ Motif Containing GTPase Activating Protein 3 (IQGAP3), and Thymidylate Synthetase (TYMS)) may be the independent prognostic factors (Figure 5B). KM survival analysis revealed that the abnormal increase of DIAPH3 in cervical cancer was an unfavorable factor for the prognosis of patients (Figure 5C–5F).

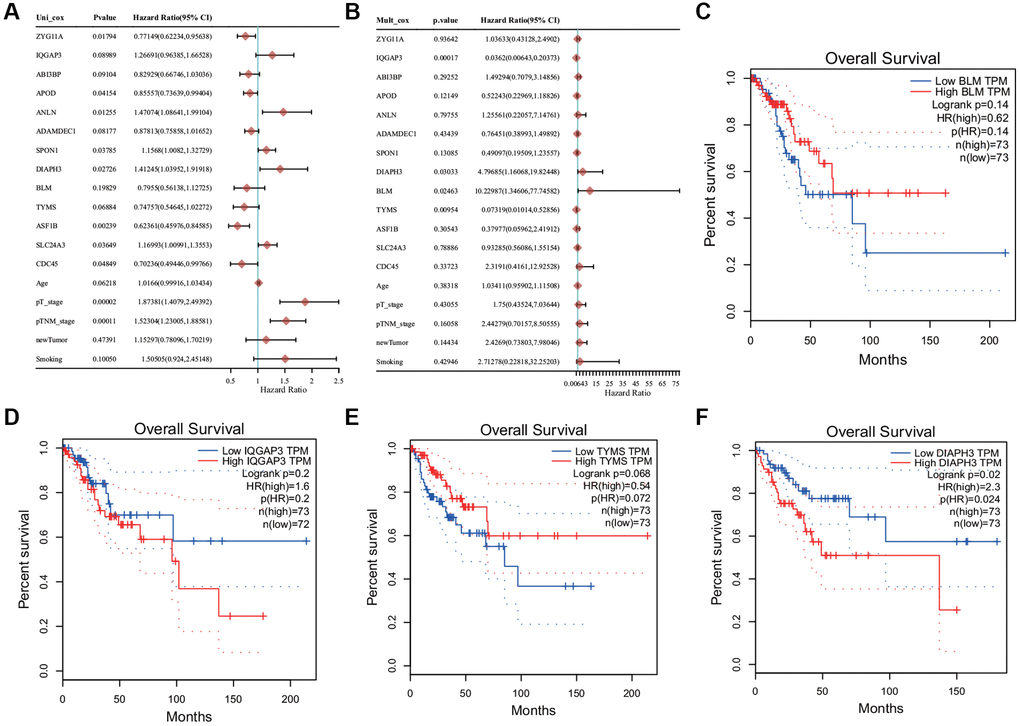

Figure 5. Cox regression analysis and survival analysis. (A) Univariate Cox regression analysis. (B) Multivariate Cox regression analysis. (C) The Kaplan−Meier (KM) survival analysis of BLM. (D) The KM survival analysis of IQ Motif Containing GTPase Activating Protein 3 (IQGAP3). (E) The KM survival analysis of Thymidylate Synthetase (TYMS). (F) KM survival analysis of Diaphanous Related Formin 3 (DIAPH3).

DIAPH3 single gene enrichment analysis

The single gene enrichment analysis of DIAPH3 revealed that its expression was negatively correlated with the p53 signal pathway and tumor inflammation (Figure 6A, 6B) and positively correlated with tumor proliferation, Myc target gene, angiogenesis, and transforming growth factor-beta (TGF-β) signal pathway (Figure 6C–6F).

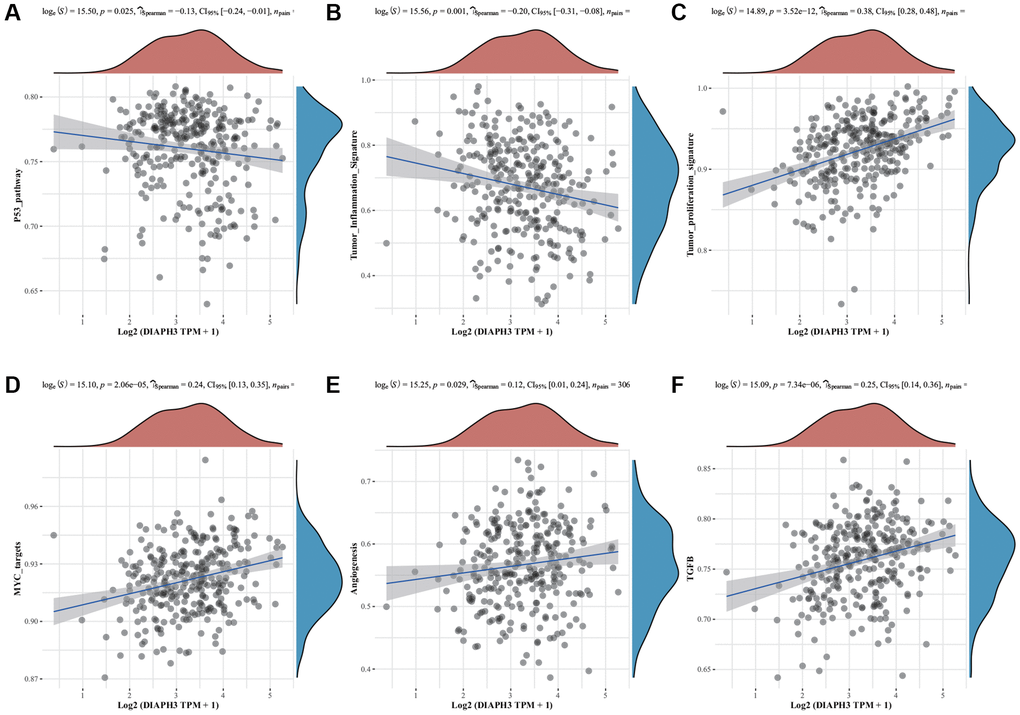

Figure 6. Single-sample Gene Set Enrichment Analysis (ssGSEA) of Diaphanous Related Formin 3 (DIAPH3). (A) The correlation between DIAPH3 expression and the p53 signal pathway. (B) The correlation between DIAPH3 expression and the characteristics of tumor inflammation. (C) The correlation between DIAPH3 expression and tumor proliferation. (D) The correlation between DIAPH3 expression and Myc target genes. (E) The correlation between DIAPH3 expression and angiogenesis. (F) The correlation between DIAPH3 expression and transforming growth factor-beta (TGF-β) signal pathway. The abscissa represents the gene expression; the ordinate represents the pathway score; the density curve on the right represents the distribution trend of the pathway score; the upper-density curve represents the distribution trend of gene expression. The uppermost value (the blue curve in the coordinate axis) represents the p-value, the correlation coefficient, and the correlation calculation method.

Pan-cancer analysis of DIAPH3

Expression of DIAPH3 in multiple tumors

Using the pan-cancer analysis in the Tumor Immune Estimation Resource (TIMER) database (Figure 7A) and TCGA database (Figure 7B), we observed that DIAPH3 was highly expressed in cervical cancer and multiple tumors.

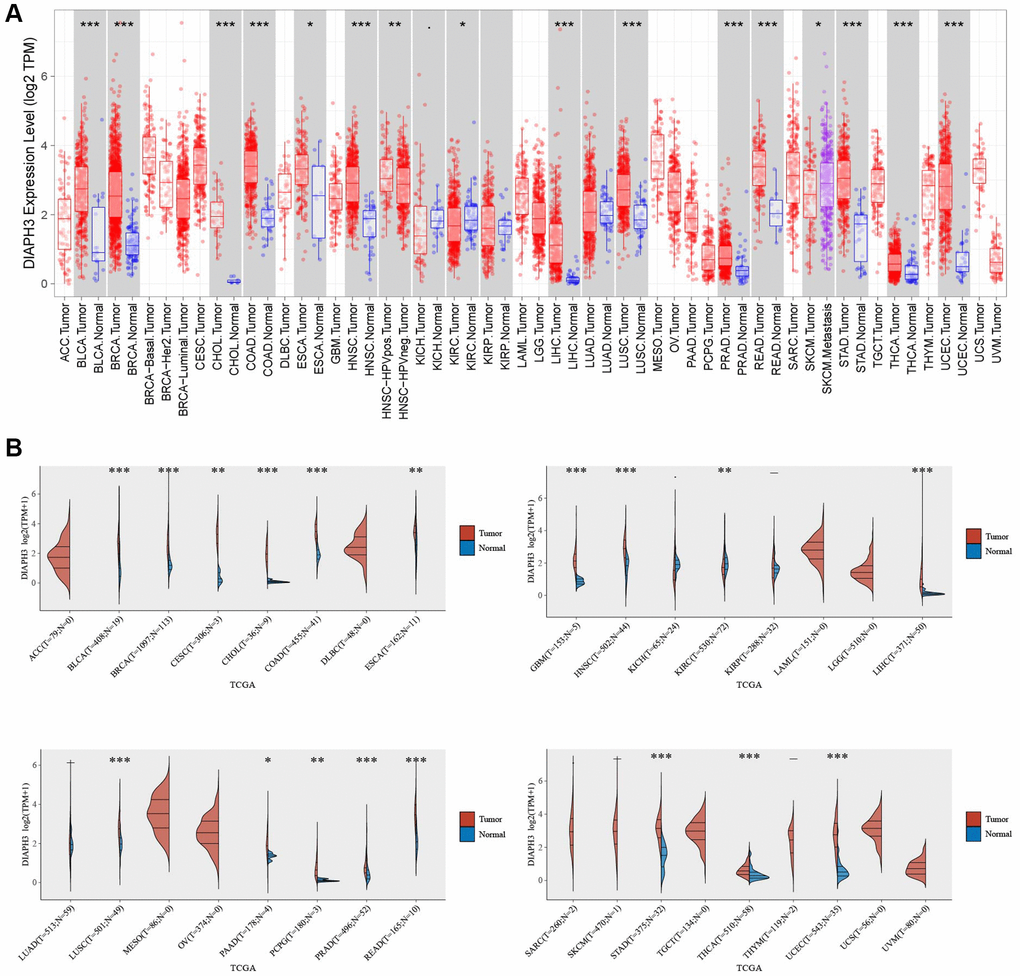

Figure 7. Pan-cancer analysis of Diaphanous Related Formin 3 (DIAPH3). (A) The expression of DIAPH3 in multiple tumors in the Tumor Immune Estimation Resource (TIMER) database. (B) The expression of DIAPH3 in multiple tumors in The Cancer Genome Atlas (TCGA) database. The abscissa represents the abbreviation of different cancers, and the ordinate represents the expression of DIAPH3. Red represents the tumor group; blue represents the normal group.

Immune infiltration associated with DIAPH3

Using online analysis tools, the relationship between the expression of DIAPH3 in cervical cancer and the infiltration of common immune cells was determined. The expression of DIAPH3 in cervical cancer was observed to be negatively correlated with B cell and macrophage infiltration by TIMER analysis (Figure 8A). xCell analysis predicted the relationship between the expression of DIAPH3 and the degree of infiltration of different immune cell subsets. In cervical cancer, the expression of DIAPH3 was negatively correlated with the B cell group, macrophage group, dendritic cell group, and effector T cell group and positively correlated with lymphoid progenitor cells and Th2 CD4+ T cells (Figure 8B).

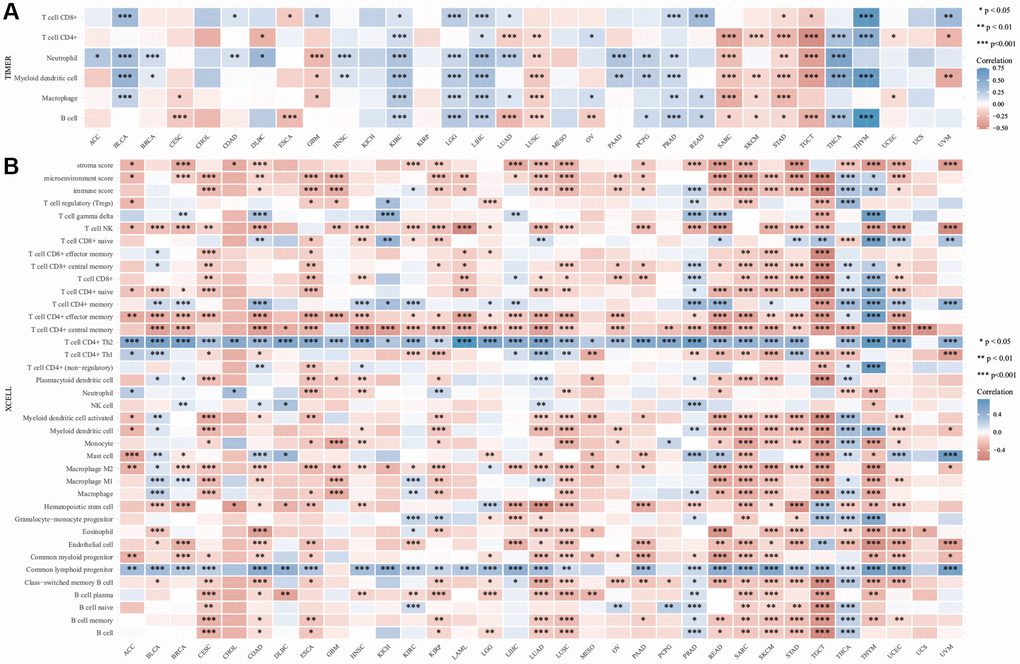

Figure 8. Immuno infiltration analysis of Diaphanous Related Formin 3 (DIAPH3). (A) The heat map of the correlation between Tumor Immune Estimation Resource (TIMER) immune infiltration score and DIAPH3 expression in multiple cancer tissues. (B) Analysis of the correlation between CIBERSOR immune infiltration score and DIAPH3 expression in multiple cancer tissues. The abscissa represents different cancer tissues; the ordinate represents different immune infiltration scores; different color represents correlation coefficient; the negative value represents negative correlation; the positive value represents positive correlation; the stronger the correlation is, the darker the color is; ^*p < 0.05, ^**p < 0.01, ^***p < 0.001; the asterisk represents the degree of importance ^*p. The significance of the two groups of samples passed the Wilcox test.

Immune checkpoints and TMB

The relationship between the expression of DIAPH3 and tumor immune checkpoints was analyzed by online analysis tools. The expression of DIAPH3 was observed to be negatively correlated with common immune checkpoints in testicular carcinoma and cytotoxic T-lymphocyte associated protein 4 (CTLA4), hepatitis A virus cellular receptor 2 (HAVCR2), lymphocyte-activated gene 3 (LAG3), programmed cell death 1 (PDCD1), and T cell immunoreceptors with Ig and ITIM domains (TIGIT) in cervical cancer. In hepatocellular carcinoma and lung adenocarcinoma, the expression of DIAPH3 was positively correlated with most immune checkpoints (Figure 9A). The TMB analysis revealed that the expression level of DIAPH3 was significantly correlated with TMB in many tumors (Figure 9B).

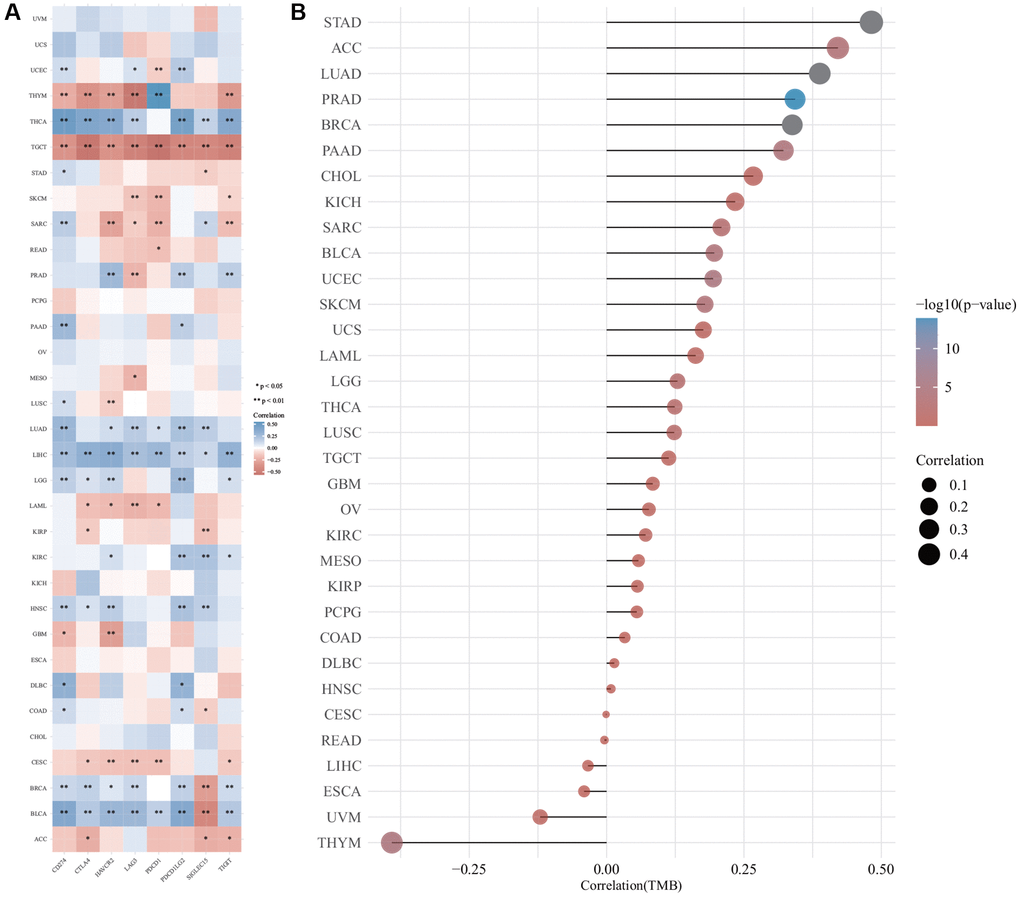

Figure 9. The correlation of Diaphanous Related Formin 3 (DIAPH3) expression was analyzed by immune checkpoint and tumor mutation burden (TMB). (A) The heat map of immune checkpoint and DIAPH3 expression in different cancer tissues, in which abscissa represents different immune checkpoint genes; ordinate represents different cancer tissues. Each box in the picture represents the correlation analysis of selected gene expression and immune checkpoint-related gene expression in the corresponding tumor, ^*p < 0.05, ^**p < 0.01, ^***p < 0.001. The asterisk represents the degree of importance (^*p), and different colors represent the change in correlation coefficient. (B) The correlation analysis of TMB and DIAPH3 gene expression. The abscissa represents the correlation coefficient between gene and TMB; the ordinate represents different tumors; dot size represents correlation coefficient; different colors represent significant p-value; the deeper the blue color in the diagram, the smaller the p-value.

The expression of DIAPH3 in cervical cancer

We used the western blot to verify the expression of DIAPH3 in three pairs of cervical cancer and adjacent normal tissues (Figure 10A). Similarly, the quantitative reverse-transcription-polymerase chain reaction (RT qPCR) assay detected the expression of DIAPH3 in four pairs of cervical cancer and adjacent normal tissues (Figure 10B). The expression of DIAPH3 in cancer tissue was higher than that in normal tissues. The immunohistochemical experiment verified the expression of DIAPH3 in 20 pairs of cervical cancer and normal cervical tissues. In cervical cancer (Figure 10C) and normal tissues (Figure 10D), the positive rates of DIAPH3 were 90% (18−20%) and 35% (7−20%), respectively. Conclusively, the expression of DIAPH3 in cervical cancer is significantly higher than that in normal cervical tissue.

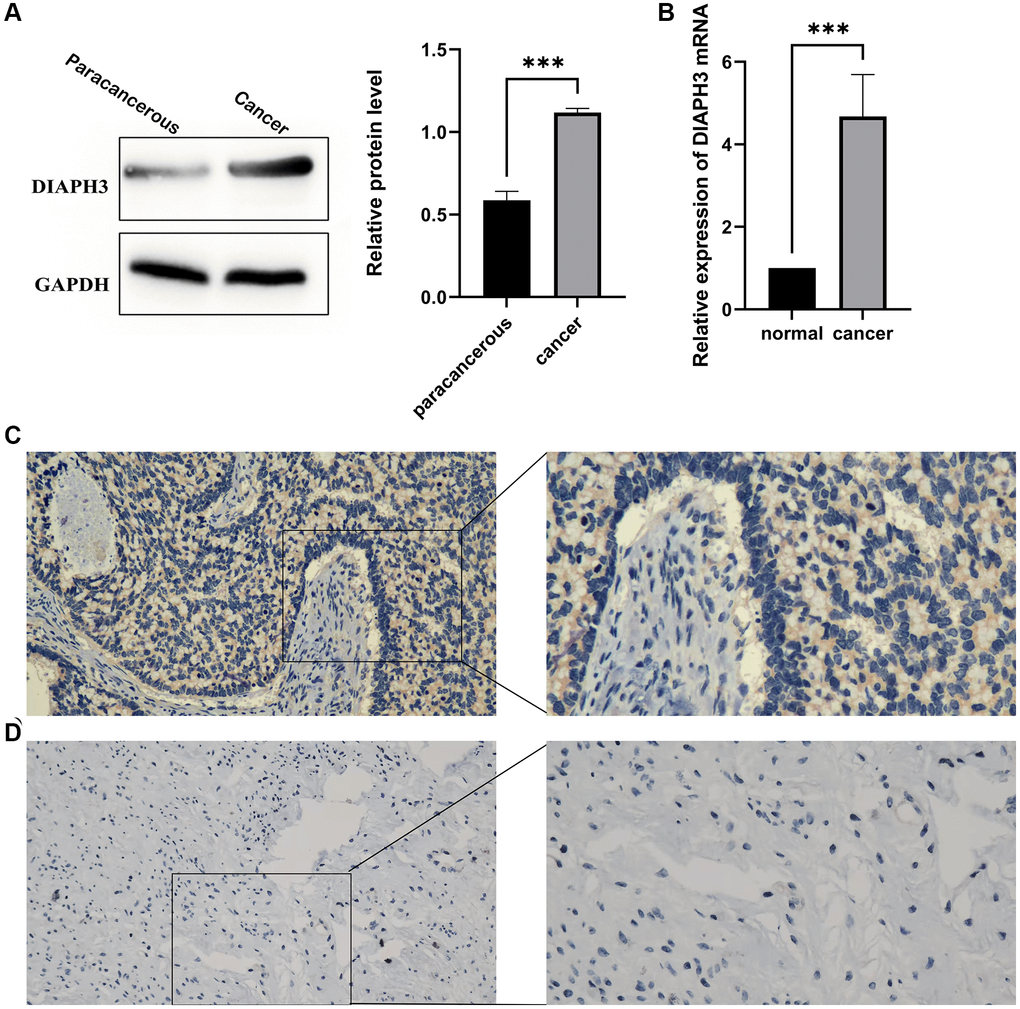

Figure 10. Expression of Diaphanous Related Formin 3 (DIAPH3) in cancer and normal tissues. (A) Western blot to verify the expression of DIAPH3 in cancer and normal cervical tissues (the experiment was repeated thrice). (B) Quantitative reverse transcription-polymerase chain reaction (qRT-PCR) to verify the expression of DIAPH3 in cancer and normal cervical tissues (the experiment was repeated four times). (C) The expression of DIAPH3 in cancer tissue verified by immunohistochemistry. (D) The expression of DIAPH3 in normal cervical tissue verified by immunohistochemistry. ^*p < 0.001.

Gene expression matrix information

The gene chip data related to cervical cancer were searched in the GEO database using the keyword “cervical cancer.” GSE29570 and GSE63514 gene chips were used for data mining. GSE29570 chips provided by Medina-Martinez. I, Guardado-Estrada. M, Berumen. J et al. included 45 cervical cancer samples and 17 healthy cervical tissue samples [23] whereas GSE63514 chips provided by denBoon. J, Ahlquist. P, Wentzensen. N et al. included 24 normal cervical tissue samples and 104 cervical cancer samples [24].

TCGA database screening

GDCRNATools package [25] in R software (version: ×64 4.1.1) was used for cervical cancer-related data mining of TCGA (https://www.cancer.gov/tcga). and included three normal cervical tissue samples and 306 cervical cancer samples, and cervical squamous cell carcinoma and endocervical adenocarcinoma were both included under CESC.

Screening of differential genes

The differential genes were screened by R software (version: ×64 4.1.1) using the limma package; [26] the screening condition was as follows: |Log2FC| > 2; adjusted p-value < 0.05).

Bioinformatic analysis of differential genes

The selected DEGs were analyzed by GO and KEGG using clusterProfiler package [27] in R software, and the selected differential genes were annotated by GO and enriched by the KEGG signaling pathway. Simultaneously, the association between differential genes and diseases was analyzed by the DGN database. The screened differential genes were uploaded to the STRING database website (https://cn.string-db.org/); the possible protein interactions were calculated; a PPI network was constructed.

Prognostic analysis of differential genes

Based on the expression of prognostic DEGs and survival data, the LASSO Cox regression analysis by R package “glmnet” was performed to further select the most useful prognostic markers, and the penalty regularization parameter lambda was selected based on ten cross-validations. By multiplying the expression level of a gene by its corresponding Cox regression coefficient, the risk score for each patient was calculated using the following formula: Risk score = esum (each gene’s expression × corresponding coefficient). The patients were separated into high- and low-risk groups based on the median value of the risk score. KM survival curves and a time-dependent ROC curve analysis were applied to compare the survival between the above-mentioned two groups and evaluate the model’s predictive ability using the “survivalROC” package in R, respectively. A p-value of < 0.05 was considered statistically significant (https://www.aclbi.com/static/index.html#/advance_prognosis). The TCGA-CESC dataset was used to construct the prognosis model.

Single gene pan-cancer analysis and immune correlation analysis

The pan-cancer expression of Diaphanous Related Formin 3 (DIAPH3) was analyzed by the Tumor Immune Estimation Resource (TIMER) (http://timer.cistrome.org/) database and TCGA database.

Expression analysis

All the analyses and R package were implemented using R version 4.0.3, two-group data performed by Wilcox test. p-values < 0.05 were considered statistically significant (^*p < 0.05).

Immune score evaluation analysis

To validate the results of immune score evaluation, we used the immuneeconv package.

Immune checkpoint analysis

Sialic acid-binding immunoglobulin (Ig)-like lectin 15, TIGIT, CD274, hepatitis A virus cellular receptor 2, programmed cell death 1 (PDCD1), cytotoxic T-lymphocyte associated protein 4, LAG3, and PDCD1 ligand 2 were selected to be immune-checkpoint–relevant transcripts, and the expression values of these eight genes were extracted.

Tumor mutation burden (TMB) analysis

RNA-sequencing expression profiles and corresponding clinical information for CESC were downloaded from the TCGA dataset subjected to TMB analysis.

All these analyses used assistance for clinical bioinformatics (https://www.aclbi.com/static/index.html#/).

Single gene pathway enrichment analysis

DIAPH3 was analyzed by R software GSVA package, regarding parameter as method = ‘ssgsea’. The correlation between genes and pathway scores was analyzed by Spearman correlation. All the analysis methods and R packages were implemented by R version 4.0.3. A p-value of < 0.05 was considered statistically significant.

Collection of clinical tissue samples

From the affiliated hospital of Guizhou Medical University, 20 patients with cervical cancer, who did not undergo radiotherapy and chemotherapy, were included, and their cancer tissues and adjacent normal tissues were preserved at −80°C. All patients signed the consent form. The Ethics Committee of the affiliated hospital of Guizhou Medical University approved this experiment.

Western blot analysis

The protein was extracted using radioimmunoassay buffer (Solarbio, Beijing, and China). The bicinchoninic acid assay (Sigma) reagent was used for quantitative analysis. After sodium dodecyl sulfate-polyacrylamide gel electrophoresis, the protein was transferred to a polyvinylidene fluoride membrane (280 mA, 2 h). After sealing with 5% skimmed milk for 2 h, the membrane was incubated with the first antibody overnight at 4°C. The secondary antibody was incubated at room temperature (22–25°C) for 1 h. The immunoreactive zone was observed with an enhanced chemiluminescence reagent (Millipore). The antibodies used are as follows: DIAPH3 (1:10000, ab245660, Abcam), (glyceraldehyde 3-phosphate dehydrogenase, GAPDH) (1:10000, ab8245, Abcam).

Immunohistochemical analysis

The paraffin sections were dewaxed, repaired with antigen (ethylenediaminetetraacetic acid repair solution, pH = 8.0), incubated with an appropriate amount of endogenous peroxidase inhibitor at room temperature, and added with an appropriate amount of the first antibody DIAPH3 (1:10014342-1-AP, Proteintech). It was incubated at 37°C for 60 minutes, added with an appropriate amount of goat anti-mouse/rabbit IgG polymer, and incubated at room temperature for 20 minutes. An appropriate amount of freshly prepared 3,3-diaminobenzidine color-developing solution was added, further rinsed with tap water, incubated with hematoxylin dye solution for 20 s, differentiated, and rinsed back to blue.

Quantitative reverse transcription-polymerase chain reaction (qRT-PCR) analysis

RNA was extracted from CC cells by Omega kit. Then the reverse transcription process was carried out according to the instructions of PrimeScript RT Reagent (TaKaRa, Japan) and all PCRs were conducted with SYBR Premix Ex Taq Kit (TaKaRa, Japan) according to the manufacturer’s instructions. β-Actin was used as a normal control. The 2^ΔΔCT method was used to quantify the relative expression. The primers involved were as follows: DIAPH3-F:5′-GAAAACACGGTTGGCAGAGTCT-3′; DIAPH3-R:5′-GTGGCCGTAGTCTCTTCACA-3′; GAPDH-F:5′-GCCTCAAGATCATCAGCAATG; GAPDH-R:5′CCACGATACCAAAGTTGTCATGG-3′.

Statistical analysis

We statistically analyzed the data using Student’s t-test. Survival analysis was calculated by KM plots. A p-value of < 0.05 represented a statistically significant difference. The association of DIAPH3 with clinicopathological characteristics was analyzed by the χ² test. All statistical analyses were performed with R software (Version 4.0.3) or GraphPad Prism software (Version 9.3).

Data availability statement

The data used in the study was obtained via an online database. The GSE29570 and GSE63514 dataset was collected from the GEO (https://www.ncbi.nlm.nih.gov/geo/) with additional datasets obtained from the Cancer Genome Atlas (https://www.cancer.gov/about-nci/organization/ccg/research/structural-genomics/tcga).
