Research Paper Volume 15, Issue 4 pp 1107—1129

Prognostic significance of epidermal growth factor receptor and programmed cell death-ligand 1 co-expression in esophageal squamous cell carcinoma

Guoxiang Jiang1, , Yandong Miao2, , Zhenbo Wang3, , Qi Zhang4, , Ping Zhou4, , Fang Zhang5, ,

  • 1 Department of Oncology Radiotherapy, Yantaishan Hospital, Yantai 264025, Shandong, China
  • 2 Department of Oncology, Yantai Affiliated Hospital of Binzhou Medical University, Yantai 264000, Shandong, China
  • 3 Department of Radiation Oncology, Binzhou Affiliated Hospital of Binzhou Medical University, Binzhou 256603, Shandong, China
  • 4 Department of Pathology, The First Hospital of Zibo, Zibo 255200, Shandong, China
  • 5 Department of Radiation Oncology, Yantai Affiliated Hospital of Binzhou Medical University, Yantai 26400, Shandong, China

Received: October 14, 2022       Accepted: February 6, 2023       Published: February 20, 2023      

https://doi.org/10.18632/aging.204535
How to Cite

Copyright: © 2023 Jiang et al. This is an open access article distributed under the terms of the Creative Commons Attribution License (CC BY 3.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Abstract

Our study aimed to observe the correlation between epidermal growth factor receptor (EGFR) and programmed cell death-ligand 1 (PD-L1) expression and evaluate prognostic potential of their co-expression in esophageal squamous cell carcinoma (ESCC) patients. EGFR and PD-L1 expression were evaluated by immunohistochemical analysis. We revealed that there was a positive correlation between EGFR and PD-L1 expression in ESCC (P = 0.004). According to the positive relationship between EGFR and PD-L1, all patients were divided into four groups: EGFR (+)/PD-L1 (+), EGFR (+)/PD-L1 (−), EGFR (−)/PD-L1 (+), and EGFR (−)/PD-L1 (−). In 57 ESCC patients without surgery, we found that EGFR and PD-L1 co-expression were statistically correlated with a lower objective response rate (ORR) (p = 0.029), overall survival (OS) (p = 0.018) and progression-free survival (PFS) (p = 0.045) than those with one or none positive protein. Furthermore, PD-L1 expression has a significant positive correlation with infiltration level of 19 immune cells, EGFR expression was significantly correlated with infiltration level of 12 immune cells. The infiltration level of CD8 T cell and B cell were negatively correlated with EGFR expression. On the contrary with EGFR, the infiltration level of CD8 T cell, and B cell were positively correlated with PD-L1 expression. In conclusion, EGFR and PD-L1 co-expression could predict poor ORR and survival in ESCC without surgery, indicating a subset of patients who may benefit from a combination of targeted therapy against EGFR and PD-L1, which may expand the population benefiting from immunotherapy and reduce the occurrence of hyper progressive diseases.

Introduction

Esophageal cancer (EC) has the tenth incidence and sixth cancer mortality worldwide, with an estimated 604,100 new cases and 544,076 new deaths per year in the world [1]. At present, the main treatments for EC include surgery, radiotherapy, chemotherapy, and targeted therapy. However, due to limited curative effects and serious adverse reactions, the results are still unsatisfactory [2]. Byiringiro et al. have reported that the overall median survival of 5170 patients who underwent esophagectomy was 42 months [3]. Pai et al. analyzed 126 patients with neoadjuvant chemoradiotherapy and found that 3-year overall survival (OS) is 45%~54% and disease free survival (DFS) 34%~37% [4]. Thus, new prognostic markers and therapeutic strategies are urgently needed.

The epidermal growth factor receptor (EGFR) is a 170-kDa transmembrane receptor and belongs to the ERBB growth factor receptor family. Epidermal growth factor (EGF) is its ligand. After the binding of the two, the receptor will dimerize or heterodimerize, and then autophosphorylate, which activates the downstream pathways, such as PI3K-AKT-mTOR, finally triggering the signal cascade of cell proliferation, differentiation, and survival [5, 6]. It was reported that a high EGFR gene copy number was associated with advanced stage, more lymph node metastasis, and shorter survival time in EC patients [7]. Consistently, EGFR overexpression and amplification were often seen in esophageal squamous cell carcinoma (ESCC) and associated with advanced stage and shorter survival [8].

Interestingly, some studies found that the expression of programmed cell death-ligand 1 (PD-L1) was upregulated by EGFR. Zhang et al. [9] confirmed that in ESCC cell lines with EGFR high expression when the EGFR signal was activated, the expression of PD-L1 was significantly increased, and when the EGFR tyrosine kinase inhibitor was applied, the expression was significantly inhibited. Similarly, Ng et al. [10] demonstrated that the expression of PD-L1 was upregulated by EGFR and its regulation was through the EGFR/ERK pathway in ESCC. By activating the EGFR signal, the expression of PD-L1 increased significantly in an EGFR-dependent manner, and when the EGFR signal was blocked, the expression of PD-L1 dropped sharply. EGFR–AKT, EGFR–Erk, and EGR–PLC-γ signaling pathways may upregulate the expression of PD-L1 [11].

It has been proved that PD-L1 is a ligand of the programmed cell death protein 1 (PD-1) and is expressed in many kinds of tumor cells. PD-L1 on tumor cells binds to the PD-1 receptor on T cells. After the combination, it inhibits the migration and proliferation of T cells and helps tumor cells escape from host immune surveillance, which causes the immune system to be unable to kill tumor cells, thus promoting their growth [12, 13]. Previous research has revealed that PD-L1 was overexpressed and was associated with poor clinical outcomes in ESCC patients [1416].

Nonetheless, the relationship between EGFR and PD-L1 and the prognostic value of their co-expression are not yet known in ESCC patients. We observed the correlation between EGFR and PD-L1 expression and also assessed the prognostic potential of their co-expression in ESCC patients. Our study aimed to provide a new basis for determining potential prognostic predictors and the combination of targeted EGFR therapy and immunotherapy targeting PD-1/PD-L1, which may expand the population benefiting from immunotherapy and reduce the occurrence of hyper-progressive diseases.

Results

Patient clinicopathologic characteristics

A total of 154 ESCC patients (136 men and 18 women) were enrolled in this research retrospectively. The basic condition and clinical characteristics of the patients were summarized in Table 1. The median age of the patients was 65 years (range, 43–92 years) at the date diagnosed. There were 97 patients receiving esophagectomy and 57 patients without esophagectomy.

Table 1. Demographic and clinicopathologic features of 154 ESCC patients and correlation with PD-L1 expression.

ParametersNo. of cases (Percentage)PD-L1P value
Age (years)≤6588 (57%)55410.133
>6566 (43%)2632
SexMale136 (88%)65630.317
Female18 (12%)1610
TNM stageI–II59 (38%)24360.012
III–IV95 (62%)5737
T stageT1/268 (44%)2890.001
T3/486 (56%)5364
Status of lymph nodesNegative59 (38%)23360.008
Positive95 (62%)5837
Primary tumor locationUpper31 (20%)10210.030
Middle58 (38%)3522
Lower65 (42%)3630
EGFR expressionNegative98 (64%)43550.004
Positive56 (36%)3818
Smoking historyNo53 (34%)29240.272
Yes101 (66%)5249
Alcohol historyNo75 (49%)39360.885
Yes79 (51%)4237
SurgeryNo57 (37%)20370.001
Yes97 (63%)6136

The expression of EGFR and PD-L1 proteins

The positive rates of EGFR and PD-L1 were 36.4% (56/154) and 52.6% (81/154), respectively by IHC staining. Among all ESCC patients, 38 (24.7%) patients were EGFR (+)/PD-L1 (+), 18 (11.7%) patients were EGFR (+)/PD-L1 (−), 43 (27.9%) patients were EGFR (−)/PD-L1 (+), and 55 (35.7%) patients were EGFR (−)/PD-L1 (−). Representative PD-L1 and EGFR staining patterns are shown in Figures 1 and 2. We revealed that there was a positive correlation between EGFR and PD-L1 expression (P = 0.004) (Table 1).

EGFR representative pictures by immunostaining in ESCC. Scale bar represents 50 μm. (A) Staining score 0 negative pattern for EGFR; (B) Staining score 2 negative pattern for EGFR; (C) Staining score 12 negative pattern for EGFR. Abbreviations: EGFR: Epidermal Growth Factor Receptor; ESCC: Esophageal Squamous Cell Carcinoma.

Figure 1. EGFR representative pictures by immunostaining in ESCC. Scale bar represents 50 μm. (A) Staining score 0 negative pattern for EGFR; (B) Staining score 2 negative pattern for EGFR; (C) Staining score 12 negative pattern for EGFR. Abbreviations: EGFR: Epidermal Growth Factor Receptor; ESCC: Esophageal Squamous Cell Carcinoma.

PD-L1 representative pictures by immunostaining in ESCC. (A) Negative pattern for PD-L1; (B) Positive pattern for PD-L1; (C) the positive control staining (Placental tissue). Abbreviations: ESCC: Esophageal Squamous Cell Carcinoma; PD-L1: Programmed Death-Ligand 1.

Figure 2. PD-L1 representative pictures by immunostaining in ESCC. (A) Negative pattern for PD-L1; (B) Positive pattern for PD-L1; (C) the positive control staining (Placental tissue). Abbreviations: ESCC: Esophageal Squamous Cell Carcinoma; PD-L1: Programmed Death-Ligand 1.

Differential expression analysis of EGFR and PD-L1 in ESCC

The analysis by Sento academic online tool showed that the expression of the EGFR gene was higher in unpaired and paired ESCC tissues than in corresponding normal tissues, but there is no statistical difference (P > 0.05, Supplementary Figure 1A, 1B). The expression of the PD-L1 gene was significantly higher in unpaired ESCC tissues than in corresponding normal tissues, but there is no statistical difference in the paired group (Supplementary Figure 1C, 1D).

The relationship between EGFR and PD-L1 with clinicopathologic characteristics

In our study, we analyzed the relationship between EGFR and clinical characteristics, and the correlation between PD-L1 and patients’ characteristics, respectively. Table 1 showed that surgery, TNM stage, T stage, the status of lymph nodes, and primary tumor location were related to PD-L1 expression (P < 0.05). Table 2 showed that the T stage, the status of lymph nodes, and primary tumor location were related to PD-L1 expression (P < 0.05). Apart from them, no obvious correlation was observed between EGFR and PD-L1 expression with clinicopathologic characteristics, as shown in Tables 1 and 2.

Table 2. The correlation between epidermal growth factor receptor with clinicopathologic characteristics in ESCC patients.

ParametersEGFRP value
Age (years)≤6531650.177
>652533
SexMale47810.839
Female917
Tumor locationUpper6250.020
Middle1939
Low3134
TNM stageI–II19410.333
III–IV3757
T stageT1/225120.000
T3/43186
Status of lymph nodesNegative15440.026
Positive4154
Smoking historyYes37640.923
No1934
Alcohol historyYes26530.361
No3045
PD-L1+38430.004
1855
SurgeryNo21360.925
Yes3562

Furthermore, using the public database, we found that EGFR was significantly overexpressed in the following subgroups: squamous cell carcinoma, previously received radiation therapy, non-Barretts esophagus, BMI ≤25, alive patients, and non-columnar metaplasia (P < 0.05, Figure 3). Similarly, we found that PD-L1 was significantly overexpressed in the squamous cell carcinoma and non-Barretts esophagus subgroup. But there is no statistical difference in the radiation therapy, BMI, survival event, and columnar metaplasia (P > 0.05, Figure 4).

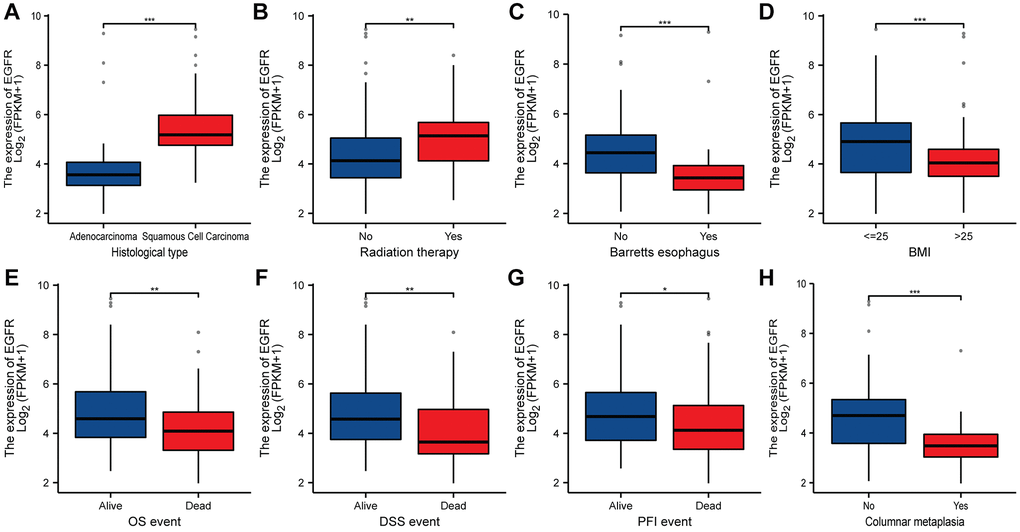

The relationship between EGFR and clinicopathologic characteristics in ESCC. (A) Histological type. (B) Radiation therapy. (C) Barretts esophagus. (D) BMI. (E) OS event. (F) DSS event. (G) PFI event. (H) columnar metaplasia. *, **, *** represents P P P

Figure 3. The relationship between EGFR and clinicopathologic characteristics in ESCC. (A) Histological type. (B) Radiation therapy. (C) Barretts esophagus. (D) BMI. (E) OS event. (F) DSS event. (G) PFI event. (H) columnar metaplasia. *, **, *** represents P < 0.05, P < 0.01, P < 0.001, respectively. Abbreviations: BMI: Body Mass Index; OS: Overall Survival; DSS: Disease-Specific Survival; PFI: Progression-Free Interval.

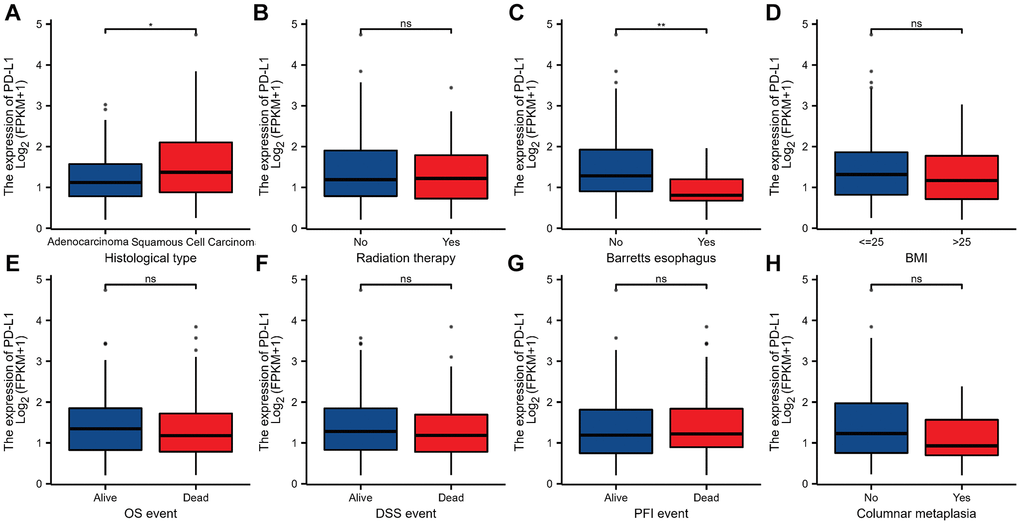

The relationship between PD-L1 and clinicopathologic characteristics in ESCC. (A) Histological type. (B) Radiation therapy. (C) Barretts esophagus. (D) BMI. (E) OS event. (F) DSS event. (G) PFI event. (H) columnar metaplasia. *, **, *** represents P P P

Figure 4. The relationship between PD-L1 and clinicopathologic characteristics in ESCC. (A) Histological type. (B) Radiation therapy. (C) Barretts esophagus. (D) BMI. (E) OS event. (F) DSS event. (G) PFI event. (H) columnar metaplasia. *, **, *** represents P < 0.05, P < 0.01, P < 0.001, respectively. ns represents “No significant”. Abbreviations: BMI: Body Mass Index; OS: Overall Survival; DSS: Disease-Specific Survival; PFI: Progression-Free Interval.

Survival analysis

In the current study, we analyze the relationship between PD-L1 or EGFR with OS and PFS of all ESCC patients. Disappointingly, neither EGFR nor PD-L1 expression was an independent prognostic factor for survival by the Kaplan-Meier method and log-rank test. The result is shown in Figure 5. Similar results are obtained from the survival analysis in the public database (Figure 6A6F).

The nomogram was used to predict the probabilities of 1-, 3- and 5-year OS by incorporating the TNM stage, smoker history, alcohol history, EGFR expression, and PD-L1 expression. Each factor was assigned a score in proportion to its contribution to the risk of survival. The calibration curve showed that the actual survival time is in agreement with the predicted survival time (Figure 6G, 6H).

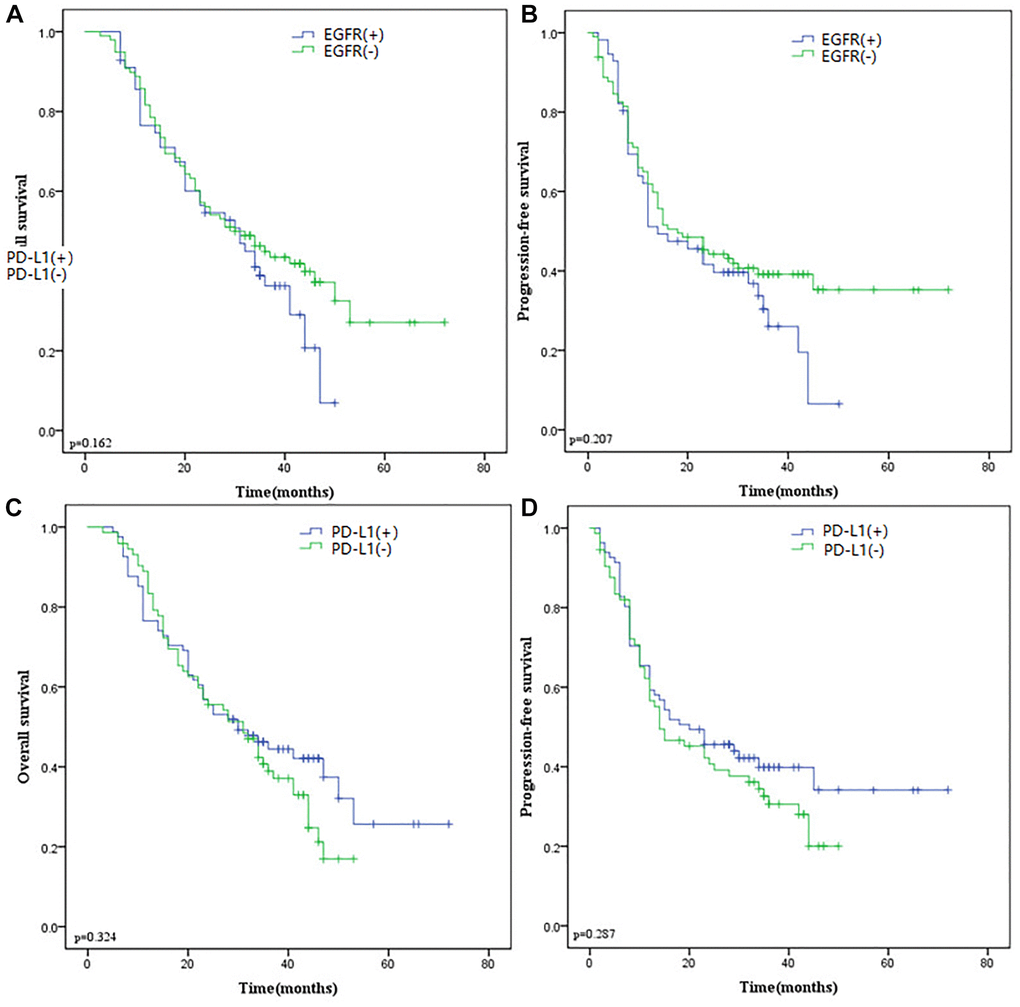

(A) Kaplan-Meier curves of OS according to EGFR expression. (B) Kaplan-Meier curves of PFS according to EGFR expression. (C) Kaplan-Meier curves of OS according to PD-L1 expression. (D) Kaplan-Meier curves of PFS according to PD-L1 expression. Abbreviations: OS: Overall Survival; EGFR: Epidermal Growth Factor Receptor; PD-L1: Programmed Death-Ligand 1; PFS: Progression-Free Survival.

Figure 5. (A) Kaplan-Meier curves of OS according to EGFR expression. (B) Kaplan-Meier curves of PFS according to EGFR expression. (C) Kaplan-Meier curves of OS according to PD-L1 expression. (D) Kaplan-Meier curves of PFS according to PD-L1 expression. Abbreviations: OS: Overall Survival; EGFR: Epidermal Growth Factor Receptor; PD-L1: Programmed Death-Ligand 1; PFS: Progression-Free Survival.

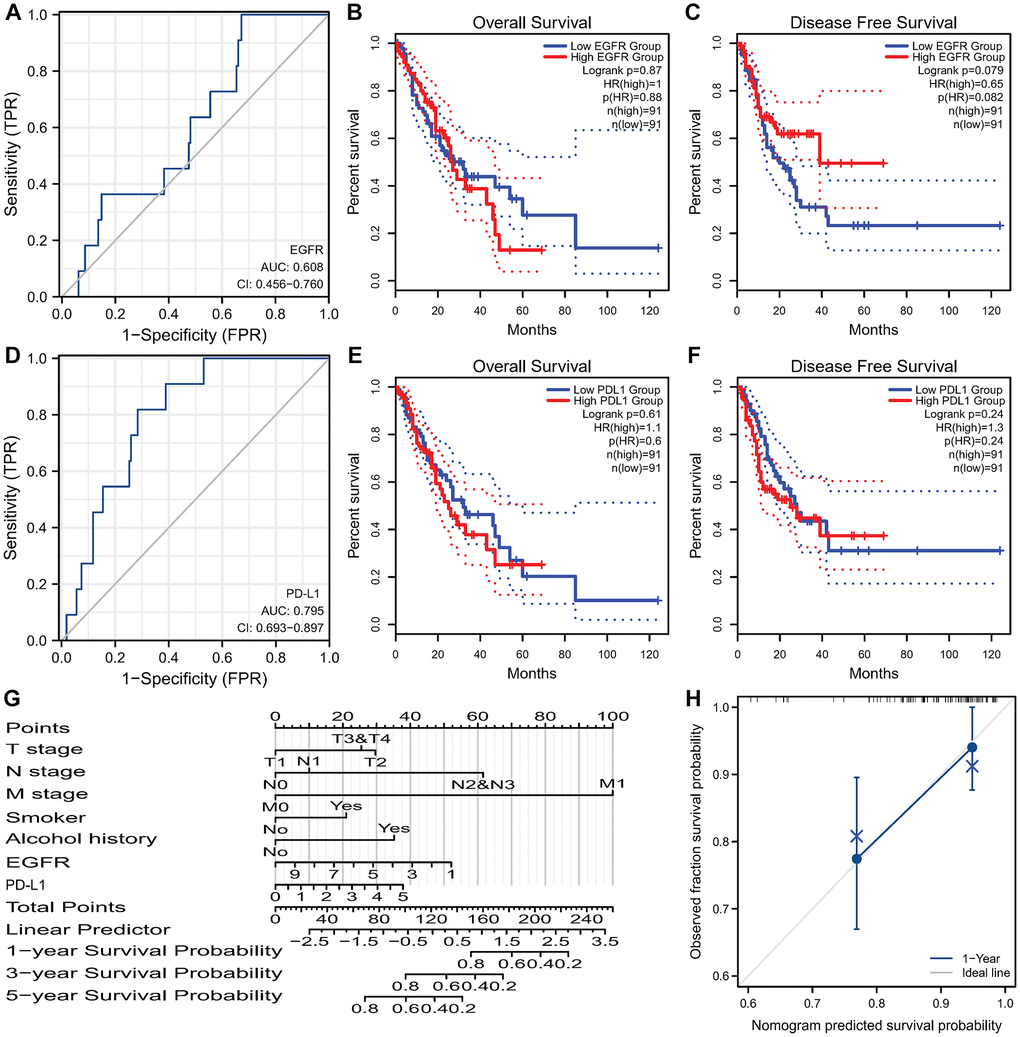

Survival analysis of EGFR and PD-L1 in ESCC and the nomogram. (A) ROC curves of EGFR gene predicting prognosis. EGFR expression isn’t associated with OS (B) and DFS (C) in TCGA-ESCC. (D) ROC curves of PD-L1 gene predicting prognosis. PD-L1 expression isn’t associated with OS (E) and DFS (F) in TCGA-ESCC. (G) Nomogram for predicting 1-, 3-, and 5-year OS of ESCC based on clinicopathological features and the expression of EGFR and PD-L1. (H) Calibration curves of prediction models for 1-year survival of nomograms. Abbreviations: ROC: receiver operating characteristic; EGFR: Epidermal Growth Factor Receptor; OS: Overall Survival; DFS: Disease Free Survival; TCGA: The Cancer Genome Atlas; ESCC: Esophageal Squamous Cell Carcinoma; PD-L1: Programmed Death-Ligand 1.

Figure 6. Survival analysis of EGFR and PD-L1 in ESCC and the nomogram. (A) ROC curves of EGFR gene predicting prognosis. EGFR expression isn’t associated with OS (B) and DFS (C) in TCGA-ESCC. (D) ROC curves of PD-L1 gene predicting prognosis. PD-L1 expression isn’t associated with OS (E) and DFS (F) in TCGA-ESCC. (G) Nomogram for predicting 1-, 3-, and 5-year OS of ESCC based on clinicopathological features and the expression of EGFR and PD-L1. (H) Calibration curves of prediction models for 1-year survival of nomograms. Abbreviations: ROC: receiver operating characteristic; EGFR: Epidermal Growth Factor Receptor; OS: Overall Survival; DFS: Disease Free Survival; TCGA: The Cancer Genome Atlas; ESCC: Esophageal Squamous Cell Carcinoma; PD-L1: Programmed Death-Ligand 1.

Survival analysis of EGFR and PD-L1 co-expression

According to the positive relationship between EGFR and PD-L1, all patients were divided into 4 groups: EGFR (+)/PD-L1 (+), EGFR (+)/PD-L1 (−), EGFR (−)/PD-L1 (+) and EGFR (−)/PD-L1 (−). We found that EGFR and PD-L1 co-expression were not statistically correlated with OS (p = 0.304; Figure 7A) and PFS (p = 0.351; Figure 7B) by the Kaplan-Meier method and log-rank test.

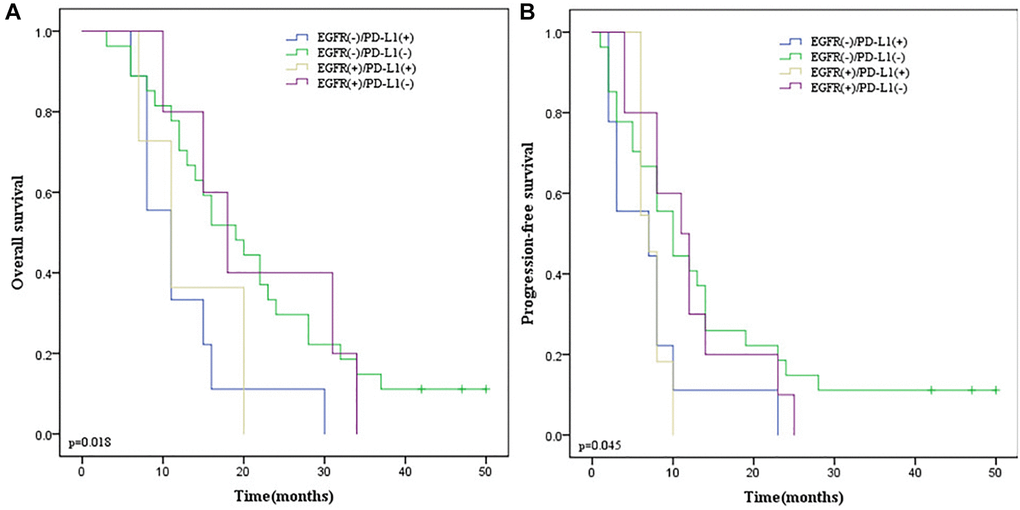

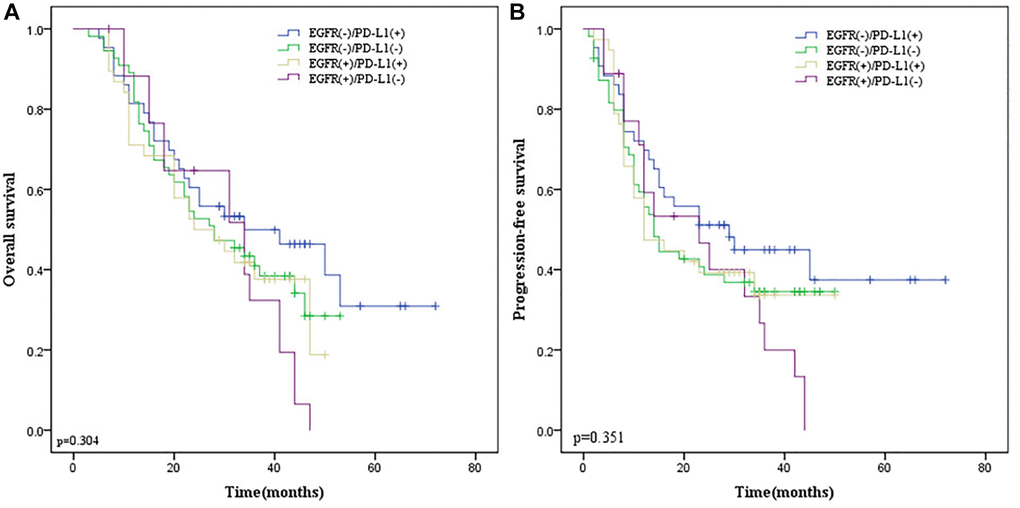

Kaplan-Meier survival curves according to EGFR and PD-L1 co-expression in ESCC patients. (A) OS survival curves of different subgroups. (B) PFS survival curves of different subgroups. Blue line indicates EGFR (−)/PD-L1(+); green line indicates EGFR (−)/PD-L1(−); yellow line indicates EGFR (+)/PD-L1(+); purple line indicates EGFR (+)/PD-L1(−). EGFR, Epidermal Growth Factor Receptor. Abbreviation: PD-L1: programmed death-ligand 1.

Figure 7. Kaplan-Meier survival curves according to EGFR and PD-L1 co-expression in ESCC patients. (A) OS survival curves of different subgroups. (B) PFS survival curves of different subgroups. Blue line indicates EGFR (−)/PD-L1(+); green line indicates EGFR (−)/PD-L1(−); yellow line indicates EGFR (+)/PD-L1(+); purple line indicates EGFR (+)/PD-L1(−). EGFR, Epidermal Growth Factor Receptor. Abbreviation: PD-L1: programmed death-ligand 1.

Stratification analysis of EGFR and PD-L1 co-expression

Given that co-expression of EGFR and PD-L1 were not correlated with survival endpoints in all patients and surgery was related to PD-L1 expression, we performed stratification analysis according to whether surgery was performed. In 97 ESCC patients receiving esophagectomy, there was no obvious correlation between their co-expression with OS (p = 0.531; Figure 8A) and PFS (p = 0.700; Figure 8B). However, in 57 ESCC patients without surgery, we found that EGFR and PD-L1 co-expression were statistically correlated with a lower ORR (p = 0.029) by the Chi-square test, inferior OS (p = 0.018; Figure 9A) and PFS (p = 0.045; Figure 9B) by the Kaplan-Meier method and log-rank test than those with one or none positive protein.

The Kaplan-Meier survival curves in ESCC patients receiving esophagectomy. (A) OS survival curves according to EGFR and PD-L1 co-expression. (B) PFS survival curves according to EGFR and PD-L1 co-expression. Blue line indicates EGFR (−)/PD-L1(+); green line indicates EGFR (−)/PD-L1(−); yellow line indicates EGFR (+)/PD-L1(+); purple line indicates EGFR (+)/PD-L1(−).

Figure 8. The Kaplan-Meier survival curves in ESCC patients receiving esophagectomy. (A) OS survival curves according to EGFR and PD-L1 co-expression. (B) PFS survival curves according to EGFR and PD-L1 co-expression. Blue line indicates EGFR (−)/PD-L1(+); green line indicates EGFR (−)/PD-L1(−); yellow line indicates EGFR (+)/PD-L1(+); purple line indicates EGFR (+)/PD-L1(−).

The Kaplan-Meier survival curves in ESCC patients without esophagectomy. (A) OS survival curves according to EGFR and PD-L1 co-expression. (B) PFS survival curves according to EGFR and PD-L1 co-expression. Blue line indicates EGFR (−)/PD-L1(+); green line indicates EGFR (−)/PD-L1(−); yellow line indicates EGFR (+)/PD-L1(+); purple line indicates EGFR (+)/PD-L1(−); Abbreviations: ESCC: Esophageal Squamous Cell Carcinoma; OS: overall survival; EGFR: Epidermal Growth Factor Receptor; PD-L1: programmed death-ligand 1; PFS: Progression Free Survival.

Figure 9. The Kaplan-Meier survival curves in ESCC patients without esophagectomy. (A) OS survival curves according to EGFR and PD-L1 co-expression. (B) PFS survival curves according to EGFR and PD-L1 co-expression. Blue line indicates EGFR (−)/PD-L1(+); green line indicates EGFR (−)/PD-L1(−); yellow line indicates EGFR (+)/PD-L1(+); purple line indicates EGFR (+)/PD-L1(−); Abbreviations: ESCC: Esophageal Squamous Cell Carcinoma; OS: overall survival; EGFR: Epidermal Growth Factor Receptor; PD-L1: programmed death-ligand 1; PFS: Progression Free Survival.

Correlation analysis of EGFR and PD-L1 immune cell infiltration in ESCC

As we all know, EGFR is involved in some immune-related pathways and PD-L1 is an immune checkpoint, its expression was correlated with the infiltration level of immune cells. Therefore, to further explore the relationship between EGFR, PD-L1 gene expression, and the infiltration level of immune cells in ESCC, we performed correlation analysis, and the results showed that EGFR gene expression was significantly correlated with the infiltration level of 12 immune cells (Supplementary Figure 2A), of which four cells were positively correlated (Tcm cells, NK CD56dim cells, NK cells, and Tgd cells, Supplementary Figure 2B2E) and eight cells were negatively correlated (B cell, Mast cells, CD8 T cells, pDC, Tem, NK CD56bright cells, Eosinophils, Th17 cells, Supplementary Figure 2F2M). The detailed analysis results are shown in Table 3. Interestingly, we found that the enrichment score of T cell, CD8 T cell, and B cell in the EGFR high expression group was lower than that in EGFR low expression group. Besides, the infiltration level of T cell, CD8 T cell, and B cell was negatively correlated with EGFR gene expression (Figure 10A10F).

Table 3. Correlation analysis between expression of EGFR gene and immune cell infiltration in ESCC.

GeneImmune cellsCorrelation coefficient
(Spearman)
P value
(Spearman)
Correlation coefficient
(Pearson)
P value
(Pearson)
EGFRTh17 cells–0.492<0.001–0.405<0.001
EGFREosinophils–0.449<0.001–0.384<0.001
EGFRTcm0.405<0.0010.2550.001
EGFRNK CD56bright cells–0.342<0.001–0.329<0.001
EGFRTem–0.323<0.001–0.299<0.001
EGFRNK CD56dim cells0.314<0.0010.259<0.001
EGFRpDC–0.304<0.001–0.2450.002
EGFRNK cells0.2340.0030.2550.001
EGFRCD8 T cells–0.1830.020–0.1890.016
EGFRTgd0.1650.0360.1810.021
EGFRMast cells–0.1610.041–0.1550.049
EGFRB cells–0.1590.044–0.1170.140
EGFRTh2 cells0.1500.0570.1800.022
EGFRNeutrophils–0.1310.096–0.1400.075
EGFRT cells–0.1250.113–0.1060.178
EGFRiDC0.0860.2780.0630.427
EGFRMacrophages0.0660.4010.0800.309
EGFRTh1 cells0.0520.5120.0400.610
EGFRaDC0.0500.5240.0400.613
EGFRT helper cells–0.0390.6250.0420.596
EGFRTFH–0.0350.657–0.0180.825
EGFRCytotoxic cells0.0330.6770.0240.762
EGFRTReg–0.0080.922–0.0280.728
EGFRDC0.0040.9640.0320.689
Abbreviations: aDC: Dendritic cells; iDC: immature Dendritic cells; DC: Dendritic cells; NK: Natural Killer cells; pDC: Plasmacytoid DC; Tcm: T central memory; Tem: T effector memory; Tfh: T follicular helper; Tgd: T gamma delta.

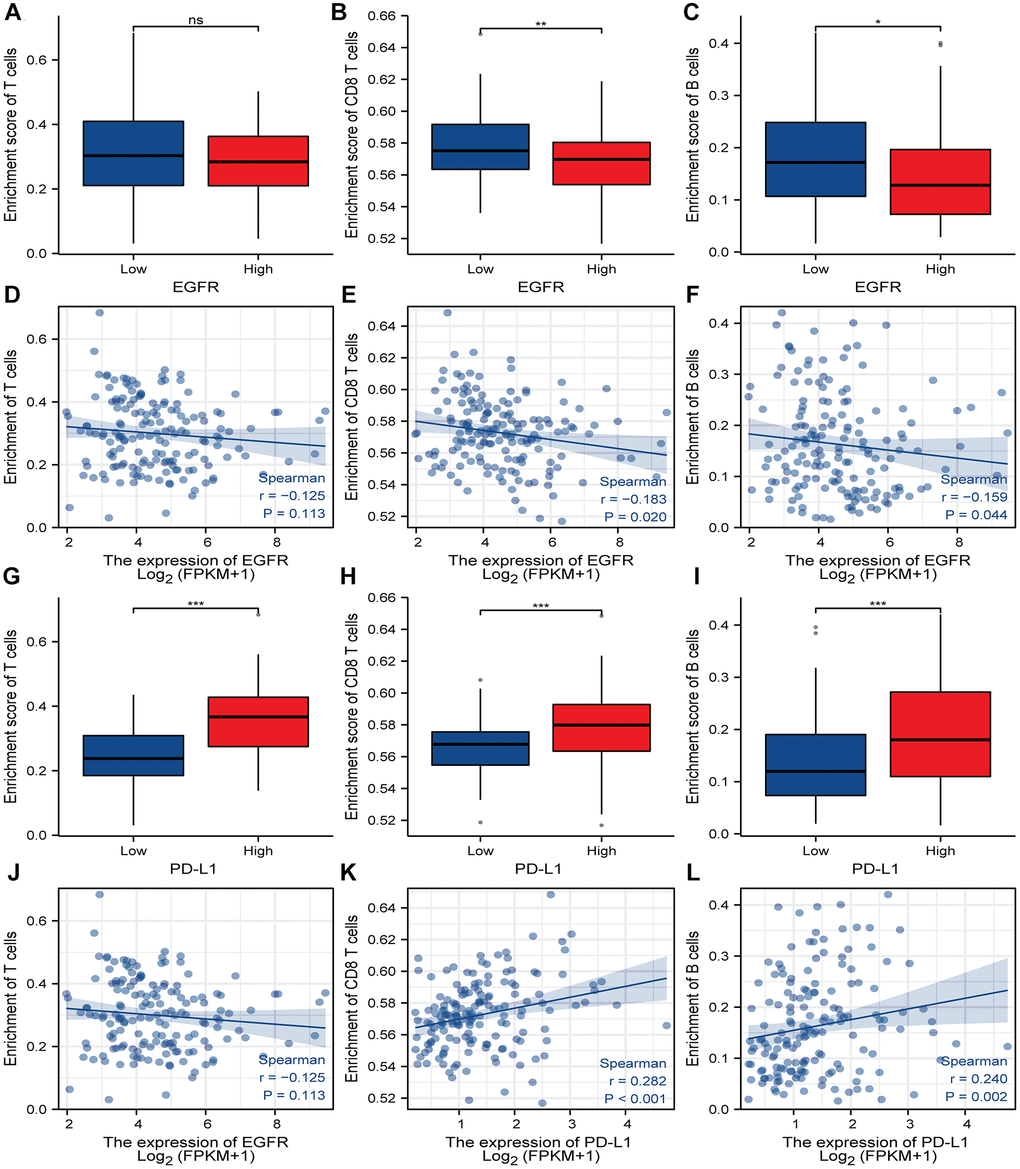

Correlation analysis of EGFR, PD-L1 expression and immune cell infiltration in ESCC. (A–C) Boxplot showing the correlation between enrichment score and the level of infiltration of T cells, CD8 T cells and B cells in high and low EGFR expression subgroups. (D–F) The immune cell infiltration levels of T cells, CD8 T cells and B cells have correlation with EGFR expression. (G–I) Boxplot indicate the correlation between enrichment score and the level of infiltration of T cells, CD8 T cells and B cells in high and low PD-L1 expression subgroups. (J–L) The immune cell infiltration levels of T cells, CD8 T cells and B cells have correlation with PD-L1 expression. A positive value of the correlation coefficient (r) indicates a positive relationship between the two variables, and a negative value indicates a negative relationship. *, **, *** represents P P P

Figure 10. Correlation analysis of EGFR, PD-L1 expression and immune cell infiltration in ESCC. (AC) Boxplot showing the correlation between enrichment score and the level of infiltration of T cells, CD8 T cells and B cells in high and low EGFR expression subgroups. (DF) The immune cell infiltration levels of T cells, CD8 T cells and B cells have correlation with EGFR expression. (GI) Boxplot indicate the correlation between enrichment score and the level of infiltration of T cells, CD8 T cells and B cells in high and low PD-L1 expression subgroups. (JL) The immune cell infiltration levels of T cells, CD8 T cells and B cells have correlation with PD-L1 expression. A positive value of the correlation coefficient (r) indicates a positive relationship between the two variables, and a negative value indicates a negative relationship. *, **, *** represents P < 0.05, P < 0.01, P < 0.001, respectively. ns represents “No significant”, Abbreviations: EGFR: Epidermal Growth Factor Receptor; PD-L1: programmed death-ligand 1; ESCC: Esophageal Squamous Cell Carcinoma.

PD-L1 gene expression has a significant positive correlation with the infiltration level of 19 immune cells (Supplementary Figure 3A), including Th1, NK CD56dim cells, aDC, cytotoxic cells, T cells, Treg cells, Macrophages, DC, TFH, iDC, Neutrophils, Mast cells (Supplementary Figure 3B3T). The detailed analysis results are shown in Table 4. On the contrary with EGFR, the enrichment score of T cell, CD8 T cell, and B cell in the PD-L1 high expression group was higher than that in the PD-L1 low expression group. Besides, the infiltration level of T cell, CD8 T cell, and B cell were positively correlated with PD-L1 gene expression (Figure 10G10L).

Table 4. Correlation analysis between expression of PD-L1 gene and immune cell infiltration in ESCC.

GeneImmune cellsCorrelation coefficient
(Spearman)
P value
(Spearman)
Correlation coefficient
(Pearson)
P value
(Pearson)
PD-L1aDC0.511<0.0010.469<0.001
PD-L1B cells0.240.0020.1760.025
PD-L1CD8 T cells0.282<0.0010.258<0.001
PD-L1Cytotoxic cells0.49<0.0010.47<0.001
PD-L1DC0.385<0.0010.351<0.001
PD-L1Eosinophils–0.0260.739–0.0510.519
PD-L1iDC0.346<0.0010.321<0.001
PD-L1Macrophages0.407<0.0010.357<0.001
PD-L1Mast cells0.304<0.0010.2330.003
PD-L1Neutrophils0.341<0.0010.276<0.001
PD-L1NK CD56bright cells–0.0790.316–0.0990.211
PD-L1NK CD56dim cells0.518<0.0010.496<0.001
PD-L1NK cells0.1810.0220.1380.08
PD-L1pDC0.1720.0280.1160.14
PD-L1T cells0.475<0.0010.418<0.001
PD-L1T helper cells0.2230.0040.1630.038
PD-L1Tcm0.27<0.0010.250.001
PD-L1Tem0.1690.0320.0690.383
PD-L1TFH0.368<0.0010.299<0.001
PD-L1Tgd0.0590.4540.0710.371
PD-L1Th1 cells0.573<0.0010.524<0.001
PD-L1Th17 cells–0.1390.079–0.1560.048
PD-L1Th2 cells0.1010.20.10.204
PD-L1TReg0.469<0.0010.408<0.001
Abbreviations: aDC: Dendritic cells; iDC: immature Dendritic cells; DC: Dendritic cells; NK: Natural Killer cells; pDC: Plasmacytoid DC; Tcm: T central memory; Tem: T effector memory; Tfh: T follicular helper; Tgd: T gamma delta.

Discussion

Once EGFR and downstream signaling networks are activated, multiple cellular processes such as proliferation, invasion, and metastasis of cells are triggered [17]. EGFR in cancer cells can be activated by two different mechanisms. One is activated by the binding of EGF, TGF-α or amphiregulin to EGFR, and the other is activated by the mutation of tyrosine kinase in EGFR [17]. It was reported that EGFR mutation was rare in EC [7, 18, 19], but EGFR overexpression and amplification were frequently observed in EC [7, 8, 20, 21], indicating activation of EGFR in EC was induced by the binding of EGF, TGF-α, or amphiregulin to EGFR. Therefore, in the current study, we only evaluated EGFR expression in cancer cells by immunohistochemical analysis in ESCC patients and did not detect its mutation. EGFR proteins were positively expressed in 56 (36.4%) patients.

Previous research has confirmed that EGFR activation can induce the expression of PD-L1 by EGFR–PI3K–AKT, EGFR–Erk, and EGR–PLC-γ signal pathways in ESCC cell lines [911]. A recent study showed that overexpression of EGFR can mediate the immune escape of tumor cells by upregulating PD-L1 expression in head and neck cancers [22]. Given this relationship, we analyzed the relationship between the expression of EGFR and PD-L1 in ESCC patients. Among all ESCC patients, there was an obvious positive association between PD-L1 and EGFR expression (P = 0.004). 38 (24.7%) patients were EGFR (+)/PD-L1 (+), 18 (11.7%) patients were EGFR (+)/PD-L1 (−), 43 (27.9%) patients were EGFR (−)/PD-L1 (+), and 55 (35.7%) patients were EGFR (−)/PD-L1 (−). Activated EGFR signaling can also recruit or reprogram suppressive immunocytes, inhibit major histocompatibility complex (MHC) molecule levels, and upregulate inhibitory cytokines and metabolites, which induces the immunosuppressive tumor microenvironment (TME) [23]. As we all know, CD8+T cell is the most important group of tumor effector cells in specific immune response, and the degree of CD8+T invasion in tumor tissue is positively correlated with immune efficacy. EGFR signal not only prevents the recruitment of effector CD8+T cells but also promotes the infiltration of Treg cells (immunosuppressive cells that help tumors escape), which has a negative effect on the efficacy of ICIs [24, 25]. We also found that the infiltration level of CD8 T cells was negatively correlated with EGFR gene expression. Nishii et al. found that EGFR-mutant NSCLC has a noninflamed TME, with low infiltration by CD8+ T cells [26]. Lu et al. found that the decreases in the density and function of CD8+ TILs were associated with LUAD with EGFR-activating mutations [27]. Chen et al. [28] found that activated EGFR induced Immunoglobulin-like transcript 4 expression and created an immunosuppressive and tumor-promoting TME in non-small cell lung cancer cells. These results indicate that EGFR inhibits anti-tumor immune response by influencing TME. It was a novel mechanism for EGFR-induced immunosuppression. Kato et al. [29] found there was an association between EGFR mutations and time treatment failure durations <2 months. Hyperprogressive disease has been found in 20% of patients with EGFR alterations and has a worse prognosis [30]. Gainor et al. [31] observed that EGFR mutations are associated with low response rates to ICI treatment in lung cancer patients. PD-1 receptor and its ligand PD-L1 are the most important immune checkpoint proteins and are involved in the immune escape of cancer cells [32]. Currently, immunotherapy has quickly become a new treatment option and has altered the paradigm of EC treatment. Moreover, the expression of immune biomarkers can reflect the effect of immunotherapy [33]. In tumor immunity, CD8+T cells are the crucial tumor suppressor cells, which form physical contact with malignant tumor cells and induce tumor cell death by activating intracellular signals [34, 35]. It is well known that the PD-1/PD-L1 axis is a key pathway leading to T-cell exhaustion and the expression of PD-1 on CD8+ T cells is related to a severely exhausted T-cell response [36]. We also found the infiltration level of CD8 T cell and B cell were positively correlated with PD-L1 gene expression. Jansen et al. speculate that the decrease in the lethality of T cells to tumors is due to the excessive number of depleted T cells with positive checkpoints or the high expression of PD-L1 in tumors, but that stem cell-like CD8+T cells form too few anti-tumor bases [37]. Lu et al. reported that the PD-1/PD-L pathway also contributes to T cell and B cell development and activation [38]. Guo et al. found that B cells in the TME were associated with clinical benefits in patients with advanced ESCC receiving anti-PD-1/PD-L1-based therapy [39]. However, a series of clinical trials have shown that the effective rate of immunotherapy is only about 12% to 30% in EC patients [4043]. Consistent with non-small cell lung cancer patients, the efficacy of immunotherapy in patients with negative driver genes is less than 20% [44, 45], while the response rate in patients with positive driver genes is even lower, and most of them are ineffective [23]. Biomarkers with high predictive value in EGFR wild-type tumors, such as PD-L1 expression, are not fully applicable to EGFR-mutant tumors; and they believed that reasonable combination therapy was necessary [46]. Therefore, considering that EGFR in EC patients is frequently activated [7, 8, 20, 21] and is positively correlated with PD-L1 expression, our study may provide new insight into the combination of targeting EGFR therapy or chemoradiotherapy with PD-1/PD-L1 targeted immunotherapy, which may expand the population benefiting from immunotherapy and reduce the occurrence of hyper progressive diseases.

Previous research reported that EGFR/PD-L1 pairs could distinguish survival between EGFR low/PD-L1 (+) and EGFR high/PD-L1 (−) groups, the median OS time of patients with high EGFR/PD-L1 (−) tumors was much shorter than that of patients with low EGFR/PD-L1 (+) [9]. In our current study, according to the positive relationship between EGFR and PD-L1, all patients were divided into 4 subgroups: EGFR (+)/PD-L1 (+), EGFR (+)/PD-L1 (−), EGFR (−)/PD-L1 (+), and EGFR (−)/PD-L1 (−). Nevertheless, we failed to find a significant association between EGFR and PD-L1 co-expression and prognosis. Our previous findings revealed that PD-L1 was an independent predictor of inferior OS and PFS [47]. Given the positive association between PD-L1 and EGFR expression, we performed stratification analysis according to whether surgery was performed. In 97 ESCC patients receiving esophagectomy, there were no statistical correlations between the co-expression of EGFR and PD-L1 with OS and PFS. However, in 57 ESCC patients without surgery, we found that EGFR and PD-L1 co-expression were statistically correlated with a lower ORR (p = 0.029), OS (p = 0.018), and PFS (p = 0.045) than EGFR (−)/PD-L1 (−), EGFR (+)/PD-L1 (−) and EGFR (−)/PD-L1 (+) subgroups. These inconsistent results suggested that the clinical significance of biomarkers may vary with different treatment regimens.

The reasons for negative data may be as follows. Firstly, this was a retrospective study with relatively small patient samples. Secondly, because all ESCC patients with available cancer specimens were enrolled in our research, random selection was not performed, which may cause additional bias. The third was the different sources of specimens: for patients undergoing esophagectomy, we evaluated resection specimens, while for patients without surgery, we evaluated gastroscopic biopsy specimens. A prospective large sample study should be investigated in the future.

In conclusion, our results show that there was a positive correlation between EGFR and PD-L1 expression in ESCC patients, and for patients without surgery, EGFR and PD-L1 co-expression could predict poor ORR and inferior survival, indicating a subset of patients who may benefit from a combination of targeted therapy against EGFR and PD-L1, which may expand the population benefiting from immunotherapy and reduce the occurrence of hyper progressive diseases.

Materials and Methods

Bioinformatics analysis

Differential expression analysis of EGFR and PD-L1 in ESCC

The Level 3 HTSeq-FPKM format RNAseq data were obtained from The Cancer Genome Atlas (TCGA, https://portal.gdc.cancer.gov/) ESCC Project, then screened for differentially expressed EGFR and PD-L1 in ESCC by the Wilcox test using the R package “limma” [48]. The detailed calculation process and code can be found in Supplementary Documents 1 and 2.

Clinical correlation and survival analysis of EGFR and PD-L1 in ESCC

Kruskal-Wallis test was used to perform the clinical correlation analysis between the gene expression (EGFR and PD-L1) and different clinicopathological features Body Mass Index (BMI), columnar metaplasia, histological type, Barretts esophagus, radiation therapy, OS, disease-specific survival (DSS), and progression-free interval (PFI). DSS is defined as the length of time between the initial diagnosis until the date of death due to the diagnosed type of cancer. PFI is the period from the date of diagnosis until the date of the first occurrence of a novel tumor event, which includes a new primary tumor, local recurrence, the progression of the disease, distant metastasis, or death due to the tumor [49]. Survival analysis of EGFR and PD-L1 in ESCC was performed mainly through a database based on the TCGA-ESCC cohort such as GEPIA2 and Kaplan-Meier plotter database. Then, we selected Sento academic online tool (https://www.xiantao.love/) to plot receiver operating characteristic (ROC) curves for EGFR and PD-L1 predicting CRC prognosis, prognostic column line plots as well as calibration analysis.

TNM stage, smoker history, alcohol history, EGFR, and PD-L1expression were used to draw a nomogram by the R-packages “Hmisc,” “lattice,” “Formula,” “ggplot2,” “foreign” and “rms” [5053]. Calibration traces were used to assess the consistency between the actual and predicted survival rates.

Analysis of EGFR and PD-L1 immune cell infiltration in ESCC

The single sample gene set enrichment analysis (ssGSEA) algorithm, built into the R package “GSVA”, (GSVA: gene set variation analysis for microarray and RNA-Seq data) was utilized to evaluate the degree of immune cell infiltration in ESCC and explored the correlation between EGFR and PD-L1 gene expression and the level of immune cell infiltration by Spearman correlation analysis. Lollipop plots were used to demonstrate the relationship between EGFR and PDL1 gene expression and all immune cell infiltration, and correlation analysis between EGFR and PDL1 gene expression and individual immune cell infiltration levels was performed using the Spearman method (P < 0.05 indicates statistical significance). The detailed calculation process and code can be found in Supplementary Documents 35. Gene Set Enrichment Analysis (GSEA) is considering experimenting with genome-wide expression profiles from two categories of samples, labeled 1 or 2. Sequencing genes based on the correlation between gene expression and category differentiation by using any appropriate measure [54]. ssGSEA was an extension of GSEA, which allows one to define an enrichment score that represents the degree of absolute enrichment of a gene set in each sample within a given data set. The detailed calculation process and code can be found in Supplementary Document 6 [55]. The main types of immune cells are activated Dendritic cells (aDC); immature Dendritic cells (iDC); Dendritic cells; CD8 T cell; B cell; Eosinophils; Macrophages; Mast cell; Cytotoxic cells; Neutrophils; NK CD56bright cells; NK CD56dim cells; Natural Killer cells; Plasmacytoid DC (pDC); T cell; Helper T cells; T central memory (Tcm); T effector memory (Tem); T follicular helper (Tfh); T gamma delta (Tgd); Th1 cells; Th17 cells; Th2 cells; Treg cells [56].

Patients

We retrospectively collected all EC patients hospitalized in the First Hospital of Zibo and Affiliated Hospital of Binzhou Medical University from January 1, 2015 to December 31, 2018. The inclusion criteria were no history of other malignancies; pathologic confirmation of ESCC; with complete clinicopathological and follow-up information. The exclusion criteria were as follows: non-squamous cell carcinoma and second primary cancer. Consequently, 81 patients were recruited for the present study. According to the seventh edition of the AJCC TNM staging system, the selected patients were staged.

All patients were followed up until death or 31 December 2020. OS: the time from the date of diagnosis to death due to any cause or the last follow-up. Progression-free Survival (PFS) was defined as the time from the start time of treatment to death from any cause or date of the first relapse. Objective Response Rate (ORR) was defined as the percentage of patients whose tumors shrank within a certain period of time, including complete and partial responses. All patients will be followed up regularly, once every 3–6 months in the first 5 years, and once a year thereafter, and follow up at any time if they feel unwell. Routine follow-up examinations include imaging examinations, hematology examinations, and physical examinations.

Immunohistochemistry

The tissues of ESCC patients were formalin fixed and paraffin embedded. We cut these tissues to a thickness of 3μm for immunohistochemistry (IHC) staining. Briefly, the sections are dewaxed in xylene and rehydrated in descending grades of ethanol, and then blocked. After blocking, we incubate the sections with rabbit anti-PD-L1 monoclonal antibody (1:60, AB205921, Abcam) and rabbit anti-EGFR monoclonal antibody (1:60, Ab52894, Abcam) at 4°C overnight. On the second day, add the second antibody to the slices and incubate at room temperature for 60 min, then observe through DAB system staining. Two experienced pathologists who did not know patients’ conditions independently give reports on the staining results.

Evaluation of PD-L1 immunostaining

As described previously, the results were estimated as relative percentage staining on tumor cells [9]. According to the instructions, positive control was used to ensure quality control during the IHC evaluation. The proportion of PD-L1 positive cells was estimated as the percentage of total tumor cells: 0, 0%–1%; 1, 1%–5%; 2, 5%–10%; 3, >10% [9, 57, 58]. Five visual fields were selected for the PD-L1 expression score. Calculate the average percentage of PD-L1 positive cells in the five fields of each sample. Expression of PD-L1 in tumor tissues was considered positive if tumor cytoplasmic and membrane staining >5%. If PD-L1 staining of the tumor cell is >5%, it is considered that the expression of PD-L1 is positive [9, 57, 58].

Evaluation of EGFR immunostaining

The expression of EGFR in tumor tissues was analyzed according to the multiplication of the intensity and the rate of positive cells. If the EGFR score was less than 8 points, it was defined as a low expression, and if the score was greater than or equal to 8 points, it is defined as a high expression. Consistent with previous research, the intensity was classified into 4 types: 0 for negative staining, 1 for weak staining, 2 for moderate staining, and 3 for strong staining, respectively. Record the percentage of positive cells: 0%–25% is recorded as 1; 26%–50% is recorded as 2; 51%–75% is recorded as 3, 75%–100% is recorded as 4 [59].

Statistical analysis

Chi-square test or Fisher’s exact test was applied for categorical data. The Kaplan–Meier curves and log-rank analysis were used for the analysis and comparison of 3-year OS and PFS. A two-sided test was performed and P < 0.05 was considered statistically significant. The statistical software package SPSS version 20.0 (SPSS Inc., Chicago, IL, USA) was used to analyze data.

Data availability statement

Some or all data during the study are available from the corresponding author by request. (Immunohistochemistry data, OS and PFS).

Abbreviations

EC: esophageal cancer; EGF: epidermal growth factor; EGFR: epidermal growth factor receptor; ESCC: esophageal squamous cell carcinoma; IHC: immunohistochemical; ORR: objective response rate; OS: overall survival; PD-1: programmed cell death-1; PD-L1: programmed cell death ligand 1; PFS: progression-free survival; TME: immunosuppressive tumor microenvironment.

Author Contributions

Conceptualization: F.Z.; Methodology: F.Z.; G.J.; Y.M.; P.Z. and Q.Z.; Data Curation: F.Z.; G.J.; Z.W.; Y.M.; P.Z. and Q.Z.; Investigation: F.Z.; Z.W. and G.J.; Software: F.Z.; Y.M. Resources: Y.M.; Z.W.; P.Z. and Q.Z.; Supervision: F.Z. and G.J.; Writing—Original Draft Preparation: F.Z.; Writing—Review and Editing: F.Z.; All authors have read and agreed to the published version of the manuscript.

Acknowledgments

The authors would like to thank Xiuyuan Zhu in the First Hospital of Zibo for collecting part of the ESCC data.

Conflicts of Interest

The authors declare no conflicts of interest related to this study.

Ethical Statement and Consent

The study was approved by the institutional ethics committee of Yantai Affiliated Hospital of Binzhou Medical University (Application number: 20210104001) and all procedures were conducted in accordance with ethical principles. Informed consent was waived because the data were anonymous and did not reveal patient privacy.

Funding

This work was supported by grants from Binzhou Medical University (BY2019KYQD49).

References

  • 1. Sung H, Ferlay J, Siegel RL, Laversanne M, Soerjomataram I, Jemal A, Bray F. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA Cancer J Clin. 2021; 71:209–49. https://doi.org/10.3322/caac.21660 [PubMed]
  • 2. Sun D, Li H, Cao M, He S, Lei L, Peng J, Chen W. Cancer burden in China: trends, risk factors and prevention. Cancer Biol Med. 2020; 17:879–95. https://doi.org/10.20892/j.issn.2095-3941.2020.0387 [PubMed]
  • 3. Byiringiro I, Aurit SJ, Nandipati KC. Long-term survival outcomes associated with robotic-assisted minimally invasive esophagectomy (RAMIE) for esophageal cancer. Surg Endosc. 2022. [Epub ahead of print]. https://doi.org/10.1007/s00464-022-09588-x [PubMed]
  • 4. Pai CP, Chien LI, Huang CS, Hsu HS, Hsu PK. Prognostic Effect of the Dose of Radiation Therapy and Extent of Lymphadenectomy in Patients Receiving Neoadjuvant Chemoradiotherapy for Esophageal Squamous Carcinoma. J Clin Med. 2022; 11:5059. https://doi.org/10.3390/jcm11175059 [PubMed]
  • 5. Ciardiello F, Tortora G. EGFR antagonists in cancer treatment. N Engl J Med. 2008; 358:1160–74. https://doi.org/10.1056/NEJMra0707704 [PubMed]
  • 6. Chong CR, Jänne PA. The quest to overcome resistance to EGFR-targeted therapies in cancer. Nat Med. 2013; 19:1389–400. https://doi.org/10.1038/nm.3388 [PubMed]
  • 7. Guo K, Wang WP, Jiang T, Wang JZ, Chen Z, Li Y, Zhou YA, Li XF, Lu Q, Zhang LJ. Assessment of epidermal growth factor receptor mutation/copy number and K-ras mutation in esophageal cancer. J Thorac Dis. 2016; 8:1753–63. https://doi.org/10.21037/jtd.2016.06.17 [PubMed]
  • 8. Kim HS, Kim SM, Kim H, Pyo KH, Sun JM, Ahn MJ, Park K, Keam B, Kwon NJ, Yun HJ, Kim HG, Chung IJ, Lee JS, et al. Phase II clinical and exploratory biomarker study of dacomitinib in recurrent and/or metastatic esophageal squamous cell carcinoma. Oncotarget. 2015; 6:44971–84. https://doi.org/10.18632/oncotarget.6056 [PubMed]
  • 9. Zhang W, Pang Q, Zhang X, Yan C, Wang Q, Yang J, Yu S, Liu X, Pan Y, Yuan Z, Wang P, Xiao Z. Programmed death-ligand 1 is prognostic factor in esophageal squamous cell carcinoma and is associated with epidermal growth factor receptor. Cancer Sci. 2017; 108:590–7. https://doi.org/10.1111/cas.13197 [PubMed]
  • 10. Ng HY, Li J, Tao L, Lam AK, Chan KW, Ko JMY, Yu VZ, Wong M, Li B, Lung ML. Chemotherapeutic Treatments Increase PD-L1 Expression in Esophageal Squamous Cell Carcinoma through EGFR/ERK Activation. Transl Oncol. 2018; 11:1323–33. https://doi.org/10.1016/j.tranon.2018.08.005 [PubMed]
  • 11. Zhang W, Pang Q, Yan C, Wang Q, Yang J, Yu S, Liu X, Yuan Z, Wang P, Xiao Z. Induction of PD-L1 expression by epidermal growth factor receptor-mediated signaling in esophageal squamous cell carcinoma. Onco Targets Ther. 2017; 10:763–71. https://doi.org/10.2147/OTT.S118982 [PubMed]
  • 12. McDermott DF, Atkins MB. PD-1 as a potential target in cancer therapy. Cancer Med. 2013; 2:662–73. https://doi.org/10.1002/cam4.106 [PubMed]
  • 13. Keir ME, Butte MJ, Freeman GJ, Sharpe AH. PD-1 and its ligands in tolerance and immunity. Annu Rev Immunol. 2008; 26:677–704. https://doi.org/10.1146/annurev.immunol.26.021607.090331 [PubMed]
  • 14. Wang Q, Feng F, Wang F, Liu Z, Liu S, Xu G, Zheng G, Guo M, Lian X, Zhang H. PD-L1 Expression On tumor Cells Was Associated With Unfavorable Prognosis In Esophageal Squamous Cell Carcinoma. J Cancer. 2018; 9:2224–31. https://doi.org/10.7150/jca.24493 [PubMed]
  • 15. Zhao JJ, Zhou ZQ, Wang P, Chen CL, Liu Y, Pan QZ, Zhu Q, Tang Y, Weng DS, Xia JC. Orchestration of immune checkpoints in tumor immune contexture and their prognostic significance in esophageal squamous cell carcinoma. Cancer Manag Res. 2018; 10:6457–68. https://doi.org/10.2147/CMAR.S181949 [PubMed]
  • 16. Rong L, Liu Y, Hui Z, Zhao Z, Zhang Y, Wang B, Yuan Y, Li W, Guo L, Ying J, Song Y, Wang L, Zhou Z, et al. PD-L1 expression and its clinicopathological correlation in advanced esophageal squamous cell carcinoma in a Chinese population. Diagn Pathol. 2019; 14:6. https://doi.org/10.1186/s13000-019-0778-4 [PubMed]
  • 17. Lindsey S, Langhans SA. Epidermal growth factor signaling in transformed cells. Int Rev Cell Mol Biol. 2015; 314:1–41. https://doi.org/10.1016/bs.ircmb.2014.10.001 [PubMed]
  • 18. Lin DC, Hao JJ, Nagata Y, Xu L, Shang L, Meng X, Sato Y, Okuno Y, Varela AM, Ding LW, Garg M, Liu LZ, Yang H, et al. Genomic and molecular characterization of esophageal squamous cell carcinoma. Nat Genet. 2014; 46:467–73. https://doi.org/10.1038/ng.2935 [PubMed]
  • 19. Gao YB, Chen ZL, Li JG, Hu XD, Shi XJ, Sun ZM, Zhang F, Zhao ZR, Li ZT, Liu ZY, Zhao YD, Sun J, Zhou CC, et al. Genetic landscape of esophageal squamous cell carcinoma. Nat Genet. 2014; 46:1097–102. https://doi.org/10.1038/ng.3076 [PubMed]
  • 20. Song J, Shi W, Zhang Y, Sun M, Liang X, Zheng S. Epidermal growth factor receptor and B7-H3 expression in esophageal squamous tissues correlate to patient prognosis. Onco Targets Ther. 2016; 9:6257–63. https://doi.org/10.2147/OTT.S111691 [PubMed]
  • 21. Jiang D, Li X, Wang H, Shi Y, Xu C, Lu S, Huang J, Xu Y, Zeng H, Su J, Hou Y, Tan L. The prognostic value of EGFR overexpression and amplification in Esophageal squamous cell Carcinoma. BMC Cancer. 2015; 15:377. https://doi.org/10.1186/s12885-015-1393-8 [PubMed]
  • 22. Concha-Benavente F, Srivastava RM, Trivedi S, Lei Y, Chandran U, Seethala RR, Freeman GJ, Ferris RL. Identification of the Cell-Intrinsic and -Extrinsic Pathways Downstream of EGFR and IFNγ That Induce PD-L1 Expression in Head and Neck Cancer. Cancer Res. 2016; 76:1031–43. https://doi.org/10.1158/0008-5472.CAN-15-2001 [PubMed]
  • 23. Lin A, Wei T, Meng H, Luo P, Zhang J. Role of the dynamic tumor microenvironment in controversies regarding immune checkpoint inhibitors for the treatment of non-small cell lung cancer (NSCLC) with EGFR mutations. Mol Cancer. 2019; 18:139. https://doi.org/10.1186/s12943-019-1062-7 [PubMed]
  • 24. Kumagai S, Koyama S, Nishikawa H. Antitumour immunity regulated by aberrant ERBB family signalling. Nat Rev Cancer. 2021; 21:181–97. https://doi.org/10.1038/s41568-020-00322-0 [PubMed]
  • 25. Zheng Y, Chen Z, Han Y, Han L, Zou X, Zhou B, Hu R, Hao J, Bai S, Xiao H, Li WV, Bueker A, Ma Y, et al. Immune suppressive landscape in the human esophageal squamous cell carcinoma microenvironment. Nat Commun. 2020; 11:6268. https://doi.org/10.1038/s41467-020-20019-0 [PubMed]
  • 26. Nishii K, Ohashi K, Tomida S, Nakasuka T, Hirabae A, Okawa S, Nishimura J, Higo H, Watanabe H, Kano H, Ando C, Makimoto G, Ninomiya K, et al. CD8+ T-cell Responses Are Boosted by Dual PD-1/VEGFR2 Blockade after EGFR Inhibition in Egfr-Mutant Lung Cancer. Cancer Immunol Res. 2022; 10:1111–26. https://doi.org/10.1158/2326-6066.CIR-21-0751 [PubMed]
  • 27. Lu Y, Wu F, Cao Q, Sun Y, Huang M, Xiao J, Zhou B, Zhang L. B7-H4 is increased in lung adenocarcinoma harboring EGFR-activating mutations and contributes to immunosuppression. Oncogene. 2022; 41:704–17. https://doi.org/10.1038/s41388-021-02124-6 [PubMed]
  • 28. Chen X, Gao A, Zhang F, Yang Z, Wang S, Fang Y, Li J, Wang J, Shi W, Wang L, Zheng Y, Sun Y. ILT4 inhibition prevents TAM- and dysfunctional T cell-mediated immunosuppression and enhances the efficacy of anti-PD-L1 therapy in NSCLC with EGFR activation. Theranostics. 2021; 11:3392–416. https://doi.org/10.7150/thno.52435 [PubMed]
  • 29. Kato S, Goodman A, Walavalkar V, Barkauskas DA, Sharabi A, Kurzrock R. Hyperprogressors after Immunotherapy: Analysis of Genomic Alterations Associated with Accelerated Growth Rate. Clin Cancer Res. 2017; 23:4242–50. https://doi.org/10.1158/1078-0432.CCR-16-3133 [PubMed]
  • 30. Wang X, Wang F, Zhong M, Yarden Y, Fu L. The biomarkers of hyperprogressive disease in PD-1/PD-L1 blockage therapy. Mol Cancer. 2020; 19:81. https://doi.org/10.1186/s12943-020-01200-x [PubMed]
  • 31. Gainor JF, Shaw AT, Sequist LV, Fu X, Azzoli CG, Piotrowska Z, Huynh TG, Zhao L, Fulton L, Schultz KR, Howe E, Farago AF, Sullivan RJ, et al. EGFR Mutations and ALK Rearrangements Are Associated with Low Response Rates to PD-1 Pathway Blockade in Non-Small Cell Lung Cancer: A Retrospective Analysis. Clin Cancer Res. 2016; 22:4585–93. https://doi.org/10.1158/1078-0432.CCR-15-3101 [PubMed]
  • 32. Butte MJ, Keir ME, Phamduy TB, Sharpe AH, Freeman GJ. Programmed death-1 ligand 1 interacts specifically with the B7-1 costimulatory molecule to inhibit T cell responses. Immunity. 2007; 27:111–22. https://doi.org/10.1016/j.immuni.2007.05.016 [PubMed]
  • 33. Dovedi SJ, Adlard AL, Lipowska-Bhalla G, McKenna C, Jones S, Cheadle EJ, Stratford IJ, Poon E, Morrow M, Stewart R, Jones H, Wilkinson RW, Honeychurch J, Illidge TM. Acquired resistance to fractionated radiotherapy can be overcome by concurrent PD-L1 blockade. Cancer Res. 2014; 74:5458–68. https://doi.org/10.1158/0008-5472.CAN-14-1258 [PubMed]
  • 34. Jiang X, Xu J, Liu M, Xing H, Wang Z, Huang L, Mellor AL, Wang W, Wu S. Adoptive CD8+ T cell therapy against cancer:Challenges and opportunities. Cancer Lett. 2019; 462:23–32. https://doi.org/10.1016/j.canlet.2019.07.017 [PubMed]
  • 35. Farhood B, Najafi M, Mortezaee K. CD8+ cytotoxic T lymphocytes in cancer immunotherapy: A review. J Cell Physiol. 2019; 234:8509–21. https://doi.org/10.1002/jcp.27782 [PubMed]
  • 36. Zitvogel L, Tesniere A, Kroemer G. Cancer despite immunosurveillance: immunoselection and immunosubversion. Nat Rev Immunol. 2006; 6:715–27. https://doi.org/10.1038/nri1936 [PubMed]
  • 37. Jansen CS, Prokhnevska N, Master VA, Sanda MG, Carlisle JW, Bilen MA, Cardenas M, Wilkinson S, Lake R, Sowalsky AG, Valanparambil RM, Hudson WH, McGuire D, et al. An intra-tumoral niche maintains and differentiates stem-like CD8 T cells. Nature. 2019; 576:465–70. https://doi.org/10.1038/s41586-019-1836-5 [PubMed]
  • 38. Lu J, Wu J, Mao L, Xu H, Wang S. Revisiting PD-1/PD-L pathway in T and B cell response: Beyond immunosuppression. Cytokine Growth Factor Rev. 2022; 67:58–65. https://doi.org/10.1016/j.cytogfr.2022.07.003 [PubMed]
  • 39. Guo JC, Hsu CL, Huang YL, Lin CC, Huang TC, Wu IC, Lin CY, Lien MY, Kuo HY, Cheng AL, Hsu CH. B Cells in Tumor Microenvironment Associated With The Clinical Benefit to Programmed Cell Death Protein-1 Blockade Therapy in Patients With Advanced Esophageal Squamous Cell Carcinoma. Front Oncol. 2022; 12:879398. https://doi.org/10.3389/fonc.2022.879398 [PubMed]
  • 40. Kang YK, Boku N, Satoh T, Ryu MH, Chao Y, Kato K, Chung HC, Chen JS, Muro K, Kang WK, Yeh KH, Yoshikawa T, Oh SC, et al. Nivolumab in patients with advanced gastric or gastro-oesophageal junction cancer refractory to, or intolerant of, at least two previous chemotherapy regimens (ONO-4538-12, ATTRACTION-2): a randomised, double-blind, placebo-controlled, phase 3 trial. Lancet. 2017; 390:2461–71. https://doi.org/10.1016/S0140-6736(17)31827-5 [PubMed]
  • 41. Kudo T, Hamamoto Y, Kato K, Ura T, Kojima T, Tsushima T, Hironaka S, Hara H, Satoh T, Iwasa S, Muro K, Yasui H, Minashi K, et al. Nivolumab treatment for oesophageal squamous-cell carcinoma: an open-label, multicentre, phase 2 trial. Lancet Oncol. 2017; 18:631–9. https://doi.org/10.1016/S1470-2045(17)30181-X [PubMed]
  • 42. Janjigian YY, Bendell J, Calvo E, Kim JW, Ascierto PA, Sharma P, Ott PA, Peltola K, Jaeger D, Evans J, de Braud F, Chau I, Harbison CT, et al. CheckMate-032 Study: Efficacy and Safety of Nivolumab and Nivolumab Plus Ipilimumab in Patients With Metastatic Esophagogastric Cancer. J Clin Oncol. 2018; 36:2836–44. https://doi.org/10.1200/JCO.2017.76.6212 [PubMed]
  • 43. Doi T, Piha-Paul SA, Jalal SI, Saraf S, Lunceford J, Koshiji M, Bennouna J. Safety and Antitumor Activity of the Anti-Programmed Death-1 Antibody Pembrolizumab in Patients With Advanced Esophageal Carcinoma. J Clin Oncol. 2018; 36:61–7. https://doi.org/10.1200/JCO.2017.74.9846 [PubMed]
  • 44. Reck M, Rodríguez-Abreu D, Robinson AG, Hui R, Csőszi T, Fülöp A, Gottfried M, Peled N, Tafreshi A, Cuffe S, O'Brien M, Rao S, Hotta K, et al, and KEYNOTE-024 Investigators. Pembrolizumab versus Chemotherapy for PD-L1-Positive Non-Small-Cell Lung Cancer. N Engl J Med. 2016; 375:1823–33. https://doi.org/10.1056/NEJMoa1606774 [PubMed]
  • 45. Ribas A, Wolchok JD. Cancer immunotherapy using checkpoint blockade. Science. 2018; 359:1350–5. https://doi.org/10.1126/science.aar4060 [PubMed]
  • 46. Qiao M, Jiang T, Liu X, Mao S, Zhou F, Li X, Zhao C, Chen X, Su C, Ren S, Zhou C. Immune Checkpoint Inhibitors in EGFR-Mutated NSCLC: Dusk or Dawn? J Thorac Oncol. 2021; 16:1267–88. https://doi.org/10.1016/j.jtho.2021.04.003 [PubMed]
  • 47. Zhang F, Zhu X, Zhang Q, Zhou P, Hao L. Programmed cell death-ligand 1 expression predicts poor treatment response and prognostic value in esophageal squamous cell carcinoma patients without esophagectomy. Aging (Albany NY). 2021; 13:18827–38. https://doi.org/10.18632/aging.203326 [PubMed]
  • 48. Ritchie ME, Phipson B, Wu D, Hu Y, Law CW, Shi W, Smyth GK. limma powers differential expression analyses for RNA-sequencing and microarray studies. Nucleic Acids Res. 2015; 43:e47. https://doi.org/10.1093/nar/gkv007 [PubMed]
  • 49. Miao Y, Wang J, Li Q, Quan W, Wang Y, Li C, Wu J, Mi D. Prognostic value and immunological role of PDCD1 gene in pan-cancer. Int Immunopharmacol. 2020; 89:107080. https://doi.org/10.1016/j.intimp.2020.107080 [PubMed]
  • 50. Van den Eynde M, Mlecnik B, Bindea G, Fredriksen T, Church SE, Lafontaine L, Haicheur N, Marliot F, Angelova M, Vasaturo A, Bruni D, Jouret-Mourin A, Baldin P, et al. The Link between the Multiverse of Immune Microenvironments in Metastases and the Survival of Colorectal Cancer Patients. Cancer Cell. 2018; 34:1012–1026.e3. https://doi.org/10.1016/j.ccell.2018.11.003 [PubMed]
  • 51. Denkert C, Budczies J, Weichert W, Wohlgemuth G, Scholz M, Kind T, Niesporek S, Noske A, Buckendahl A, Dietel M, Fiehn O. Metabolite profiling of human colon carcinoma--deregulation of TCA cycle and amino acid turnover. Mol Cancer. 2008; 7:72. https://doi.org/10.1186/1476-4598-7-72 [PubMed]
  • 52. Walter W, Sánchez-Cabo F, Ricote M. GOplot: an R package for visually combining expression data with functional analysis. Bioinformatics. 2015; 31:2912–4. https://doi.org/10.1093/bioinformatics/btv300 [PubMed]
  • 53. Miao Y, Zhang H, Su B, Wang J, Quan W, Li Q, Mi D. Construction and validation of an RNA-binding protein-associated prognostic model for colorectal cancer. PeerJ. 2021; 9:e11219. https://doi.org/10.7717/peerj.11219 [PubMed]
  • 54. Subramanian A, Tamayo P, Mootha VK, Mukherjee S, Ebert BL, Gillette MA, Paulovich A, Pomeroy SL, Golub TR, Lander ES, Mesirov JP. Gene set enrichment analysis: a knowledge-based approach for interpreting genome-wide expression profiles. Proc Natl Acad Sci U S A. 2005; 102:15545–50. https://doi.org/10.1073/pnas.0506580102 [PubMed]
  • 55. Shimizu S, Yoshioka R, Hirose Y, Sugai S, Tachibana J, Konda S. Establishment of two interleukin 6 (B cell stimulatory factor 2/interferon beta 2)-dependent human bone marrow-derived myeloma cell lines. J Exp Med. 1989; 169:339–44. https://doi.org/10.1084/jem.169.1.339 [PubMed]
  • 56. Bindea G, Mlecnik B, Tosolini M, Kirilovsky A, Waldner M, Obenauf AC, Angell H, Fredriksen T, Lafontaine L, Berger A, Bruneval P, Fridman WH, Becker C, et al. Spatiotemporal dynamics of intratumoral immune cells reveal the immune landscape in human cancer. Immunity. 2013; 39:782–95. https://doi.org/10.1016/j.immuni.2013.10.003 [PubMed]
  • 57. Herbst RS, Soria JC, Kowanetz M, Fine GD, Hamid O, Gordon MS, Sosman JA, McDermott DF, Powderly JD, Gettinger SN, Kohrt HE, Horn L, Lawrence DP, et al. Predictive correlates of response to the anti-PD-L1 antibody MPDL3280A in cancer patients. Nature. 2014; 515:563–7. https://doi.org/10.1038/nature14011 [PubMed]
  • 58. Fehrenbacher L, Spira A, Ballinger M, Kowanetz M, Vansteenkiste J, Mazieres J, Park K, Smith D, Artal-Cortes A, Lewanski C, Braiteh F, Waterkamp D, He P, et al, and POPLAR Study Group. Atezolizumab versus docetaxel for patients with previously treated non-small-cell lung cancer (POPLAR): a multicentre, open-label, phase 2 randomised controlled trial. Lancet. 2016; 387:1837–46. https://doi.org/10.1016/S0140-6736(16)00587-0 [PubMed]
  • 59. Zhang W, Zhu H, Liu X, Wang Q, Zhang X, He J, Sun K, Liu X, Zhou Z, Xu N, Xiao Z. Epidermal growth factor receptor is a prognosis predictor in patients with esophageal squamous cell carcinoma. Ann Thorac Surg. 2014; 98:513–9. https://doi.org/10.1016/j.athoracsur.2014.03.015 [PubMed]
