Research Paper Volume 6, Issue 2 pp 98—117

MDL-1, a growth- and tumor-suppressor, slows aging and prevents germline hyperplasia and hypertrophy in C. elegans

Michèle Riesen1, , Inna Feyst1, , Nattaphong Rattanavirotkul1, , Marina Ezcurra1, , Jennifer M.A. Tullet1, , Irene Papatheodorou2, , Matthias Ziehm2, , Catherine Au1, , Ann F. Gilliat1, , Josephine Hellberg1, , Janet M. Thornton2, , David Gems1, ,

  • 1 Institute of Healthy Ageing, and Research Department of Genetics, Evolution and Environment, University College London, London, United Kingdom
  • 2 European Molecular Biology Laboratory, European Bioinformatics Institute, Wellcome Trust Genome Campus, Hinxton, Cambridge, United Kingdom

Received: December 22, 2013       Accepted: February 14, 2014       Published: February 16, 2014
How to Cite


In C. elegans, increased lifespan in daf-2 insulin/IGF-1 receptor mutants is accompanied by up-regulation of the MDL-1 Mad basic helix-loop-helix leucine zipper transcription factor. Here we describe the role of mdl-1 in C. elegans germline proliferation and aging. The deletion allele mdl-1(tm311) shortened lifespan, and did so significantly more so in long-lived daf-2 mutants implying that mdl-1(+) contributes to effects of daf-2 on lifespan. mdl-1 mutant hermaphrodites also lay increased numbers of unfertilized oocytes. During aging, unfertilized oocytes in the uterus develop into tumors, whose development was accelerated by mdl-1(tm311). Opposite phenotypes were seen in daf-2 mutants, i.e. mdl-1 and daf-2 mutant germlines are hyperplastic and hypoplastic, respectively. Thus, MDL-1, like its mammalian orthologs, is an inhibitor of cell proliferation and growth that slows progression of an age-related pathology in C. elegans (uterine tumors). In addition, intestine-limited rescue of mdl-1 increased lifespan but not to wild type levels. Thus, mdl-1 likely acts both in the intestine and the germline to influence age-related mortality.


In most animals, advancing age is accompanied by the deteriorative process of aging (senescence). Aging is the main cause of severe illness and death in humans, but the proximate biological mechanisms that cause it have proved difficult to identify. One approach to understand aging is to study simple model organisms [1], such as the nematode Caenorhabditis elegans which is particularly suitable for this purpose given e.g. its sequenced genome and very short lifespan (2-3 weeks). The identification from the 1980s onwards of many C. elegans mutants with altered aging rate [1] led to optimism that discovery of gene products of aging control genes would reveal the mechanisms of aging in this organism. Yet although many signaling pathways and processes affecting aging rate have been identified, the nature of aging itself has remained obscure. For example, mutation of the daf-2 insulin/IGF-1 receptor gene can more than double adult lifespan [2]. This increase requires the presence of the DAF-16 FoxO transcription factor [2-4], suggesting that transcriptional targets of DAF-16 encode proximal biochemical determinants of aging. But these target genes have proved to be very numerous [5, 6], 2,274 by one estimate [7], complicating the search for DAF-16 target genes that control aging. Understanding DAF-16/FoxO action is important, particularly because the role of insulin/IGF-1 signaling and FoxO in the control of aging shows evolutionary conservation, e.g. in the fruitfly Drosophila [8], and perhaps even in humans, where age changes in allele frequency e.g. of the IGF-1 receptor and FoxO3A genes have been detected [1].

One approach to understand DAF-16 action is to map the gene regulatory network in which it acts. Previously we used a genome-wide approach to identify genes to which DAF-16 both binds and causes a change in gene expression [9]. This identified a mere 65 high confidence DAF-16 direct targets, which were enriched for genes encoding proteins involved in signaling and gene regulation, and transcription factors. Among the latter class was mdl-1 (Mad-like 1), which encodes a basic helix-loop-helix (bHLH) TF homologous to mammalian Mad transcription factors [10] (Figure 1A). In mammals, Mad TFs act as heterodimers with Max bHLH TFs. Mad competes with Myc bHLH TFs to dimerize with Max, and bind to target genes containing E-box sequences (5'-CANNTG-3') [11]. Myc/Max dimers mainly activate gene expression, and are a major activator of cell proliferation of growth. By contrast, Mad/Max dimers mainly inhibit gene expression, antagonizing Myc/Max, and suppressing cell division and growth [11]. Inhibition of gene expression by Mad/Max is facilitated by recruitment of the Sin3 histone deacetylase (HDAC) corepressor complex. Myc TFs are potent oncogenes, while Mad TFs show some properties of tumor suppressors [11].

Phenotypic analysis of mdl-1(tm311) mutant

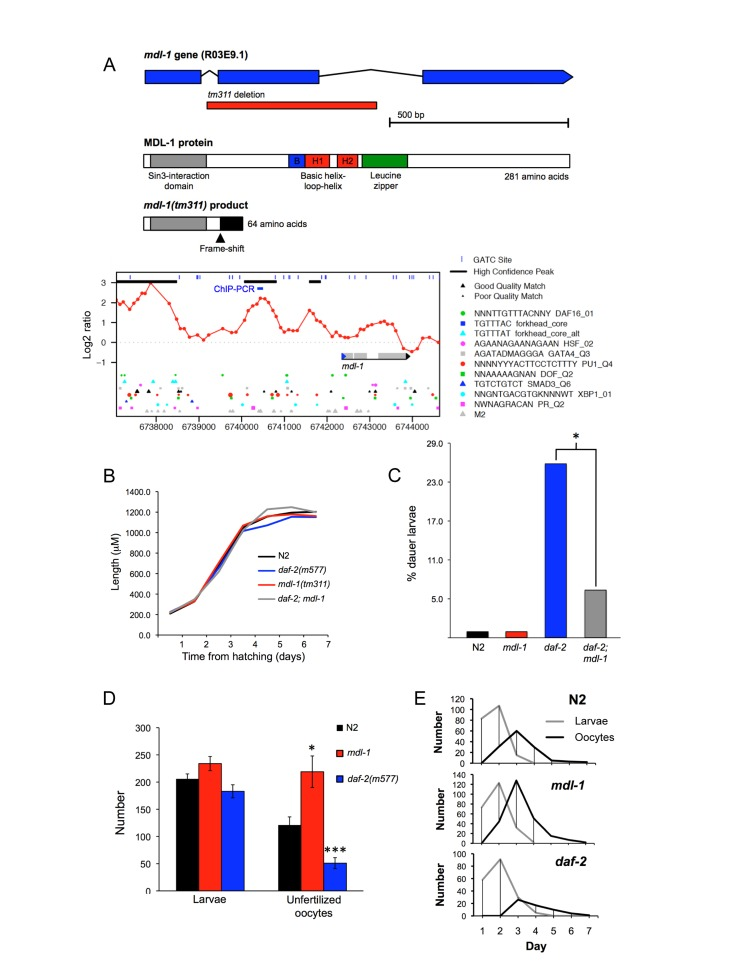

Figure 1. Phenotypic analysis of mdl-1(tm311) mutant.

(A) mdl-1 gene and protein description, including tm311 deletion and effects on protein, DAF-16 binding sites (chromatin profile [DamID] data and DBEs) and site of ChIP analysis. For chromatin profile, y axis represents log2 ratio of DAF-16 binding relative to control, and peaks correspond to potential DAF-16 binding sites [9]. (B-F). Phenotypic effects of mdl-1(0). (B) Little effect on larval and adult growth. Samples sizes ranged from 23-39. (C) mdl-1(0) slightly reduces daf-2(m577) Daf-c, measured at 22.9°C. * 0.01 < p < 0.05 (Student's t test). 4 trials conducted, in which mdl-1(0) reduced dauer formation in 3. (D, E) Effect of mdl-1 and daf-2 on fertility. Number of broods scored: N2, 19; daf-2, 20; mdl-1, 17. (D) Mean total progeny and unfertilized oocytes. * 0.01 < p < 0.05, *** p < 0.001 (Student's t test). (E) Mean daily progeny and unfertilized oocyte numbers.

Our attention was drawn to mdl-1 for several reasons. First, many genes that promote growth also promote aging [12]. Thus, growth suppressors activated by DAF-16 are candidates for downstream effectors slowing aging, and MDL-1, as a Mad TF, is a potential growth suppressor and, in fact, can suppress activated cMyc/Ras-induced cell transformation in mammalian cells [10]. Second, four mammalian Mad TFs, mad1, mxi1, mad3 and mad4, are up-regulated by FoxO3a in a human colorectal adenocarcinoma cell line [13]. Thus, regulatory interactions between FoxO and Mad show at least some evolutionarily conservation between nematodes and mammals. Consistent with this, in C. elegans mdl-1 is an activator of intestinal expression of ftn-1 (H ferritin, an iron storage protein) [14], while in mammals, Myc can repress H ferritin expression, which contributes to cell proliferation [15].

C. elegans possesses several Max-like (mxl) genes, including mxl-1 which can form heterodimers with MDL-1 but, surprisingly, lacks Myc [10, 16, 17]. Previous RNAi screens have not detected major effects of expression knockdown of mdl-1 or mxl-1 ( However, mdl-1 exerts some influence upon the germline, as follows. Loss of daf-2 inhibits lethal, gld-1-induced distal germline tumors via decreased cell division and increased DAF-16/p53-dependent apoptosis [18], and mdl-1 is a mediator of this inhibition [19]. Moreover, RNAi of mdl-1 can reduce daf-2 mutant longevity, but has little effect on lifespan in daf-2 (+)worms [6].

In this study, we explore the possible role of mdl-1 as a downstream effector of DAF-16 in the control of aging. In particular, we detail the phenotypic effects of mutation of mdl-1. We report that mdl-1 acts as a repressor of germline hyperplasia and hypertrophy which otherwise contributes to age-related pathology in the germline.


mdl-1(tm311) increases production of unfertilized oocytes

To investigate mdl-1 gene function, we studied the mdl-1(tm311) mutant allele, which contains a 471 bp base pair deletion that removes exon 2 of the gene (Figure 1A). This results in a frame shift after 51/281 amino acid residues and loss of the entire bHLH domain, implying that this is a null allele. The mutation was first backcrossed 6x into the Caenorhabditis Genetics Center wild type male stock to remove possible second site mutations, and ensure a wild type background [20]. Previous work on mdl-1 and the function of Mad TFs in mammals led to several expectations about the possible effects of mdl-1(0). First, since it is a DAF-16-activated gene, it might suppress daf-2 mutant traits, e.g. constitutive dauer larva formation (Daf-c), stress resistance and increased longevity (Age). Second, since Mad TFs inhibit cell division and growth, mdl-1(0) might increase either somatic growth or germline proliferation.

We first examined effects of mdl-1(0) on somatic development and growth in wild type and daf-2 mutant backgrounds. mdl-1(0) had no detectable effect on larval or adult growth (Figure 1B), but caused a slight reduction in constitutive dauer formation in daf-2(m577) mutants (Figure 1C). Next we probed the effects of mdl-1 on the germline, first by looking at levels of fertility. The number of progeny produced by self-fertilized hermaphrodites was not affected by mdl-1(0), either in terms of overall brood size or reproductive schedule (Figure 1D,E). As self sperm becomes depleted, N2 hermaphrodites start laying unfertilized oocytes [21]. Notably, mdl-1(0) caused a marked increase in the number of unfertilized oocytes laid, from 121 ± 15 to 219 ± 30, an 81% increase (Figure 1D). mdl-1(RNAi) applied to RNAi-sensitive rrf-3(pk1426) mutants also increased unfertilized oocyte number (data not shown).

In daf-2(m577) mutants, progeny number was also not different to N2, but the number of unfertilized oocytes laid was significantly reduced (Figure 1D,E), consistent with previous findings [22]. For convenience, to describe this mutant phenotype we introduce the term Uno (abnormal in unfertilized oocyte production), and Uno-o, to describe mutants that are unfertilized oocyte over-producers (e.g. mdl-1), and Uno-d, to describe mutants that are unfertilized oocyte deficient (e.g. daf-2).

mdl-1(tm311) causes germline hyperplasia and hypertrophy

The mdl-1 Uno-o phenotype suggests increased cell production in the germline distal to the spermatheca. To test this we compared proximal gonad contents in wild type and mdl-1 animals on day 1 of adulthood. This revealed increased oocyte density, or stacking [23, 24], in mdl-1 (Figure 2A,B), implying increased oocyte synthesis. This in turn suggests increased germ cell proliferation in the distal gonad. To probe this, we examined germ cell number by staining nuclei with the fluorescent DNA-binding dye 4',6-diamidino-2-phenylindole (DAPI), but no effect of mdl-1 was detected (Figure 2C). However, an increase in the overall rate of germline cell turnover in mdl-1 mutants could leave cell number unaffected.

mdl-1 causes hyperplasia and hypertrophy

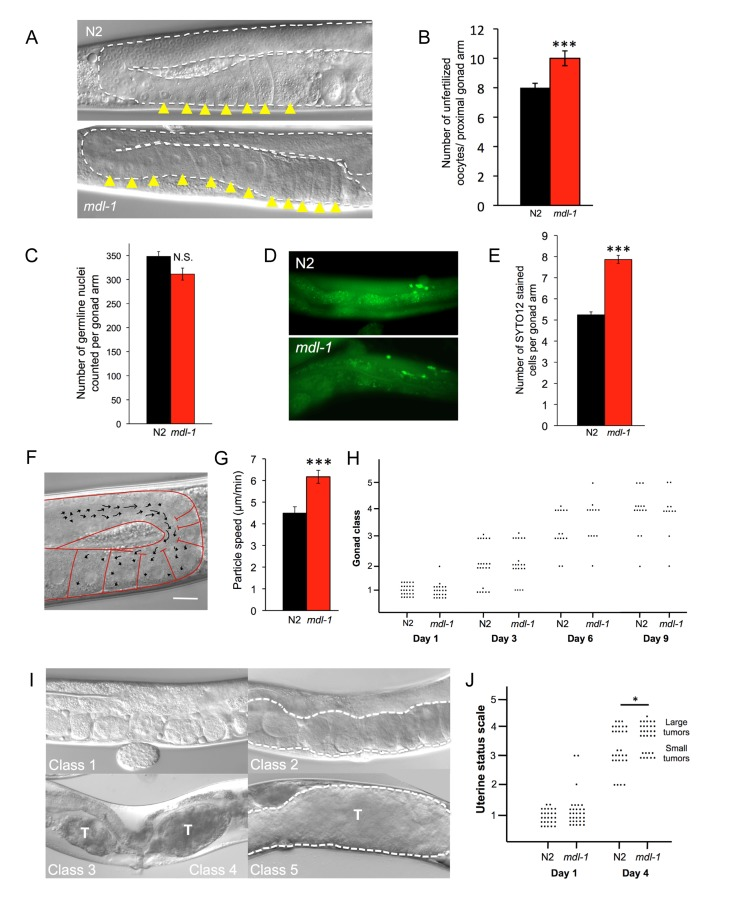

Figure 2. mdl-1 causes hyperplasia and hypertrophy.

(A, B) mdl-1(0) causes oocyte stacking in 1 day old worms. (A) Nomarski images. (B) Quantitation of stacking. Sample sizes: N2, 23; mdl-1, 17. *** p < 0.001 (Student's t test). (C) No effect of mdl-1 on number of germline nuclei. p > 0.05 (Student's t test). (D, E) mdl-1 increases levels of germline apoptosis. (D) Epifluorescence images of SYTO12 stained cells in young adult hermaphrodite germline. (E) Quantitated data. Number of gonads scored: N2, 153; mdl-1, 132. *** p < 0.001 (Student's t test). (F, G)mdl-1 increases cytoplasmic streaming in the proximal gonad. (F) Single image obtained from a time-lapse recording. Arrows represent DIC-particle tracks. DIC-particles were tracked over a period of 1 minute. Scale bar: 20 μm. (G) Cytoplasmic streaming rate (mean particle speed ± standard error). 30 particle speed measurements performed for each genotype. Number of worms examined: N2, 4; mdl-1, 3. *** p < 0.001 (Student's t test). (H) Absence of effect of mdl-1(0) on gonad disintegration (25°C). p > 0.05 for all comparisons of N2 vs. mdl-1 of the same age (Wilcoxon Mann test). (I) Uterine status scale for quantitation of uterine tumor formation rate (5 classes). Class 1, normal uterus containing eggs (day 1 adult). Class 2, slightly abnormal uterine contents, but no tumor visible. Class 3, small tumor. Class 4, medium sized tumor. Class 5, large tumor, filling body cavity and squashing the intestine. Dotted line, outline of uterus. T, tumor. (J) mdl-1(0) increases uterine tumor formation (25°C), data summed from 3 trials. * 0.01 < p < 0.05 (Wilcoxon Mann test).

If the distal proliferative zone is the source of germ cell nuclei, then the major sink is germline apoptosis. At least 50% [25] and as many as 97% [26] of germ cells undergo p53-independent, “physiological” apoptosis, their cytoplasm supplying expanding oocytes near the gonad bend. Using the SYTO 12 dye to detect apoptotic cell corpses, we found that mdl-1 mutants showed a significant increase in apoptotic cell number in the germline in 3 out of 4 trials (Figure 2D, E).

The transfer of cytoplasm released by germ cells to nascent oocytes occurs by a process of cytoplasmic streaming (Figure 2F) [27]. We examined the effect of mdl-1(0) on the rate of cytoplasmic streaming in the mid-late pachytene region of the distal gonad, on day 1 of adulthood. Cytoplasmic streaming rate in mdl-1 worms was significantly greater than in wild type (Figure 2G). Taken together, these results suggest that an increase in production of germ cells is matched by an increase in apoptosis, resulting in little change in overall germ cell number in the distal arm. Overall, this suggests that the increase in oocyte production is driven by a hyperplastic state in the distal gonad.

Next we studied the effect of mdl-1 on pathologies of aging in the germline. The aging hermaphrodite gonad undergoes dramatic pathological changes. The distal gonad shrivels and eventually disintegrates [28, 29], while in the uterus large, amorphous masses (tumors) with very high DNA content develop [24, 29-31]. These tumors form from unfertilized oocytes which undergo multiple rounds of endoreduplication, and can grow to fill the entire body cavity in the mid-body. Continued germline apoptosis in late life contributes to gonad disintegration, and increased apoptosis rate is sufficient to increase gonad disintegration rate (Y. de la Guardia and D. Gems, unpublished). However, despite their increased apoptosis rate (Figure 2D,E) gonad disintegration rate was not detectably altered in mdl-1 mutants (Figure 2H).

Casual observation of mdl-1 hermaphrodites under Nomarski microscopy suggested an increase in uterine tumors in these mutants. To verify this, we used a semi-quantitative approach [28] with a uterine status scale. According to the appearance of the uterus, worms were scored from 1 (healthy, no tumors) to 5 (large tumors) (Figure 2I) (see Materials and Methods). Using this scale to compare N2 and mdl-1 mutants confirmed that uterine tumors grow significantly faster in mdl-1 worms (Figure 2J).

mdl-1 does not mediate effects of daf-2 on germline proliferative status

We next investigated whether MDL-1, like DAF-16, is an effector of daf-2 mutant phenotypes. We first verified that DAF-16 acts directly on mdl-1 to increase its expression, as predicted by mRNA and chromatin profiling studies [9]. Quantitative RT-PCR confirmed that mdl-1 mRNA levels are higher in daf-2 than in daf-16; daf-2 strains (Figure 3A). Chromatin immunoprecipitation and PCR (ChIP-PCR) confirmed that DAF-16 binds to the mdl-1 promoter (Figure 3B). This implies that mdl-1 expression is activated by DAF-16 binding to its promoter.

Distinct epistatic relationships between daf-2 and mdl-1 in hyperplasia and hypertrophy

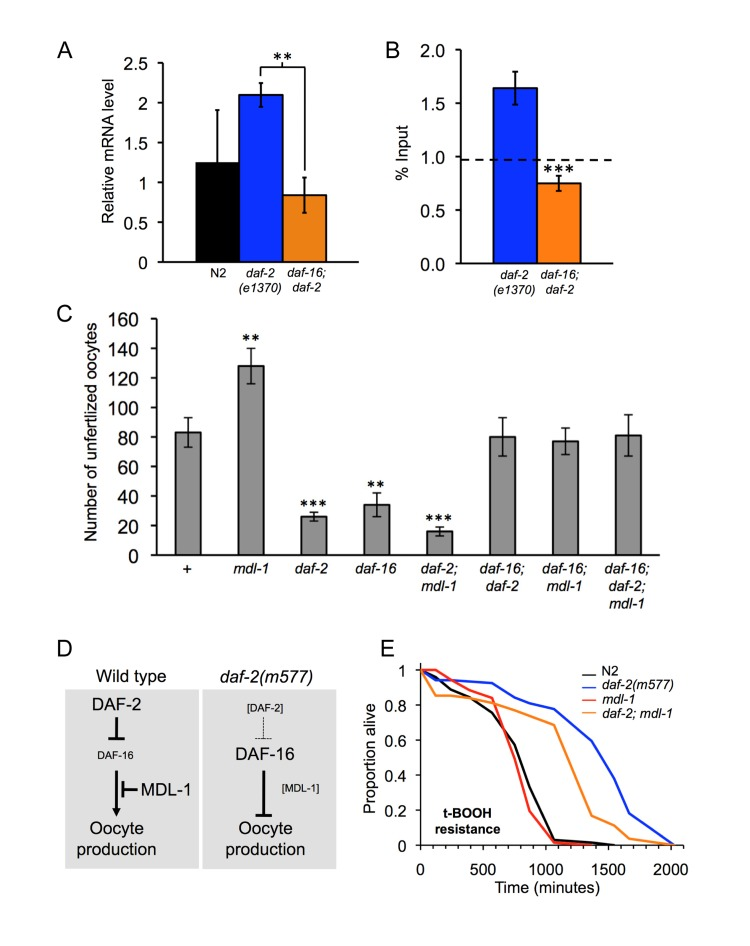

Figure 3. Distinct epistatic relationships between daf-2 and mdl-1 in hyperplasia and hypertrophy.

(A, B). mdl-1 is a direct transcriptional target of DAF-16. (A). mdl-1 mRNA levels are increased in daf-2 relative to daf-2; daf-16 (Q-PCR data). ** 0.001 < p < 0.01. (B) DAF-16 binds to the mdl-1 promoter (ChIP-PCR data). One experiment is shown which contained 3 immunoprecipitation replicates from the same chromatin preparation (error bars show the standard deviation between them). The dotted line shows the average inputs from 3 genes/genomic regions that do not show enrichment for DAF-16 binding in daf-2 vs daf-16; daf-2 in this particular trial, i.e. it reflects background DAF-16 binding levels. Significant DAF-16 binding was detected one of two additional trials. The position of the DAF-16 binding site detected is shown in Figure 1A. (C)mdl-1, daf-2 and daf-16 epistasis analysis with respect to unfertilized oocytes production (Uno). Total unfertilized oocyte production per worm was measured at 25°C. Means of 12 broods assessed; error bars, standard error. ** 0.001 < p < 0.01; *** p < 0.001 (Student's t test). (D) Model for interactions between DAF-2, DAF-16 and MDL-1, deduced from interactions between mutations. DAF-16 promotes oocyte production in daf-2(+) worms, but inhibits it in daf-2(m577) worms. MDL-1 acts via DAF-16 to inhibit oocyte formation in daf-2(+) worms, but does not influence oocyte production in daf-2(m577) worms. (E) Resistance to 7.5 mM tert-butylhydroperoxide (t-BOOH). Sample sizes (censored values): N2, 67 [7]; daf-2(m577), 61 [8]; mdl-1, 67 [8]; daf-2; mdl-1, 70 [12]. Probability of being the same: N2 vs.mdl-1, p = 0.24; daf-2vs.daf-2; mdl-1, p < 0.001 (log rank test).

mdl-1 mutants are Uno-o while daf-2 mutants are Uno-d (Figure 1D,E) [22], and DAF-16 activates mdl-1 expression (Figure 3A,B) [9]. This could imply that increased mdl-1 activity in daf-2 mutants reduces oocyte production. To test this we asked whether mdl-1(tm311) would suppress daf-2 Uno-d, but it did not. Instead, daf-2(m577);mdl-1 worms were Uno-d (Figure 3C), i.e. daf-2 is epistatic to mdl-1. daf-2(m577) also suppressed mdl-1 effects on oocyte stacking and uterine tumor formation (data not shown). These results negate our hypothesis that daf-2 Uno-d is caused by mdl-1 over-activity. A different model was suggested by additional epistasis data as follows. In a daf-2(+) background, daf-16 suppressed mdl-1 Uno-o, consistent with the observation that daf-16 over-expression in a daf-2(+) background can cause germline hyperplasia [32]. Thus, DAF-16 promotes oocyte production in a daf-2(+) background but inhibits it in a daf-2(m577) background (Figure 3D). Moreover, mutation of daf-16 in a daf-2; mdl-1 mutant did not restore MDL-1 Uno-o (Figure 3C). This suggests that MDL-1 suppresses the effect of DAF-16 on oocyte production in daf-2(+) worms, but plays no role in daf-2 mutants (Figure 3D).

daf-2 mutants exhibit various forms of stress resistance, including oxidative stress resistance (Oxr) [33]. We tested whether MDL-1 contributes to daf-2 Oxr, specifically to tert-butylhydroperoxide (t-BOOH). In a wild-type background, mdl-1(0) did not affect Oxr, while daf-2(m577) markedly increased Oxr (Figure 3E). Notably, in a daf-2(m577) background, mdl-1(0) significantly decreased Oxr. This implies that MDL-1 contributes to daf-2 Oxr.

MDL-1 contributes to daf-2 mutant longevity by reducing baseline hazard

Next, we examined the effect of mdl-1 on aging. First we compared effects of mdl-1(RNAi) on lifespan in rrf-3 and rrf-3; daf-2(e1368) strains (25°C), and detected a reduction in lifespan only in the latter strain (data not shown), consistent with previous observations [6]. We then assessed the effect of mdl-1(tm311) on lifespan in wild-type or daf-2(m577) mutant backgrounds. mdl-1 decreased lifespan in both wild-type and daf-2 backgrounds, but the decrease was proportionally greater in the latter (Figure 4A, Table S1). This corresponded to a significantly greater mdl-1-induced increase in mortality in a daf-2 background (4.5-fold vs 1.8-fold; significant interaction term, p < 10−15, Cox proportional hazard analysis), suggesting that mdl-1 activity contributes to the daf-2 longevity increase.

Effects of mdl-1 on aging

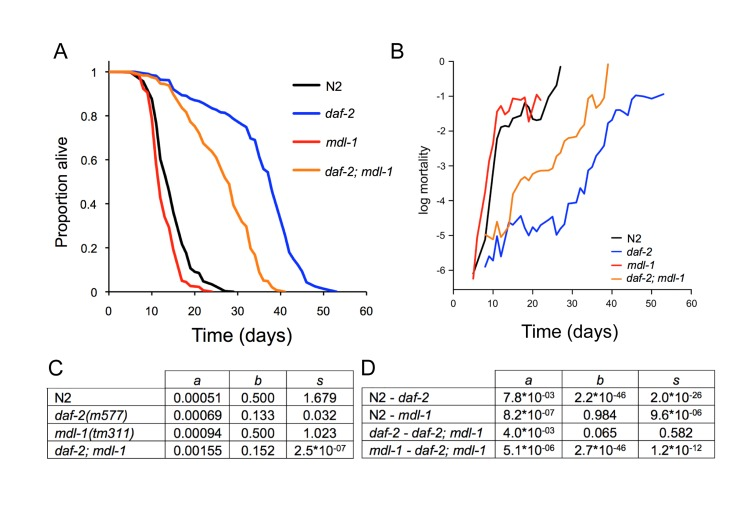

Figure 4. Effects of mdl-1 on aging.

(A) Effects of mdl-1(tm311) on lifespan (for statistics, see Table S1, combined data). (B) Effect of mdl-1 on age-specific mortality profiles. (C, D) Mortality analysis using logistic model. (C) Estimated values of logistic model parameters. (D) Probability, p, of parameters in compared genotypes being the same, holding other parameters constant.

To further characterize the effect of mdl-1 on aging, we examined its effect on the pattern of age-specific mortality in wild-type and daf-2(m577) backgrounds.

Aging animal populations typically show exponential increases in mortality rate, and in C. elegans this occurs in two stages, with an initial faster exponential increase and a subsequent slower exponential increase [34, 35]. We fitted mortality data to a logistic model, which contains 3 components: a baseline hazard (initial mortality rate, parameter a), a mortality increase rate (parameter b) and a late-life mortality deceleration (parameter s).

In this analysis we wanted to probe whether mdl-1(tm311) shortens lifespan by accelerating aging or whether it could act by a life-shortening effect unrelated to aging. An effect of mdl-1 on parameters b and s would imply an effect on aging, whereas an effect on parameter a could imply a non-aging related deleterious effect. In fact, mdl-1 increased baseline hazard (a) without affecting the mortality increase rate (b) (Figure 4B-D). By contrast, relative to wild type, daf-2(m577) markedly decreased parameters b and s, while also slightly increasing parameter a. Reducing insulin/IGF-1 signaling has long been known to slow the age-related mortality rate increase [36]. In a daf-2 background, mdl-1(0) again increased baseline hazard, and had no significant effect on parameters b and s (p > 0.05) (Figure 4C,D). In summary, this analysis confirms that daf-2 increases lifespan by slowing demographic aging, while mdl-1 shortens lifespan mainly by increasing baseline hazard. That mdl-1 shortens lifespan more in a daf-2 background could imply that MDL-1 contributes to daf-2 longevity by reducing baseline hazard (see Discussion).

Uterine tumors do not limit lifespan

mdl-1(0) accelerates formation of uterine tumors, which frequently grow very large, filling the body cavity in the mid-body region and squashing the intestine [31]. One possibility is that uterine tumors can contribute to mortality and that increased tumor formation in mdl-1(0) mutants causes a shortened lifespan. To test this, we examined the effect of mdl-1 on lifespan in the absence of uterine tumors. glp-4(bn2) mutants have a temperature-sensitive germline proliferation defect; if raised at 15°C to L4 and then switched to 25°C, oocyte production is blocked but longevity is not increased [7]. We first confirmed that glp-4 blocks formation of uterine tumors (Figure 5A). We then compared lifespan in glp-4, mdl-1 and glp-4; mdl-1 worms. glp-4 worms were normal-lived, but both mdl-1 strains were similarly short lived (Figure 5B; Table S2).

No effect of uterine tumors on lifespan

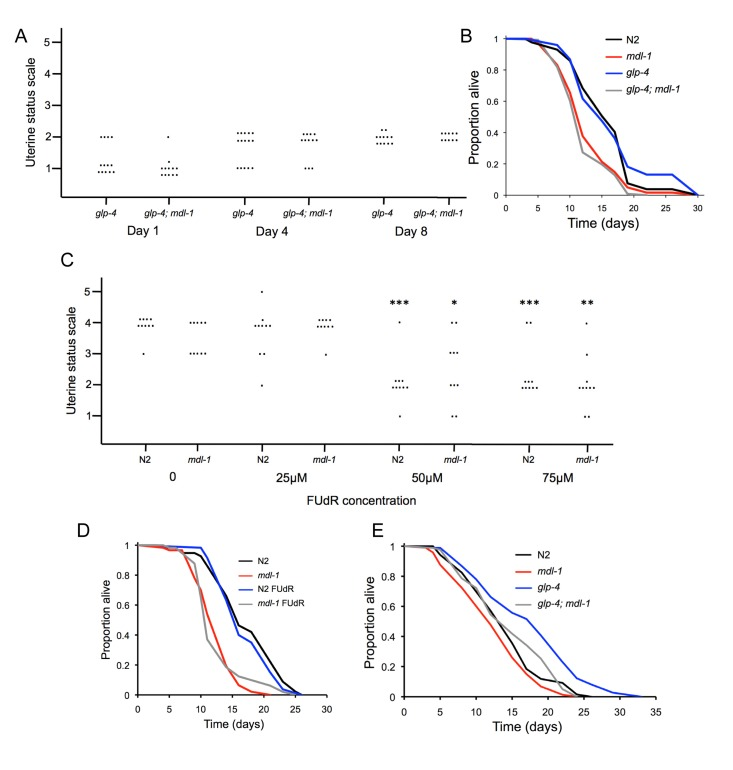

Figure 5. No effect of uterine tumors on lifespan.

(A) Uterine tumors are not seen in glp-4(bn2) mutants (raised at 15°C to L4 then shifted to 25°C). Uterine classes 2-5 indicate presence of tumors. Each dot corresponds to a uterine status measurement. (B) glp-4 does not suppress mdl-1 effects on lifespan (for statistics, see Table S2, trial 1). (C) FUdR suppresses formation of uterine tumors at 50μM or greater. Stars represent a significant difference to worms of the same genotype in the absence of FUdR. No significant difference in tumor levels between N2 and mdl-1 were detected at this age at any FUdR concentration. * 0.01 < p < 0.05; ** 0.001 < p < 0.01; *** p < 0.001 (Wilcoxon Mann test). (D) 50μM FUdR does not suppress mdl-1 shortevity or increase N2 lifespan (for statistics, see Table S2, trial 1). (E) Effect of mdl-1 on glp-4 longevity (for statistics, see Table S2, trial 2).

We also blocked uterine tumor formation using the inhibitor of DNA replication 5-fluoro-deoxyuridine (FUdR), which is also commonly used to treat colorectal cancer. Application of FUdR at low concentrations (e.g. 10-25μM) from L4 stage is a convenient means to block progeny production, and has little effect on lifespan [37]. 50μM FUdR, but not lower FUdR concentrations, was sufficient to block formation of uterine tumors (Figure 5C). We then compared effects of 50μM FUdR on lifespan in wild type and mdl-1 worms, and saw no effect on lifespan in either case (Figure 5D; Table S2). These results show that accelerated formation of uterine tumors do not cause the shorter lifespan of mdl-1 worms. They also demonstrate that uterine tumors do not limit lifespan in wild type worms under standard culture conditions. This contrasts with the case of daf-16 over-expression, where life shortening is suppressed by blocking germline hyperplasia either with glp-1 or FUdR [32].

A number of interventions that remove the hermaphrodite germline cause increased lifespan, including raising glp-4(bn2) mutants at 25°C, and this effect is daf-16 dependent [38, 39]. Notably, mdl-1(0) also reduced the longevity of glp-4 mutants raised at 25°C (Figure 5E, Table S2). mdl-1 shortened lifespan more in a glp-4 background than in a wild-type background (Table S2). This suggests that mdl-1(+) contributes to glp-4 longevity as well as daf-2 longevity.

Evidence that mdl-1 can act in the intestine to promote longevity

The intestine plays an important role in daf-2 mutant longevity [40], and is a site of mdl-1 expression [10]. One possibility is that mdl-1 affects intestinal protein synthesis. Mutation of daf-2 causes a global reduction in protein synthesis, which may contribute to longevity [41, 42]. In aging hermaphrodites, yolk proteins (vitellogenins) become very abundant indeed [43, 44], and this accumulation is suppressed daf-2, apparently by inhibition of protein translation in the intestine [45] where yolk is synthesized [46]. Thus, vitellogenin accumulation rate gives some indication of intestinal protein synthesis rate. However, mdl-1(0) did not alter vitellogenin accumulation, either in wild type or daf-2 mutant backgrounds (Figure 6A,B). One possibility is that mdl-1 mutants do synthesize more vitellogenin, but due to increased laying of unfertilized oocytes, this does not result in increased vitellogenin accumulation. To check this we compared sterile glp-4 and glp-4; mdl-1 worms (shifted at L4 to 25°C), but again no effect of mdl-1 was seen (Figure 6A,B).

Tests for action of mdl-1 in the intestine

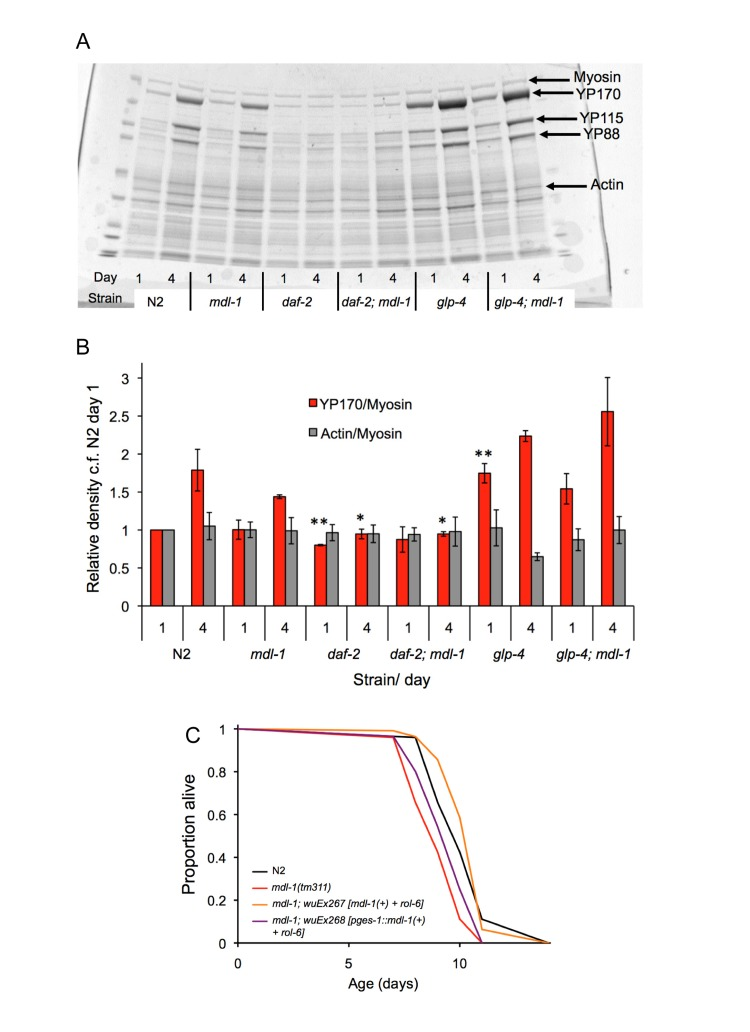

Figure 6. Tests for action of mdl-1 in the intestine.

(A,B) Effect of mdl-1 on yolk accumulation. (A) Example of Coomassie stained gel with C. elegans protein extracts. (B) Bar graph data is derived from densitometric measurement of protein on gels (means of 3 biological replicates; error bars, standard error). It shows levels of the major yolk protein YP170 normalized to myosin levels (which are not expected to change), and again to levels in N2 on day 1. Actin/myosin ratio gives an indication of the reliability of myosin as a standard. * 0.01 < p < 0.05; ** 0.001 < p < 0.01, compared to N2 of the same age. (C) Effects on lifespan of pges-1::mdl-1(+) rescue of mdl-1(0) (for statistics, see Table S3, trial 2).

Next, we asked whether intestine-limited rescue of mdl-1 using the ges-1 promoter[47] would rescue mdl-1 shortevity. A transgene array from which mdl-1 was expressed using its own promoter was able to restore wild-type lifespan to mdl-1(tm311) mutants (Figure 6C; Table S3). Notably, pges-1::mdl-1 too increased lifespan in mdl-1 mutants, though the effect was smaller such that lifespan was not restored to wild type. This suggests short lifespan in mdl-1 mutants is caused by loss of mdl-1 from several sites, including the intestine. Possibly, a second site of action of mdl-1 on lifespan is the germline, given its impact on that tissue.

The extent of loss of Myc among nematodes

One puzzle relating to mdl-1 function is the absence of Myc in C. elegans. In mammals, the Mad/Max/Myc system works in concert with the Tor pathways to control growth [48]. C. elegans also lacks key components of the Tor pathway, including the Tsc1/Tsc2 complex [49], and 4E-BP [50] (Figure 7A). To try to understand the significance of the absence of Myc in the broader context of nematode gene loss, we tested for the presence of Myc, Tsc1, Tsc2 and 4E-BP throughout the Nematoda. It was previously noted that Myc orthologs are absent not only from C. elegans and C. briggsae, but also the filarial parasite Brugia malayi (nematode order Spirurida), and even the bilharzia parasite Schistosoma mansoni (phylum Platyhelminth) [51]. Searching the genomes of 13 nematode species, including representatives of the major nematode orders, no Myc orthologs were detected (Figure 7B). Myc was also absent from all 5 platyhelminth species examined. This implies that Myc evolved in the common ancestor of arthropods and chordates after divergence from the common ancestor of nematodes and platyhelminths, as previously suggested [51]. Thus, the Myc-less Mad-Max circuit in C. elegans appears to represent a more ancient regulatory system.

Extent of loss of Myc, Tsc1/Tsc2 and 4E-BP among the Nematoda

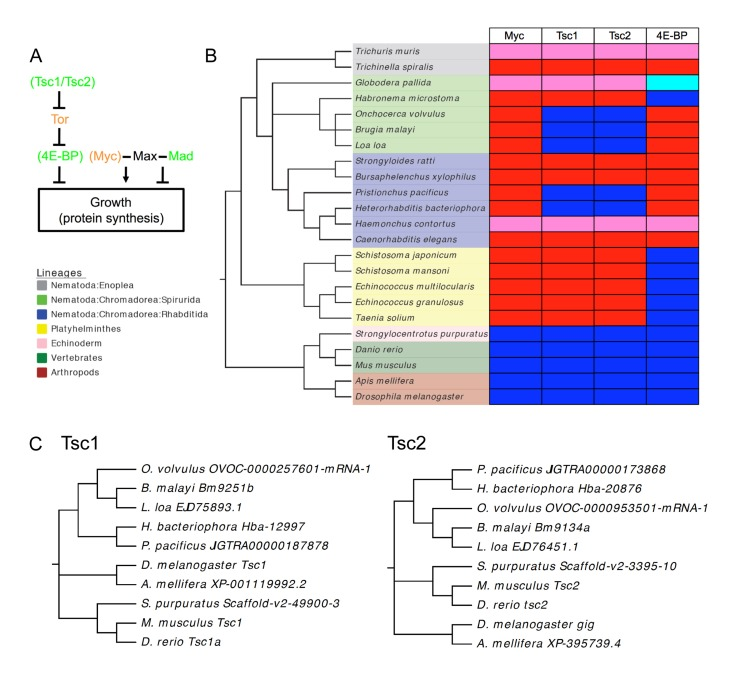

Figure 7. Extent of loss of Myc, Tsc1/Tsc2 and 4E-BP among the Nematoda.

(A) Outline of missing elements of Tor and Myc/Max/Mad pathways in C. elegans. Green, tumor-suppressor/anti-aging; orange, oncogene/pro-aging. In brackets, proteins missing from C. elegans. (B) Presence and absence of Myc, Tsc1, Tsc2 and 4E-BP among nematodes and platyhelminths. Red, absent; dark blue, present; pink, not found; pale blue, putative but somewhat divergent 4E-BP. Not found: a caveat to this analysis may be the incompleteness of the genomic sequences of some of these species with draft assemblies being available for G. pallida and H. contortus and only contigs available for T.muris. (C) Phylodendrograms of Tsc1 and Tsc2 sequences for nematodes and other animal groups. Note that species and sequence phylogenies correspond.

By contrast, both Tsc1/Tsc2 and 4E-BP were found in several nematode groups but were absent from many others, in a pattern indicating that each gene has been lost several times during nematode evolution. For Tsc1 and Tsc2, gene loss was correlated, i.e. both genes were either present or absent. There was no correlation between loss of Tsc/Tsc2 and 4E-BP: nematode species exist with Tsc1/Tsc2 but lacking 4E-BP and vice versa. The distribution of Tsc1/Tsc2 is surprising in that most nematode and all platyhelminth groups lack this complex, apart from spirurid nematodes, and two rhabditid species. Sequence comparisons of Tsc1 and Tsc2 protein sequences from nematodes and other animal groups is consistent with multiple instances of gene loss (rather than horizontal gene transfer) (Figure 7C).


In this study we have shown that MDL-1 acts as an inhibitor of germline proliferation, and of oocyte hypertrophy, thereby inhibiting a salient aging-related pathology (uterine tumors). These properties of mdl-1 mutants recapitulate effects of Mad TFs in mammals, e.g. mice lacking the Mad TF Mxi1 show hyperplasia in a number of tissues (e.g. prostatic epithelium), and are tumor prone [52]. We also confirm that MDL-1 inhibits aging, consistent with the observed association between tumor suppressors and inhibition of aging [53, 54].

Does mdl-1 act downstream of daf-16?

Our initial hypothesis was that activation of mdl-1 expression by DAF-16 contributes to daf-2 longevity. The results of analysis of mdl-1 expression (Figure 3A,B) and the effects on lifespan of mdl-1(tm311) (Figure 4A) are consistent with this hypothesis. We also noted that mdl-1 and daf-2 have opposing effects on the germline: mdl-1(0) causes Uno-o, increased oocyte stacking and increased uterine tumors (this study), while mutation of daf-2 has opposite effects [22, 29]. This suggested that the effects of daf-2 on the germline might be mediated by mdl-1. However, epistasis analysis shows that this is not the case for oocyte production (Figure 3C). Instead mdl-1 appears to have no effect on the germline in daf-2 mutants, but to inhibit promotion of germline proliferation by DAF-16 in daf-2(+) worms (Figure 3D).

Does mdl-1 affect aging?

The life-shortening effect of mdl-1(0) is mainly the result of increased base-line hazard (Figure 4B-D). This could imply that mdl-1(0) does not affect aging but, rather, shortens lifespan by causing a pathology that is distinct from aging. In similar fashion, a comparison of mortality in two groups of people during the 1940s, either in Australia or interned by the Japanese, showed increased base-line hazard but not increased demographic aging in the latter [55]. It is interesting to consider whether this necessarily means that the effect of mdl-1 on lifespan does not involve an effect on aging. The impact of mdl-1(0) on lifespan is greater in a daf-2 background, suggesting that MDL-1 does contribute to daf-2 longevity, i.e. that mdl-1 does affect aging. Arguably, the critical point here is that something that affects demographic aging necessarily affects biological aging, while something that affects base-line hazard may or may not affect biological aging. In other words, the biological process of aging is not always the same thing as demographic aging.

One working definition of biological aging is the set of endogenously generated pathologies that increase in later life [56]. In principle, interventions that reduce one or more age-related pathology (i.e. part or all of aging) could increase lifespan by reducing base-line hazard, demographic aging, or both. One possibility is that the wider the spectrum of age-related pathologies that an intervention suppresses, the more likely will a reduction in demographic aging be seen. In conclusion, mdl-1(0) may or may not affect aging. Its greater effect on daf-2 could imply that it does; however, an alternative possibility is that mdl-1(0) causes a pathology that is distinct from those seen during aging, and that daf-2(-) slightly increases the severity of this pathology, or increases its effect on mortality.

Where and how does mdl-1 act to impact lifespan?

The phenotype of mdl-1(tm311) mutants demonstrates that MDL-1 acts as a repressor of growth and proliferation in the germline. This is consistent with the role of Mad TFs as repressors of growth and proliferation in mammals [11]. A long-standing hypothesis about aging is that it is caused by molecular damage, but more recently it has been suggested that aging is caused by the run on of developmental and reproductive processes in late life, leading e.g. to pathological hyperplasia, hypertrophy and atrophy [57-59]. The action of MDL-1 as a DAF-16-activated suppressor of growth is broadly consistent with this model.

The mdl-1 mutant phenotype also suggests that this gene may affect lifespan through its effects on the germline. One possibility is that over-production of oocytes or increased formation of uterine tumors per se cause a decrease in lifespan. However, our findings argue against this: suppression of these effects in mdl-1 mutants using glp-4 or FUdR does not suppress the life-shortening effects of mdl-1(0) (Figure 5B,D). A second possibility is that mdl-1(0) affects signaling from the germline; removal of the germline can extend lifespan, and this effect is daf-16 dependent [39]. Consistent with this possibility, mdl-1(0) shortens lifespan somewhat more in long-lived germlineless glp-4 mutants than in otherwise wild-type worms (Figure 5E).

Another possible site of mdl-1 action on lifespan is the intestine, which plays a significant role in the control of aging [40], and where mdl-1 is expressed [10]. Notably, intestine-limited rescue of mdl-1(+) in otherwise mdl-1(0) worms was sufficient to modestly increase lifespan. However, how mdl-1 acts in the intestine remains unclear. Mutation of daf-2 increases intestinal expression of ftn-1, which encodes the iron storage protein ferritin. This increase is wholly daf-16 dependent and partially mdl-1 dependent [14]. Free iron is required for growth (e.g. ferroprotein synthesis) but also generates oxidative stress. Thus, increased activity of MDL-1 in daf-2 mutants might retard intestinal aging as part of a program of suppression of protein biosynthesis. However, we did not detect an effect of mdl-1 on accumulation of the most abundant protein class in C. elegans hermaphrodites, the vitellogenins (Figure 6A,B), which are synthesized in the intestine [46]. However, it remains possible that other aspects of protein synthesis are reduced by mdl-1.

Alternatively, mutation of mdl-1 might increase levels of free iron in the intestine, perhaps accelerating aging by increasing oxidative damage, as suggested by the free radical theory. Consistent with this, mdl-1(0) partially suppress daf-2 Oxr (Figure 3E), suggesting that MDL-1 promotes Oxr in daf-2 mutants. However, mdl-1(0) alone did not affect Oxr; moreover, free iron levels appear to have little effect on aging under standard culture conditions [60]. More broadly, a range of studies suggest that oxidative damage is not a central determinant of aging, particularly in C. elegans [61, 62]. Together, these findings suggest that the intestine is one of several sites of action of mdl-1 on lifespan.

The significance of uterine tumors in C. elegans

The oocyte-derived growths in the C. elegans uterus have been noted in previous studies and referred to as ‘tumor-like’ growths [30], masses [24] and oocyte clusters [29]. Dictionary definitions of the word tumor vary, but in the common understanding of tumor, as in “a growth — a mass of tissue — that has no function” [63], these entities are tumors, hence our use of the term in this study. Arguably, C. elegans uterine tumors are both different and similar to mammalian cancer. It seems likely that C. elegans uterine tumors result from aging-associated overgrowth rather than mutations in oncogenes or tumor suppressor genes. But much of mammalian cancer, like worm uterine tumors, is part of the aging process. While it is clear that aging and cancer are associated, the relationship between the two remains unclear. One possibility is that aging results in changes in tissue microenvironment, e.g. due to senescent cell accumulation, that create more permissive conditions for cancer growth [64]. Aging-related tumors can occur even in the absence of transforming mutation, as in benign prostatic hyperplasia (BPH). We postulate that C. elegans uterine tumors, like BPH, exemplify the non-mutationally driven component of aging-associated cancer.

The regulatory network within which mdl-1 might function

In mammals, Mad TFs act antagonistically to Myc TFs, which promote the cell cycle, growth and apoptosis, and reduce H ferritin expression [11, 15]. Consistent with this, MDL-1 inhibits germline growth and apoptosis (this study), and activates ftn-1 expression [14]. Moreover, in mammals over-expression of Myc can induce endomitosis and cause increased ploidy [65], often seen in tumors, and also in senescent cells [66, 67], while MDL-1 antagonizes growth of uterine tumors formed from endomitotic oocytes (this study). Thus, MDL-1 in C. elegans behaves as one would expect of an antagonist of Myc – which is perhaps surprising given that C. elegans does not possess Myc. Indeed, Myc appears to be absent from the entire Nematode phylum (this study) [51].

In mammals, the Tor pathway and Myc TFs work in concert to control protein synthesis. Myc TFs activate expression of translational machinery genes, including eIF4E, eIF4A and eIF4G, which are components of the eIF4F complex that promotes translational initiation [48]. C. elegans lacks many genes that are present in other animal phyla [68], which can limit its usefulness as a model organism. Besides Myc, this also affects the worm Tor pathway, which lacks several key proteins,notably Tsc1/Tsc2 and 4E-BP. Thus, C. elegans possesses what appears to be a different version of the IIS/Tor/Mad network of higher animals. To fully understand the worm network requires understanding these differences.

Several interpretations have been made of the absence of Myc in C. elegans. First, that it reflects the relatively restricted C. elegans cell proliferation program [10]. Second, that in C. elegans the Myc role is played by a different bHLH TF, for example MML-1 (Myc and Mondo-like 1) [16]. However, arguing against this interpretation, MML-1 resembles Mondo rather than Myc, it dimerizes with MXL-2 while MDL-1 dimerizes with MXL-1, and deletion of mxl-2 has only minor phenotypic effects (abnormal migration of ray 1 precursor cells in the male tail), and does not affect e.g. growth or lifespan [16].

Another possibility is that the Myc-less Mad-Max circuit ensures rapid growth, i.e. the nematode machinery for protein translation is, in the absence of DAF-16 and MDL-1, constitutively active. Consistent with this, Tsc1/Tsc2 and 4E-BP, which both antagonize growth, are absent from C. elegans, and most other nematodes (Figure 7B). Notably, in Drosophila, inhibition of growth resulting from reduced Tor kinase activity (e.g. by over-expression of Tsc1 and Tsc2) can be rescued by overexpression of dMyc [69]. An intriguing detail is the presence of Tsc1/Tsc2 in several spirurid nematodes (Figure 7B, Table S4); notably this group includes the longest lived nematode species known, e.g. the maximum lifespan of adult Loa loa is at least 20 years [70]. Another possibility is that the growth inhibitory functions of Tsc1/Tsc2 and 4E-BP have been taken over by DAF-16/FoxO, which is a major regulator of protein synthesis in C. elegans [41, 42, 45]. Thus, perhaps DAF-16 suppresses growth in soma and germline, while MDL-1 suppresses growth in the germline alone.


These results confirm that the Mad TF MDL-1 contributes to the daf-2 longevity phenotype, and reveal a major role in inhibition of germline growth and reduction of uterine tumor development. They also suggest a role for intestinal MDL-1 in longevity assurance. The action of mdl-1 as a DAF-16 activated gene that inhibits growth is broadly consistent with the possibility that the effects of insulin/IGF-1 signaling and DAF-16 on aging are a function of their effects on growth.

Materials and Methods

C. elegans culture and strains

Worms were cultured as previously described [71], at 20°C unless otherwise stated. Nematode strains used include N2 (wild type), DR1567 daf-2(m577)III, SS104 glp-4(bn2)I, GA1200 mdl-1(tm311)X (6X out-crossed), GA91 daf-16(mgDf50)I; daf-2(m577), GA1204 daf-2(m577); mdl-1(tm311), GA1208 daf-16(mgDf50); daf-2(m577); mdl-1(tm311), GA1226 daf-16(mgDf50); mdl-1(tm311), GA1230 glp-4(bn2); mdl-1(tm311),GA1604 mdl-1(tm311); wuEx267[mdl-1 + rol-6(su1006)], GA1605 mdl-1(tm311); wuEx268[pges-1::mdl-1 + rol-6(su1006)]. Primers to identify mdl-1(tm311) were atggaacagcaactcaaccttgg and ttaaacttggaggttgattggcaag, and heterozygotes aatgatgtgatctcgggctcg. Primers to genotype daf-16(mgDf50) were as described [72].

Strain construction

Multiple mutant strains were generated using standard genetic and molecular methodologies. Strains carrying mutations on the X chromosome (e.g. mdl-1(tm311)) were crossed with N2 males to generate hemizygous mutant males which were mated with L4 hermaphrodites of the strain carrying the second mutation of interest. F1 offspring were picked, and allowed to self-fertilise and 80 F2 were picked, allowed to lay eggs overnight, lysed and stored at −20°C. Genomic deletions were identified using PCR. In the presence of the temperature sensitive daf-2(m577) allele, F1 animals were shifted to 25°C to select for dauer formation in the F2, dauers were picked and left to recover at 15°C to lay eggs, the F2 were lysed and tested for deletions. The daf-16(mgDf50); daf-2(m577); mdl-1(tm311) triple mutant was constructed by mating daf-16; daf-2 males with daf-2; mdl-1 hermaphrodites. The F2 generation was cloned, lysed and offspring raised at 25°C. daf-16(mgDf50) homozygotes in the F3 were initially identified as non-dauer formers, and mdl-1(tm311) homozygotes identified by PCR.

mdl-1 transgenic lines were created by microinjection using PCR products and PCR fusion [73]. Primers used to make GA1604 were aaattgcacatgcagagacg and gaaagatacggaaggtgtgc. Primers used to make GA1605 were ttgtctattggtatggctgc; ggttgagttgctgttccattacaaggaa tatccgcatctg; gcgctaccaataaggctaag; aatggaacagcaactc aacc; gaaagatacggaaggtgtgc; and tttacaacacgatccacacg.

Staining protocols

To quantify germ cell number, nuclei were stained using DNA-binding dye 4',6-diamidino-2-phenylindole (DAPI). Animals were fixed in methanol, washed with M9 buffer and incubated in the dark in a 500ng/μl DAPI solution for 30 min. Thereafter they were washed again in M9 buffer. To quantify the number of apoptotic cells in living animals, nematodes were stained with SYTO 12 Green Fluorescent Nucleic Acid Stain (Molecular Probes). The animals were incubated in the dark in a 33μM SYTO 12 solution for 4 hr, and then placed on an OP50 lawn for 1 hr.

Quantitative RT-PCR and chromatin immunoprecipitation PCR (ChIP-PCR)

RT-PCR and ChIP-PCR were performed largely as previously described [9, 74]. Primers for RT-PCR amplification from mdl-1 mRNA were cccgtttgcgtgtcattgt and atggattgtgagagtgttgagaat. Primers for ChIP-PCR of an mdl-1 promoter region (Figure 1A) were ccccctcgttttctccatgt and gccgctcgctccaatg.


Freshly prepared agar pads were created by dropping 35μl of 2% agarose onto a glass slide. Worms were anaesthesised using 5μl 0.2% levamisole. Nomarski microscopy was performed on a Zeiss Axioskop2 plus microscope with a Hamamatsu ORCAER digital camera C4742-95. Images were acquired using Volocity 5.5 software, with 10x eyepieces and a 40x objective lens. For body size measurements, worms were synchronized and hatched overnight in M9 buffer. The next day, ~30 worms per strain were imaged, and the remainder cultured on OP50 and thereafter imaged consecutively for 6 days. Volocity 5.5 was used to quantify the length of the worm from head to tail and the width across the pharyngeal-intestinal valve region.

Uterine tumor scoring system

Uterine status was scored from 1 to 5, where scores of 3-5 indicates the presence of a tumor. Class 1 denotes a normal, youthful uterus containing fertilized eggs and/or unfertilized oocytes of normal appearance. Class 2 denotes a uterus whose contents appear somewhat abnormal, but without a clear increase in size. Class 3 denotes a uterus containing a small tumor. Class 4 denotes a uterus containing a medium sized tumor, that does not fill the body cavity in the mid-body region. Class 5 denotes a uterus where the tumor is large, and fill the entire body cavity in the mid-body region, and even causes distension of the body wall. For the scoring, the tumor images was randomised, and the scoring was performed blinded by 3 different scorers. The non-parametric Wilcoxon test was used to compare tumor classes between worm strains and within the same strain on day 1 and day 4. The analysis was performed using the statistical programme JMP 9 (SAS Institute Inc.)

Fertility measurements

Brood sizes were assayed as previously described [22]. Briefly, 10-12 L4 hermaphrodites, raised at 20°C were cloned on individual plates, shifted to 25°C and transferred daily for 7 days. Plates were incubated at 20°C for 24 hr to allow offspring to hatch and then larvae, unfertilized oocytes and dead eggs were scored.

Yolk level measurements

For each test sample, 50 hermaphrodites at day 1 and 4 of adulthood were transferred into an Eppendorf tube filled with 1 ml M9 buffer. Worms were spun at 800 rpm for 2 min and supernatant removed, leaving 25 μl. Then 25 μl of 2x Laemmli buffer (Sigma) was added, and samples incubated at 70°C for 15 min, vortexed every other minute and then shifted to 95°C for 5 min. Lysates were centrifuged at 13,000 rpm at 4°C for 15 min. 20 μl of each sample was loaded onto a Criterion XT Tris-Acetate gel. The gel was run at 200V in SDS-PAGE chamber with 1x 3-(N-morpholino) propanesulfonic acid (MOPS) buffer for 45 min. The gel was fixed in methanol, acetic acid and ultrapure water in ratio of 50:10:40 for 30 min. The fixing solution was then discarded and replaced with Coomassie fixation solution (50:3:40:10 methanol: Coomassie stock solution: ultrapure water: acetic acid). 12.0 g of Brilliant Blue R-250, 300 ml methanol and 60ml acetic acid were used to prepare Coomassie stock solution. The gel was incubated overnight in destaining solution (45:10:45 methanol: acetic acid: ultrapure water). Protein bands on the gel were visualised by a Image Quant GE Healthcare scanner system connected to a computer, and analysed by ImageQuant software with which densitometry was performed. Each experiment was done in triplicate.

Lifespan measurements

These were conducted as previously described [22]. Briefly, 5 plates per condition were seeded with OP50 2 days before the start of the experiment. 10 μM FUdR was topically applied before beginning the trial. Animals were raised at 20°C, or for assays including glp-4(bn2) mutants, animals were raised at 15°C and switched to 25°C at L4 stage. All animals were transferred to fresh plates on day 5 and 10. Deaths were scored and losses due to causes other than death were censored. Lifespan data were deposited in SurvCurv [75] .

Dauer formation measurement

Dauer formation was assessed at 22.9°C as previously described [22]. Briefly, 12 L4s were picked and raised to adulthood at 20°C for 2 days. These gravid adults were then placed on 35mm plates to lay eggs for 6 hrs at the test temperature, after which the adults were removed and the larvae were allowed to develop at the test temperature. Dauers and normal larvae were scored 72 hr after the midpoint of the egg lay and the percentage dauer formation was calculated by dividing the number of dauer larvae by the total number of offspring.

Oxidative stress resistance

1 day old adults were tested for resistance to 7.5 mM tert-butylhydroperoxide (t-BOOH) as previously described [33]. Briefly, L4 animals were picked from mixed stage plates raised at 20°C, then shifted to 25°C overnight. NGM agar was supplemented with 7.5 mM t-BOOH and the plates were left to dry overnight. The next day, each plate was supplemented with a blob of densely grown OP50, and 15 young adults were added per plate. The trial was conducted at 25°C and animals were scored every 2 to 3 hr until the last animal had perished.


Myc, Tsc1, Tsc2 and 4E-BP orthologs were sought by local alignment searches of the 4 protein sequences to the gene models in Mus musculus using BLASTP searches. Since not all genomes were available in WormBase, orthologs for the parasitic helminths (B. xylophilus, E. granulosus, E. multilocularis, T. solium, H. microstoma, S. mansoni and S. japonicum) were derived from GeneDB. Orthologs for G. pallida, H. contortus, O. volvulus, S. ratti and T. muris were sought using the data available on the Sanger Institute Resources. Orthologs to T. muris were sought by local alignment searches of the 4 genes to contigs, using a “protein versus translated DNA” a TBLASTN search. Finally, orthologs of P. pacificus were sought among the gene predictions available from Multiple sequence alignments of the Tsc1/2 protein sequences were done using MUSCLE [76]. All trees were constructed and visualised as previously described [74].

Statistical analysis

Lifespans were analysed using the Cox Proportional Hazard method with the Efron approximation for ties of the survival package in R. The logistic mortality models were fitted to the lifespan data and parameter difference tested using the Survomatic R package. The body sizes were analysed using a linear regression model taking into account the trial as random factor in R. The Wilcoxon Mann test was used for tumors and the brood sizes were compared using a standard Student's t Test.

Supplementary Materials

Supplemental File


We wish to thank Mikhail Nikiforov for useful discussion, and Filipe Cabreiro for comments on the manuscript. Some nematode strains used in this work were provided by the Caenorhabditis Genetics Center, which is funded by the National Institutes of Health National Center for Research Resources and the National Bioresource Project of Japan. This work was supported by the Wellcome Trust (Strategic Award), EMBL and the European Union (IDEAL).

Conflicts of Interest

The authors of this manuscript have no conflict of interest to declare.
