Tumor microenvironment-related multigene prognostic prediction model for breast cancer

Materials and Methods

Data acquisition

Gene expression, tumor mutation burden, and clinical information datasets of breast cancer were obtained from The Cancer Genome Atlas (TCGA, https://portal.gdc.cancer.gov/) and Gene Expression Omnibus (GEO, https://www.ncbi.nlm.nih.gov/geo/) databases in October 2021. We selected 1208 samples, including 1096 breast cancer samples and 112 normal samples from The Cancer Genome Atlas Breast Invasive Carcinoma (TCGA-BRCA) program. After searching the datasets with more than 150 human breast cancer samples with complete expression profile data, we selected the GSE10886 dataset from the GEO [9].

Analysis of differentially expressed genes

To identify the DEGs, we used a multi-step approach (Figure 1). The limma and sva R packages were used for the differential expression analysis (log fold change [FC] >1, false discovery rate [FDR] < 0.05) and batch correction for the TCGA-BRCA [11–15] (Supplementary File 1).

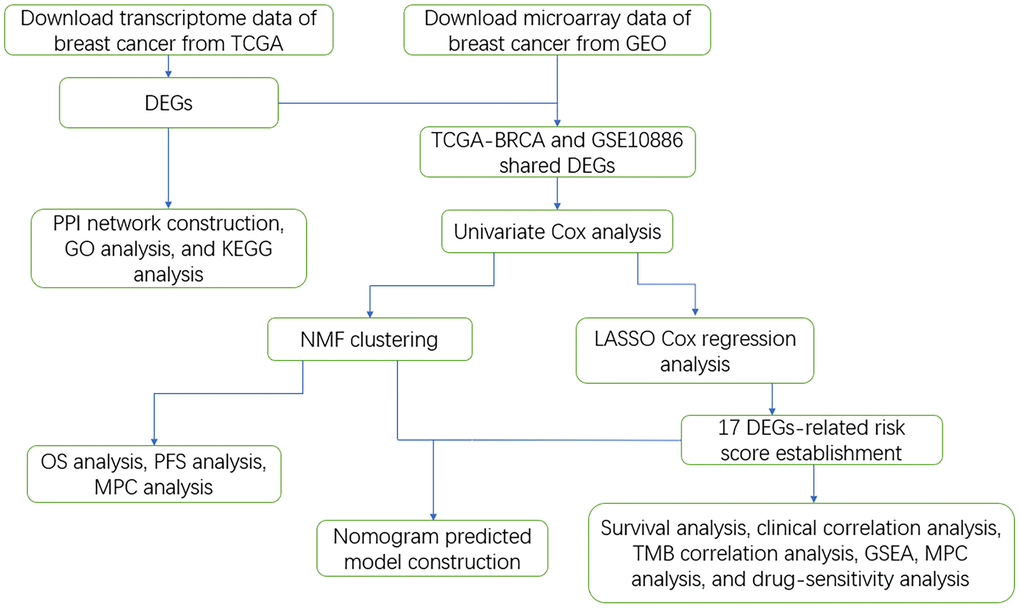

Figure 1. Work flowchart of the study.

Protein-protein interaction network and enrichment analysis

The protein-protein interaction (PPI) network for DEGs was constructed using the STRING website tool (https://string-db.org/); the high confidence genes were conserved (interaction score ≥ 0.7), and hub nodes were visualized by R-x64-4.1.1 (Supplementary File 1). Gene ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analyses were conducted using the clusterprofiler R package, where P < 0.05 [16–18] (Supplementary File 1).

Non-negative matrix factorization clustering

First, we intersected the TCGA-BRCA and GSE10886 data to obtain the shared DEGs; then, we analyzed the DEGs using the survival and NMF R packages (Supplementary File 1), through which eight distinct subtypes were identified according to the cophenetic correlation coefficient for the cluster number from 2–10 [19]. Second, the overall survival (OS) and progression-free survival (PFS) differences among these subtypes, as observed by Kaplan-Meier (K-M) analysis and log-rank test, were analyzed using the survival and survminer R packages [20] (Supplementary File 1). Third, the analysis of microenvironment cell populations (MCP) differences among these subtypes was performed using the limma, ggpubr, and MCPcounter R packages [21] (Supplementary File 1).

Nomogram model establishment

Based on the DEG data, a univariate Cox analysis was performed to identify the survival related genes (P < 0.05). A modified LASSO regression analysis was conducted to find the genes most relevant to the OS of breast cancer patients (P < 0.05) [22–24] (Supplementary File 1). To verify the accuracy of our risk score predictor, analyses of training, and test groups were performed using data that were randomly obtained from the whole group. The predictive ability of the risk score was evaluated by survival probability curve, receiver operating characteristic (ROC) curve, and the area under the curve (AUC) [25] (Supplementary File 1). The risk computing formula is as follows: Risk score $={\sum }_{i=1}^{n}Coef(i)\ast Expr(i)$. In addition, univariate and multivariate analyses were performed to demonstrate the independent predictive ability of the risk score. A nomogram prediction model was established using clinical characteristics, NMF clustering, and risk score to predict the survival of breast cancer patients; the nomogram-predicted probability of the 1-, 3-, and 5-year OS is shown by the calibration curve [26]. To identify the superiority of the nomogram, a decision curve analysis (DCA) was conducted [27] (Supplementary File 1). The R packages survival, survminer, caret, glmnet, timeROC, ggDCA, regplot, and rms were used for these analyses (Supplementary File 1).

Gene set enrichment analysis

Gene set enrichment analysis (GSEA) was conducted between low- and high-risk score subsets [28] (Supplementary File 1). The “c2.cp.kegg.v7.4.symbols.gmt” was obtained from (https://www.gsea-msigdb.org/gsea/index.jsp). Signaling pathways with P < 0.05 and FDR < 0.05 were considered enriched.

Clinical characteristics, genes, immune cells, and tumor mutation burden correlation analysis

The correlations between risk score and clinical characteristics, known breast cancer genes, immune cells, and tumor mutation burden (TMB) are shown through box plots, correlation matrix, and circular plot generated by ggpubr, corrplot, and circlize R packages, respectively [29] (Supplementary File 1).

Relevance analysis between NMF clustering and risk score

To further explore the relevance between our novel typing mode and independent predictive factors, a Sankey diagram was plotted using ggalluvial, ggplot2, and dplyr R packages [30–32] (Supplementary File 1).

Immunohistochemistry

Immunohistochemistry results for risk score related DEGs in breast cancer were obtained from The Human Protein Atlasdatabase (THPA, https://www.proteinatlas.org/).

Chemotherapeutic and immunotherapeutic response prediction

We predicted the drug response in breast cancer patients based on the Genomics of Drug Sensitivity in Cancer database [33]. Six common chemotherapeutic and immunotherapeutic drugs (paclitaxel, cytarabine, camptothecin, lapatinib, erlotinib, and gefitinib) were selected for the analysis. The R package pRRophetic was used to conduct the analysis [34] (Supplementary File 1). The inhibitory concentration (IC₅₀) was assessed to determine the drug sensitivities. ComBat was used to adjust for batch effects, and the average expression was calculated for repeated genes.

Statistical analysis

Statistical analysis was performed using R-x64-4.1.1 and perl-5.32 (Supplementary File 1). Data are presented as means ± standard deviation. Differences with P < 0.05 and FDR < 0.05 were considered statistically significant.

Data availability statement

All data are available from online database included TCGA (https://portal.gdc.cancer.gov/), GEO (https://www.ncbi.nlm.nih.gov/geo/), THPA (https://www.proteinatlas.org/), and GSEA (https://www.gsea-msigdb.org/gsea/index.jsp).

Ethical statement

TCGA, GEO, THPA, and GSEA belong to public databases. Patients involved in them all had ethical approval. All analyses of us were based on them, therefore, no ethical issues existed.

Results

Differentially expressed genes in breast cancer

The expression of 1086 DEGs was founded in the TCGA-BRCA cohort by comparing breast cancer tissue (1096 tumor samples) with normal tissue (112 normal breast samples) (Figure 2A, 2B).

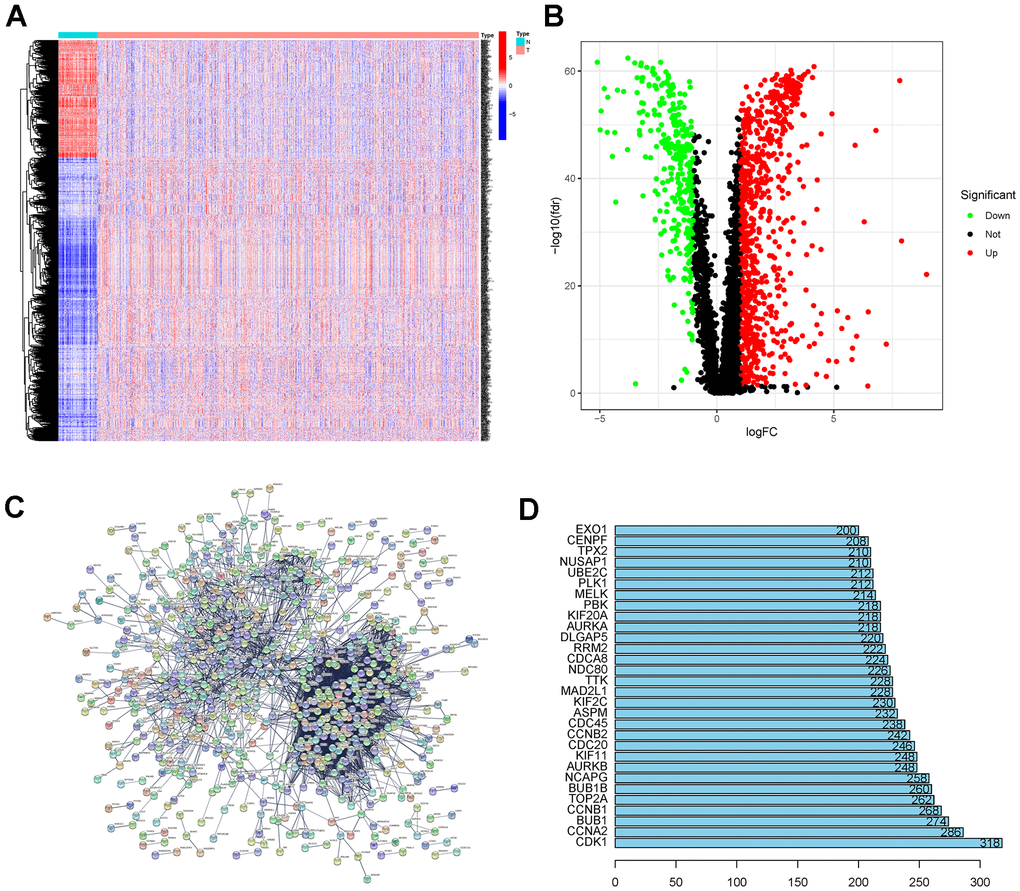

Figure 2. (A, B) DEG analysis for TCGA-BRCA. (C) PPI network of the TCGA-BRCA DEGs. (D) Hub node numbers in the PPI network of the TCGA-BRCA DEGs. Abbreviations: DEGs: differentially expressed genes; TCGA-BRCA: The Cancer Genome Atlas Breast Invasive Carcinoma; PPI network: protein-protein interaction network.

Protein-protein interaction network analysis and enrichment analysis

A PPI network was constructed for the TCGA-BRCA DEGs (Figure 2C). The top thirty genes ranked by connectivity degree are shown in Figure 2D. The results showed that CDK1 was the most significant gene with a connectivity degree of 318, followed by CCNA2 (degree = 286), BUB1 (degree = 274), CCNB1 (degree = 268), and TOP2A (degree = 262). Biological process analysis showed that “nuclear division,” “organelle fission,” “chromosome segregation,” “mitotic cell cycle phase transition,” and “mitotic nuclear division” were significantly relevant to the DEGs (Figure 3A, 3B). Cellular component analysis demonstrated the significantly association between the DEGs with “chromosomal region,” “spindle,” “collagen-containing extracellular matrix,” “condensed chromosome,” and “chromosome, centromeric region” (Figure 3A, 3B). According to the molecular function analysis, the DEGs were enriched in “glycosaminoglycan binding,” “protein kinase regulator activity,” “extracellular matrix structural constituent,” “transmembrane receptor protein kinase activity,” and “growth factor binding” (Figure 3A, 3B). In the KEGG analysis, the top five enriched pathways were “PI3K-Akt signaling pathway,” “cytokine-cytokine receptor interaction,” “cell cycle,” “human papillomavirus infection,” and “MAPK signaling pathway” (Figure 3C, 3D).

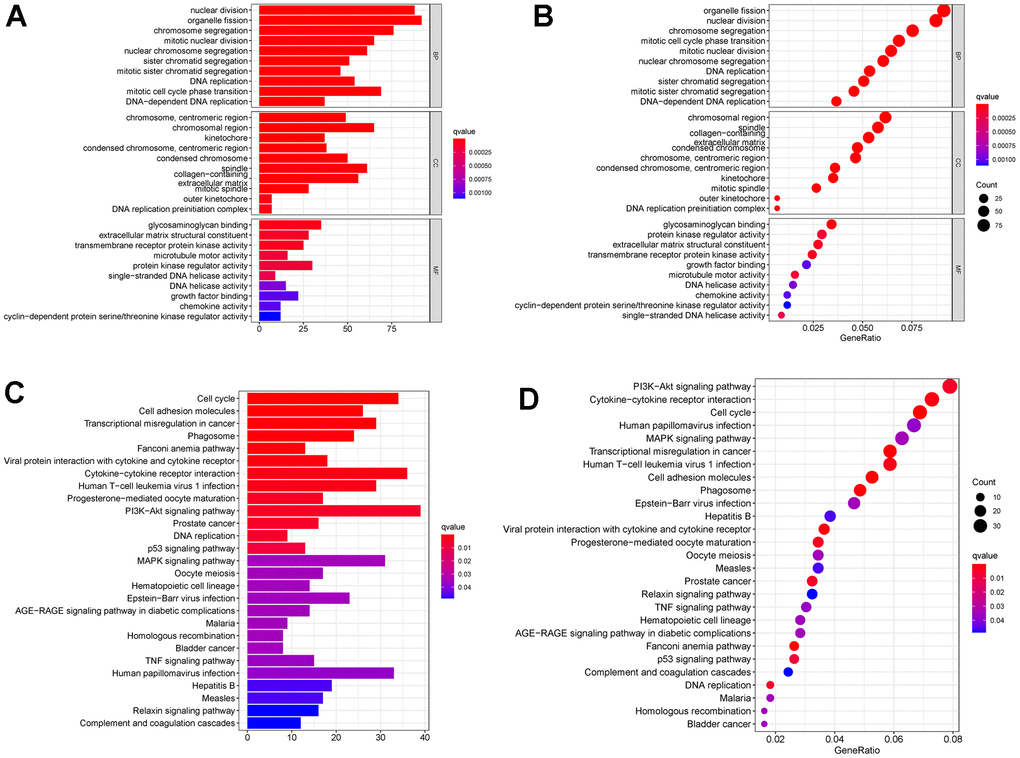

Figure 3. (A, B) GO analysis for TCGA-BRCA DEGs. (C, D) KEGG analysis for TCGA-BRCA DEGs. Abbreviations: GO: Gene Ontology; KEGG: Kyoto Encyclopedia of Genes and Genomes; DEGs: differentially expressed genes; TCGA-BRCA: The Cancer Genome Atlas Breast Invasive Carcinoma.

Non-negative matrix factorization clustering analysis

First, a univariate Cox regression analysis was performed using the data of the DEGs to increase the robustness of our cluster (P < 0.01). The NMF algorithm was then used to cluster the breast cancer cases based on gene expression, survival time, and survival status. We identified the optimal k value of 8 with the cophenetic correlation coefficients, and confirmed that the optimal cluster number was 8 (Figure 4A). As shown in Figure 4B, the boundaries of the eight subtypes (C1-C8) are clear, which indicates that the clustering is relatively reliable. According to the OS and PFS curves (Figure 4C, 4D), C4 and C5 breast cancer is associated with the best prognosis, and C6 breast cancer patients have the worst (P < 0.01). MCP counting for eight tissue-infiltrating immune cell types (B lineage, monocytic lineage, cytotoxic lymphocytes, neutrophils, myeloid dendritic cells, NK cells, T cells, and CD8+ T cells) and two stromal cell types (fibroblasts and endothelial cells) was performing using the R package MCPcounter (Supplementary File 1). We found that C1 had the greatest abundance of these cells, except neutrophils, in the microenvironment (Figures 4, 5). Moreover, fibroblasts, endothelial cells, and neutrophils were significantly high in C5, while tissue-infiltrating immune cells were significantly low in C6 (Figure 5B, 5C, 5F).

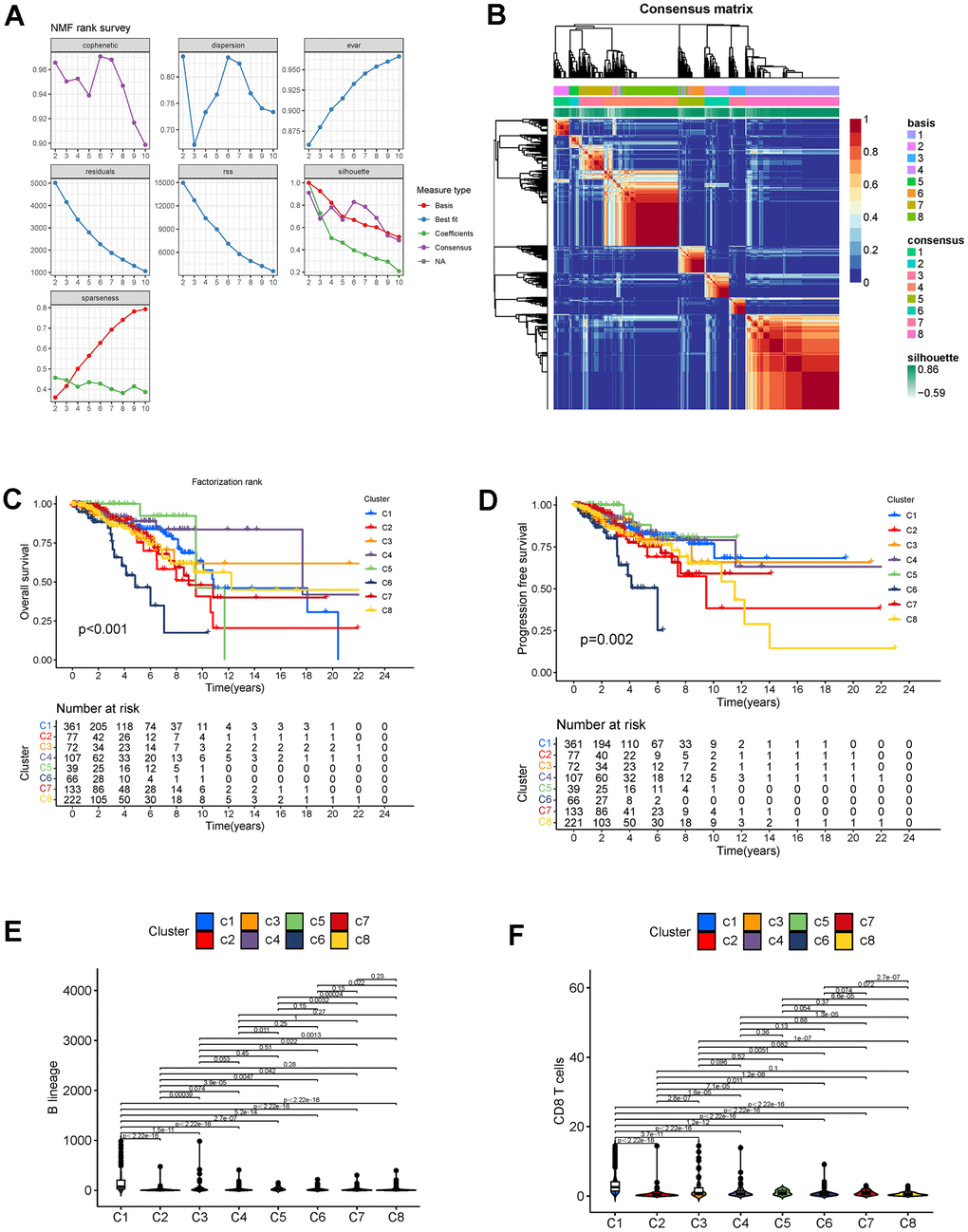

Figure 4. (A) Factorization rank for 2–10 clusters. (B) Heatmap of the gene expression of eight clusters. (C, D) K-M curves for OS and PFS in different subtypes. (E) B lineage cell infiltration in different subtypes. (F) CD8+ T cell infiltration in different subtypes. Abbreviations: K-M: Kaplan-Meier; OS: overall survival; PFS: progression-free survival.

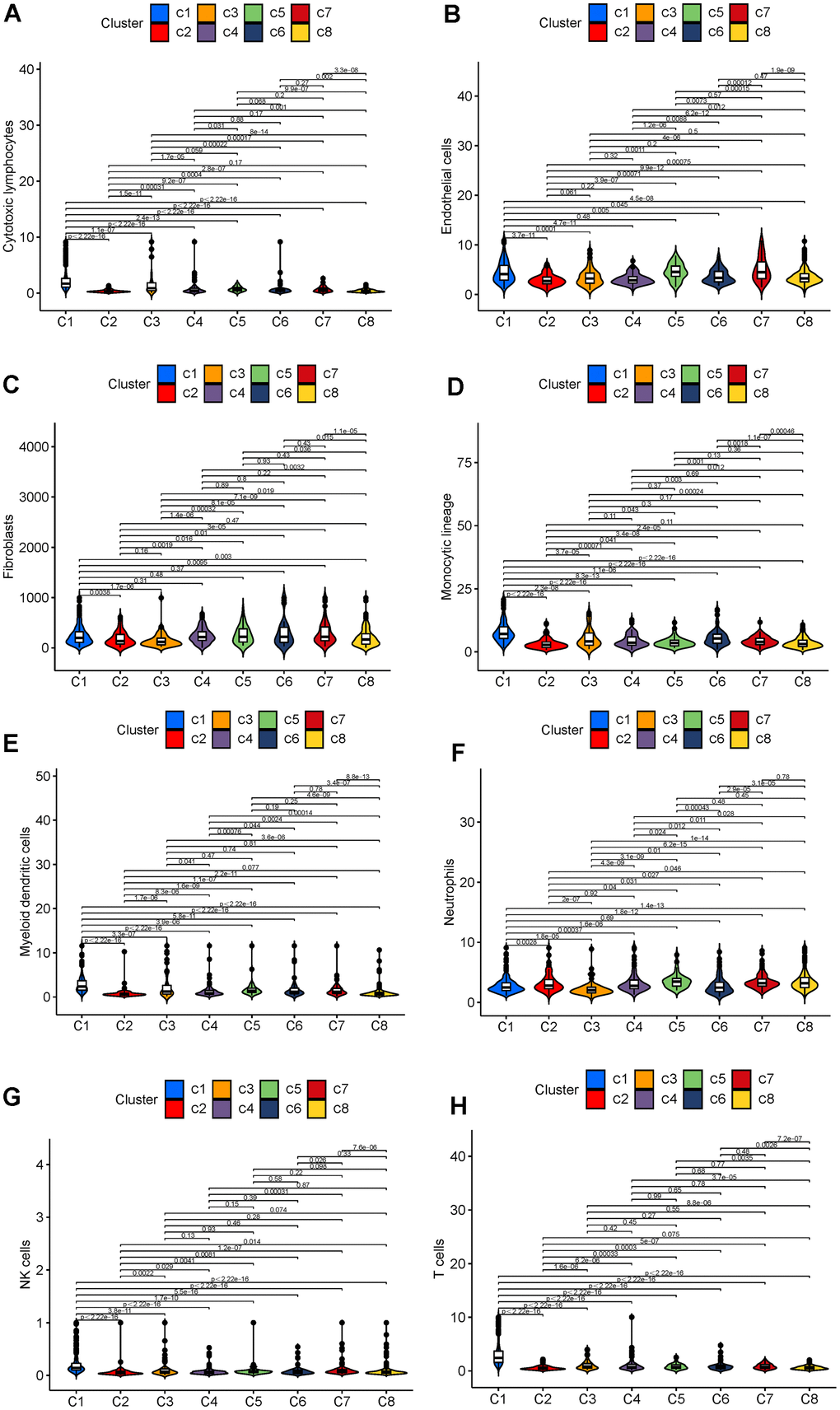

Figure 5. (A) Cytotoxic lymphocyte infiltration in different subtypes. (B) Endothelial cell infiltration in different subtypes. (C) Fibroblast infiltration in different subtypes. (D) Monocytic lineage cell infiltration in different subtypes. (E) Myeloid dendritic cell infiltration in different subtypes. (F) Neutrophil infiltration in different subtypes. (G) NK cell infiltration in different subtypes. (H) T cell infiltration in different subtypes.

Construction of the prognostic model

Based on the 523 DEGs, a univariate Cox analysis was first performed to increase the stability of the results. Subsequently, LASSO regression analysis was performed to identify the 17 DEGs included in the risk assessment model (Figure 6A, 6B). The risk score was calculated according to the following formula: (0.186995130166584) * ExprWNT7B + (−0.367068269289688) * ExprBCL2A1 + (0.361699290337736) * ExprULBP2 + (−0.26235003273008) * ExprLEF1 + (0.386283757445905) * ExprGABRQ + (−0.140710133664929) * ExprFXYD3 + (0.183333746976684) * ExprSCG2 + (−0.388494904628374) * ExprFOXJ1 + (−0.22258520830588) * ExprTP63 + (−0.450564126981243) * ExprRYR1 + (0.646038331120338) * ExprFEZ1 + (−1.23444095440368) * ExprNRG1 + (0.186015162843612) * ExprRGS4 + (−0.711499870665385) * ExprNFE2 + (0.174340252592255) * ExprHOXC13 + (−0.249218472277074) * ExprMMP25 + (−0.331805787206587) * ExprDTX1. The cut-off value used to divide patients into the low- and high-risk breast cancer was −2.025. To further verify the accuracy of the risk score predictor, ROC analysis was performed (Figure 6C–6E). The 1-, 2-, and 3-year AUC values for the whole TCGA cohort were 0.729, 0.778, and 0.781, respectively, while the 1-, 2-, and 3-year AUC values for the TCGA training cohort were 0.805, 0.782, and 0.793, respectively, and the 1-, 2-, and 3-year AUC values for the TCGA test cohort were 0.627, 0.770, and 0.765, respectively. According to the K-M plotter, survival differences between the low- and high-risk breast cancer groups in the whole TCGA cohort, TCGA training cohort, and TCGA test cohort were significant (P<0.01) (Figure 6F–6H). In addition, significant differences were also observed in the age >60, age ≤60, stage I-II, and stage III-IV subsets (Figure 7). Moreover, the univariate and multivariate Cox analyses of the relationship between the risk score and clinical characteristics demonstrated that the risk score was an independent predictor of breast cancer (univariate Cox regression: hazard ratio [HR] = 1.14, 95% confidence interval [CI] = 1.10 − 1.17, P < 0.01; multivariate Cox regression: hazard ratio = 1.13, 95% confidence interval = 1.09 − 1.17, P < 0.01) (Table 1). Although the risk score is an independent factor, compared with other clinical characteristics, the AUC value of the risk score was not the highest (Figure 8A). To further improve predictive ability, a nomogram model was constructed using the clinical characteristics, NMF clustering, and risk score. According to the nomogram model, each patient has a total score that can predict the 1-, 3-, and 5-year survival rates (Figure 8B). The calibration curves showed that the nomogram-predicted 1-, 3-, and 5-year OS probabilities were close to the actual OS (Figure 8C). Moreover, the results of DCA showed that our nomogram was the best predictor (Figure 8D).

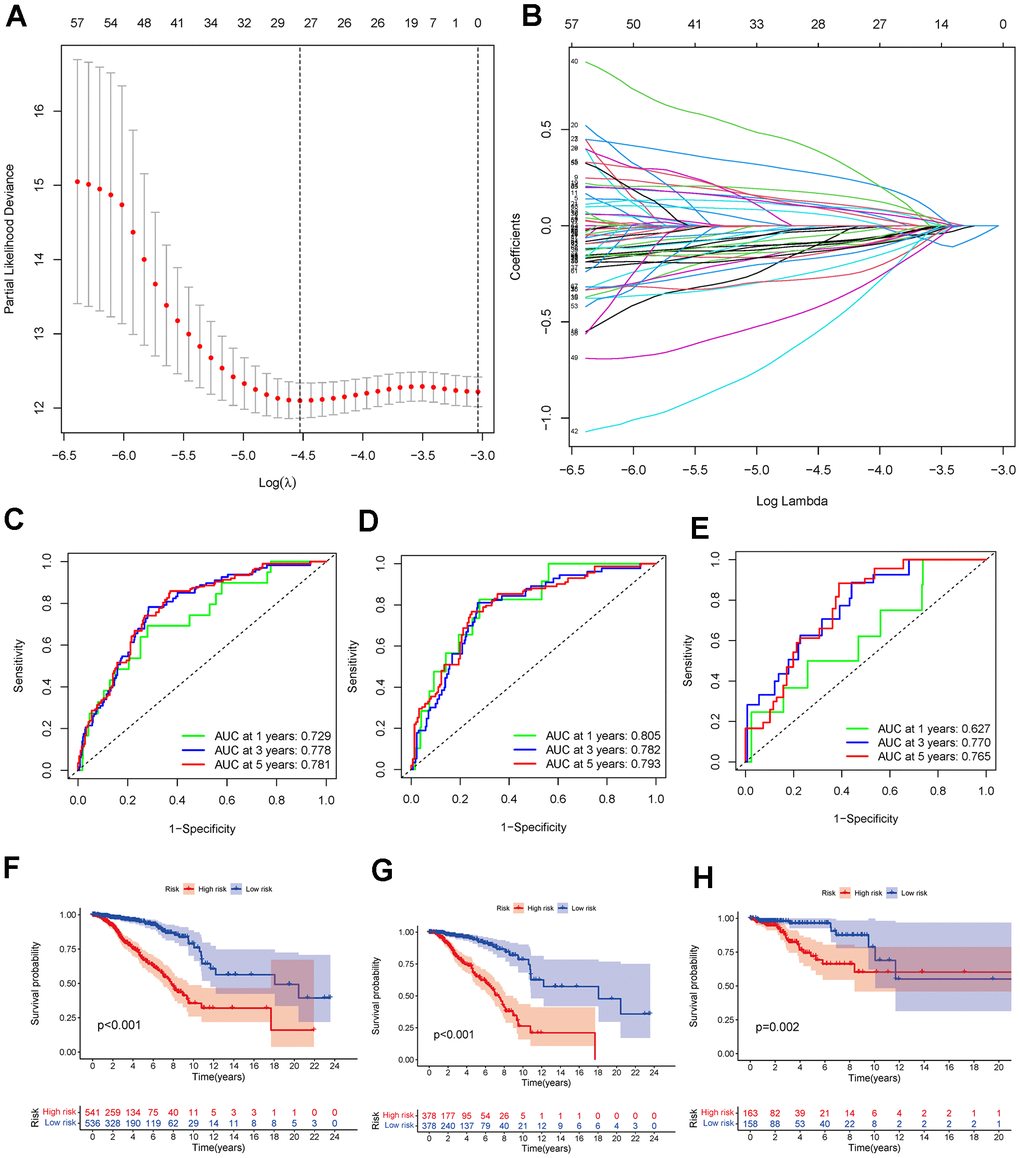

Figure 6. (A, B) The LASSO regression analysis identified 17 DEGs mostly related to prognosis. (C–E) The 1-, 3-, and 5-year ROC analyses in the whole TCGA-BRCA cohort, TCGA-BRCA training cohort, and TCGA-BRCA test cohort. (F–H) K-M curves of OS for low- and high-risk breast cancers in the whole TCGA-BRCA cohort, the TCGA-BRCA training cohort, and TCGA-BRCA test cohort. Abbreviations: LASSO: least absolute shrinkage and selection operator; DEGs: differentially expressed genes; K-M: Kaplan-Meier; TCGA-BRCA: The Cancer Genome Atlas Breast Invasive Carcinoma; ROC: receiver operating characteristic.

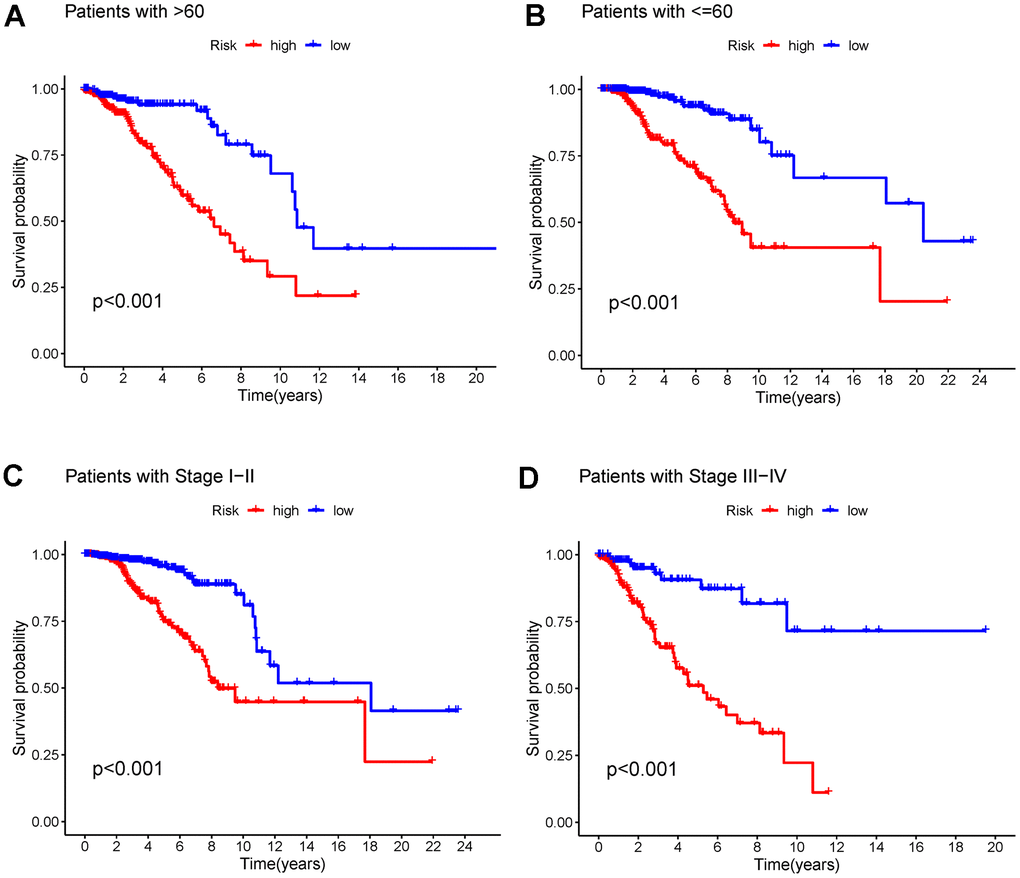

Figure 7. (A, B) K-M curves of OS for breast cancer patients age >60 and age ≤60 in the low- and high-risk groups. (C, D) K-M curves of OS for stage I-II and stage III-IV breast cancer in the low- and high-risk groups. Abbreviations: K-M: Kaplan-Meier; OS: overall survival.

Table 1. Univariate and multivariate Cox analyses.

Univariate Cox analysis
id	HR	HR.95L	HR.95H	p-value
Age	1.034397	1.01977	1.049234	3.25E−06
Stage	2.109207	1.668588	2.666178	4.32E−10
T	1.570708	1.265938	1.94885	4.09E−05
M	6.027352	3.314181	10.96167	3.94E−09
N	1.67166	1.393874	2.004807	3.00E−08
Risk score	1.136899	1.103803	1.170987	1.71E−17
Multivariate Cox analysis
id	HR	HR.95L	HR.95H	p-value
Age	1.031857	1.016637	1.047306	3.53E−05
Stage	1.450661	0.855984	2.458478	0.166909
T	1.068995	0.787655	1.450826	0.668532
M	1.383885	0.596304	3.211683	0.449431
N	1.305108	0.977835	1.741916	0.070638
Risk score	1.12811	1.091573	1.16587	7.18E−13
HR, hazard ratio; HR.95L, hazard ratio 95% CI low; HR.95H, hazard ratio 95% CI high.

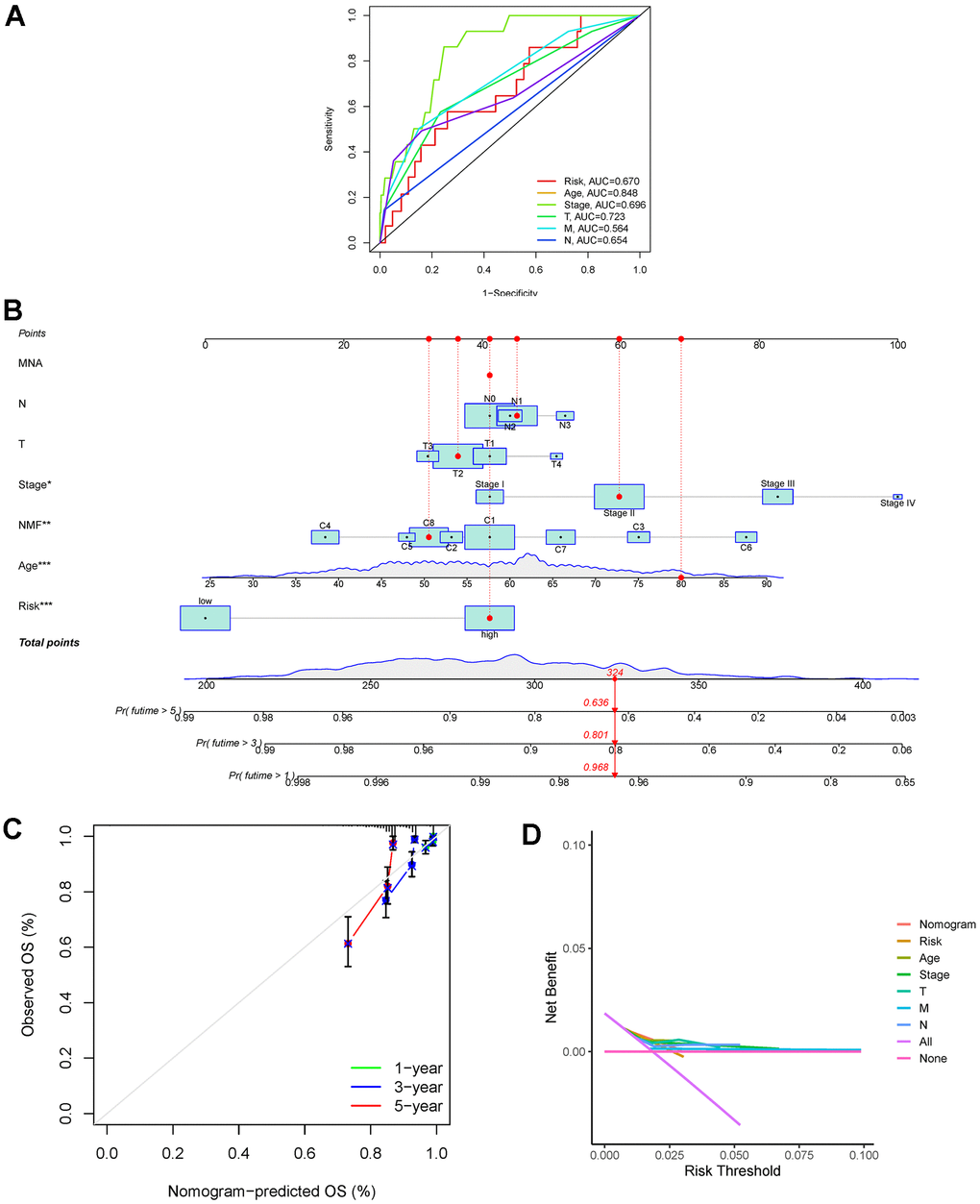

Figure 8. (A) Calculation of the AUC for risk score, age, stage, T, M, and N. (B) Nomogram-predicted model for breast cancer. (C) Calibration plots for 1-, 3-, and 5-year survival probabilities. (D) DCA of the nomogram, risk score, age, stage, T stage, M stage, and N stage. Abbreviations: AUC: area under the curve; DCA: decision curve analysis.

Potential signaling pathways in the low- and high-risk groups

To further explore the potential signaling pathways of DEGs in the low- and high-risk groups, GSEA was performed. The GSEA results showed that the histidine metabolism signaling pathway (normalized enrichment score [NES] = 1.49, P < 0.05), protein export signaling pathway (NES = 1.58, P < 0.05), and steroid hormone biosynthesis signaling pathway (NES = 1.56, P < 0.05) were significantly enriched in the high-risk group (Figure 9A). In contrast, the autoimmune thyroid disease signaling pathway (NES = −1.88, P < 0.05), cell adhesion molecules cams signaling pathway (NES = −1.71, P < 0.05), chemokine signaling pathway (NES = −1.68, P < 0.05), cytokine-cytokine receptor interaction signaling pathway (NES = −1.75, P < 0.05), and viral myocarditis signaling pathway (NES = −1.83, P < 0.05) were enriched in the low-risk group (Figure 9B).

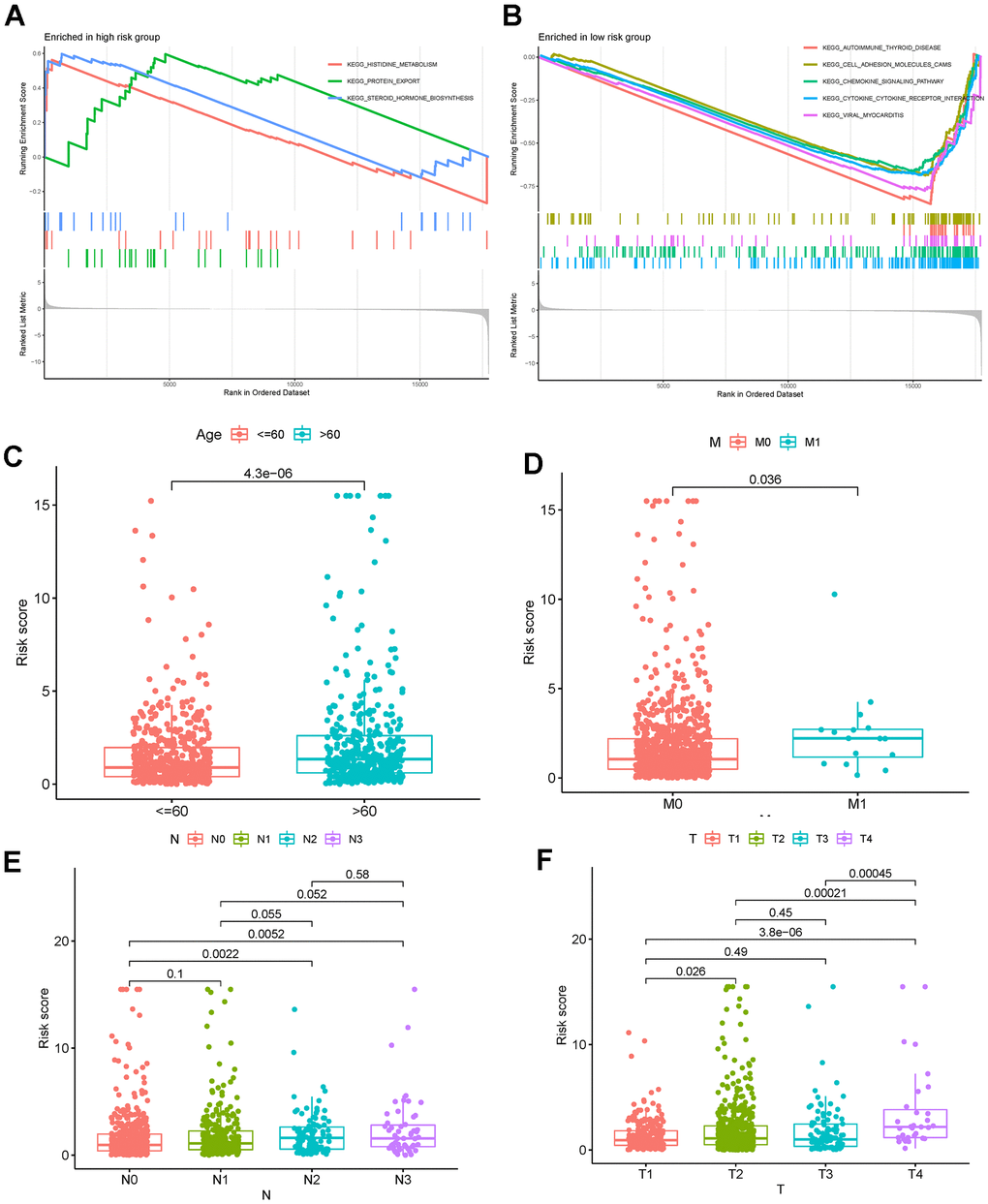

Figure 9. (A, B) GSEA in low- and high-risk breast cancer. (C–F) Correlation analyses of the risk score with age, M stage, N stage, and T stage. Abbreviations: GSEA: gene set enrichment analysis.

Factors correlated with the risk score

We researched the correlations between the risk score and clinical characteristics and found that age (Figure 9C), M stage (Figure 9D), N stage (Figure 9E), T stage (Figure 9F), and clinical stage (Figure 10A) were significantly associated with the risk score. We then selected 12 known breast cancer-related genes and analyzed their correlations with the risk score. As shown in Figure 10B, significant negative correlations existed between the risk score and TP53, KIT, MCL1, MAP3K1, JAK1, PDCD1, CTLA4, and CD274. Infiltrating T cells, CD8 + T cells, cytotoxic lymphocytes, B lineage cells, NK cells, monocytic lineage cells, and myeloid dendritic cells were significantly negatively correlated with the risk score, while the fibroblasts were significantly positive correlated to the risk score (Figure 10C). In addition, we did not find a significant correlation between the risk score and TMB (Figure 10D).

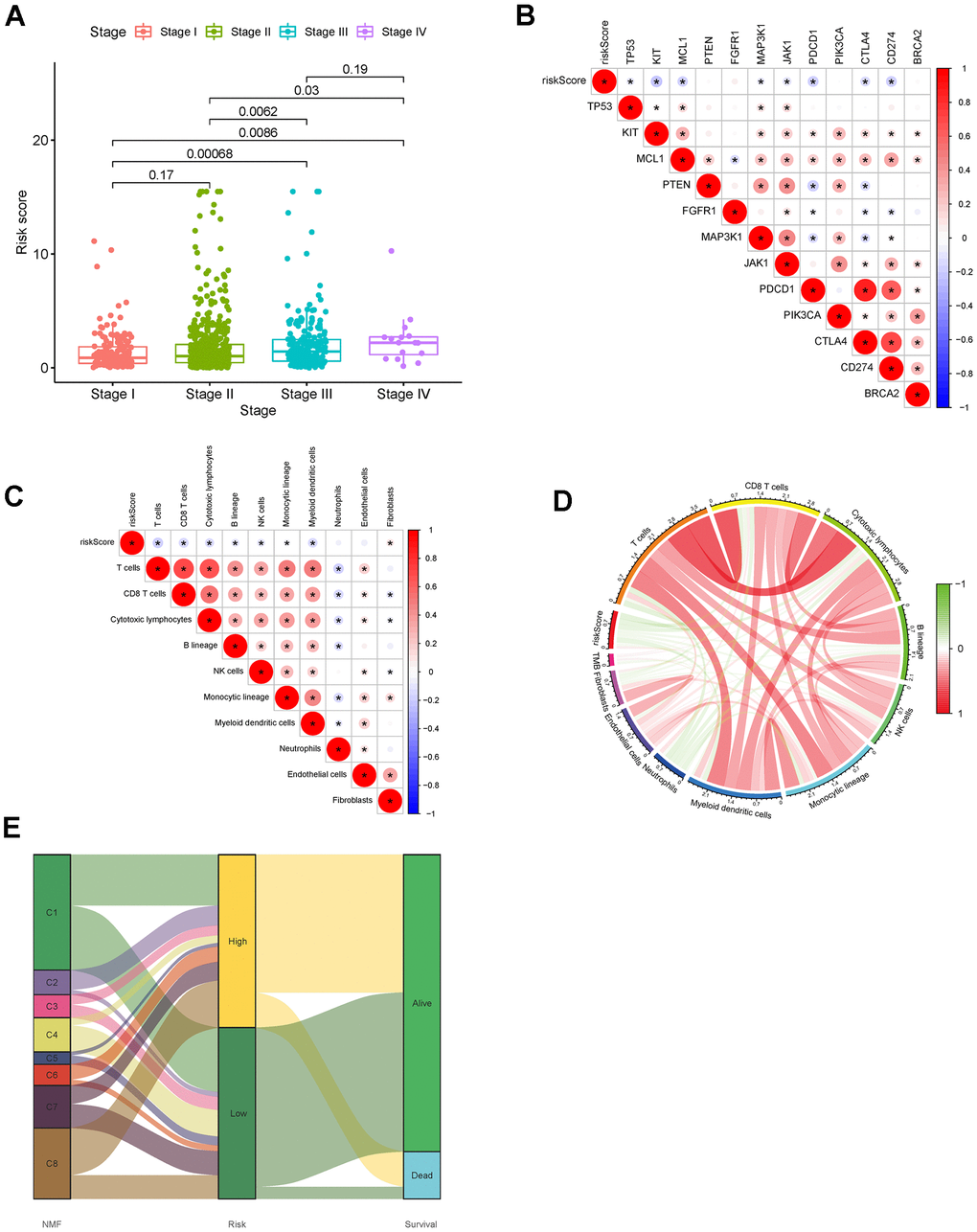

Figure 10. Correlation analysis of (A) Risk score and tumor stage. (B) Risk score and breast cancer-associated genes. (C) Risk score and immune cell infiltration. (D) TMB. (E) NMF clustering and risk score. Abbreviations: TMB: tumor mutation burden; NMF: non-negative matrix factorization.

Correlation between NMF clustering and the risk score

To connect the NMF clustering and risk score, we generated a Sankey diagram (Figure 10E). The plot showed that more dead patients had high-risk scores, which further demonstrated the reliability of the risk score. Furthermore, the C2 and C6 subtypes mainly contained high-risk scores breast cancer and had the worse prognoses according to the survival curves, while the C4 and C5 subtypes included more low-risk breast cancer had better prognoses. These results demonstrated the accuracy of both the novel typing mode and the predictive factor.

Validation of the risk score-relevant genes in breast cancer tissue

Immunohistochemistry demonstrated the expression of DTX1, FEZ1, FOXJ1, FXYD3, HOXC13, LEF1, MMP25, NFE2, NRG1, SCG2, TP63, and ULBP2 (Figure 11).

Figure 11. Immunohistochemistry for (A) DTX1 (https://www.proteinatlas.org/ENSG00000135144-DTX1/pathology/breast+cancer#imid_18106719). (B) FEZ1 (https://www.proteinatlas.org/ENSG00000149557-FEZ1/pathology/breast+cancer#imid_20550866). (C) FXYD3 (https://www.proteinatlas.org/ENSG00000089356-FXYD3/pathology/breast+cancer#imid_3109719). (D) FOXJ1 (https://www.proteinatlas.org/ENSG00000129654-FOXJ1/pathology/breast+cancer#imid_18961115). (E) HOXC13 (https://www.proteinatlas.org/ENSG00000123364-HOXC13/pathology/breast+cancer#imid_15073368). (F) LEF1 (https://www.proteinatlas.org/ENSG00000138795-LEF1/pathology/breast+cancer#imid_913343). (G) MMP25 (https://www.proteinatlas.org/ENSG00000008516-MMP25/pathology/breast+cancer#imid_9651206). (H) NFE2 (https://www.proteinatlas.org/ENSG00000123405-NFE2/pathology/breast+cancer#imid_927392). (I) NRG1 (https://www.proteinatlas.org/ENSG00000157168-NRG1/pathology/breast+cancer#imid_3118350). (J) SCG2 (https://www.proteinatlas.org/ENSG00000171951-SCG2/pathology/breast+cancer#imid_20497272). (K) TP63 (https://www.proteinatlas.org/ENSG00000073282-TP63/pathology/breast+cancer#imid_143251). (L) ULBP2 (https://www.proteinatlas.org/ENSG00000131015-ULBP2/pathology/breast+cancer#imid_5232353).

Differences in drug response between the low- and high-risk breast cancer groups

As shown in Figure 12, the high-risk breast cancer cohort showed a significantly higher response to paclitaxel, cytarabine, camptothecin, erlotinib, and gefitinib, while the low-risk cohort showed a significantly better response to lapatinib.

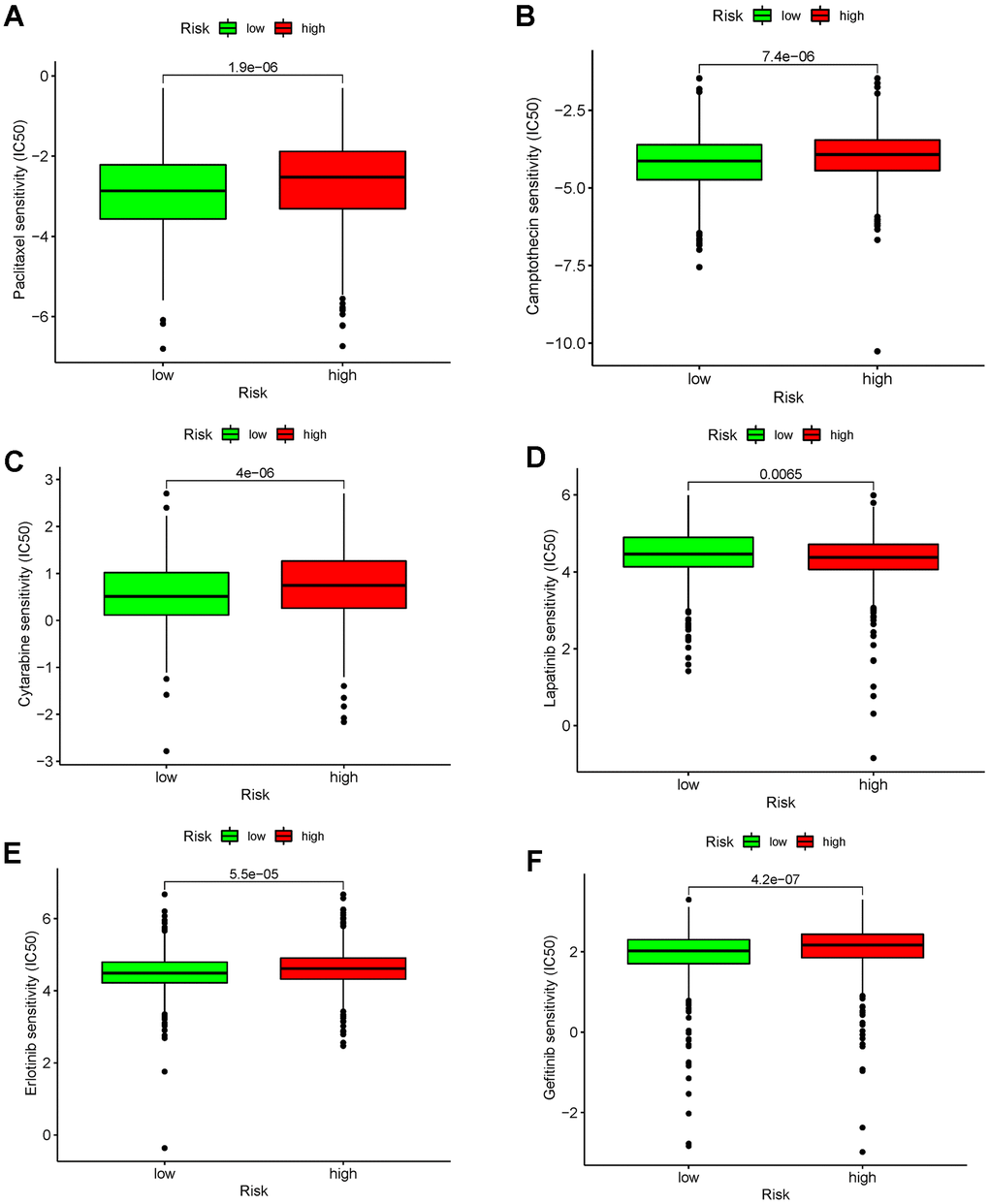

Figure 12. Durg-response analysis of (A) Paclitaxel. (B) Camptothecin. (C) Cytarabine. (D) Lapatinib. (E) Erlotinib. (F) Gefitinib.

Abbreviations

AUC: Area under the curve; CI: Confidence interval; DCA: Decision curve analysis; DEG: Differentially expressed gene; ER: Estrogen receptor; FC: Fold change; FDR: False discovery rate; GEO: Gene Expression Omnibus; GO: Gene ontology; GSEA: Gene set enrichment analysis; HER2: Human epidermal growth factor receptor2; HR: Hazard ratio; KEGG: Kyoto Encyclopedia of Genes and Genomes; K-M: Kaplan-Meier; LASSO: Least absolute shrinkage and selection operator; MCP: Microenvironment cell population; NES: Normalized enrichment score; NMF: Negative matrix factorization; OS: Overall survival; PFS: Progression-free survival; PPI: Protein interaction; PR: Progesterone receptor; ROC: Receiver operating characteristic; TAM: Tumor-associated macrophage; TCGA: The Cancer Genome Atlas; TCGA-BRCA: The Cancer Genome Atlas Breast Invasive Carcinoma; THPA: The Human Protein Atlasdatabase; TMB: Tumor mutation burden; TME: Tumor microenvironment.

Author Contributions

Kai Hong and Yingjue Zhang designed this study. Lingli Yao and Jiabo Zhang completed the data acquisition. Yu Guo and Xianneng Sheng performed work involving software. Kai Hong and Yingjue Zhang conducted the data analyses and manuscript writing. Lingli Yao and Yu Guo edited the manuscript. The final paper was checked by all authors.

Acknowledgments

We acknowledge all online databases for providing their public resources and the patients who participated in these projects.

Conflicts of Interest

The authors declare that they have no conflicts of interest.
