APEX1 promotes the oncogenicity of hepatocellular carcinoma via regulation of MAP2K6

Tissue samples

Eighty pairs of HCC/paracancerous tissues were collected from HCC patients who underwent surgical treatment in the oncology surgery department, Beijing Shijitan Hospital, Capital Medical University (Peking University Ninth School of Clinical Medicine) from August 2015 to October 2018. All patients did not receive preoperative radiotherapy or chemotherapy, and the adjacent tissues were at least 5 cm away from the edge of the tumor. All fresh tissue samples were immediately stored in a liquid nitrogen tank to protect RNA from degradation. The use of human tissues was approved by the Ethics Committee of Beijing Shijitan Hospital, Capital Medical University (NO: sjtky11-1x-2020(15)) and was conducted in accordance with the Declaration of Helsinki. We obtained written informed consent from every patient. The animal experimental protocol was approved by the Animal Care Committee of Beijing Shijitan Hospital, Capital Medical University (NO: sjtky11-1x-2019(28), sjtky11-1x-2018(108) and sjtky-1x-2019(89)).

Cell lines and cell culture

HCC cell lines (Huh-7, SMMC-7721, Hep G2, Hep 3B, HCC-9204, Bel-7402, and Bel-7405) and the normal liver cell line L-02 were obtained from the National Biomedical Experimental Cell Resource Bank (Beijing, China). Cells were maintained in RPMI 1640 supplemented with 10% FBS (Gibco, Grand Island, NY, USA), 100 U/mL penicillin and 100 μg/mL streptomycin (Gibco, Grand Island, NY, USA). Then, the mixture was cultured in a 37°C incubator with a 5% CO₂ environment. When the cells reached approximately 85% confluence, they were passaged at a ratio of 1:3.

Establishment of stable APEX1-knockdown cells

Specific shRNA strands (F: 5′ CCG GCA GAG AAA TCT GCA TTC TAT TCT CGA GAA TAG AAT GCA GAT TTC TCT GTT TTT, R: 5′ AAT TCA AAA ACA GAG AAA TCT GCA TTC TAT TCT CGA GAA TAG AAT GCA GAT TTC TCT G) were obtained from Sangon Biotech (Shanghai, China). These shRNA were used to construct plasmid pLKO.1-puro-shRNA. A corresponding control plasmid (pLKO.1-puro-Ctrl) was also constructed. APEX1-knockdown lentiviruses were created with plasmids psPAX2 and pMD2.G (BIOFENG, Shanghai, China) and were transfected into 293T cells with pLKO.1 puro-shRNA using Lipofectamine 2000 Transfection Reagent (Thermo Fisher Scientific, MA, USA). Hep 3B and Bel-7402 cells were then infected with these lentiviruses at a multiplicity of infection of 10 and 20, respectively, and selected with puromycin (2 μg/mL) (Thermo Fisher Scientific, MA, USA). At 2 weeks post-infection, cells were harvested, and the protein expression levels of APEX1 were determined.

Immunohistochemistry staining

All tissue samples were fixed in 10% neutral formalin, embedded in paraffin, sectioned, dewaxed with xylene and dehydrated with gradient ethanol. Then, citric acid buffer was used for high temperature antigen repair, 3% hydrogen peroxide (Solarbio, Beijing, China) was used to block endogenous peroxidase activity, and the samples were incubated at room temperature for 20 min. Next, the slides were incubated with an anti-APEX1 primary antibody (Abcam, Cambridge, UK) at 4°C overnight. The next day, the samples were incubated with an appropriate horseradish peroxidase-conjugated secondary antibody at 37°C for 30 min. After staining with 3, 3′-diaminobenzidine (Solarbio, Beijing, China), the samples were stained with hematoxylin, dehydrated with gradient ethanol, made transparent with xylene, and sealed with neutral gum. The integrated option density (IOD) of APEX1 was chosen to determine the semiquantitative protein expression. ImageJ software (version 1.2; WS Rasband, National Institute of Health, Bethesda, MD, USA) was used to conduct deconvolution and downstream analyses.

Western blotting

Cells were collected, and total protein was extracted from cell lysates. SDS-PAGE electrophoresis was performed, and proteins were transferred electrophoretically from the gel to a polyvinylidene fluoride (PVDF) membrane. Tris-buffered saline liquid containing Tween 20 (TBST) and 5% skimmed milk powder was used to block the PVDF membrane for 2 h at room temperature. The primary anti-APEX1 antibody (Abcam, Cambridge, UK), diluted in 1% skimmed milk powder in TBST, was added, and the membrane was incubated on a shaker at 4°C overnight. The secondary antibody was added for 2 h at room temperature. Enhanced chemiluminescence reagent was added to the membrane, which was then developed in a chemiluminescence imaging system instrument.

RT-PCR

Total RNA was extracted from cells by the Trizol method, and cDNA was synthesized according to the instructions of the manufacturer of the M-mlv reverse transcriptase kit (Takara Bio, Beijing, China). PCR amplification was performed with EvaGreen Dye (Biotium, Fremont, CA, USA) as follows: 95°C for 5 min followed by 40 cycles of 95°C for 20 s, 60°C for 30 s, and 72°C for 20 s. The primers for APEX1 were F: 5′-GCT GCC TGG ACT CTC TCA TCA AT-3′ and R: 5′-CCT CAT CGC CTA TGC CGT AAG AA-3′. The primers for MAP2K6 were F: 5′-TGT GCA TTT CCA TCT TGA TTC CC-3′ and R: 5′-CGC TTC TTG CCT TTC GAC TG-3′. The primers for TNFAIP3 were F: 5′-CTG CCA GCG AGC GAG C-3′ and R: 5′-GTG CTC TCC AAC ACC TCT CC-3′. The primers for CASP3 were F: 5′-TGG AAC CAA AGA TCA TAC ATG GAA-3′ and R: 5′-TTC CCT GAG GTT TGC TGC AT-3′. The primers for the internal control GAPDH were F: 5′-TGA AGG TCG GAG TCA ACG G-3′ and R: 5′-TCC TGG AAG ATG GTG ATG GG-3′.

Cell viability measurement, colony formation assay and ethynyl deoxyuridine (EdU) assay

Cell viability was measured by the Cell Counting Kit 8 (CCK8) in accordance with the manufacturer’s instructions (Solarbio, Beijing, China). The prepared cells were collected and resuspended in 1640 medium (10% FBS) at 2 × 10⁴/mL. Then, 0.1 mL of this suspension was placed into wells of a 96-well plate and cultured for 0 h, 24 h, 48 h, or 72 h. Cell proliferation rates were quantified by measuring OD (450 nm) values with a microplate reader. For colony formation assays, treated were collected and added to a 6-well plate at a density of 1000 cells per well. The cells were cultured normally until colonies were visible. The cell colonies were stained with 0.1% crystal violet solution and photographed with a camera, then the number of cell colonies in each group was counted manually. The EdU assay was performed with an EdU kit (Roche, Indianapolis, IN, USA) according to the manufacturer’s instructions. Results were analyzed with a flow cytometer equipped with CellQuest software (BD Biosciences, San Diego, CA, USA).

Cell migration assay (scratch wound healing assay)

HCC cells were plated and grown to 70% confluence on 6-well plates and were wounded with 1-mL pipette tips. Samples were examined at 0 and 48 h after scratching, and the wound healing status of each group was observed and photographed.

Transwell invasion assay

Detection of cell invasion was performed in 8-μm Transwell chambers (BD Biosciences, USA). Transfected Hep 3B and Huh7 cells were suspended in serum-free medium and then seeded into the Matrigel-upper chambers at 5 × 10⁴ cells per well. DMEM containing 10% FBS (500 μL) was added into the lower chamber. After culturing for 24 h, the invasive cells were stained with 0.1% crystal violet and photographed under a light microscope. Cell numbers was counted manually.

Flow cytometry analysis for cell apoptosis and cell cycle

Transfected Hep 3B and Huh7 cells were processed with an Apoptosis Detection Kit (Beyotime, China), according to the manufacturer’s instructions. Briefly, transfected cells were washed twice with cold PBS. After incubation with 5 μL of FITC-Annexin V and 5 μL propidium iodide for 20 min in the dark, apoptosis of Hep 3B and Huh7 was detected using a flow cytometer (FACScan; BD Biosciences, USA).

For cell cycle analyses, cells were collected and incubated with 70% ethanol at 4°C overnight for fixation. The cells were washed twice with PBS and incubated with 100 μg/mL RNase A and 50 μg/mL propidium iodide for 1 h at 37°C. The percentage of cells in each phase of the cell cycle was then measured by flow cytometry (FACScan; BD Biosciences, USA).

Transcriptome sequencing

Total RNA was extracted from cells that had been transfected with shRNA targeting APEX1 (sh-APEX1) or a negative control (sh-NC), and reverse transcription was performed to construct a cDNA library. High-throughput transcriptome sequencing was performed with an Illumina Hiseq 2500 system, and transcriptome sequencing data were obtained for bioinformatics analysis.

Tumor formation in nude mice

BALB/c nude mice (male, 6–8 weeks) were adaptively raised for 2 weeks under SPF conditions, and the mice were randomly divided into two groups at the third week. There were 10 mice in each group, and each mouse was numbered. The right armpit of nude mice was subcutaneously injected with 200 μL of a 1 × 10⁷/ml cell suspension. After 8 weeks post-inoculation, the mice were killed by dislocation, and the tumor rate was calculated. The tumor tissue was completely separated, the mass of the tumor was measured, and the tumor volume was calculated using the equation: tumor volume (mm³) = 1/2 (long diameter × short diameter × short diameter). For the Establishment of the orthotopic liver cancer model, the mice were anesthetized with 3% to 5% isoflurane, and the left lobe of the liver was exposed along the midline of the upper abdomen. Suspended cells are sucked into the syringe, punctured into the left lobe of the liver about 5 mm at an angle of 30°, and the cells are slowly injected into the liver tissue and then multi-point injections are performed. Then, gently press the injection site with a cotton ball for about 1 minute to reduce bleeding and cell suspension leakage. Finally, the peritoneum was closed with 4–0 sutures intermittently, and the skin incision was closed with suture nails. After execution, liver tissue was taken for analysis of tumor formation. The animal experimental protocol was approved by the Animal Care Committee of Beijing Shijitan Hospital, Capital Medical University (NO: sjtky11-1x-2019(28), sjtky11-1x-2018(108) and sjtky-1x-2019(89)).

Statistical analysis

All statistical analyses were performed in Statistical Product and Service Solutions (SPSS) 20.0 software (SPSS, Chicago, IL, USA). SigmaPlot12.3 (Systat Software, San Jose, CA, USA) and GraphPad Prism 5.0 (GraphPad Software, La Jolla, CA, USA) software were used to draw graphs. Student’s t-test, one-way analysis of variance (ANOVA), and a rank-sum test were flexibly applied according to the conditions at hand. Differences for which P < 0.05 were regarded as statistically significant.

APEX1 is up-regulated in HCC

Immunohistochemistry was used to measure the expression of APEX1 in HCC tissues and adjacent normal tissues (n = 80). As shown in Figure 1A, expression of APEX1 protein in HCC tissues was higher relative to that in adjacent normal tissues. Furthermore, we measured the expression of APEX1 mRNA using UALCAN, an online server derived from the Cancer Genome Atlas (TCGA) dataset [17]. The results indicated that expression of APEX1 mRNA in HCC tissues at multiple stages was higher than that in normal tissues (Figure 1B). Western blotting was used to measure the expression of APEX1 protein in HCC cell lines (Huh-7, SMMC-7721, Hep G2, Hep 3B, HCC-9204, Bel-7402, and Bel-7405) and in the normal liver cell line L-02. As shown in Figure 1C, APEX1 expression in the HCC cell lines was higher, to varying degrees, than was expression in L-02.

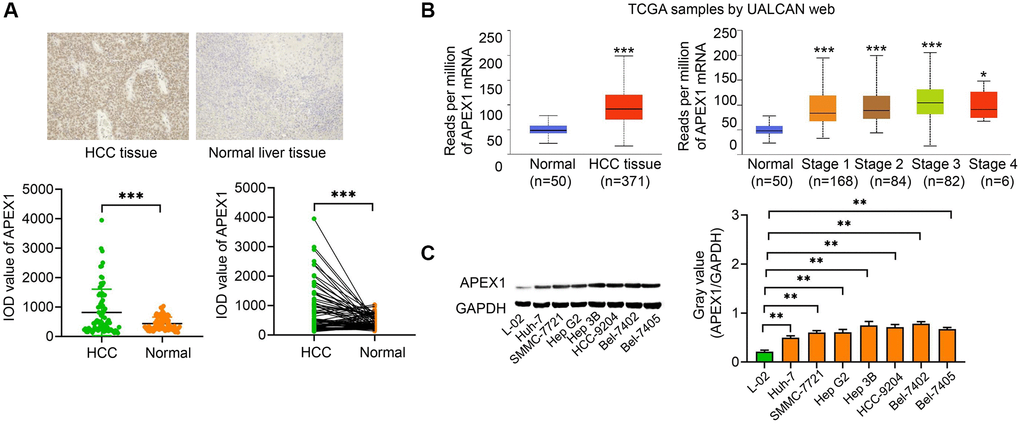

Figure 1. APEX1 is a novel HCC-related oncogene. (A) The expression of APEX1 was evaluated by immunohistochemistry analysis of HCC specimens and matched adjacent normal tissues (n = 80 cases). (B) Bioinformatics analysis using the UALCAN tool on TCGA dataset compared the mRNA expression of APEX1 in HCC (n = 371) and normal (n = 50) tissues (Left). The expression of APEX1 was also analyzed in HCC tissues at various stages (Right). (C) APEX1 protein expression was evaluated in HCC cells and normal hepatic cells by a Western blot assay. ^*P < 0.05, ^**P < 0.01, ^***P < 0.001.

Relationship of APEX1 expression and clinical pathologic characteristics of HCC

The relationships between APEX1 expression and clinical characteristics of HCC patients are shown in Table 1. Statistical analyses suggested that APEX1 expression level increased with increasing pathological grade and TNM stage of HCC (P < 0.05). Moreover, the Kaplan-Meier plotter [18], a web-based tool that uses TCGA databases to assess the effect of changes to the expression of 54,000 genes (at the level of mRNA, miRNA, or protein) on survival, was used. This plotter allows the prediction of the prognostic value of the tumor-specific expression of various genes. When we analyzed the correlation of APEX1 expression with HCC patient survival in this way, the results suggested that patients with high APEX1 expression exhibited a lower 5-year survival rate compared with those with low APEX1 expression (Figure 2).

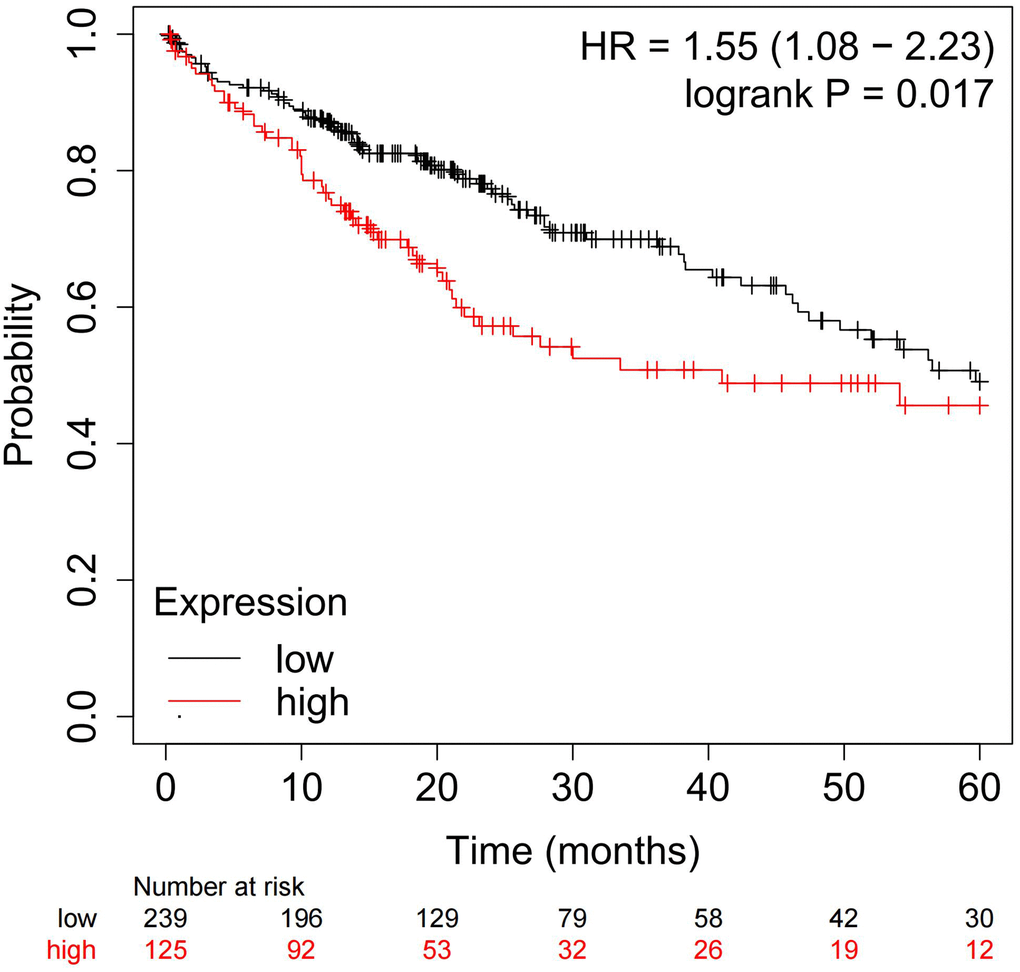

Figure 2. Identification of the correlation between 5-year overall survival of HCC patients and APEX1 expression by applying the Kaplan-Meier plotter on TCGA dataset.

Downregulation of APEX1 inhibited HCC cell growth

To identify functional roles of APEX1 protein in HCC cells, we silenced the APEX1 gene in the two HCC cell lines, Hep 3B and Bel-7402, that were determined to have the highest expression of APEX1. The results of qRT-PCR and Western blot analyses suggested that the expression of APEX1 in the sh-APEX1 group was markedly lower than in the sh-NC group (Figure 3A, 3B). We next evaluated the vitality of these two cell lines by performing CCK-8 (Figure 3C), colony-forming (Figure 3D) and EdU assays (Figure 3E). These results indicated that APEX1 knockdown suppressed the proliferation of HCC cells.

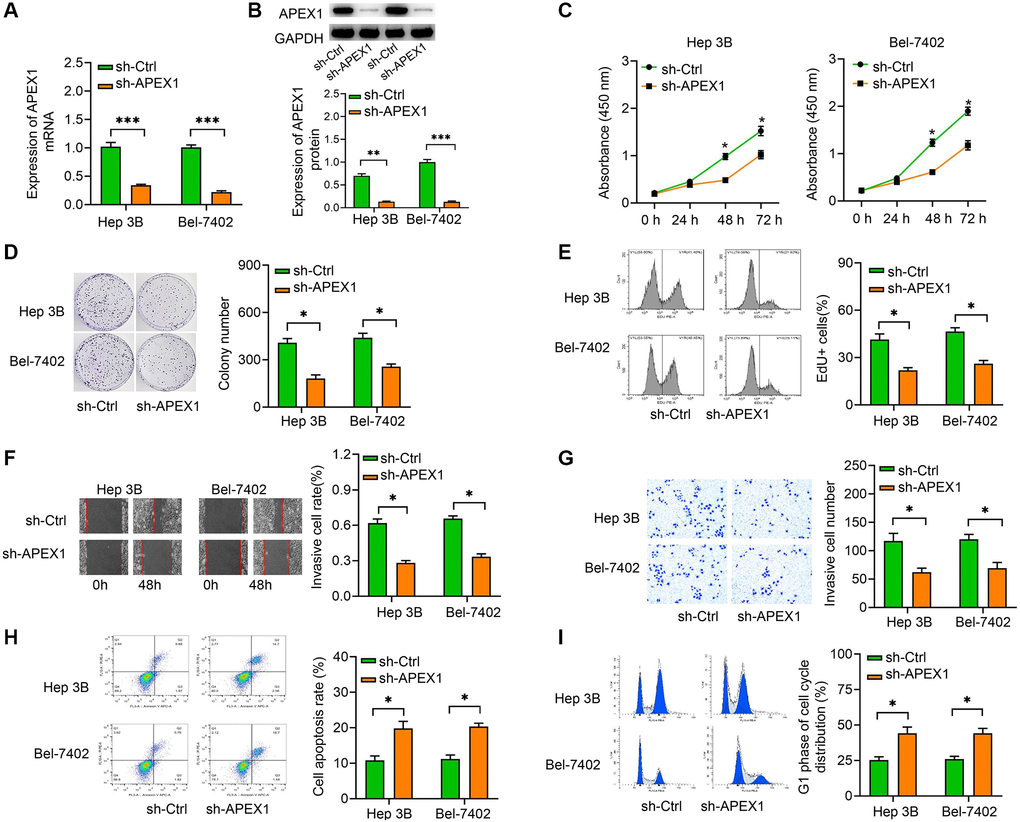

Figure 3. APEX1 modulates HCC cell proliferation, migration, invasion, apoptosis and cell cycle distribution in vitro. (A, B) The efficiency of transfection of sh-APEX1 was detected by qRT-PCR and Western blot assays. (C–E) CCK-8 (C), colony formation (D) and EdU assays (E) were performed to evaluate the effect of APEX1 on the proliferation of HCC cells. (F, G) Wound healing (F) and Transwell assays (G) were performed to evaluate the migration and invasion abilities of HCC cells. (H, I) Flow cytometry was performed to evaluate apoptosis (H) and cell cycle distribution (I). ^*P < 0.05 vs. sh-Ctrl.

We also examined the effects of APEX1 on the invasion and migration of HCC cells. Inhibition of APEX1 expression appeared to decrease the invasiveness of the HCC cells (Figure 3F). Similarly, APEX1 knockdown attenuated the migration ability of HCC cells (Figure 3G). Moreover, we applied flow cytometry to detect whether the anti-proliferation activity of APEX1 is associated with cell apoptosis or the cell cycle. The results showed a significant increase in cell apoptosis upon APEX1 knockdown (Figure 3H). Analysis of the cell cycle distribution revealed that the percentage of cells in G1 was increased upon the inhibition of APEX1 in both cell lines (Figure 3I). Taken together, these data indicated that APEX1 promotes HCC cell proliferation, invasion, and migration, and it inhibits cell apoptosis and alters cell cycle distribution of HCC cells.

APEX1 promotes tumor growth in vivo

To investigate the role of APEX1 in HCC tumor growth in vivo, we established a tumorigenesis model by subcutaneously injecting the sh-APEX1-transfected HCC cell line Bel-7402 into a nude mouse model. Tumor volume was monitored every week, and mice were sacrificed 8 weeks after inoculation for the determination of tumor weight. Compared with the control group, implantation of cells under-expressing APEX1 caused a significantly increased tumor growth in terms of tumor volume and weight (Figure 4A, 4B). Results of immunohistochemical analyses of isolated tumors confirmed a decreased expression of APEX1 protein in the sh-APEX1 group (Figure 4C). In addition, the establishment of the orthotopic liver cancer model revealed that APEX1 knockdown suppressed numbers of tumor nodules (Figure 4D). These findings indicate that silencing of APEX1 can reduce the tumorigenicity of HCC cells in vivo, thereby potentially inhibiting the development of HCC.

Figure 4. APEX1 promotes tumor growth in vivo. (A) An in vivo tumorigenesis model was established, and tumor volumes were measured every 7 days. (B) Tumors were exercised from mice and photographed. Tumor weight was determined. (C) APEX1 expression in isolated tumors was evaluated by immunohistochemistry. (D) The establishment of the orthotopic liver cancer model and numbers of tumor nodules was evaluated. ^*P < 0.05.

Transcriptome analysis of sh-APEX1-treated HCC cells

In order to validate the transcriptome changes in sh-APEX1-transfected HCC cells, we performed high-throughput transcriptome sequencing. The stratified cluster heat map demonstrated the distribution of differential genes between the sh-APEX1 group and the control group. There were 84 up-regulated genes and 39 down-regulated genes in the sh-APEX1-treated HCC cells (Figure 5A).

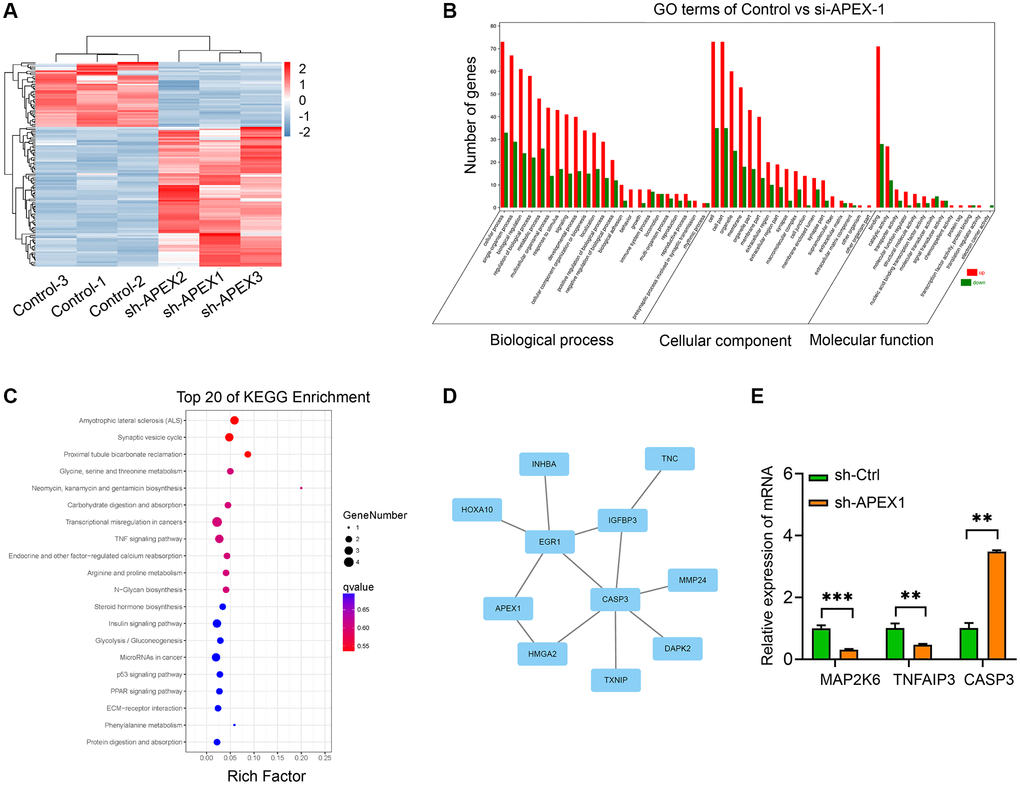

Figure 5. Transcriptome analysis of sh-APEX1-treated HCC cells. (A) The heat map of DEGs between sh-APEX1 and sh-Ctrl HCC cells. (B, C) GO (B) and KEGG signaling pathway (C) analyses of DEGs. (D) Protein interaction network analysis of DGEs. (E) Expression of MAP2K6, TNFAIP3, and CASP3, which are enriched in the TNF signaling pathway, were confirmed by qRT-PCR. ^**P < 0.01.

A total of 123 differentially expressed genes (DEGs) were subjected to Gene Ontology (GO) enrichment and Kyoto Encyclopedia of Genes and Genomes (KEGG) signaling pathway analysis. The molecular functions that the DEGs were found to be involved in included binding, catalytic activity, transporter activity, molecular function regulation, structural molecule activity, nucleic acid binding transcription factor activity and molecular transducer activity. The cellular components of the gene products included cell, cell part, organelle, membrane, organelle part, membrane part, extracellular region, extracellular region part, and synapse. The biological processes involved included cellular process, single-organism process, biological regulation, regulation of biological process, metabolic process, multicellular organismal process, and response to stimulus and signaling (Figure 5B).

KEGG enrichment analysis showed that after silencing of APEX1, the top 20 signaling pathways that DEGs are involved in were related to amyotrophic lateral sclerosis (ALS); the synaptic vesicle cycle; proximal tubule bicarbonate reclamation; glycine, serine and threonine metabolism; neomycin, kanamycin and gentamicin biosynthesis; carbohydrate digestion and absorption; transcriptional misregulation in cancers; the tumor necrosis factor (TNF) signaling pathway; endocrine and other factor-regulated calcium reabsorption and arginine and proline metabolism (Figure 5C). Results of a differential gene protein interaction network analysis showed that APEX1, CASP3, EGR1, IGFBP3, INHBA, TNC, HOXA10, IGFBP3, MMP23, HMGA2, DAPK2 and TXNIP genes made up the core protein interaction network (Figure 5D).

We next performed a qRT-PCR analysis to evaluate the expression of 3 DGEs that are enriched in the TNF signaling pathway: those encoding mitogen-activated protein kinase kinase 6 (MAP2K6), TNF alpha-induced protein 3 (TNFAIP3) and caspase 3 (CASP3). According to this assay, the expression of MAP2K6 and TNFAIP3 were evidently decreased, while CASP3 expression was significantly increased, in sh-APEX1-treated HCC cells as compared to control-treated cells (Figure 5E).

Enhancing of MAP2K6 attenuates the anti-oncogenic function of silenced APEX1

Based on the down-regulation of MAP2K6 in sh-APEX1-treated HCC cells and a positive expression correlation between APEX1 and MAP2K6 in HCC tissues (Figure 6A), we predicted that APEX1 enhances the malignant properties of HCC via its impact on MAP2K6 expression. We therefore sought to investigate whether MAP2K6 was responsible for the declined proliferation, invasion, and migration, enhanced cell apoptosis and altered cell cycle distribution induced by silencing of APEX1. We enhanced the expression of MAP2K6 in sh-APEX1-treated HCC cells and found that overexpression of MAP2K6 could abolish the role of inhibition of APEX1 in attenuating cell vitality, colony formation and proliferation (Figure 6B–6D). The decreases in cell invasion and migration induced by sh-APEX1 were also reversed by MAP2K6 overexpression (Figure 6E, 6F). In addition, the significant increase in cell apoptosis and cells in the G1 phase caused by APEX1 knockdown were also attenuated by MAP2K6 expression (Figure 6G, 6H). These data indicate that MAP2K6 can inhibit the anti-tumorigenic function of sh-APEX1 in HCC cells.

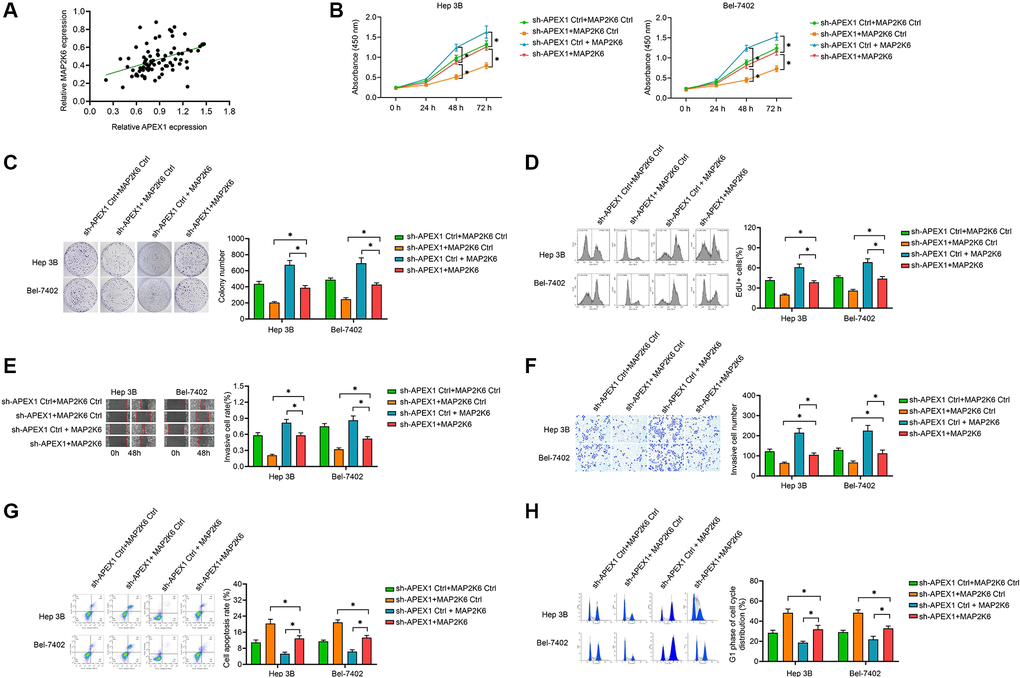

Figure 6. Enhancing of the expression of MAP2K6 attenuates the anti-oncogenic effect of silencing of APEX1. (A) The positive correlation between APEX1 expression and MAP2K6 expression in HCC tissues. (B–D) Cell vitality was evaluated with CCK-8 (B), colony formation (C) and EdU assay (D) assays in HCC cells. (E, F) Wound healing (E) and Transwell (F) assays were performed to evaluate the migration and invasion abilities of the HCC cells. (G, H) Flow cytometry was performed to evaluate apoptosis (G) and cell cycle distribution (H). ^*P < 0.05.
