ERp44/CG9911 promotes fat storage in Drosophila adipocytes by regulating ER Ca²⁺ homeostasis

Generation and characterization of the CG9911 mutants

The putative protein sequence of CG9911 was aligned with the orthologs from different species, including humans, using the Clustal X software (Supplementary Figure 1A), revealing a 51% sequence identity of CG9911 with the human ERp44. A highly conserved THD domain in CG9911 with the N-terminal signal peptide, KDEL motif and an ER resident signal, on the C-terminal are depicted in Supplementary Figure 1A. Immunocytochemistry shows that CG9911 is co-localized with BiP, an ER marker, in S2 cells, indicating a potential ER-related function for CG9911 (Supplementary Figure 1B, 1C). To investigate the biological function of CG9911, mutant flies were generated using the CRISPR/Cas9 system. We used a combination of two gRNAs both targeting on the fourth exon of CG9911 to inject Drosophila embryos (Figure 1A). A mutant allele, CG9911^f20, which deletes 5 bp DNA of the coding sequence was obtained, and used throughout this study (Figure 1C). CG9911^f20 is predicted to be a null allele of CG9911 because the deletion causes a frame shift of the open reading frame. Western blot results confirmed that no CG9911 proteins were produced in CG9911^f20 mutant flies (Supplementary Figure 1D). The CG9911^f20 mutant flies are viable and fertile with no visible morphological phenotypes under normal conditions. The developmental process of CG9911^f20 is 6 h delayed as compared with the wild type at the early 3rd instar stage and 20 h delayed for the enclosing adults. These results suggest that CG9911 is dispensable for viability and fertility, but may have important functions during development or under special conditions.

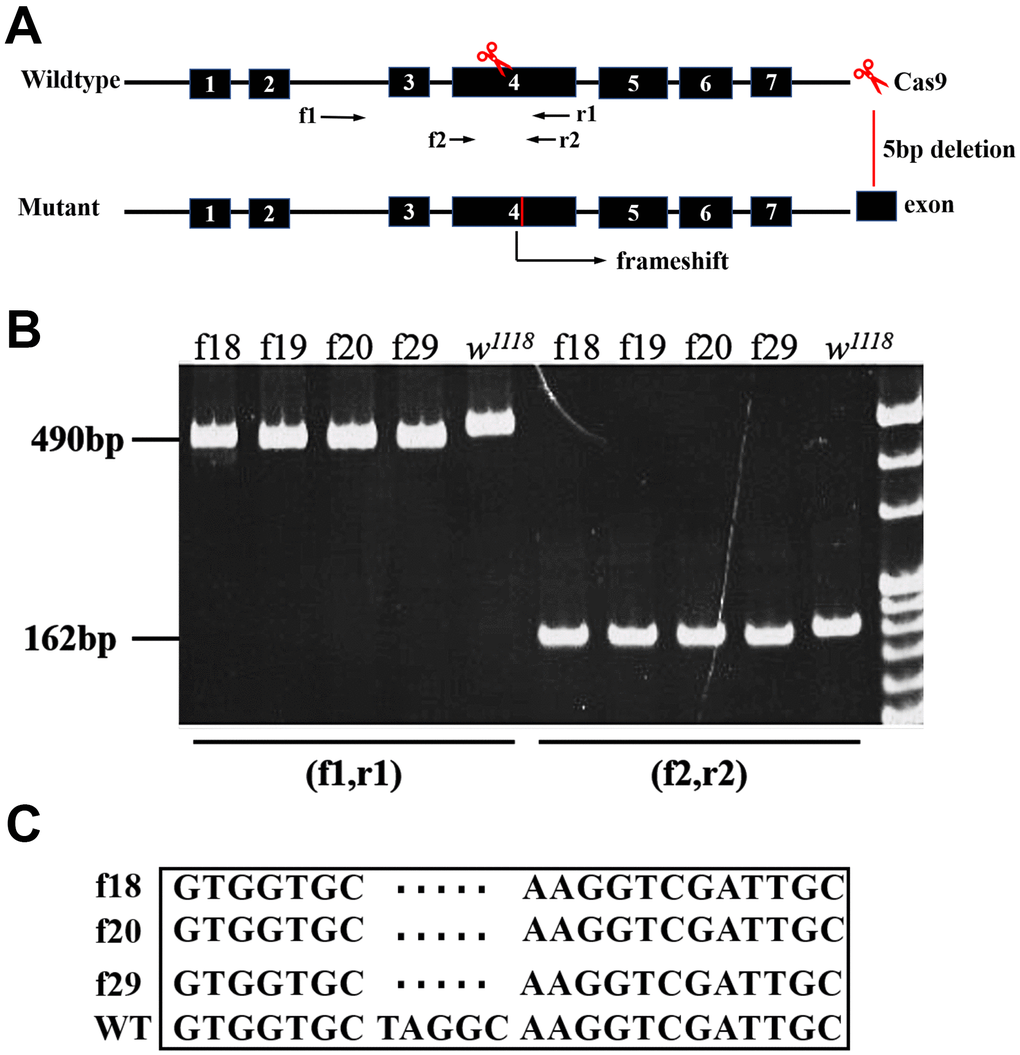

Figure 1. Characterization of CG9911 mutants. (A) Schematic presentation of CG9911 mutant mediated by CRISPR/Cas9. The scissors indicate where the CRISPR/Cas9 cleaves at the CG9911 locus. Red line indicates 5 bp deletion on genomic region. Two pairs of identification primers are marked (f1, r1) and (f2, r2) and located by opposite arrows. (B) The extracted genomic DNA of homozygous lines (f18, f19, f20, f29) is used as single fly PCR templates. The different molecular weight compared to w¹¹¹⁸ indicates successful deletion. (C) Sequencing results show that 5 bp DNA are deleted before ‘NGG’.

With a highly specific monoclonal antibody (see supplementary information for details), we analyzed the expression pattern of CG9911 in Drosophila. At the embryonic stages, CG9911 was ubiquitously expressed in all cells with a cytoplasmic localization (Supplementary Figure 2A). It is enriched in the eye disc (Supplementary Figure 2B), the wing disc (Supplementary Figure 2B), the oenocytes, the fat body (Supplementary Figure 2D) and the muscles (Supplementary Figure 2E) at the larval stages. It also appears in the testis and the ovary of the adult flies (Supplementary Figure 2C). Semi-quantitative expression of CG9911 was also examined with western blotting (Supplementary Figure 2F), which shows that CG9911 is expressed in almost all developmental stages with different levels in different tissues (Supplementary Figure 2G). Taken together, the results suggest that CG9911 is likely an ER protein with different levels of expression in different tissues during all developmental stages. In male adult flies, more CG9911 protein is expressed than that in female flies, which suggests CG9911 might have different roles specific for sex related functions.

Loss of CG9911 leads to increased lipolysis in Drosophila adipocytes

The bodyweight of both male and female adult flies ofCG9911^f20 is significantly reduced compared to that of the wild type flies (Figure 2A), but the viability of the mutants remains unchanged (data not shown). However, the CG9911 mutants exhibit significantly lower survival rate than the wild type flies under starvation conditions (Figure 2B). Given that starvation affects cellular processes such as amino acid biosynthesis, protein and lipid metabolism, glucose metabolism and lifespan determination [24], we hypothesized that CG9911 may play a role in cellular metabolism. To test this hypothesis, we performed assays to assess lipid droplets (LDs) in the fat body (Drosophila fat tissue) at different developmental stages. At the larval stage, no significant differences of LD size or TAG levels were detected between the CG9911 mutant and w¹¹¹⁸ wild type animals (Supplementary Figure 2A). Consistently, no difference on ectopic accumulation of fat was observed in Drosophila larval oenocytes (hepatocyte-like cells) under fed condition. CG9911 mutant did not alter the lipid mobilization compared with wild type under starvation (Supplementary Figure 3D). Though the LD size of CG9911 mutant was larger than w¹¹¹⁸ at selfsame development stage (Supplementary Figure 3A), TAG detection showed no difference between mutant and wild type (Supplementary Figure 3B, 3C). Interestingly, BODIPY staining shows that the abdominal LDs of the 5-day old adult flies of CG9911^f20 are fewer and smaller than that of the wild type flies (Figure 2C, 2D). More strikingly, the TAG level in the whole body of CG9911^f20 is decreased by 46.6 % compared with that in the wild type control (Figure 2E). To verify the possible reasons for the fat decrease in the absence of CG9911, the expression of lipogenesis related genes (FAS, dACC, dSREBP) and lipolysis related genes (bmm, dHSL, Lip3) of whole body were examined by real time PCR (Figure 2F). Fatty acid synthase (FAS) and acetyl-CoA carboxylase (ACC) are two enzymes critical for energy production and storage in both Drosophila and mammals [25]. Drosophila sterol regulatory element-binding proteins (dSREBP) are transcription factors which regulate the synthesis of enzymes involved in sterol biosynthesis [26]. As shown in Figure 2E, expression of these lipogenesis related genes is not affected by the CG9911 mutation. However, as the key enzymes catalyzing the hydrolysis [27], lipase3 (Lip3) and adipose triglyceride lipase (bmm) show increased expression by different folds. The expression of bmm in CG9911^f20 is ~1.6 folds of that in wild type animals, and Lip3 is ~9 folds. These results indicate that CG9911 loss of function results in an increase of lipolysis in the fat body of adult flies. Lipolysis is a process in which triacylglycerol is hydrolyzed into glycerol and free fatty acids (FFAs) in adipocytes and affects energy homeostasis [28]. Lipolysis can be stimulated by various factors including catecholamines, thyronines, glucocorticoids [29], TNF-α and lipopolysaccharides [30]. Lipolysis can also be increased by ER stress which is observed in the adipose tissue of burned patients and cultured human adipocytes [31]. Thus, we hypothesize that CG9911, an ER resident protein, affects lipolysis in response to ER stress.

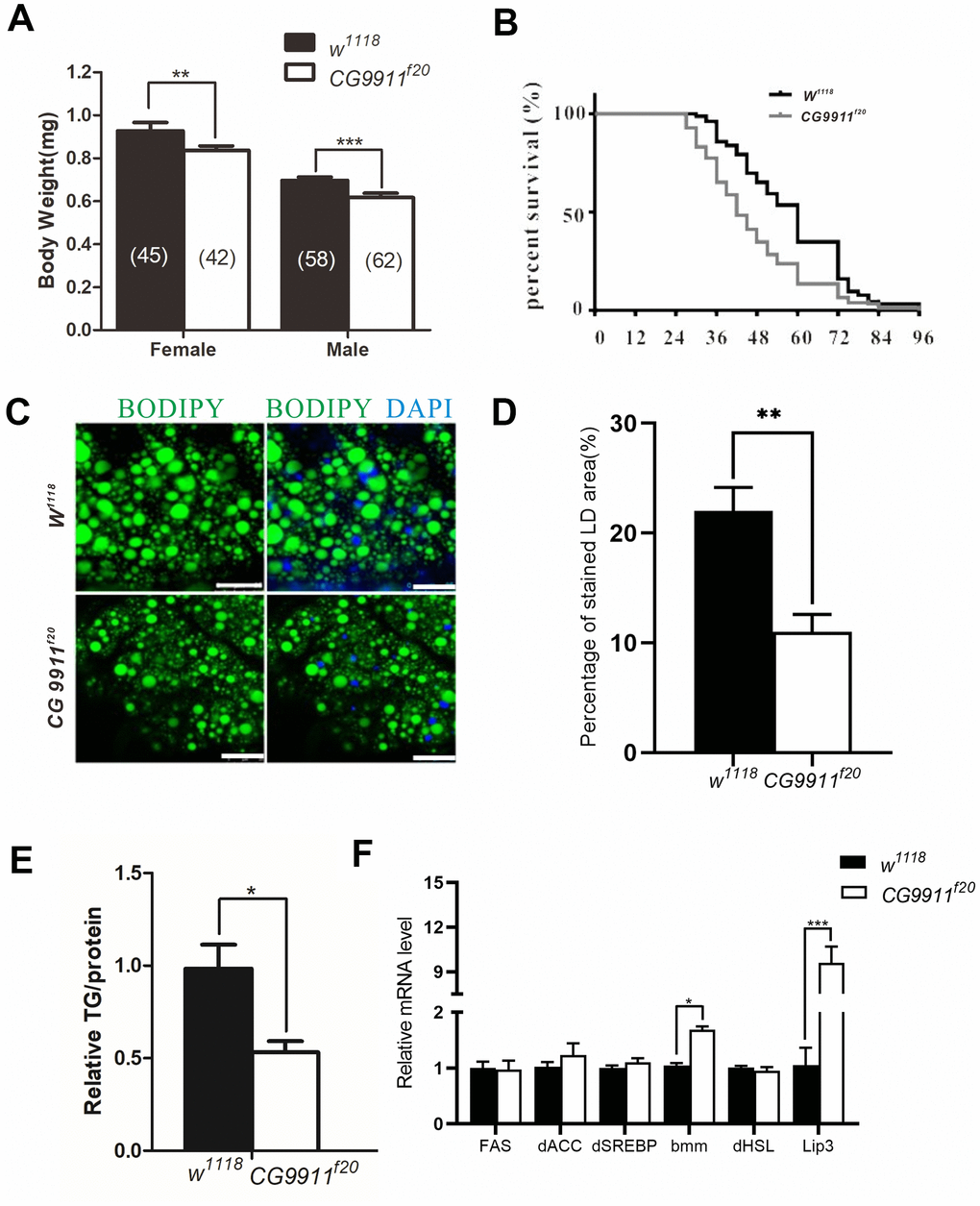

Figure 2. Phenotypes of CG9911 mutant flies. (A) Body weight of adult flies (1 day after eclosion) is examined in both CG9911 mutants and w¹¹¹⁸. The numbers of flies are indicated in bracket. (B) Survival curves of CG9911 mutant and w¹¹¹⁸ flies under starvation stimulation. Log-rank (Mantel-Cox) test, p < 0.001. (C) LD staining in CG9911 mutant and w¹¹¹⁸ fat body. BODIPY (green)was used to stain LD. Nuclei were stained by DAPI. Scale bar represents 25 μm. (D) The proportion of stained LD area in the micrograph. Over 15 micrographs in every group were considered for statistics. Data are presented as the means ± s.e.m; ** p<0.01. (E) Relative glyceride levels in whole body of CG9911 mutant and w¹¹¹⁸ flies. Three independent replicates were performed. Glyceride levels were normalized to protein content; * p < 0.05. (F) Real-time PCR of lipogenesis and lipolysis related genes of whole body. All gene detections were subject to three independent replicates. Data are presented as the means ± s.e.m; * p < 0.05, *** p<0.001.

CG9911 mutant cells display ER stress

ER stress occurs when ER is unable to cope with excessive unfolded or misfolded proteins accumulated in the lumen [32]. Unfolded protein response (UPR) is initiated by the activation of three transmembrane proteins of activating transcription factor 6 (ATF6), inositol requiring enzyme 1 (IRE1) and PKR-like endoplasmic reticulum kinase (PERK). At the normal conditions, ATF6, IRE1 and PERK are blocked by binding immunoglobulin protein (Bip) which is a molecular chaperone located in the lumen of ER and a target of the ER stress response [33]. To examine whether the mutation of CG9911 is associated with ER stress, tunicamycin (TM) was used to induce ER stress in the adult flies. The survival curves show that CG9911^f20 is more sensitive to TM-induced ER stress as compared to the wild type (Figure 3A). In the absence of any chemical induction, CG9911 mutants already exhibit ER stress as judged by the Bip, the spliced Xbp1 (sXbp1), and Atf4 expression, three ER stress markers (Figure 3B). Especially, the sXbp1, acting as a transcription factor, is a product of cleavage from unspliced Xbp1 by the active IRE1 [34]. The TAG level in CG9911 mutants is decreased by 47.9% in the absence of TM induction and by 55.2% in the presence of TM induction, respectively, as compared to that of the wild type control (Figure 3E). Both the size and the number of lipid droplets are reduced in CG9911^f20 mutant, the phenotype of which is enhanced by TM induction (Figure 3C, 3D). Also, we investigated the fat metabolism-related genes in MT-induced files at 48h via real time PCR (Figure 3F). A notable increase in bmm and Lip3 could be observed in mutants compared with w¹¹¹⁸. These results suggest that the lipolysis phenotype of the CG9911^f20 mutant is caused by increased ER stress in flies.

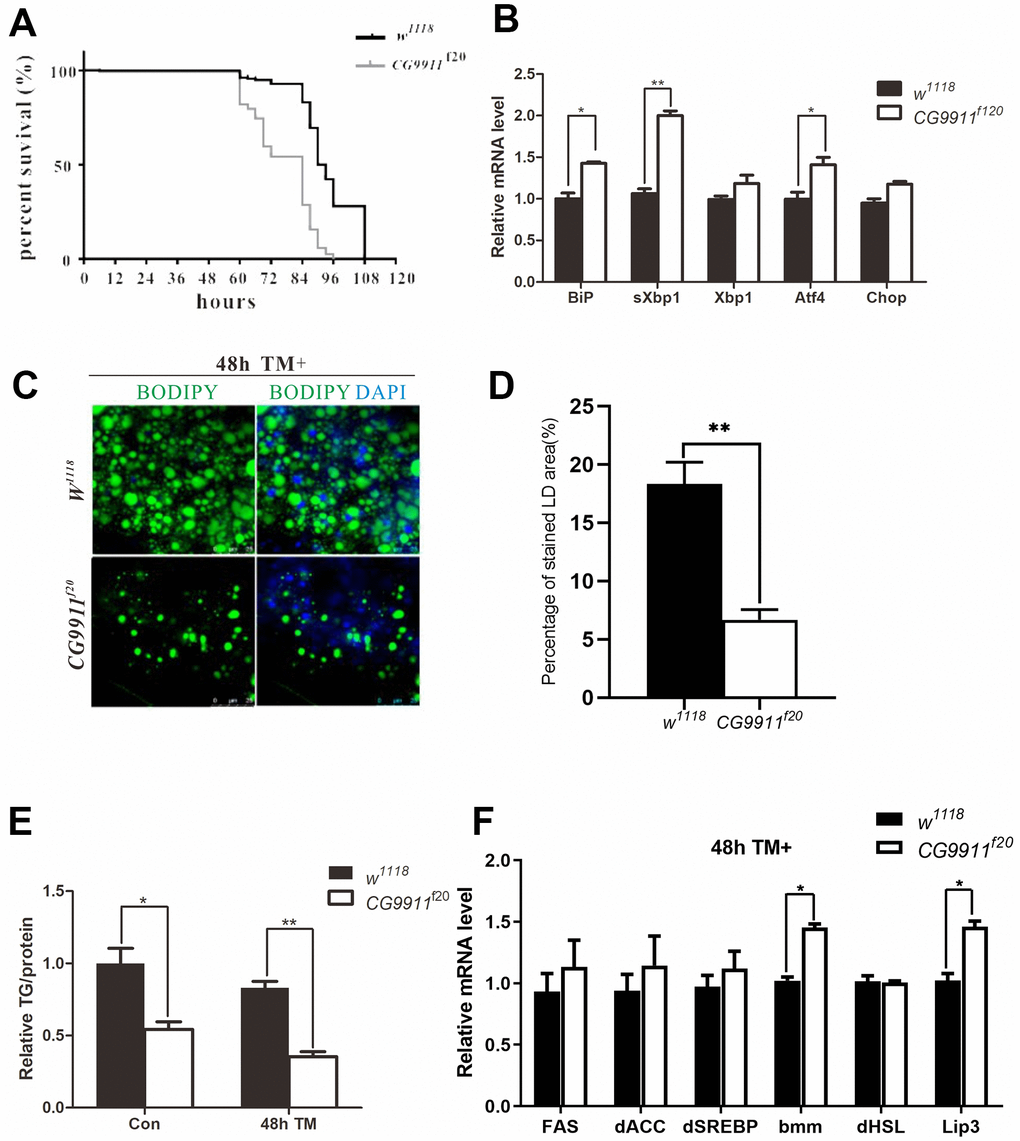

Figure 3. CG9911 mutant causes ER stress. (A) Survival curves of w¹¹¹⁸ and CG9911^f20 treated with tunicamycin. Log-rank (Mantel-Cox) test indicates p < 0.0001. (B) Real-time PCR detecting mRNA level of BiP, sXbp1 and Xbp1 in w¹¹¹⁸ and CG9911^f20 flies. Relative mRNA level was normalized to w¹¹¹⁸. All gene detection was subject to three independent replicates. Data are presented as the means ± s.e.m; *p<0.05, ** p<0.01. (C) Lipid droplets staining of fat bodies in adult flies with and without TM treated. BODIPY was used to stain lipid droplets (green), and nuclei is stained by DAPI. (D) The proportion of stained LD area in the micrograph. Data are presented as the means ± s.e.m; ** p<0.01. (E) TAG level of adult flies treated with and without TM in three independent trials. Data were presented as the means ± s.e.m. * p < 0.05 and **p < 0.01. (F) Three independent real-time PCR detection of lipogenesis and lipolysis related genes in TM-induced flies at 48h. Data are presented as the means ± s.e.m; * p < 0.05.

ER stress can be induced by various causes most of which are related with impaired folding functions of proteins resulting from genetic mutations or drug treatment [35]. In addition, Ca²⁺ level of ER is also a factor controlling ER stress in both mammals and Drosophila. Ca²⁺ is essential for the activity of ER resident proteins such as Calnexin and Calreticulum which are involved in the folding of glycosylated proteins [36]. Therefore, next, it is possible that Ca²⁺ level is altered by loss of CG9911 and the phenotypes of CG9911 mutant are associated with the Ca²⁺ alteration.

CG9911 mutation decreases ER Ca²⁺

It has been reported that disruption Ca²⁺ signaling leads to activation of ER stress coping response, such as UPR and mobilization of pathways to regain ER homeostasis [37, 38]. Thus we wondered whether the elevated ER stress in CG9911 mutants is caused by Ca²⁺ flow from the ER to the cytoplasm [39]. We specifically knocked down or overexpressed IP₃R, RyR and STIM in the fat body of CG9911 mutants. IP₃R and RyR are two main types of Ca²⁺ channels that regulate Ca²⁺ release from ER to the cytoplasm [20]. STIM is also a regulator of ER Ca²⁺ store through store operated Ca²⁺ entry (SOCE) [40]. IP₃R depletion leads to a phenotype of obesity and increased fat storage [21]. Our results show that knockdown of IP₃R in fat body promotes both the size of LDs (Figure 4A, 4B) and TAG level (Figure 4B). IP₃R knockdown efficiently rescues the decrease of lipid droplets and glyceride level caused by CG9911 deletion. IP₃R, RyR and STIM knockdown lead to the increase of lipid droplets size (Figure 4A, 4B) and elevated glyceride content (Figure 4C). STIM knockdown partially alleviate the lipolysis phenotype of CG9911 mutants (Figure 4B, 4C). Interestingly, we specially investigated the mRNA level of UPR-related genes, and results indicated that IP3R knockdown could reduce the UPR caused by CG9911 deletion, which is proved by the significant decrease of Bip, sXbp1, Xbp1, and Atf4 (Supplementary Figure 4). These results indicate that blocking Ca²⁺ release from ER to cytoplasm by knockdown of IP₃R significantly suppresses the phenotype of lipolysis in CG9911 mutant, implying that ER Ca²⁺ signal has contributions to the lipolysis phenotype caused by depletion of CG9911.

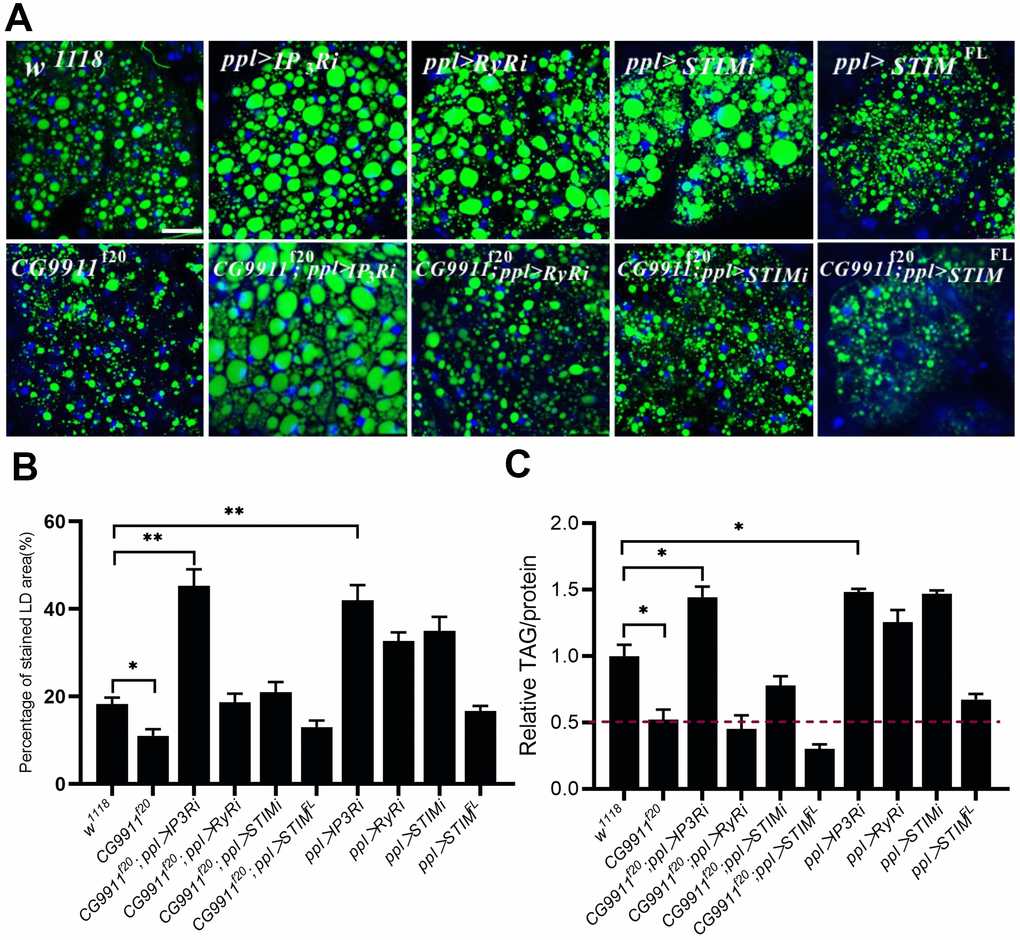

Figure 4. The phenotype of CG9911 mutants is rescued by ER Ca2+ reduction. (A) Knockdown of IP₃R rescued lipid storage phenotype of CG9911 mutants. Lipid droplets were stained by BODIPY and nuclei were stained by DAPI. Scale bar =25 μm. (B) The percentage of stained LD area in the micrograph. Over 10 micrographs in each group were considered for data analysis. Data are presented as the means ± s.e.m; *p<0.05, ** p<0.01. (C) Relative glyceride levels were examined in adult fat bodies with different genotypes in three independent trials. Glyceride levels were normalized to protein content. Data are presented as the means ± s.e.m; *p < 0.05.

CG9911 is required for ER Ca²⁺ homeostasis

Given the fact that the increased lipolysis phenotype of CG9911 mutant is suppressed by the down-regulation of Ca²⁺ channel, we reasoned that CG9911 may play a role in ER Ca²⁺ homeostasis. To test this hypothesis, Ca²⁺ imaging experiments were performed with the fat body of CG9911 mutant and the wild type files. Cells with Fluo-4 AM, Ca²⁺ indicator, were treated with 10 μM ionomycin (an ionophore that binds Ca²⁺) to stimulate Ca²⁺ release from ER to cytosol (Figure 5A). The fluorescence signals were recorded to calculate the ER calcium level (Figure 5B). Compared to the wild type, the amplitude of ionomycin induced Ca²⁺ transients in CG9911 mutants is decreased by 57% (Figure 5C). Dynamically, Ca²⁺ release in CG9911 mutant fat body is different from that in wild type animals: the time of fluorescence signal from the basal level to the peak (t_max), the half time of rise (t_1/2on) and half time of decay (t_1/2 off) are shortened by 32.6%, 29.1% and 37.1%, respectively (Figure 5D). In accordance with the results by ionomycin treatment, Ca²⁺ release induced by 10 μM thapsigargin (TG, the non-competitive inhibitor of SERCA) is reduced by 58.4% (Figure 5E, 5G) with t_max and t_1/2 off increased by 68.7% and 83.7% (Figure 5H). Previous study revealed that ERp44 affects Ca²⁺ homeostasis by regulating the activity of IP₃R1 in mammalian cells [41]. To check whether CG9911 affects cytosol Ca²⁺ level, we performed the experiments of the relative resting Ca²⁺infat body of CG9911^f20 flies and the wild type flies. Individual fat body cells of adult flies were incubated with Fura-2 AM. Our results show that the resting Ca²⁺ level presented by the fluorescence ratio of 340 nm/380 nm is not significantly different between CG9911 mutant and the wild type (Figure 5I). Together, these results indicate that CG9911 plays a role in maintaining ER Ca²⁺ homeostasis in Drosophila fat body. The resting Ca²⁺ signaling is unlikely contributes to the increased lipolysis phenotype of CG9911 mutant flies.

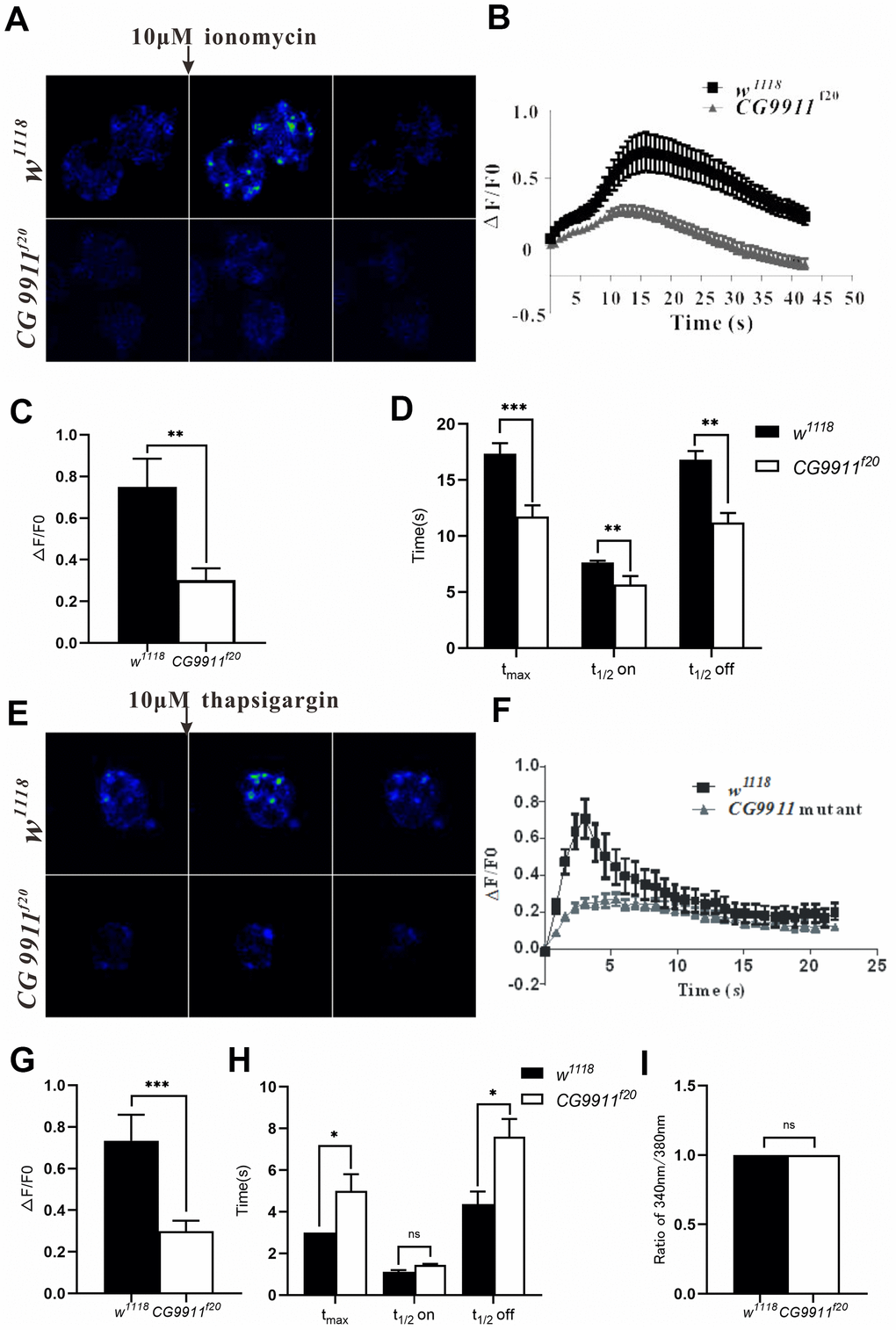

Figure 5. CG9911 modulates intracellular calcium homeostasis. (A) Fluorescence changes of w¹¹¹⁸ and CG9911 mutant fat bodies which were treated with 10μM inomycin. Scale bar = 50 μm. (B) The dynamic changes of fluorescence intensity(ΔF/F₀) in the signal fat cell of w¹¹¹⁸ and CG9911 mutant files when stimulated with 10μM inomycin. (C) The difference of mean F/F₀ between w¹¹¹⁸ and CG9911 mutant fat cells when treated with 10μM inomycin. Data are presented as the means ± s.e.m; ** p<0.01. (D) The comparation of the mean data for time from basal to peak (t_max), half time raise (t_1/2 on), and decay (t_1/2 off) between w¹¹¹⁸ and CG9911 mutant fat cells when treated with 10μM inomycin. Data are presented as the means ± s.e.m; ** p<0.01, *** p<0.001. (E) Ca²⁺ imaging of w¹¹¹⁸ and CG9911 mutant fat bodies when treated with 10 μM TG. (F) The dynamic changes of fluorescence intensity(ΔF/F₀) in the signal fat cell of w¹¹¹⁸ and CG9911 mutant files when stimulated with 10μM TG. (G) The difference of mean data of F/F₀ between w¹¹¹⁸ and CG9911 mutant fat bodies when treated with 10 μM TG. Data are presented as the means ± s.e.m; *** p<0.001. (H) The comparation of the mean data for time from basal to peak (t_max), half time raise (t_1/2 on), and decay (t_1/2 off) between w¹¹¹⁸ and CG9911 mutant fat cells when treated with 10μM TG. Data are presented as the means ± s.e.m; *p<0.05. (I) The quiescent Ca²⁺ level in the signal fat cell of w¹¹¹⁸ and CG9911 mutant files.

Fly stocks

All flies were kept on standard medium containing cornmeal, yeast agar, soybean, syrup and molasses [48]. The culture condition is 25° C and 60% humidity unless otherwise stated. ppl-GAL4 (#105013) and Oe-GAL4 (#113874) stocks were obtained from Drosophila Genomics Resource Center (DGRC). Other stocks used were from the Bloomington Stock Center.

Generation of CG9911 mutants

By CRISPR/Cas9 system, we selected two target DNA binding site on the third exon according to the rules [49]. We followed the target sequence design principle: 5’GG-N17–19-NGG3’. The sequences of two gRNAs utilized in this study are 5’-GGATACTTGTTTATGTGGAAACGG-3’ and 5’- GGAAAAGTGGTGCTAGGCAAGG-3’. After transcribed in vitro as previously described [50], the mRNAs and gRNAs were mixed to a final concentration of 800 ng/μl for the mRNA, 862 ng/μl and 613 ng/μl for the gRNAs, respectively. The mixture was centrifuged at maximum speed for 10 min before microinjection to w¹¹¹⁸ embyos. Inheritable F0 which yielded enough F1 were collected for screen by using single fly PCR with the pair of primers: 5’-TGCAGCGTCTAATGAATTGG-3’ and 5’-GTCCCTACGATCGAAGTAGC-3’. Positive PCR fragment from homozygous flies were used for sequencing.

Generation of CG9911 antibody

The CDS fragment of CG9911 isoform C was cloned from cDNA of drosophila embryos and then subcloned into pGEX-6p-1 (GE healthcare, UAS) by EcoR I and Sal I. An N-terminal, GST-fused CG9911 protein was expressed in E.coli BL21 (DE3) strain (Trangene, Beijing, China) induced by 40 μM IPTG at 16° C for 18 h. The protein was purified using Glutathione Sepharose 4B (GE Healthcare, UAS) according to a standard protocol. GST-tag was removed by PreScission Protease (GenScript, NJ, USA) in cleavage buffer (50 mM Tris-HCl, 150 mM NaCl, 1 mM EDTA, 1 mM DTT, pH 7.0) at 4° C overnight. The purified CG9911 protein was used as antigen at the concentration of 400 μg/ml in PBS and mixed with 20 μg/ml CpG ODN (5’-tccatgacgttcctgacgtt-3’thiophosphorylated) as adjuvant. Each of 8 week-old female BALB/C mouse was immunized with 500μl antigen by intraperitoneal (i.p.) injection. The second booster injection was 30 days after the primary immunization dose. The third, fourth and fifth booster injection went 15, 7 and 3 days after the last injection, respectively. After five booster injections, the spleen B lymphocytes isolated from immunized mice and SP2/0-Ag14 myeloma cells were fused in the presence of PEG4000 (Merck) at 37° C overnight. The hybridoma cells were cultured in complete IMDM medium (GIBCO, USA) supplemented with 20% FBS (GIBCO, USA), 1% penicillin/streptomycin (GIBCO, USA) and HT (GIBCO, USA). After 15 days feeding in 96-well plates, the hybridomas were screened by using ELISA. To gain monoclones, the cells from positive wells were recloned by limiting dilution and identified under an inverted microscope as previously described (Yokoyama et al, 2006). The positive monoclonal hybridoma cells tested by ELISA again were expended to 24-well plates and incubated for 1 week at 37° C, 5% CO₂. Monoclonal antibodies were purified from collected cell supernatant by using protein G column (GEHealthcare, USA).

ELISA assay

Polystyrene 96-well plates were coated with250μg purified CG9911 protein in 50μl PBS at 4° C overnight and blocked with block buffer (0.5% BSA, 0.05% Tween-20 in PBS) for 1 h at room temperature. After 3 times washing with PBST (0.05% Tween-20 in PBS), the plates were loaded with 100μl supernatant of hybridoma cells for 1 h. Subsequently,100μlgoat anti-mouse Ig-HRP (1:10000 diluted in block buffer) was added to each well and incubated for 1h.After 3 washes, the plate was developed by using 100μl TMB substrate (eBioscience, USA) per well for 5 min. The reaction was stopped by adding50 μl 2N H₂SO₄and liquid color was changing from blue to yellow. The absorbance was measured at 450 nm using a Spectrophotometer (Thermo Fisher, Finland) and Multiskan GO v1.00.40.

Western blot

Flies of different developmental period were homogenized in cold RIPA lysis buffer (50mMTris, 150mMNaCl, 1% Triton X-100, 1% sodium deoxycholate, 0.1% SDS, pH 7.4) in the presence of 1 mM PMSF and protease inhibitor cocktail (Cell Signaling Technology, USA) and centrifuged at 12000 rpm, 4° C for 20 min to remove insoluble precipitates. The concentration of total protein was determined by Bradford (sigma, USA) and was boiled in 2×SDS loading buffer for 15 min. The detected samples have the same total protein concentration and were separated by SDS-PAGE, transferred onto PVDF membranes (Millipore), and incubated with primary antibodies against CG9911 (1:1000, Cell Signaling Technology), β-actin (1:1000, Proteintech). The membranes were incubated with the appropriate HRP-conjugated secondary antibodies (1:10 000, Abways), and the signals were analyzed using the SuperLumina ECL HRP Substrate Kit (Abbkine, USA). The position of the target protein is referenced to the color prestained marker (Cofitt, HongKong). A minimum of three independent analysis were performed, and typical example is presented.

Immunohistochemistry

Wandering third instar larvae and adult flies of w¹¹¹⁸ were collected and dissected in cold PBS. Wing discs, fat body, oenocytes, muscles, ovary, testis and other tissues were separately fixed in 4% paraformaldehyde in PBS for 40 minutes at room temperature followed with 3 washes of PBST (0.3% Triton X-100 in PBS). After blocked in 10% goat serum in PBST for 1 h, tissues were incubated with CG9911 antibody (1:100) at 4° C overnight. Subsequently, fluorescent secondary antibody was used for signal detection. For Lipid droplet staining in adult abdominal fat bodies, 5 days adult flies of the correct genotypes were collected and dissected as previously described. After 3 washed in PBS, fat bodies were incubated in PBS with 1 mg/ml BODIPY 493/503 (Invitrogen, USA) and 2 ng/ml DAPI (Beyotime Biotech, China) for 40 min at room temperature. The embryos of w¹¹¹⁸ were stained with CG9911 antibody according to standard protocol. All fluorescent images were captured by a Leica confocal microscope SP5 (Leica, Germany).

Triglycerides measurements

Whole adult flies glyceride quantification was determined as described. 10 adult flies were collected (three groups per genotype) and homogenized in PBST (0.5% Tween in PBS). The supernatants were measured with TAG reagent (Sigma, UAS).

Calcium imaging in fly fat cells

Fat body cells fromw¹¹¹⁸and CG9911 mutant flies (1 day after eclosion) were dissected in hemolymph-like (HL) buffer (128 mM NaCl, 2 mM KCl, 35.5 mM sucrose, 4 mM MgCl₂, 1.8 mM CaCl₂, 5 mM HEPES, pH 7.4) as previously described. Individual cells were loaded with 5 mMFluo-4 AM (Invitrogen, UAS) on poly-L-Lysine (sigma, UAS) coated wells at 37° C for 30 min in the dark. After perfused with calcium-free HL buffer (128 mM NaCl, 2 mM KCl, 35.5 mM sucrose, 4 mM MgCl₂, 2 mM EDTA, 5 mM HEPES, pH 7.4), cells were stimulated by 10 μM ionomycin (Beyotime Biotech, China) or 10 μM thapsigargin (Sigma, USA) to cause Ca²⁺ release from ER. The fluorescence signal was recorded by using a SP5 confocal microscope (Leica, Germany) connected to an inverted microscope (Leica, Germany). The Ca²⁺dependent fluorescence intensity ratio (ΔF/F₀) was used to present the Ca²⁺release signal in 30 fat cells. The resting Ca²⁺ measurement were performed as previously described. Fat cells were incubated with 10μM Fura-2 AM (Invitrogen, UAS) in HL buffer at 37° C for 30 min. Photometric measurements were performed by using cellˆR system (Olympus, Japan) and operated at an excitation wavelength of 340 and 380 nm. The relative resting Ca²⁺ signal was presented by a ratio of 340/380 nm by using Olympus cellˆR Software.

Quantitative real time PCR

Total RNA was extracted from adult flies by using TRIzol reagent (Invitrogen, USA). 2μg of RNA was reverse transcribed to cDNA by using PrimeScript™ RT reagent Kit with gDNA Eraser (TAKARA, Japan). Quantitative real-time PCR was performed using EvaGreen 2× qPCR Mix (abm, Canada) on a Roter-Gene machine (QIAGEN, Germany) following the manufacturer’s instructions. β-actin and rp49 were used as endogenous control. See Supplementary Table 1 for q-PCR primer sequences.

Starvation assay

50 flies of w¹¹¹⁸and CG9911 mutant (3 days after elcosion) were kept in vials only with PBS at normal condition. The number of dead flies was recorded every 3 hours with 3 independent groups employed. Data was analyzed by Log-rank (Mantel-Cox) test.

ER stress assay

To induce ER stress, 100 files with different genotypes were transferred to vials containing 1% agar, 5% sucrose and 12 μM tunicamycin (Sangon Biotech, China) as previously reported. The flies were kept in normal conditions and counted every 3 hours.

Statistical analysis

Statistical analysis was performed using GraphPad. Data were tested for significance using the Student’s test and shown as mean ± SEM. Data from three groups were compared by one-way ANOVA.
