Molecular subtypes, prognostic and immunotherapeutic relevant gene signatures mediated by DNA methylation regulators in hepatocellular carcinoma

Genomic characterization of DNA methylation regulators in hepatocellular carcinoma

We extracted a total of 20 DNA methylation regulators from TCGA-LIHC and GSE14520 datasets, including 14 readers (SMUG1, NTHL1, TDG, UNG, MECP2, UHRF1, UHRF2, ZBTB4, ZBTB33, ZBTB38, MBD1, MBD2, MBD3, MBD4), 3 erasers (TET1, TET2, TET3) and 3 writers (DNMT1, DNMT3A, DNMT3B) [12]. The analysis of mutational landscape for 20 DNA methylation regulators showed that in hepatocellular carcinoma, only 33 samples of 364 samples experienced at least one mutation, accounting for 9.07% (Figure 1A). The CNV analyses indicated these regulators also a relatively low CNV alteration frequency in hepatocellular carcinoma. TET2, MBD3, UHRF1, DNMT1, MBD2 and MBD2 mainly focused on the frequency of copy number deletion, while DNMT3A, ZBTB33, MECP2 and NTHL1 exhibited copy number amplifications (Figure 1B). The position of 20 regulators in chromosome was shown in Figure 1C. Based on the TCGA-LIHC cohort, we found the expression of DNA methylation regulators between normal tissues and tumor tissues showed significant difference. TET2, ZBTB4, MBD4, ZBTB38 and NTHL1was significantly down-regulated in tumor tissues, while TET3, SMUG1, MBD1, TET1, UNG, DNMT3A, MECP2, DNMT3B, DNMT1 and UHRF1 was significantly up-regulated in tumor tissues (Figure 1D). Survival analyses with the univariate Cox regression model revealed their crucial roles in the patient outcomes, of these, DNMT3A, UHRF1, DNMT1, DNMT3B and TET1 the risk factors for hepatocellular carcinoma. However, other regulators did not show a significant effect on prognosis (Figure 1E). Additionally, we found tumors with the up-regulated eraser genes showed a high expression of writer genes, except for TET2 eraser gene (Supplementary Figure 1A–1C).

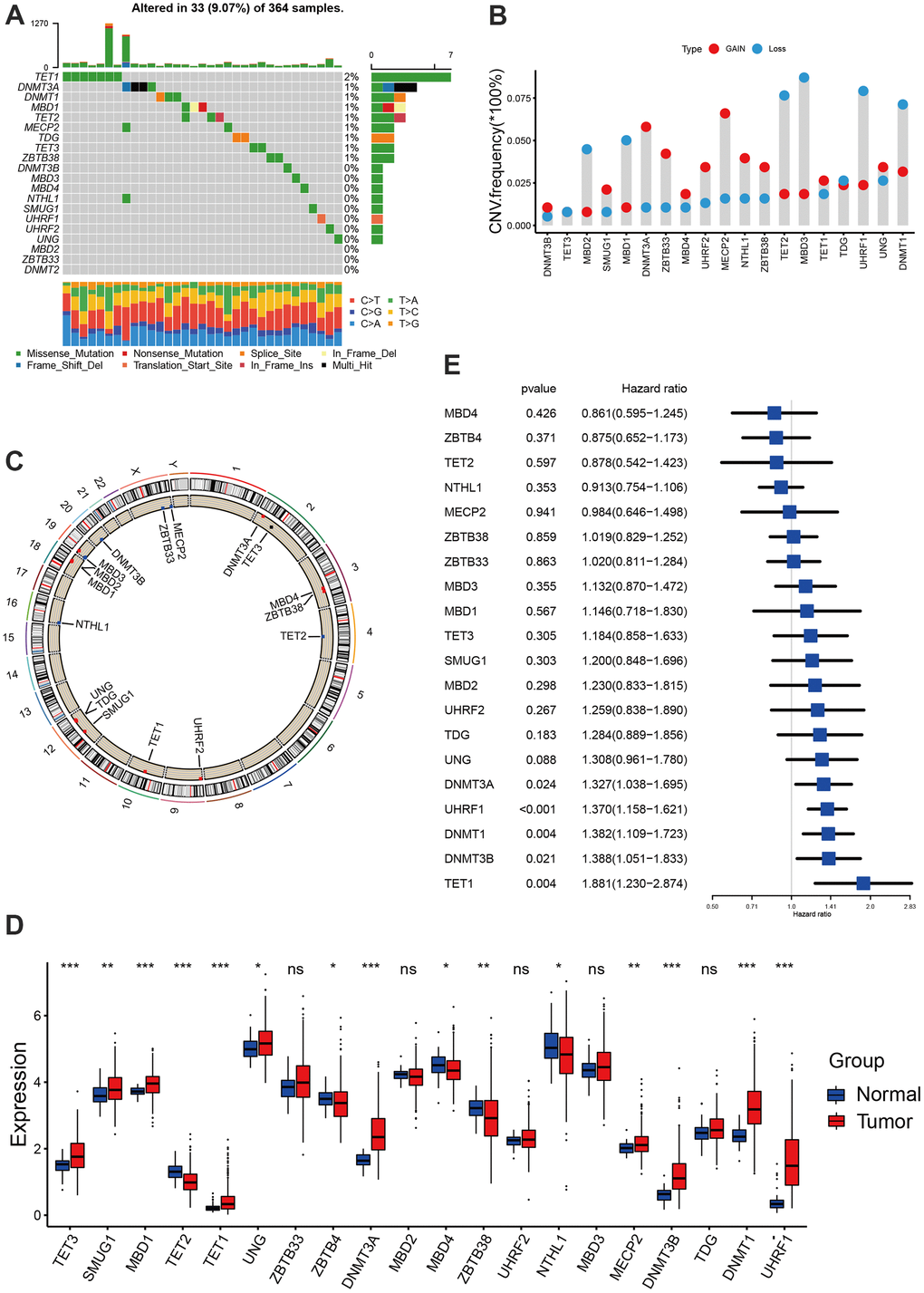

Figure 1. Landscape of DNA methylation regulators in hepatocellular carcinoma. (A) The mutation landscape of 20 DNA methylation regulators in TCGA-LIHC cohort. (B) The Copy number variation frequency of 20 DNA methylation regulators. (C) The position of the 20 regulators in the chromosome. (D) Expression of 20 regulators in tumor and normal samples based on TCGA-cohort. (E) Survival analyses for the 20 regulator genes using univariate Cox regression model. All data analyses were based on the TCGA-LIHC cohort. CNV, copy number variation. Ns, not significant. *P < 0.05; **P < 0.01; ***P < 0.001.

Consensus clustering for identifying methylation regulator-related molecular subtypes

Based on the protein-protein interaction (PPI) network constructed by the STRING, we found these regulators showed a widespread protein interaction (Figure 2A). Further analysis showed that these regulators exhibited significant positive correlations at mRNA expression levels (Figure 2B). A network was used to visualize the prognostic significance and interaction among these regulators.(Figure 2B) Previous studies showed that DNA methylation play anti-tumor immune effects by regulating cell infiltration in the tumor microenvironment [13, 14]. We therefore explored the correlation between tumor environment cell infiltration and DNA methylation regulators. We found ZBTB4, MBD2 and DNMT1 present a significant correlation with most cell infiltration abundance (Figure 2C). The consensus clustering was used to identify the distinct molecular subtypes mediated by DNA methylation regulators in hepatocellular carcinoma. According to the expression of 20 regulators, all tumor samples were clustered into three distinct subtypes. We termed these subtypes as methylation regulator-related molecular subtype A, B and C, respectively (Supplementary Figure 2). Survival analysis revealed a significant difference on prognosis between three subtypes, with particularly prominent survival advantage in subtype A and C, and the survival inferiority in subtype B (Figure 2E). NTHL1, MBD3 and SMUG1 were characteristically expressed in subtype A, DNMT3A, TET1, DNMT3B, TET3, UHRF2, DNMT1, UHRF1, TDG and UNG characteristically expressed in subtype B, while ZBTB4, MBD4, ZBTB33, TET2 and ZBTB38 characteristically expressed in subtype C (Figure 2D–2F).

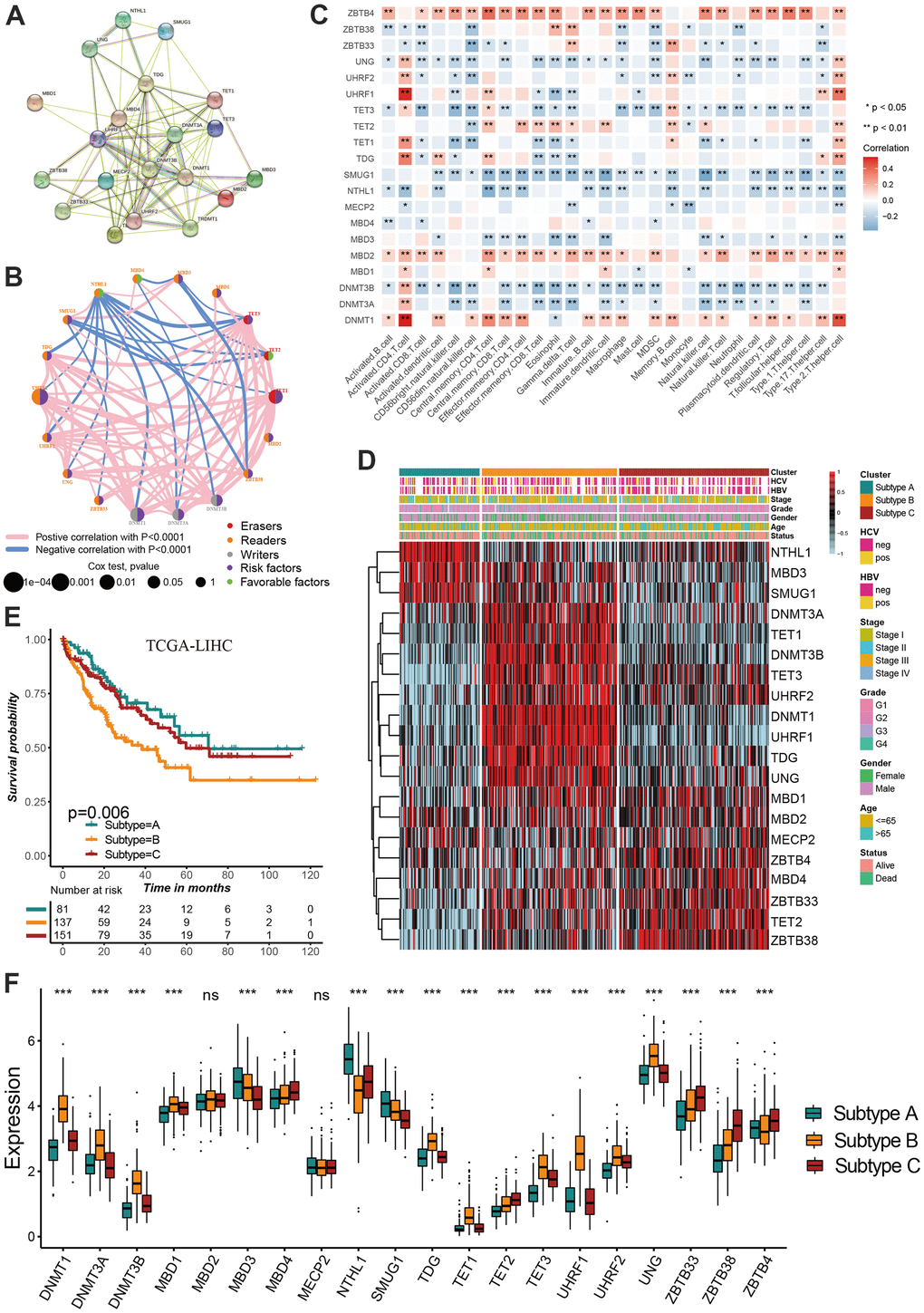

Figure 2. Identification of DNA methylation regulator-related molecular subtypes in hepatocellular carcinoma. (A) The protein-protein interactions (PPI) network between DNA methylation regulators using STRING database. (B) A network was used to visualize the prognostic significance and expression correlation among these regulators. (C) The correlation between DNA methylation regulator expression and immune cell infiltration levels. (D) The hierarchical clustering of 20 DNA methylation regulators among three molecular subtypes. (E) Survival analyses for three distinct DNA methylation regulator-related molecular subtypes. (F) DNA methylation regulators expressed in the three molecular subtypes. All data analyses were based on the TCGA-LIHC cohort. Neg, negative; Pos, positive; Ns, not significant. *P < 0.05; **P < 0.01; ***P < 0.001.

Characteristics of distinct methylation regulator-related molecular subtypes

Considering the association between tumor microenvironment and DNA methylation, we investigate the difference in immune infiltration abundance among three subtypes. The infiltration level of activated CD8 T cell, activated CD4 T cell, CD56bright natural killer cell, gamma delta T cell, neutrophil and Type 2 T helper cell were significantly different between the three molecular subtypes (Figure 3A). Although subtype B showed a relatively immune cell infiltration, numerous classic carcinogenic pathways and stromal activity were significantly activated in subtype B including WNT signaling pathway, p53 signaling pathway and TGF-beta signaling pathway, leading to a survival inferiority compared to other two subtypes (Figure 3B, 3C). The transcriptome difference between three subtypes was investigated to further reveal the underlying biological characteristics in there three molecular subtypes, and a total of 1037 overlapping differentially expressed genes (DEGs) were obtained (Figure 3D). The GO enrichment analysis demonstrated the DEGs were prominently associated with the DNA methylation related biological pathways (Figure 3E).

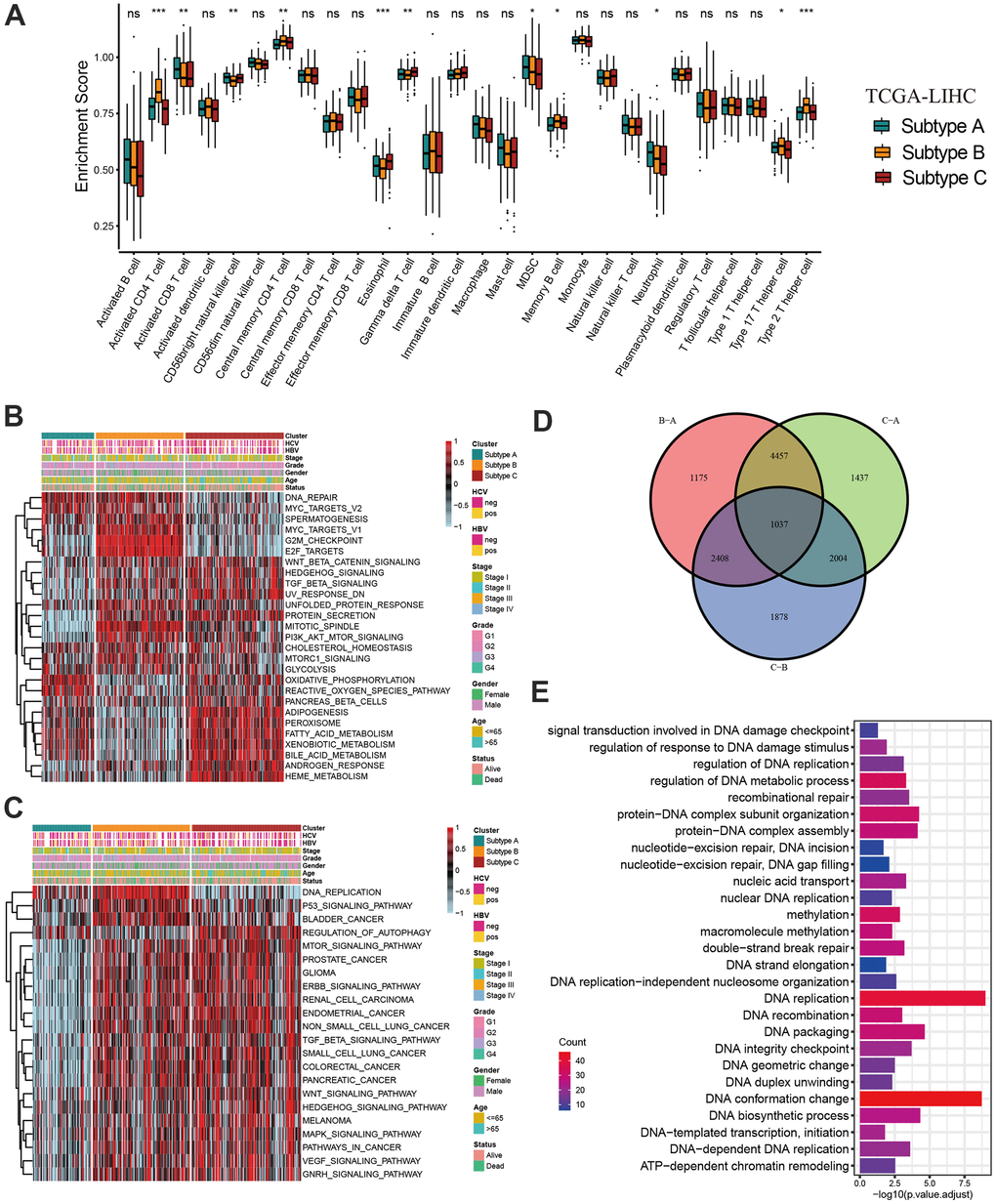

Figure 3. Characteristics of distinct DNA methylation regulator-related molecular subtypes. (A) The abundance of 28 tumor microenvironment cell infiltration among three molecular subtypes. (B, C) GSVA enrichment showing the activation states of biological pathways in distinct molecular subtypes. (D) The Venn diagram showing 1037 overlapping differentially expressed genes (DEGs) between three DNA methylation regulator-related molecular subtypes. (E) GO functional enrichment analyses for 1037 overlapping differentially expressed genes. All data analyses were based on the TCGA-LIHC cohort. Neg, negative; Pos, positive; Ns, not significant. *P < 0.05; **P < 0.01; ***P < 0.001.

Construction of prognostic signature based on overlapping DEGs

We have showed that these 1037 genes were closely related to the three molecular subtypes we have identified. Therefore, we again performed consensus clustering on the expression of these 1037 genes to determine the ability to reproduce these three subtypes in hepatocellular carcinoma. The results confirmed that, based on the expression of 1037 genes, we could still identify three distinct subtypes in hepatocellular carcinoma, we termed these subtypes derived from these 1037 gene expression as Gene cluster A, B and C (Supplementary Figure 3 and Figure 4A). Survival analysis for these three groups showed a significant difference, prominent survival advantage in Gene.cluster A and C, and the survival inferiority in Gene.cluster B (Figure 4B). It was found the three gene clusters exhibited specific DNA methylation-related transcriptome characterization, respectively (Figure 4C). Further analyses indicated DNMT1, DNMT3A and DNMT3B showed a significantly high expression in Gene.cluster B compared to other two clusters, while ZBTB33, ZBTB38, ZBTB4 were remarkably up-regulated in Gene.cluster C (Figure 4D). Considering the crucial role of methylation regulator mediated molecular subtypes in prognosis, we constructed the prognostic signature based on prognosis-related overlapping DEGs using the PCA algorithm, which we termed as DMS signature (Supplementary Table 1). The alluvial diagram also revealed the changes of sample attributes including methylation regulator-related molecular subtypes, Gene.cluster, survival status and DMS (Figure 4E). We performed the correlation analysis between DMS score and 20 methylation regulator expression based on TCGA cohort, and found DMS score had the most significant positive correlation with NTHL1 (cor=0.58, Supplementary Figure 4), and the most significant negative correlation with DNMT1 (cor=-0.75, Supplementary Figure 4). Additionally, a significant distinction on DMS between methylation regulator-related molecular subtypes as well as between Gene.clusters was observed. Subtype A and Gene.cluster A displayed a highest median DMS, while the subtype B and Gene.cluster B displayed a lowest median DMS (Figure 4F, 4G). Hepatitis B virus positive patients presented a lower DMS (Figure 5A), while hepatitis C virus positive patients presented a higher DMS (Figure 5B). We did not observe the significant difference on DMS between low and high ALT patients (Figure 5C). Based on the optimal cut-point at -1.88 acquired from MaxStat algorithm, patients were classified as high and low DMS group (Figure 5D). Patients in the high DMS group experienced a remarkable survival benefit compared to low DMS group (Figure 5E). We then used the external validation set GSE14520 to validate the prognostic value of DMS in hepatocellular carcinoma. We still observed a significant survival advantage in high DMS group than low DMS group (Figure 5F). Although the statistical P value was insignificant, patients with high DMS still experienced an advantage trend in recurrence-free survival compared to those with low DMS. The landscape of somatic mutation in the low and high DMS groups was then further investigated. The tumor mutation burden did not show a significant difference across low and high DMS groups (Figures 5H, 5I, 6A, 6B). We used the waterfall plot to summarize the distinction on tumor mutation burden between low and high DMS groups (Figure 5H, 5I). We used the multivariate Cox regression model to further reveal the value of DMS in predicting patient prognosis, and found DMS signature was as an independent biomarker in predicting patient outcomes (Figure 6C). However, given the range of hazard ratio 95% CI (0.96 to 0.99, p = 0.008), we still needed to be cautious about this result. We than perform GSEA enrichment analysis, and found the classic carcinogenic signaling pathways were significantly activated in the low DMS group such as MAPK, MTOR, P53, TGF-beta and WNT signaling pathways, which could lead to the worse prognosis in patients with low DMS (Figure 6D).

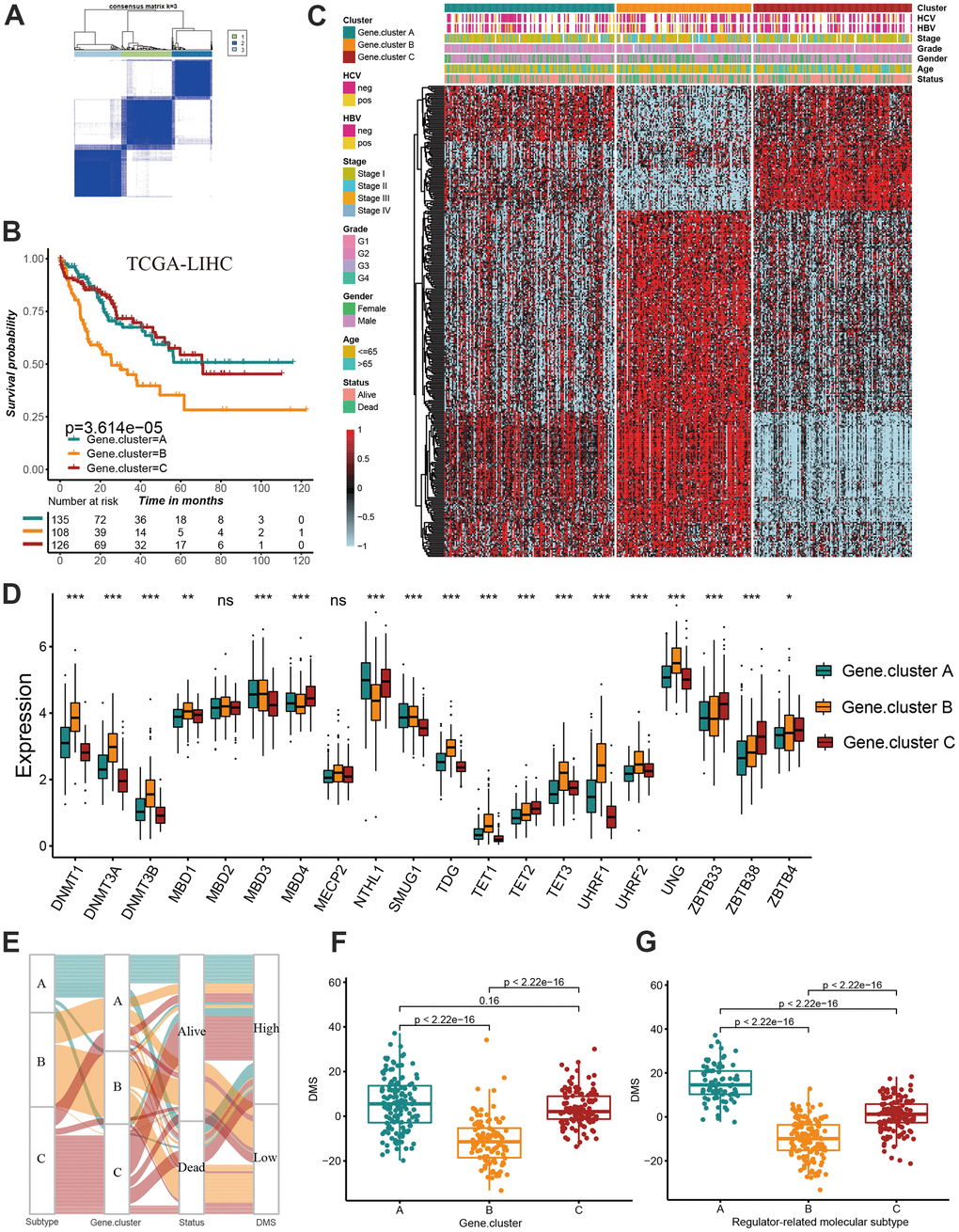

Figure 4. Construction of prognosis-related DMS signature. (A) Consensus matrices of DNA methylation subtype-related genes. for k=3. (B) Survival analyses for three distinct Gene.clusters. (C) The hierarchical clustering of1037 overlapping differentially expressed genes among three Gene.clusters. (D) Difference in the 20 DNA methylation regulator expression among three Gene.clusters. (E) The alluvial diagram showing the changes of sample attributes including methylation regulator-related molecular subtypes, Gene.cluster, survival status and DMS. (F) Differences in DMS score across three Gene.clusters. (G) Differences in DMS score across three distinct methylation regulator-related molecular subtypes. All data analyses were based on the TCGA-LIHC cohort. Neg, negative; Pos, positive; Ns, not significant. *P < 0.05; **P < 0.01; ***P < 0.001.

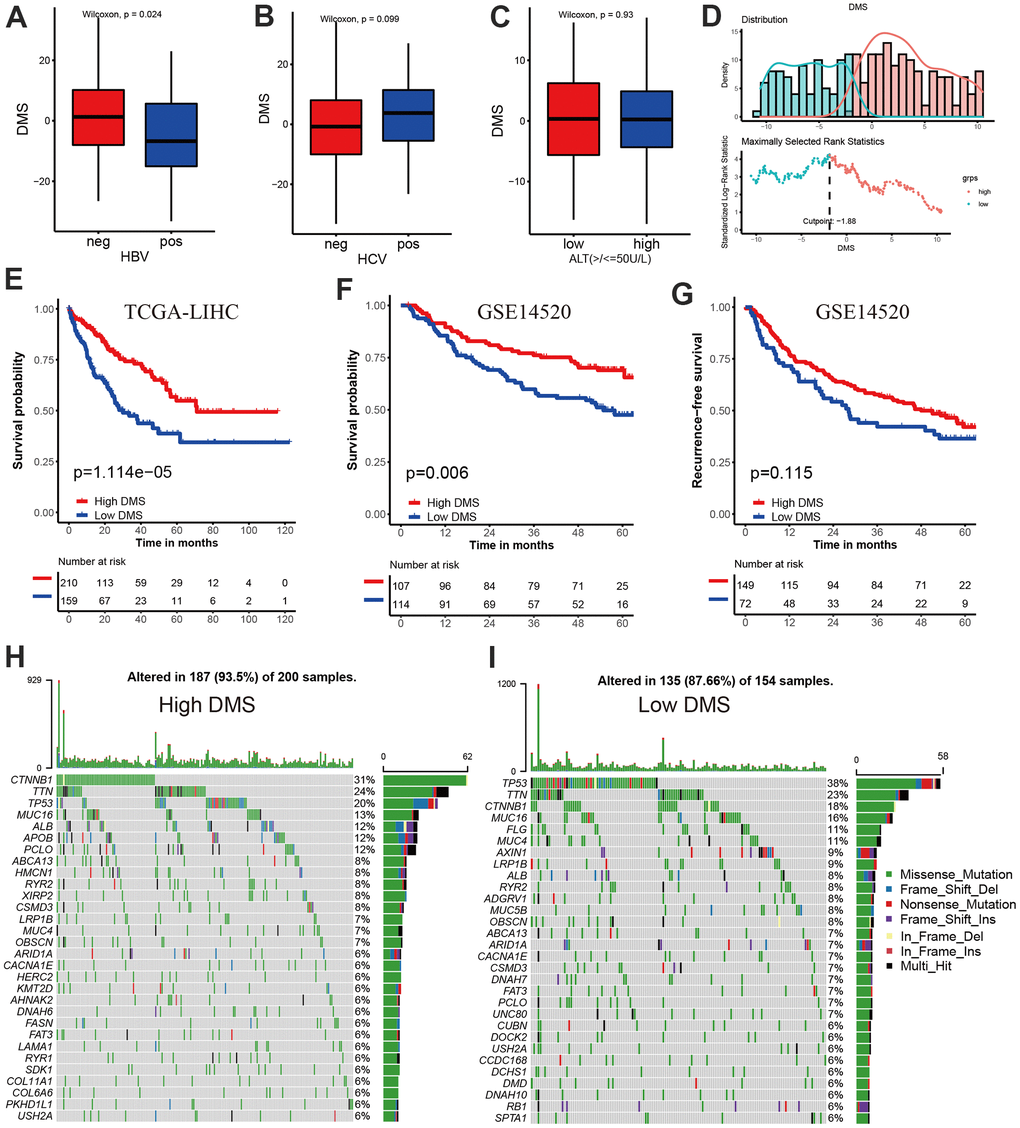

Figure 5. Prognostic value and external validation of DMS signature. (A) Differences in DMS score between hepatitis B virus positive and negative group in TCGA-LIHC cohort. (B) Differences in DMS score between hepatitis C virus positive and negative group in TCGA-LIHC cohort. (C) Differences in DMS score between ALT high and low group in GSE14520 cohort. (D) The MaxStat R package identified the optimal cut-off point to dichotomize DMS. (E) Kaplan-Meier curves showing the survival difference between the low and high DMS groups in TCGA-LIHC cohort. (F) External validation the value of DMS in predicting patient prognosis in GSE14520 cohort. (G) Kaplan-Meier curves showing the recurrence-free survival difference between the low and high DMS groups in GSE14520 cohort. (H, I) The waterfall plot showing the differences of TMB landscape between low and high DMS groups in TCGA-LIHC cohort. (H) High DMS group. (I) Low DMS group. Neg, negative; Pos, positive.

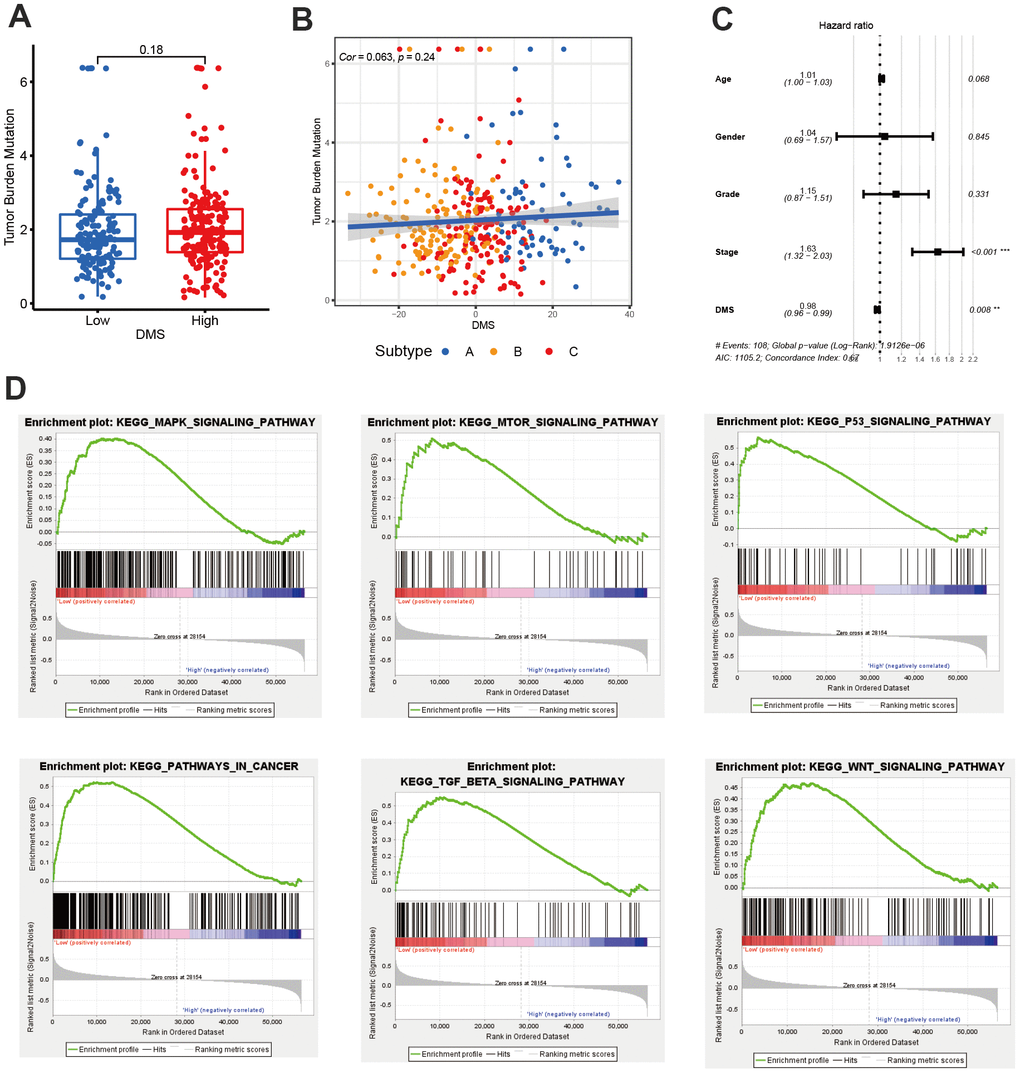

Figure 6. The value of DMS in predicting clinical outcomes in patients with hepatocellular carcinoma. (A) Differences in tumor burden mutation between low and high DMS groups. (B) The correlation between tumor burden mutation and DMS score. (C) Multivariate cox regression analysis for DMS in predicting patient’s survival in TCGA-LIHC cohort. (D) GSEA enrichment analysis showing the activated biological pathways in patients with low DMS. All data analyses were based on the TCGA-LIHC cohort. Cor, correlation.

Role of DMS in predicting efficacy of immunotherapy

The breakthrough of immunotherapy represented by immune checkpoints in cancer treatment has brought encouraging and instructive strategies for the successful cure of cancer. To further revealed the predictive values of DMS signature in patients treated with anti-checkpoint immunotherapy, we collected two immunotherapy cohorts with completed survival information including IMvigor210 cohort with the intervention of PD-L1 antibody and TCGA-SKCM cohort with the intervention of PD-1 and CTLA-4 antibody. In the IMvigor210 cohort, compared with patients with low DMS score, patients with high DMS score had a prominent clinical benefit and therapeutic advantage. The survival in the high-DMS group was significantly prolonged (Figure 7A–7C). In the TCGA-SKCM cohort, we still observed the treatment advantages in the high-DMS group than low-DMS group, emphasizing the predictive value of DMS signature in patient receiving immune checkpoint blockade therapy (Figure 7D–7G). In addition, when stratifying patients by DMS and neoantigen mutational burden, we found that patients with neoantigen burden as well as high DMS features had significantly improved survival when receiving immunotherapy (Figure 7H).

Figure 7. Role of DMS in predicting efficacy of immunotherapy. (A) Kaplan-Meier curves displaying the survival difference of high and low DMS groups in IMvigor210 cohort. (B) The ratio of clinical response types in high DMS and low DMS groups in the IMvigor210 cohort when treated with anti-PD-1 immunotherapy. (C) Differences in DMS score between different clinical response types in the IMvigor210 cohort. (D) Survival analyses for DMS in TCGA-SKCM cohort. (E) The ratio of clinical response types in each group in the TCGA-SKCM cohort. (F, G) Differences in DMS score between different clinical response types in the TCGA-SKCM cohort. (H) Survival analyses for patients receiving anti-PD-L1 immunotherapy stratified by both neoantigen burden and DMS signature. (I) Differences in DMS score among different immune phenotypes. CR, complete response; PR, partial response; SD, stable disease; PD, progressive disease. NEO, neoantigen burden.

Sample datasets collection and processing

In total, we collected 20 DNA methylation regulators based on existed published studies [12]. For training cohorts, we downloaded RNA sequencing data of TCGA-LIHC with FPKM types from The Cancer Genome Atlas (TCGA) Genomic Data Commons (GDC) Data Portal (https://portal.gdc.cancer.gov/) via TCGAbiolinks R package [32]. Then, we transformed the FPKM value into TPM values [33]. The copy number variation (CNV) data and somatic mutation were acquired from UCSC Xena public data hubs (http://xena.ucsc.edu/). The corresponding clinical information were curated from the TCGA GDC. The GSE14520 from Gene Expression Omnibus (GEO) database served as validation set [34]. The GSE14520, which was based on the Affymetrix Human Genome U133A 2.0 Array (GPL571), investigated the gene expression subtypes in tumor and paired non-tumor tissue of HCC patients as well as healthy donor liver. We used the affy R package to perform data preprocessing [35]. A total of 369 patients in TCGA-LIHC cohort and 221 patients in GSE14520 cohort with completed survival information were selected for further analysis. The median age was 59 years and 51 years in TCGA-LIHC and GSE14520 cohort, respectively. 255 patients and 170 patients were diagnosed with stage I/II in TCGA-LIHC and GSE14520 cohort, respectively. The baseline characteristics of patients in the TCGA-LIHC and GSE14520 cohorts was presented in Table 1. We included two immunotherapy cohorts after a systematical publicly search: The IMvigor210 cohort, which investigated the PD-L1 antibody in advanced urothelial cancer, was acquired from http://research-pub.Gene.com/imvigor300corebiologies. The raw count data was also transformed into TPM value. The TCGA-SKCM cohort, which investigated PD-1 and CTLA-4 antibody in advanced melanoma, was acquired from TCGA GDC data portal. The FPKM data was downloaded and then converted to TPM value.

Crosstalk among DNA methylation regulators

We constructed an expression-survival network to reveal a relationship of DNA methylation regulator connection, interactions and prognosis in hepatocellular carcinoma. We identified the protein-protein interactions (PPI) between DNA methylation regulators using the STRING database [36].

Consensus clustering for twenty DNA methylation regulators

In order to identify distinct DNA methylation regulator mediated molecular subtypes in hepatocellular carcinoma, we performed consensus molecular clustering according to the mRNA expression of twenty DNA methylation regulators. The R package ConsensuClusterPlus was used and 1,000 times for subtype clustering were repeated in order for classification stability [37].

Gene set variation analysis (GSVA)

The GSVA enrichment analysis was used to reveal the specified activated biological pathways among distinct DNA methylation subtypes. The enrichment score represented the relative activity of each biological pathway. The hallmarker and ‘c2.cp.kegg.v6.2.symbols’ get sets were acquired from the Molecular Signatures Database (MSigDB) for GSVA. We also estimated the tumor microenvironment abundance of immune cell infiltration including activated CD4 T cell, CD8 T cell, B cell and other cell types. The gene sets for estimating infiltration abundances were obtained from the published study [28, 38–40].

Identification of differentially expressed genes and functional annotation

We identified the differences in mRNA transcriptome between the three molecular subtypes in hepatocellular carcinoma with the Limma R package [41]. The p value less than 0.001 was the criterion for screening the differentially expressed genes. Then we applied the R package clusterProfiler to perform the functional annotation for these differentially expressed genes [42]. The term BP (biological process) was selected for revealing the biological function of these genes.

Construction of prognosis related DMS signature

First, we adopted the univariate Cox regression model to reveal the prognostic value for these differentially expressed genes in hepatocellular carcinoma. Then the principal component analysis (PCA) was performed for the expression of genes with the prognosis P value <0.05. The signature scores were composed of principal components 1 (PC1) and 2 (PC2) [28, 43]. The DMS signature was defined as follows:

$$\text{DMS}=\Sigma (\text{PC}{1}_i+\text{PC}{2}_i)$$

where i is the expression of subtypes-related genes with a significant prognosis.

Statistical analysis

The Kruskal-Wallis and One-way ANOVA tests was used to execute the difference significance test for three groups or more [44]. The difference analyses between the two groups was based on Wilcoxon test. The survival curves with the basis of log-rank tests and the Kaplan-Meier method were generated with the survminer R package. We classified patients into low and high DMS groups through the optimal cut-off point obtained from the MaxStat R package [45]. All statistical P-values were two-sided, and a p < 0.05 was statistically significant. All data was processed through the software R 4.0.5.

Data availability statement

All data related to this work can be acquired from the Gene-Expression Omnibus (GEO, http://www.ncbi.nlm.nih.gov/geo) and the GDC portal (https://portal.gdc.cancer.gov/).
