Prognostic alternative splicing events related splicing factors define the tumor microenvironment and pharmacogenomic landscape in lung adenocarcinoma

Data sources and preprocessing

AS data from LUAD patients were downloaded from the TCGA SpliceSeq database, and included seven different AS events: 1) alternate acceptor site (AA), 2) alternate donor site (AD), 3) alternate promoter (AP), 4) alternate terminator (AT), 5) exon skip (ES), 6) mutually exclusive exons (ME), and 7) retained intron (RI). Specimens were included for further analysis if percentage percent-spliced-in (PSI) value were > 75%. An SF list was identified from a published study [24]. Gene expression and clinical data were respectively retrieved from TCGA (https://portal.gdc.cancer.gov/) and GEO (https://www.ncbi.nlm.nih.gov/geo/) databases. In total, six eligible LUAD cohorts (GSE13213 [25], GSE37745 [26], GSE31210 [27], GSE3141 [28], GSE30219 [29], and GSE50081 [30]) were integrated as the training cohort. LUAD patients from TCGA were the testing cohort. Batch effects from non-biological technical biases were corrected using the “ComBat” algorithm of the sva package. Copy number variation (CNV) data from TCGA-LUAD patients were obtained from the UCSC Xena website (https://xena.ucsc.edu/).

Prognosis-related AS events

We eliminated specimens without follow-up or short follow-up information (< 90 days) to exclude the impact of short-term follow-up. AS events were eliminated when the standard deviation of the PSI value among specimens was < 0.01. Prognosis-related AS events were identified using univariate Cox regression analysis, and displayed in a volcano plot and UpSet map. The top 20 AS events were displayed in a bubble chart.

Constructing an AS-SF interaction network

Correlations between prognostic AS events and SFs were evaluated by Spearman’s analyses in LUAD patients from the TCGA dataset. Interactions were included when correlation coefficients were > 0.6 and p < 0.001. Then, an AS-SF interaction network was constructed and included prognostic AS events and related SFs.

SF-based consensus molecular clustering

In our AS-SF interaction network, we identified 16 SFs, including CIRBP, CCDC130, CLASRP, LUC7L3, CLK1, CLK4, ALYREF, RBM5, CDK10, SREK1, SNRNP70, RBM15, ARGLU1, SRSF5, SRRM2, and SRSF11. Genes, which were highly correlated with prognosis-related AS events. Four genes not found in the training cohort (integrated GEO cohort) were eliminated. Unsupervised clustering analysis was used to identify distinct patterns using these SFs. A consensus clustering algorithm was used to classify LUAD samples into different SF modification clusters and test corresponding stability. The ConsensuClusterPlus package [31] was used to perform these steps and 1000 times repetitions were calculated to guarantee corresponding stability.

Gene set variation analysis (GSVA)

To explore biological heterogeneity between different SF patterns, GSVA enrichment was performed in the “GSVA” package [32]. Hallmark gene sets “h.all.v7.4.symbols.gmt” were extracted from the MSigDB database [33] to conduct GSVA. The clusterProfiler R package [34] was used to perform functional annotations for SF-related genes. An adjusted P value < 0.05 was considered statistically significant.

Single sample gene set enrichment analysis (ssGSEA)

We used the ssGSEA algorithm to quantify the relative abundance of 28 infiltrating immune cell types, 13 immune functions, and other related biological processes in LUAD samples. The gene sets for marking each TME infiltration immune cell type stored various immune cell subtypes, including activated B cells, activated CD8 T cells, activated dendritic cells, macrophages, natural killer T cells, and regulatory T cells [35]. We extracted 13 gene sets for other related biological processes from published studies, including (1) immune checkpoints; (2) angiogenesis; (3) antigen processing machinery; (4) CD8 T effectors; (5) epithelial mesenchymal transition (EMT), including EMT1, EMT2, and EMT3; (6) pan-fibroblast TGFb response signatures (Pan-FTBRS); (7) Wnt targets; (8) mismatch repair; (9) DNA damage repair; (10) DNA replication; and (11) nucleotide excision repair [36, 37].

Identifying DEGs between SF distinct clusters

We next determined SF-related DEGs among distinct SF patterns in LUAD. The limma package was used for this, and the filtering criteria for DEGs was an adjusted P value < 0.05.

Constructing SFscore

An SF scoring approach was developed to quantify SF patterns from individual patients based on PCA values. DEGs selected from distinct SF phenotypes underwent prognostic analyses using univariate Cox regression model. Genes with a prognostic significance were extracted for next feature selection using recursive feature elimination in the ‘caret’ package. PCA analysis was then performed based on finally determined genes. Principal components 1 and 2 served as the signature score. Subsequently, a formula similar to previous studies was constructed to define the SFscore: SFscore = ∑(PC1_i + PC2_i), where i = SF-related signature gene expression [38].

Assessing TMB and predicting ICI therapy responses

Maftools package was used to visualize somatic mutations based on the Mutation Annotation Format file in the TCGA cohort [39]. The Tumor Immune Dysfunction and Exclusion (TIDE) algorithm in TCGA cohort [40], including dysfunction and exclusion of infiltrating cytotoxic T lymphocytes (CTLs), was used to assess immune evasion mechanisms in the TCGA cohort [41]. A high TIDE level indicated a low response to immune checkpoint inhibitor (ICI) therapy. The tumor neoantigen burden, including clonal and sub-clonal neoantigen burdens, was also used to assess immunotherapeutic efficacy in the TCGA cohort [35]. Differential expression analysis of ICP genes was performed in the training cohort.

Prediction of drug sensitivity and small molecular drugs

The R package “pRRophetic” was used to calculate the half maximal inhibitory concentration (IC₅₀) of chemotherapy drugs [42]. DEGs between groups with high and low SFscore were identified by p < 0.05 and |logFC|>1 in “limma”. SFscore-related small molecular drugs were identified in the Connectivity Map database (CMap; https://clue.io/) after uploading down- and up-regulated genes [43].

Quantitative real-time PCR

Quantitative real-time PCR Total RNA of carcinoid tissues was extracted with Trizol reagent (A2A0209, Accurate Biotechnology, China). cDNA was amplified with reverse transcription kit (A2A1386) was provided by Accurate Biotechnology Co. (China). The sequences of primers are in Supplementary Table 1. Gene expression levels were assayed by qRT-PCR using the Roche LightCycler^® 480 system (Roche, Basel, Switzerland) with the SYBR Green system (A2A1436, Accurate Biotechnology).

Statistical analyses

Statistical tests were performed in R-4.0.2 software, and a two-sided P value < 0.05 was considered statistically significant. Statistical significance for normally distributed variables was analyzed using Student’s t-tests, while non-normally distributed variables were estimated using the Wilcoxon rank-sum test. Kruskal-Wallis tests were used to compare more than two groups, as nonparametric and parametric methods, respectively. Kaplan-Meier survival analyses were conducted using the ‘Survminer’ package to explore associations between SF patterns and prognoses. Continuous variables were dichotomized for overall survival (OS) before the log-rank test using optimal cutoff values as determined by the “surv_cutpoint” function in the “Survminer” package. After this, that, LUAD samples were categorized into high and low SFscore subgroups.

Availability of data and materials

The dataset supporting the conclusions of this article is available in the TCGA website (https://portal.gdc.cancer.gov/) and GEO database (https://www.ncbi.nlm.nih.gov/geo/).

Total and prognosis-related AS events

A flow chart (Figures 1, 2A) shows the study design and processes. In total, 572 LUAD specimens with 43,948 AS events in 10,366 gene symbols were collected. These events included 16,793 ES in 6,618 genes, 8,546 AT in 3,734 genes, 8,992 AP in 3,605 genes, 3,559 AA in 2,522 genes, 3,057 AD in 2,173 genes, 2,781 RI in 1,866 genes, and 220 ME in 214 genes. An UpSet plot was constructed to depict overlaps in the seven AS event types, which indicated multiple AS events appeared on a single gene (Figure 2B, 2C). ES was the most common ES event type, while ME was the least common.

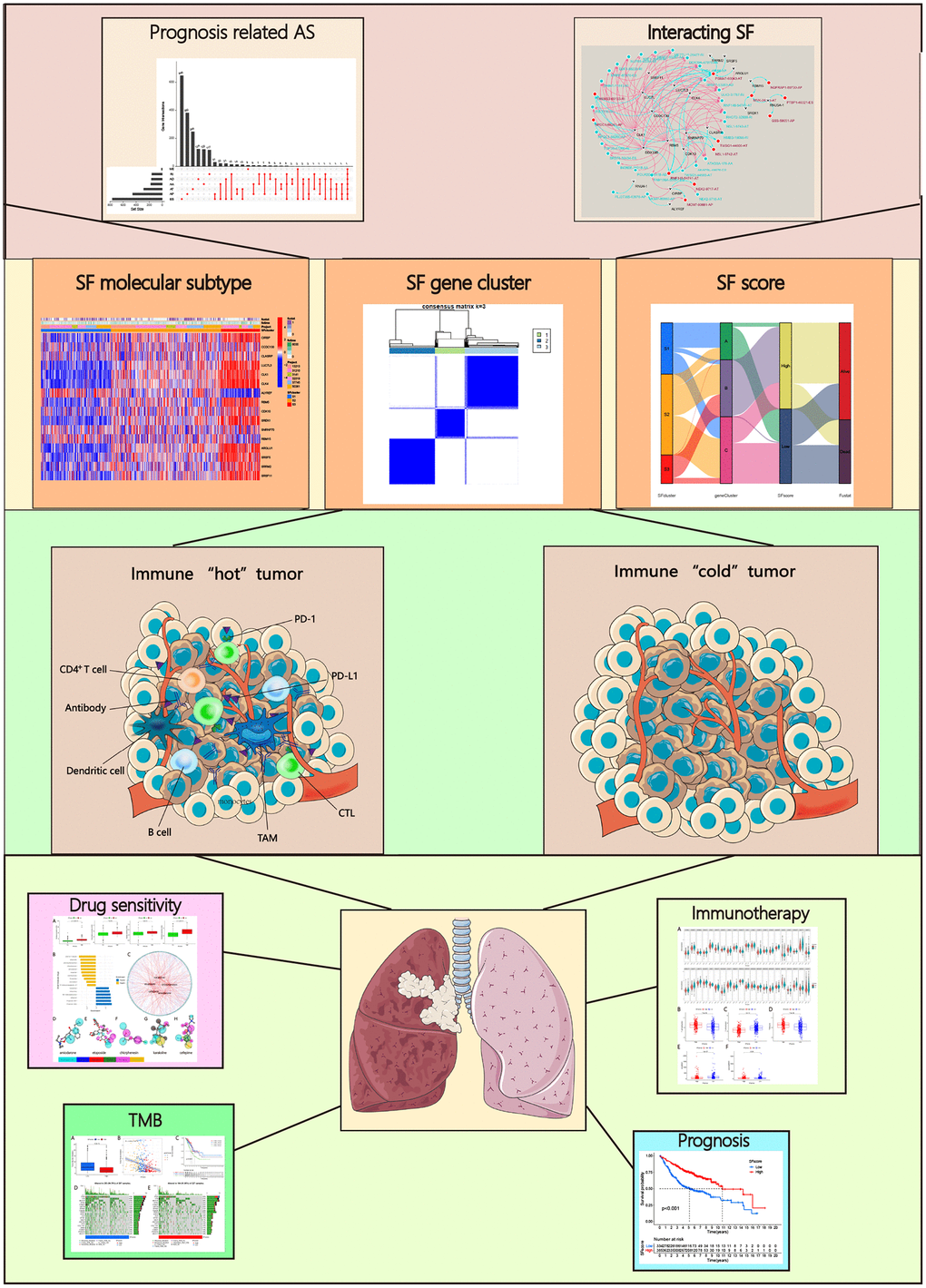

Figure 1. Analysis workflow of this study.

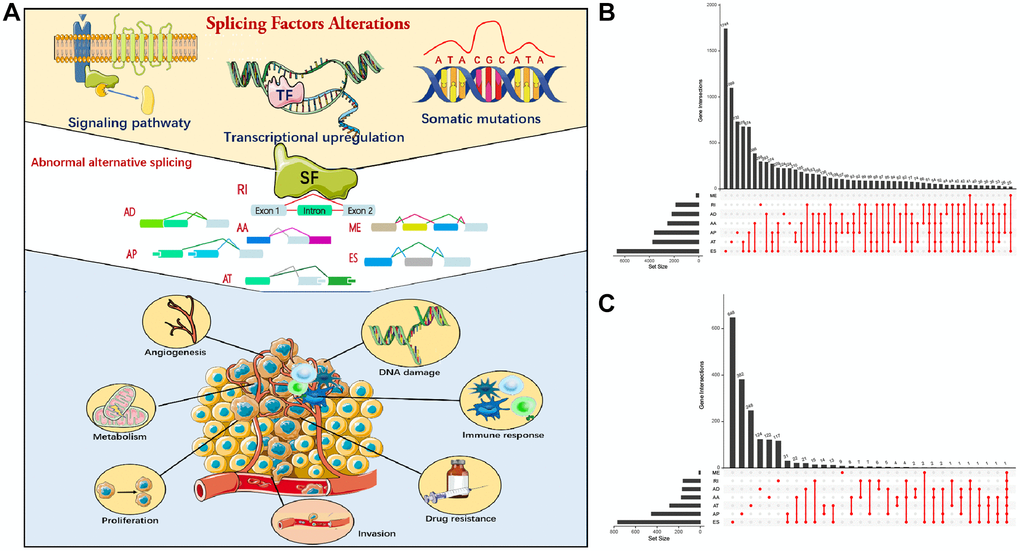

Figure 2. Alternative splicing (AS) events in cancer. (A) Mechanism of splicing regulatory factors in regulating RNA alternative splicing and tumor progression. ES (Exon skip) means that an exon is cut from the original transcript. RI (Retained intron): A new exon is formed by the retained Intron and the exons on both sides. AD (Alternate Donor site): The 3'-end splicing sites of different transcripts are the same but the 5'-end splicing sites are different. AA (Alternate acceptor site): The 5'-end splicing sites of different transcripts are the same but the 3'-end splicing sites are different. AP (Alternate promoter): The first exon of the two transcripts is different. AT (Alternate terminator): The last exon of the two transcripts is different. ME (Mutually exclusive exons): Different exons (called inclusive exons) are present in different transcripts. (B) Upset plot of all AS events in LUAD. (C) Upset plot of prognosis-related AS events in LUAD.

Univariate Cox regression analysis was used to select prognosis-related AS events, but excluded patients with follow-up < 90 days. In total, 2,692 AS events significantly associated with OS (p < 0.05) were selected, including 906 ES, 487 AT, 744 AP, 185 AA, 182 AD, 177 RI, and 11 ME. A volcano map depicted AS events (Supplementary Figure 1A). The top 20 prognosis-related AS events of the seven types are shown (Supplementary Figure 1B–1H). Multivariate Cox analysis was also conducted to identify the independent prognostic factors (Table 1).

Construction of an AS-SF interaction network

We performed correlation analysis between prognosis-related AS events and SFs, from which 20 prognosis-related SFs were selected (correlation coefficient > 0.6 and p < 0.001). A prognosis-related AS-SF interaction network was constructed, including 12 adverse AS events (red nodes), 28 favorable AS events (blue nodes), and 20 interacting SFs (black nodes) (Figure 3). Most adverse AS were negatively regulated by SFs, while MCM7-80881-AP was upregulated by ALYREF. In contrast, most favorable AS events were positively regulated by SFs, except MCM7-80880-AP and FLJ27365-62678-AP; they were downregulated by ALYREF and RNU4-1, respectively.

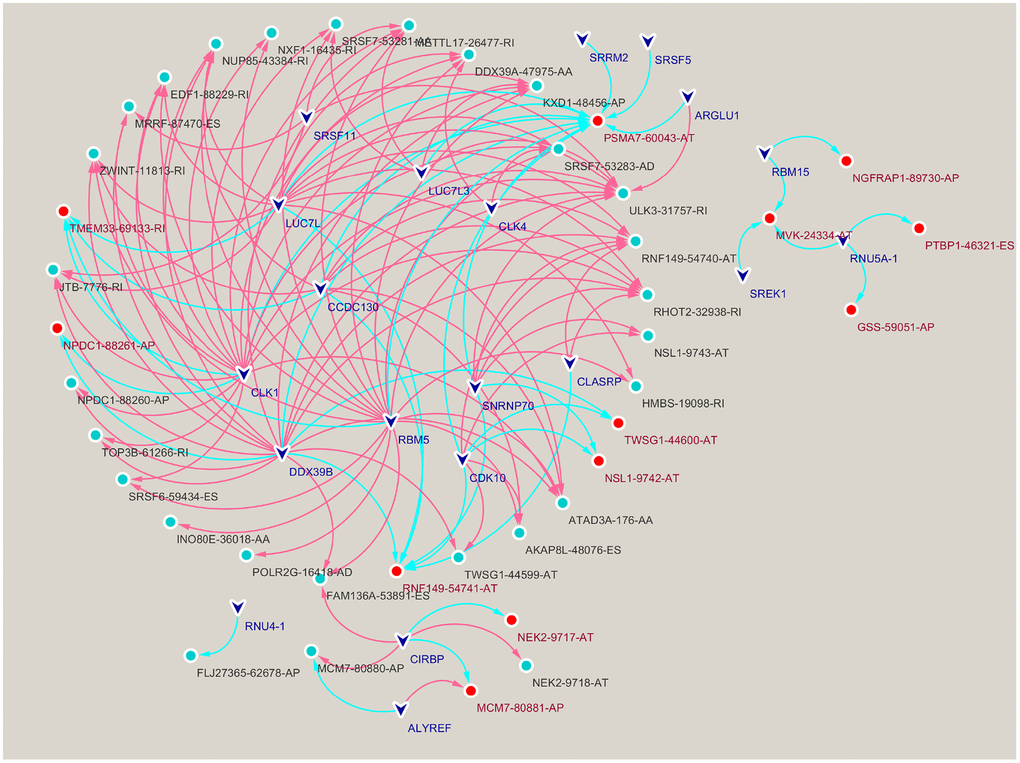

Figure 3. Construction of a splicing factors (SFs)-alternative splicing (AS) events network. Red edges mean positive regulation between AS and SF, while blue edges mean negative.

The genetic variation of AS interacting SFs in LUAD

Based on the AS-SF interaction network, we identified 16 SFs (CIRBP, CCDC130, CLASRP, LUC7L3, CLK1, CLK4, ALYREF, RBM5, CDK10, SREK1, SNRNP70, RBM15, ARGLU1, SRSF5, SRRM2, and SRSF11) after excluding four genes (LUC7L, DDX39B, RNU4-1, and RNU5A-1) not found in training cohort. The differential expression of these SFs between normal and tumor specimens was analyzed in the TCGA cohort (Figure 4A). Most SFs were highly expressed in tumors, while CIRBP, ARGLU1, and SRSF5 were poorly expressed. Also, 13 SFs were identified as significant prognostic risk factors in LUAD (Supplementary Figure 2). To understand the genetic variation landscape of SFs in LUAD, we explored the incidence of CNVs and somatic mutations in the 16 SFs. CNV alterations were widespread. ALYREF, ARGLU1, CLASRP, LUC7L3, CLK4, CLK1, and SRRM2 were focused on the amplification in copy number, while the others had a frequency of CNV deletion (Figure 4B). Among the 561 LUAD samples, 55 had mutations in AS interacting SFs (Figure 4C). The chromosomal positions of CNV alteration in the 16 SFs are shown (Figure 4D). Based on the TCGA dataset, aa SF interaction network was constructed to show connections and the prognostic significance of SFs (Figure 4E). This network indicated that most SFs had positive correlation interactions, while ALYREF interacted with CIRBP, SRSF5, CLK1, CLK4 and RBM5 with negative correlations.

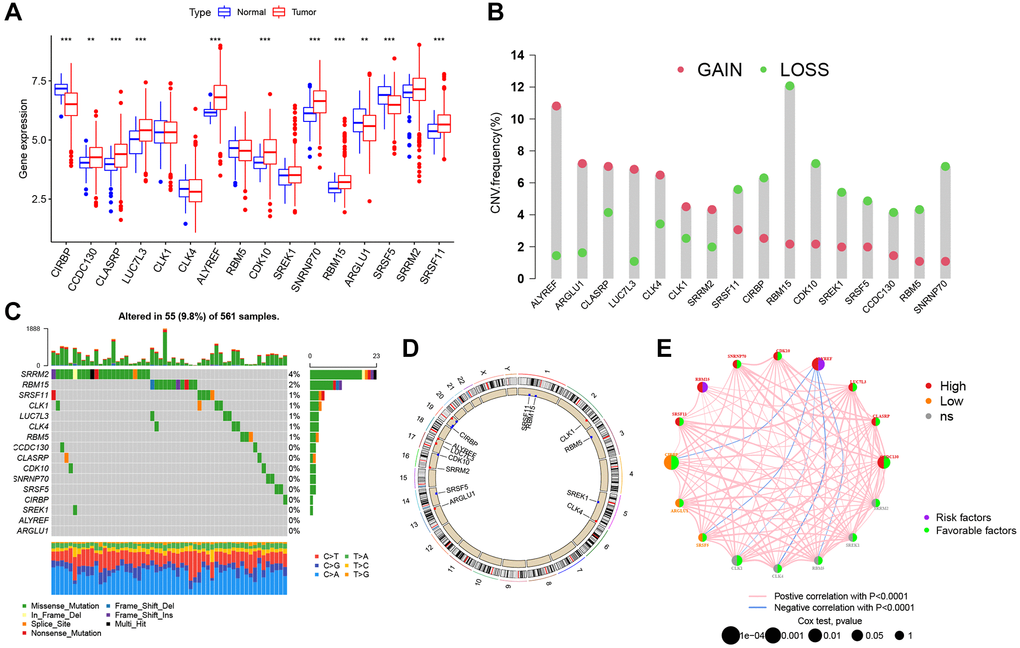

Figure 4. Genetic alteration landscape of 16 splicing factors (SFs) in LUAD. (A) Differential mRNA expression of 16 SFs between normal and tumor samples (^*P < 0.05; ^**P < 0.01; ^***P < 0.001). (B) CNV mutation was widespread in 16 SFs. The column represented the alteration frequency. Deletion, green dot; Amplification, pink dot. (C) 56 of the 561 LUAD patients showed genetic alterations of 16 SFs. (D) The location of CNV alterations of 16 SFs on chromosomes. (E) The relationship between SFs in LUAD. The thickness of lines linking SFs showed the correlation strength. Negative correlation, blue; positive correlation, pink. Up-regulated SFs, red; down-regulated SFs, orange; no sense of SFs in differential expression, grey.

Distinct SF patterns mediated by 16 AS interacting SFs

Six GEO datasets (GSE13213, GSE37745, GSE31210, GSE3141, GSE30219, and GSE50081) were integrated into one meta-cohort. Based on SF expression, LUAD patients in the GEO meta-cohort were stratified into three distinct SF patterns using ConsensusClusterPlus in R (Figure 5A). We termed these patterns, SF clusters S1–S3, which included 229, 362, and 128 patients, respectively. PCA indicated significant distinctions in transcription profiles between patterns (Figure 5B). Survival analysis for these SF clusters showed a significantly prominent survival disadvantage in SF cluster-S1 (Figure 5C). Moreover, most SF genes were upregulated in SF cluster-S3 and downregulated in cluster-S1, while ALYREF and RBM15 showed the opposite trend (Figure 5D, Supplementary Figure 3A).

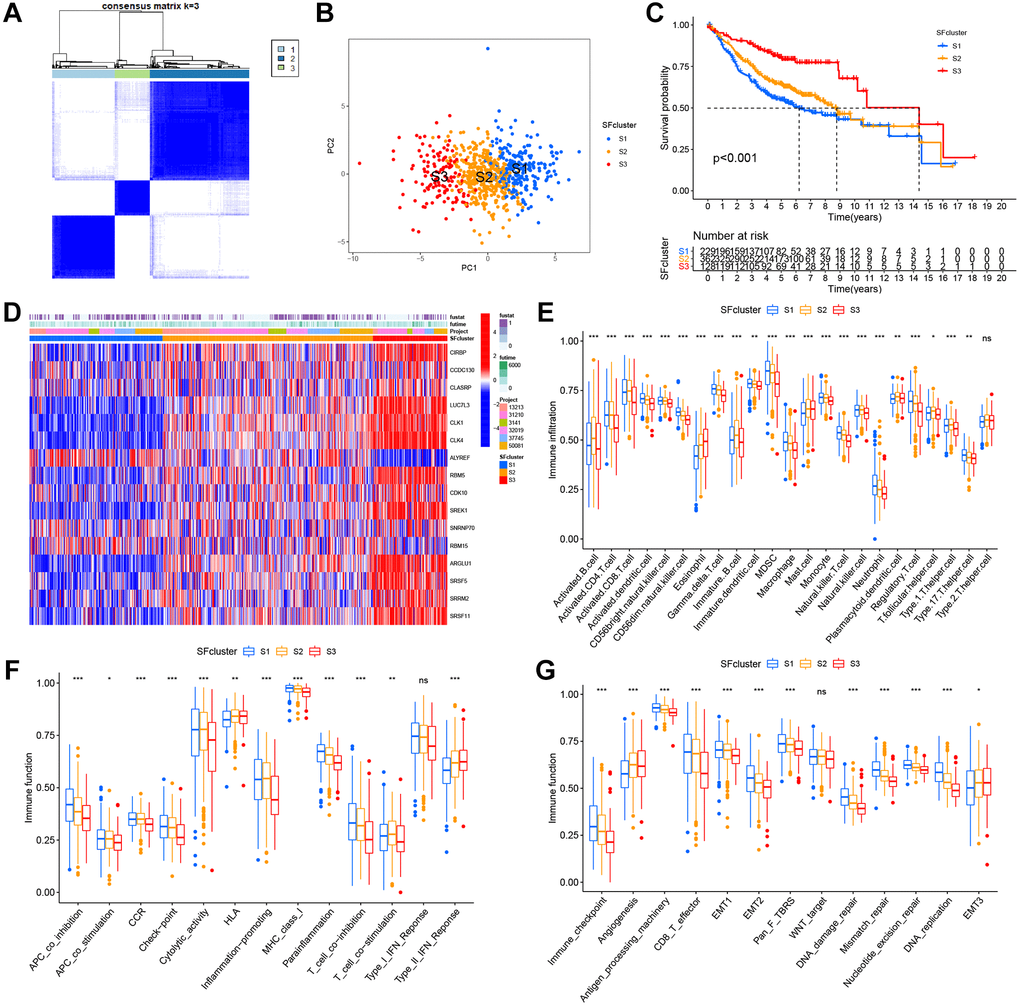

Figure 5. SFs patterns and corresponding TME characteristics. (A) Consensus clustering matrix for k = 3. (B) Principal component analysis (PCA) was conducted in distinct SFs patterns. (C) Survival analyses for three distinct SFs patterns based on six GEO cohorts (GSE13213, GSE37745, GSE31210, GSE3141, GSE30219 and GSE50081). (D) Heatmap of 16 SFs expression in LUAD patients. (E) TME cell infiltrating abundances in three SFs clusters. (F) Difference of immune functions in three SFs clusters. (G) Difference of other tumor-related biological processes.

TME cell infiltration characteristics in distinct SF patterns

To explore biological function differences among the three SF patterns, we performed GSVA enrichment. As shown (Supplementary Figure 3B, 3C), when compared with SF cluster-S3, a series of carcinogenic and stromal pathways were activated in patients in SF-S1 and S2clusters, including MYC signaling, E2F signaling, mTROC1 signaling, and EMT. Additionally, immune-related pathways were fully activated in SF cluster-S2 patients, including interferon gamma/alpha responses, IL-6-JAK-STAT3 signaling, allograft rejection, and inflammatory responses. In contrast, SF cluster-S3 patients showed activated TGF-β signaling and suppressed immune functions.

In SF patterns, the ssGSEA algorithm was used to determine the abundance of different immune cell types and immune functions. Surprisingly, the patterns had significantly distinct TME cell-infiltrating and immune function characteristics (Figure 5E, 5F). Cluster-S1 was classified as an immune-inflamed phenotype, characterized by adaptive immune cell infiltration and immune function activation; cluster-S2 was identified as an immune-excluded phenotype, characterized by innate immune cell infiltration; and cluster-S3 was classified as an immune-desert phenotype with prominent immune suppression. Significant differences in TME cell-infiltrating composition and immune function were identified between clusters, and indicated these SFs had critical roles in TME remodeling. LUAD samples in cluster-S3 had a significantly lower abundance of all immune cells and immune functions, but a high abundance of eosinophils, mast cells, HLA, and type-II interferon responses. In contrast, clusters-S1 and S2 had a completely opposite landscape in terms of infiltrating cells and immune functions, therefore, cluster-S3 was classified as an immune “cold” phenotype, while Clusters S1 and S2 were immune “hot” phenotypes.

The three SF clusters also exhibited significant differences in distinct tumor-related functions from published research (Figure 5G). Cluster-S1 showed the highest level of most functions, excluding angiogenesis and EMT3, which were enriched in cluster-S3. In contrast, cluster-S3 had the lowest level of most functions, similar to above immune cells and functions, but angiogenesis and EMT3.

Specific correlations between TME infiltrating cell type and each SF were further examined using Spearman’s correlation analyses (Supplementary Figure 4). These SFs displayed mainly negative correlations with immune cell-infiltration abundance, except for ALYREF and RBM15, which were prominently and positively correlated with activated CD4+ T cells, gamma delta T cells, and CD56dim natural killer cells. Most SFs were related to the infiltration of T cells, including activated CD4+ T cells, gamma delta T cells, CD56dim natural killer cells, natural killer T cells, and regulatory T cells.

SF cluster-related DEGs in LUAD

Although LUAD patients were stratified into three SF patterns according to 16 SFs, the underlying genetic alterations were unknown. Therefore, we examined transcriptional changes among different SF patterns and identified 4,819 SF pattern-related DEGs in “limma” (Figure 6A). In total, 2,959 SF-related DEGs were screened out with prognosis significance based on Cox regression analyses. A gene expression heatmap is shown (Supplementary Figure 5A). We next performed unsupervised clustering analyses based on these 2,959 genes to identify different genomic subtypes. We then defined these three phenotypes as gene clusters A, B respectively (Figure 6B, 6C). Subsequent survival analyses showed a prominent prognosis advantage in cluster B (Figure 6D). We also examined the differential expression of the 16 SFs in these gene clusters (Supplementary Figure 5B); significant SF expression differences were observed - cluster B had a lower abundance of all immune cell types and immune functions, with a relevant higher abundance of eosinophils, mast cells, HLA and type-II interferon responses, while cluster A showed the opposite. Therefore, clusters A and B were classified as immune “hot” and “cold” phenotypes, respectively.

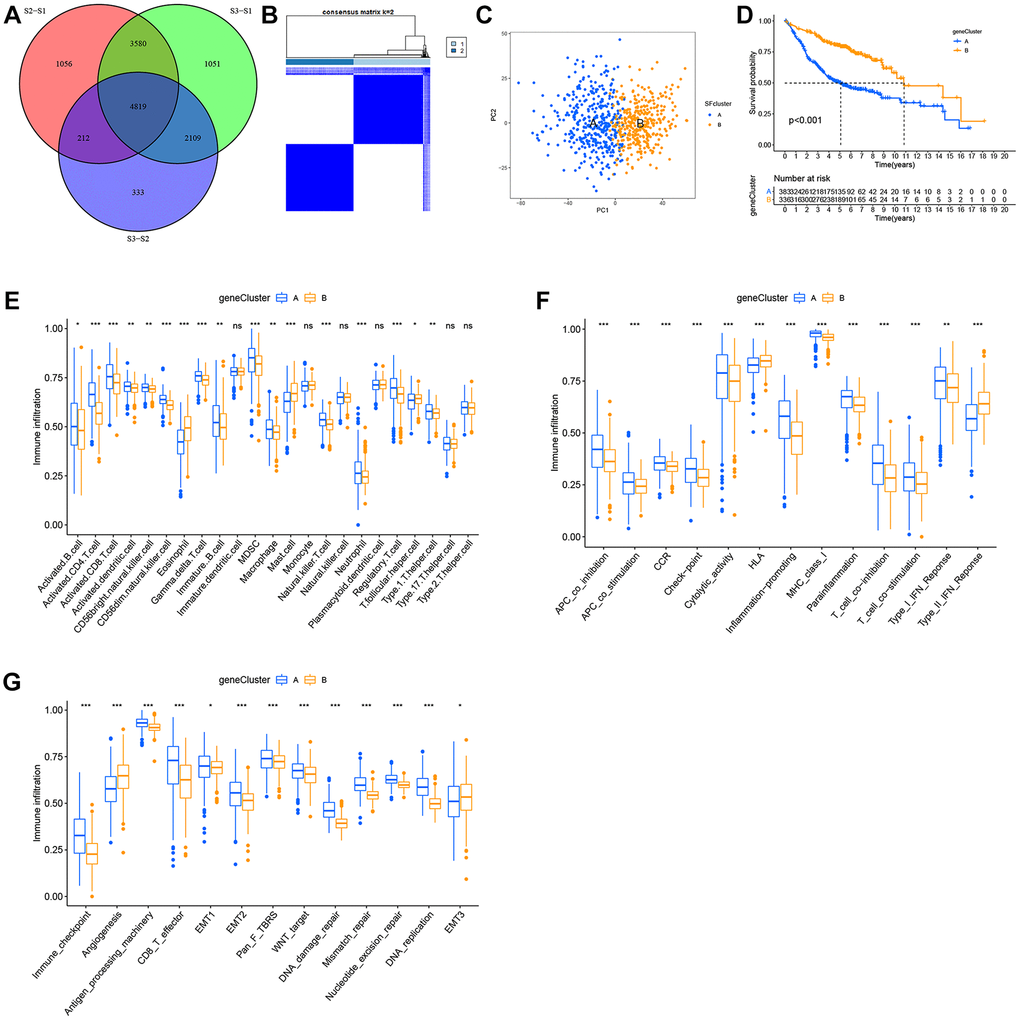

Figure 6. Construction of SFs signatures. (A) 4819 SFs-related differentially expressed genes (DEGs) between three distinct SFs patterns were presented in the Venn diagram. (B) Consensus clustering matrix for k = 3. (C) Principal component analysis (PCA) for the transcriptome profiles of gene cluster A, B. (D) Survival analysis for the two gene clusters based on 2959 SFs-related DEGs in GEO cohorts (P < 0.001). (E) TME cell infiltrating abundances in two gene clusters. (F) Difference of immune functions in two gene clusters. (G) Difference of other tumor-related biological processes.

The role of SF clusters in TME immune landscape remodeling

Consistent with immune phenotypes in SF clusters S1–S3, SF gene clusters A–C were characterized as immune-inflamed, immune-desert, and immune-excluded landscapes, respectively (Figure 6E, 6F). SF gene cluster B was identified with a relatively lower immune function and infiltrating abundance of most cells, and could be classified as an immune-inhibition and immune-desert group. In contrast, cluster A was significantly associated with an immune-inflamed status. Cluster C was defined as an immune-excluded phenotype. Similarly, SF gene clusters A–C exhibited a consistent trend in distinct tumor-related functions (Figure 6G).

Construction of the SFscore

Our results showed the non-negligible regulatory role of prognostic AS related SFs in shaping immune landscapes. Nevertheless, considering individual SF heterogeneity and complexity, a scoring system was required to accurately predict SF patterns in individual LUAD patients. Based on SF cluster-related DEGs, we developed SFscore to quantify SF patterns in patients. SF cluster-S3 and gene cluster B had the lowest SFscore (Figure 7A, 7B), thus, low scores were closely linked to immune-inhibition and immune-desert related clusters.

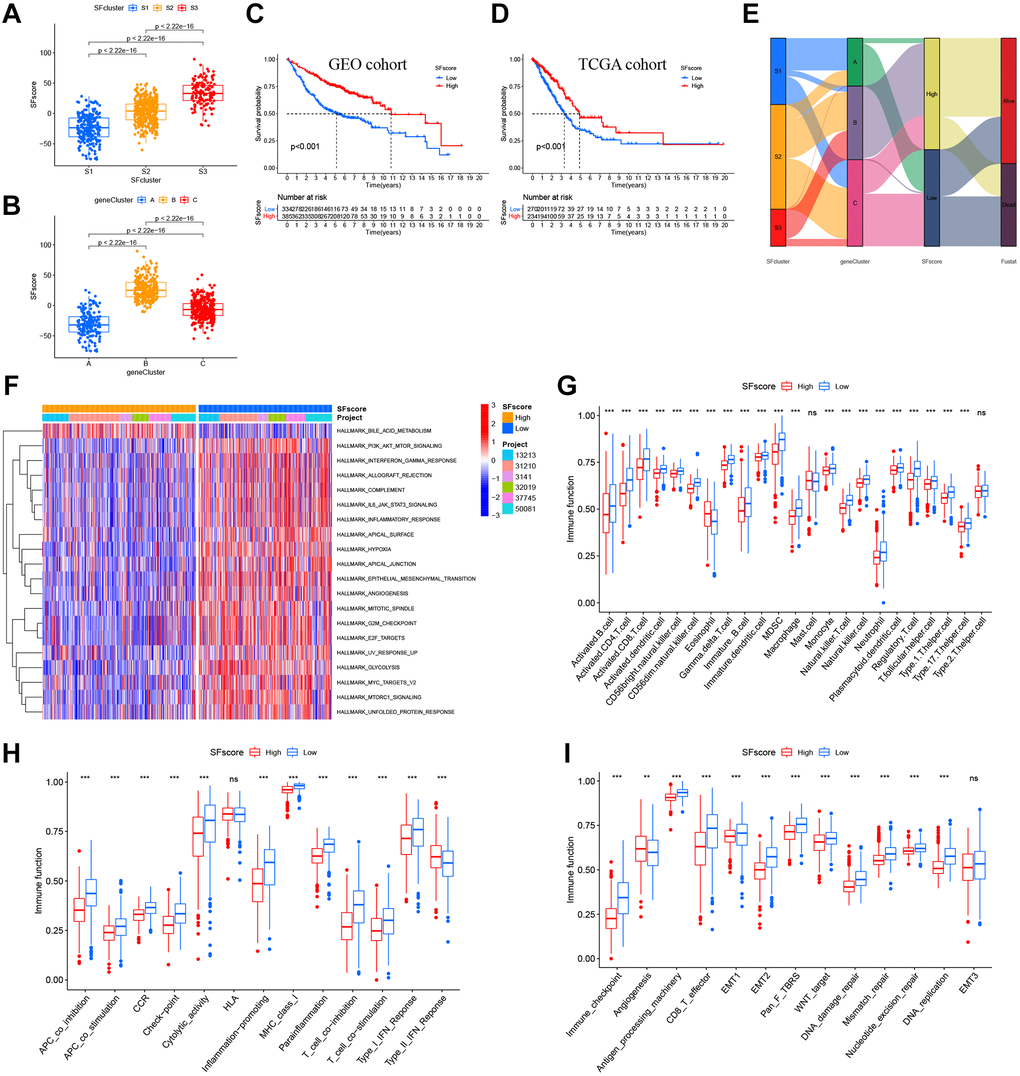

Figure 7. Characteristics of SFscore in prognosis and TME landscapes. (A) Differences in the SFscore between three SF clusters in LUAD (P < 2.22e-16). (B) Differences in the SFscore between two gene clusters in LUAD (P < 2.22e-16). (C) Kaplan-Meier curves for low and high SFscore patient groups in GEO cohorts (P < 0.001, Log-rank test). (D) Kaplan-Meier curves for low and high SFscore patient groups were validated in TCGA cohorts (P < 0.001, Log-rank test). (E) Alluvial diagram showing the changes of survival status, SFs clusters, gene clusters and SFscore. (F) GSVA enrichment analyses between groups with low/high SFscore. (G) TME cell infiltrating abundances in low/high SFscore groups. (H) Difference of immune functions in low/high SFscore groups. (I) Difference of other tumor-related biological processes in low/high SFscore groups.

Subsequently, LUAD patients were divided into low or high SFscore groups using a cutoff value determined by the survminer package. A high SFscore was associated with a prominent survival benefit in GEO and TCGA cohorts (Figure 7C, 7D). Similarly, LUAD patients in SF cluster-S3 and gene cluster B had a better prognosis (Figure 7E). Moreover, we identified a prominent correlation between the SFscore and the risk score of a prognostic AS signature (Supplementary Figure 6A, 6B). Thus, a high SFscore was related to a low level AS risk score.

To further understand SFscore characteristics, we performed GSVA (Figure 7F) and showed that patients with high SFscore focused on the inhibition of immune pathways, carcinogenic pathways, and stromal pathways, including interferon gamma/alpha responses, IL-6-JAK-STAT3 signaling, allograft rejection, inflammatory responses, MYC signaling, E2F signaling, mTORC1 signaling, and EMT. Interestingly, bile acid metabolism was activated in the high SFscore group. We also examined correlations between TME cell infiltration abundance and SFscore (Supplementary Figure 6C). Interestingly, SFscore had significantly negative correlations with most immune infiltration cells, particularly activated CD4+ T cells, CD56dim natural killer cells, gamma delta T cells, MDSCs, natural killer T cells, and regulatory T cells (Supplementary Figure 6C). Similarly, ssGSEA showed a low abundance of most infiltrating immune cells and immune functions in groups with a high SFscore, except eosinophils and type-II interferon responses (Figure 7G, 7H). Also, a high SFscore was significantly related to lower tumor-related functions, including antigen processes, CD8 effectors, EMT, pan-F-TBRS, Wnt targets, DNA replication, DDR, mismatch repair, and nucleotide excision repair (Figure 7I). Nevertheless, angiogenesis was activated in groups with high SFscore. Finally, patients with high SFscore had low immune scores, stromal scores, ESTIMATE scores, and high tumor purity (Supplementary Figure 6D). In general, high SFscore were identified with immune-desert and stromal-inhibited landscapes, i.e., the immune “cold” group.

We also performed correlation analyses between SFscore and SF-related prognostic AS events in the network (Supplementary Figure 6A). Four AS events in two genes exhibited significant correlations with SFscore, including NEK2|9717|AT (cor = −0.65), NEK2|9718|AT (cor = 0.65), MCM7|80880|AP (cor = 0.63), and MCM7|80881|AP (cor = −0.63). Interestingly, the four AS events showed strong correlations with each other, and a distinct AS in a single gene showed an opposite correlation with the SFscore. Consistently, (Supplementary Figure 6B) these four AS events were significantly associated with multi-type immune cells, in particular activated CD4 T cells (cor > 0.5). Also, gamma delta T cells were widely associated with these selected AS events.

Characteristic SFscore in tumor somatic mutations

Several studies have highlighted associations between tumor somatic mutations and immunotherapeutic response [1, 44]. We explored the distribution patterns of tumor mutation burden in distinct SFscore groups and found that the low SFscore group had a higher TMB (Figure 8A). Additionally, the SFscore had a predominantly negative correlation with TMB across different gene clusters (Figure 8B). Survival analysis showed prominent differences among different TMB and SFscore combinations (Figure 8C). We next performed significantly mutated gene (SMG) analysis on LUAD samples in low SFscore versus high SFscore subgroups. LUAD samples with a low SFscore had significantly higher SMG rates (Figure 8D, 8E) and provided novel insights on SFscore in tumor somatic mutations, TME remodeling, and ICI therapy.

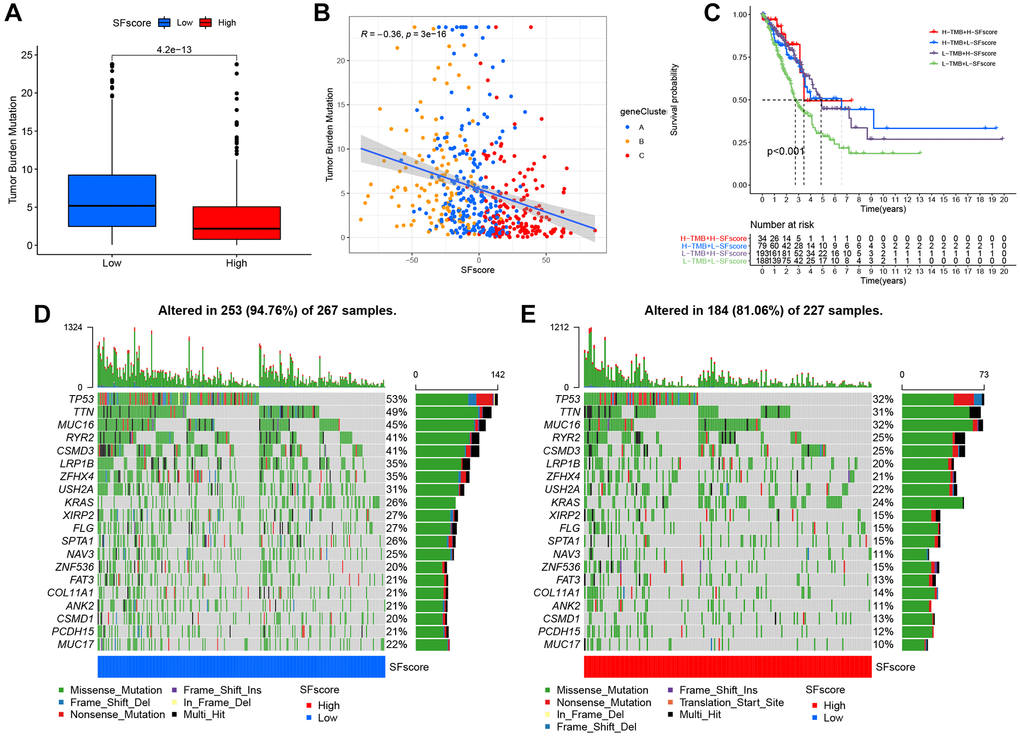

Figure 8. Characteristics of SFscore in tumor somatic mutation. (A) Differences in tumor mutation burden (TMB) between low and high SFscore groups of TCGA cohort (P < 0.001). (B) Correlations between SFscore and TMB using Spearman analysis (R = −0.36, P < 0.001). (C) Survival analyses for subgroup patients stratified by both SFscore and TMB using Kaplan-Meier curves. H-TMB, high TMB; L-TMB, low TMB (P < 0.001, Log-rank test). (D) The waterfall plot of tumor somatic mutation established by those with low SFscore. (E) The waterfall plot of tumor somatic mutation based on LUAD samples with high SFscore.

The role of SFscore in predicting immunotherapeutic benefits

Immunotherapies, represented by ICP blockade, have emerged as major breakthroughs in cancer therapy. Currently, immunotherapy is considered a first-line treatment for patients with LUAD. We extracted 42 ICPs, including PD-1, PD-L1, and CTLA-4; the mRNA expression levels of most ICPs from low SFscore subtypes were significantly higher than those in high SFscore subtypes (Figure 9A). In addition to well-known ICPs, newly identified predictors, such as TIDE, are widely used and strongly recommended to evaluate immune response. We showed (Figure 9B–9D) that low SFscore patients were distinguished by a high level of T cell exclusion scores, TIDE and low T cell dysfunction scores. Tumor neoantigen burden, which is closely related to immunotherapeutic efficacy, was also assessed; LUAD patients with a low SFscore had a higher clonal and sub-clonal neoantigen burden (Figure 9E, 9F). The distinct distribution of these markers indicated that low SFscore patients could benefit from immunotherapy, especially ICIs. Thus, a crucial role for SFscore in mediating immune responses in patients was identified.

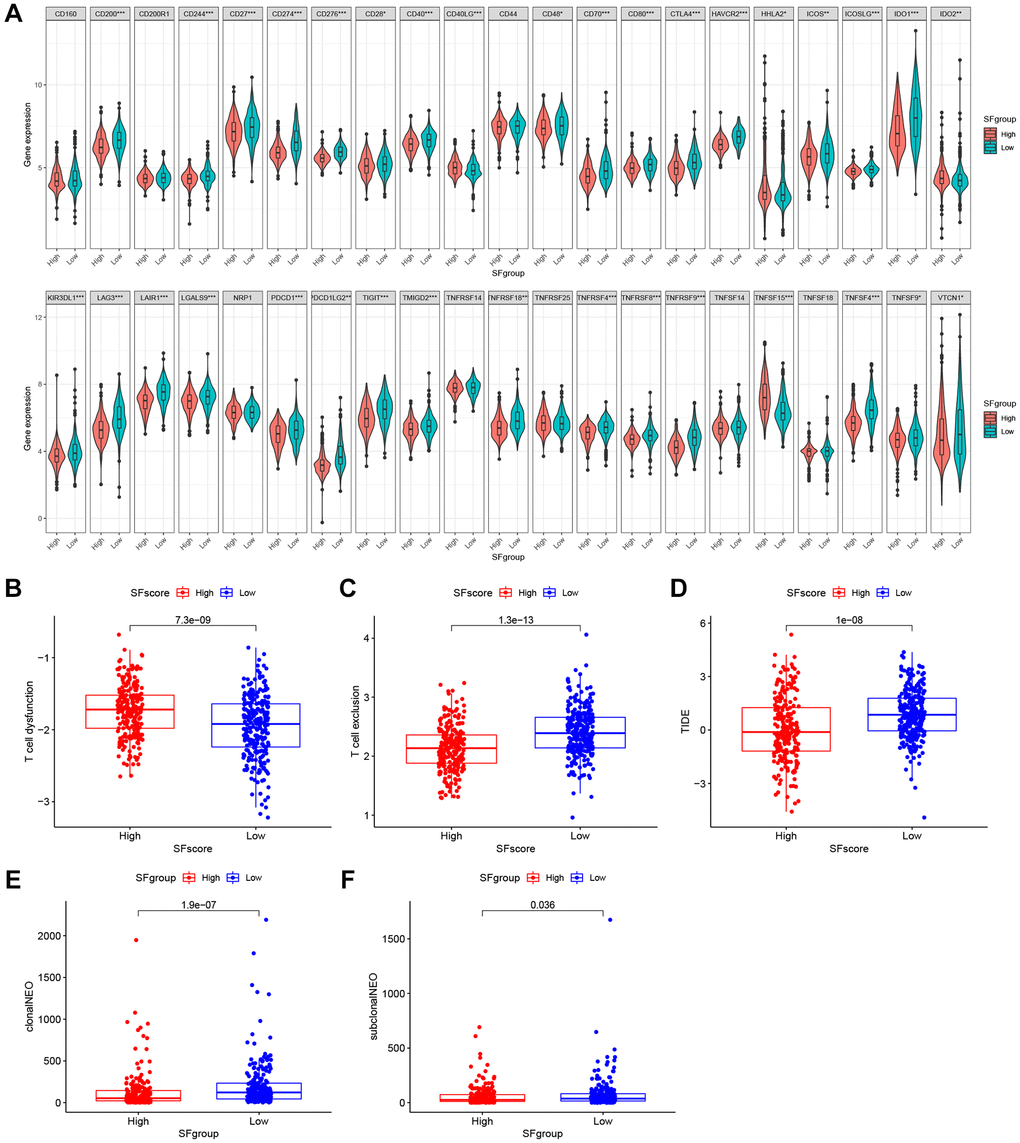

Figure 9. The SFscore predicts immunotherapeutic benefits. (A) The relative mRNA expression level of 42 immune checkpoints was compared between SFscore high versus low groups. (B–D) The relative distribution of T cell exclusion score, T cell dysfunction score and TIDE score were compared between SFscore high versus low groups in TCGA-LUAD cohort (P < 0.001). (E, F) The relative distribution of clonal neoantigens and sub-clonal neoantigens were compared between SFscore high versus low groups in TCGA-LUAD cohort (P < 0.05).

Drug sensitivity analysis and small molecule drug screening based on SFscore

We identified four chemotherapy drugs and estimated IC₅₀ levels. As shown (Figure 10A), all four exhibited significantly low IC₅₀ levels in the low SFscore group, including paclitaxel (p < 2.22e-16), cisplatin (p < 8.2e-10), docetaxel (p < 2.22e-16), and gemcitabine (p < 7.3e-09). Thus, low SFscore patients were more sensitive to the ten selected drugs. To further screen for specific drugs for patients with distinct SFscore, we analyzed DEGs between groups with distinct SFscore, including 111 up- and 106 down-regulated genes. DEGs were uploaded to the CMap database, and 16 small molecule drugs were identified (p < 0.01, |mean|>0.4) (Figure 10B). Among these, ten drugs targeting lower SFscore patients were selected with negative enrichment and six small molecule drugs were selected for higher SFscore patients (with positive enrichment). Amiodarone (p = 0.00056, enrichment = −0.809), etoposide (p = 0.00123, enrichment = −0.837), chlorphenesin (p = 0.00185, enrichment = −0.824), karakoline (p = 0.00201, enrichment = −0.699), and cefepime (p = 0.00277, enrichment = 0.804) were identified, and a network constructed to identify drug interactions with target proteins (Figure 10C). Also, druggable pharmacophore models of these five aforementioned drugs were analyzed and visualized in PharmMapper (Figure 10D–10H).

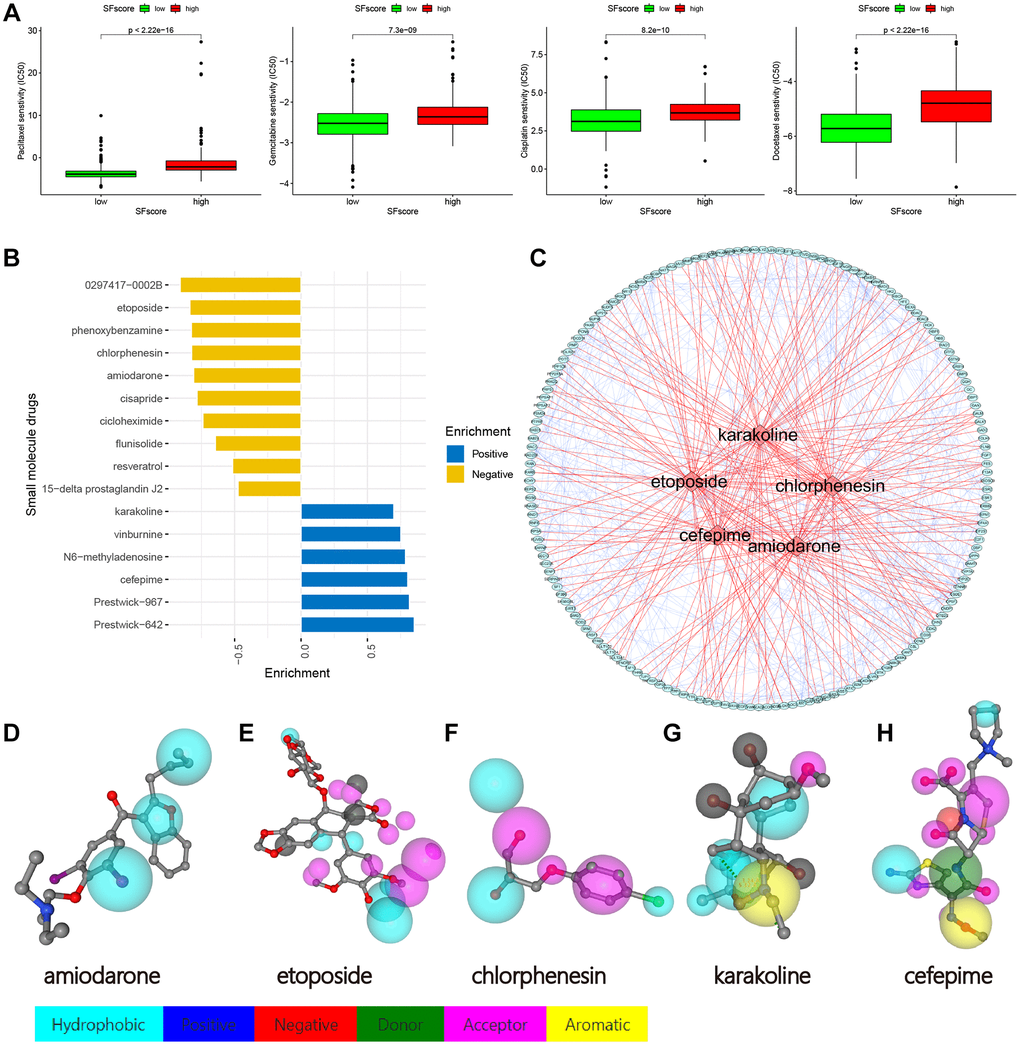

Figure 10. Drug sensitivity analysis and small molecule drugs screening. (A) Low SFscore is more sensitive to sorafenib, paclitaxel, sunitinib, cisplatin, docetaxel, Etoposide, vinorelbine, gemcitabine, gefitinib and vorinostat (p < 0.001). (B) Screening of small molecule drugs based on SFscore. (C) Network construction of target protein and five small molecule drugs. (D–H) Druggable pharmacophore models of five small molecule drugs.
