ERP44 inhibits human lung cancer cell migration mainly via IP3R2

Observation of Ca²⁺ signalling in A549 cancer cells

To determine whether A549 cancer cell migration is regulated by intracellular Ca²⁺ signalling, we first detected Ca²⁺ release events using confocal microscopy. A549 cells were loaded with Fluo-AM and confocal microscopy scanning images were collected (40×objective lens, 512×512 pixel, xy-t scan, 1 s/frame without intervals). As shown in Fig. 1A, spontaneous calcium transients were detected in A549 cells. However, no calcium signalling was found in the leading area (Fig.1B, as indicated by arrows) with a relatively low calcium concentration as reported in fibroblasts [4]. To determine the relationship between Ca²⁺ signalling and A549 cell migration, we constructed a calcium indicator protein GCaMPJ [17] that was stably expressed in the A549 cell line. A long-term (120 min) recording of A549 /GCaMPJ cell migration and the scanning images of Ca²⁺ signalling were recorded using the API live cell imaging system (60×objective lens, 512×512 pixels, xyt scanning, 5 s/frame). Spontaneous calcium transients were observed in the cells (Fig.1C). However, we did not identify any relationship between cell migration and the localization of Ca²⁺ signalling in A549 cells.

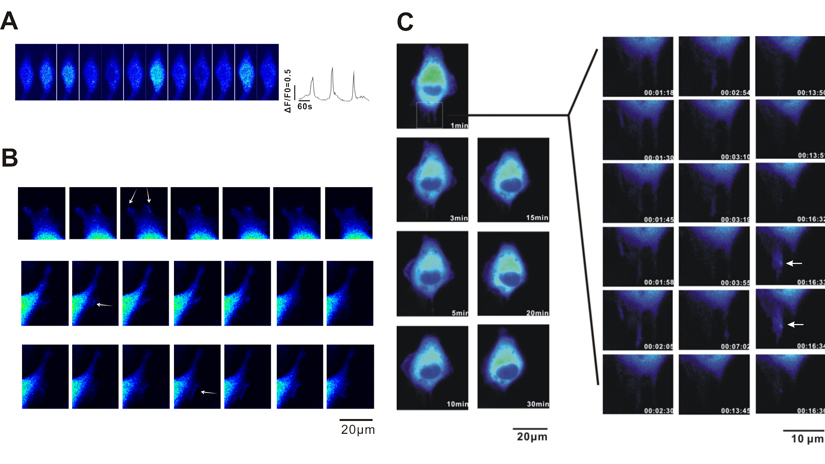

Figure 1. Observation of spontaneous Ca²⁺ transient in A549 cells. A549 cells were loaded with fluo-4 AM, and Ca²⁺ activities were recorded using confocal microscopy. (A) Ca2+ transients recorded in the xy-t mode. (B) No calcium signalling was observed in the leading area with relatively low calcium concentration. The arrows indicate ruffling pseudopodium. (C) Long-term (120 min) recording of A549 cell migration in A549 cells detected using the calcium indicator protein GCaMP J. The scanning images were recorded using an API live cell imaging system with pseudo-colour treatment (60× objective lens, 512×512 pixels, XYT scanning, 5 s/frame).

Role of Ca²⁺ signalling in A549 cell migration

As noted above, Ca²⁺ events were observed in the lung cancer cell line A549, and the properties of Ca²⁺ release in A549 cells are different from those reported in fibroblasts [4]. These findings motivated further exploration of the role of Ca²⁺ signalling in the regulation of A549 cell migration. It has been previously reported that cell adhesion plays an important role in cell migration [18]. Thus, we first investigated whether extracellular Ca²⁺ buffered with EGTA affects A549 cell adhesion. As shown in Fig. 2A, time-lapse recordings revealed that A549 cell adherence was altered under different conditions. Moreover, 5 mM EGTA (Fig. 2Ab) in the extracellular solution significantly inhibited A549 cell adhesion compared to the control (Fig. 2Aa) and the inhibitory effect of EGTA on A549 cell adhesion was abolished by EGTA washout (Fig. 2Ac). In the next series of experiments, we examined the effects of intracellular Ca²⁺ release on A549 cell migration. First, we investigated the effect of the IP₃Rs inhibitor 2-APB on Ca²⁺ release induced by ATP in A549 cells. Compared to the control, the peak of Ca²⁺ transients was remarkably reduced in response to the application of 30 μM 2-APB (Fig. 2B, p < 0.01, n = 121 cells). Similarly, in the presence of 2-APB (30 μM), the wound healing of A549 cells was greatly retarded (Fig. 2C & D), which suggests that Ca²⁺ release plays a role in regulating A549 cell migration and that the inhibition of Ca²⁺ release delays A549 cell migration. Next, to determine whether ryanodine receptor Ca²⁺ release channels play the same role as IP3Rs in regulating A549 cell migration, wound healing studies were performed. The results indicated that A549 cell migration was not affected by the application of 20 μM ryanodine (supplementary Fig. S1), suggesting that IP₃Rs, but not RYRs, are involved in regulating the migration of A549 cancer cells.

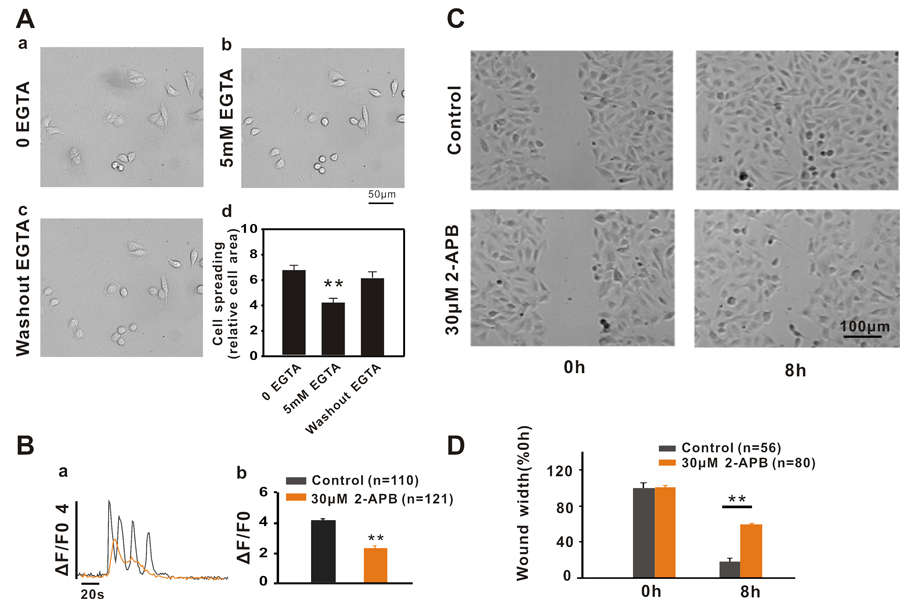

Figure 2. Ca²⁺ signalling regulates A549 cell migration by affecting cell adhesion. (A) The DIC images show changes in cell adherence during the time lapse under different conditions. (b) 5 mM EGTA in extracellular solution inhibited A549 cell adhesion compared to the control (a) and the inhibitory effect of EGTA on cell adhesion was abolished by EGTA washout (c). The bar graphs (d) show the relative cell area calculated for statistical analysis. (B) The IP3Rs inhibitor 2-APB inhibits A549 cell migration via the inhibition of Ca²⁺ signalling. 30 μM 2-APB inhibited ATP-induced calcium release via IP3Rs (a and b) and significantly inhibited wound healing in A549 cells (C and D).

2-APB inhibits A549 cell migration via altering cell polarization

The results described above suggest that the inhibition of intracellular Ca²⁺ release by 2-APB resulted in retarded wound healing in A549 cells. In the next series of experiments, we investigated how inhibiting the release of intracellular Ca²⁺ retarded A549 cell migration. Cell polarization is the basis for cell migration [19]. Therefore, we first examined the effect of Ca²⁺ release inhibition on cell polarization by staining A549 cells with Phalloidin-FITC. As shown in Fig. 3A, stimulation of the scratch resulted in a trend in cell polarization. More pseudopodium protrusion and stress fibers were observed within 2 h after scratching in A549 cells. In contrast, in the presence of 2-APB (30 μM), the polarization and pseudopodium protrusion of A549 cells were significantly inhibited, suggesting that 2-APB inhibited A549 cell migration by affecting cell polarization. Is this the mechanism by which 2-APB inhibits A549 cell migration? To address this question, we exposed cells to 2-APB at different time periods in cell scratch experiments. Cells treated with 2-APB during the first 4 h showed a significant inhibition of wound healing; conversely, cells treated with 2-APB in the latter 4 h did not affect cell wound healing (Fig. 3B), which confirmed that 2-APB inhibited A549 cell migration by inhibiting cell polarization.

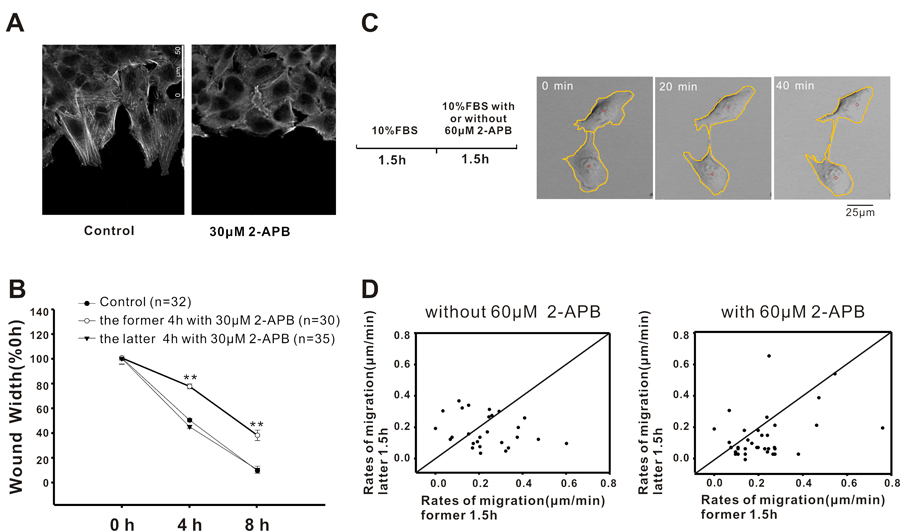

Figure 3. Inhibition of Ca²⁺ signalling inhibits A549 cell migration by affecting cell polarization. (A) Images show that the polarization and pseudopodium protrusion of A549 cells were inhibited in the presence of 2-APB (30 μM). (B) Treatment with 2-APB during the latter half of the assay did not affect wound healing. (C) Real-time recording of A549 cells' random motility. The sequential pictures were shown to explain the computing method. The centre of gravity was calculated based on the outlines of the cells (red circle), and the change in the coordination of the centre represented the tracking of cell movement. (D) Statistical analysis of the migration rate for each cell. The x-axis represents the cell rates during the initial 1.5 h, and the y-axis represents the cell rates during the latter 1.5 h. The dots in the lower right diagonal represent the cells with decreased rates.

Next, we examined the effect of 2-APB on A549 cell random motility. As shown in Fig. 3C, during the first 1.5 h, the cells were treated with 10% FBS only; in the latter 1.5 h, cells were treated without or with 60 μM 2-APB except for 10% FBS. The centre of gravity was calculated based on the outlines of the cells (red circle), and the change in the coordination of the centre represented the tracking of cell movement. Figure 3D shows the migration rate for each individual cell. Compared to the control (left panel, 15/27), the number of cells with declining migratory rate was increased when the cells were treated with 60 μM 2-APB (right panel, 29/38) during the latter 1.5 h, indicating that 2-APB decreased the migration of A549. Taken together, these results indicated that the IP₃R inhibitor 2-APB inhibited A549 cancer cell migration by affecting cell polarization by reducing intracellular Ca²⁺ release.

ERP44 overexpression inhibits A549 cell migration by inhibiting intracellular Ca²⁺ release

ERP44 is a member of the PDI family and was the first protein observed to bind to and exhibit an inhibitory effect on the IP₃R1 Ca²⁺ release channel inside of the ER [15]. Based on our observation that 2-APB inhibited the migration of A549 cells, we postulated that the inhibitory effect of 2-APB on A549 cell migration was mediated by IP₃Rs. Thus, in the next series of experiments we examined the role of ERP44 overexpression in A549 cells. Due to the low efficiency of the transient transfection of pCMV-ERP44-IRES-DsRed2 in A549 cells (<5%), adenovirus infection was used to over-express ERP44 in the cells. As shown in Fig. 4A, with the adenovirus infection approach ERP44 was highly expressed in ER of A549 cells. Compared to control A549 cells (DsRed2 only), ERP44 overexpression significantly inhibited ATP-induced Ca²⁺ release (Fig. 4B). Further studies indicated that the overexpression of ERP44 remarkably inhibited wound healing in A549 cells (Fig. 4C). Long-term real-time tracking analysis of cell movement indicated that the overexpression of ERP44 inhibited A549 cell random motility, and similar to the effect of 2-APB on A549 cells, the cells exhibited a “fried egg” morphology, indicating that the polarization and pseudopodium protrusion of A549 cells were inhibited by the over-expression of ERP44 (Fig. 4D). The physical centre of gravity in ERP44 overexpressed A549 cells was nearly maintained at its original location during the 1.5 h tracking time.

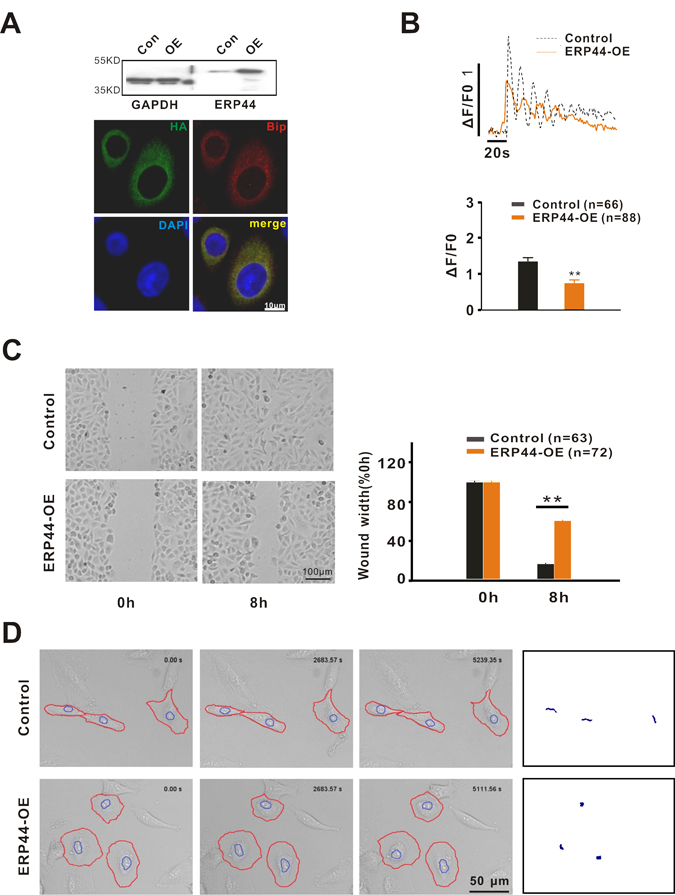

Figure 4. ERP44 inhibits cell migration by reducing intracellular Ca²⁺ release. (A) Identification of ERP44 overexpression (ERP44-OE) system in A549 cells via western blot and immunofluorescence. Overexpressed ERP44 were co-located with ER marker Bip. (B) ERP44 overexpression inhibited 10 μM ATP-induced calcium release via IP3Rs. (C) Wound healing was significantly inhibited by overexpressed ERP44. (D) Overexpression of ERP44 inhibited A549 cells random motility. A549 cells were recorded in real time after adenovirus infection. Circled cells are DsRed-positive cells. The right panel shows the movement tracking of A549 cells.

As we noted above, 2-APB inhibited Ca²⁺ release and resulted in an inhibitory effect on A549 cell migration by affecting the cell cytoskeleton. Thus, we examined whether ERP44, similar to 2-APB, also inhibited cell migration by affecting the cell cytoskeleton. In the control, A549 cells stained with Phalloidin-FITC exhibited a clear structure consisting of F-actin microfilaments (Supplementary Fig. 2) and polarized cells presented a network arrangement of microfilaments at the forefront of the cells. In addition, stress fibres were observed throughout the cells. However, the microfilaments were not clearly observed or only some circular microfilaments were observed around the edge of the cells in ERP44 overexpressed A549 cells, suggesting that ERP44, similar to 2-APB, inhibited A549 cell migration by affecting the cell cytoskeleton.

ERP44 inhibition of A549 cell migration is mainly dependent on IP₃R2

It has been reported that ERP44 inhibits intracellular Ca²⁺ release by binding to IP₃R1 [15]. We confirmed that all three types of IP₃R were expressed in A549 cells (Fig. 5A). However, the subtype of IP₃Rs that mediates the inhibitory effect of ERP44 on A549 cell migration remains unknown. To clarify this, we performed RNA interference studies. We synthesized siRNAs for IP₃R1, IP₃R2 and IP₃R3 according to a previously reported method [4] and the real-time PCR results indicated the interference efficiency of single IP₃Rs siRNA to be >50% after transfection for 72 h (Fig. 5A). Wound-healing studies demonstrated that all types of IP₃Rs exhibited a inhibition of wound healing of A549 cells compared to the control (Fig. 5B & E, p < 0.001 vs. control). However, among these receptors, IP₃R2 displayed a remarkable inhibitory effect on A549 cell wound healing (Fig. 5B & E, p < 0.001 vs. IP₃R1 and IP₃R3). To further confirm, we carried out wound-healing studies with combined IP₃Rs siRNA of >30% interference efficiency. As the Fig. 5D & F shown, wound healing in A549 cells with treatment involved IP₃R2 siRNA was markedly inhibited while in A549 cells with IP₃R1 and IP₃R3 siRNA was mildly inhibited. These results suggested that IP₃R2 plays a predominant role in mediating the inhibitory effect of ERP44 on A549 cell migration. Moreover, we performed scratch experiments in ERP44 stably transfected SH-SY5Y cells, which mainly express IP₃R1 [20](Fig. 5G left-upper), indicated that the overexpression of ERP44 did not significantly inhibit cell migration, confirming that ERP44 inhibition of cell migration is independent of IP₃R1 (Fig. 5).

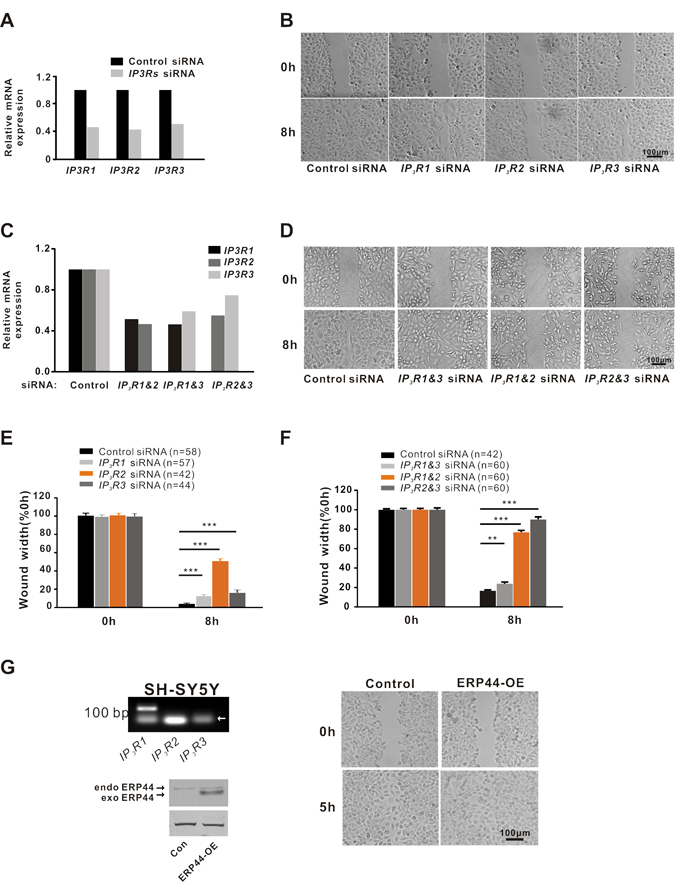

Figure 5. IP3R2 plays a dominant role in regulating A549 cell migration. (A) RT-PCR analysis for the three subtypes of IP3Rs expression in A549 cells with control or single IP3Rs siRNA. (B) Wound healing in A549 cells with control or single IP3Rs siRNA. (C) The interference efficiency detection in A549 cells with control or combined IP3Rs siRNA. (D) Wound healing in A549 cells with control or combined IP3Rs siRNA. (E) Statistical analysis of single IP3Rs siRNA affecting wound healing in A549 cells. (F) Statistical analysis of combined IP3Rs siRNA affecting wound healing in A549 cells. (G) Overexpression of ERP44 did not affect wound healing in SH-SY5Y cells. RT-PCR assay shows that IP3R1 is specifically expressed in SH-SY5Y cells (left-upper). The arrow indicates primer dimers. Western blotting detection of ERP44 in SH-SY5Y transfected with control or ERP44 overexpression adenovirus (left-lower). The arrows indicate endogenous and exogenous ERP44. Overexpression of ERP44 did not affect wound healing in SH-SY5Y cells (right).

Cell culture

A549 cells and SH-SY5Y cells were cultured in RPMI 1640 medium supplemented with 10% foetal bovine serum and 100 U/mL penicillin and streptomycin. AD-293 cells were cultured in Dulbecco's modified Eagle's medium supplemented with 10% foetal bovine serum and 100 U/mL penicillin and streptomycin. Foetal bovine serum (GIBCO) was inactivated at 56°C for 30 min. All the cell lines purchased from the Cell Bank of Type Culture Collection of the Chinese Academy of Sciences (Shanghai, China) and have been tested and authenticated utilizing Short Tandem Repeat (STR) profiling.

Adenoviral(Ad) overexpression system

ERP44 overexpression was achieved by recombinant adenoviral infection. Plasmids for pCMV-IRES-DsRed and pCMV-ERP44-IRES-DsRed were first obtained. Next, recombinant Ad plasmids and Ad packaging were constructed using the AdEasy™ XL Adenoviral Vector System™ (Stratagene).

RNA interference

siRNA duplexes were purchased from GenePharma. The target sequences were siControl (5′-AAGUAGUGUAUGCUAGAGUGG-3′), siIP₃R1 (5′-GGCCUGAGAGUUACGUGGCAGAAAU-3′), siIP₃R2 (5′-GAGAAGGCUCGAUGCUGAGACUUGA-3′), and siIP₃R3 (5′-CCUACCUGCUGUCUGUCUU-3′). Cells were transfected using siRNA by Lipofectamine 2000 (Invitrogen).

Western blotting assay

Proteins were resolved by SDS-PAGE and transferred onto a polyvinylidene difluoride membrane (Millipore). The membranes were blocked with 5% skim milk in TBS containing 0.1% Tween-20 (TBST) for 1 h and probed with the primary antibody at 4°C overnight. The antibodies used in this study were as follows: ERP44 rabbit monoclonal antibody (Cell Signaling) and GAPDH antibody (Sigma). After being washed with TBST, the membranes were incubated with the appropriate secondary antibody and the signals were detected using an ECL kit (Millipore) or BCIP/NBT kit (Beyotime).

RT-PCR

Total RNAs were isolated by TRIzol (Invitrogen) and cDNA was prepared with PrimeScript Reverse Transcriptase (Takara). Real-time PCR was performed using the SYBR PrimeScript RT-PCR Kit II (Takara). The following primers were used: 18sRNA (F: 5′-GGAAGGGCACCACCAGGAGT-3′, R: 5′-TGCAGCCCCGGACATCTAAG-3′), GAPDH (F: 5′-GATTCCACCCATGGCAAATTC-3′, R: 5′-AGCATCGCCCCACTTGATT-3′), IP₃R1 (F:5′-CCACAGACGCAGTGCTACTCA-3′, R: 5′-TTGCCATACTGGATTACGGT-3′), IP₃R2 (F: 5′-AACCTCATGGCAAAGCTATCA-3′, R: 5′-CGAACAGGCACCACGGAC-3′), IP₃R3 (F: 5′-CCTGGAAATCCTTCAGTTCAT-3′, R:5′-CATGTTGGCAGTGGTAGAGTC-3′).

Wound-healing assay

Cells were allowed to form an 85% confluent monolayer in a 35-mm dish coated with 0.1% gelatine prior to wounding. A549 cells were typically seeded at 3-5×10⁵ per dish. Prior to wounding, the cells were starved in serum-free medium for 12-24 h until the cells were 100% confluent. Next, a 10-20 μL pipette tip was used to generate a wound, which was vertical to the parallel line (the interval was 2-3 mm) marked on the bottom of the dish. Typically, it took 6-8 h for the wounds of A549 and SH-SY5Y cells to close. Images were obtained using confocal microscopy with 10× objective lenses based on markers on the bottoms of the dishes, which allowed for a comparison of each of the images at different time points. The wound width and area were analysed using Digimizer.

Time-lapse cell migration recording

The random migration of A549 cells was recorded using two systems. The differential interference contrast (DIC) image of cells seeded in a 35-mm dish was scanned with a 10×confocal microscopic objective (Leica) for up to 1.5 h of recording with 2-min time intervals. For calcium imaging during cell migration, the API Delta vision live cell working station (API) was used. A549 cells transfected with the GCaMPJ adenovirus were seeded in a 35 mm dish with a glass bottom. After cell adhesion, long-term recording was fulfilled at 5 s/frame with a 60× objective. Images were analysed using ImageJ and SoftWoRx Explore (API).

Immunofluorescence assay

The cells plated on coverslips were fixed in 4% PFA for 15 min. After being washed in PBS, the cells were permeabilized with 0.1% Triton X-100 for 15 min and washed again in PBS. Cells were blocked with goat serum (ZSGB-BIO) for 1 h at room temperature. Primary antibodies (HA: CWBIO; Bip: abcam) were incubated overnight at 4°C. Wash three times in PBS. Secondary antibodies (ZSGB-BIO) were incubated for 1 h at room temperature. Wash three times in PBS. F-actin was stained using phalloidin-FITC (Sigma) at 2.5 μg/mL for 1 h, and washed in PBS. Nuclei were stained with 7.5 μM propidium iodide (Sigma) for 5 min. The coverslips were mounted onto slides with anti-fading solution (Beyotime).

Ca²⁺ imaging

Cells were seeded onto 0.1% gelatine-coated coverslips or 35 mm dishes with a glass bottom. Cells with 2-APB treatment were treated with 30 μM 2-APB for 30 min and then incubated with 0.1-0.2 μM Fluo-4 AM (Invitrogen) at room temperature for 10-15 min. Perfusion with a standard solution (150 mmol/L NaCl, 5.5 mmol/L KCl, 2 mmol/L CaCl₂, 1 mmol/L MgCl₂, 10 mmol/L HEPES and 3 mmol/L glucose, pH 7.4). Calcium signalling was scanned (xyt scan and no time interval) using confocal microscopy (Leica) at 488 nm wavelength excitation with a 40× objective. Images were analysed using ImageJ.

Statistical analysis

Data were expressed as the mean ± s.e.m. from three independent experiments and analysed using t-test with significance defined as ** p < 0.01; ***p < 0.001.
