miR-137 prevents inflammatory response, oxidative stress, neuronal injury and cognitive impairment via blockade of Src-mediated MAPK signaling pathway in ischemic stroke

Bioinformatics analysis to predict the differentially expressed genes (DEGs) and their molecular interactions in ischemic stroke

Figure 1A shows a heat map displaying the expression of the first 50 DEGs identified in the ischemic stroke-associated microarray data, GSE9391. In addition, a protein-protein interaction (PPI) network containing the first 100 DEGs was generated (Figure 1B), which identified Src as the gene having the highest degree of association with other genes and suggesting that Src may affect ischemic stroke. Analysis of the Kyoto Encyclopedia of Genes and Genomes (KEGG), from the KEGG database (http://www.genome.jp/kegg/pathway.html), for DEGs (Figure 1C) and the PPI network diagram (Figure 1B) showed that Src associated with PDGFRA, RPS6KA3/MAPK, GRB2 and especially, the MAPK signaling pathway, indicating that Src may affect the MAPK signaling pathway. The Src-related signaling pathways were identified in the KEGG analysis, which showed that Src was located upstream of the MAPK signaling pathway in GnRH signaling pathway (map04912). Thus, we speculated that Src may regulate the MAPK signaling pathway in ischemic stroke. miRNAs that could potentially target Src were predicted and analyzed by the DIANA, TargetScan and microRNA databases. A total of 31, 23 and 18 miRNAs were obtained from each database, respectively. A Venn diagram was drawn to identify genes at the intersection of the 3 miRNA databases (Figure 1D). Only two miRNAs, mmu-miR-141-3p and mmu-miR-137-3p, were identified by the three databases, indicating that these two miRNAs were very likely to regulate Src. Based on the above analysis, we chose to investigate the role of miR-137 in regulating the Src-mediated MAPK signaling pathway during ischemic stroke.

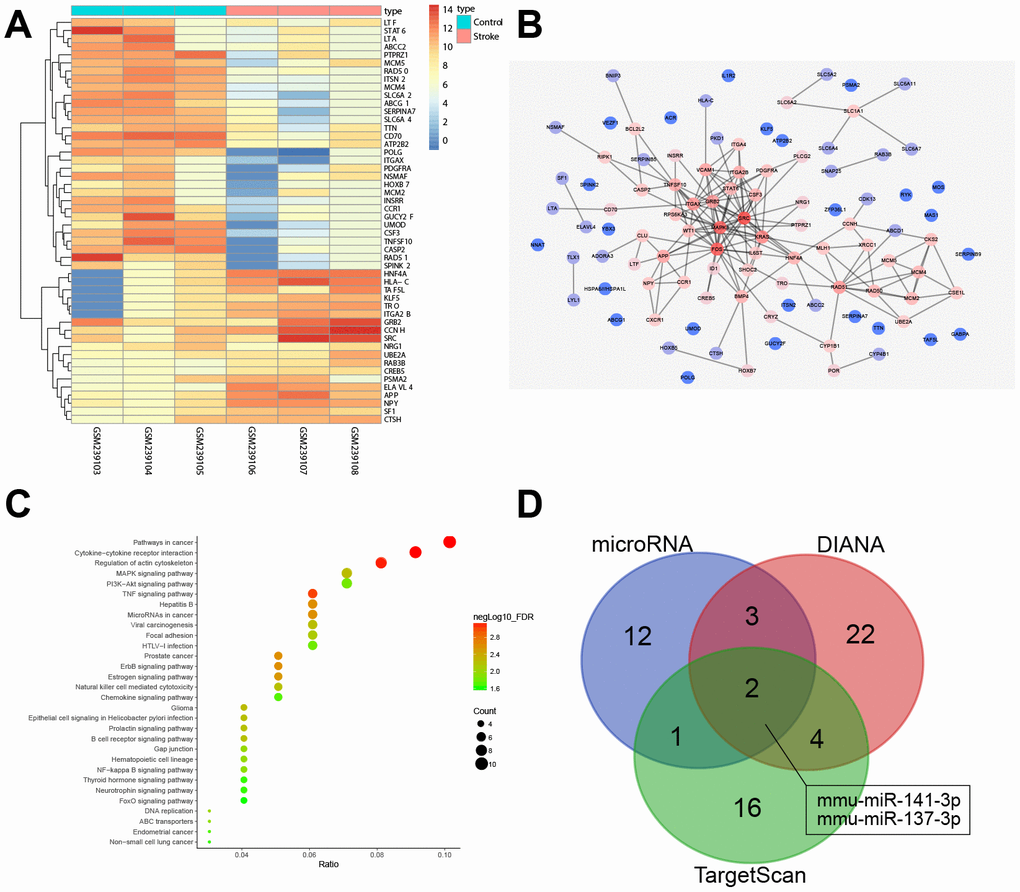

Figure 1. miRNA and mRNA expression profiles in ischemic stroke. (A) a heat map of the expression of the first 50 DEGs in ischemic stroke-related microarray data GSE9391. The colored column represents the sample number, the row name indicates the DEGs, each rectangle in the graph corresponds to the expression value of a sample, red indicates high expression and blue indicates poor express; (B) PPI network for the DEGs in ischemic stroke. The color of genes indicates the degree of association with other genes and, if a gene has more interacting genes, the core degree of the gene in the network and the correlation degree will be higher; red indicates high association and blue indicates low association; (C) enrichment analysis of KEGG for DEGs in ischemic stroke; the abscissa represents gene ratio and the coordinate represents KEGG enrichment item; the right histogram represents color gradation; (D) comparisons among miRNAs targeting Src by DIANA, TargetScan and microRNA. Two miRNAs were located at the intersection of the three databases (mmu-miR-141-3p and mmu-miR-137-3p).

Inhibition of p38 or Erk2 alleviates cerebral infarction, improves neuronal functions, and enhances learning and memory abilities in middle cerebral artery occlusion (MCAO) mice

Next, we sought to test whether the MAPK signaling pathway affects the progression of ischemic stroke in mice. At first, the efficiency of p38 or Erk2 knockdown was verified in isolated astrocytes. The astrocytes were stained for glial fibrillary acidic protein (GFAP) expression and observed under an inverted microscope. The tetramethyl rhodamine isothiocyanate (TRITC)-positive cells were red, namely astrocytes and the astrocytes accounted for more than 95% of the total cells (Supplementary Figure 1A, 1B). Next, the results of reverse transcription quantitative polymerase chain reaction (RT-qPCR) showed significantly reduced expression of p38 in cells upon treatment with si-p38-1, si-p38-2 and si-p38-3, with si-p38-1 exhibiting the lowest p38 expression. Therefore, si-p38-1 was selected for subsequent experiments (Supplementary Figure 1C). Similarly, the expression of Erk2 was decreased in cells treated with si-Erk2-1, si-Erk2-2 and si-Erk2-3, with si-Erk2-1 exhibiting the lowest Erk2 expression, so si-Erk2-1 was selected for subsequent experiments (Supplementary Figure 1D).

The mice then underwent a series of behavioral tests including, nerve function scores, the foot-fault test and the step-down test (Figure 2A–2C). Wild-type mouse models of MCAO treated with lentivirus exhibited increased neurological function scores, number of errors, and rate of left limb fault step, and shorter latency period compared with sham-operated mice (control mice), (p < 0.05). This observation was eliminated in the mice treated with p38 small interfering RNA (siRNA) or Erk2 siRNA.

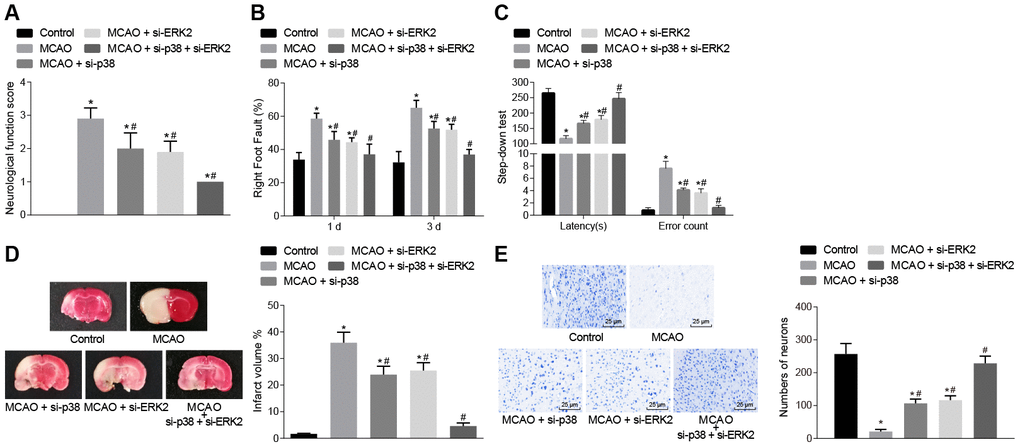

Figure 2. Inhibition of p38 or Erk2 ameliorates cerebral infarction and improves neuronal function, learning, and memory abilities in MCAO mice. (A) neurological function scores in mice in each group; (B) rate of left limb fault step of mice after treatment with si-p38, si-Erk2 or in combination; (C) latency period and number of errors of mice treated with si-p38, si-Erk2 or in combination; (D) changes in the volume of infarct in mice treated with si-p38, si-Erk2 or in combination using TTC staining; (E) changes in the number of neurons from mice treated with si-p38, si-Erk2 or in combination using Nissl staining (× 400). Measurement data are expressed as mean ± standard deviation and compared by one-way ANOVA, followed by Tukey's post hoc test; * p < 0.05 vs. control group (sham-operated wild-type mice); # p < 0.05 vs. MCAO group (wild-type mouse models of MCAO). N = 15.

The volume of infarct in wild-type mouse models of MCAO treated with lentivirus was measured after staining with 2, 3, 5-triphenyltetrazolium chloride (TTC) or Nissl (Figure 2D–2E). The volume of infarct was increased (p < 0.05) compared to control mice but the number of neurons showed no significant difference (p > 0.05). Wild-type mice treated with p38 siRNA or Erk2 siRNA showed the opposite outcomes (p < 0.05). These results demonstrated that inhibition of the p38 or ERK2 signaling pathway alleviated cerebral infarction and neuron damage, cognitive impairment, and improved learning and memory abilities, as well as reduced the score of neurological function injury in MCAO mice.

Inhibition of p38 or Erk2 reduces oxidative stress and inflammatory response in the brain tissues of MCAO mice

Next, we measured the levels of reactive oxygen species (ROS) and inflammatory factors in mouse brain tissues. The levels of ROS, tumor necrosis factor-α (TNF-α), interleukin (IL)-1, IL-6 and IL-17 were increased in comparison to control mice (Figure 3A, 3B), while IL-10 concentration was decreased in brain tissues of wild-type mouse models of MCAO treated with lentivirus (p < 0.05). Treatment with si-p38 or si-Erk2 reversed the effects of lentiviral treatment (p < 0.05). Correlation analysis (Figure 3C) showed that neurological function score was positively correlated with the expression of TNF-α, IL-1, IL-6 and IL-17 (r > 0, p < 0.05), and negatively correlated with IL-10 expression (r < 0, p < 0.05). Inhibition of the p38 or ERK2 signaling pathway reduced oxidative stress and inflammation in MCAO mice, thereby improving neuronal injury and learning and memory abilities in mice.

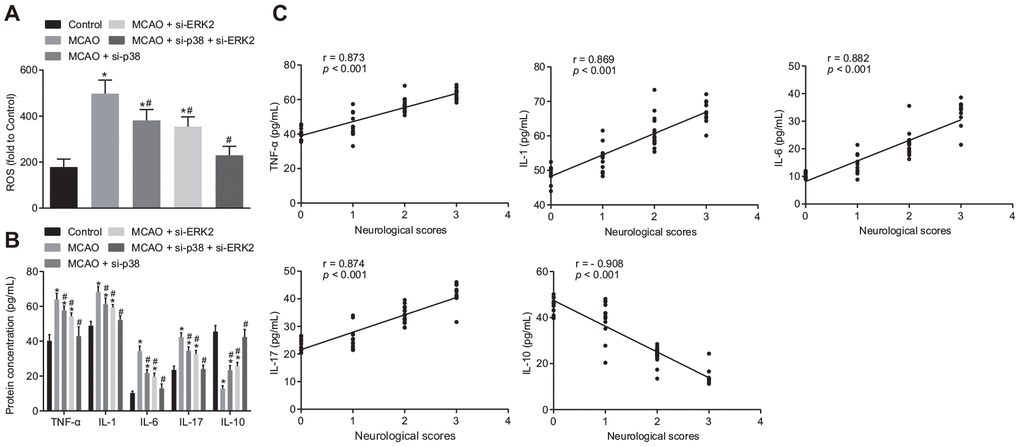

Figure 3. Inhibition of p38 or ERK2 signaling pathway attenuates oxidative stress and the inflammatory response in the brain of MCAO mice. (A) detection of ROS in brain tissues from mice treated with si-p38, si-Erk2 or in combination using DCFH-DA fluorescent probe; (B) detection of TNF-α, IL-1, IL-6, IL-17 and IL-10 protein expression in the brain tissues of mice treated with si-p38, si-Erk2 or in combination by ELISA; (C) correlation analysis between the score of neurological function and contents of TNF-α, IL-1, IL-6, IL-17 and IL-10 in brain tissues of mice treated with si-p38, si-Erk2 or in combination. Measurement data are expressed as mean ± standard deviation, which were compared by one-way ANOVA, followed by Tukey's post hoc test. Correlation analysis was performed using Pearson correlation coefficient, r > 0 represents a positive correlation, r < 0 represents a negative correlation, p < 0.05 was indicative of statistical significance; * p < 0.05 vs. control group (sham-operated wild-type mice); # p < 0.05 vs. MCAO group (wild-type mouse models of MCAO). N = 15.

Inhibition of p38 or Erk2 attenuates cell apoptosis in brain tissues of MCAO mice

Next, we sought to examine the effect of the p38 or ERK2 signaling pathway on cell apoptosis. Immunohistochemistry showed that (Figure 4A) ERK1/2 was mainly located in the cell nucleus, and p38 was mainly located in the cytoplasm. Compared with control mice, wild-type mouse models of MCAO treated with lentivirus exhibited a significantly higher number of ERK1/2 and p38 positive cells (p < 0.05); however, wild-type mice treated with p38 siRNA or Erk2 siRNA exhibited opposite results (p < 0.05).

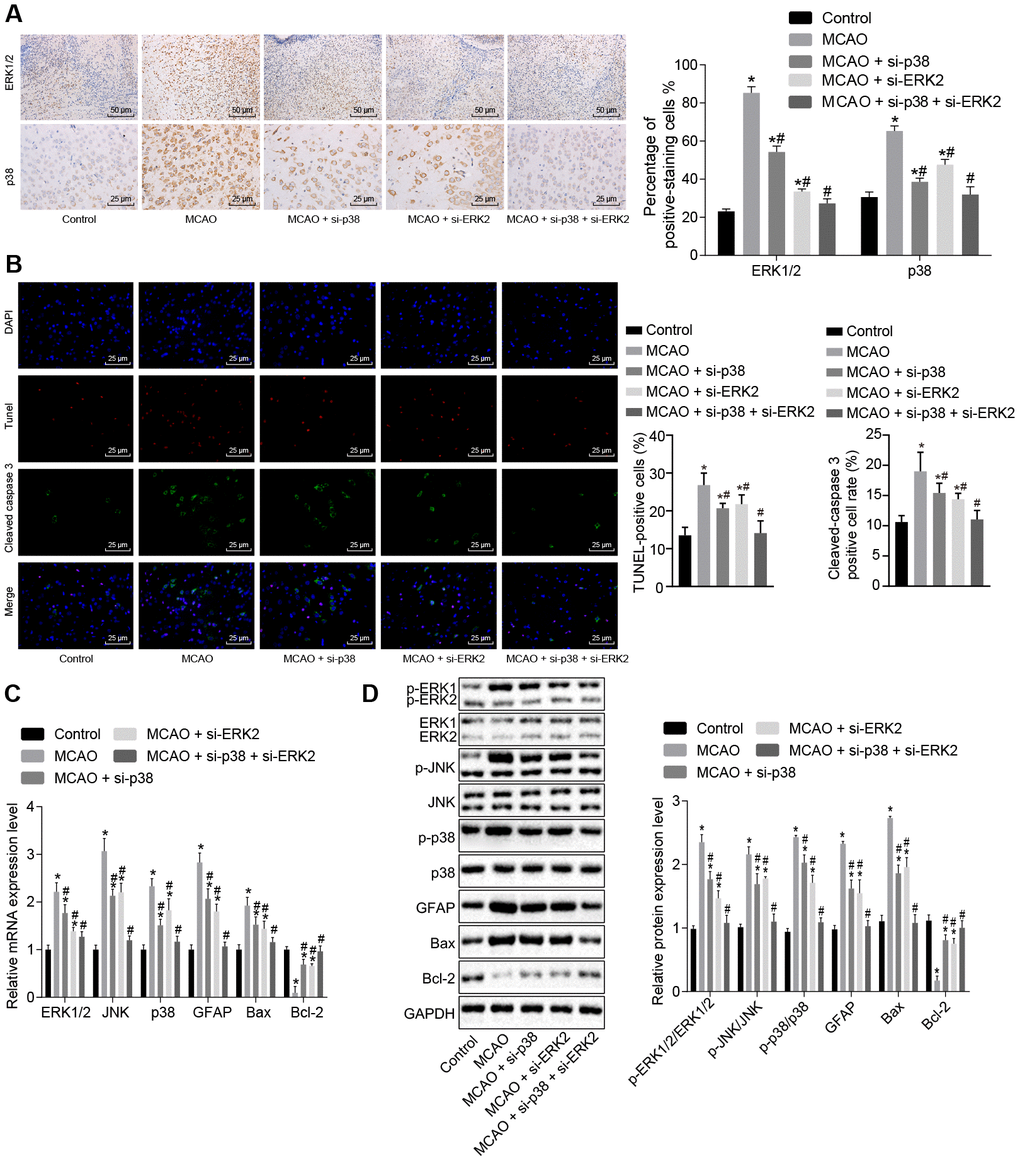

Figure 4. Inhibition of the p38 or ERK2 signaling pathway decreases cell apoptosis in brain tissues of MCAO mice. (A) ERK1/2 and p38 expression levels in the brain tissues of mice after treatment with si-p38, si-Erk2 alone or in combination were determined by immunohistochemistry (× 200); (B) immunofluorescence of cleaved caspase 3, TUNEL staining, and DAPI staining in brain tissues from mice treated with si-p38 or si-Erk2 alone or in combination (× 400); (C) mRNA levels of Erk2, Jnk, p38, Gfap, Bax or Bcl-2 in brain tissues of mice treated with si-p38 or si-Erk2 alone or in combination detected using RT-qPCR; (D) protein level of GFAP, Bax and Bcl-2 along with the extent of ERK1/2, JNK and p38 phosphorylation in brain tissues of mice treated with si-p38 or si-Erk2 alone or in combination detected using Western blot analysis. Measurement data are expressed as mean ± standard deviation and compared using one-way ANOVA, followed by Tukey's post hoc test. * p < 0.05 vs. control group (sham-operated wild-type mice); # p < 0.05 vs. MCAO group (wild-type mouse models of MCAO). N = 15.

Apoptosis was assessed by staining cells for cleaved caspase 3 (green), TUNEL staining (red) and DAPI staining (blue) (Figure 4B). Cleaved caspase 3 was found primarily in the cytoplasm, whereas TUNEL and DAPI staining were localized to the nucleus. The number of cleaved caspase 3/ TUNEL double positive cells was elevated in wild-type mouse models of MCAO treated with lentivirus, but reduced in wild-type mice treated with p38 siRNA or Erk2 siRNA in comparison to control mice (p < 0.05).

RT-qPCR and Western blot analysis (Figure 4C, 4D) showed that MCAO-treated wild-type mice exhibited increased expression of ERK1/2, Jun amino-terminal kinase (JNK), p38, GFAP and B-cell lymphoma 2 (Bcl-2)-associated X protein (Bax). Phosphorylation of ERK1/2, JNK and p38 was also increased; however, Bcl-2 was down-regulated in comparison to control mice (p < 0.05). Wild-type mice treated with p38 siRNA or Erk2 siRNA showed the opposite results when compared with control mice (p < 0.05). These results suggest that the MAPK signaling pathway is activated in MCAO-treated mice leading to increased apoptosis. Inhibition of Erk2 and p38 diminished levels of Gfap and Bax, and activated Bcl-2, thus inhibiting cell apoptosis.

Knockout of Src gene alleviates cerebral infarction and improves neuron functions as well as learning and memory abilities in MCAO mice

In the following experiments, nerve function scoring, foot-fault test results, the step-down test, TTC staining and Nissl staining were used to investigate the role of Src in regulating cerebral infarction, neuron function and learning and memory in MCAO mice. Nerve function scoring, foot-fault test and step-down test (Figure 5A–5C) showed that wild-type mouse models of MCAO exhibited higher neurological function scores, number of errors, and rate of left limb fault step, and shorter latency period (p < 0.05), while it was reversed in Src^-/- mice (p < 0.05).

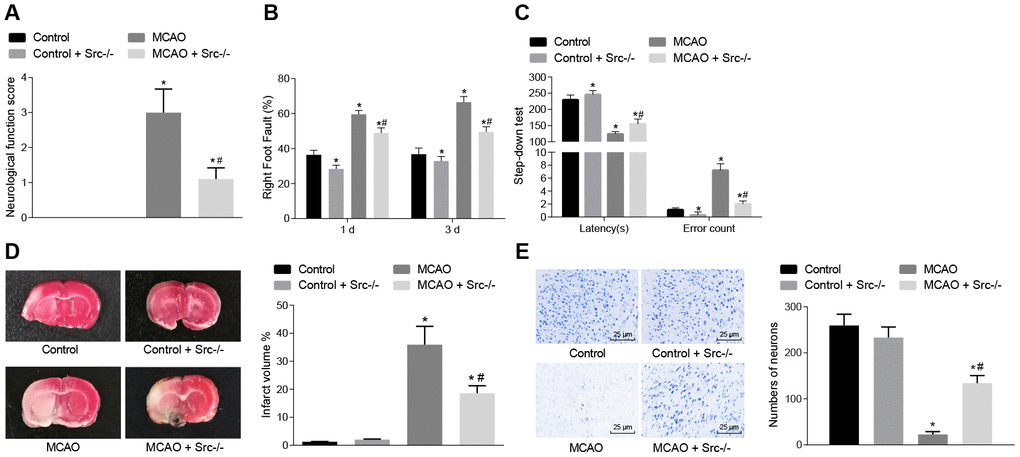

Figure 5. Knockout of the Src gene alleviates cerebral infarction, and improves neuron functions and learning and memory abilities in MCAO mice. (A) neurological function score of Src^-/- mice. (B) rate of left limb fault step in Src^-/- mice in the foot-fault test; (C) latency period and number of errors of Src^-/- mice during the step-down test; (D) the volume of infarct in Src^-/- mice after TTC staining; (E) the number of neurons in Src^-/- mice using Nissl staining (× 400). Measurement data are expressed as mean ± standard deviation and compared using one-way ANOVA, followed by Tukey's post hoc test. * p < 0.05 vs. control group (sham-operated wild-type mice); # p < 0.05 vs. MCAO group (wild-type mouse models of MCAO). N = 15.

TTC staining and Nissl staining were then used for morphological observation, and the results (Figure 5D, 5E) showed that the volume of infarct was increased (p < 0.05), but the number of neurons was decreased (p < 0.05) in wild-type mouse models of MCAO in comparison to sham-operated wild-type mice. Src knockout (Src^-/-)-treated mice showed the opposite results (p < 0.05). The aforementioned results suggest that knockout of the Src gene alleviated cerebral infarction and neuron damage, cognitive impairment, and improved learning and memory abilities, and reduced the score of neurological function injury in MCAO mice.

Knockout of Src gene reduces oxidative stress and inflammatory response in the brain tissues of MCAO mice

ROS and the expression of inflammatory factors were measured in brain tissues (Figure 6). Wild-type mouse models of MCAO displayed increased levels of ROS and increased TNF-α, IL-1, IL-6 and IL-17 expression, whereas IL-10 expression was decreased in brain tissues compared to sham-operated wild-type mice (p < 0.05), while Src^-/- mice showed opposite result (p < 0.05). This suggests that knock down Src gene expression alleviates oxidative stress and inflammation in MCAO mice, thereby preventing neuronal injury and improving learning and memory in mice.

Figure 6. Knockout of Src gene restricts oxidative stress and the expression of inflammatory markers in the brains of MCAO mice. (A) ROS content in the brain tissues of Src^-/- mice was measured using a DCFH-DA fluorescent probe; (B) TNF-α, IL-1, IL-6, IL-17 and IL-10 expression in the brain tissues of Src^-/- mice using ELISA. Measurement data are expressed as mean ± standard deviation and compared by one-way ANOVA, followed by Tukey's post hoc test. * p < 0.05 vs. control group (sham-operated wild-type mice); # p < 0.05 vs. MCAO group (wild-type mouse models of MCAO); N = 15.

Knockout of Src gene inactivates the MAPK signaling pathway and reduces cell apoptosis in brain tissues of MCAO mice

Next, immunohistochemistry was performed and the results showed that Src protein was mainly located in the cell nucleus (Figure 7A). More cells stained positive for ERK1/2, p38 and Src in wild-type mouse models of MCAO compared with sham-operated wild-type mice (p < 0.05); however, staining was decreased in Src^-/- mice (p < 0.05). Immunofluorescence analysis (Figure 7B) revealed that the number of cleaved caspase 3⁺ and TUNEL⁺ cells was elevated in wild-type mouse models of MCAO but reduced in Src^-/- mice in comparison to sham-operated wild-type mice (p < 0.05).

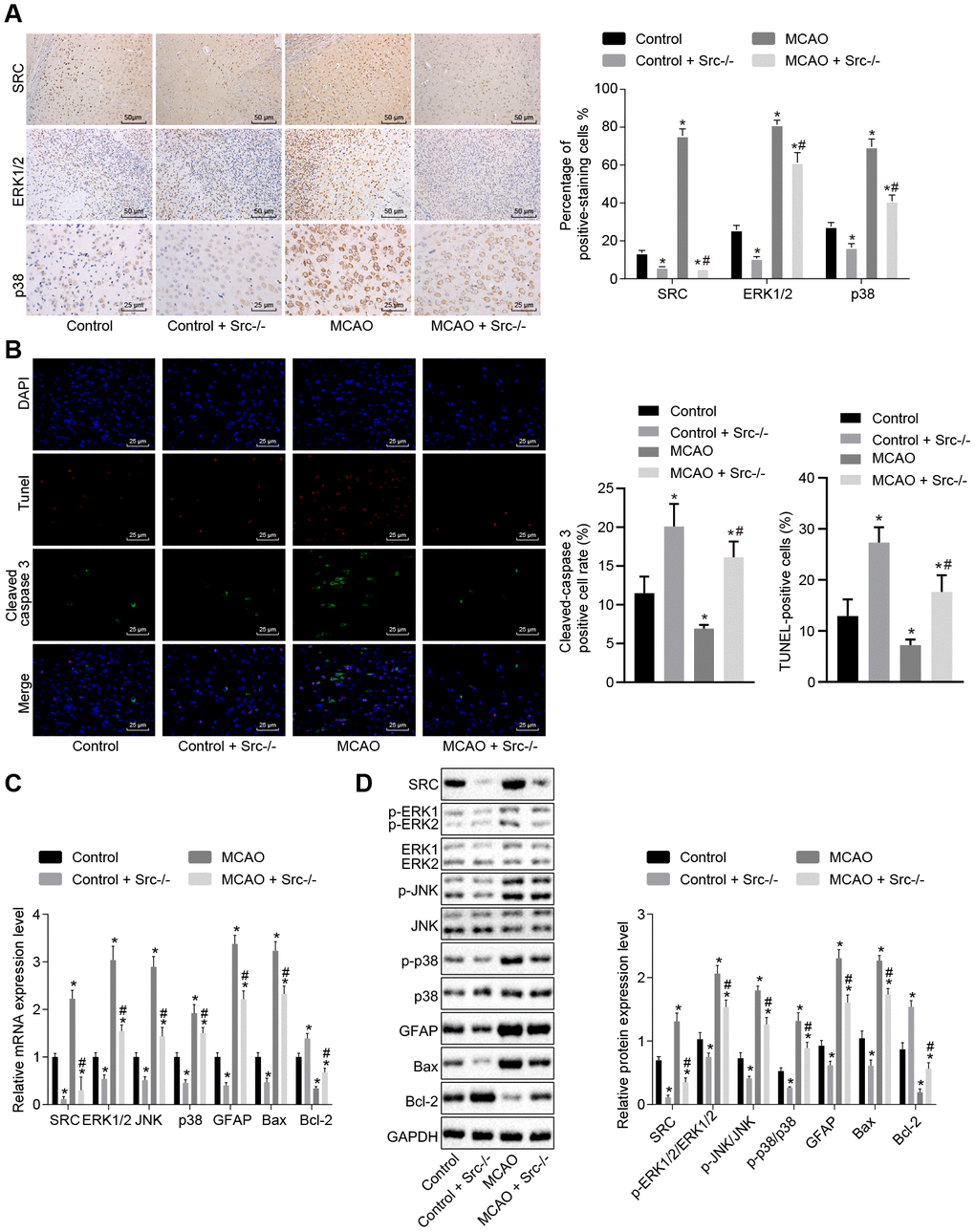

Figure 7. Src knockdown reduces cell apoptosis in brain tissues of MCAO mice by down-regulating the MAPK signaling pathway. (A) Immunohistochemistry of ERK1/2 (× 400), p38 (× 400) and Src (× 200) in the brain tissues of Src^-/- mice; (B) diagram based on the immunofluorescence of cleaved caspase 3, TUNEL staining, and DAPI in brain tissues of Src^-/- mice (× 400); (C) mRNA expression of Erk2, Jnk, p38, Gfap, Bax and Bcl-2 in brain tissues of Src^-/- mice using RT-qPCR; (D) protein level of GFAP, Bax and Bcl-2 along with the extent of ERK1/2, JNK and p38 phosphorylation in brain tissues of Src^-/- mice using Western blot analysis. Measurement data are expressed as mean ± standard deviation and compared using one-way ANOVA, followed by Tukey's post hoc test. * p < 0.05 vs. control group (sham-operated wild-type mice); # p < 0.05 vs. MCAO group (wild-type mouse models of MCAO). N = 15.

RT-qPCR and Western blot analysis (Figure 7C, 7D) showed that wild-type mouse models of MCAO exhibited elevated levels of Src, ERK1/2, JNK, p38, GFAP and Bax as well as increased ERK1/2, JNK and p38 phosphorylation, while the levels of Bcl-2 were diminished. Src knockout reversed the effects of MCAO treatment (p < 0.05). Based on these results, we concluded that knockout of the Src gene inhibited the MAPK signaling pathway and reduced cell apoptosis by suppressing Gfap and Bax expression while increasing Bcl-2 expression.

miR-137 targets Src and inhibits its expression

In the subsequent experiments, we studied the relationship between miR-137 and Src gene. Bioinformatic analysis using the website microRNA.org, predicted that miR-137 could target the Src gene (Figure 8A). Dual-luciferase reporter assay (Figure 8B) confirmed this interaction as the luciferase activity of Src wild-type 3’UTR was significantly inhibited by miR-137 mimic (p < 0.05) compared with sham-operated wild-type mice. The luciferase activity of mutant 3’UTR was not impacted by the addition of miR-137 mimic (p > 0.05). In situ hybridization (Figure 8C) showed that positive staining for miR-137 probe was purple and granular and was widely distributed in the cerebral cortex and hippocampus. Wild-type mouse models of MCAO exhibited lower miR-137 expression in brain tissues than sham-operated wild-type mice. These findings showed that Src was downregulated by miR-13, and that miR-137 was poorly expressed in the brain tissue of MCAO mice.

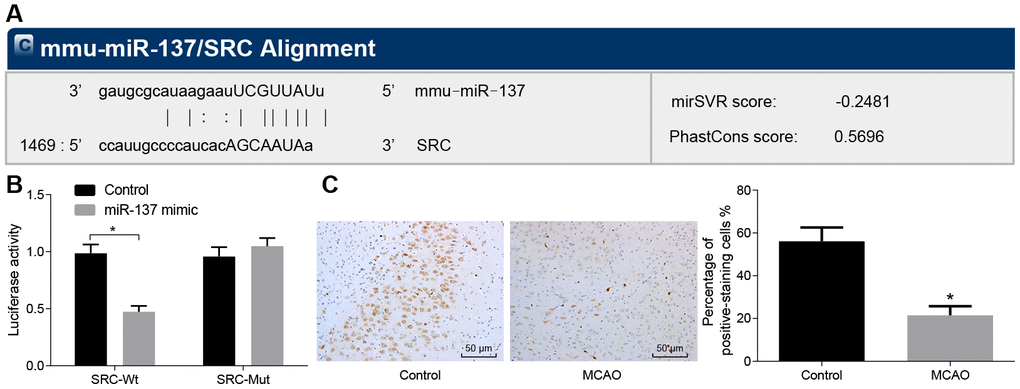

Figure 8. Src is a target gene of miR-137. (A) binding site prediction for miR-137: The 3’UTR of Src was analyzed using microRNA.org; (B) identification of the interaction between miR-137 and Src using dual-luciferase reporter assay; (C) miR-137 expression in the brain tissues of MCAO mice visualized by in situ hybridization (× 200). All measurement data were expressed as mean ± standard deviation and the differences between two groups were compared by independent sample t-test. * p < 0.05 vs. control cells. N = 15.

Knockout of miR-137 ameliorates cerebral infarction, neuron functions and learning and memory abilities in MCAO mice

We then examined the effects of MCAO treatment and miR-137 on behavioral function. Nerve function scoring, foot-fault test, step-down test, TTC staining and Nissl staining were used to determine the effect of miR-137 on cerebral infarction, neuron functions and learning and memory abilities in MCAO mice. MCAO- and miR-137 knockout (miR-137^-/-)-treated mice exhibited increased neurological function scores, number of errors, and rate of left limb fault step, yet shorter latency period compared with sham-operated wild-type mice (Figure 9A–9C) (p < 0.05).

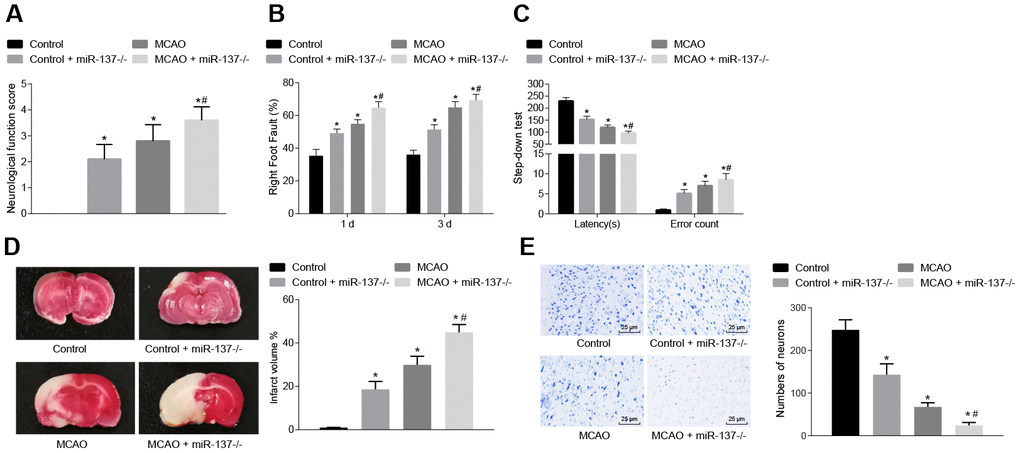

Figure 9. Downregulated miR-137 accelerates cerebral infarction and impairs neuronal functions and learning and memory abilities in MCAO mice. (A) neurological function scores in miR-137^-/- mice; (B) rate of left limb fault step of miR-137^-/- mice by foot-fault test; (C) latency period and number of errors of miR-137^-/- mice in the step-down test; (D) changes in volume of infarct of miR-137^-/- mice using TTC staining; (E) changes in number of neurons in miR-137^-/- mice using Nissl staining (× 400). Measurement data are expressed as mean ± standard deviation and compared using one-way ANOVA, followed by Tukey's post hoc test. * p < 0.05 vs. control group (sham-operated wild-type mice); # p < 0.05 vs. MCAO group (wild-type mouse models of MCAO). N = 15.

TTC staining and Nissl staining (Figure 9D, 9E) showed that the volume of infarct was increased (p < 0.05), while the number of neurons was decreased (p < 0.05) in wild-type mouse models of MCAO in comparison to sham-operated wild-type mice. Both the volume of infarct and number of neurons were reduced in the absence of miR-137 (p < 0.05). These results demonstrated that knockout of miR-137 exacerbated cerebral infarction and neuronal injury, while reducing learning and memory abilities in MCAO mice.

Knockout of miR-137 increases oxidative stress and inflammation in the brain tissues of MCAO mice

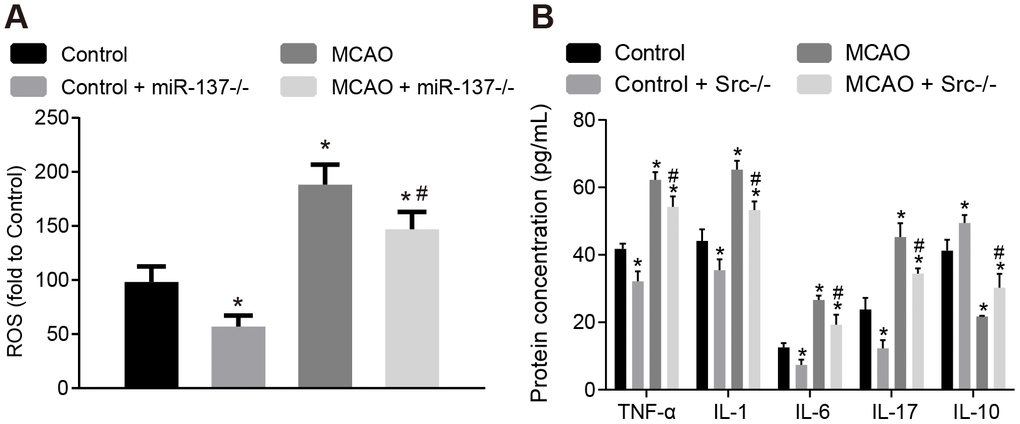

Afterwards, levels of ROS and inflammatory factors in brain tissues were detected. The concentration of ROS and the expression of TNF-α, IL-1, IL-6 and IL-17 were increased (Figure 10A, 10B), whereas IL-10 expression was decreased in brain tissues of wild-type mouse models of MCAO in comparison to sham-operated wild-type mice (p < 0.05). The results were similar in miR-137^-/- mice (p < 0.05). These data indicate that inhibition of miR-137 augmented oxidative stress and inflammation in MCAO mice.

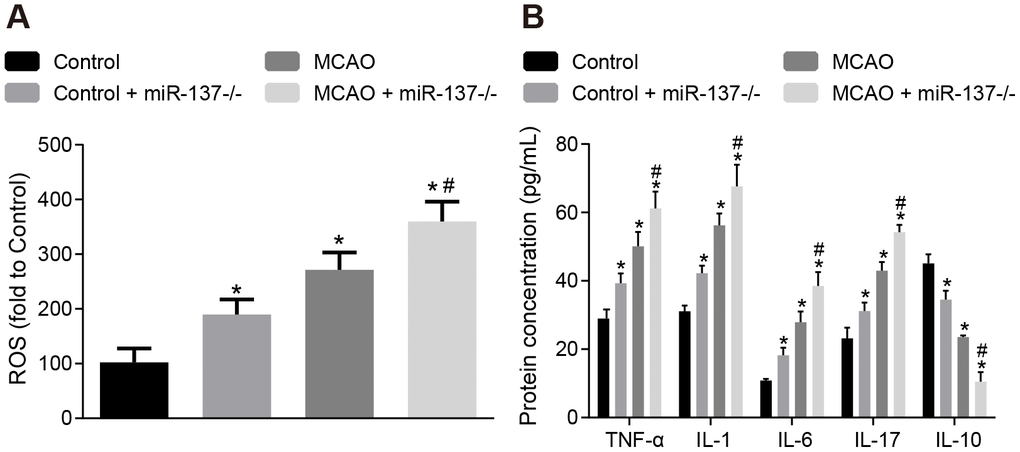

Figure 10. Downregulation of miR-137 increases oxidative stress and inflammatory response in brain tissues from MCAO mice. (A) ROS content in brain tissues from miR-137^-/- mice after staining with a DCFH-DA fluorescently-labeled probe; (B) TNF-α, IL-1, IL-6, IL-17 and IL-10 expression in brain tissues from miR-137^-/- mice using ELISA. Data are expressed as mean ± standard deviation and compared by one-way ANOVA, followed by Tukey's post hoc test. * p < 0.05 vs. control group (sham-operated wild-type mice); # p < 0.05 vs. MCAO group (wild-type mouse models of MCAO). N = 15.

Knockout of miR-137 activates the MAPK signaling pathway by elevating Src resulting in increased cell apoptosis

Immunohistochemistry was performed to identify the roles of miR-137 in the MAPK signaling pathway. The results showed an increase in positive staining for ERK1/2, p38 and Src in MCAO-operated miR-137^-/- mice (Figure 11A) (p < 0.05) compared with sham-operated wild-type mice. Analysis of cleaved caspase 3, TUNEL, and DAPI staining (Figure 11B) revealed that the number of Cleaved caspase 3 and TUNEL double positive cells increased in MCAO-operated miR-137^-/- mice in comparison to sham-operated wild-type mice (p < 0.05). RT-qPCR and Western blot analysis (Figure 11C, 11D) showed an increase in Src, ERK1/2, JNK, p38, GFAP and Bax expression as well as increased ERK1/2, JNK and p38 phosphorylation in the absence of miR-137^-/- while expression of miR-137 and Bcl-2 was reduced (p < 0.05). These results suggest that knockout of miR-137 activated the MAPK signaling pathway, upregulated Gfap and Bax, and downregulated Bcl-2 by activating Src, and promoted cell apoptosis.

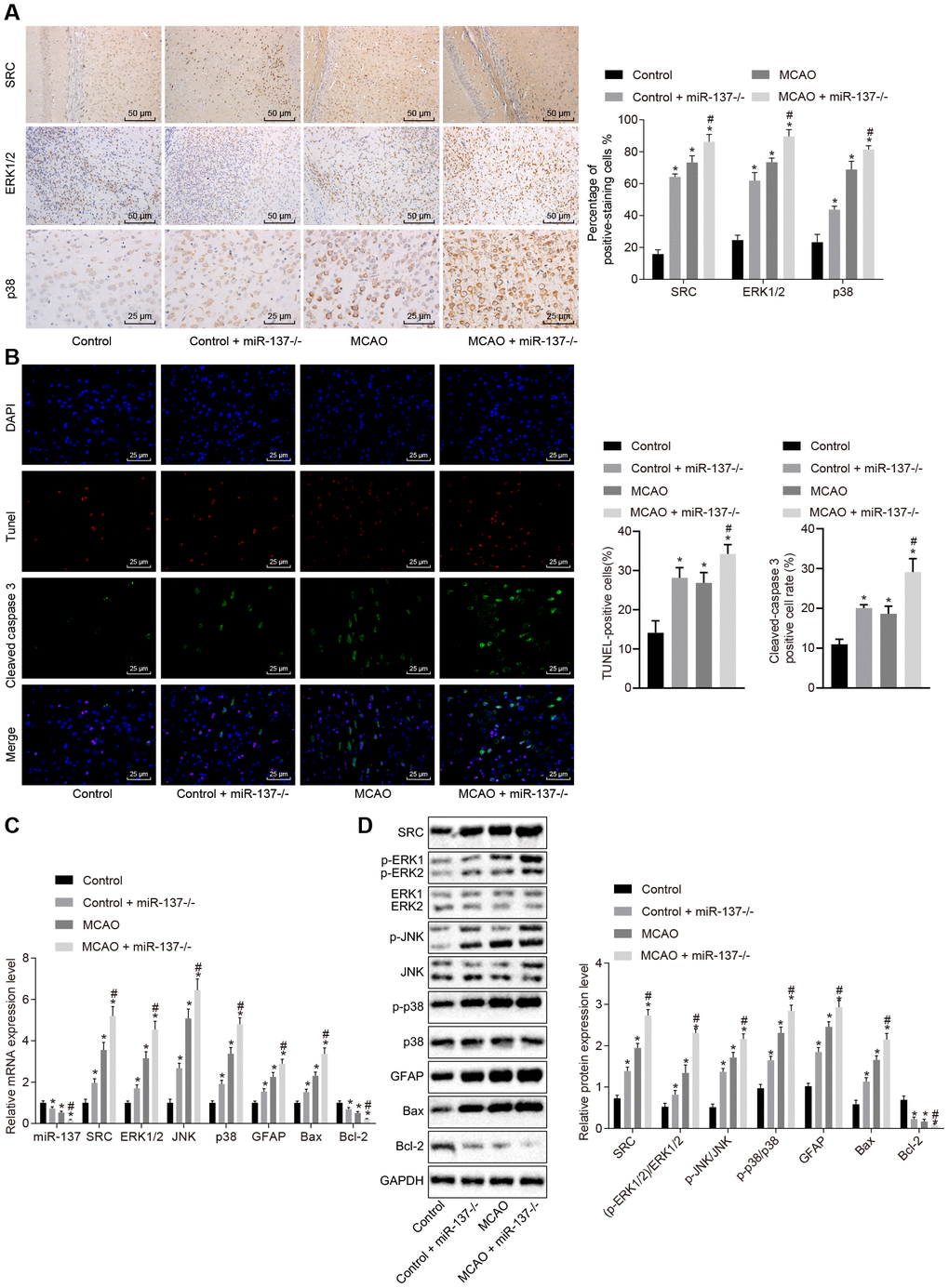

Figure 11. Downregulated miR-137 activates the MAPK signaling pathway and increases cell apoptosis by increasing Src expression. (A) ERK1/2, p38 and Src in the brain tissues of miR-137^-/- mice by immunohistochemistry (× 200); (B) immunofluorescence images of cleaved caspase 3, TUNEL staining, and DAPI staining in brain tissues from miR-137^-/- mice (× 400); (C) mRNA levels of Erk2, Jnk, p38, Gfap, Bax and Bcl-2 in brain tissues from miR-137^-/- mice detected using RT-qPCR; (D) protein levels of GFAP, Bax and Bcl-2 along with the extent of ERK1/2, JNK and p38 phosphorylation in brain tissues from miR-137^-/- mice detected using Western blot analysis. Measurement data are expressed as mean ± standard deviation and compared using one-way ANOVA, followed by Tukey's post hoc test. * p < 0.05 vs. control group (sham-operated wild-type mice); # p < 0.05 vs. MCAO group (wild-type mouse models of MCAO). N = 15.

miR-137 disrupts the MAPK signaling pathway by targeting Src

Subsequently, we attempted to verify that miR-137 inhibits the MAPK pathway by targeting Src expression in vitro. First, we designed three siRNAs to downregulate the Src gene, and infected astrocytes with lentiviruses, after which RT-qPCR was employed to detect the expression of Src in the astrocytes. The results showed that Src expression was reduced in cells upon treatment with si-Src-1, si-Src-2 and si-Src-3, among which si-Src-1 exhibited the lowest Src expression (Supplementary Figure 2). Thus, we chose the si-Src-1 sequence for subsequent experiments.

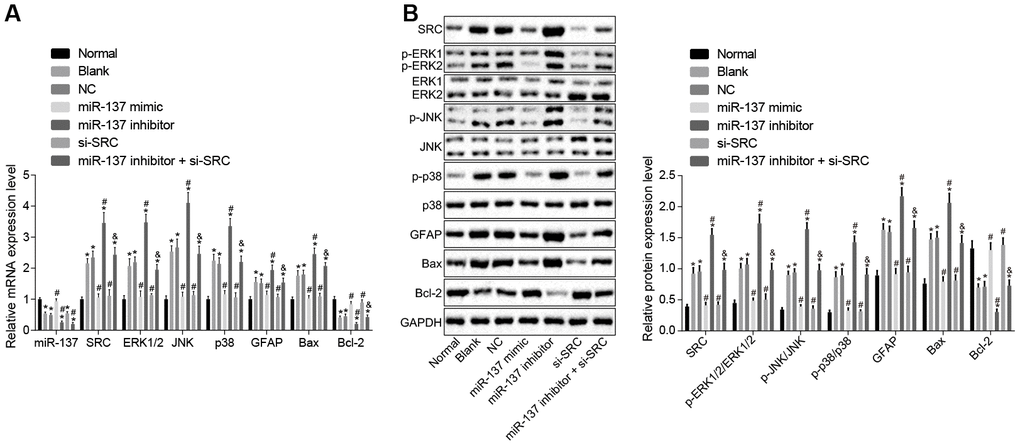

Next, RT-qPCR and Western blot analysis were performed to determine the expression of the MAPK signaling pathway-related genes in cell (Figure 12A, 12B). In comparison to normal astrocytes, astrocytes exposed to oxygen glucose deprivation (OGD) exhibited decreased levels of miR-137 and Bcl-2, but increased levels of Src, ERK2, JNK, p38, GFAP and Bax along with extent of ERK1/2, JNK and p38 phosphorylation (p < 0.05). Treatment with miR-137 mimic or si-Src eliminated the effects of OGD treatment on astrocytes (p < 0.05). These findings showed that the MAPK signaling pathway and Src were activated after OGD treatment and that miR-137 inhibited the Src and MAPK signaling pathways sequentially.

Figure 12. miR-137 inhibits Src thus inactivating the MAPK signaling pathway in astrocytes. (A) miR-137 expression and mRNA levels of Src, Erk2, Jnk, p38, Gfap, Bax and Bcl-2 in astrocytes detected using RT-qPCR; (B) protein levels of Src, GFAP, Bax and Bcl-2 along with the extent of ERK1/2, JNK and p38 phosphorylation in astrocytes detected using Western blot analysis. Measurement data are expressed as mean ± standard deviation and compared using one-way ANOVA, followed by Tukey's post hoc test. * p < 0.05 vs. normal astrocytes; # p < 0.05 vs. OGD-induced astrocytes treated with negative controls; & p < 0.05 vs. astrocytes treated with miR-137 inhibitor. The experiment was repeated 3 times independently.

Up-regulation of miR-137 or inhibition of Src inhibits inflammatory cytokine secretion and oxidative stress in astrocytes

Subsequently, we measured the expression of inflammatory factors and ROS and found that the expression of TNF-α, IL-1, IL-6, IL-17 and ROS was elevated (Figure 13A, 13B), while the expression of IL-10 was reduced in astrocytes exposed to OGD (p < 0.05). On the other hand, astrocytes treated with miR-137 mimic or si-Src showed opposite trends when compared with normal astrocytes (p < 0.05). These findings revealed that OGD treatment increased oxidative stress in cells and inflammation, while up-regulation of miR-137 or inhibition of Src reversed these effects in astrocytes.

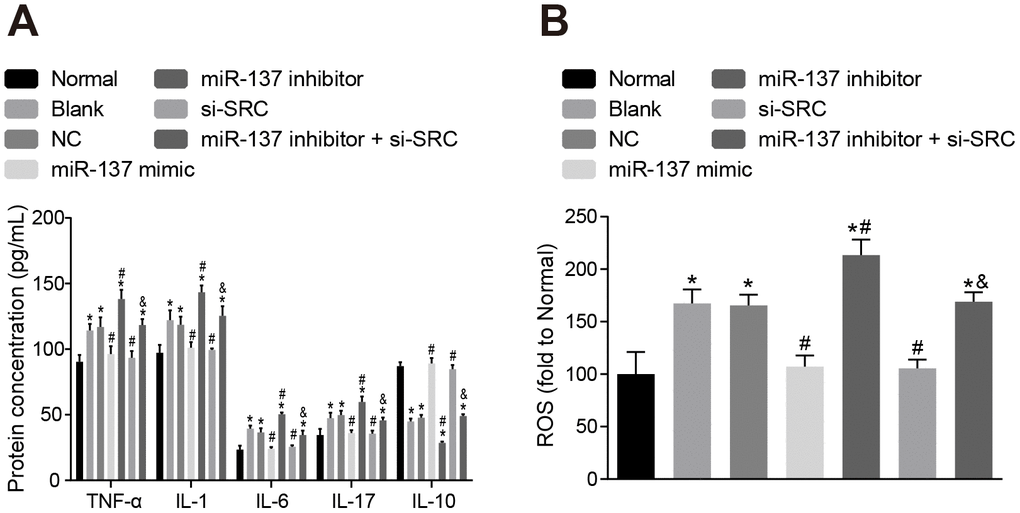

Figure 13. Up-regulation of miR-137 or inhibition of Src inhibits the secretion of inflammatory cytokines and the degree of oxidative stress in astrocytes. (A) The expression of inflammatory markers in astrocytes using ELISA; (B) quantitation of ROS in astrocytes for each treatment group using the DCFH-DA fluorescent probe. Measurement data were expressed as mean ± standard deviation and compared using one-way ANOVA, followed by Tukey's post hoc test. * p < 0.05 vs. normal astrocytes; # p < 0.05 vs. OGD-induced astrocytes treated with negative controls; & p < 0.05 vs. astrocytes treated with miR-137 inhibitor. The experiment was repeated 3 times independently.

Up-regulation of miR-137 or inhibition of Src enhances viability and inhibits apoptosis of neuron cells

Finally, cell counting kit-8 (CCK-8) assay (Figure 14A), 3-(4,5-dimethylthiazol-2-yl)-5(3-carboxymethonyphenol)-2-(4-sulfophenyl)-2H-tetrazolium (MTS) assay (Figure 14B) and Annexin V-fluorescein isothiocyanate (FITC)/propidium iodide (PI) double staining (Figure 14C) were used to assess the roles of miR-137 and Src in neuron cells. Astrocytes exposed to OGD had decreased viability and neuronal activity in comparison with normal astrocytes, while astrocytes treated with miR-137 mimic or si-Src showed opposite trends (p < 0.05). These findings suggest that overexpression of miR-137 or inhibition of Src could potentially enhance cell viability and reduce apoptosis in neuronal cells.

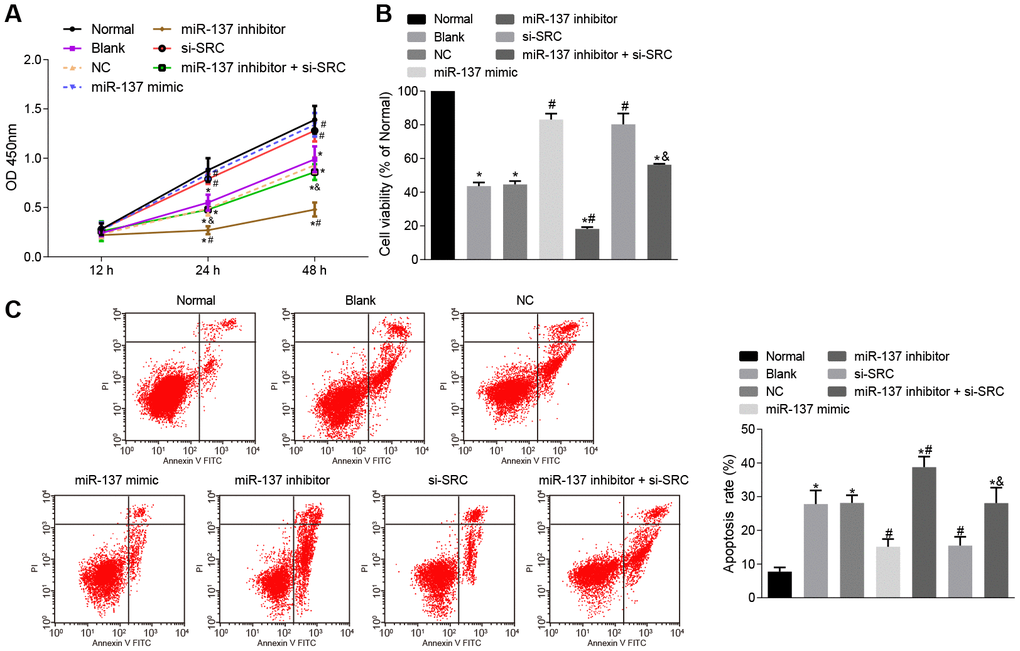

Figure 14. Up-regulation of miR-137 or inhibition of Src suppresses apoptosis of neuron cells. (A) neuronal cell viability after treatment with miR-137 mimic or si-Src measured using CCK-8; (B) neuronal cell activity after treatment with miR-137 mimic or si-Src measured using MTS assay; (C) apoptosis rate of neuron cells treated with miR-137 mimic or si-Src measured using Annexin V-FITC/PI double staining. Measurement data are expressed as mean ± standard deviation. Data among multiple groups are compared using one-way ANOVA, followed by Tukey's post hoc test and those among multiple groups at different time points were compared using two-way ANOVA, followed by Bonferroni's post hoc test. * p < 0.05 vs. normal astrocytes; # p < 0.05 vs. OGD-induced astrocytes treated with negative controls; & p < 0.05 vs. astrocytes treated with miR-137 inhibitor. The experiment was repeated 3 times independently.

Ethics statements

This study was approved by the Experimental Animal Ethics Committee of The First Hospital of Jilin University. Animal experiments were performed in strict accordance to the Guide for the Care and Use of Laboratory animals published by the US National Institutes of Health.

Microarray-based gene expression profiling

Microarray data associated with ischemic stroke (GSE9391) were downloaded from the Gene Expression Omnibus (GEO) Database (http://www.ncbi.nlm.nih.gov/geo). Standard pretreatment of the microarray data was conducted using the "limma" package in R language. The minimum criteria for identifying differentially expressed genes (DEGs) were a p value < 0.05 and |LogFoldChange| > 2. The expression of the DEGs was used to generate a heat map. Genes of interest in the String database were then analyzed for their ability to interact (interaction score > 0.4), followed by analysis of the Kyoto Encyclopedia of Genes and Genomes (KEGG) for gene enrichment. The Cytoscape 3.6.0 software was used to visualize the protein-protein interaction (PPI) network of the DEGs. miRNAs that potentially regulate DEGs were analyzed using the DIANA (http://diana.imis.athena-innovation.gr/DianaTools/index.php?r=microT_CDS/index), TargetScan (http://www.targetscan.org/vert_71/) and microRNA databases (http://34.236.212.39/microrna/getGeneForm.do). Finally, miRNAs identified using the prediction software were compared using software that generates custom Venn diagrams (http://bioinformatics.psb.ugent.be/webtools/Venn/).

MCAO model establishment in mice

miR-137^-/- C57BL/6J male mice, Src^-/- C57BL/6J male mice, and wild-type C57BL/6J male mice (weighing 18-22 g, aged 8-10 weeks) were purchased from The Jackson Laboratory (Bar Harbor, Maine, USA) and housed in a non-specific-pathogen free (SPF) laminar shelf at 24-26°C with a constant humidity of 45-55%. Both the food and drinking water were sterilized before use.

A mouse model of MCAO was established by the thread occlusion method [33]. In brief, the mice were placed under anesthesia by intraperitoneal injection of 2% pentobarbital sodium (40 mg/kg), and then fixed. The left common carotid artery, external carotid artery and internal carotid artery were exposed through a 1 cm incision in the neck. The proximal part of the common carotid artery and distal end of external carotid artery were ligated. A loose knot was tied between the two nodes in the common carotid artery, and the thread was inserted into the internal carotid artery from the external carotid artery and then reached the middle cerebral artery (about 12 mm). One hour after obstruction of the blood vessels, the thread was taken out and the skin was sutured. The mice in the sham-operated group were operated on but no knot was made.

Lentiviral constructs were then injected into the lateral ventricle of mice. In short, p38 siRNA, Erk2 siRNA and control lentiviral constructs were purchased from Shanghai Genechem Co., Ltd. (Shanghai, China). The mice were anesthetized by injection with 2% pentobarbital sodium (40 mg/kg) in the head, and then injected with 10 μL siRNA lentivirus (a titer of 2 × 10⁸ U/mL) in the skull. The follow-up experiment was carried out 7 days later.

Animal grouping

The animal experiment was divided into three parts. (1) The first part was to identify effects of p38 and ERK1/2 signaling pathway on ischemic injury in MCAO mice. (2) The second part was to investigate whether Src knockout affected ischemic injury in MCAO mice by inhibiting the MAPK signaling pathway. (3) Third, we determined whether miR-137 targeted the Src gene during ischemic injury in MCAO mice. Following the MCAO procedure, 1-4 mice in each group died, while mice that didn’t receive MCAO survived normally. The total number of mice was 190, of which 17 died and 8 mice were used for alternatives, with a total survival rate of 91.05%. The specific grouping was as follows. A total of 75 wild-type mice were divided into control mice (receiving blank lentivirus and sham operation) and MCAO mice (receiving blank lentivirus and MCAO operation), which were further treated with si-p38, si-Erk2 or in combination. In addition, 90 Src^-/- mice were divided into control (Src^-/- mice receiving sham operation) and MCAO + Src^-/- mice (Src^-/- mice receiving MCAO operation). Also, 90 miR-137^-/- mice were divided into control (miR-137^-/- mice receiving sham operation) and MCAO + miR-137^-/- mice (miR-137^-/- mice receiving MCAO operation).

Nerve function scoring

Nerve function of the mice was analyzed using Longa score at 48 h post operation, and score of neurological function was recorded [34].

Foot-fault test

The foot-fault test was performed at 48 h post operation. The test indexes included number of right foot fault and left foot fault. During the first 3 days of the experiment, the mice were trained to climb across an elevated network from one end to the other. The foot-fault test was performed on the first and third days after the training and the fault step rate was calculated [35].

Step-down test

The test box was 60 cm × 50 cm × 60 cm, and the bottom was stainless steel strip with an electric device. Food was placed in front of the plastic platform. The box was connected to power supplies (40 V for 2 s) when the mice ate the food. The duration of time from when the mice jumped onto the platform, where the food was provided, until they jumped down, the “latent period”, during which the mice received electric shock, was recorded. The number of times the mouse received electric shock during a 3 min period was recorded as the fault number. The test was performed after training for several min in a quiet environment [36].

Nissl staining

Seven days after operation, the mice were euthanized by anesthesia. After cardiac perfusion, the brains of mice were fixed in 10% formaldehyde, embedded in paraffin and sliced at a thickness of 4 μm. The samples were dehydrated with 100% absolute ethyl alcohol for 10 min and 95% ethanol for 2 min. Next, the slices were treated with Nissl staining for 10 min at 50°C, separated using 95% ethanol for 20 s, dehydrated using 100% absolute ethyl alcohol for 5 min, and mounted using neutral gel. Histopathological changes were then observed and images were obtained under a common microscope (Nikon Corporation, Tokyo, Japan).

TTC staining

Brain tissues were frozen at -20°C for 20 min and then successive coronal slices (1.5 mm thick) were made. Then the slices were incubated with 0.5% TTC solution at 37°C in the dark. The brain slices were scanned. The images were optimized and processed, and the infarct size was then analyzed using the Image-pro plus software (Media Cybernetics, Silver Spring, MD, USA).

Measurement of ROS accumulation

The brain tissues of the mice were collected seven days after MCAO operation and the cerebral cortex of the ischemic side was separated on ice, added with pre-cooled homogenate buffer at a ratio of 1: 10, ground into tissue homogenate on ice, and then centrifuged to obtain the supernatant. Then, 10 μmol/L 2’,7’-Dichlorodihydrofluorescein diacetate (DCFH-DA) fluorescent probe was mixed with the tissue homogenate or astrocyte culture medium in a 37°C cell incubator for 20 min, and then rinsed with phosphate buffer saline (PBS) three times to remove the probe. The fluorescence level of DCFH in tissues was detected using an automatic microplate reader. The fluorescence level was measured at an excitation wavelength of 488 nm and an emission wavelength of 525 nm.

Enzyme-linked immunosorbent assay (ELISA)

The expression of inflammatory factors in the supernatant derived from mice brain homogenate or astrocytes was detected using TNF-α, IL-1, IL-6, IL-10 and IL-17 ELISA kits according to the manufacturer’s instructions (Wuhan Beinglay Biotechnology Co., Ltd., Hubei, China).

Immunohistochemistry

Seven days after operation, paraffin-embedded cerebral cortex tissues in the area surrounding the infarction were sliced, fixed, cleared, and mounted. Next, the tissue slices were incubated with anti-mouse ERK1/2 monoclonal antibody (1: 100, ab54230), anti-mouse p38 monoclonal antibody (1: 200, ab31828), or anti-rabbit Src monoclonal antibody (1: 500, ab109381 (Abcam, Cambridge, UK) at 4°C. Next, the slices were incubated with secondary antibody working solution of goat anti-rabbit or anti-mouse (ZSGB-BIO, Beijing, China) at 37°C for 1 h, and then developed using 3, 3'-diaminobenzidine (DAB) (ZSGB-BIO, Beijing, China) for 3-5 min. True color multi-functional cell image analysis system (Media Cybernetics, Silver Spring, MD, USA) was used to record images. Four slices were taken from each specimen, and 6 fields were randomly selected. The percentage of positive cells was counted under a light microscope and the average value was taken to reflect the positive level of ERK1/2, Src or p38, respectively.

Immunofluorescence assay

Cerebral cortex tissues on the infarction side were sliced, rinsed, fixed, cleared, and then incubated with mouse anti-cleaved caspase 3 (ab49822; 1: 1000) at 4°C overnight. The slices were then incubated with TRITC-labeled rabbit anti-goat secondary antibodies (1: 1000, ab53554) at 37°C for 1 h in dark, incubated with DAPI (Thermo Fisher Scientific, San Jose, California, USA) at 37°C for 1 h, and then mounted by addition of anti-quenching sealing agent. Images were acquired with a laser-scanning confocal microscope in 5 randomly selected fields from each slice. All above antibodies were purchased from Abcam (Cambridge, UK). TUNEL staining was performed according to the manufacturer’s instructions included with the TUNEL staining kit (Roche Ltd., Basel, Switzerland). Images were acquired with a fluorescence microscope in 5 randomly selected fields on each slide. TUNEL-positive cells are shown in red and DAPI staining in blue indicating all cells. Image J software was employed to count the number of positive cells under the same magnification and the percentage of TUNEL-positive cells among all cells was calculated, followed by statistical analysis.

RNA isolation and quantitation

Total RNA was collected from mouse brain tissues or astrocytes using an RNA Extraction Kit (10296010, Invitrogen, Co., Ltd., Shanghai, China). RNA was then reverse transcribed into complementary DNA and antisense miRNA according to the instructions in the PrimeScript RT kit (RR014A, Takara Biotechnology Ltd., Beijing, China). Primers (Table 1) were designed and synthesized by Takara Biotechnology Ltd. (Beijing, China). RT-qPCR was carried out using the PCR reagent kit (KR011A1, Tiangen Biotechnology Co., Ltd., Beijing, China). U6 served as the internal reference for miR-137 and glyceraldehyde-3-phosphate dehydrogenase (Gapdh) served as the internal reference for the remaining genes. The fold changes were calculated based on the relative quantification 2^-ΔΔCt method [37].

Western blot analysis

The ischemic brain tissues (obtained 7 days after operation) or astrocytes were collected and lysed in radioimmunoprecipitation assay (RIPA) buffer (PS0013, Reagan Biotechnology Co., Ltd., Beijing, China). The proteins were then separated by sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) and transferred to a nitrocellulose membrane. Subsequently, the membrane was incubated overnight at 4°C with diluted primary rabbit anti-mouse antibodies against Src (1: 1000, ab47405), ERK1/2 (1: 1000, ab184699), p-ERK1/2 (1:1000, ab201015), JNK (1: 1000, ab179461), p-JNK (1: 1000, ab124956), p38 (1: 1000, ab170099), p-p38 (1: 1000, ab195049), GFAP (1: 10000, ab68428), Bax (1: 1000, ab32503), Bcl-2 (1: 1000, ab59348) or GAPDH (1: 5000, ab22555) (Abcam, Cambridge, UK). After being rinsed with PBS containing 0.1% Tween-20 (PBST) (10 min, 3 times), the membrane was incubated with horseradish peroxidase-labeled secondary goat anti-rabbit (1: 10000, DF109489, Yaoyun Biotechnology Co., Ltd., Shanghai, China) for 1 h at room temperature. The immunocomplexes on the membrane were visualized using enhanced chemiluminescence (ECL) reagent (36208ES60, Amersham Life Sciences Inc., Arlington Heights, Illinois, USA). ImageJ software was used for semi-quantitative analysis of Western blot results. The relative level of the protein was calculated using the ratio between the target band and the internal reference band. Experiments were repeated three times.

Dual-luciferase reporter assay

The Src 3’UTR gene fragment was artificially synthesized, and then introduced into pMIR-reporter plasmid (Promega, Madison, WI, USA) within the endonuclease site SpeI and Hind III. After restriction enzyme cutting, wild-type sequence and a mutant target fragment of Src were inserted into the pMIR-reporter reporter plasmid using T4 DNA ligase. Wild-type Src luciferase reporter plasmid and mutant luciferase reporter plasmids were co-transfected with miR-137 into HEK-293T cells (Shanghai Beinuo Biotechnology Co., Ltd., Shanghai, China) respectively for 48 h. Next, the cells were collected. Luciferase activity in cell extracts was analyzed by Dual-Luciferase Reporter Assay System (Promega Corp., Madison, Wisconsin, USA).

In situ hybridization

The cerebral cortex on the ischemic side of the control group and the MCAO group was mounted on a slide, incubated at 60°C for 1 h, dewaxed and hydrated by xylene I and xylene II for 30 min respectively, and then dehydrated with gradient alcohol. An in situ hybridization Kit (Wuhan Boster Biological Technology Ltd., Hubei, China) was used to detect miR-137 expression in mouse brain tissues. The probe was synthesized by Shanghai Invitrogen, Co., Ltd. (Shanghai, China). In situ hybridization was performed according to the standard protocol included with the kit. Images were analyzed using multi-functional cell image analysis management system (Media Cybernetics, Silver Spring, MD, USA). Four slices were taken from each specimen, and 3 fields were randomly selected from each slice. The percentage of positive cells was counted under a light microscope and the average value was calculated to reflect the positive level of miR-137.

In vitro isolation and subculture of primary astrocytes and cerebral cortical neuron cells in mice

C57BL/6J mice no more than 3 days old were purchased from Shanghai SLAC Laboratory Animal Co., Ltd. (Shanghai, China) and euthanized by decapitation under aseptic conditions. After removal of the pia mater and blood vessels, the cerebral cortex was obtained, and treated with 0.125% trypsin at 37°C for 15 min. Trypsinization was terminated using complete medium. The mixture was filtered, centrifuged at 1000 rpm to obtain the precipitate and then complete medium was added to make a single cell suspension. Subsequently, the cells were inoculated in 75 mm² culture bottles coated with poly-L lysine (5 × 10⁵ cells/cm²), and then cultured in a 37°C incubator with 5% CO₂. The culture medium for astrocytes was changed for the first time after 24 h, and then every 2 days, thereafter. When cells reached 80-90% confluence, they were subcultured at a density of 1 × 10⁵ cells/mL, and then cultured in high-glucose Dulbecco's modified Eagle's medium (DMEM) supplemented with 10% fetal bovine serum. Neuronal cell culture medium was replaced by Neurobasal medium supplemented with 2% B27 (GIBCO BRL, Gaithersburg, MD, USA). After 48 h, 5 μg/mL cytosine arabinoside (Sigma, USA) was added to inhibit the growth of astrocytes. After 48 h of incubation, the medium was changed, and then half of the medium was changed every day for 6-7 days for subsequent experiments.

Identification of astrocytes

The cells were fixed with 4% paraformaldehyde for 15 min, treated with 1% Triton X-100 for 15 min to permeabilize the cells, and then incubated with 3% H₂O₂ in deionized water for 10 min to block endogenous peroxidase activity. After being blocked with 10% goat serum for 30 min, the cells were incubated with diluted goat anti-GFAP (1: 1000, ab4674) at 4°C overnight, and incubated with TRITC-labeled secondary goat anti-rabbit (1: 1000, ab53554) at 37°C for 1 h in the dark. The cells were observed under a fluorescence microscope. All above antibodies were purchased from Abcam (Cambridge, UK).

Establishment of OGD-induced astrocyte model

OGD model was prepared using well-grown astrocytes. The medium was replaced with sugar free medium, and put into a 37°C hypoxic incubator containing 5% CO₂, 2% O₂ and 93% N₂ for 16 h. Subsequently, the medium was replaced with high glucose medium with 10% fetal bovine serum, and then incubated in a saturated normoxic incubator at 37°C with 5% CO₂.

Astrocyte treatment

miR-137 mimic, miR-137 inhibitor and negative controls were purchased from Shanghai Reborn Biological Engineering Co., Ltd. (Shanghai, China). Lentivirus containing Src siRNA was purchased from Shanghai Genechem Co., Ltd. (Shanghai, China). Cells were incubated in a 5% CO₂ incubator at 37°C, and then transfected with one of the above miRNAs, respectively after cells reached 80% confluence. Lipofectamine^TM 2000 and miR-137 mimic or miR-137 inhibitor were prepared according to the Lipofectamine 2000 instructions (Invitrogen, Carlsbad, USA). After transfection for 48 h, the cells were collected and used in subsequent experiments. After even trituration, the 6-well plate was placed in a 5% CO₂ incubator at 37°C for 48 h.

The cells were treated with si-p38-1 (cells infected with p38 siRNA-1 lentivirus), si-p38-2 (cells infected with p38 siRNA-2 lentivirus), si-p38-3 (cells infected with p38 siRNA-3 lentivirus), si-Erk2-1 (cells infected with Erk2 siRNA-1 lentivirus), si-Erk2-2 (cells infected with Erk2 siRNA-2 lentivirus), si-Erk2-3 (cells infected with Erk2 siRNA-3 lentivirus), miR-137 mimic (cells transfected with miR-137 mimic for 48 h and treated with OGD for 16 h), miR-137 inhibitor (cells transfected with miR-137 inhibitor and treated with OGD for 16 h), si-Src (cells infected with Src siRNA lentivirus and treated with OGD for 16 h) and miR-137 inhibitor + si-Src (cells transfected with miR-137 inhibitor and infected with Src siRNA lentivirus and treated with OGD for 16 h) as well as their corresponding controls.

Co-culture of astrocytes and neuron cells

Astrocytes were cultured in 6-well plates with 4 paraffin columns (2 mm height) at the bottom of each well to support the slide. Neurons were cultured on glass slides treated with poly-L-lysine for 7 days, and then co-cultured with astrocytes. Astrocytes and neurons were collected for subsequent experiments after 48 h of culture.

CCK-8 assay

Neuronal cells were seeded in a 96-well plate at a density of 5 × 10⁴ cells/mL and then incubated at 37°C with 5% CO₂. Three wells of each group were randomly selected for addition of 10 μL of CCK-8 (Dojindo Laboratories, Kumamoto, Japan) at 37°C for 4 h at 12 h, 24 h or 48 h. Optical density (OD) of each well was measured at 450 nm using an enzyme-linked immunometric meter (elx800, Bio-Tek, Vermont, USA). Experiments were repeated three times.

MTS assay

Neuronal cells were seeded in a 96-well plate at a density of 5 × 10⁴ cells/mL and treated with 20 μL of Cell Titer 96 AQueous One Solution Reagent and then incubated in a 37°C saturated humidity incubator for 1 h. OD of each well was measured at 490 nm using a microplate reader. Cell survival rate was then calculated.

Annexin V-FITC/PI double staining

Neuronal cells were cultured in a 5% CO₂ incubator at 37°C for 48 h. The cells were collected and resuspended in 200 μL binding buffer after centrifugation. The cells were then mixed with 10 μL Annexin V-FITC (ab14085, Abcam, Cambridge, UK) and 5 μL propidium iodine (PI) for 15 min avoiding exposure to light, and then 300 μL of binding buffer was added. Apoptotic cells were detected using a flow cytometry (Becton, Dickinson and Company, Franklin Lakes, NJ, USA).

Statistical analysis

Statistical analyses were conducted using the SPSS 21.0 statistical software (International Business Machines Corporation., Armonk, NY, USA). All data were expressed as mean ± standard deviation. Measurement data between two groups were compared by independent sample t-test, while among multiple groups were compared by one-way analysis of variance (ANOVA), followed by Tukey's post hoc tests with corrections for multiple comparisons. Two-way ANOVA with Bonferroni post hoc test was applied for the comparison of data at different time points. Pearson's correlation coefficient was used for correlation analysis. p < 0.05 was indicative of statistical significance.
